D-Link DHP-700AV Manuel utilisateur
DHP-700AV / DHP-701AV
User Manual
PowerLine AV2 2000 Gigabit Adapter /
PowerLine AV2 2000 Gigabit Starter Kit
Version 1.00 | January 23, 2015
2D-Link DHP-700AV / DHP-701AV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2015 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.00 January 23, 2015 • Initial release for hardware A1
Preface
3D-Link DHP-700AV / DHP-701AV User Manual
Table of Contents
Preface................................................................................ 2
Manual Revisions.......................................................................... 2
Trademarks ..................................................................................... 2
Product Overview.............................................................. 4
Package Contents......................................................................... 4
Minimum Requirements............................................................ 4
Introduction ................................................................................... 5
Features............................................................................................ 5
Hardware Overview..................................................................... 6
LEDs........................................................................................... 6
Connection ............................................................................. 7
Hardware Installation ....................................................... 8
Push Button Security.................................................................11
PowerLine Installation Considerations ...............................13
Safety ..............................................................................................14
Troubleshooting ..............................................................15
Technical Specications ..................................................16
Contacting Technical Support ........................................17
Warranty...........................................................................18
Registration .....................................................................23
Table of Contents
4D-Link DHP-700AV / DHP-701AV User Manual
Section 1 - Product Overview
If any of the above items are missing, please contact your reseller.
Product Overview
Package Contents
PowerLine AV2 2000 Gigabit Adapter
Ethernet Cable
Quick Install Guide
DHP-700AV
Two PowerLine AV2 2000 Gigabit Adapters
Two Ethernet Cables
Quick Install Guide
DHP-701AV Kit
Minimum Requirements
Network Requirements
• Ethernet Network Interface (10/100/1000 Mbps)
• Router with Internet Connection
• An available electrical outlet (for each adapter)
5D-Link DHP-700AV / DHP-701AV User Manual
Section 1 - Product Overview
Features
• Get a high-speed network using your existing electrical wiring
• PowerLine AV2 Technology - Speeds of up to 2000Mpbs*
• Gigabit Ethernet Ports for Gigabit speeds
• Plug-and-Play installation
• Power saving mode reduces power consumption up to 85%
• 128-bit AES Link Encryption with key management for secure power line communications
Note: Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition
and conguration, may aect the performance of this product. Additional D-Link PowerLine AV2 series products are required to add new devices to the
network. A minimum of two D-Link PowerLine AV2 series products are required to create a network. Connecting this product to a power strip with a surge
protector may adversely aect the performance of this product. For best results, plug the adapter directly into a wall outlet.
* Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of trac
and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect
the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that
do not follow the HomePlug AV standard.
Introduction
Create a high-speed home network at speeds of up to 2000Mbps*. The DHP-701AV kit includes two DHP-700AV Powerline AV2 2000 Gigabit adapters.
You can connect several dierent devices, from routers, computers, access points, gaming consoles, to Smart TV’s, bringing Ethernet network connectivity
to hard-to-reach areas in your home. Each adapter will come with the latest in AV2 MIMO technology and Gigabit connectivity so that you can stream
more HD media, transfer all those large les and be online playing games with your friends.
6D-Link DHP-700AV / DHP-701AV User Manual
Section 1 - Product Overview
Hardware Overview

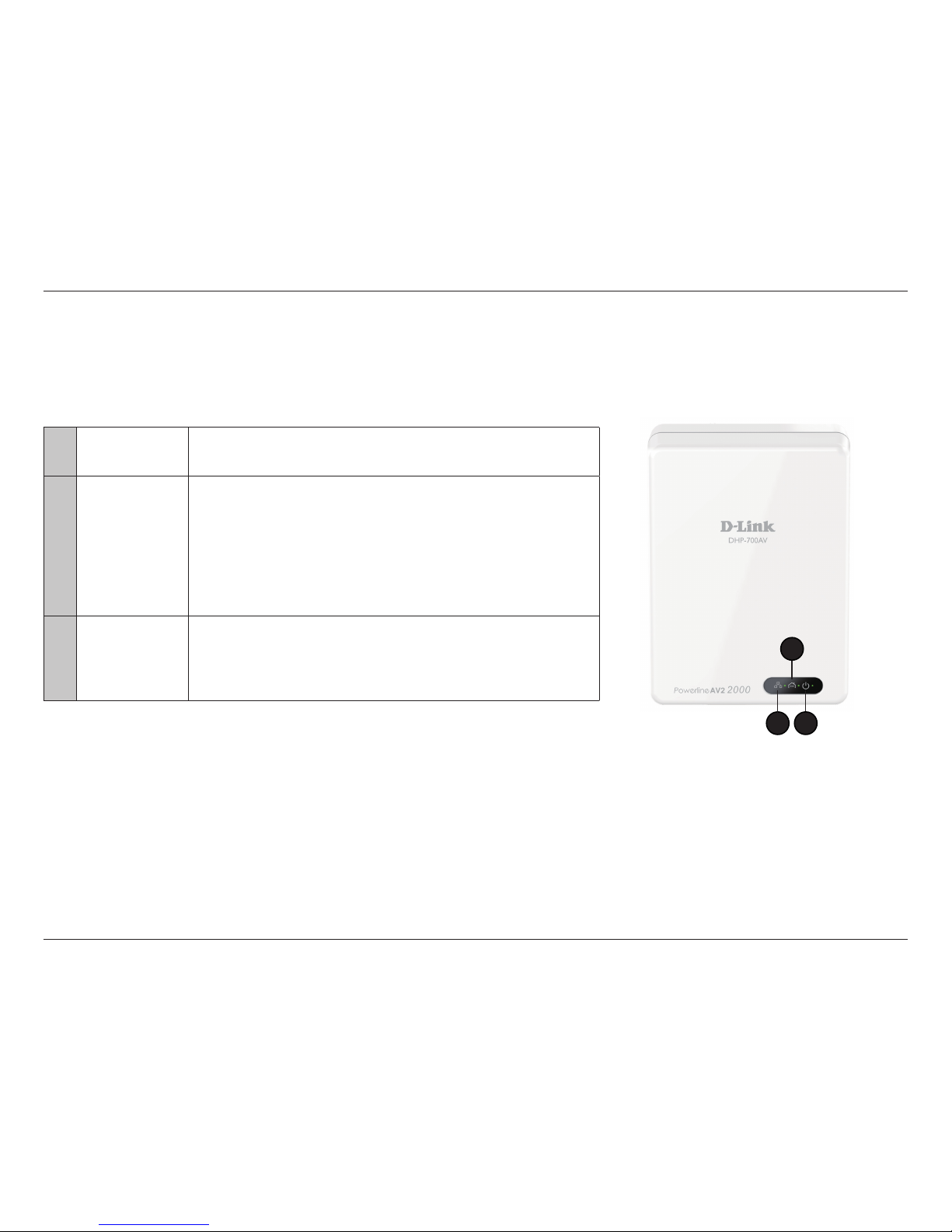

LEDs
1Ethernet LED • Solid Green: The Ethernet port is linked.
• O: There is no Ethernet connection.
2PowerLine LED
• Solid: The device is connected to a PowerLine network.
• O: The device has not found any other compatible Powerline
devices using the same encryption key.
The color indicates the PowerLine link rate:
• Green: The PowerLine link rate is best.
• Amber: The PowerLine link rate is better.
• Red: The PowerLine link rate is good.
3Power LED
• Solid: The device is receiving electrical power.
• Blinking: The Simple Connect button was pressed or is in Power
Saving Mode.
• O: The device is not receiving electrical power.
1
2
3
7D-Link DHP-700AV / DHP-701AV User Manual
Section 1 - Product Overview
Hardware Overview
Connection
1Reset Button Press and hold the button for 10 seconds to reset to the factory
default settings.
2Simple Connect Button Press and hold the button for two seconds to secure your network.
(Refer to“Push Button Security” on page 11 for more information.)
3Gigabit Ethernet Port Connect to an Ethernet device such as a router, computer, video
game console, network storage device, or a media player.
2
13
8D-Link DHP-700AV / DHP-701AV User Manual
Section 2 - Hardware Installation
Hardware Installation
Installation
1. Plug in one of the DHP-700AV adapters and connect to your router with an Ethernet cable. The Power and Ethernet LEDs should both light up.
Recommendations
• For best results, use in a regular wall outlet without any other devices plugged in. Connecting this product to a power strip or a surge protector
may adversely aect the performance of this device.
• Avoid using the PowerLine adapters in an electrical outlet that is located near an appliance that uses a lot of power such as a washer, dryer,
refrigerator, microwave, hair dryer, or air conditioning unit.
• If you are having connection problems, plug in both adapters within the same room to determine whether your home’s electrical wiring is
contributing to the issue. The adapters’ PowerLine LED indicators will illuminate if the connection is established. Once congured, you may
move an adapter to another location.
5V
2.5A
USB
WPS
1
2
3
4
INTERNET
POWER
DHP-700AV
Powerline AV2 2000
Router
Internet
DHP-700AV
9D-Link DHP-700AV / DHP-701AV User Manual
Section 2 - Hardware Installation
2. Plug in the other DHP-700AV adapter in the room that you want to extend your network to. The Power LED will light up.
DHP-700AV
Powerline AV2 2000
3. Verify that the PowerLine LEDs on both adapters are lit. If they are, the adapters are connected. If not, try another wall outlet (closer to the other
PowerLine adapter).
DHP-700AV
PowerlineAV 2 2000
DHP-700AV
PowerlineAV 2 2000
4. To secure your network, press the Simple Connect button for two seconds on one of the adapters. The Power LED will start to blink. Then, within two
minutes, press the Simple Connect button on the other adapter for two seconds. Once the Power LEDs stop blinking, verify that the PowerLine LEDs on
both adapters are lit (as in Step 3). This indicates that your adapters are properly connected to each other.
DHP-600AV DHP-600AV
DHP-700AV
PowerlineAV 2 2000
DHP-700AV
PowerlineAV 2 2000
Simple Connect Button
Simple Connect Button
10D-Link DHP-700AV / DHP-701AV User Manual
Section 2 - Hardware Installation
5. You may now connect another device to the DHP-700AV adapter using an Ethernet cable. Verify that the Ethernet LED is lit. Your hardware
installation is complete.
Power Saving Mode
The DHP-700AV will automatically go into Power Saving Mode when there is no activity for ve minutes. The Power LED will blink intermittently
while the device is in Power Saving Mode.
Note: D-Link PowerLine devices cannot be congured while in Power Saving Mode.
5V
2.5A
USB
WPS
1
2
3
4
INTERNET
POWER
DHP-600AV
Router
Internet
DHP-700AV
Powerline AV2 2000
DHP-700AV
Powerline AV2 2000
