D-Link DHP?P308AV Manuel utilisateur
User Manual
DHP‑P308AV / DHP‑P309AV
Version 2.10 | 02/25/2014
PowerLine AV 500 Passthrough Mini Adapter
2D-Link DHP-P308AV/DHP-P309AV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2014 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Preface
Revision Date Description
1.0 May 07, 2013 • Initial release for hardware revision B1
2.0 November 07, 2013 • Initial release for hardware revision C1
2.1 February 25, 2014 • Product feature update
3D-Link DHP-P308AV/DHP-P309AV User Manual
Table of Contents
Preface .........................................................................................2
Manual Revisions .......................................................................... 2
Trademarks ..................................................................................... 2
Product Overview ......................................................................4
Package Contents .........................................................................4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Features ............................................................................................5
Hardware Overview ..................................................................... 6
LEDs ........................................................................................... 6
Connection ............................................................................. 7
Hardware Installation ...............................................................8
Push Button Security ................................................................... 9
Powerline Installation Considerations ................................12
Troubleshooting ..................................................................... 14
Technical Specications ........................................................ 15
Table of Contents
4D-Link DHP-P308AV/DHP-P309AV User Manual
Section 1 - Product Overview
DHP-P308AV
• D-Link DHP-P308AV PowerLine AV 500 Passthrough Mini Adapter
• Ethernet Cable
• Quick Install Guide
DHP-P309AV
• D-Link DHP-P308AV PowerLine AV 500 Passthrough Mini Adapter X2
• Ethernet Cable X2
• Quick Install Guide
System Requirements
• Windows® 7, Windows Vista®, XP (with Service Pack 3)
• Ethernet interface (10/100 Mbps)
• PC with 1.5GHz Processor
• 1 GB Memory
Product Overview
Package Contents
5D-Link DHP-P308AV/DHP-P309AV User Manual
Section 1 - Product Overview
Introduction
D-Link announces a fast PowerLine AV 500 Passthrough Mini Adapter which allows you to connect your home computers,
networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines - and
share Internet connections, printers, transfer les, play games, and more.
Features
• Provides Ethernet to Powerline Connection
• Faster than 200Mbps*
• One Ethernet port
• Plug & Play, Easy Installation
• Push Button Security
• Power Saving mode
• Integrated Passthrough Power Socket with Noise Filtering
* Maximum throughput based on theoretical transmission PHY rate. Actual date throughput will vary. Network conditions and environmental factors, including volume of trac
and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect
the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other powerline devices that
do not follow the HomePlug AV and IEEE1901 standard. Powerline AV 500 products feature a more ecient processor than current 200 Mbps Powerline AV products to provide
faster speeds.
6D-Link DHP-P308AV/DHP-P309AV User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
Power LED
• Solid. The device is receiving electrical power.
• Blinking. The device is setting itself up after reset or
simple connect button was pressed or power saving
mode enabled.
• O. The device is not receiving electrical power.
Powerline LED
• Solid. The device is connected to a Powerline network.
• Off. The device has not found any other compatible
Powerline devices using the same encryption key.
The color indicates the Powerline link rate:
• Green. The Powerline link rate is best.
• Amber. The Powerline link rate is better.
• Red. The Powerline link rate is good.
Ethernet LED
• Solid. The Ethernet port is linked.
• O. There is no Ethernet connection.
7D-Link DHP-P308AV/DHP-P309AV User Manual
Section 1 - Product Overview
Hardware Overview

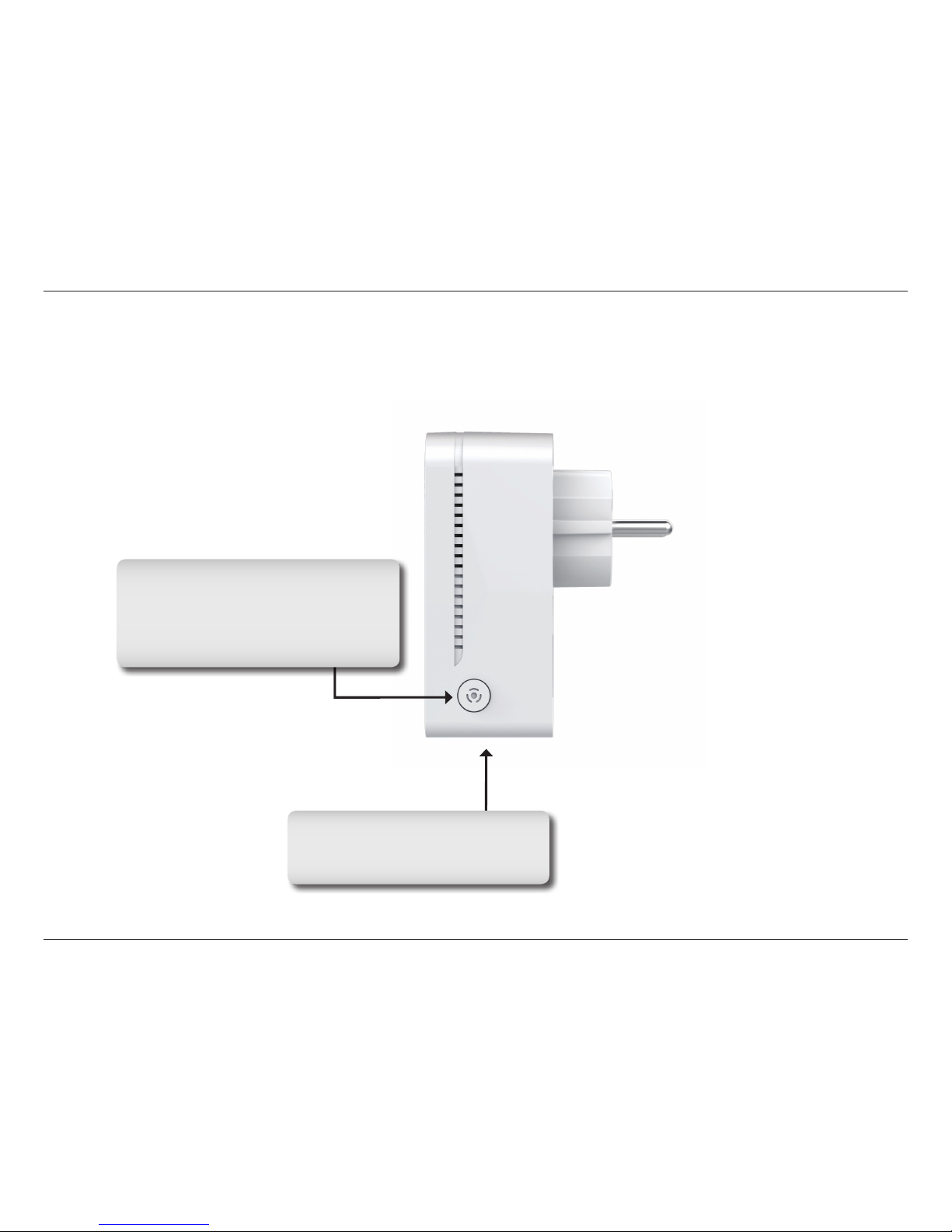

Connection
Ethernet Port
Connect Ethernet cable to your PC
or Ethernet device.
Simple Connect Button
Press to secure your network or reset
your device back to the factory
default settings. Refer to page 9 for
more information.
8D-Link DHP-P308AV/DHP-P309AV User Manual
Section 2 - Installation
Hardware Installation
Power
Plug in the DHP-P308AV into an AC wall outlet or power strip.
Note: Power source is conrmed when the Power LED on the DHP-P308AV is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable
connector located on the DHP-P308AV and attach the other
end of the Ethernet cable to the network or PC. Network
Connectivity is conrmed when the Ethernet LED on the
DHP-P308AV are illuminated.
Power Saving Mode Enabled
When you click the Simple Connect button quickly twice,
the DHP-P308AV will go into power saving mode. To wake
the device up, just click the Simple Connect button again.
WARNING! D-Link powerline devices cannot be congured while in
Power Saving Mode enabled.
3ROOM A ROOM B
2ROOM B
DHP-P308AV
NB
1ROOM A
RouterInternet
DHP-P308AV
DHP-P308AV DHP-P308AV
NB
RouterInternet
9D-Link DHP-P308AV/DHP-P309AV User Manual
Section 2 - Installation
Understanding PowerLine AV 500 Passthrough Mini Adapter Security
The PowerLine AV 500 Passthrough Mini Adapters on the same network must use an identical encryption key. The default
encryption key of each PowerLine AV 500 Passthrough Mini Adapter is HomePlug AV. All PowerLine AV 500 Passthrough Mini
Adapters with default encryption key can communicate with each other.
It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to
protect your network from unauthorized access via the Powerline network. To create a private encryption key instead of the
default encryption key, please follow below steps:
1. All Adapters
Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlug AV (default value). If
the encryption key is not set to the default value, press the Simple connect button for 10 seconds for resetting it to the default
value.
2. First Adapter
Press Simple connect button of the rst adapter for no more than three seconds.
The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption
key that each PowerLine AV 500 Passthrough Mini Adapter will use.
Push Button Security
10D-Link DHP-P308AV/DHP-P309AV User Manual
Section 2 - Installation
3. Second Adapter
Within two minutes of pushing the Simple connect button of the rst adapter, press Simple connect button of second adapter
in your Powerline network for no more than three seconds. The Power LED will start blinking after you release the button.
Note: Both Simple connect buttons must be pressed within two minutes.
After above network security setup steps, your Powerline network will be securely congured with the same network encryption
key. The adapters will memorize the security settings even if they are unplugged.
Note: To change the private encryption key, please reset the adapter back to its default value by pressing the Simple Connect
button for 10 second and then follow the security setup procedure above.
4. Adding More Adapters
If you would like to add more than two adapters, press the button of the additional adapter for no more than three seconds.
The Power LED will start blinking after you release the button.
Then press the button of any adapter in your existing Powerline network for no more than three seconds. The Power LED will
start blinking after you release the button.
Note: Both Simple connect buttons must be pressed within two minutes.
After above network security setup steps, your Powerline network will be securely congured with the same network encryption
key.
