USB Phone Adapter for SKYPE

Quick User Guide

Version 1.0

TABLE OF CONTENTS

1. INTRODUCTION........................................................................................3

2. PACKAGE CONTENTS.............................................................................4

3. REQUIREMENTS.......................................................................................5

4. DPH-50U INSTALLATION .........................................................................6

5. ENABLING DPH-50U ..............................................................................15

6. DPH-50U STATES ...................................................................................17

6.1 DPH-50U LEDS....................................................................................17

6.2 TESTING DPH-50U ................................................................................18

7. MAKING AND RECEIVING CALLS.........................................................21

7.1 SETTING UP SKYPE SPEED DIAL..............................................................21

7.2 SWITCHING BETWEEN VOIP AND REGULAR CALLS ...................................24

7.3 CONFERENCE CALL BETWEEN VOIP AND REGULAR CALLS.......................24

7.4 FORWARDING CALLS ..............................................................................24

7.5 TOLL BYPASS.........................................................................................28

7.6 SKYPE VOICEMAIL ..................................................................................32

7.7 RECORDER.............................................................................................33

7.8 CHANGING THE DEFAULT SETTINGS .........................................................35

8. DISABLING DPH-50U .............................................................................36

9. UNINSTALL .............................................................................................37

10. INSTALLING A NEW VERSION ............................................................38

11. TROUBLESHOOTING...........................................................................39

1. Introduction

The DPH-50U USB Phone Adapter for SKYPE is an exciting new device that

let’s you make and receive Skype™ calls using your standard telephone

handset.

After you follow the simple installation you will be able to do the following:

• Continue to make and receive regular calls as you normally do

• Make and receive Skype™ calls using your standard telephone

• Forward Skype™ calls to your mobile phone

• Make Skype™ calls from your mobile phone even when you are away

from your computer

• Switch between a Skype™ call and a regular phone call

Please view the readme.txt that is installed with the DPH-50U driver. It lists

any known issues that may exist.

2. Package Contents

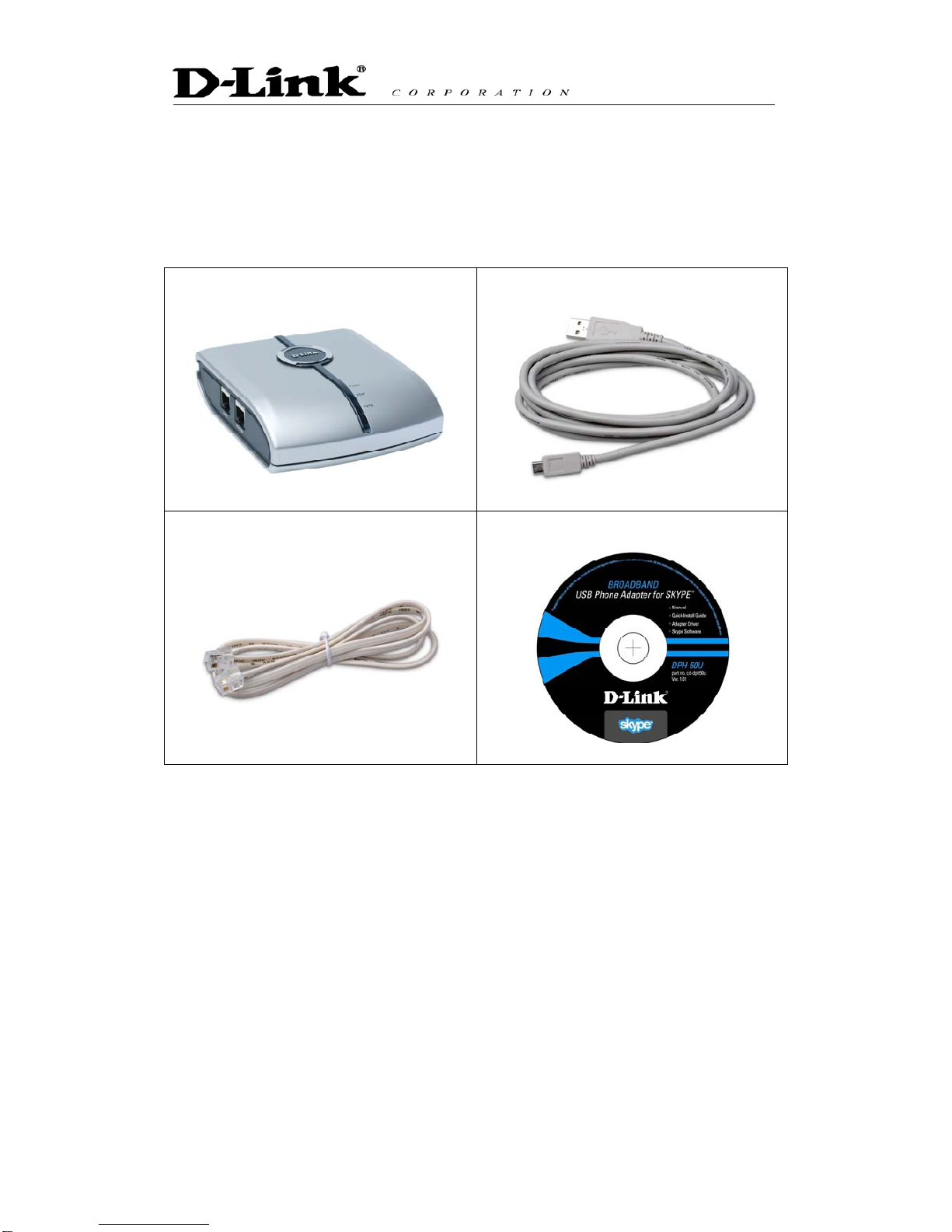

The DPH-50U package includes the following (note that your particular

hardware and cables may look slightly different than shown below).

1. DPH-50U

2. USB Cable

3. Telephone Cable

4. CD-ROM

3. Requirements

In order to install the DPH-50U USB Phone Adapter for SKYPE you will need

the following:

1. DPH-50U USB Phone Adapter for SKYPE

2. USB cable

3. RJ11 cable

4. Telephone (regular telephone, cordless phone, DECT phone, …)

5. Telephone service (for conf call, 3 way calling and forwarding features)

6. Broadband internet service is recommended

7. PC with the following minimum specifications:

o Pentium 400MHz or equivalent

o Windows 2000 or XP

o Available USB port (1.0, 1.1 or 2.0)

o Skype™ version 1.1.079 or higher (www.skype.com) must be installed

o 128MB RAM

o 10MB available hard disk space

o CD-ROM drive to install DPH-50U software from the supplied

CD-ROM

Note that the DPH-50U USB Phone Adapter for SKYPE must be

connected directly to the PC USB port or to an AC Powered USB hub. It

CANNOT be installed on a bus powered USB hub.

4. DPH-50U Installation

DO NOT CONNECT THE DPH-50U USB Phone Adapter

FOR SKYPE TO YOUR COMPUTER UNTIL

INSTRUCTED TO DO SO BY THE DPH-50U

INSTALLATION WIZARD

The following instructions will guide you to through the process of installing

the DPH-50U USB Phone Adapter for SKYPE.

The installation procedure is to:

• Install Skype™ (step 1 below)

• Start the DPH-50U software installation (step 2 below)

• Plug in the DPH-50U WHEN INSTRUCTED TO DO SO (step 2 below)

• Verify the installation is OK (step 3 below)

• Connect a telephone handset to the DPH-50U (step 4 below)

• Connect the DPH-50U to the wall jack (step 5 below). Note that this is

optional and only required for the forwarding and conferencing

features.

• Use your DPH-50U to make and receive Skype™ calls

The detailed instructions follow:

STEP 1: If Skype™ is not already installed on your computer, visit

http://www.skype.com and follow the instructions there to install Skype™. Verify

that Skype™ is working before installing the DPH-50U.

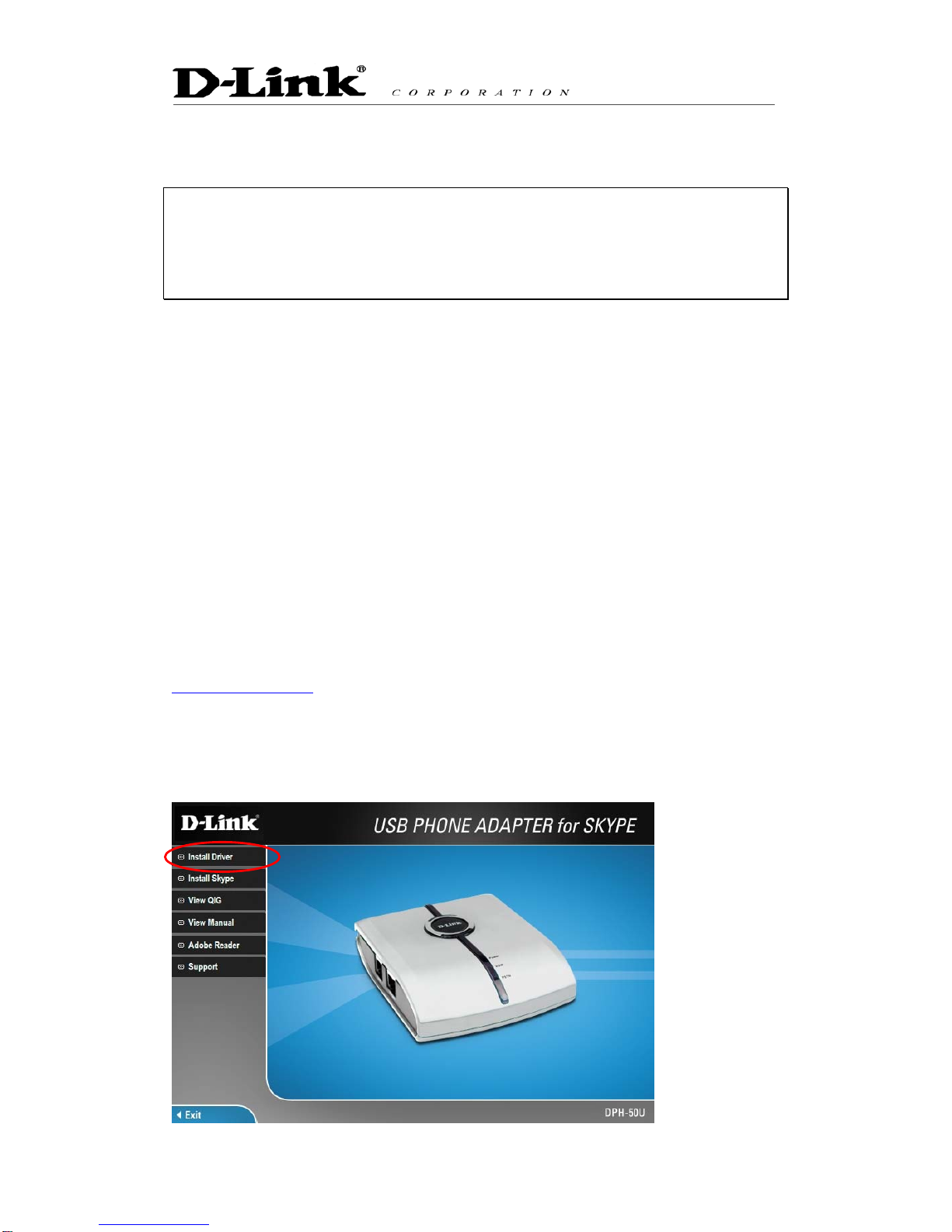

STEP 2: Insert the supplied CD-ROM into your PC CD-ROM drive. The

installation should start automatically. Please press “Install Driver”

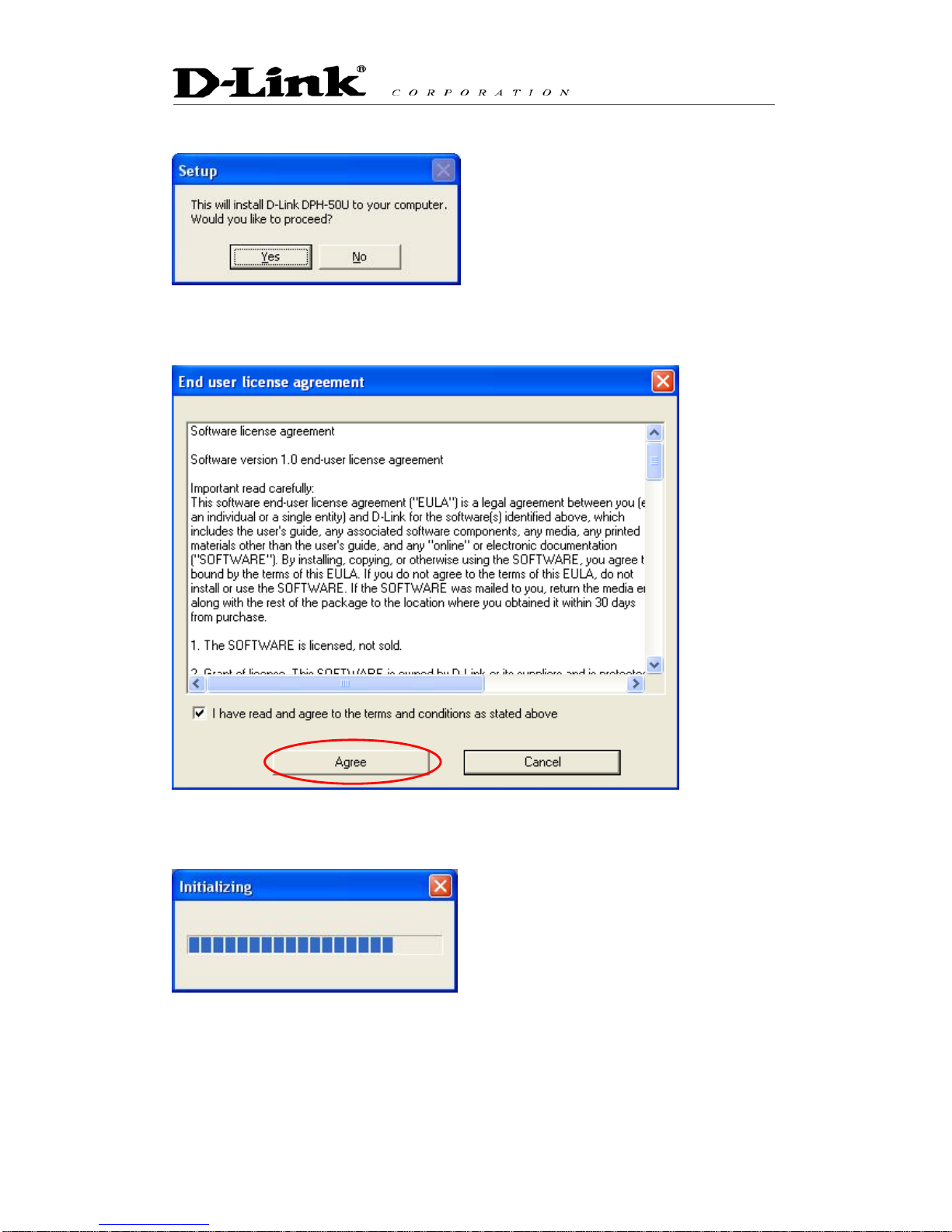

You will see the following popup. Press Yes to proceed or No to cancel.

You will see the End User License Agreement. Click the “I have read …”

checkbox and press the I Agree button as shown below.

You will see the following progress bar below indicating that the installation is

proceeding.

Wait until you see the following popup and press the OK button.

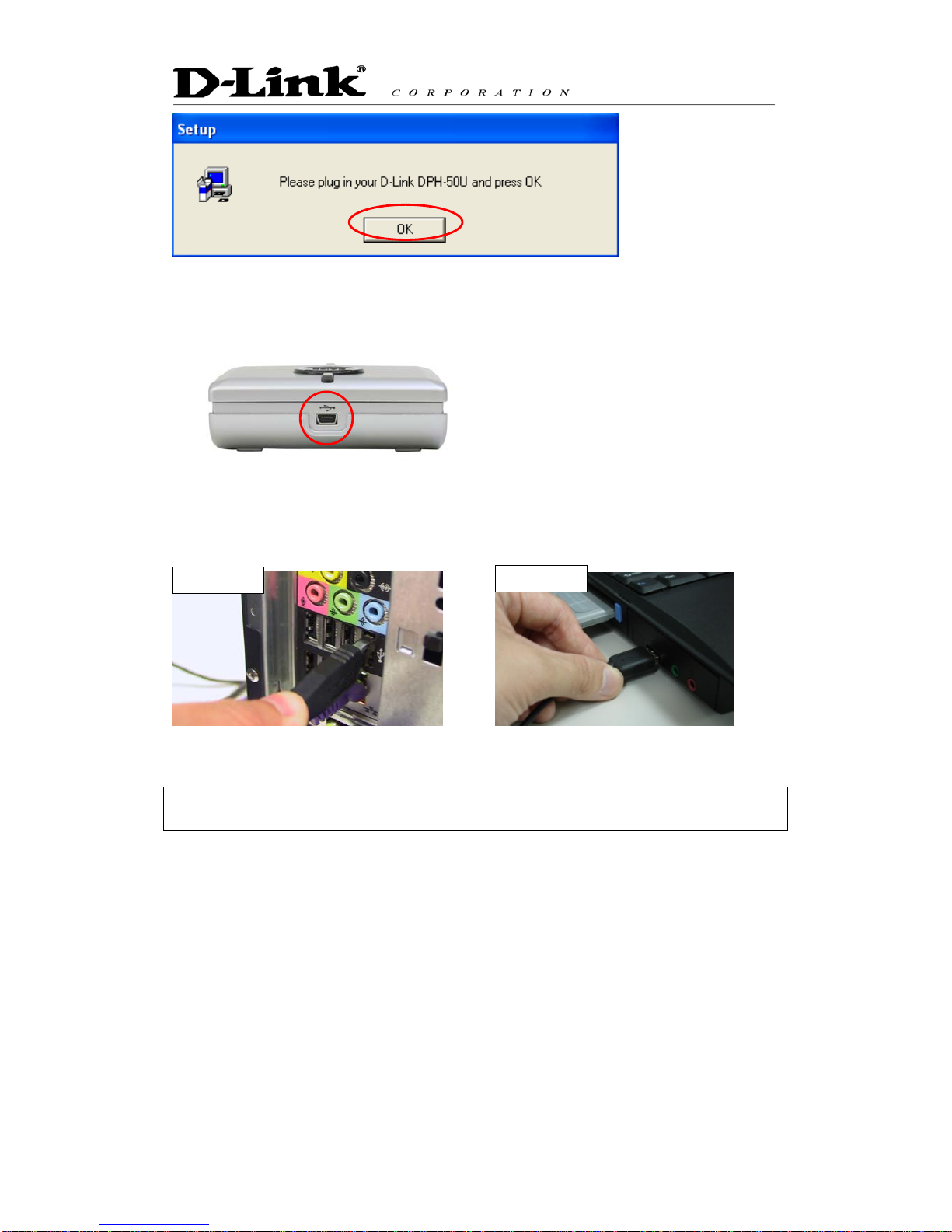

Connect the USB cable to the D-Link USB Phone Adapter for SKYPE USB

port as shown below:

The other end of the USB cable must be connected to a USB port on your

computer as shown below,

or to an AC Powered USB hub.

The D-Link USB Phone Adapter MUST not be connected to a bus

powered USB hub.

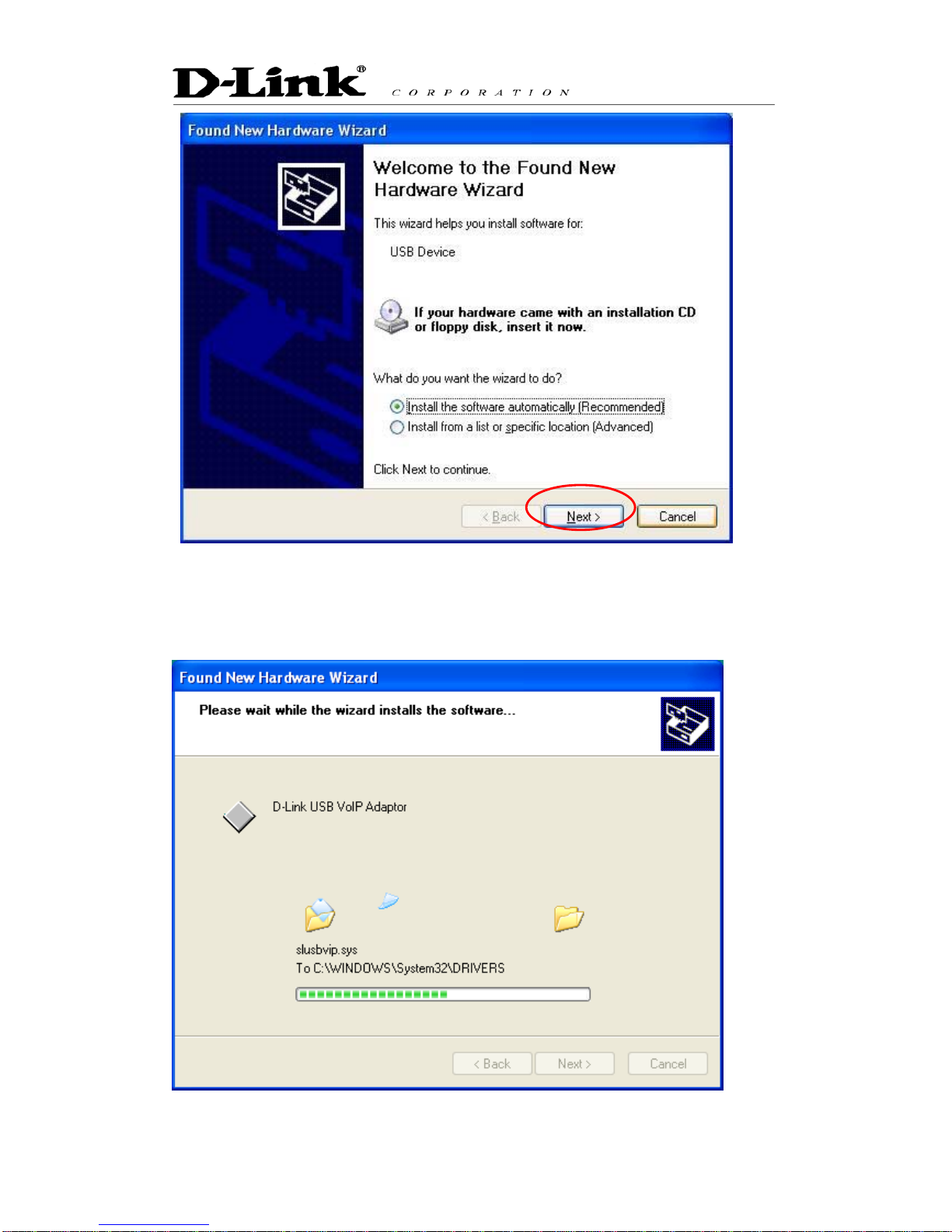

You will see the following Windows New Hardware Found Wizard.

Connect PC Connect NB

Select Install the software automatically (Recommended) and press the Next

button.

The installation will continue and you will see the following screen.

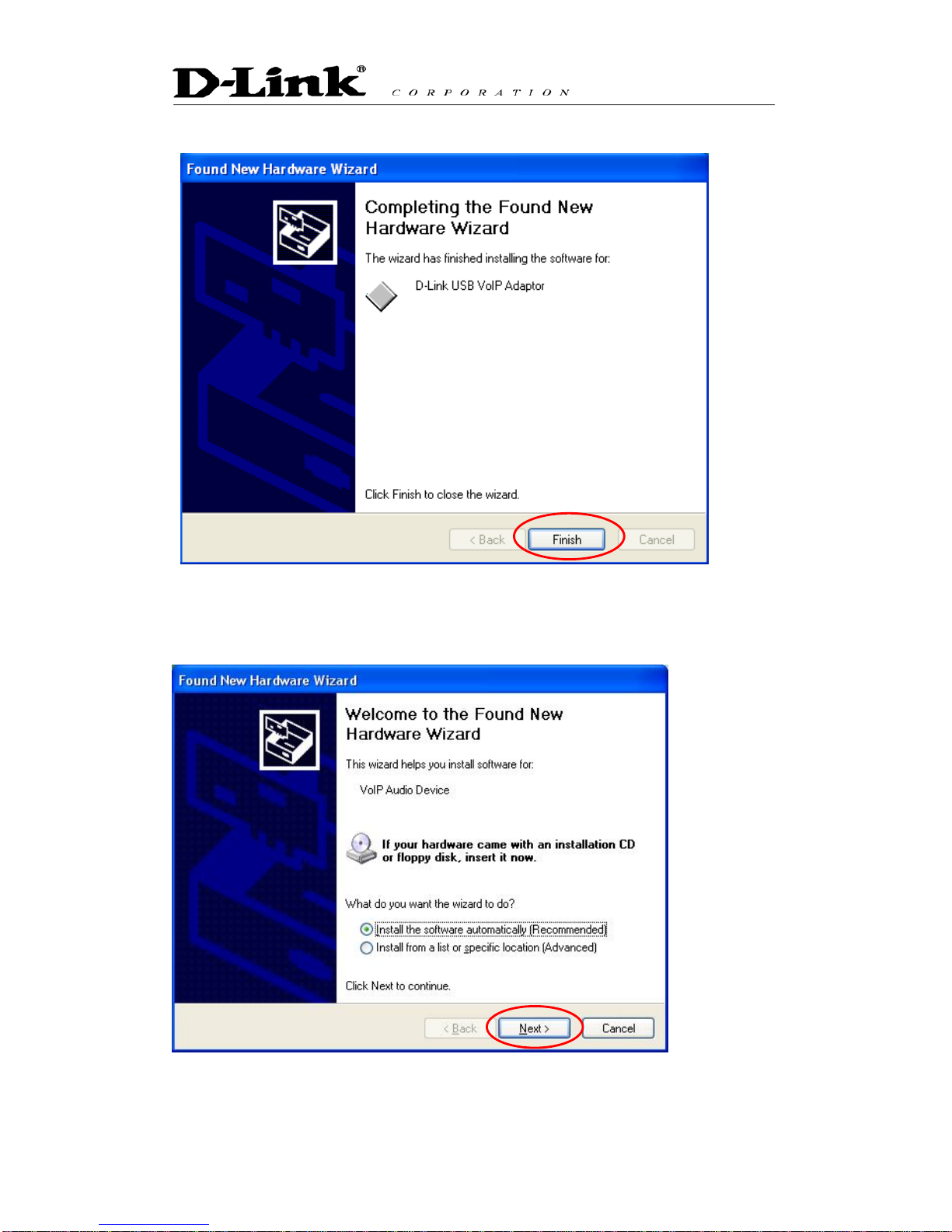

When you see the following screen, press the Finish button.

Then you will see the following Windows New Hardware Found Wizard

screen.

Select Install the software automatically (Recommended) and press the Next

button.
