D-Link DHP-P621AV Manuel utilisateur

DHP-P621AV

Quick Install Guide

PowerLine AV2 1000 Gigabit Media Kit

If any of the above items are missing, please contact your reseller.

PowerLine AV2 1000 2-Port Gigabit Passthrough Adapters (DHP-P620AV)

PowerLine AV2 1000 Gigabit Passthrough Adapter (DHP-P600AV)

Two Ethernet Cables

Quick Install Guide

Package Contents

Installation Considerations

1. Connect PowerLine devices into electrical outlets that are not controlled by a

wall switch. This will help you to avoid accidentally turning o power to the

device.

2. Do not connect your PowerLine devices to extension cords, surge protectors, or

power strips. Doing this might prevent your devices from working correctly, or

may reduce network performance.

3. Avoid plugging your PowerLine devices into electrical outlets that are located

near appliances thatuse alot ofpower, suchas washers, dryers,and refrigerators.

Doing this could prevent the adapter from working correctly, or may negatively

impact network performance.

4. Verify that your PowerLine devices are electrically rated to operate with the

power available in your location.

5. Be sure to plug the power cables into properly grounded electrical outlets in

order to help prevent against electrical shock.

1Power LED

• Solid: The device is receiving electrical power.

• Blinking: The device is powering up or in power saving mode.

The light will also blink during the Simple Connect process.

• O: The device is not receiving electrical power.

2PowerLine LED

• Solid: The device is connected to a Powerline network.

• O: The device has not found any other compatible Powerline

devices using the same encryption key.

The color indicates the Powerline link rate:

• Green: The Powerline link rate is best.

• Amber: The Powerline link rate is better.

• Red: The Powerline link rate is good.

3Ethernet LED • Solid: The Ethernet port is linked.

• O: There is no Ethernet connection.

4Reset Button Hold the button for 10 seconds to reset to the factory default

settings.

5Simple Connect Button Press and hold the button for two seconds to secure your

network.

6Gigabit Ethernet Ports

Connect 10/100/1000 Ethernet devices such as routers,

computers, gaming consoles, network storage units, or media

players.

7Simple Connect Button/

Reset Button

Press and hold the button for two seconds to secure your

network or hold the button for 10 seconds to reset to the factory

default settings.

Product Overview

76654

• For best results, use in a regular wall outlet without any other devices plugged

in. Plugging into a power strip or a surge protector may adversely aect the

performance of this product.

• Avoid using the PowerLine adapters in an electrical outlet that is located near

an appliance that uses a lot of power, such as a washer or dryer, refrigerator,

microwave, hair dryer, or air conditioning unit.

• To verify connectivity or if you are having connection problems, plug the

adapters in the same room to verify whether your home’s electrical wiring is

contributing to the issue. The adapters’PowerLine LED indicators will illuminate

if the connection is established. Once congured you may place the adapter in

the location of your choice.

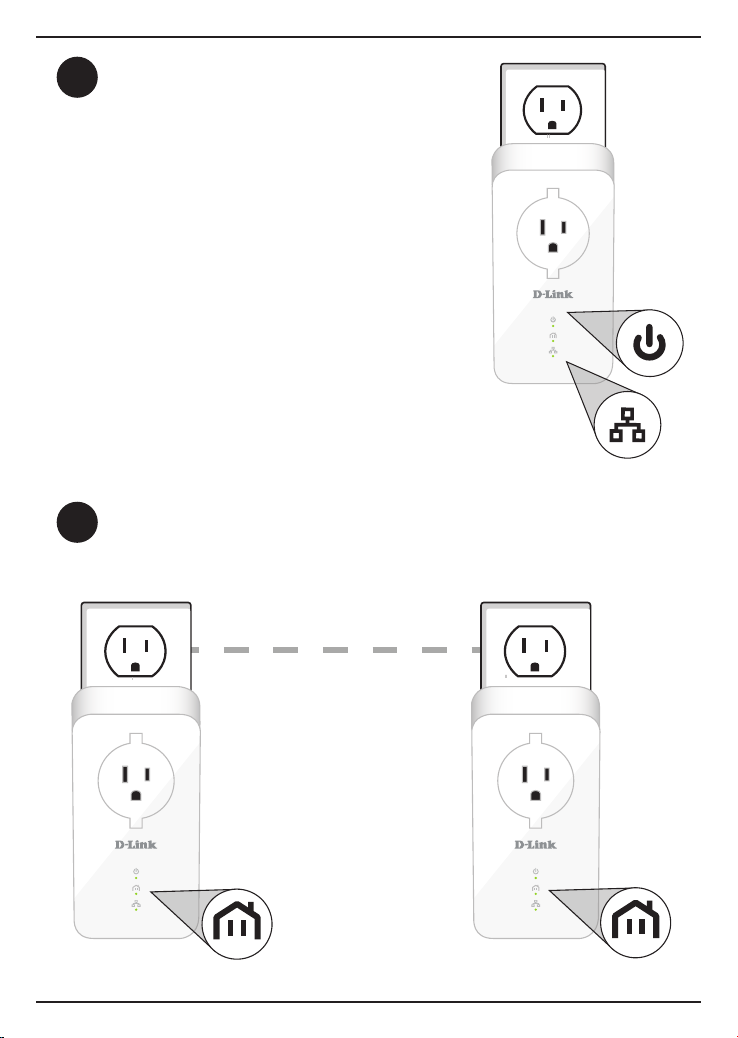

1Plug in the DHP-P600AV adapter and connect to your router

with an Ethernet cable. The Power and Ethernet LEDs should

both light up.

4 3 2 1 INTERNET

POWER

POWER PORT WPS

Router

Internet

Installation

Recommendations

2Plug in the DHP-P620AV adapter in

the room that you want to extend

your network. The Power LED will

turnon.Youcannowconnectup to

two devices such as a computers,

game consoles, printers, or Smart

TVs using an Ethernet cable to the

DHP-P620AV adapter. Verify that

the Ethernet LED is lit.

3Verify that the PowerLine LEDs on both adapters are lit. If they

are, the adapters are connected. If not, try another outlet.

5Your installation is completed.

(Optional) To secure your network, press the Simple Connect

button (on the bottom) for two seconds on one of the adapters.

The Power LED will start to blink. Then, within two minutes,

press the Simple Connect button on the other adapter for two

seconds. Once the Power LEDs stop blinking, verify that the

PowerLine LED is lit on both adapters (as in Step 3).This indicates

that your adapters are properly connected to each other.

DHP-600AV DHP-600AV

Simple Connect ButtonSimple Connect Button

FAQs

If I do not see LEDs light up?

If the Power LED is o, make sure the PowerLine devices are plugged

into outlets with power. Also make sure the PowerLine devices are not

plugged into an extension cord, power strip, or surge protector.

If the PowerLine LED is o, the devices are unable to nd each other.

You can plug in all the PowerLine adapters within the same room in

order to determine whether your home’s electrical outlets are suitable.

The adapters’ PowerLine LED will light up when a connection is

established.

If I’m having problems with conguration?

If you are having problems conguring the network with two or more

PowerLine adapters, make sure you reset all the devices and start the

conguration process again. To reset to the factory default settings,

hold the Simple Connect button/Reset Button for 10 seconds.

Technical Support

Thisguideisonlyforinitialconguration.Pleaserefertothe usermanual to

learn more or visit http://support.dlink.com for more information. Also

feel free to contact us. U.S. and Canadian customers can contact D-Link

Technical Support through our website. For warranty and regulatory

information, please visit http://support.dlink.com/warranty.aspx.

http://support.dlink.com

USA

http://support.dlink.ca

Canada

Version 1.00(CA)_90x130

Feb 09, 2017

Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners.

Product specications, size and shape are subject to change without notice, and actual product appearance may dier from that depicted

on the packaging. Visit www.dlink.com for more details. Maximum throughput based on theoretical transmission PHY rate. Actual date

throughput will vary. Network conditions and environmental factors, including volume of trac and network overhead, may lower actual

data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect

the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave

radios, or other powerline devices that do not follow the HomePlug AV and IEEE1901 standard.

DHP-P621AV

Guide d’installation rapide

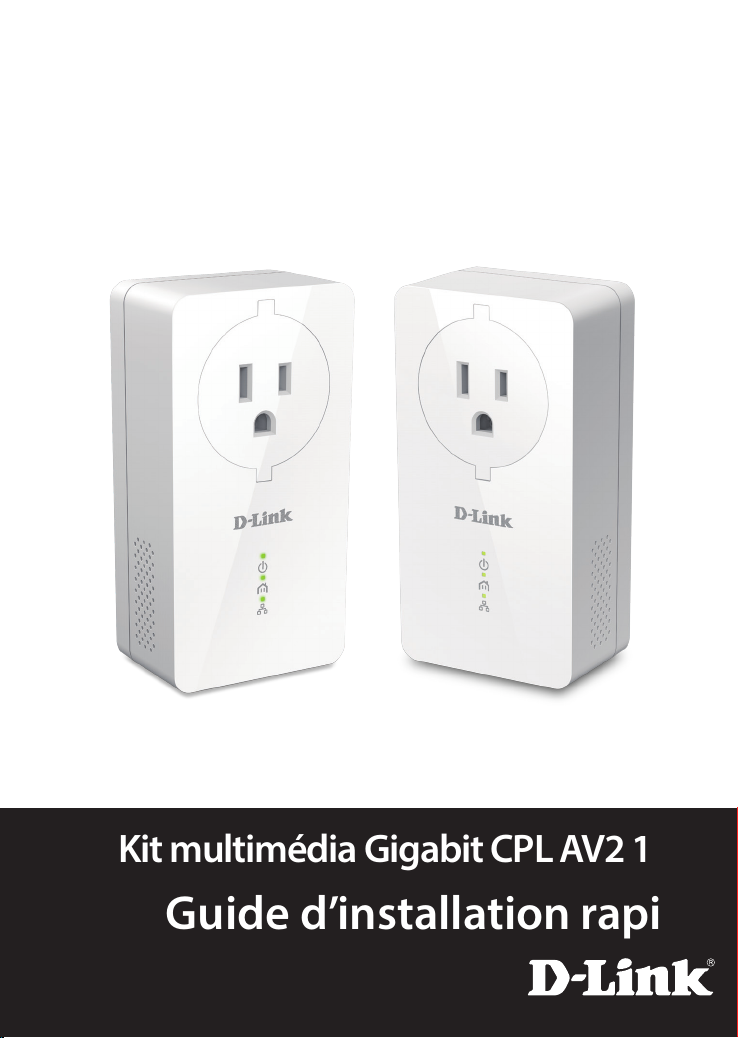

Kit multimédia Gigabit CPL AV2 1000

Communiquez avec votre revendeur s'il manque l'un des éléments ci-dessus.

Deux câbles Ethernet

Guide d’installation rapide

Contenu de la boîte

Éléments à prendre en considération avant l’installation

1. Connectez les périphériques CPL dans des prises électriques qui ne sont

pas contrôlées par un commutateur mural. Cela vous évitera de couper

accidentellement l'alimentation du périphérique.

2. Ne connectez pas de périphériques CPL sur des rallonges, des parasurtenseur

ou des blocs multiprises. Cela pourrait nuire au fonctionnement de vos

pérphériques ou réduire les performances réseau.

3. Évitez de brancher les adaptateurs CPL dans une prise de courant située à

proximité d’un appareil consommant beaucoup d’énergie (par ex. un lavelinge,

un sèche-linge, un réfrigérateur, un four à microondes, un sèchecheveux, ou

un climatiseur) Cela pourrait nuire au fonctionnement de l’adaptateur ou aux

performances réseau.

4. Assurez-vous que la tension nominale des périphériques CPL correspond à

celle du réseau électrique.

5. Assurez-vous de brancher les câbles d'alimentation dans des prises

correctement reliées à la terre an d'éviter tout choc électrique.

Adaptateur d’intercommunication Gigabit à 2 ports CPL AV2 1000

(DHP-P620AV)

Adaptateur d’intercommunication Gigabit CPL AV2 1000

(DHP-P600AV)
