Cypress CHDMI-42E Manuel utilisateur

4-in 2-out

HDMI Switcher

Operation Manual

CHDMI-42E

Introduction

CHDMI-42E is a high performance 4-input dual outputs HDMI switcher

with remote control. It allows your to connect up to 4 HDMI Sources so they can

share two HDMI displays. The two HDMI outputs are identical.

Simply pressing one button you can select your desired HDMI source

for display on two HDMI TVs simutaneously.

Features

* HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

* Signal Enhancement feature allows you to improve signal quality

after long distance transmission.

* LED indicators.

* Ideal for home theater integration, conference room and retail stores.

* Supports high resolution input:

PC: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200)&

HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p

* Remote control.

* Easy to install and to operate.

Operation Controls and Functions

Front Panel

123 4

1. Remote control sensor.

2. Input select/Indicators: Press the " INPUT" button repeatedly to switch to your

desired input source and the LED will illuminate to indicate which

input source is being selected.

3. Signal Enhancement/Indicator: Press the " Signal Enhance" button to turn

on this feature to improve signal quality after long distance transmission.

Press again to turn off. The LED will illuminate when the signal is enhanced.

4. POWER Switch/Indicator: Press the "POWER" button to turn on/off the power,

the power LED illuminate in red color means the power is turned on, when

the LED not illuminate power is turned off.

INPUT1234 POWER

SIGNAL ENHANCE

CHDMI-42E

Dual Output HDMI Switcher

Operation Controls and Functions

Rear Panel

1 4 2 3

1. HDMI outputs: Connect each HDMI output to the HDMI input of

your displays using HDMI cable. The two HDMI outputs are identical.

2. HDMI inputs: Connect your various HDMI sources to each of the

HDMI input of the unit using HDMI cables.

3. Power: Plug the supplied 5VDC power supply into the unit.

4. RS232: 9-pin D-sub female connector for connecting to your other control

console for remote control.

Remote Control

1. Power:

Press the button to turn on/off the unit.

2. Direct input selector:

Press numerical number button to select your desired

input source.

3. Void buttons (No function). If the button number is

greater than the total input number of the unit then

the button is of no function.

CR-22

RS-232

OUTPUT 2 OUTPUT 1 INPUT 4 INPUT 3 INPUT 2 INPUT 1

DC 5V

RS-232 Remote Control Protocol

Definition

TxD

RxD

GND

Definition

RxD

TxD

GND

Pins definition of

modem cable Remote Controller



"I" + "1"

"I" + "2"

"I" + "3"

"I" + "4"

"S" + "1"

"S" + "0"

"P" + "1"

"P" + "0"

PORT 1 ON

PORT 2 ON

PORT 3 ON

PORT 4 ON

ENABLE SIGNAL ENHANCE

POWER ON

POWER OFF

Command Code Comment

* RS-232 transmission format:

Baud Rate: 9600 bps

Data Bit : 8 bits

Parity : None

Stop Bit : 1 bit

* Command:

The connection between CHDMI-42E and remote pc through RS-232 modem cable.

Connection and Installation

LCD TV

DVD 2

DVD 1 DVD 3 STB

LCD TV

RS-232

OUTPUT 2 OUTPUT 1 INPUT 4 INPUT 3 INPUT 2 INPUT 1

DC 5V

Specifications

* Frequency Bandwidth: 1.65Gbps(single link)

* Inputs: 4 x HDMI female ports (Type A connector)

* Outputs: 2 x HDMI female port (Type A connector)

* 5VDC universal power supply

* Weight(g): 800

* Dimension(mm): 240(W) x104(L) x 48(H)

Table des matières

Autres manuels Cypress Changer

Cypress

Cypress CLUX-61 Manuel utilisateur

Cypress

Cypress CE66058 Manuel utilisateur

Cypress

Cypress CHMX-24 Manuel utilisateur

Cypress

Cypress CPRO-3D41GAME Manuel utilisateur

Cypress

Cypress CLUX-C41 Manuel utilisateur

Cypress

Cypress SIO-7300 Manuel utilisateur

Cypress

Cypress CPLUS-V4H1HP Manuel utilisateur

Cypress

Cypress CHDMI-61 Manuel utilisateur

Cypress

Cypress CLUX-C61C Manuel utilisateur

Cypress

Cypress CLUX-22HC Manuel utilisateur

Cypress

Cypress CHDMI-31 Manuel utilisateur

Cypress

Cypress SE-DVI-8-LC Manuel utilisateur

Cypress

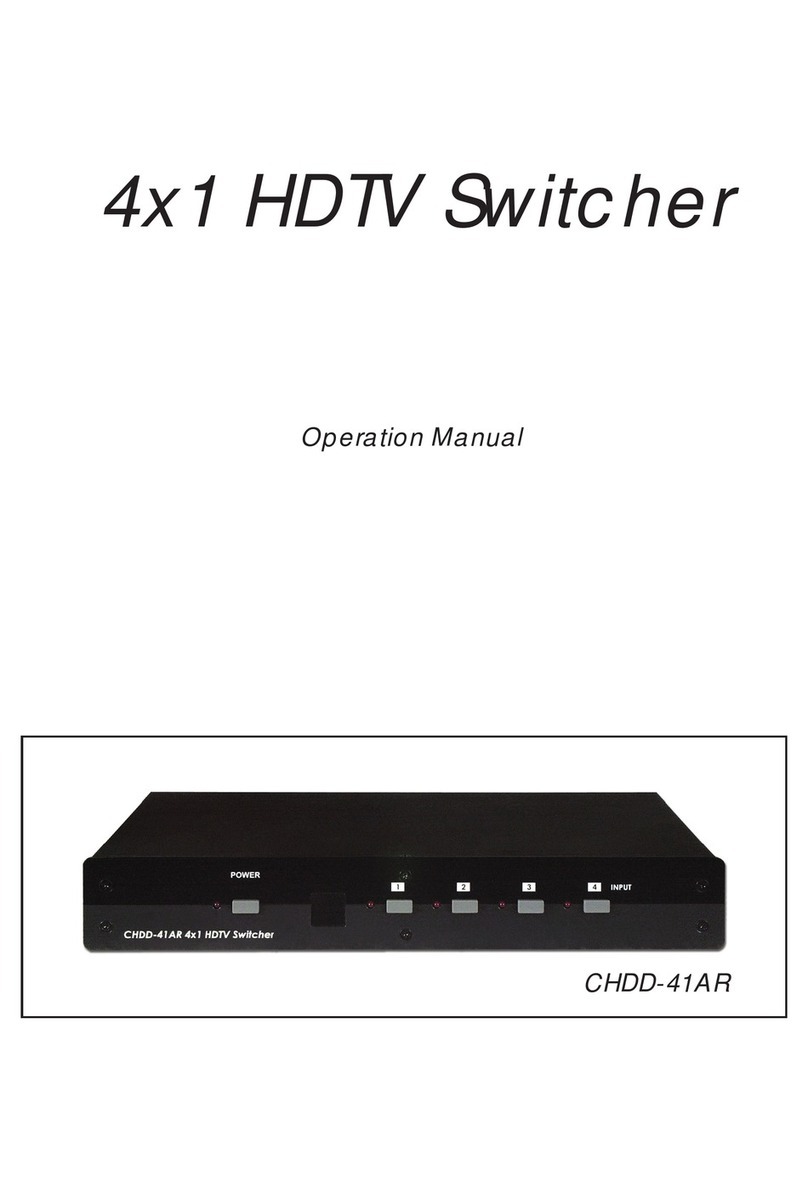

Cypress CHDD-41AR Manuel utilisateur
