CYP PU-515PL-WPRX Manuel utilisateur
PU-515PL-WPRX
HDBaseT™ LITE Wall Plate Receiver with PoC
& 2-Way IR (up to 60m)
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 20/01/15 First release
v1.01 02/03/15 Amended Cover Image
v1.02 24/03/15 Amended Intro/Features Text
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Receiver Front Panel................................. 8
6.2 Receiver Rear Panel................................... 9
6.3 IR Cable Pin Assignment ......................... 9
7. Connection Diagram .......................... 10
Option 1: Point to Point................................10
Option 2: Matrix System...............................11
8. Specications...................................... 12
8.1 Technical Specications ........................12
8.2 CAT5e/6/7 Cable Specication ...........13
9. Acronyms............................................. 13
6
1. INTRODUCTION
The PU-515PL-WPRX allows uncompressed HDMI signals, control and
power to be transmitted over a Single CAT5e/6/7 cable. This device allows
the distribution of Video, Audio, Power over Cable (PoC) and 2-way IR
control functionality over the same CAT5e/6/7 cable. These combined
HDMI and control signals can be transmitted up to lengths of 60 metres.
This wall plate variant of the PU-515PL-RX receiver enables seamless
integration into a standard double-gang back box.
2. APPLICATIONS
Extend an HDMI signal to a remote location
Household entertainment sharing and control
Showroom display and control
Classroom display and control
3. PACKAGE CONTENTS
1×HDMI over Single CAT5e/6/7 Wall-plate Receiver
1×IR Blaster
1×IR Extender
Operation Manual
4. SYSTEM REQUIREMENTS
HDMI equipped source device (connected with HDMI cables) or DVI
equipped source (connected with DVI to HDMI cables)
HDMI equipped display (TV or monitor) or AN HDMI equipped AV
receiver, connected with HDMI cables
Industry standard CAT5e/6/7 cable
Compatible PoC HDBaseT™ Receiver such as a PU-515PL-TX
7
5. FEATURES
HDCP 2.2 Compliant
Supports all v1.4 HDMI resolutions plus 4K
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon
the output display’s EDID settings
HDMI, HDCP, & DVI compliant
Uncompressed data transfer over single CAT cable (60m @ 1080p
cat5e/6)
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports: HDMI, PoC & Control (2-way IR)
Note:
1. This system was tested with CAT6/23AWG and CAT5e/24AWG cables,
results may vary with cables of a dierent specication.
2. The PoC function requires a compatible Transmitter unit. Transmitters
from other brands may not be compatible.
3. For playback of 4K2K HDMI source signals, a 4K2K capable display and
High Speed HDMI cables are required.
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Receiver Front Panel
HDMI OUT
POWER
LINK
IR 1
EXTENDER
IR 2
BLASTER
1 2 3 4 5
1IR 1 EXTENDER: Connect an IR Extender cable for IR signal reception.
Signals received will be transmitted to the transmitter unit. Ensure
that the remote being used is within the direct line-of-sight of the IR
Extender.
2IR 2 BLASTER: Connect an IR Blaster cable for IR signal transmission.
IR signals received by an IR extender connected to the transmitter unit
will be transmitted by this blaster. Place the IR Blaster in direct line-of-
sight of the equipment to be controlled.
3HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the HDMI source signal.
4POWER LED: This LED will illuminate when the device is connected
and powered by a compatible transmitter unit via PoC.
5LINK LED: This LED will illuminate when both the source connected
to the transmitter and the display connected to the receiver are
connected.
9
6.2 Receiver Rear Panel
1
1CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7
cable for transmission of all data signals.
6.3 IR Cable Pin Assignment
3
1
2
3
2
1Power
IR Blaster Signal
NC
IR Signal
Power
Ground
IR Extender
IR Blaster
10
7. CONNECTION DIAGRAM
Option 1: Point to Point
Note: The receiver is
powered via PoC by the
transmitter.
Power
Link
CAT 5e /6 OutLite
DC 24V
IR2 Extender
RS232 In IR1 Blaster
HDMI In
HDMI OUT
POWER
LINK
IR 1
EXTENDER
IR 2
BLASTER
7m3m 3m
60°
m
m
m
1.5m
60°
1.5m
60°
7m
3m
3m
60°
m
m
3m
HDMI
Input
HDMI
Output
Power
Supply
HDTV
IR Extender
IR Extender
DVD/Blu-ray Player
IR Blaster
Single
CAT5e/6/7
Cable
IR Blaster
Compatible
Transmitter unit with
PoC
11

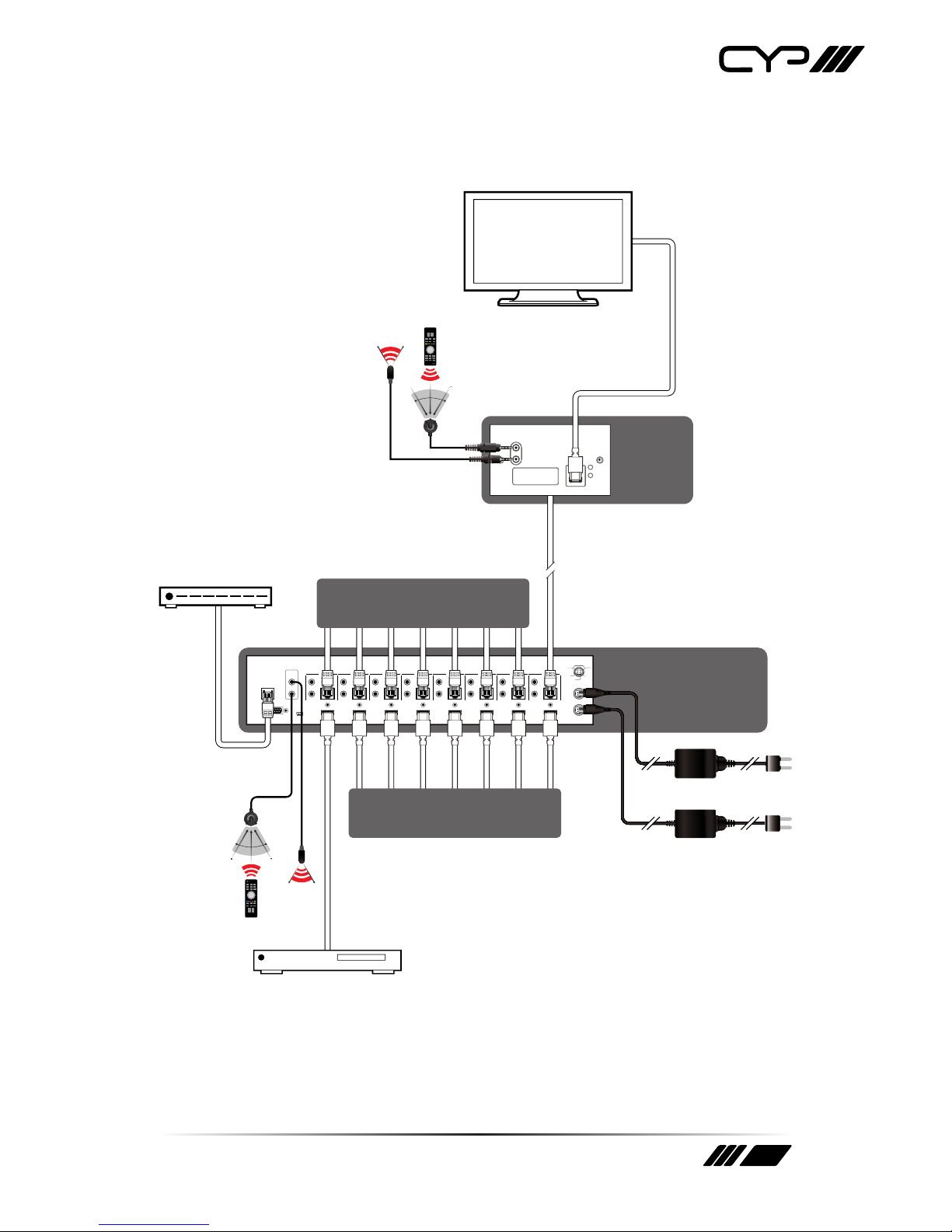

Option 2: Matrix System
8
HDMI IN
CONTROL
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
HDMI OUT
POWER
LINK
IR 1
EXTENDER
IR 2
BLASTER
7m3m 3m
60°
m
m
m
1.5m
60°
7m3m 3m
60°
m
m
m
1.5m
60°
Single
CAT5e/6/7
Cable
HDMI
Input
PoC Power Supply
Main Power Supply
Blu-ray Player
Internet
Router
HDBaseT
Transmitter
(8×8 Matrix)
Up to 7 Other Zones
Up to 7 Other Sources
RX
HDMI
Output
TV/Display
IR
Extender
IR Extender
IR Blaster
IR
Blaster Note: The receiver can be used in a wider HDMI
matrix system and can be powered via PoC by a
compatible matrix/transmitter unit.
