OPERATION MANUAL
PUV-1510RX
HDBaseT™ 5Play™ Receiver
(inc. PoH & single LAN, up to 100m)
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2019 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 16/05/2019 First release
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3. IR Cable Pin Assignment ......................10
6.4. D-Sub 9 Pin Definitions ........................10
7. Connection Diagram .......................... 11
8. Specifications...................................... 12
8.1 CAT5e/6/7 Cable Specification ...........13
8.2 Timing Support Chart ............................14
9. Acronyms............................................. 15
6
1. INTRODUCTION
The HDMI over single CAT5e/6/7 Receiver can receive uncompressed
audio/video and IP data over a single run of CAT5e/6/7 cable at a distance
up to 100 meter. It has the added benefit of control through the built-in
RS-232 and IR ports and a bi-directional LAN serving connection. The
Receiver (PD) can be powered by the PoE 48V function of the Transmitter
(PSE), allowing for greater flexibility in installations.
2. APPLICATIONS
48V PoE from Transmitter (PSE) to Receiver (PD)
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1 x CAT5e/6/7 over HDMI Receiver
1 x IR Extender
4. SYSTEM REQUIREMENTS
Input source equipment such as PS3/Blu-ray player and output HD TV/
display.
7
5. FEATURES
HDMI with 3D, 4K2K support, HDMI & DVI Compliant
Supports CEC bypass
Simultaneous reception of uncompressed data over a single
100m/328ft CAT5e/6/7 cable
5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232)
Supports resolution up to 4K2K@50/60 & YUV_420 and 21:9
Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Installation Friendly
Supports HDMI Output cable distance up to 5m at 4K2K@50/60 &
YUV_420
Note:
Displaying HDMI 3D and 4K2K contents, equivalent source signal and HDMI
cable are required in order to secure the quality.
8
6. OPERATION CONTROLS AND FUNCTIONS

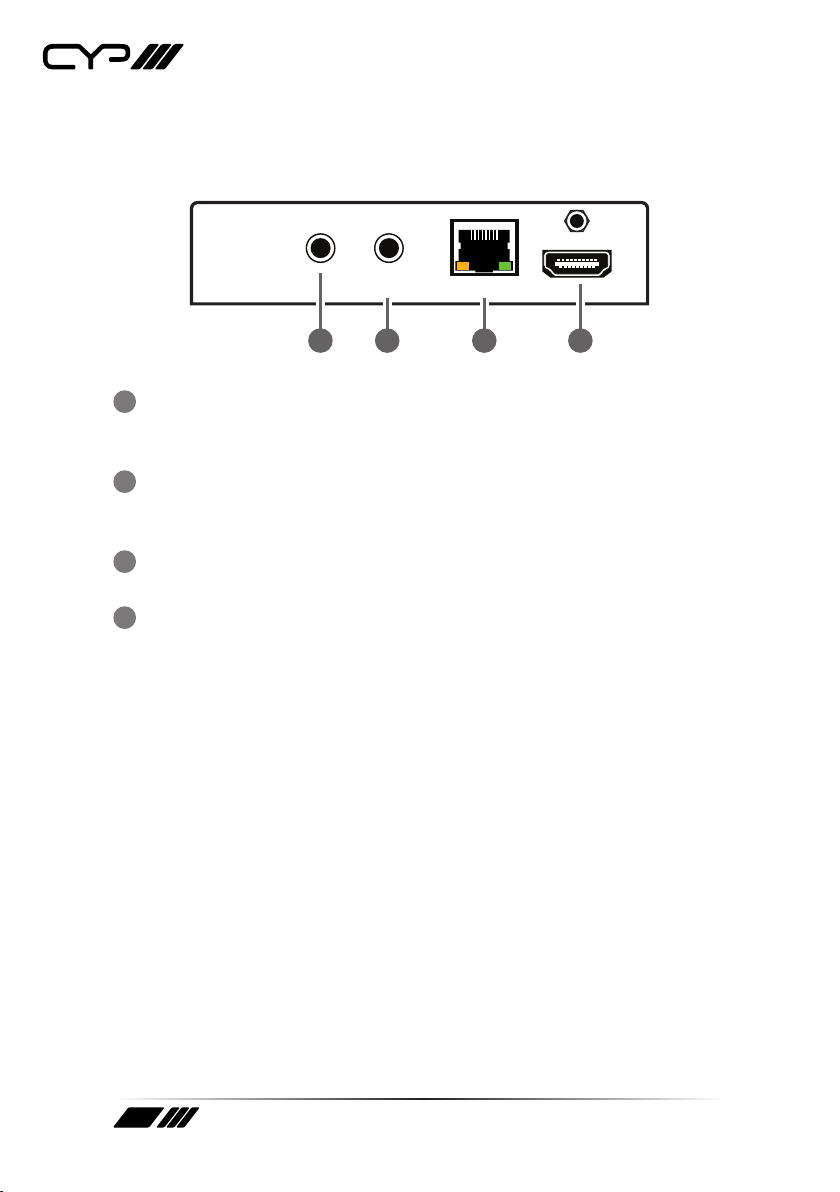

6.1 Front Panel
CAT5e/6/7 IN
IR1
EXTENDER
HDMI OUT
IR2
BLASTER
1 42 3
1IR2 BLASTER: Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
2IR1 EXTENDER: Connect to the supplied IR Extender cables for IR
signal reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
3CAT5e/6/7: Connect to the Transmitter unit with a single CAT5e/6/7
cable for transmission of all data signals.
4HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the HDMI input source signal.
9
6.2 Rear Panel
POWER
LINK
RS-232 OUT
LAN
STD UPDATE
6 7 8 95
1STD/UPDATE Switch: This switch is reserved for factory use only.
2RS-232 OUT: Connect to the device that is to be controlled (via D-Sub
9-pin female cable) by RS-232 commands.
3LAN: Connect to a PC or Laptop to utilise the Internet or network
function.
4POWER LED: This LED will illuminate when the device is connected to
a power supply.
5LINK LED: This LED will illuminate when both the input source and
output display signals are connected through CAT cable. When it
blinks regularly it states the display is NOT sending signals to Receiver
but the Transmitter and Receiver are linked and if it blinks irregularly it
indicates an error has occurred.
10

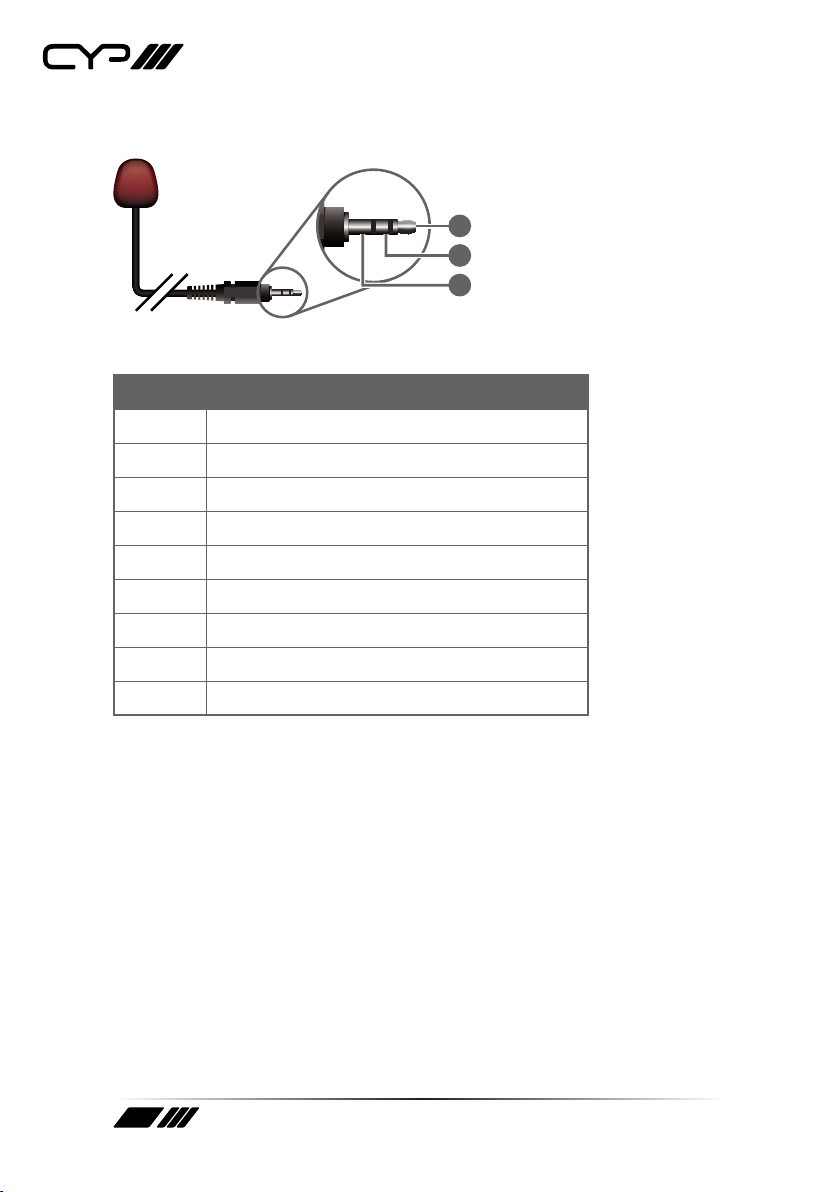

6.3. IR Cable Pin Assignment
3
1
3
1
2
2
IR Signal
Power
Ground
IR Extender
6.4. D-Sub 9 Pin Definitions
Pin Define TX / RX
1N/C
2TxD / RxD
3RxD / TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C
