CYP CA-COMP100R Manuel utilisateur

VGA Audio over

CAT5 Receiver at

100 Meters

Operation Manual

CA-COMP100R

TABLE OF CONTENTS

1. Introduction .........................................................................................

2. Features ...............................................................................................

3. Package Contents ..............................................................................

4. Operation Controls and Functions ....................................................

4.1 Front Panel .....................................................................................

4.2 Rear Panel ......................................................................................

5. Specications ......................................................................................

1. Introduction

This is the receiver (Rx) unit of VGA audio over CAT5 solution, works with the

transmitter that can extend PC/HD with Audio signal through CAT-5 cables for

a distance up to 100 meters. The installation of VGA audio over CAT5 is easy

and quick, simply place receiver next to your display, and get all necessary

cables connected to complete and enjoy.

2. Features

 Supports PC/RGB and HD/YCbCr/YPbPr format output.

 Supports CAT-5 cable.

 Supports high definition (HD) output source up to 1080P.

 Supports PC output source up to UXGA.

 The output signal will depend on the input source.

 Easy to install and to operate.

3. Package Contents

 VGA audio over CAT5 receiver box.

 5V/1A DC power supply adaptor.

 Operation Manual.

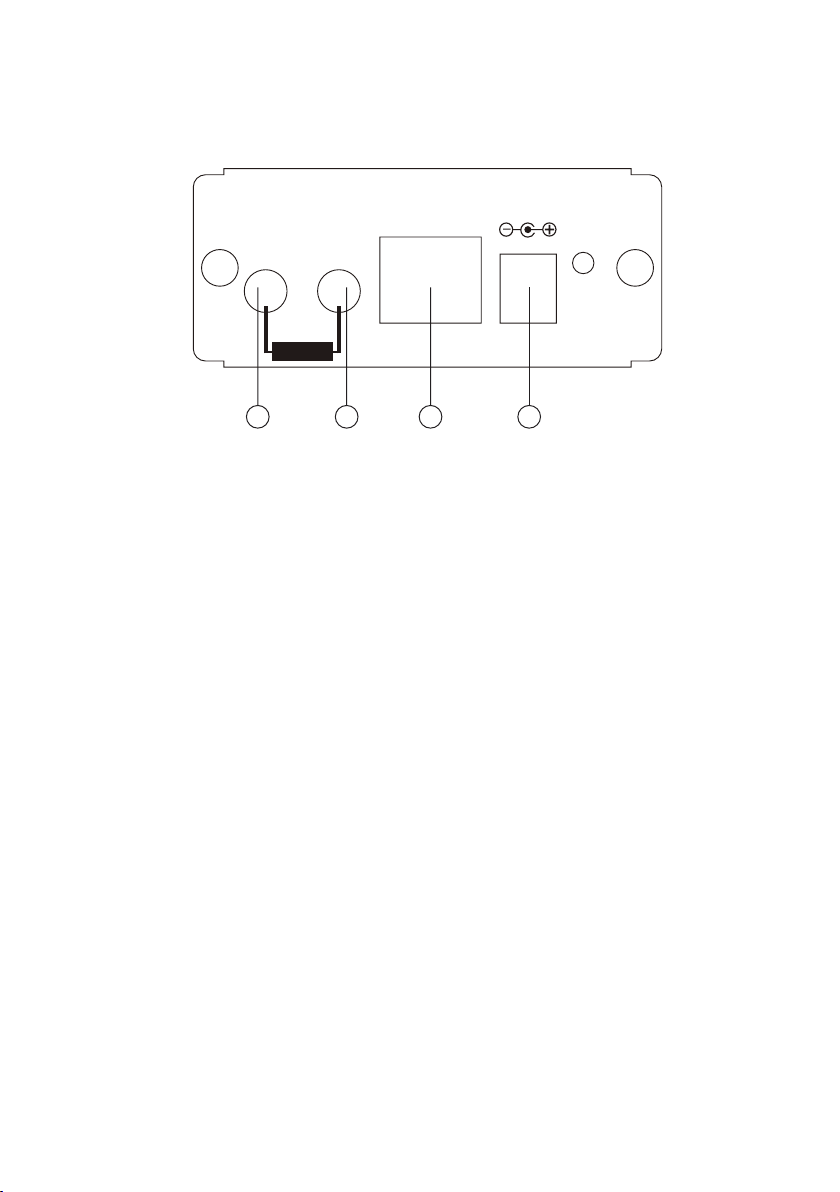

321 4

EQUALIZER GAIN CAT5-INDC 5V

ADJUST

MINMAX

4. Operation Controls and Functions

4.1 Front Panel

1. EQUALIZER: Use this switcher to adjust signal enhancement over long

distance.

2. GAIN: Use this switcher to adjust brightness.

3. CAT5-IN: Connected the video output to the video input of the CAT5

receiver unit using CAT-5 cable.

4. DC 5V/1A: Power input.

TOSLINK

OUT

AUDIO

OUT

PC/HD

OUT

1 2 3

4.2 Rear Panel

1. Toslink output: Connected SPDIF output to the display audio input.

2. Audio output: Connected audio R/L output to the display audio input.

3. PC/HD output: Connect the PC/HDMI output port to the PC/HDMI input

display with D-Sub 15pin cable.

5. Specications

Supported Resolutions HD: up to 1080p; PC: up to UXGA

Output Audio Source Ports VGA, Audio L/R or Toslink/SPDIF

Input Video Source Port CAT-5

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)

Dimensions (mm) 99.5(W) x 77(D) x 32.5(H)

Weight(g) 200

Chassis Material Metal

Silkscreen Color Black/Silver

Operating Temperature 0°C ~ 40°C

Supported Resolutions HD: up to 1080p; PC: up to UXGA

Output Audio Source Ports VGA, Audio L/R or Toslink/SPDIF

Input Video Source Port CAT-5

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)

Dimensions (mm) 99.5(W) x 77(D) x 32.5(H)

Weight(g) 200

Chassis Material Metal

Silkscreen Color Black/Silver

Operating Temperature 0°C ~ 40°C

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.

Cypress Component over CAT5 series:

Product Description

CA-COMPAT Component over CAT5 Transmitter

CA-HDMI 50R Component over CAT5 Receiver at 50 meters

CA-HDMI 100R Component over CAT5 Receiver at 100 meters

20071128 MPM-COMP100R
