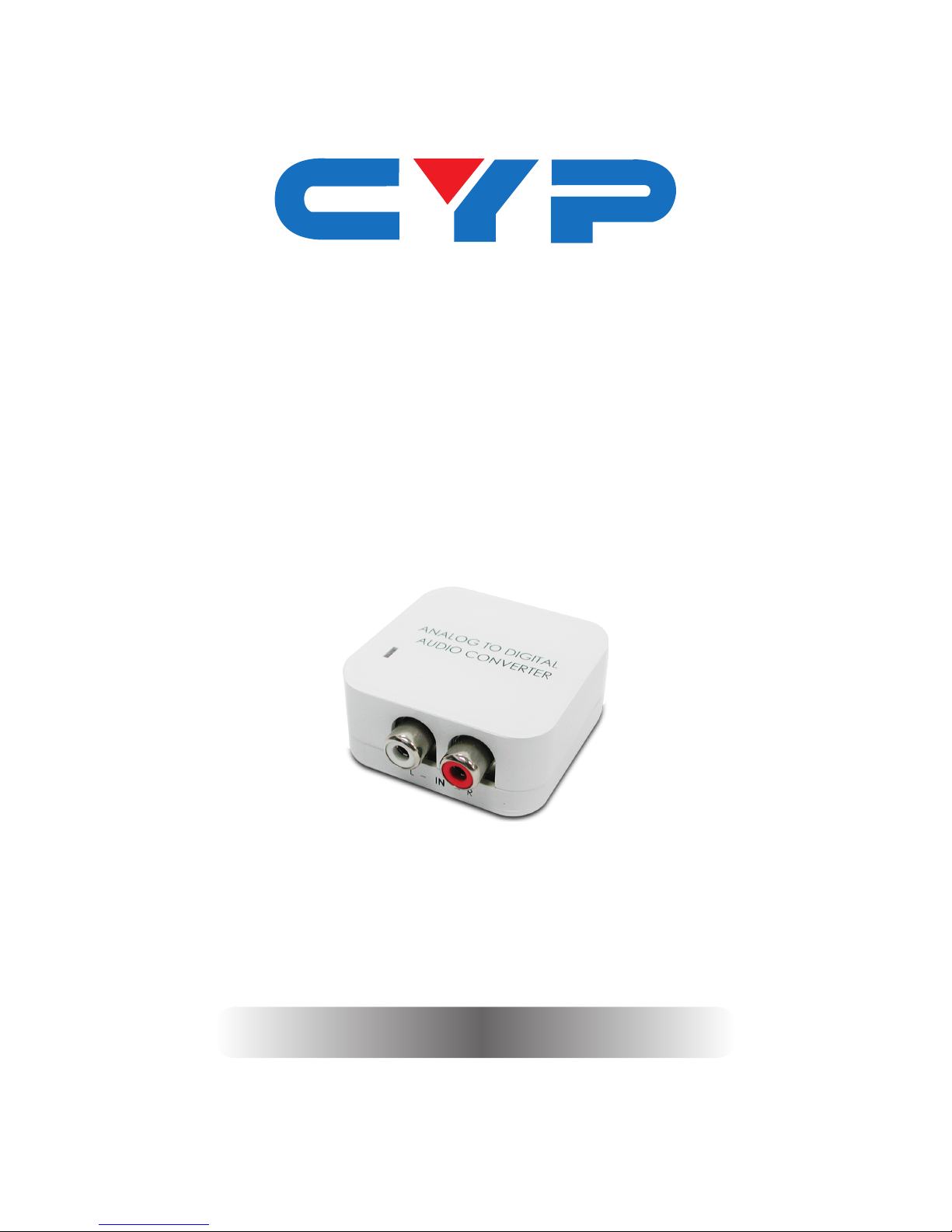

CYP DCT-4 Manuel utilisateur

DCT-4

Stereo Analog to Dual Outputs

Digital Converter (ADC)

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS1 24/12/12 Updated format/diagrams

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 1

6. Operation Controls and Functions....... 2

6.1 Front Panel.........................................2

6.2 Rear Panel .........................................2

6.3 Left Panel ...........................................3

6.4 Top Panel ...........................................3

7. Connection Diagram ............................ 4

8. Specications ........................................ 5

9. Acronyms ............................................... 6

1. INTRODUCTION

The Stereo Analog to Dual Outputs Digital Converter (ADC) is

designed to convert analog stereo audio to Coaxial and TOSLINK

Optical digital outputs. The digital output is 2 channels uncompressed

LPCM with a sampling rate of 48 kHz. Both Optical and Coaxial cables

connected to the output ports of the unit can run up to 5 meters while

still providing a reliable and lossless audio signal transmission. The unit

is both compact and easy to install, which makes it a very handy

device, perfect for converting audio signals in the home or workplace.

2. APPLICATIONS

• Convert analog audio to digital to connect to optical or coaxial

digital AV receiver input

• Convert and distribute an analog audio signal to 2 digital outputs (1

Coaxial and 1 Optical)

3. PACKAGE CONTENTS

• Stereo Analog to Dual Outputs Digital Converter (ADC)

• 5 V DC Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Analog audio source device such as DVD or CD player and audio

output device such as an amplier or AV receiver with digital audio

input (Coaxial/Optical).

5. FEATURES

• Supports uncompressed output of 2 channels LPCM digital audio

signals

• Supports an output sampling rate of 48 kHz

• Provides electromagnetic-noise-free transmission

• Easy to install and operate

6. OPERATION CONTROLS AND FUNCTIONS

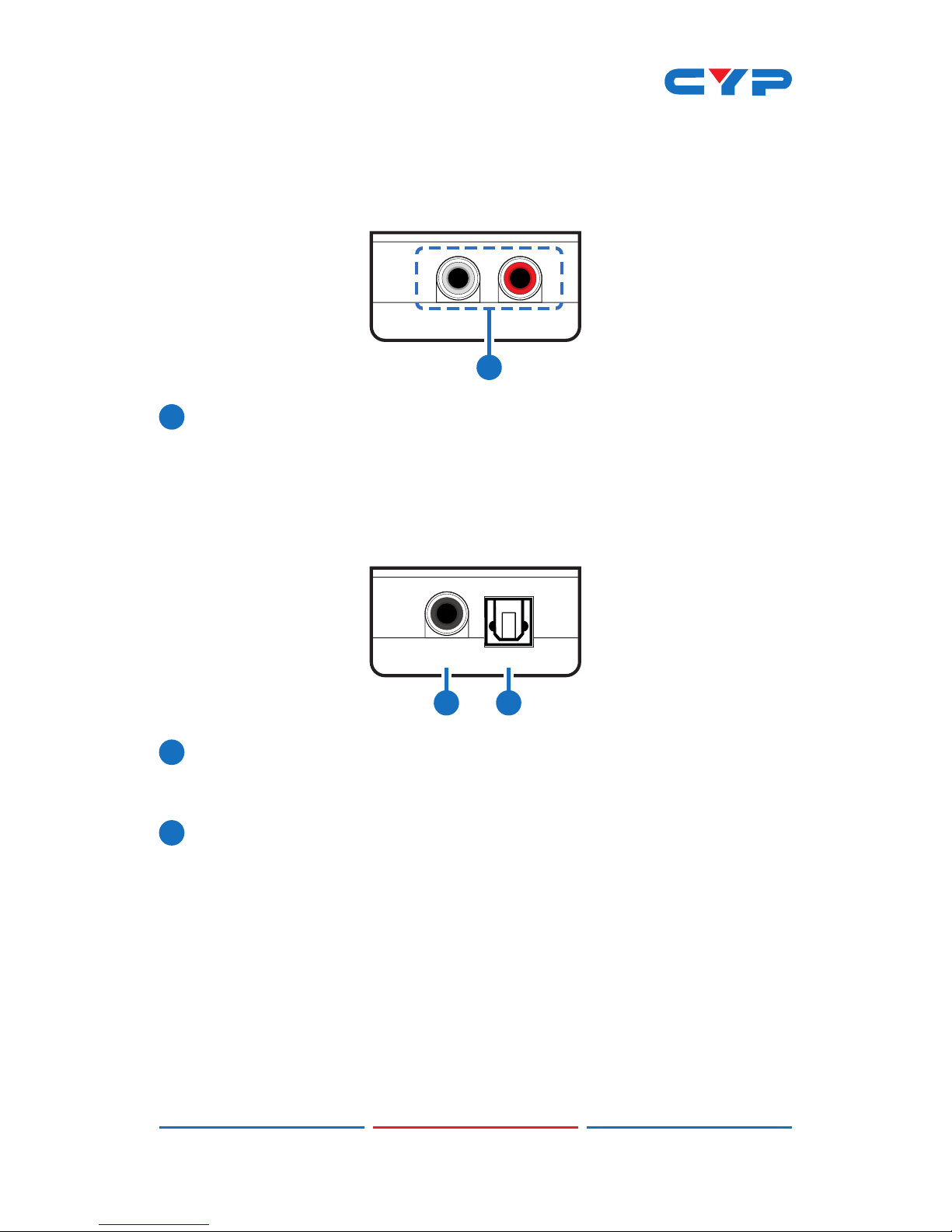

6.1 Front Panel

L/R IN: Connect this input to the stereo output of an audio

streamer, AV receiver, LCD TV, or DVD player, using stereo RCA

cables.

6.2 Rear Panel

COAX

OUT

OPTICAL

1 2

COAX OUT: Connect this output to the Coaxial input of an

audio equipment such as an amplier or A/V receiver, using a

compatible cable.

OPTICAL OUT: Connect this output to the Optical input of an

audio equipment such as an amplier or A/V receiver, using a

compatible cable.

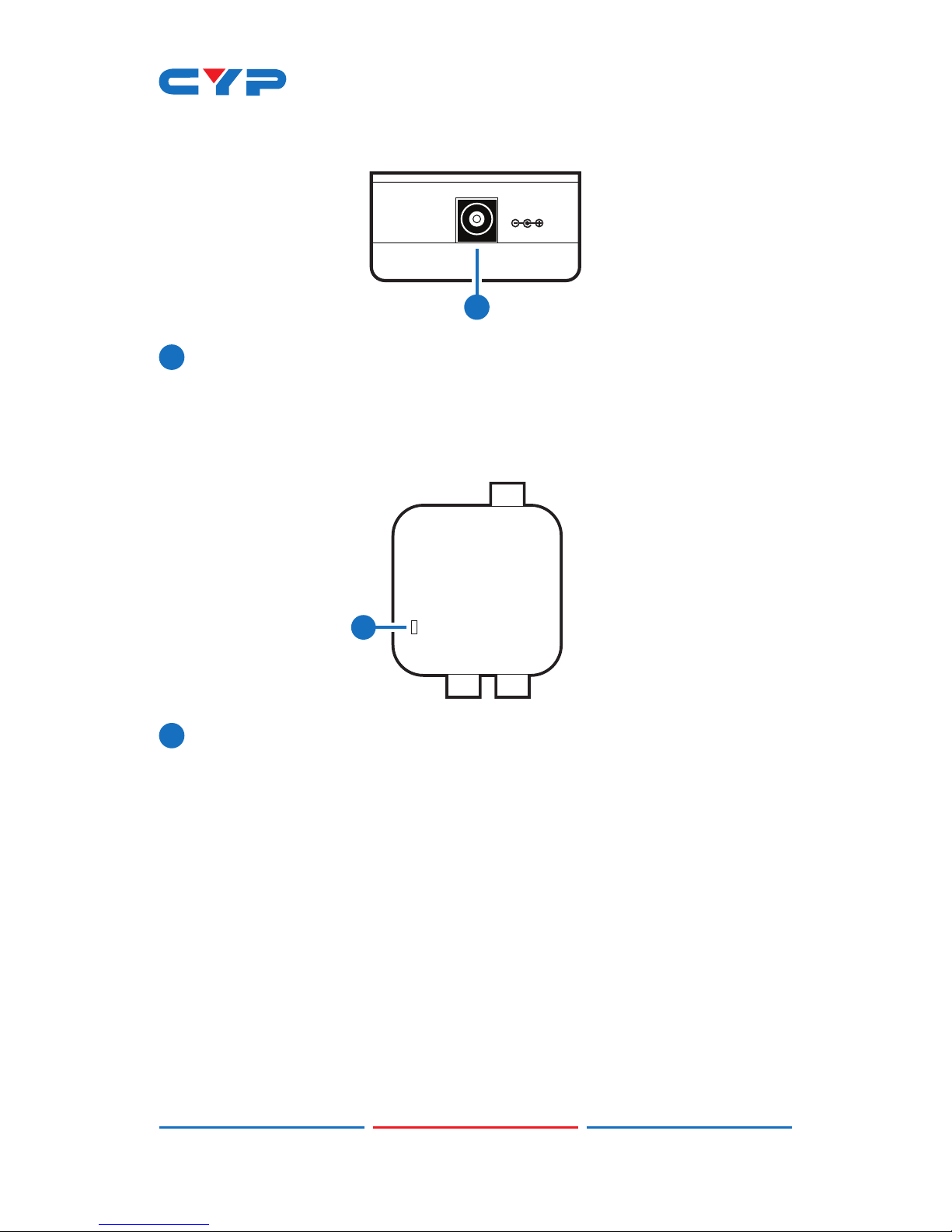

6.3 Left Panel

DC 5V

DC 5V: Plug 5V DC power supply into the unit and connect the

adaptor to AC wall outlet.

6.4 Top Panel

ANALOG TO DIGITAL

AUDIO CONVERTER

POWER LED: The LED will illuminate when the power is connected.

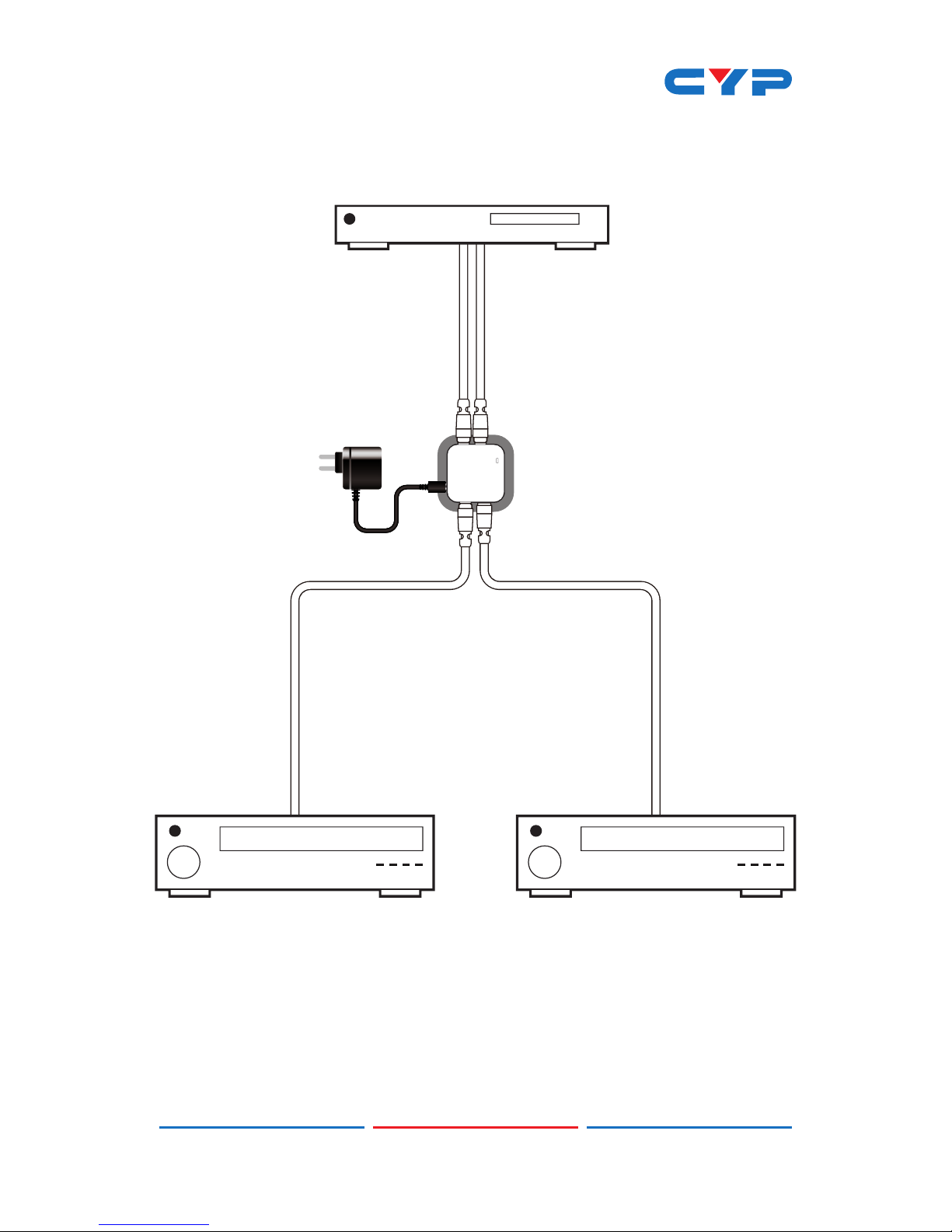

7. CONNECTION DIAGRAM

ANALOG TO DIGITAL

AUDIO CONVERTER

DVD Player

Digital Audio

Output (Optical)

AV Receiver AV Receiver

Analog

Stereo

Input

Digital Audio

Output (Coaxial)

Power

Supply

8. SPECIFICATIONS

Input Ports 1×Analog Stereo (RCA connectors)

Input Format Analog Stereo 2 CH

Output Format LPCM 2 CH

Output Sample Frequency 48 kHz

Output Ports 1×Coaxial

1×Optical (TOSLINK connector)

Output SNR >90 dB

Output THD+N < 0.01 % at 1 kHz

Output Frequency Response < ±0.5 dB 20 Hz–20 kHz

Output Crosstalk < −85 dB

Power Supply 5 V/0.36~0.5 A DC (US/EU standards,

CE/FCC/UL certied)

Dimensions 57 mm (W)×45.5 mm (D)×23.5 mm (H)

Weight 30 g

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0 °C~ 40 °C

Power Consumption 0.6 W
