CSC-5500

Multi Input Scaler

Operation Manual

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version VR1.0 November 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 03/12/12 Preliminary Release

RDV2 08/04/13 RS-232 Command

DRAFT

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 1

6. Operation Controls and Functions....... 2

6.1 Front Panel ........................................2

6.2 Rear Panel.........................................3

6.3 Remote Control................................4

6.4 RS-232 Protocols ...............................5

6.5 RS-232 Commands...........................6

6.6 OSD MENU.........................................8

7. Connection and Installation............... 11

8. Specications ...................................... 12

8.1 Support I/O Resolution...................13

DRAFT

1. INTRODUCTION

The Multi Input Scaler has CV, Component, PC, and HDMI inputs and

can scale the signal into HDMI, VGA with audio output ports. This high

performance multi input scaler supports HDMI output resolution up to

1080p /WUXGA and Analog Digital Conversion (ADC) & Digital Analog

Conversion (DAC) allowing a wide range of AV signal to be insert to a

high-Denition signal and displaying. Further, with OSD, remote, RS-232,

Telnet and on-panel controls that makes whole for this Digital Video

Scaler a friendly using device.

2. APPLICATIONS

• Lecture hall

• Meeting room

• Conference hall

3. PACKAGE CONTENTS

• Multi Input Scaler

• Remote Control (CR-122)

• D-Sub to RCA adaptor cable

• Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Input source equipments such as Blu-ray/DVD players or PC/NB,

output display and amplier or speakers.

5. FEATURES

• Supports multi AV inputs to HDMI or PC/HD outputs

• Supports EDID and HDCP

• Supports 3D de-interlace, noise reduction and 3D Comb lter

• Supports frame rate conversion

• Supports RS-232, Telnet & Controls

• Support output timing hot keys switching

• HDMI compatible with DVI

DRAFT

6. OPERATION CONTROLS AND FUNCTIONS

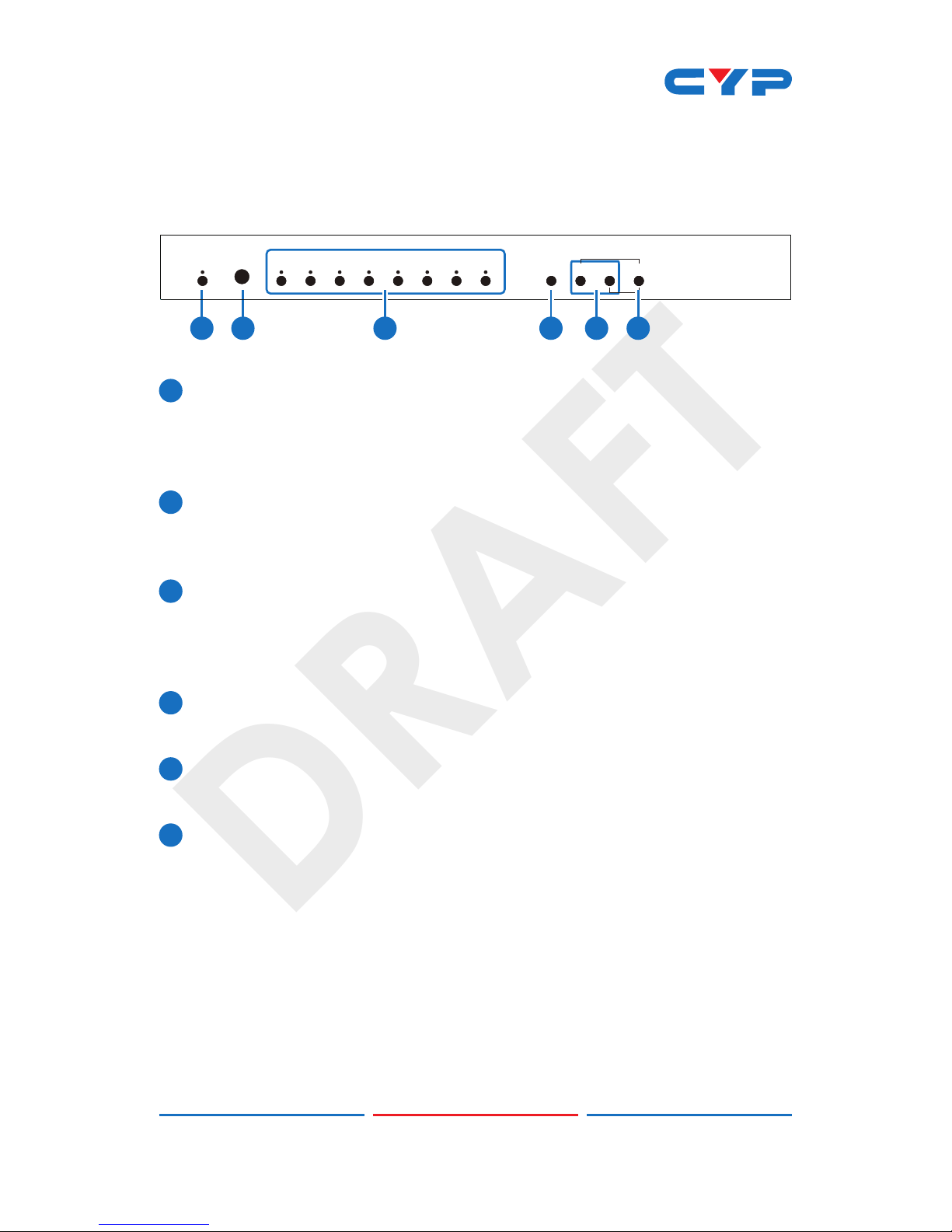

6.1 Front Panel

1 2

POWER CV COMP PC 1 PC 2 PC 3 HDMI 1 HDMI 2 HDMI 3MENU

XGA

ENTER

720P

3 4 5 6

1POWER & LED:

Press this button to switch ON or set the device to standby mode.

Once the device is connected with power supply the LED will

illuminate and the device will switch to ON automatically.

2IR:

This IR window receives only the IR signal from the remote control

included in the package.

3INPUT button and LEDs:

Press this button sequentially to switch in between the input sources

rotationally. LED will illuminate accordingly to the selected input

source.

4MENU:

Press this button to enter into the OSD menu.

5-/+:

Press these buttons to scrolled down and up in the OSD selection.

6ENTER:

Press this button to conrm the selection. Press this button together

with + button to switch output to XGA instantly or with - button to

switch output to 720p instantly.

DRAFT

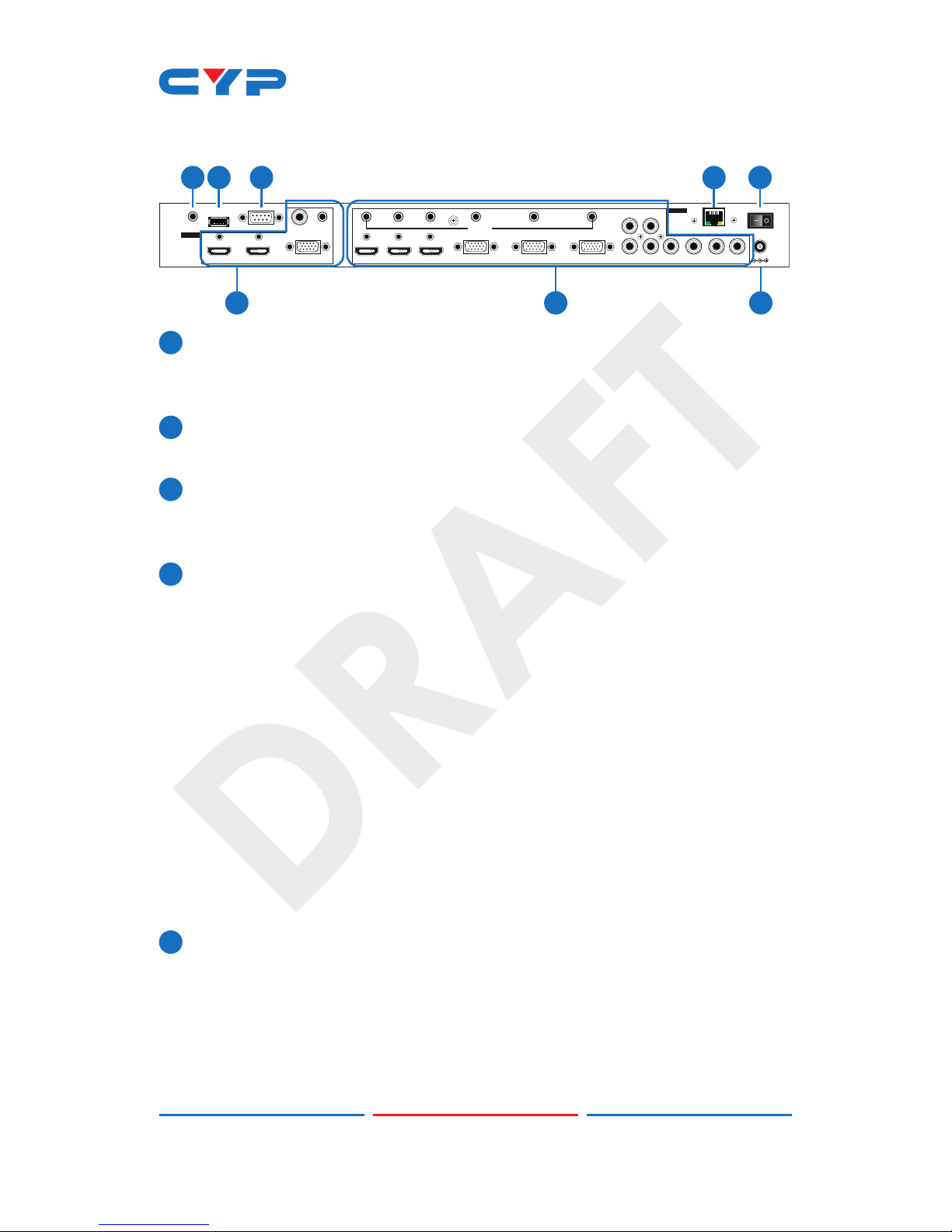

6.2 Rear Panel

POWER

DC 5V

CONTROL

HDMI 2HDMI 1 PC/HD

RS232 COAX AUDIO

SERVICE

OUTPUT

HDMI 1 HDMI 2 HDMI 3 PC 1 PC 2 PC 3 Cr/Pr Cb/Pb

YRLCV

AUDIO

INPUT

4 5 8

1 2 3 6 7

IR IN

1IR IN:

Plug in the IR extender cable for IR signal receiving from the

included remote control.

2SERVICE:

Reserved for factory use only.

3RS-232:

Connect with PC/NB and use RS-232 command to control the

device.

4OUTPUT:

HDMI 1 & 2: Connect to HDMI display or amplier for video or video

and audio display.

COAX: Connect to active speaker or amplier for audio output in

digital format.

When the input audio source signal is with bitstream format and

the audio source setting is at Auto, coaxial output will bypass the

input audio signal which may be 5.1CH or 7.1CH according to

audio input format.

AUDIO: Connect to active speaker or amplier for audio output in

stereo format.

PC/HD: Connect to monitor/display for video output display. For

HD output,use D-Sub 9pin to 3 RCA adaptor cable for output HD

timing from 480p~1080p.

5INPUT:

HDMI 1~3: Connect to HDMI source equipment such as Blu-ray/

DVD player for both video and audio signal sending.

PC 1~3: Connect with PC/NB source equipment for video signal

input with D-Sub 15pin cable.

L/R: Connect to source equipment’s L/R output corresponding

tothe input jack below with 3.5Ø phone jack for audio signal

DRAFT

sending.The priority audio input of HDMI is from HDMI, only when

HDMI input has no audio signal the L/R audio will be inserted

into.

YCbCr/HDPbPr + L/R: Connect to source equipment such as video/

DVD player for both video and audio signal sending.

CV + L/R: Connect to source equipment such as video/DVD player

for both video and audio signal sending.

5CONTROL:

This port is the link for Telnet or Web GUI controls, connect to an

active Ethernet link with an RJ45 terminated cable (for further

details, please refer to section.

6POWER:

Switch this power toggle to turn on and activate the device or to

turn off to shut it down.

7DC 5V:

Plug the power adaptor included in the package and connect it

to the AC wall outlet for power supply.

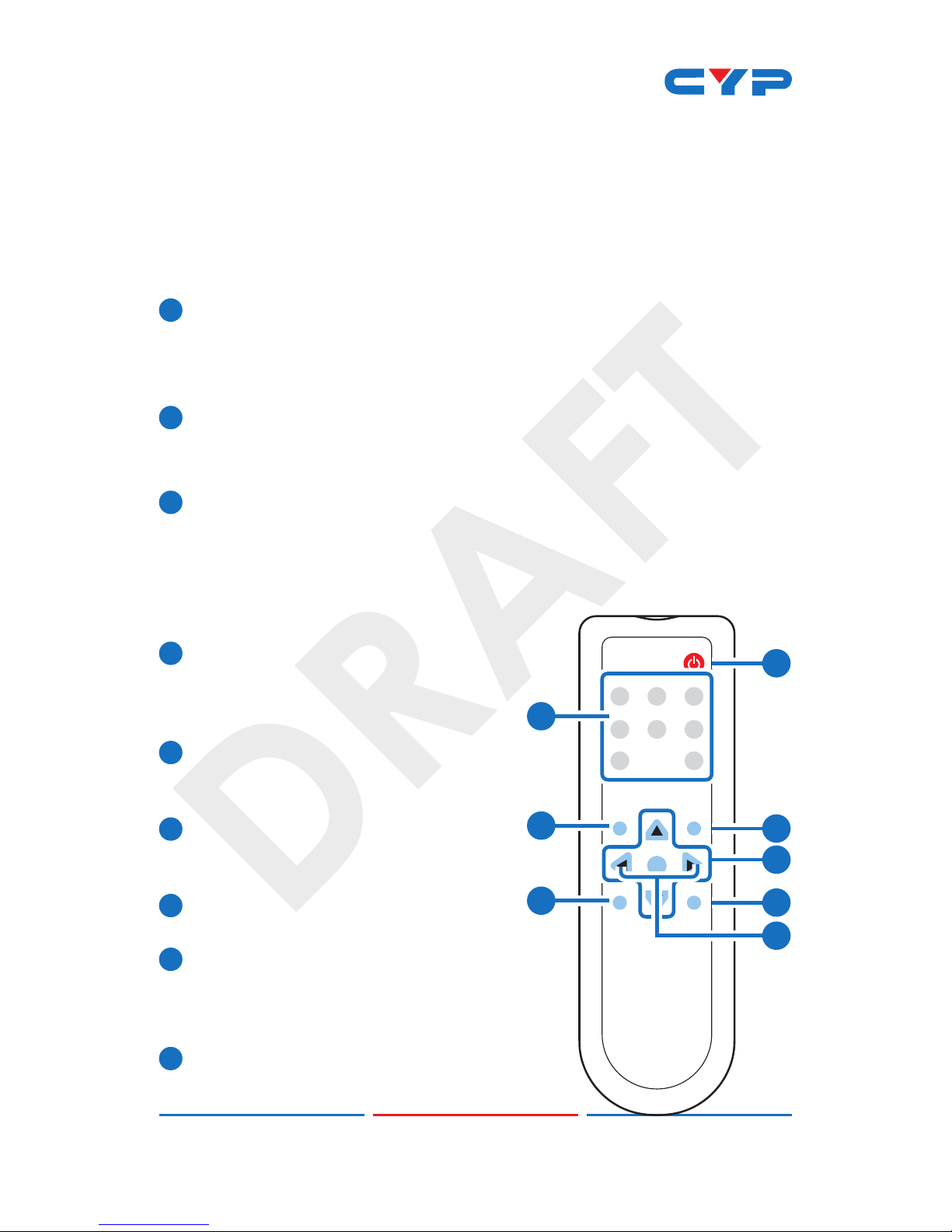

6.3 Remote Control

1POWER: Press this button to switch

ON or set the device to standby

mode. Once the device is

connected with power supply.

2HDMI1~3/PC1~3/CV/COMP: Press

these hot keys to switch input

source instantly.

3EXIT: Press this button to exit the

menu or the current selection under

OSD.

4MENU: Press this button to enter into

the OSD menu.

5 OK & ▲▼◄►: Press OK to conrm

the selection or press the arrow

buttons to scrolled in the OSD

selections.

6RESET: Press this button to set the

device back into the factory default

setting.

CR-122

POWER

PC1PC2 PC3

CV COMP

EXIT MENU

RESET AUTO

ADJUST

HDMI2HDMI1 HDMI3

DRAFT

7AUTO ADJUST: Press this button when output image is not tting the

display's screen perfectly. The device will auto adjust the image to

full screen.

8 ◄►: Press right and left buttons to increase and decrese the

volume.

6.4 RS-232 Protocols

CSC-5500

►

◄

Remote Control

PIN Assignment PIN Assignment

1 NC 1 NC

2Tx 2Rx

3Rx 3Tx

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9 NC 9 NC

Baud Rate: 19200bps

Data bit: 8 bits

Parity: None

Flow Control: None

Stop Bit: 1
