1. INTRODUCTION
The SDI to CV/SV Scaler allows SD, HD and 3G-SDI signals to be shown
on CV/SV display. This means that it is now easier for professionals to
distribute and extend their SDI signal while giving the ability to display
work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and
L/R audio outputs users can output audio in both digital and analog
formats while the loop-through 3G-SDI design benets users by letting
them simultaneous show content on SDI, Composite Video and S-Video
displays.
2. APPLICATIONS
• Broadcast video signal transmission to SDI display
• 3G-SDI signal conversion into Composite Video (CVBS)/S-Video
3. PACKAGE CONTENTS
• SDI to CV/SV Scaler with Audio
• 5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input broadcast video with an SDI cable and output to SDI and/or
Composite Video (CVBS)/S-Video displays or recording Devices with
suitable connection cables.
2
5. FEATURES
• Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
• Supports CV/SV and SDI (bypass) output simultaneously
• SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,
1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
• Supports SDI input/output distance up to 100 meters (3G-SDI), 200
meters (HD-SDI), or 300 meters (SD-SDI)
• Scale any SDI signal to CV/SV of NTSC or PAL format
• Supports SDI input modes:
1. SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s
2. HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and
1.485/1.001 Gbit/s
3. 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and
2.970/1.001 Gbit/s
• Equalized and re-clocked loop output
• Alternative audio output to coaxial and analog 2CH
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel

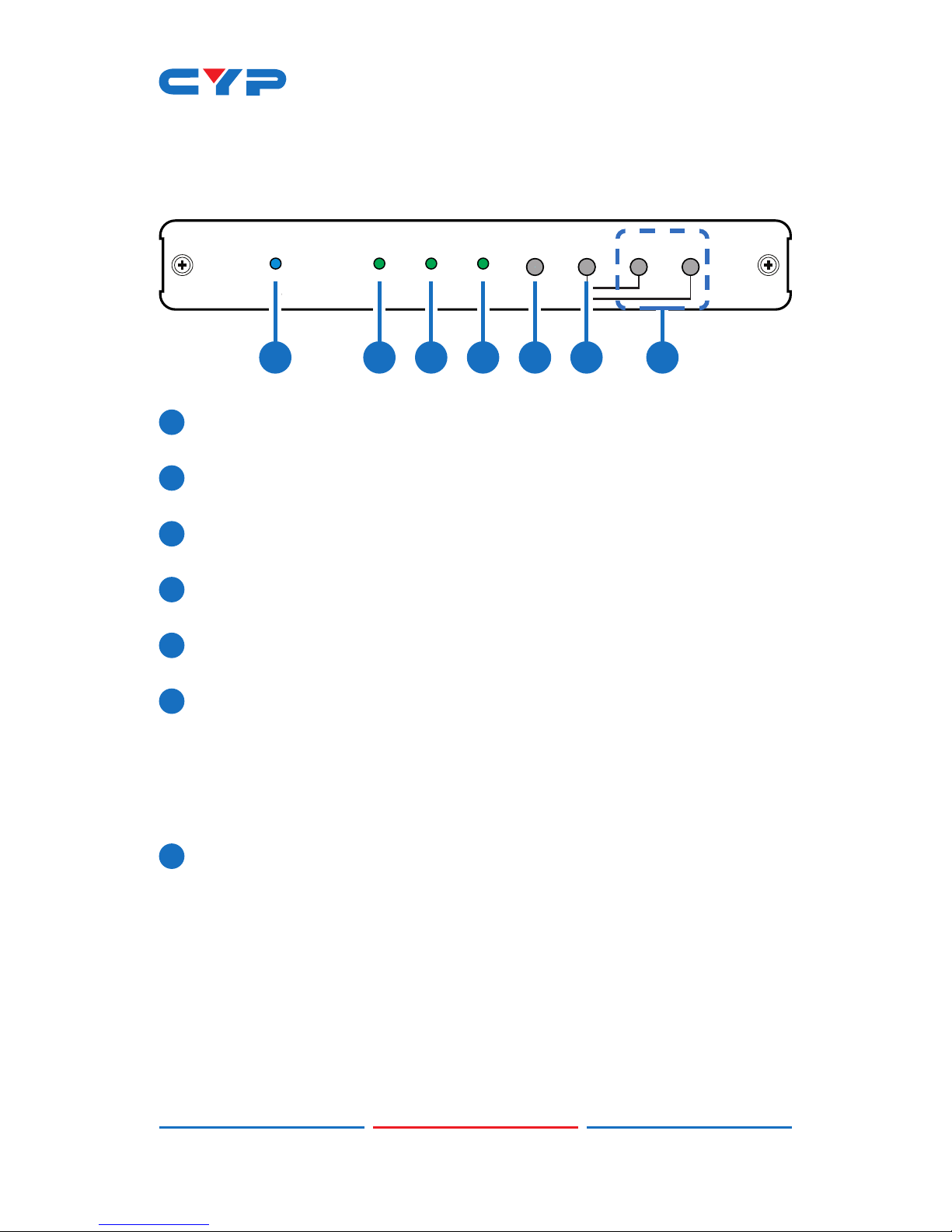

POWER3GHDSDMENUENTER
-
+
NTSC
PAL
3G SDI to Video Scaler CLUX-SDI2CSS
2 3 4 5 6 71
1
Power LED: The LED will illuminate blue when the device is
connected to a power supply.
2
3G LED: This LED illuminate green when a 3G-SDI input signal is
detected.
3
HD LED: This LED illuminate green when a HD-SDI input signal is
detected.
4
SD LED: This LED illuminate green when a SD-SDI input signal is
detected.
5
MENU: Press this button to enter/exit the On-Screen Display (OSD)
menu.
6
ENTER: Press this button to conrm your selection. Press both ENTER
and 'Minus' (−) buttons together to switch the Composite or S-Video
output to NTSC format or press both ENTER and 'Plus' (+) buttons
together to switch to switch the Composite or S-Video output to
PAL format. After making the selection, press ENTER to conrm the
output format.
7
−/+: Press these buttons to move up or down the OSD selections.
4
6.2 Rear Panel

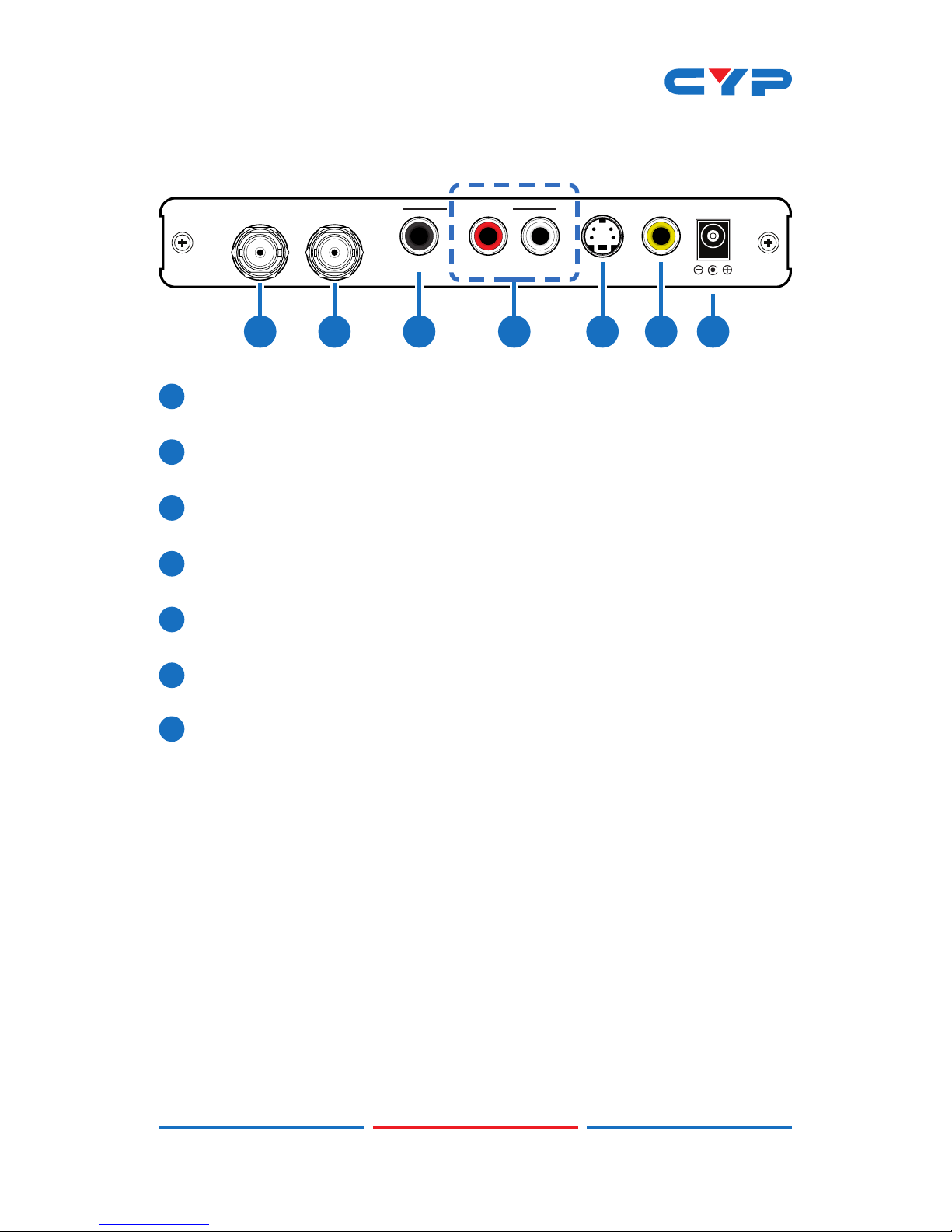

SDI IN SDI OUT
AUDIO OUT DC 5V
COAXIAL R L
S VIDEOVIDEO
1 2 3 4 5 6 7
1
SDI IN: Connect to the SDI output of the SDI source device.
Accepts SD,HD or 3G SDI signals.
2
SDI OUT: Provides a 'loop-through' SDI signal output for connection
to a SDI display.
3
AUDIO OUT COAXIAL: Digital Audio output (SP/DIF). Connect to an
amplier or recording device with a suitable digital coaxial input.
4AUDIO OUT R/L: Analogue audio output (L/R Stereo). Connect to
an amplier or recording device with a suitable analogue input.
5S-VIDEO: Analogue S-Video output. Connect to an display or
recording device with a S-Video input.
6VIDEO: Analogue Composite Video (CVBS) output. Connect to an
display or recording device with a Video input.
7DC 5V: Plug the 5 V DC power supply into the unit and connect the
adaptor to an AC outlet. The 'POWER' LED will illuminate blue when
the power is ON.
5
7 OSD MENU AND FUNCTIONS
First Layer Second Layer Third Layer
Display
Output NTSC
PAL
Size
Full
Over Scan
Under 1
Under 2
Letter Box
Pan Scan
Exit
Color
Contrast 0~255 (105)
Brightness 0~192 (96)
R 0~255 (128)
G 0~255 (128)
B 0~255 (128)
R Offset 0~64 (32)
G Offset 0~64 (32)
B Offset 0~64 (32)
Exit
SDI Audio
Group 1
Group 2
Group 3
Group 4
Auto
Off
Factory Reset Yes
Information Input, Output and Revision
