Video System

Converter

Operation Manual

CDM-160

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Main Features............................................................................. 1

3. Hardware Description................................................................ 2

3.1 Front Panel.............................................................................2

3.2 Rear Panel............................................................................. 2

4. Connections and Installation.................................................... 3

5. Specifications.............................................................................. 3

1

1. Introduction

The Video System Converter is designed to convert video signal from source of

NTSC,N4 PAL, PAL M, PAL N and SECAM systems (automatically detected), to

NTSC or PAL signal selectable for the connected display to work properly. It is a

convenient device for users to connect source and display of different TV systems,

with the on-panel H.pos. adjusters which is easy to fine-tune screen offset caused

by display of different type.

2. Main Features

● Supports digital conversion from NTSC, N4, PAL, PAL M, PAL N and SECAM to

NTSC/PAL.

● Converts 525 lines to/from 625 lines.

● Converts refresh frequency between 60Hz and 50Hz.

● Provides color bar pattern when there is no signal present.

● System is capable with 8 Mb field memory.

2

3. Hardware Description

The following sections describe the hardware components of this converter

box.

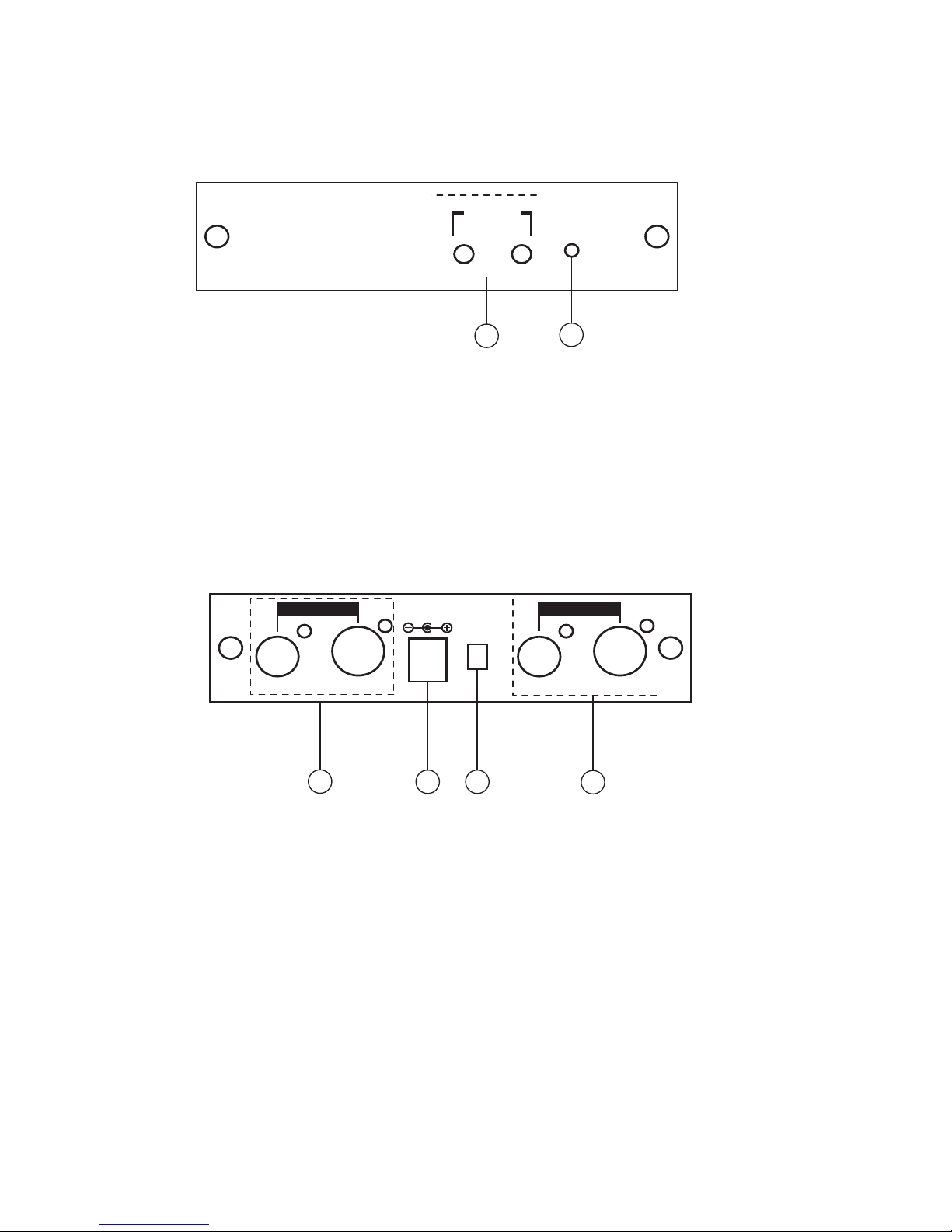

3.1. Front Panel

1. H. POS. Center: To adjust the display to right/left.

2. Power LED: The LED indicator will illuminate when the unit is powered on.

3.2. Rear Panel

1. Video input: Connect to video source using video composite or S-Video

cable.

2. DC 5V/1A: Plug the 5VDC power supply into the unit and connect the adaptor

to AC wall outlet.

3. NTSC/PAL: Select the output signal. NTSC supports 3.58 format only.

4. Video output: Connect to display using video composite or S-Video cable.

1

1

2

POWER

-

+

H. POS.

CENTER

CDM-160

Video System Converter

INPUT

NTSC

PAL

V S V S

DC 5V OUTPUT

2 3 4

3

NTSC or PAL

Video Recorder

PAL

NTSC

or

SECAM

Satellite Receiver

NTSC

or

PAL TV

Camcorder

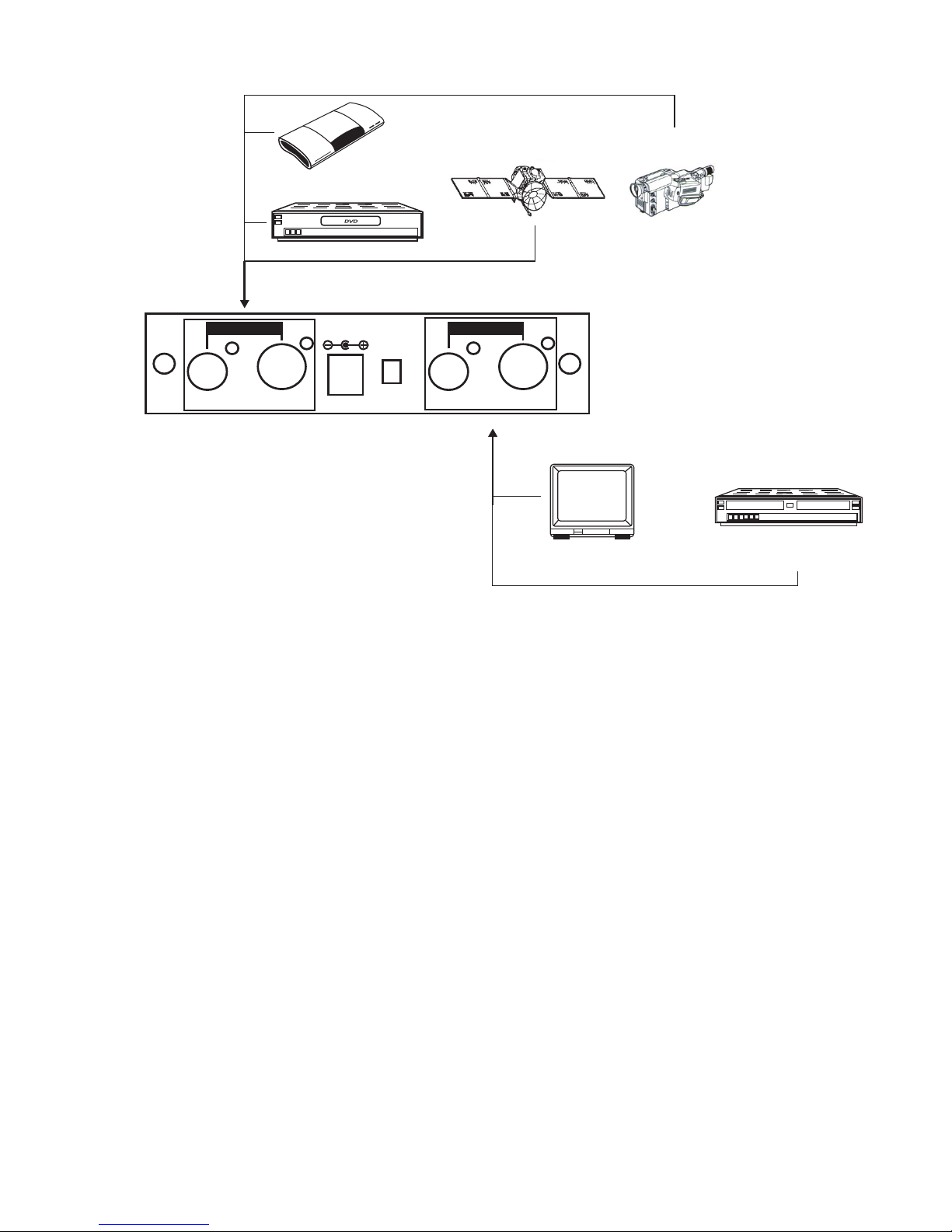

4. Connections and Installation

5. Specifications

INPUT

NTSC

PAL

V S V S

DC 5V OUTPUT

DVD Player

Set-Top-Box

Input Systems

Output Systems

Input Port

Output Port

Sampling Frequency

Digital Code Bit

Line

Field

Power Supply

Dimensions (mm)

Weight (g)

Chassis Material

Silkscreen Color

Operating Temperature

NTSC, N4, PAL, PAL M, PAL N and SECAM

NTSC 3.58, PAL

Video/S-Video

Video/S-Video

Y:13.5MHz

R-Y:6.75MHz

B-Y:6.75MHz

R: 8 bits

G: 8 bits

B: 8 bits

525/625

60/50

5V/1A DC (US/EU standards, CE/FCC/UL certified),

Center positive

125 (w) x 110 (D) x 30 (H)

350

Aluminum

Black

0°C~40°C

2008.1.28 MPM-CDM160

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
