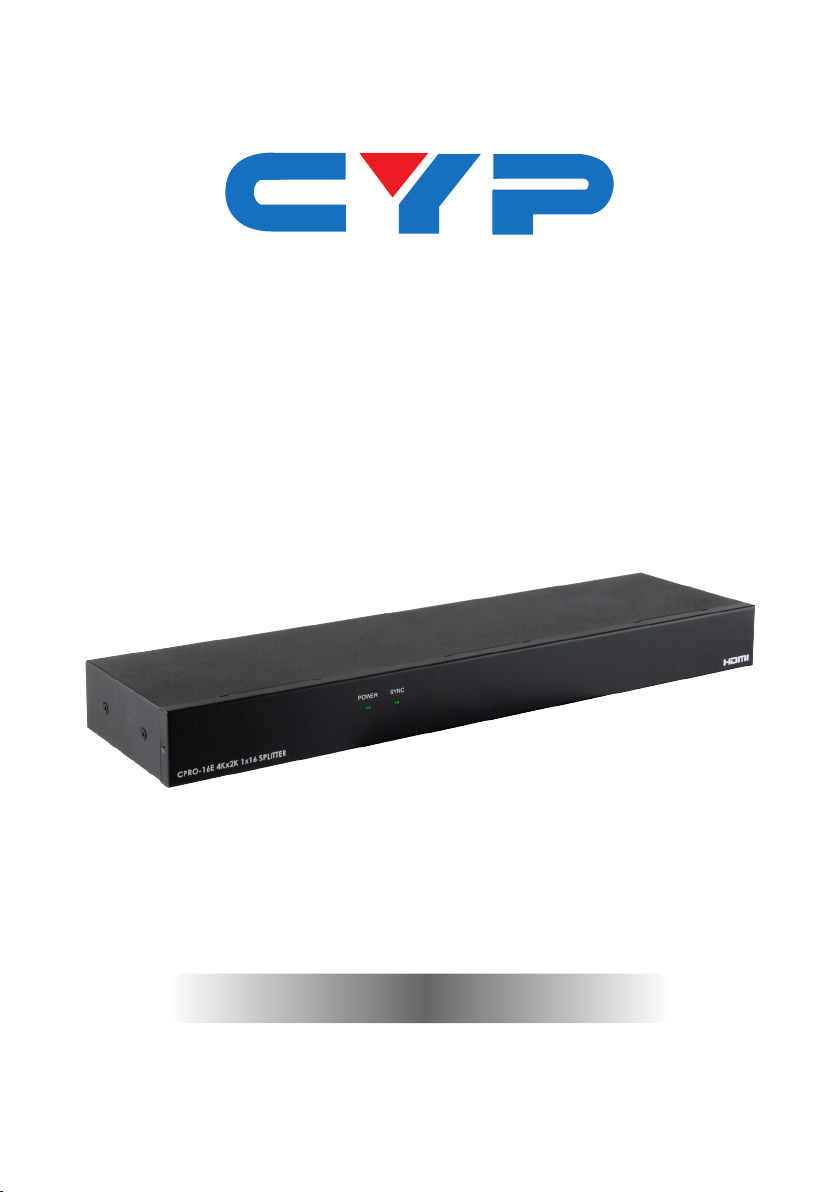

CYP CPRO-16E Manuel utilisateur

CPRO-16E

1×16 HDMI Splitter

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 27/09/13 Preliminary Release

VS1 24/02/14 Updated Diagram

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel.........................................3

6.2 Rear Panel .........................................3

7. Connection Diagram ............................ 4

8. Specications ........................................ 5

9. Acronyms ............................................... 5

1. INTRODUCTION

This high performance 1 by 16 HDMI splitter distributes one HDMI input

to up to sixteen simultaneous HDMI outputs and supports 4K×2K, 3D,

12-bit Deep Color as well as High Denition Lossless Audio. With its

3Gbps bandwidth it supports the latest HDMI standards so you can be

sure of superior HDMI distribution.

2. APPLICATIONS

• Simultaneously display one HDMI source on 16 displays

• Showroom display

• University lecture hall display

• Retail sales display

3. PACKAGE CONTENTS

• 1×1 by 16 HDMI Splitter

• 1×5 V/6 A DC Power Supply Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI equipped source device such as a DVD/Blu-ray player with

HDMI or DVI to HDMI cable

• HDMI equipped displays (HDTVs or projectors) or AV Receivers with

HDMI cables

5. FEATURES

• HDMI and DVI compatible

• Fully HDCP compliant

• Supports 3D

• Supports HDTV resolutions up to 4K×2K@30 Hz

• Supports PC Resolutions of VGA to WUXGA

• Supports 1080p@60 Hz, Deep Color 12-bit

• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

• Supports HDMI cable distances of up to 10m input and 10m output

(8/12-bit)

Note: When displaying a 3D signal with a higher bandwidth than

225 MHz or a 4K×2K resolution source, a High Speed HDMI cable is

required.

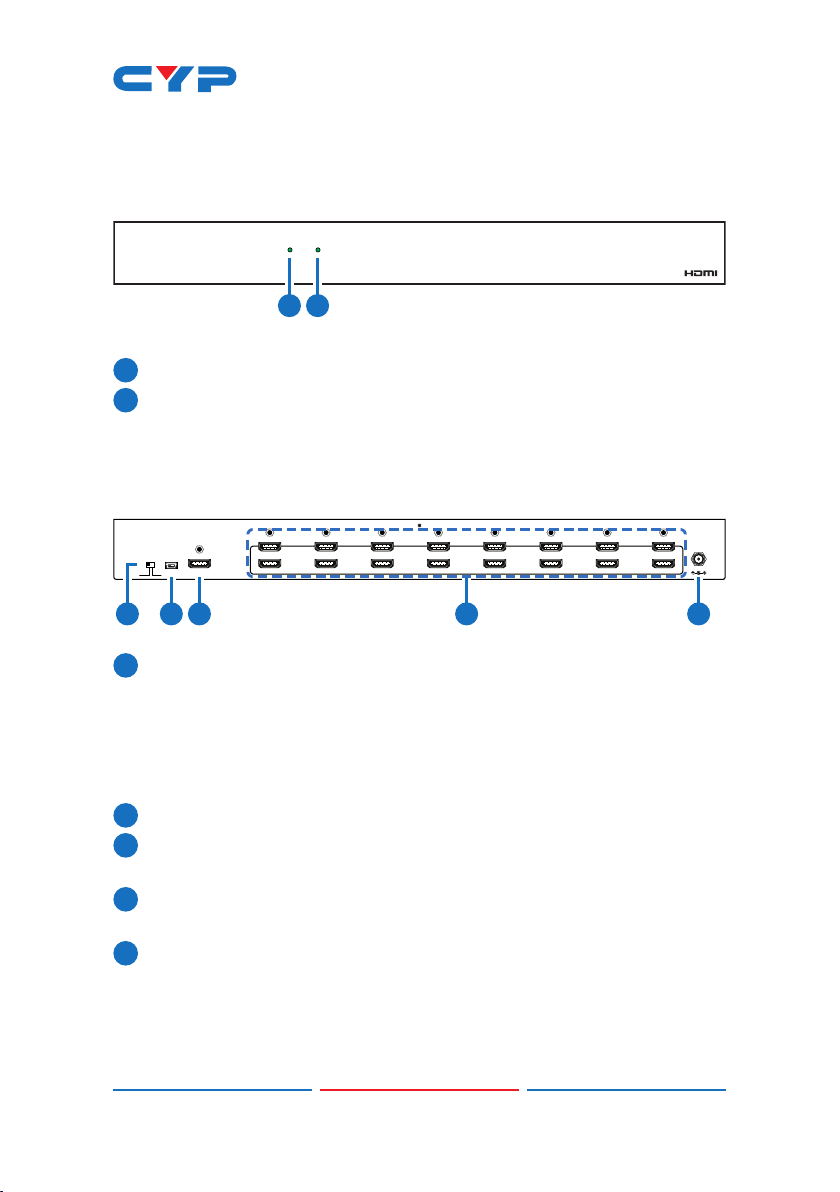

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWERSYNC

CPRO-16E 4Kx2K 1x16 SPLITTER

1 2

POWER LED: The power LED will illuminate when the unit is powered.

SYNC LED: The LED will illuminate when the HDMI source signal is

connected to the input port.

6.2 Rear Panel

DC 5V

SERVICE

13 15

STD TV

INPUTOUTPUT

EDID

1 2 3 4 5

EDID STD/TV: The default factory setting is TV, when in this mode,

the unit will detect the rst HDMI output device's EDID settings and

record them in the unit's memory. If there are any audio or video

issues then switch the unit to STD (Standard) mode and power

cycle it, the unit will be congured as standard stereo (PCM) Audio

and initiate a search for a common compatible video resolution.

SERVICE: Manufacturer use only.

HDMI INPUT: Connect the input port to the HDMI or DVI output of

your source equipment such as DVD player or set-top box.

HDMI OUTPUTS (1~16): Connect each of the output ports to an

HDMI display for simultaneous HDMI distribution.

DC 5V: Connect the 5V DC power supply into the splitter and Plug

the adaptor to AC wall outlet.

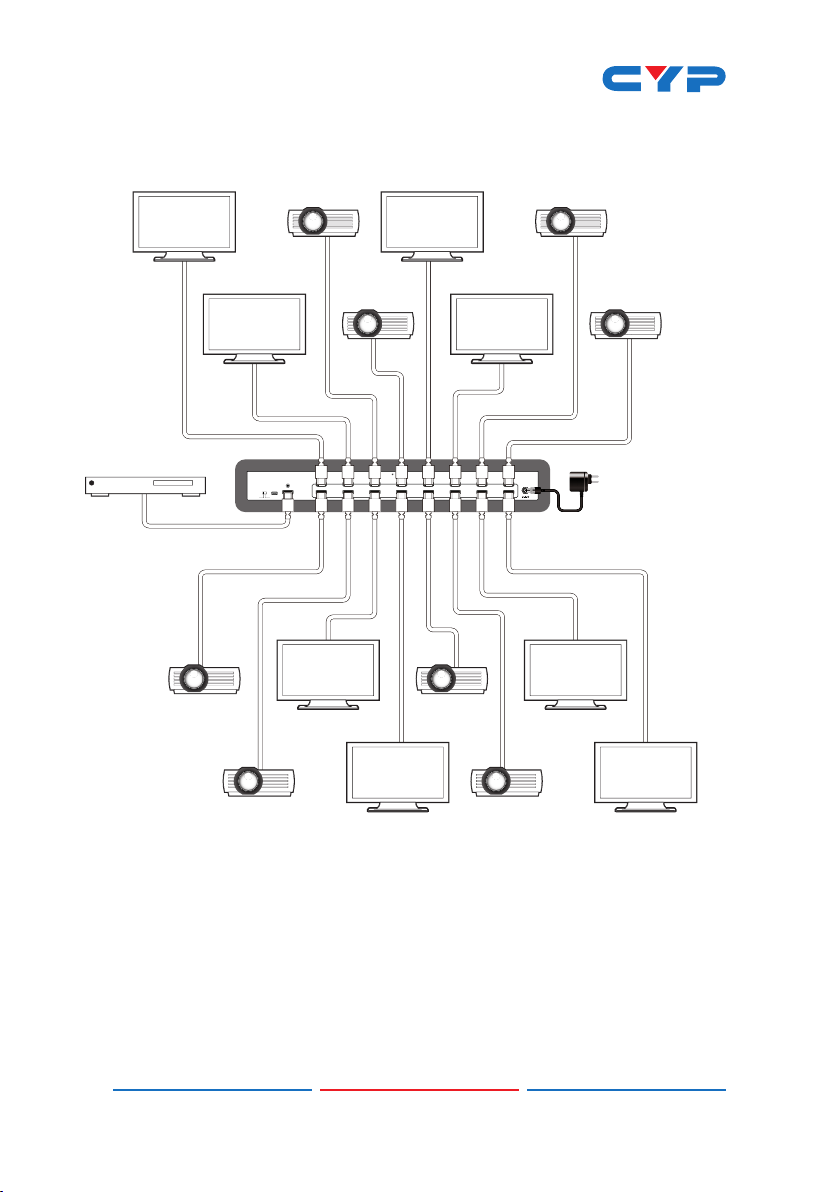

7. CONNECTION DIAGRAM

DC 5V

SERVICE

13 15

STDTV

INPUT OUTPUT

EDID

TVs/Projectors

Power

Supply

Blu-ray Player

HDMI Input

Simultaneous

HDMI Outputs

Simultaneous

HDMI Outputs

8. SPECIFICATIONS

Video Bandwidth 340 MHz/10.2 Gbps

Input Port 1×HDMI (Female connector), 1×USB

(Manufacturer use only)

Output Ports 16×HDMI (Female connector)

Output Resolutions 480i~1080p@50/60, 1080p@24/50/60,

VGA~UXGA, Ultra HD (4K×2K@30)

ESD Protection Human body model:

±8 kV (air-gap discharge)

±4 kV (contact discharge)

Dimensions 436 mm (W)×26 mm (D)×48 mm (H)

Weight 1664 g

Chassis Material Metal

Color Black

Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F

Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F

Relative Humidity 20~90 % RH (non-condensing)

Power Consumption 15.8 W

9. ACRONYMS

ACRONYM COMPLETE TERM

4K×2K Ultra HD Resolution (3840×2160)

HDMI High-Denition Multimedia Interface

HDTV High-Denition Television
