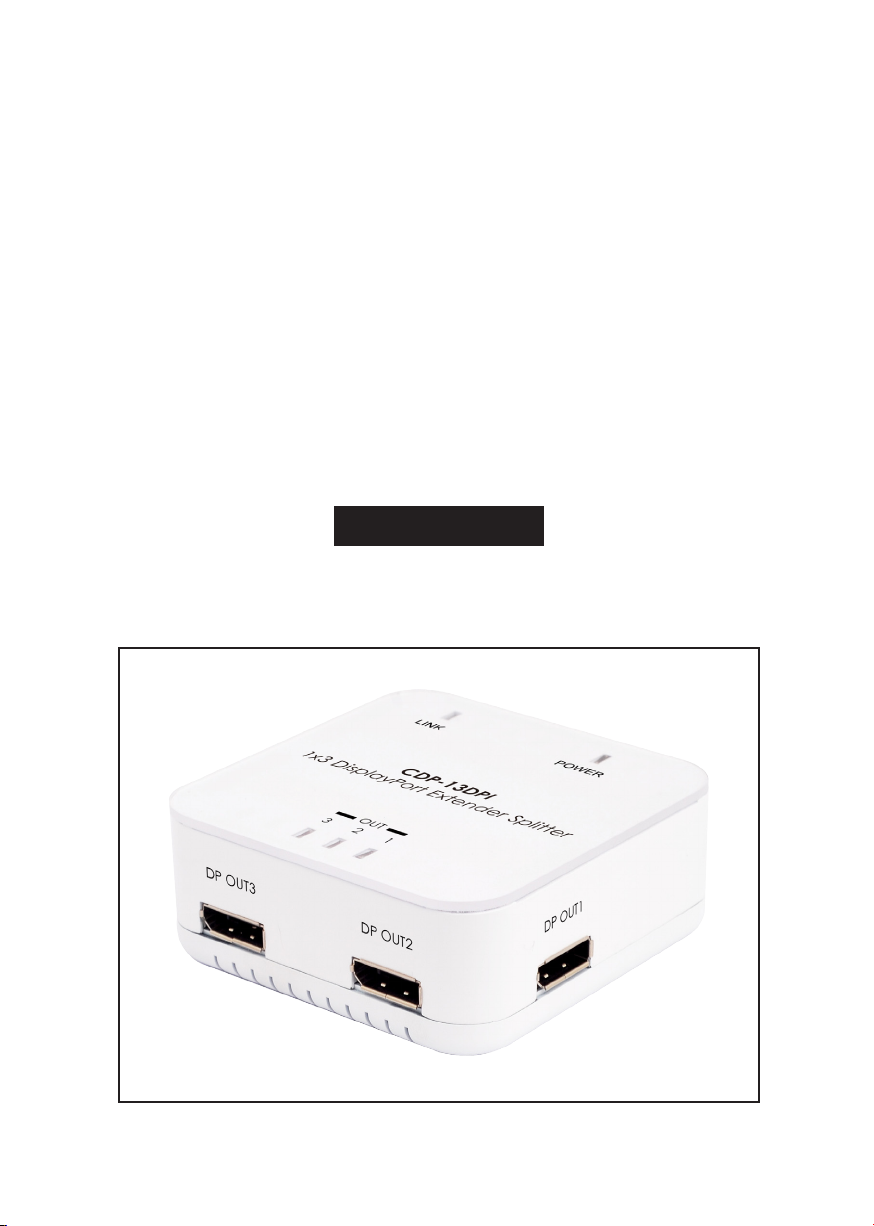

CYP CDP-13DPI Manuel utilisateur
CDP-13DPI
1by 3 DisplayPort
Extender Splitter
Operation Manual
CDP-13DPI
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20100317 Preliminary Release
Table of Contents
1
1
1
1
1
2
3
3
3
4
5
6
7
1. Introduction …………………………………………………......……….
2. Applications …………………..………………………….................….
3. Package Contents ………………..………......……………............…
4. System Requirements ……...………………..…..…………........…….
5. Features …………………………………….…….......……........………
6. Specications ..……………………………………...........………...….
7. Operation Controls and Functions …………….....……........………
7.1 Front & Right Panel ......................................................................
7.2 Rear Panel ………….....……………………………….........…….…
7.3 Top Panel………….....……………………………….........…….…..
8. Timing tables for monitor ……...............................…………...……...
9. Connection and Installation …….…..……………..........…..…..…...
10. Acronyms …….……………...........................……..........…..…..…....
1. Introduction
For those who want to display large content the 1x3 DisplayPort Extender
Splitter is for you. Able to extend an image onto 2 or 3 displays, this device
is perfect for multi-tasking, but can also split an image so the same image is
repeated on up to three connected displays. This 1 by 3 DisplayPort Extender
Splitter allows users to enjoy images or video in HD resolution up to 1920 x 1200
on multiple monitors from a single digital output port. The 1 by 3 DisplayPort
Extender Splitter is a useful device for extending displays and splitting images.
2. Applications
Home & ofce display
Gaming
3. Package Contents
1 by 3 DisplayPort Splitter
3.3V DC Power Supply
Operation Manual
4. System Requirements
Input source equipment such as a PC or any DisplayPort output device with a
DisplayPort connection cable.
Output display such as a PC monitor or any DisplayPort input display with
DisplayPort connection cable.
5. Features
Supports DisplayPort v1.1a, VESA DDM Standard,
HDCP v1.3 and EDID v1.4
Supports link rates of 2.7Gbps (HBR) and 1.62Gbps (RBR) from the
source.
Fully HD compatible and provides full display performance with zero lag
and no display application limitations
Does not require software updates
Quality Lab (WHQL) testing/qualication
Supports output resolutions up to 1920 x 1200
Works with any desktop and notebook computer which have a DisplayPort
output port
Provides exceptional Secured Content Protection with HDCP 1.3 for digital
content including video and audio
Plug and Play
1
Output Resolution 1920 x 1200 / 1920 x 1024
Input port 1 x DisplayPort
Output ports 3 x DisplayPort
Power Supply 3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certied)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions(mm) 100 (W) x 70 (D) x 20 (H)
Weight(g) 90
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C~60°C / -4°F ~ 140°F
Power Consumption 3W
Relative Humidity 20~90% RH (non-condensing)
6. Specications
2
7. Operation Controls and Functions
7.1 Front & Right Panel
DP OUT1
11
DP OUT3 DP OUT2
① DP OUT 1~3: Connect these slots with the output displays Display port
input port in order to send a signal.
Note: It is suggested to use the same type/model of display in order
to get the optimal image quality. When the input source’s timing is
matched with the output display’s timing, the device will rst
extend the image according to the numbers of the output
connected. If the input sources timing does not match with output
display’s timing the device will then split the signal to match the
number of the connected display to show an identical image.
(Detail information please refer to section 8. Timing table for
monitors).
7.2 Right Panel
1 2 3
OFF ON
DC 3.3V
DP IN
POWER
① On/off switch: Push this switch to turn the device on or off. The green LED
will turn on when the device is switched on.
② DC 3.3V: This slot is where you plug the 3.3V DC power supply into the
unit and connect the adaptor to an AC outlet.
③ DP IN: This slot is where you connect the input source equipment such as
a PC or any output device that has a DisplayPort.
Output Resolution 1920 x 1200 / 1920 x 1024
Input port 1 x DisplayPort
Output ports 3 x DisplayPort
Power Supply 3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certied)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions(mm) 100 (W) x 70 (D) x 20 (H)
Weight(g) 90
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C~60°C / -4°F ~ 140°F
Power Consumption 3W
Relative Humidity 20~90% RH (non-condensing)
3
7.3 Top Panel
POWER
LINK
3 2 1
OUT
CDP-13DPI
1x3 DisplayPort Extender Splitter
3
21
① LINK LED: The green LED will turn on when the input source device is
connected.
② POWER LED: The green LED will switch on when the device is powered on.
③ OUT 1~3 LED: The green LED will turn on when the output port is
connected with the output display.
4
8. Timing tables for monitor
The 1 by 3 DisplayPort splitter is a smart device with a built in feature that can
dene which and how many monitors are connected and can transmit the
proper signal for the display. Below is the expanded timing list which is sup-
ported by the device.
Two monitors mode
From PC To monitor Vertical refresh rate (Hz)
3840 x 1200 1920 x 1200 60
2560 x 1024 1280 x 1024 60
2048 x 768 1024 x 768 60
3360 x 1050 * 1 1680 x 1050 60
3200 x 1200 * 1 1600 x 1200 60
2880 x 900 * 1 1440 x 900 60
1600 x 600 * 1 800 x 600 60
1280 x 480 * 1 640 x 480 60
2800 x 1050 * 1 1400 x 1050 60
Three monitors mode
From PC To monitor Vertical refresh rate (Hz)
3840 x 800 1280 x 800 60
3840 x 1024 1280 x 1024 60
3072 x 768 1024 x 768 60
2400 x 600 * 1 800 x 600 60
1920 x 480 * 1 640 x 480 60
4080 x 768 * 1, * 2 1360 x768 60
3840 x 720 * 1 1280 x 720 60
2160 x 480 * 1 720 x 480 60
3840 x 960 * 1 1280 x 960 60
Note:
*1. The timing is listed out in EDID extension block. Some old GPU driver
may not support it.
*2. The total horizontal pixel include the active area and blank area is
large than 4096, some GPU driver may not support the timing.
5

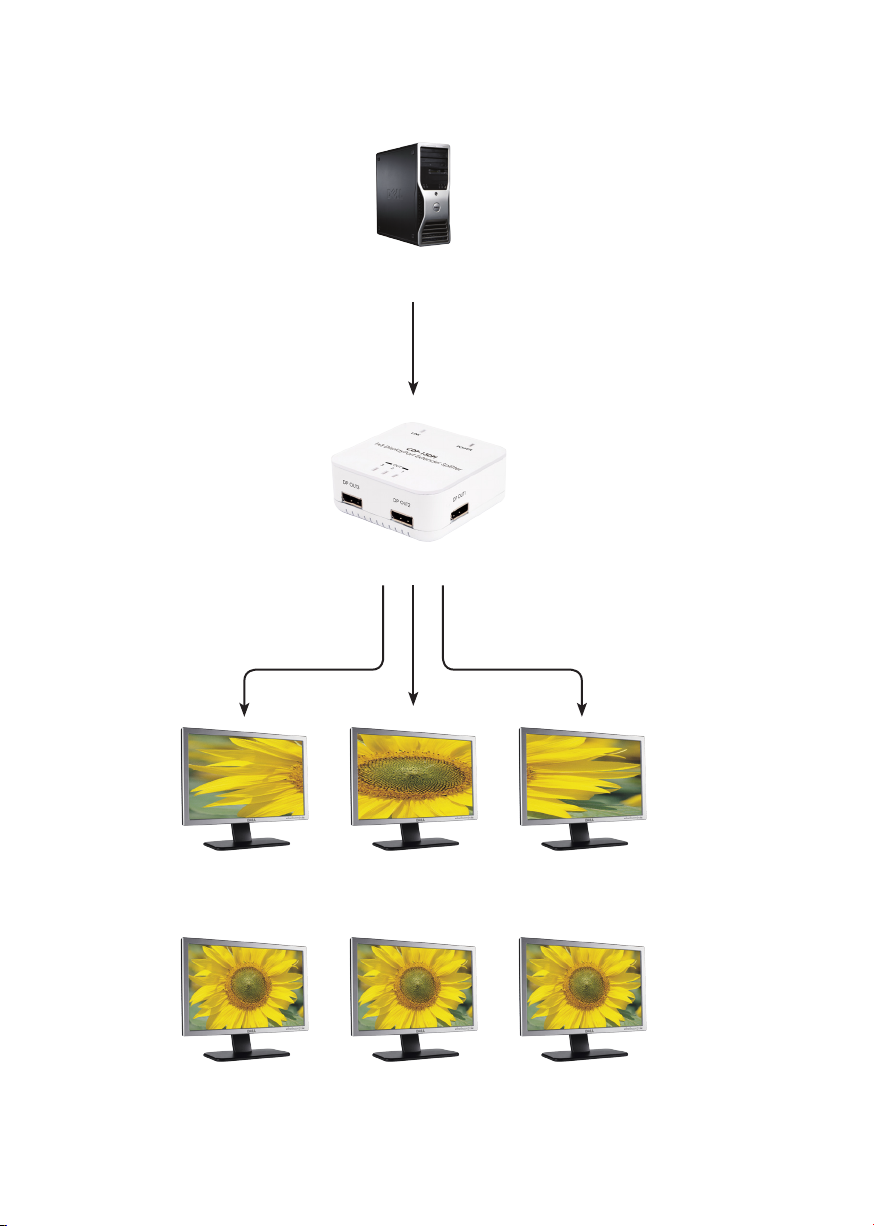

9. Connection and Installation
6
Dell PC/Notebook
Dell Monitor
Dell Monitor
or
Dell Monitor
Dell Monitor
Dell Monitor
Dell Monitor
