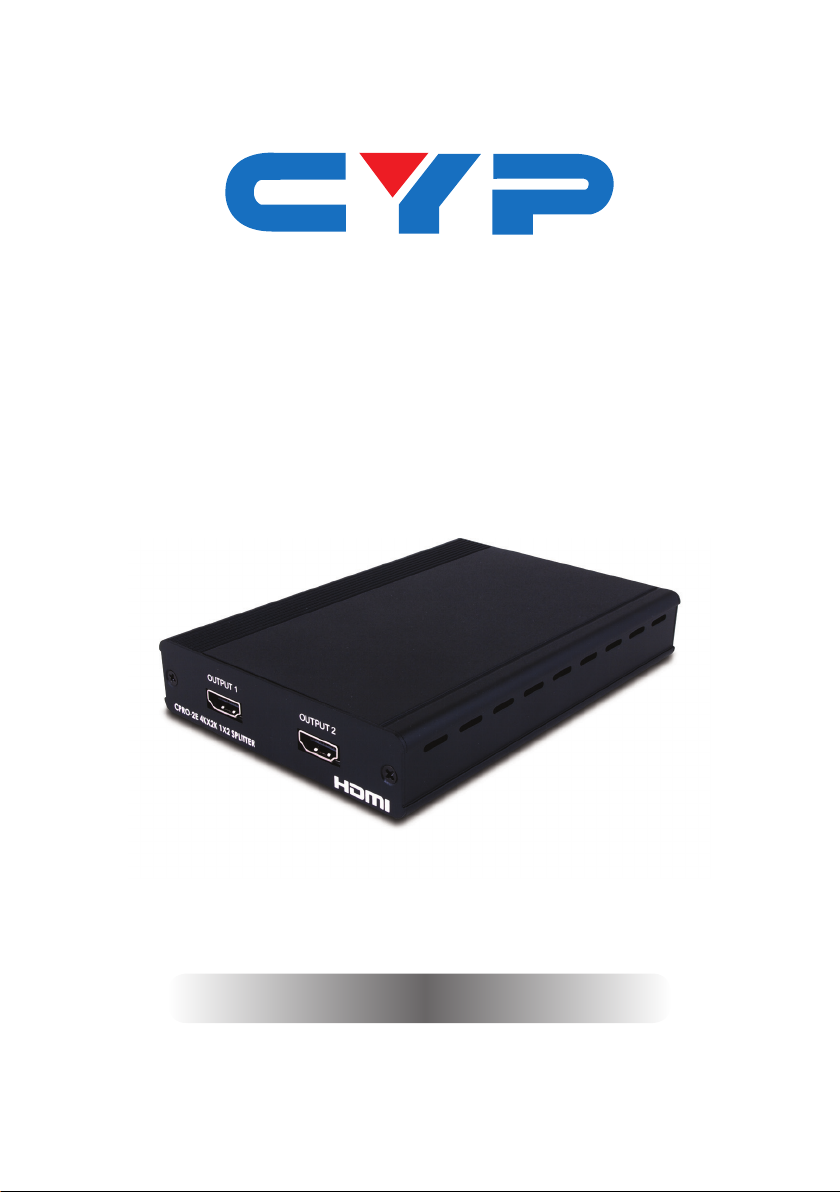

CYP CPRO-2E Manuel utilisateur
CPRO-2E
1×2 HDMI Splitter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person to walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VS1 16/10/12 First Release
VR2 07/03/13 STD EDID Spec.
VS3 02/08/13 Updated text/diagrams
5
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel.........................................3
6.2 Rear Panel .........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
This high performance 1 by 2 HDMI splitter distributes one HDMI input
to two simultaneous HDMI outputs and supports 4K×2K, 3D, 12-bit
Deep Color as well as High Denition Lossless Audio. With its 3Gbps
bandwidth it supports the latest HDMI standards so you can be sure of
superior HDMI distribution.
2. APPLICATIONS
• Simultaneously display one HDMI source on 2 displays
• Showroom display
• University lecture hall display
• Retail sales display
• Commercial presentation splitter
3. PACKAGE CONTENTS
• 1×1 by 2 HDMI Splitter
• 1×5 V/2.6 A DC Power Supply Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source device such as a DVD/Blu-ray player with
HDMI or DVI to HDMI cable
• HDMI equipped displays (HDTVs or projectors) or AV Receivers with
HDMI cables
2
5. FEATURES
• HDMI and DVI compatible
• Fully HDCP compliant
• Supports 3D
• Supports HDTV resolutions up to 4K×2K@30 Hz
• Supports PC Resolutions of VGA to WUXGA
• Supports 1080p@60 Hz, Deep Color 12-bit
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• Supports HDMI cable distances of up to 10m input and 10m output
(8/12-bit)
Note: When displaying a 3D signal with a higher bandwidth than
225 MHz or a 4K×2K resolution source, a High Speed HDMI cable is
required.
3

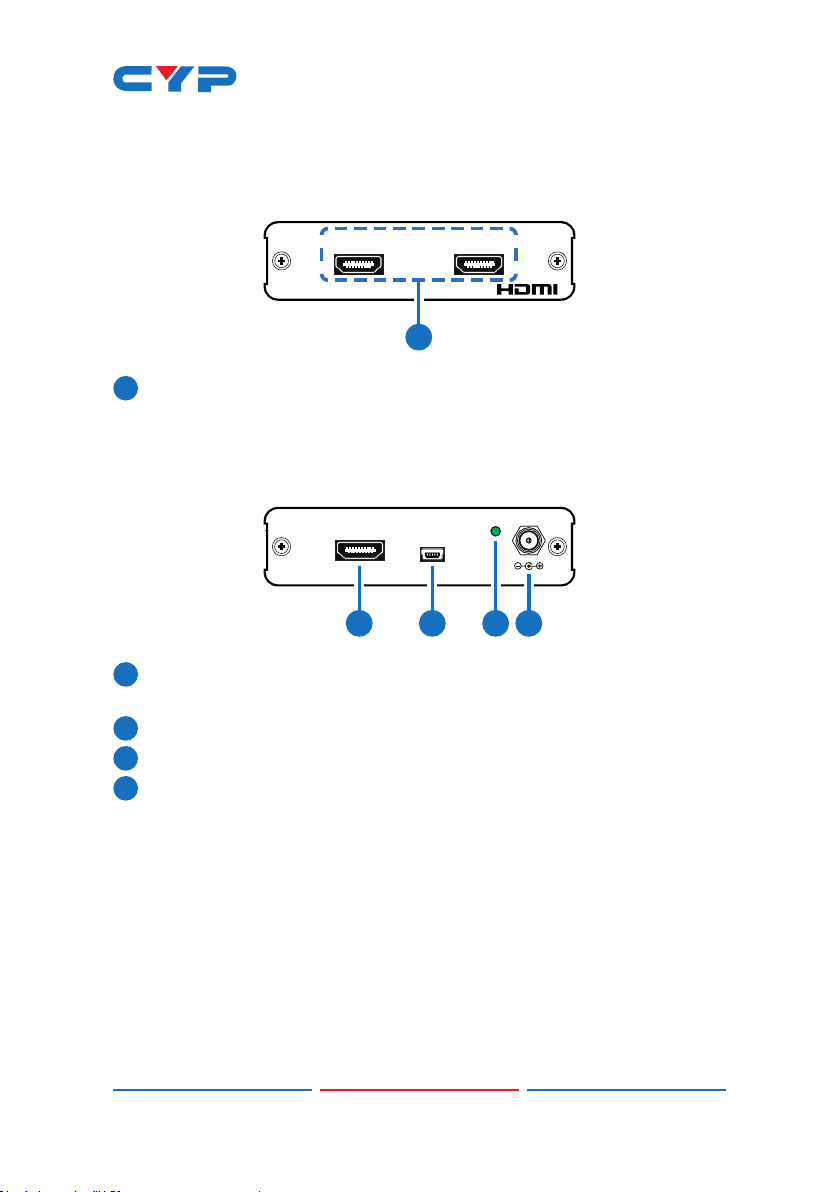

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
OUTPUT 1OUTPUT 2
CPRO-2E 4KX2K 1X2 SPLITTER
1
1
HDMI OUTPUTS 1/2: Connect each of the output ports to an HDMI
display for simultaneous HDMI distribution.
6.2 Rear Panel
INPUT SERVICE
POWER DC 5V
1 2 3 4
1
HDMI INPUT: Connect the input port to the HDMI or DVI output of
your source equipment such as DVD player or set-top box.
2
SERVICE: Manufacturer use only.
3
POWER LED: The power LED will illuminate when the unit is powered.
4
DC 5V: Connect the 5V DC power supply into the splitter and plug
the adaptor to AC wall outlet.
4

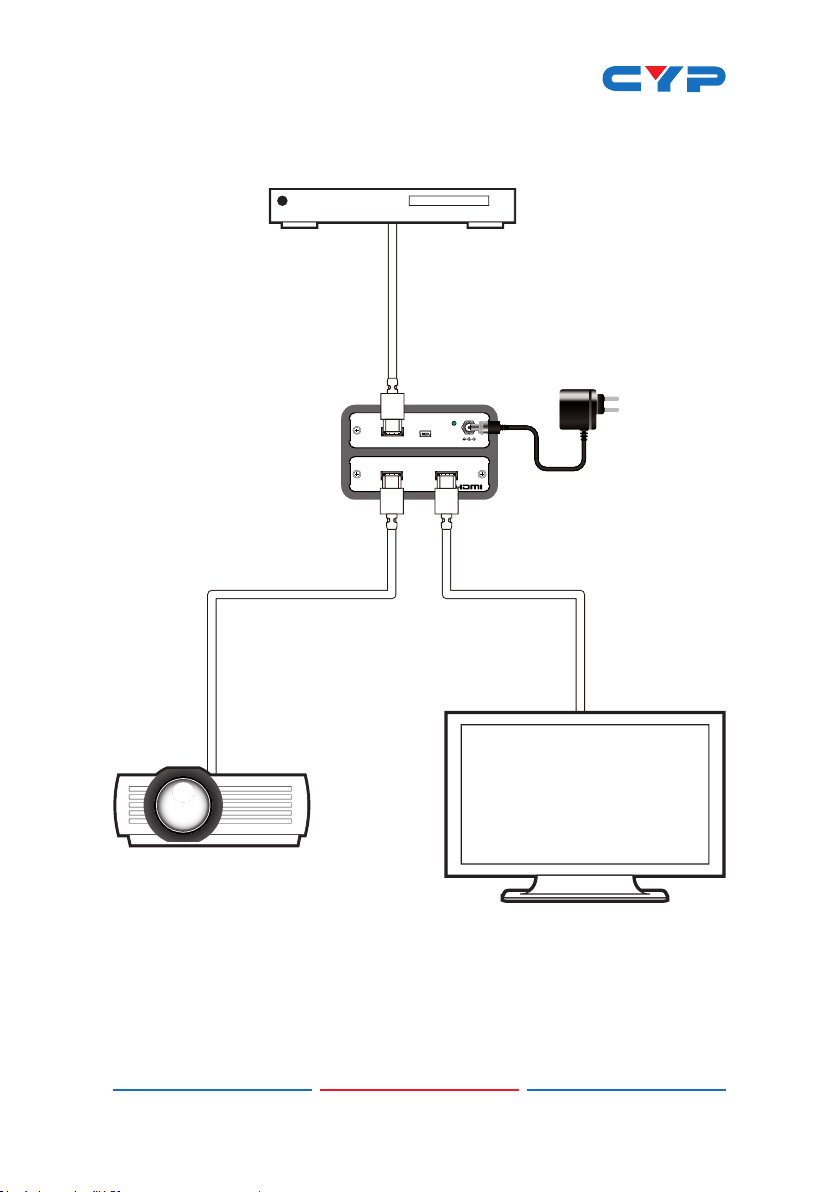

7. CONNECTION DIAGRAM
OUTPUT 1 OUTPUT 2
CPRO-2E 4KX2K 1X2 SPLITTER
INPUT SERVICE
POWER DC 5V
HDTV
Projector
Blu-ray Player
HDMI Input
Simultaneous
HDMI Outputs
Power
Supply
5
8. SPECIFICATIONS
Video Bandwidth 340 MHz/10.2 Gbps
Input Port 1×HDMI (Female connector), 1×USB
(Manufacturer use only)
Output Ports 2×HDMI (Female connector)
Output Resolutions 480i~1080p@50/60, 1080p@24/50/60,
VGA~UXGA, Ultra HD (4K×2K@30)
Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL
certied)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions 103 mm (W)×155 mm (D)×25 mm (H)
Weight 298 g
Chassis Material Metal
Color Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 2.85 W
