USER’S MANUAL

PFC SINEWAVE SERIES

OR1000PFCRT2U/OR1500PFCRT2U/

OR2200PFCRT2U

K01-0000488-01

This manual contains important instructions. Please read and follow all instructions carefully during

installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or

operate the UPS.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled

indoor area free of conductive contaminants. (Please see specifications for acceptable temperature and

humidity range).

CAUTION! For pluggable equipment, the socket-outlet shall be installed near the equipment and shall

be easily accessible.

CAUTION! To reduce the risk of electric shock, do not remove the cover except to service the battery.

Ensure the input power is removed before servicing the batteries. There are no user serviceable parts

inside except for the battery.

CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power

is disconnected.

CAUTION! The UPS must be connected to an AC power outlet with fuse or circuit breaker protection.

Do not plug into an outlet that is not grounded. If you need to de-energize this equipment, turn off and

unplug the unit.

CAUTION! To avoid electric shock, turn off the unit and unplug it from the AC power source before

servicing the battery or installing a computer component.

CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum

branch circuit over current protection in accordance with the National Electric Code, ANSI/NFPA 70.

CAUTION! The UPS is suitable for use in a computer room as defined in the Standard for the Protection

of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

CAUTION! The EPO function is provided in UPS. EPO remote switch which is Push-Back button is

installed computer room outside by a phone line and not connected any other equipment.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! Under no circumstances

this unit should be used for medical applications involving life support equipment and/or patient care.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or

near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and

cause the machine to short out.

CAUTION! DO NOT USE WITH LASER PRINTERS! The power demands of laser printers are too large

for a UPS.

CAUTION! DO NOT INSTALL THE UPS WHERE IT WOULD BE EXPOSED TO DIRECT SUNLIGHT

OR NEAR A STRONG HEAT SOURCE!

CAUTION! DO NOT BLOCK OFF VENTILATION OPENINGS AROUND THE HOUSING!

CAUTION! DO NOT CONNECT DOMESTIC APPLIANCES SUCH AS HAIR DRYERS TO UPS

OUTPUT SOCKETS.

IMPORTANT SAFETY INSTRUCTIONS

UNPACKING

The box should contain the following:

(a) UPS unit x1; (b) User manual x1; (c) USB A+B type cable x1; (d) Rackmount bracket x2; (e) Vertical

stand x2; (f) Warranty registration card x1

AUTOMATIC VOLTAGE REGULATOR(AVR)

The OR1000PFCRT2U/OR1500PFCRT2U/OR2200PFCRT2U can stabilize inconsistent utility power.

Incoming utility power fluctuations may be damaging to important data and hardware but Automatic

Voltage Regulation (AVR) helps protect the computer against experiencing dangerous voltage levels. AVR

automatically adjusts low or high voltages to keep equipment working at safe AC power levels (110/120V)

without switching to battery. Your equipment can operate normally even during the power problems such

as brownouts and blackouts. The unit’s powerful sealed lead-acid batteries will provide power only if the

incoming voltage drops below 90V or increases above 140V.

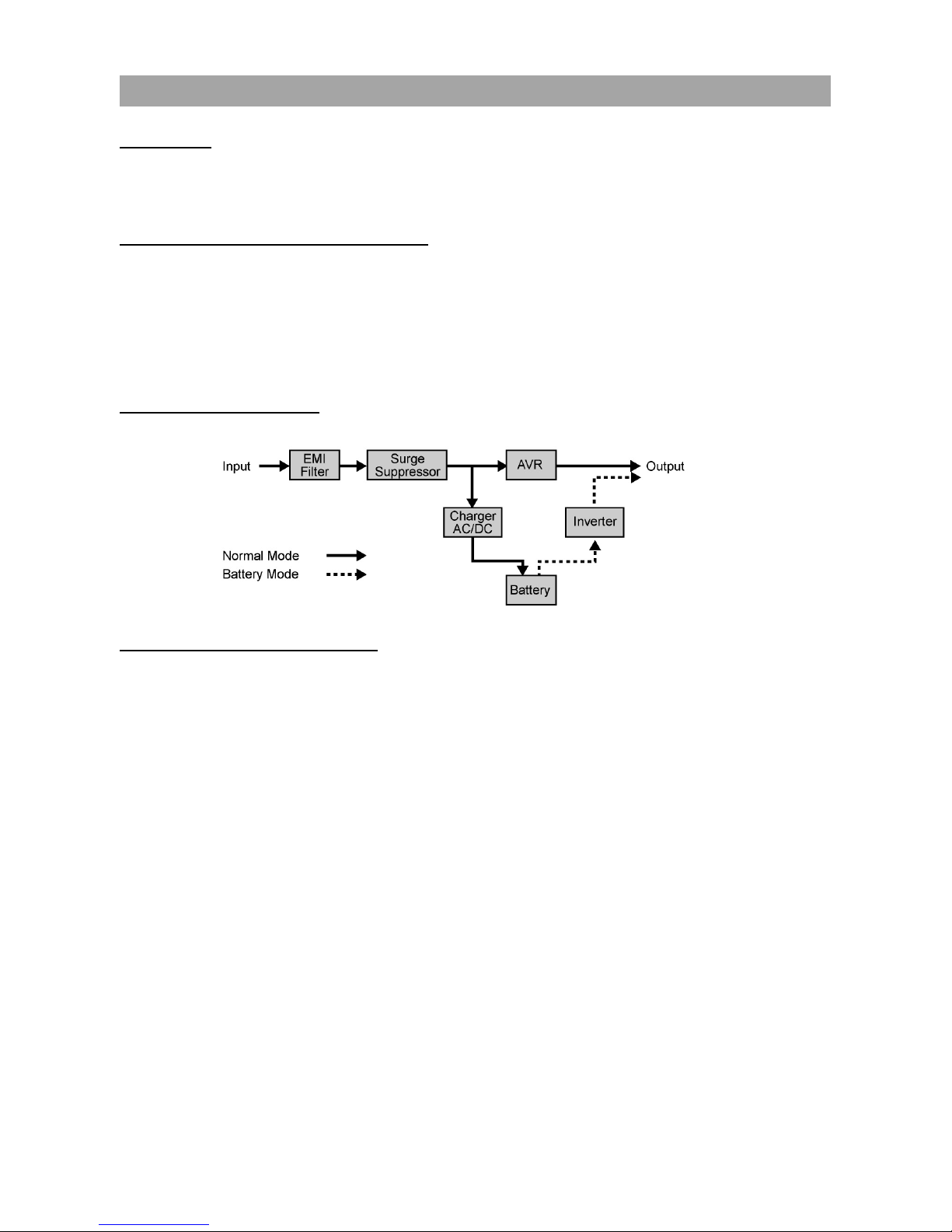

SYSTEM BLOCK DIAGRAM

HARDWARE INSTALLATION GUIDE

1. Battery charge loss may occur during shipping and storage. The first time the UPS is used, it is

strongly recommended to charge the batteries for at least 18 hours to ensure that the batteries are at

their maximum charge capacity. To recharge the batteries, simply plug the UPS into an AC outlet, the

batteries will charge whether the UPS is powered on or not.

2. With the UPS off and unplugged, connect your computer, monitor, and any externally powered data

storage device (Hard drive, Tape drive, etc.) into the outlets. DO NOT plug a laser printer, copier,

space heater, vacuum, paper shredder or other large electrical device into the UPS. The power

demands of these devices will overload and possibly damage the unit.

3. To protect a fax, telephone, modem line or network cable, connect the telephone or network cable

from the wall jack outlet to the jack marked “IN” on the UPS. Then, connect a telephone cable or

network cable from the jack marked “OUT” on the UPS to the modem, computer, telephone, fax

machine, or network device.

4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet

is protected by a fuse or circuit breaker and does not service equipment with large electrical demands

(e.g. air conditioner, copier, etc). The warranty prohibits the use of extension cords, outlet strips, and

surge strips.

INSTALLING YOUR UPS SYSTEM

(continued)

STALLING YOUR UPS SYSTEM

5. Press the power switch to turn the UPS on. The Power-On indicator light will illuminate. If an overload

is detected, an audible alarm will sound and the UPS will emit one long beep. In order to reset it, turn

the unit off and unplug some equipment from outlets. Make sure the total load of the equipment

connected to the UPS is within the unit’s safe range, (refer to the technical specifications), and then

turn the unit on.

6. To maintain an optimal battery charge, leave the UPS plugged into an AC outlet at all times.

7. Before storing the UPS for an extended period of time, turn the unit OFF. Then cover it and store it

with the batteries fully charged. Recharge the batteries every three months or so, to ensure good

battery capacity and long battery life; further, this might also prevent damage to the unit from an

unlikely battery leakage.

8. The unit provides one Serial port and one USB port to allow connection and communication between

the unit and any attached computers. The Serial Port as well as its paired USB port allow for

bi-directional communication among the UPS and the primary connected computer running the

PowerPanel

Business Edition Software. The computer can monitor the UPS and alter its various

programmable parameters. When there is a power failure, the computer connected to the port will

start to shut down after a user controlled delay based on the settings given to the PowerPanel®

Business Edition Software.

Note: If the USB port is used, the serial port will be disabled. They cannot be used simultaneously.

Note: PowerPanel® Business Edition Software is available on our website. Please visit

www.cyberpowersystems.com and go to Products/Software page for free download.

9. EPO (Emergency Power Off) Port:

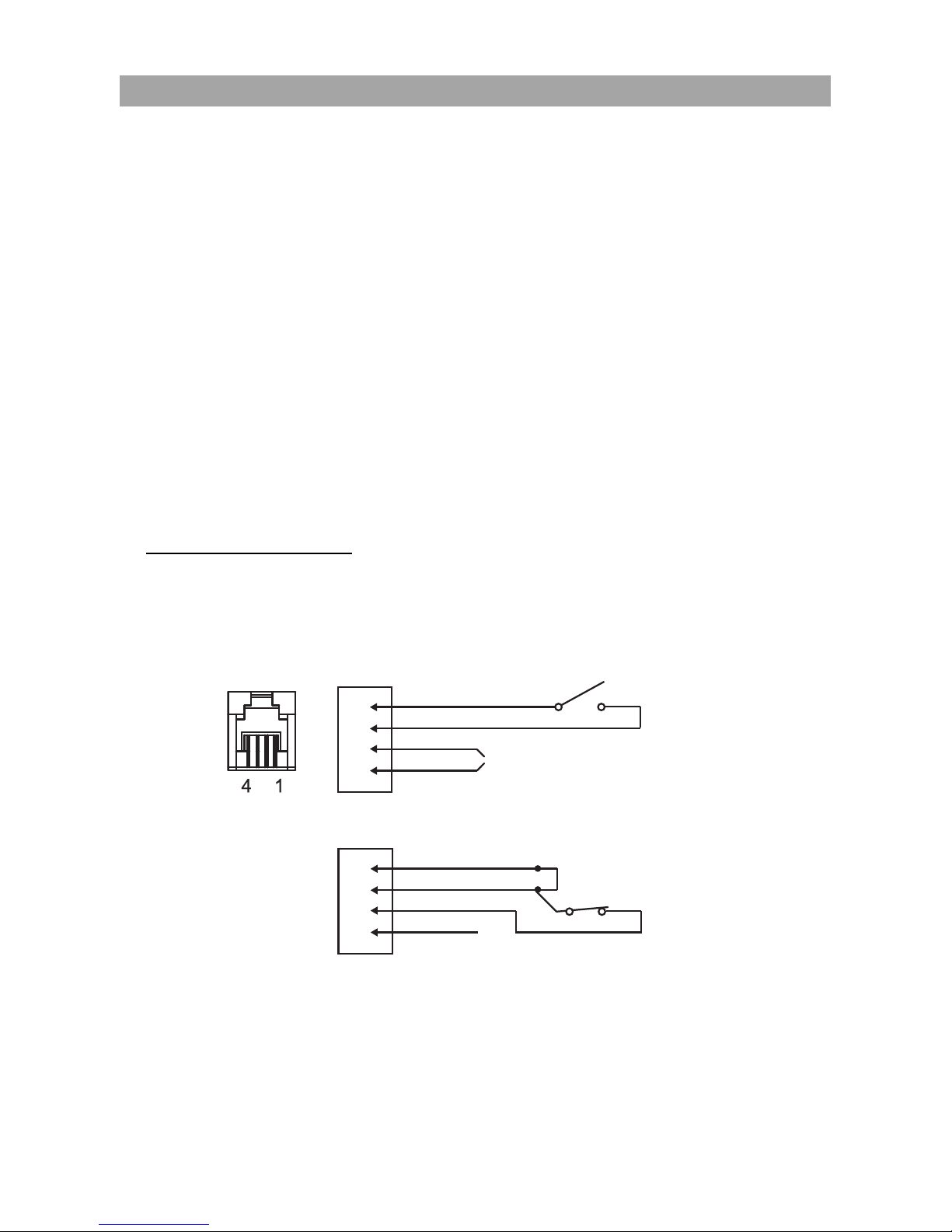

Follow the appropriate circuit diagram below to wire the cable to your EPO configuration. The EPO

remote switch is a switch installed in an outside area, connected to the unit via an ordinary RJ-11

phone line. In case of an emergency, it can be used to immediately cut-off power from the UPS unit.

RJ11

PLUG

43-4 JUMPER

N.C.EPO SWITCH

OPTION 2: USER SUPPLIED NORMALLY CLOSED SWITCH

RJ11

PLUG

NO CONNECTION

N.O.EPO SWITCH

OPTION 1: USER SUPPLIED NORMALLY OPEN SWITCH

(RECOMMENDED)

NO CONNECTION

INSTALLING YOUR UPS SYSTEM

(continued)

SELECT

ON/OFF

AC INPUT

IN OUT

Push To

RESET

EPO

Serial Port

FAULT

WIRING

6G48

E187679

POWER SUPPLY

UNINTERRUPTIBLE

21 4

587

Max / Outlets

15 Amps

711

12891013

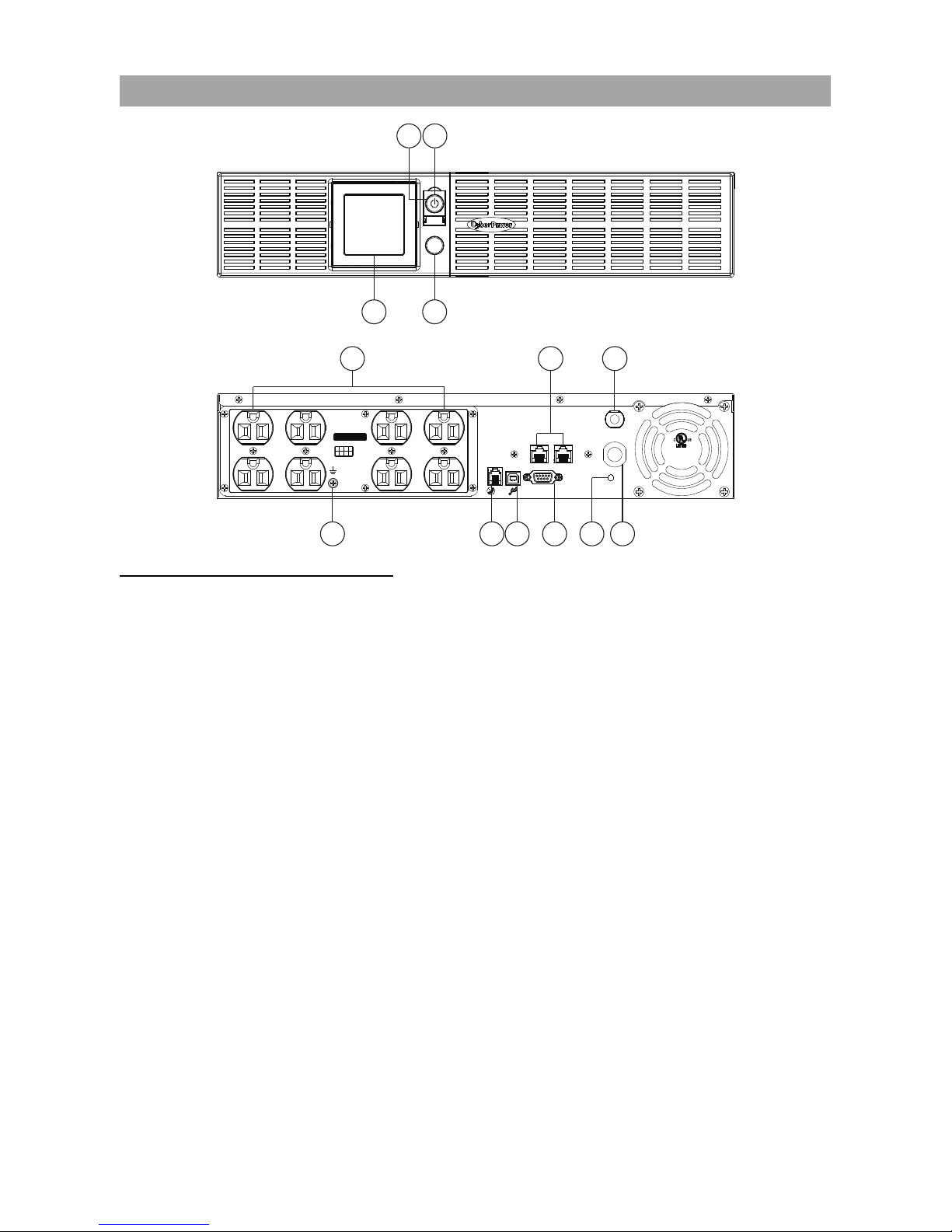

FRONT / REAR PANEL DESCRIPTION

1.Power Switch

Master on/off switch for equipment connected to the UPS.

2. Power On Indicator

An LED ring around the Power Switch indicates that the AC utility input power condition is normal and that

the UPS outlets are providing power, free of surges and spikes.

3. Multifunction LCD Readout

An LCD that shows various UPS information using icons and messages.

4.Display Toggle Button

Used to select among a variety of information the LCD can display.

5. Battery Backup, Surge Protected and AVR protected Outlets

This unit provides a total of 8 outlets with battery backup and surge protection. They ensure that

connected equipment will keep an uninterrupted operation over a period of time, during a power failure.

6.AC Input Power Cord

Connect the AC Power cord to a properly wired and grounded outlet.

7.Input Circuit Breaker

The circuit breaker serves to provide input overload and fault protection.

8. Serial Port

The serial port allows communication between the UPS and the computer. The UPS can control the

computer’s shutdown in case of an emergency, and the computer can monitor the UPS and alter its

various programmable parameters.

BASIC OPERATIO

9. USB port to PC

This is a connectivity port allowing communication and control between the UPS and the connected

computer. You should install on your computer the PowerPanel

Business Edition software appropriate to

the operating system you are using.

10. EPO (Emergency Power Off) Port

Allow for an emergency UPS Power-Off from a remote location.

11. Surge Protected Communication Ports - RJ11/RJ45

These ports are used to protect from various surge-conditions the standard RJ-45/RJ-11 based, (ADSL,

LAN, Phone/Modem-Lines), cabling systems.

12. Wiring Fault Indicator (Red)

This LED indicator will illuminate to warn the user that a wiring problem exists, such as bad ground,

missing ground or reversed wiring. If this is illuminated, disconnect all electrical equipments from the

outlet and have an electrician verify the outlet is properly wired. The unit will not provide surge protection

without being plugged into a grounded and properly wired wall outlet.

13. TVSS Screw

Use the Transient Voltage Surge Supression screw to ground the UPS.

Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the batteries:

Replacement of batteries located in an OPERATOR ACCESS AREA. Contact your dealer or call the

number on this manual for more information on battery replacement.

CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE

OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

CAUTION! When replacing batteries, replace with the same number of the following battery: CyberPower

(RB1290X2C) for model OR1000PFCRT2U, CyberPower (RB1270X4G) for model OR1500PFCRT2U

and CyberPower (RB1290X4H) for model OR2200PFCRT2U.

CAUTION! Risk of Energy Hazard, 12 V, maximum 7Ah (for OR1500PFCRT2U) or 9Ah (for the

OR1000PFCRT2U and OR2200PFCRT2U) battery. Before replacing batteries, remove conductive

jewelry such as chains, wrist watches, and rings. High energy conducted through these materials could

cause severe burns.

CAUTION! Do not dispose of batteries in a fire. The batteries may explode. Follow all local ordinances

regarding the proper disposal of batteries.

CAUTION! Do not open or mutilate batteries. Released material is harmful to the skin and eyes. It may

be toxic.

Take the following precautions before replacing the battery:

Remove all watches, rings or other metal objects from your hands.

Only use tools with insulated handles.

DO NOT lay tools or other metal parts on top of battery or any battery terminals.

Wear rubber gloves and shoes.

Determine if the battery is grounded. If so, remove source of ground. CAUTION: CONTACT WITH A

GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK! The likelihood of such a shock will

be greatly reduced if such grounding is removed during installation and maintenance.

BATTERY REPLACEMENT

BASIC OPERATIO

N (continued)

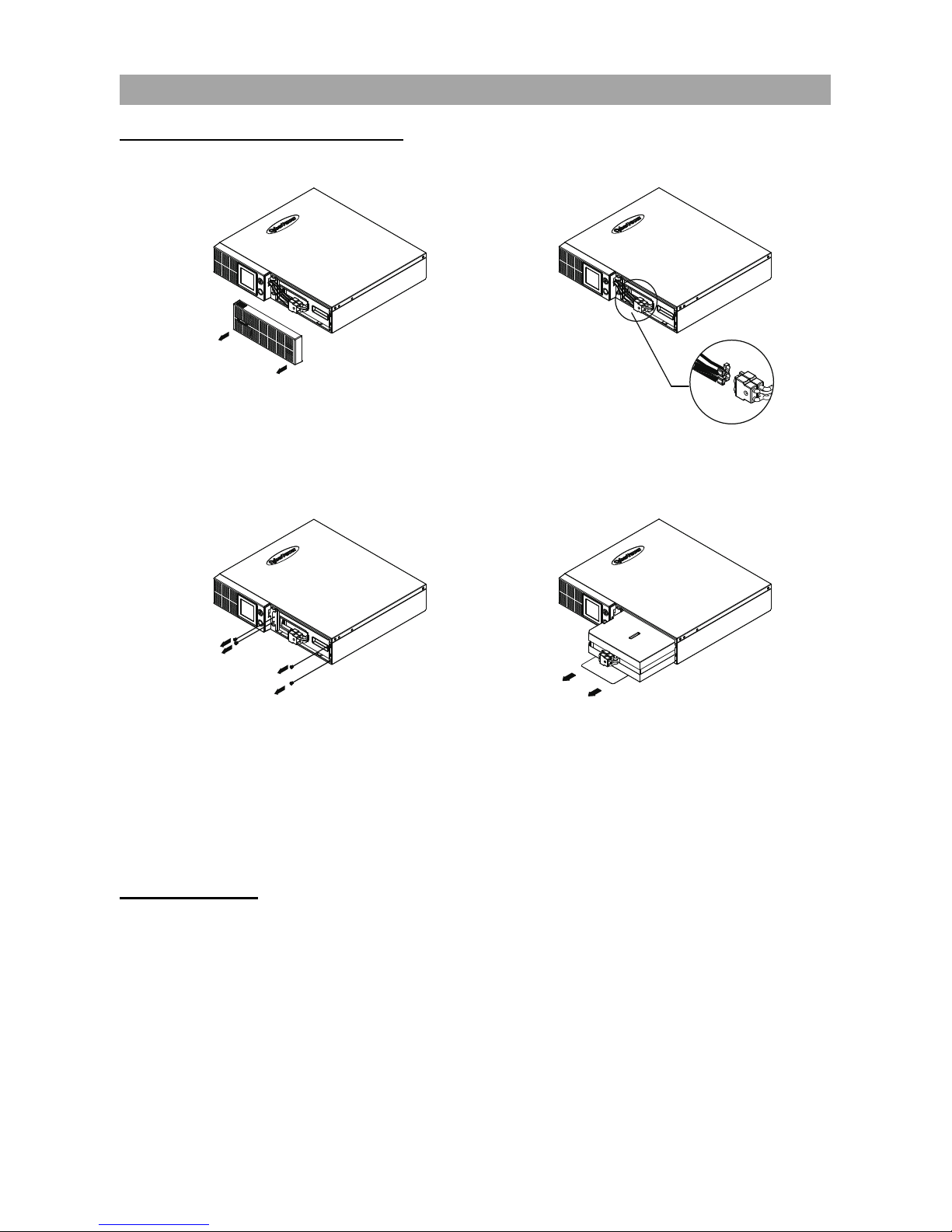

BATTERY REPLACMENT PROCEDURE

*BATTERY WIRING

Connect RED battery cable/connector to RED connector (positive to positive) on battery pack.

Connect BLACK battery cable/connector to BLACK connector (negative to negative) on battery pack.

REMINDER! The used batteries are considered hazardous waste and must be disposed through

recycling. Most retailers that sell lead-acid batteries collect used batteries for recycling, as required by the

local regulations.

BATTERY REPLA

CEMEN

(continued)

Disconnect the black wire and red wire

from the battery.

Remove the front panel on the right

side.

Insert the new battery pack. Assemble

the screws, cable and front panel in

the reverse sequence of above steps.*

Recharge the unit for 18 hours to

ensure the UPS performs expected

runtime.

Remove the four retaining screws.

The LCD displays detailed information on the

UPS status and current power conditions to

alert you to potential power problems before

the affect your equipment. Note! All related

UPS information is based on that you should

turn on the UPS.

4 5 6 7 8 9

2 3

Input Voltage Meter: This meter measures the AC voltage

from the wall outlet. The INPUT voltage readout is used to

identify the input voltage information. This can be used as a

diagnostic tool to identify poor-quality input power. Units are

listed in V (Volts).

Output Voltage Meter: The Output Voltage screen

measures, in real time, the AC voltage that the UPS is

providing to your connected equipment via the UPS outlets.

Units are listed in V (Volts). In the event of a complete loss of

power, severe brownout, or over voltage, the UPS relies on

its internal battery to back up to supply a consistent

110/120V output.

Estimated Runtime: The Estimated Runtime Screen

displays how many minutes of runtime can be expected of

the UPS if it were to experience a power outage. When

runtime becomes shorted, the battery capacity will decrease.

(The battery capacity bar indicator will be falling.) Note: The

number displayed may be less than actual runtimes for low

loads.

Normal Icon: This icon illuminates when the UPS is working under normal conditions.

Battery Icon: When there is a severe brownout or blackout, this icon will appear followed by an

alarm, (two short beeps), indicating that the UPS is now working using its internal batteries. Once

the batteries are running out of power, (over a period of time), the alarm will beep rapidly every 1/2

second. If this happens and main power has not been restored, it is recommended that you save

your files and turn off your equipment manually as soon as possible.

Automatic Voltage Regulation (AVR) Icon: This icon will appear when the unit is automatically

regulating low or high AC input line voltage conditions, without resulting to the use of battery power.

This is a normal, automatic operation of your UPS, and no action is required on your part.

Silent Mode Icon: This icon appearing indicates that the buzzer will not be beeping while in battery

operating mode. During Silent mode, the unit’s alarm does not sound until the battery reaches low

capacity threshold.

Overload Icon: This icon will appear followed by an alarm, indicating that an overload condition has

been reached. To recover from the overload condition, start unplugging your equipment from the

UPS outlets until the icon disappears and the alarm stops.

Fault Icon: When activated indicates there is a problem with the UPS. Please refer to FAULT

WARNING DISPLAY AND ALARM section.

10.

BATT. CAPACITY: BATT. CAPACITY is shown as a bar chart; each segment indicates

approximately a 20% of battery capacity.

11.

LOAD CAPACITY: Load CAPACITY is shown as a bar chart; each segment indicates approximately

a 20% of load capacity.

DEFINITION

FOR ILLUMINATED

LCD

INDICATORS

1. GENERAL MODE

Press the Display toggle button to check the status of the UPS status:

# Items Unit

1 Input Voltage V

2 Output Voltage V

3 Output Frequency Hz

4 Load Kw

5 Load Capacity %

6 Battery Capacity %

7 Estimated Runtime Min

If the LCD backlight turns off (enters sleeping mode), press the Display toggle button to wake it up.

2. SET-UP MODE

Step 1: Press and hold the Display toggle button for 3 seconds to enter the UPS Set-Up Mode.

Step 2: By pressing the Display toggle, users can switch between setup functions.

Step 3: Press and hold the Display toggle button for 3 seconds to choose the function you want to adjust.

When the icons blink, the value of each item is changed by slightly pressing the Display toggle button.

Note: If the function you select is ESC, the UPS will return to Function Menu (Step 2) without any change.

Step 4: To save the value and return to Function Menu, press and hold the toggle for 3 seconds.

Note: If the Display button is not touched for 30 seconds, the UPS will leave Set-up Mode and return to

General Mode without changing any settings.

Programmable functions are sorted as the following table:

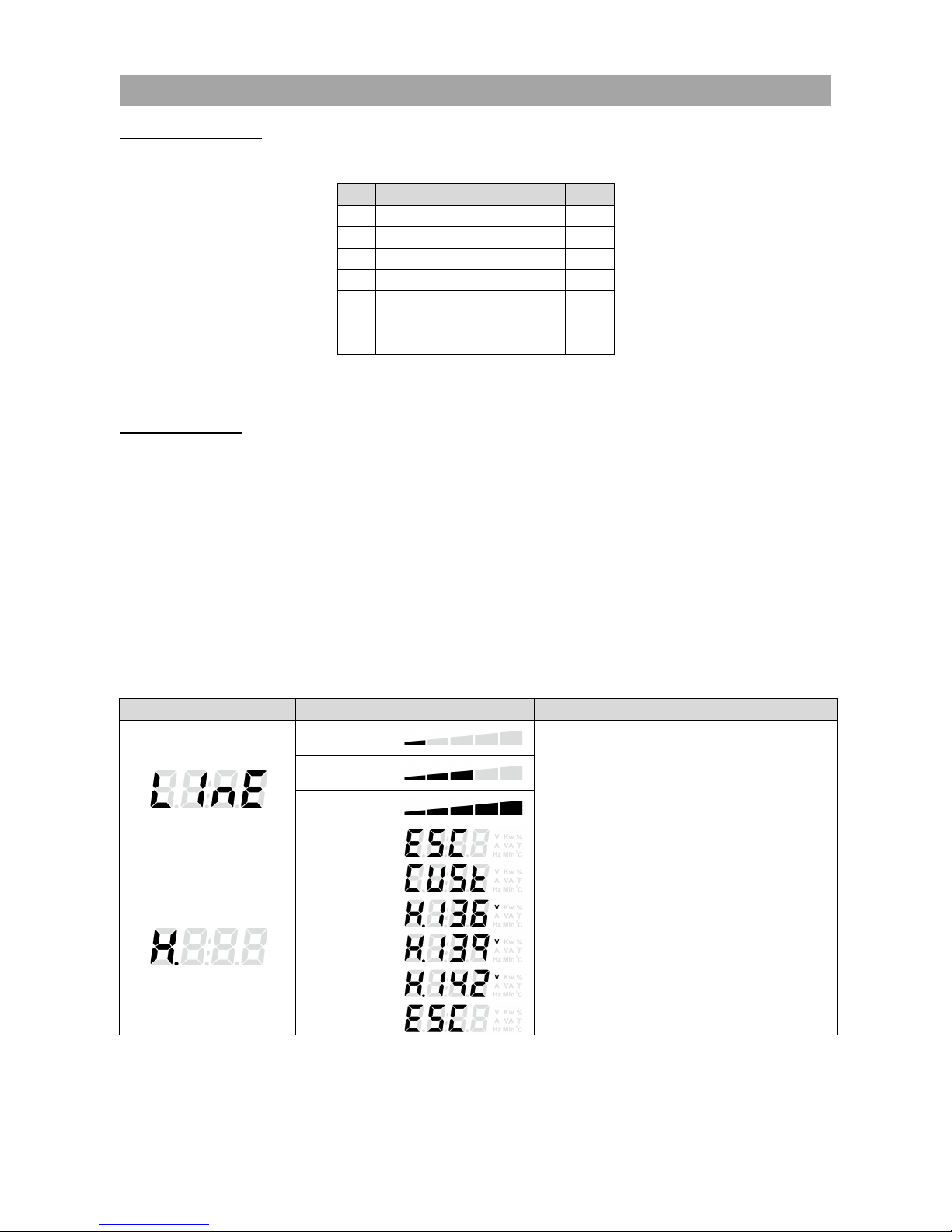

Functions Options Description

Output Quality

Low

Low Output Quality means UPS will go to

battery mode less often and tolerate more

utility power fluctuations and vice versa.

Note: It is related to the settings of

High/Low Transfer Point. The LCD shows

“CUSt”, instead of “LInE”, with capacity bar

when High/Low Transfer Point is modified.

Medium

High

ESC

Customized

High Transfer Point

136V

It is the setting of maximum output

voltage. If the utility voltage is usually high

and the connected equipment can work

with this condition, you can set High

Transfer Point higher to avoid UPS going

to battery mode too often.

139V

142V

ESC

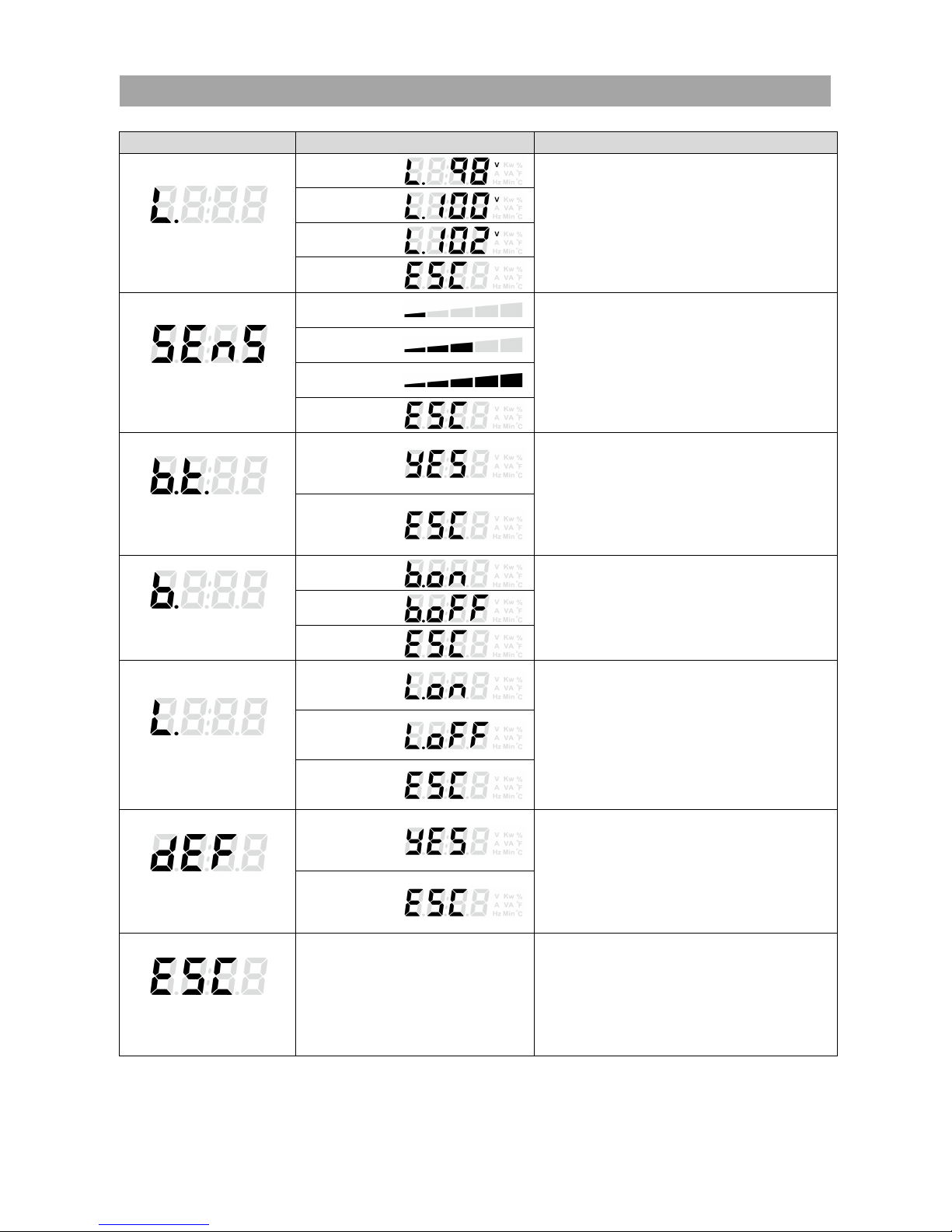

LCD SETUP FUCTIONS

Functions Options Description

Low Transfer Point

98V

It is the setting of minimum output voltage.

If the utility voltage is usually low and the

connected equipment can work with this

condition, you can set Low Transfer Point

lower to avoid UPS going to battery mode

too often.

100V

102V

ESC

Sensitivity

Low

If the connected equipment can tolerate

more power events, select Low Sensitivity.

The UPS will go to battery mode less

often. If the connected equipment cannot

tolerate power events, select High

Sensitivity. The UPS will go to battery

mode more often.

Meduim

High

ESC

Self Test

Yes

During a Self Test, UPS will switch from

line mode to battery mode to simulate the

power failure condictions.

ESC

Buzzer

If OFF is selected, the unit will mute all

alarms except for overload condition.

Off

ESC

LCD Sleeping Mode

Select ON, the LCD will enter sleeping

mode if the display toggle is not touched

for 1 minute. To illuminate the LCD, simply

press the display toggle once. When OFF

is chosen, the LCD will never enter

sleeping mode.

Note: In Battery Mode, the LCD is always

on.

Off

ESC

Back to Default

Yes

Restore the UPS factory default settings.

ESC

- Return to General Mode.

LCD SETUP FUCTIONS

(continued)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CyberPower UPS

CyberPower

CyberPower PR750LCDRTXL2U Manuel utilisateur

CyberPower

CyberPower 649532215003 Manuel utilisateur

CyberPower

CyberPower OL10000RT3UTF Manuel utilisateur

CyberPower

CyberPower ST425 Manuel utilisateur

CyberPower

CyberPower 649532018253 Manuel utilisateur

CyberPower

CyberPower VP700EILCD Manuel utilisateur

CyberPower

CyberPower UT400EG Manuel utilisateur

CyberPower

CyberPower OL6KERT3UDPM Manuel utilisateur

CyberPower

CyberPower 649532108251 Manuel utilisateur

CyberPower

CyberPower OL6000RT3UPDU Manuel utilisateur

CyberPower

CyberPower 649532010004 Manuel utilisateur

CyberPower

CyberPower Standby CP550HG Manuel utilisateur

CyberPower

CyberPower 649532822003 Manuel utilisateur

CyberPower

CyberPower CyberShield CS24U12V Manuel utilisateur

CyberPower

CyberPower OL6000RT3U Manuel utilisateur

CyberPower

CyberPower OR1000LCDRM1Ua Manuel utilisateur

CyberPower

CyberPower Pro VP1000ELCD Manuel utilisateur

CyberPower

CyberPower CPS1500AVR Manuel utilisateur

CyberPower

CyberPower OR1500LCDRTXL2U Manuel utilisateur

CyberPower

CyberPower 649532004256 Manuel utilisateur

CyberPower

CyberPower BL1250U Manuel utilisateur

CyberPower

CyberPower Value 600EI Manuel utilisateur

CyberPower

CyberPower Professional Tower UPS PP1100E Manuel utilisateur

CyberPower

CyberPower CP900AVR Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur

ZincFive

ZincFive BC Series Manuel utilisateur

BPC

BPC 1.5K SMART Manuel utilisateur

IBM

IBM 5595-1AX Manuel utilisateur
