INTELLIGENT UPS SERIES

OR1500LCDRTXL2U / OR2200LCDRTXL2U

USER MANUAL

YOUR ULTIMATE ALLY IN POWER

Cyber Power Systems (USA), Inc.

4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com

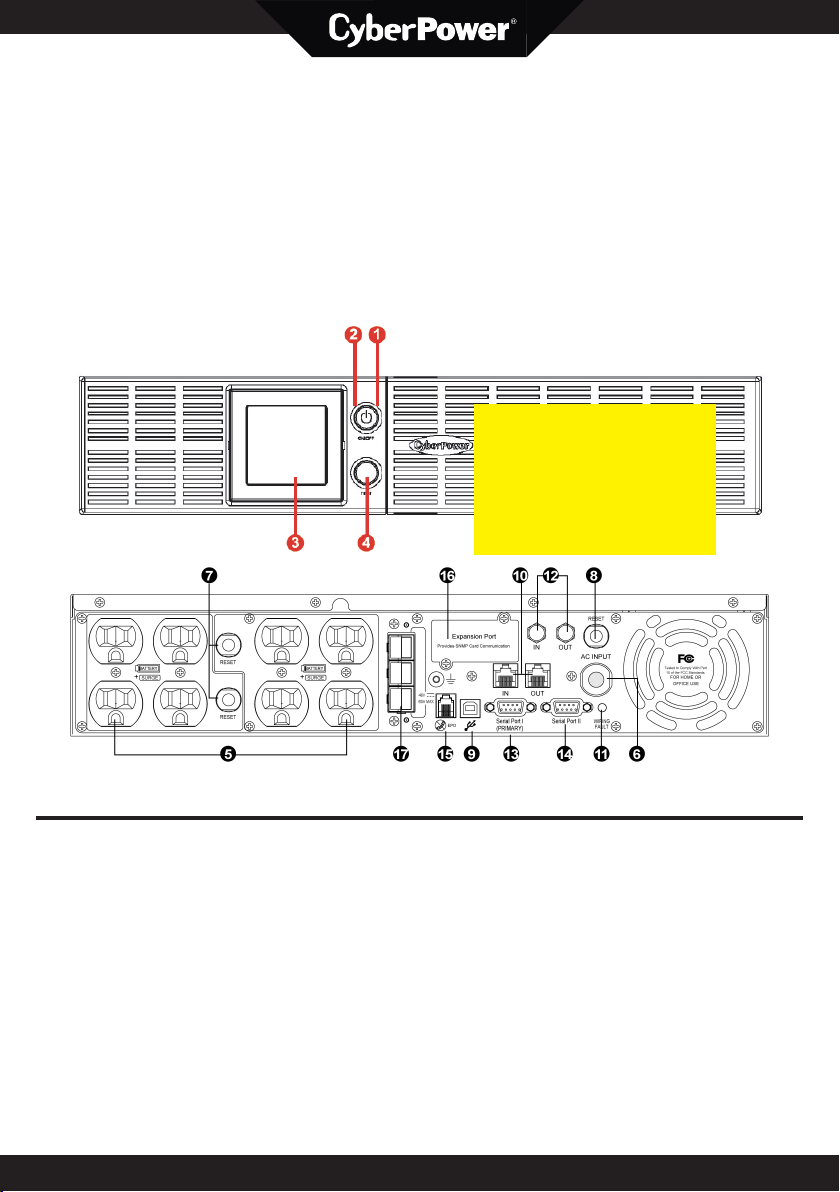

FEATURES

1. Power Switch

2. Power On Indicator (Blue)

3. LCD Module Display

4. LCD Function Selection Switch

5. 8 Full-Time Battery Powered and Surge

Protected Outlets

6. AC Power Cord

7. Output Circuit Breaker

8. Input Circuit Breaker

9. USB Port

10. Communication Protection Ports RJ45

11. Wiring Fault Indicator (Red)

12. Coax.Cable.DSS Surge Protection

13. Serial Port I (Primary)

14. Serial Port II (Dry Contact)

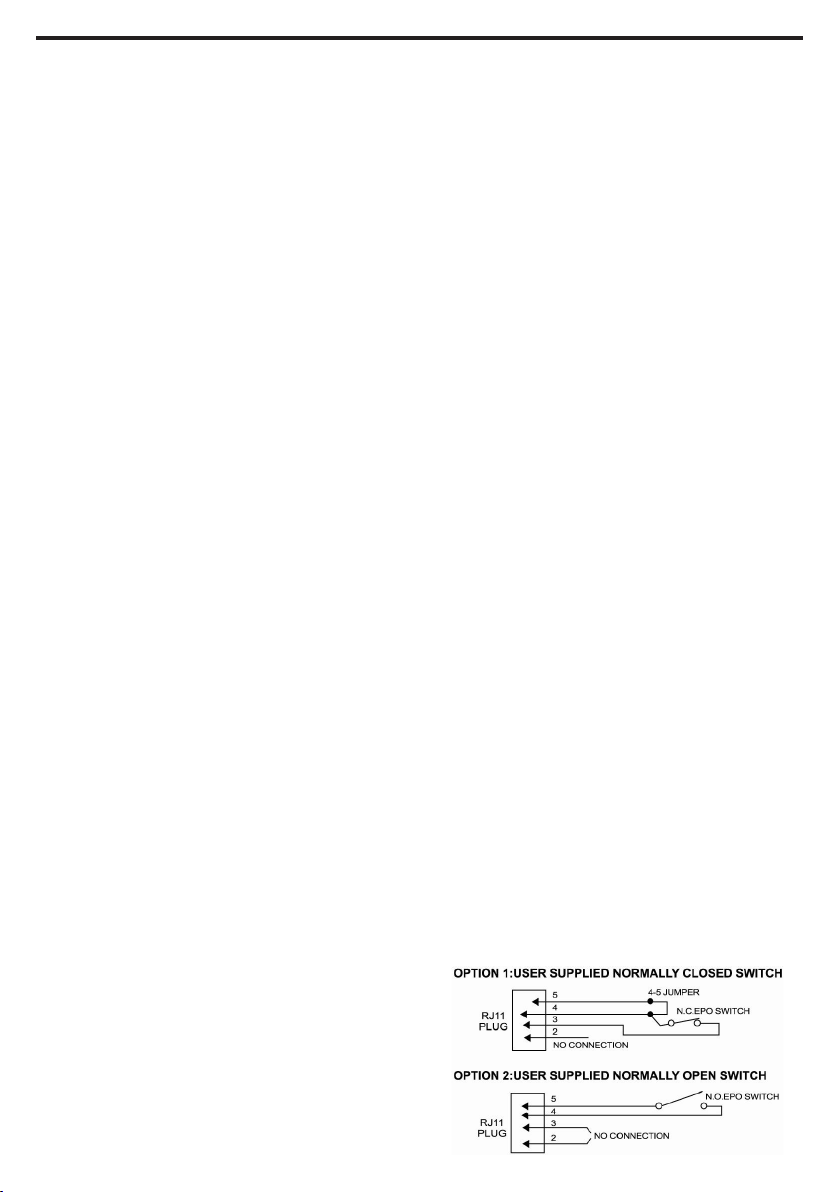

15. EPO (Emergency Power O) Port

16. SNMP / HTTP Network Slot

17. External Battery Pack Connector

FPO

Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed

power protection, operation, and performance during the lifetime of the product. Please take a

few minutes to register your product at: www.CyberPowerSystems.com/registration.

Registration certiﬁes your product’s warranty, conﬁrms your ownership in the event of a

product loss or theft, and entitles you to free technical support. Register your product now to

receive the beneﬁts of CyberPower ownership.

CAUTION! To prevent the risk of ﬁre or

electric shock, install in a temperature and

humidity controlled indoor area free of

conductive contaminants. (Please see

speciﬁcations for acceptable temperature

and humidity range).

CAUTION! To reduce the risk of electric shock,

do not remove the cover except to service the

battery. Turn o and unplug the unit before

servicing the batteries. There are no user

serviceable parts inside except for the battery.

CAUTION! Hazardous live parts inside can be

energized by the battery even when the AC

input power is disconnected.

CAUTION! The UPS must be connected to an

AC power outlet with fuse or circuit breaker

protection. Do not plug into an outlet that is

not grounded. If you need to de-energize this

equipment, turn o and unplug the unit.

CAUTION! To avoid electric shock, turn o the

unit and unplug it from the AC power source

before installing a computer component.

CAUTION! To reduce the risk of ﬁre, connect

only to a circuit provided with 20 amperes

maximum branch circuit over current

protection in accordance with the National

Electric Code, ANSI/NFPA 70.

CAUTION! Not for use in a computer room

as deﬁned in the Standard for the Protection

of Electronic Computer/Data Processing

Equipment, ANSI/NFPA 75.

CAUTION! Do not dispose of batteries in a

ﬁre. The batteries may explode.

CAUTION! Do not open or mutilate batteries.

Released electrolyte is harmful to the skin and

eyes. It may be toxic.

DO NOT USE FOR MEDICAL

OR LIFE SUPPORT EQUIPMENT!

CyberPower Systems does not sell products

for life support or medical applications. DO

NOT use in any circumstance that would

aect operation and safety of life support

equipment, any medical applications or

patient care.

DO NOT USE WITH OR NEAR AQUARIUMS!

To reduce the risk of ﬁre or electric shock,

do not use with or near an aquarium.

Condensation from the aquarium can cause

the unit to short out.

DO NOT USE THE UPS

ON ANY TRANSPORTATION!

To reduce the risk of ﬁre or electric shock, do

not use the unit on any transportation such

as airplanes or ships. The eect of shock or

vibration caused during transit and the damp

environment can cause the unit to short out.

PRODUCT REGISTRATION

IMPORTANT SAFETY WARNINGS (SAVE THESE INSTRUCTIONS)

This manual contains important safety instructions. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting to

unpack, install, or operate your UPS.

INSTALLING YOUR UPS SYSTEM

UNPACKING

Inspect the UPS upon receipt.

The box should contain the following:

(a) UPS unit

(b) User’s manual

(d) Stands x 2

(e) Telephone cable

(f) Emergency power o cable (gray)

(g) Serial cable x 2

(h) USB A+B type cable

PowerPanel® Business Edition software is

available on our website. Please visit www.

cyberpowersystems.com and go to the

Software Section for a free download.

OVERVIEW

The OR1500LCDRTXL2U/OR2200LCDRTXL2U

provides complete power protection from

utility power that is not always consistent. The

OR1500LCDRTXL2U features 1840 Joules of

surge protection and the OR2200LCDRTXL2U

features 2060 Joules of surge protection.

Both units provide long lasting battery backup

during power outages with maintenance

free batteries. The OR1500LCDRTXL2U/

OR2200LCDRTXL2U ensure consistent power

to your computer system and include software

that will automatically save your open ﬁles

and shutdown your computer system during a

utility power loss.

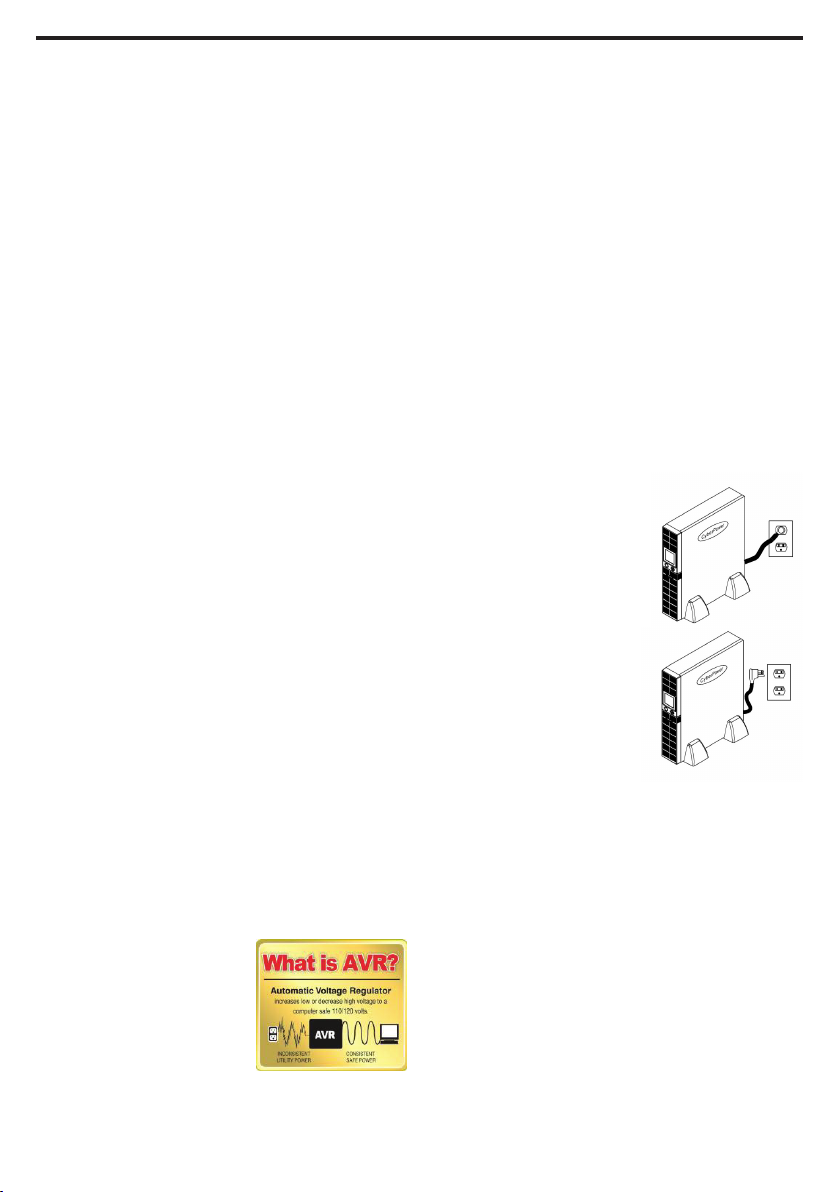

AUTOMATIC VOLTAGE REGULATOR

The OR1500LCDRTXL2U/OR2200LCDRTXL2U

stabilizes inconsistent utility power voltage

to nominal levels that are safe for equipment.

Inconsistent incoming utility power may be

damaging to important data ﬁles and hardware,

but with Automatic Voltage Regulation (AVR),

damaging voltage levels are corrected to safe

levels. AVR automatically increases low utility

power and decreases high

utility power to a consistent

and safe 110/120 volts. If

incoming utility voltage

drops below 90 volts, or

exceeds 140 volts the units

automatically switch to

battery back-up power.

DETERMINE THE POWER

REQUIREMENTS OF YOUR EQUIPMENT

1. Ensure that the equipment plugged

into the outlet does not exceed the UPS

unit’s rated capacity (1500VA/1125W for

OR1500LCDRTXL2U, 2190VA/1650W

for OR2200LCDRTXL2U). If the rated

capacities of the unit are exceeded, an

overload condition may occur and cause

the UPS unit to shut down or the circuit

breaker to trip.

2. There are many factors that can aect

the amount of power that your computer

system will require. It is suggested that

the load placed on the battery outlets not

exceed 80% of the unit’s capacity.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may

be used immediately

upon receipt. However,

recharging the battery

for at least 8 hours is

highly recommended to

ensure that the battery’s

maximum charge

capacity is achieved.

A loss of charge may

occur during shipping

and storage. To

recharge the battery,

simply leave the unit

plugged into an AC

outlet.

2. With the UPS unit

turned o and unplugged, connect

your computer, monitor, and any other

peripherals requiring battery backup into

the battery power supplied outlets. Plug

the other peripheral equipments (printer,

scanner, speakers) into the full-time surge

protection outlets. DO NOT plug a laser

printer, paper shredder, copier, space

heater, vacuum, sump pump or other large

electrical devices into the UPS. The power

demands of these devices will overload and

possibly damage the unit.

-continued

INSTALLING YOUR UPS SYSTEM - continued

3. To protect a fax, phone or modem, connect

a telephone cable or network cable from

the wall jack outlet to the IN jack of the

UPS. Connect a telephone cable

or network cable from the

OUT jack of the UPS to a fax

machine, telephone, modem, or

network devices.

4. Plug the UPS into a 2-pole,

3-wire grounded receptacle (wall outlet).

Make sure the wall branch outlet is

protected by a fuse or circuit breaker and

does not service equipment with large

electrical demands (e.g. air conditioner,

refrigerator, copier, etc.). The warranty

prohibits the use of extension cords, outlet

strips, and surge strips.

5. Press the power switch to turn the unit on.

The Power On indicator light will illuminate

and the unit will “beep”. If an overload is

detected, an audible alarm will sound and

the unit will emit one long beep. To correct

this, turn the UPS o and unplug at least

one piece of equipment from the battery

power supplied outlets. Make sure the

circuit breaker is depressed and then turn

the UPS on.

6. To maintain optimal battery charge,

leave the UPS plugged into an AC outlet

at all times.

7. To store the UPS for an extended period,

cover it and store with the battery fully

charged. While in storage, recharge the

battery every three months to ensure

battery life.

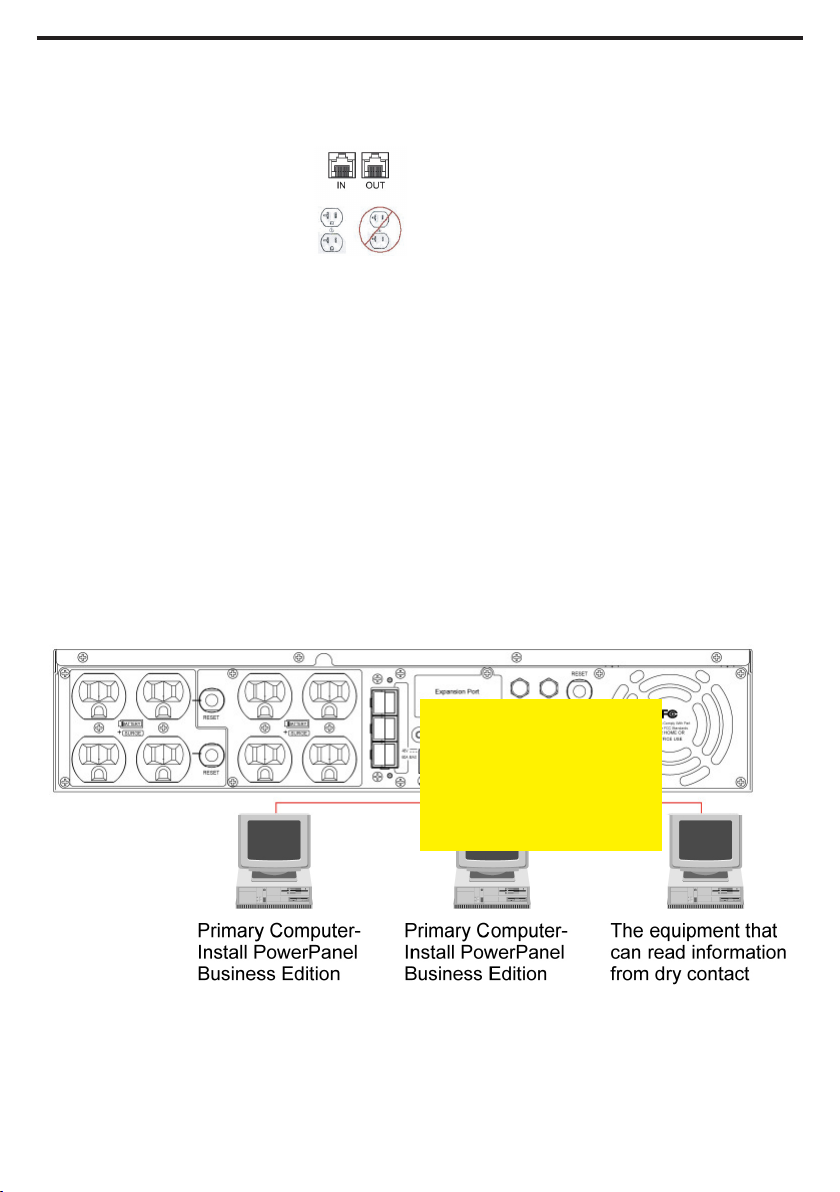

8. To use PowerPanel® Business Edition

software, connect the serial cable to the

serial port or the USB port on the UPS

and the computer. These OR units include

one serial port, one dry contact, and

one USB port to allow connection and

communication between the UPS and

computers. Serial port II produces basic

information for equipment that can utilize

a dry contact UPS. The primary computer

(with PowerPanel® Business Edition

installed) is the computer that you will use

to control the UPS and make changes to

the operation of the UPS. When there is

a power failure, the computer connected

to the Primary port will start to shut down

after a user controlled delay. PowerPanel®

Business Edition will save and close any

open ﬁles prior to shutting down the

system.

FPO

BASIC OPERATION

1. Power Switch

Master on/o switch for equipment

connected to the UPS.

2. Power On Indicator (blue)

This LED is illuminated when the utility

power is normal and the UPS outlets are

providing power, free of surges and spikes.

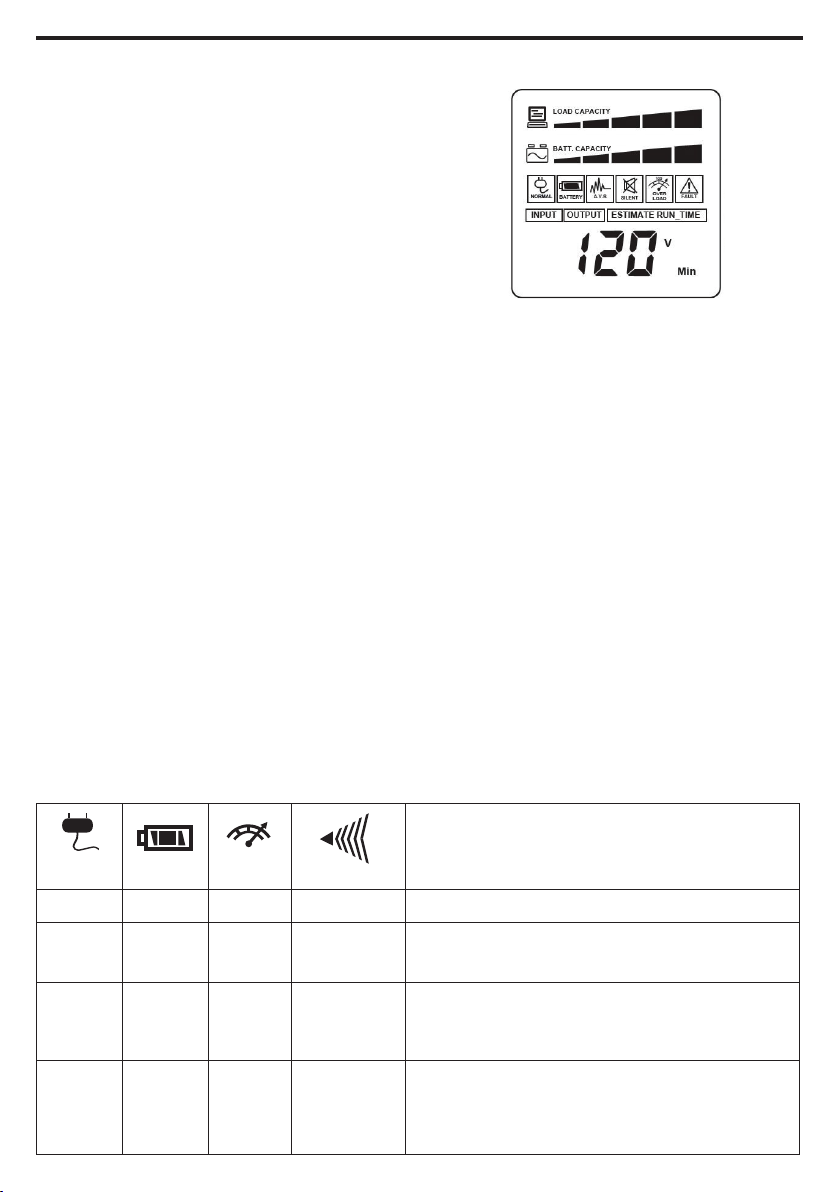

3. LCD module display

Crystal Blue intelligent LCD panel shows

all the UPS information using icons and

messages. For more information please

review the “Deﬁnitions for Illuminated LCD

Indicators” section below.

4. LCD function selection switch

The switch can be used to select the LCD

display contents including input/output

voltage and estimated run time, etc.

5. 8 Full Time Battery Powered and Surge

Protected Outlets

The unit has eight battery powered/

surge suppression outlets for connected

equipments to ensure temporary

uninterrupted operation of your equipment

during a power failure. (DO NOT plug a

laser printer, paper shredder, copier, space

heater, vacuum, sump pump or other large

electrical devices into the UPS. The power

demands of these devices will overload

and possibly damage the unit.)

6. AC Input Power Cord

Heavy-duty, extra long power cord.

7. Output Circuit Breaker

Resettable circuit breakers provide output

optimal overload protection.

8. Input Circuit Breaker

Resettable circuit breakers provide input

optimal overload protection.

9. USB Port

The USB port allows connection and

communication between the USB port on

the computer and the UPS unit.

10.Communication Protection Ports

Communication protection ports will

protect any standard modem, fax,

telephone line, network or Ethernet

connection (RJ11/RJ45).

11. Wiring Fault Indicator (red)

This LED indicator will illuminate to warn

the user that a wiring problem exists, such

as bad ground, missing ground or reversed

wiring. If this is illuminated, disconnect

all electrical equipments from the outlet

and have an electrician verify the outlet is

properly wired. The unit will not provide

surge protection without being plugged

into a grounded and properly wired wall

outlet.

12. Coax/Cable/DSS Surge Protection

The Coax/Cable/DSS surge protection

ports will protect any cable modem, CATV

converter, or DSS receiver.

13. Serial Port I (Primary)

The serial port allows connection and

communication between the UPS and the

computer.

14.Serial Port II (Dry Contact)

Dry contact produces information for

equipment that can utilize dry contact

signals.

15. EPO (Emergency Power O) Port:

Use the provided gray cable to connect to

a special EPO contact switch. Follow the

appropriate circuit diagram below to wire

the cable to your EPO conﬁguration. The

EPO remote switch is a switch installed

in an outside area, connected to the unit

via the Emergency Power O cable. In

case of an emergency, it can be used to

immediately cut-o power from the UPS.

16. SNMP/HTTP Network Slot:

Remove the cover panel to install an

optional RMCARD provides remote

monitoring and management of your UPS

over a network.

17. External Battery Pack Connector

Use to connect the optional CyberPower

external battery packs for extended

runtime.

Read and follow the IMPORTANT SAFETY

INSTRUCTIONS before servicing the battery.

Service the battery under the supervision of

personnel knowledgeable of batteries and

their precautions. CAUTION! Servicing of the

battery should only be performed by trained

personnel familiar with batteries and their

precautions. For more information on battery

replacement, contact your dealer or call the

number on this manual.

Replacement of batteries located in an

OPERATOR ACCESS AREA.

1. When replacing batteries, replace with

the same number of the following

battery: CyberPower RBP834 for the

OR1500LCDRTXL2U; CyberPower RBP844

for the OR2200LCDRTXL2U.

2. CAUTION! Risk of Energy Hazard, 12 V,

maximum 7(for the OR1500LCDRTXL2U) or

9 (for the OR2200LCDRTXL2U) Ampere-

hour battery. Before replacing batteries,

remove conductive jewelry such as chains,

wrist watches, and rings. High energy

conducted through these materials could

cause severe burns;

3. CAUTION! Do not dispose of batteries in a

ﬁre. The batteries may explode;

4. CAUTION! Do not open or mutilate

batteries. Released material is harmful to

the skin and eyes. It may be toxic.

CAUTION - RISK OF EXPLOSION IF BATTERY

IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO LOCAL REGULATIONS

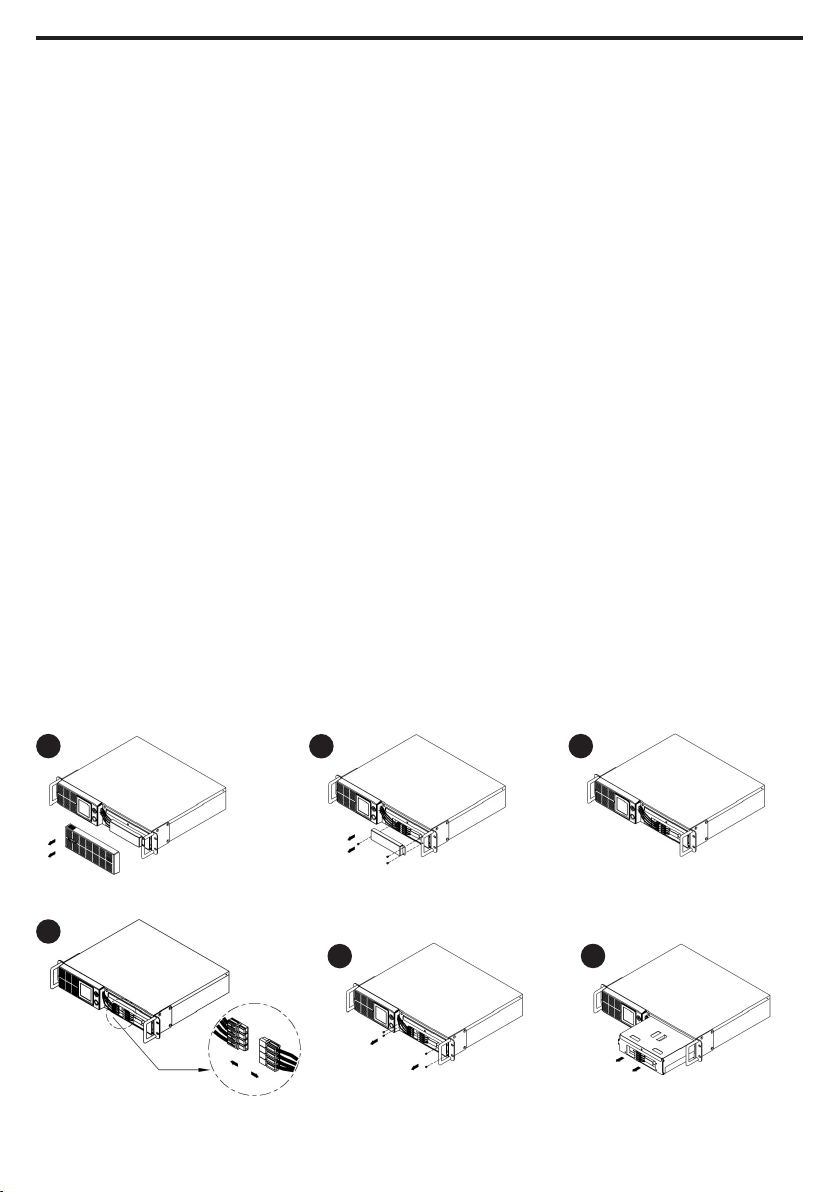

REPLACING THE BATTERY

BATTERY REPLACEMENT PROCEDURE:

1. Remove the right side front panel.

2. Remove the three retaining screws of the cable protection cover then remove the cover.

3. Remove the two retaining screws of the cable connectors.

4. Disconnect the black and red cable

5. Remove the four retaining screws.

6. Insert the new battery pack. Assemble the screws, cover, cable and front panel in the reverse

sequence of above steps. Recharge the unit for 4-8 hours to ensure the UPS performs

expected runtime.

REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly. Most retailers that sell lead-acid

batteries collect used batteries for recycling, as required by local regulations.

123

DEFINITIONS FOR ILLUMINATED LCD INDICATORS

1. INPUT Voltage Meter: This meter measures

the AC voltage that the UPS system is re-

ceiving from the utility wall outlet. The UPS

is designed, through the use of automatic

voltage regulation, to continuously correct

output voltage to connected equipment

to a safe 110/120 voltage output range. In

the event of a complete power loss, severe

brownout, or over-voltage, the UPS relies

on its internal battery to supply consistent

110/120 output voltage. The INPUT voltage

meter can be used as a diagnostic tool to

identify poor-quality input power.

2. OUTPUT Voltage Meter: This meter mea-

sures, in real time, the AC voltage that the

UPS system is providing to the computer,

such as normal line mode, AVR mode, and

battery backup mode. (Note: The OUTPUT

voltage meter shows the status of the bat-

tery backup outlets.)

3. ESTIMATED Run Time: This displays the

run time estimate of the UPS with current

battery capacity and load.

4. NORMAL Icon: This icon appears when the

UPS is working under normal conditions.

5. BATTERY Icon: During a severe brown-

out or blackout, this icon appears and an

alarm sounds (two short beeps followed

by a pause) to indicate the UPS is oper-

ating from its internal batteries. During a

prolonged brownout or blackout, the alarm

will beep rapidly every 1/2 second (and

the BATT.CAPACITY meter shows one 20%

capacity segment shaded) to indicate the

UPS’s batteries are nearly out of power. You

should save ﬁles and turn o your equip-

ment immediately.

6. AVR (Automatic Voltage Regulation) Icon:

This icon appears whenever your UPS

is automatically correcting low AC line

voltage without using battery power. This is

a normal, automatic operation of your UPS,

and no action is required on your part.

7. SILENT MODE Icon: This icon appears

whenever the UPS is in silent mode. The

buzzer does not beep during silent mode

until the battery reaches low capacity.

8. OVER LOAD Icon: This icon appears and an

alarm sounds to indicate the battery-sup-

plied outlets are overloaded. To clear the

-continued

The LCD screen indicates a variety of UPS

operational conditions. All descriptions

apply when the UPS is plugged into an AC

outlet and turned on or when the UPS is

on battery.

NORMAL BATTERY

OVER

LOAD ALARM

CONDITION

On O O O Normal

O On O

Beep twice

every 30

seconds

Utility Failure - The UPS is providing power to

battery power-supplied outlets from its battery.

O On O

Rapid

beeping

every 1/2

second

Utility Failure - The UPS is providing battery power.

Rapid beeping indicates the unit will run out of

power soon

O On On Constant

tone

Battery Overload - Occurs when connected equip-

ment exceeds the listed capacity of the UPS. Turn

the UPS o, unplug at least one piece of equipment

from battery outlets, wait 10 seconds, reset the circuit

breaker and turn the unit on.

Additional troubleshooting information can be found at “Support” at www.CyberPowerSystems.com

TROUBLESHOOTING

Problem Possible Cause Solution

Full-time surge protection

outlets stop providing power

to equipment.

Circuit breaker has been tripped

due to an overload.

Turn the UPS o and unplug at

least one piece of equipment.

Wait 10 seconds, reset the circuit

breaker by depressing the button,

and then turn the UPS on.

The UPS does not perform

expected runtime.

Battery not fully charged. Recharge the battery by leaving

the UPS plugged in.

Battery is worn out.

Contact CyberPower Systems

about replacement batteries at:

cyberpowersystems.com/support.

The UPS will not turn on.

The on/o switch is designed

to prevent damage from rapidly

turning it o and on.

Turn the UPS o. Wait 10 seconds

and then turn the UPS on.

The unit is not connected to an

AC outlet.

The unit must be connected to a

110/120V 60Hz outlet.

The battery is worn out.

Contact CyberPower Systems

about replacement batteries at:

cyberpowersystems.com/support.

Mechanical problem. Contact CyberPower Systems at:

cyberpowersystems.com/support.

PowerPanel® Business Edition is

inactive (all icons are gray).

The USB/Serial cable is not

connected.

Connect the USB/serial cable to

the UPS unit and an open USB/

serial port on the back of the com-

puter. You must use the cable that

came with the unit.

The USB/serial cable is connected

to the wrong port.

Check the back of the computer

for an additional USB/serial port.

Move the cable to this port.

The unit is not providing

battery power.

Shutdown your computer and turn

the UPS o. Wait 10 seconds and

turn the UPS back on. This should

reset the unit.

The serial cable is not the cable

that came with the unit.

Please use the serial cable that

came with the unit for the

software.

DEFINITIONS FOR ILLUMINATED LCD INDICATORS - continued

overload, unplug some of your equipment

from the battery-supplied outlets until the

icon turns o and the alarm stops.

9. FAULT icon: This icon appears if there is a

problem with the UPS, Contact CyberPow-

er Systems at tech@cyberpowersystems.

com for further help and support.

10.BATT. CAPACITY meter: This meter dis-

plays the approximate charge level (in 20%

increments) of the UPS’s internal battery.

During a blackout or severe brownout, the

UPS switches to battery power, the BAT-

TERY icon appears, and the charge level

decreases.

11. LOAD CAPACITY meter: This meter dis-

plays the approximate output load level

(in 20% increments) of the UPS battery

outlets.

TECHNICAL SPECIFICATIONS

Model

OR1500LCDRTXL2U OR2200LCDRTXL2U

Capacity 1500VA / 1125W 2190VA / 1650W

Input Voltage or Utility 90V to 140V

Input Frequency 47 Hz ± 63 Hz (Auto-sensing)

On-Battery Output Voltage 120Vac ± 5%

Transfer Time 4 ms Typical

Max Load for UPS Outlets

(8 Outlets) 1500VA / 1125W 2190VA / 1650W

On-Battery Output

Wave Form Simulated Sine Wave Form

Operating Temperature + 32°F to 104° F / 0° C to 40° C

Operating Relative Humidity 0 to 90% non-condensing

Size (L x W x H) 433 x 478 x 88 mm (2U Rack) / 17 x 18.8 x 3.5 in.

Net Weight 59.5 lbs. / 27 kg 66.1 lbs. / 30 kg

Battery Type CyberPower / RBP834 CyberPower / RBP844

Typical Battery

Recharge Time 8 hours

Typical Battery Life 3 to 6 years, depending on number of discharge/recharge cycles

Recommended Battery Sealed Maintenance Free Lead Acid Battery

Safety Approvals UL1778, CSA C22.2 No 107.3, FCC/DoC Class B

SYSTEM FUNCTION BLOCK DIAGRAM

Input Output

Battery Mode

Normal Mode

EMI

Filter

Surge

Suppressor

Inverter

Charger

AC / DC

Battery

AVR

Advanced Energy-Saving Patented Bypass Technology

CyberPower’s patented GreenPower UPS™ with Bypass Technology reduces UPS energy

costs by up to 75% compared to conventional UPS models. Even when utility power

is normal, conventional UPS models constantly pass power through a transformer.

By contrast, under normal conditions the advanced circuitry of a GreenPower UPS™

bypasses the transformer. As a result, the power eciency is signiﬁcantly increased

while decreasing waste heat, using less energy, and reducing energy costs. When an

abnormal power condition occurs, the GreenPower UPS™ automatically runs power

through its transformer to regulate voltage and provide “safe” power. Since utility power is normal over 88% of

the time, the GreenPower UPS™ operates primarily in its ecient bypass mode. The GreenPower UPS™ is also

manufactured in accordance with the Restriction on Hazardous Substances (RoHS) directive making it one

of the most environmentally-friendly on the market today.

CYBERPOWER GREENPOWER UPS™ TECHNOLOGY

GREEN

POWER UPS™

Energy-Saving Technology

Please visit www.CyberPowerSystems.com for a copy of the Limited Warranty and Connected

Equipment Guarantee.

Where Can I Get More Information?

The application of the United Nations Convention of Contracts for the International Sale of

Goods is expressly excluded. CyberPower is the warrantor under this Limited Warranty.

For further information please feel free to contact CyberPower at:

Cyber Power Systems (USA), Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379;

call us at (877) 297-6937; or submit a web ticket online at cyberpowersystems.com/support.

Cyber Power Systems (USA), Inc. encourages environmentally sound methods for disposal

and recycling of its UPS products. Please dispose and/or recycle your UPS and batteries in

accordance to the local regulations of your state.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

Canadian Compliance Statement

CAN ICES-3 (B)/NMB-3(B)

LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE

FCC COMPLIANCE STATEMENT

WARNING: This product can expose you to chemicals including bisphenol A (BPA) and styrene, which is known to the

State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov.

Autres manuels pour OR1500LCDRTXL2U

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CyberPower UPS

CyberPower

CyberPower DTC50U12V3 Manuel utilisateur

CyberPower

CyberPower CP1500AVRLCDa Manuel utilisateur

CyberPower

CyberPower PP1500 Manuel utilisateur

CyberPower

CyberPower OLS1000E Manuel utilisateur

CyberPower

CyberPower Value1200EILCD Manuel utilisateur

CyberPower

CyberPower UT400EG Manuel utilisateur

CyberPower

CyberPower CyberShield CSN27U12V Manuel utilisateur

CyberPower

CyberPower CP685AVR / BF685 Manuel utilisateur

CyberPower

CyberPower Surge Buster SB501BA-FR Manuel utilisateur

CyberPower

CyberPower 649532815197 Manuel utilisateur

CyberPower

CyberPower 649532108251 Manuel utilisateur

CyberPower

CyberPower CPS600E Manuel utilisateur

CyberPower

CyberPower CP825AVRLCD-G Series Manuel utilisateur

CyberPower

CyberPower OL6000ERT3UDM Manuel utilisateur

CyberPower

CyberPower 649532015597 Manuel utilisateur

CyberPower

CyberPower 649532822027 Manuel utilisateur

CyberPower

CyberPower UP1200 Manuel utilisateur

CyberPower

CyberPower Value1200ELCD Manuel utilisateur

CyberPower

CyberPower OP850 Manuel utilisateur

CyberPower

CyberPower GX1325U Manuel utilisateur

CyberPower

CyberPower 649532715015 Manuel utilisateur

CyberPower

CyberPower BRG1350AVRLCD Manuel utilisateur

CyberPower

CyberPower OR1000PFCRT2U Manuel utilisateur

CyberPower

CyberPower BR1000ELCD Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur

ZincFive

ZincFive BC Series Manuel utilisateur

BPC

BPC 1.5K SMART Manuel utilisateur

IBM

IBM 5595-1AX Manuel utilisateur
