CyberData 011402 Manuel

Parts

(1) 1 x 2 Ceiling Tile Speaker Assembly

FIts 12-inches x 24-inches and 24-inches x 48-inches ceiling tile

(1) Cross Tee

Dimensions

23.625 [600]

11.750 [298.5]

3.187 [81.0]

Dimensions are in Inches [Millimeter]

DIMENSIONS ARE IN

11.750 [298.5]

3.187 [81]

23.625 [600]

INCHES [MILLIMETES]

Contacting CyberData

Sales: (831) 373-2601 ext. 334

Support: 831-373-2601 ext. 333

Support Website: http://support.cyberdata.net/

RMA Department: (831) 373-2601 ext. 136

RMA Email: [email protected]

RMA Status: http://support.cyberdata.net/

Warranty Information: http://support.cyberdata.net/

Corporate Headquarters

CyberData Corporation

3 Justin Court

Monterey, CA 93940, USA



Phone: 831-373-2601

Fax: 831-373-4193

http://www.cyberdata.net/

The IP Endpoint Company

Installation Quick Reference

InformaCast Enabled /SIP Ceiling Tile Drop-In

Speaker



011402

Installation Procedure

To install the InformaCast Enabled /SIP Ceiling Tile Drop-In Speaker, complete the following steps while referencing

the figure below:

1. Remove the Ceiling Tile (Showing a 2 x 2 Grid) from the Ceiling Grid then Cut it in Half.

2. Place the Cross T in the Middle to Support the Weak Side of the Ceiling Tile.

3. Replace the Ceiling Tile on to the Ceiling Grid.

4. Use a Flat Blade Screwdriver to Pry Up the Seismic Tether Bracket(s) on the 1 x 2 Ceiling Tile Speaker

Assembly.

5. Install Eyebolt(s) or Nail(s) to the Joist.

6. Connect the Network Cable to the Network Port and Wire(s) to the Terminal Block, etc. to the 1 x 2 Ceiling Tile

Speaker Assembly.

7. Use Steel Wire(s) to Connect Seismic Tether Bracket(s) to the Eyebolt(s) or Nail(s). Place the 1 x 2 Ceiling Tile

Speaker Assembly on to the Ceiling Grid and the Cross T.

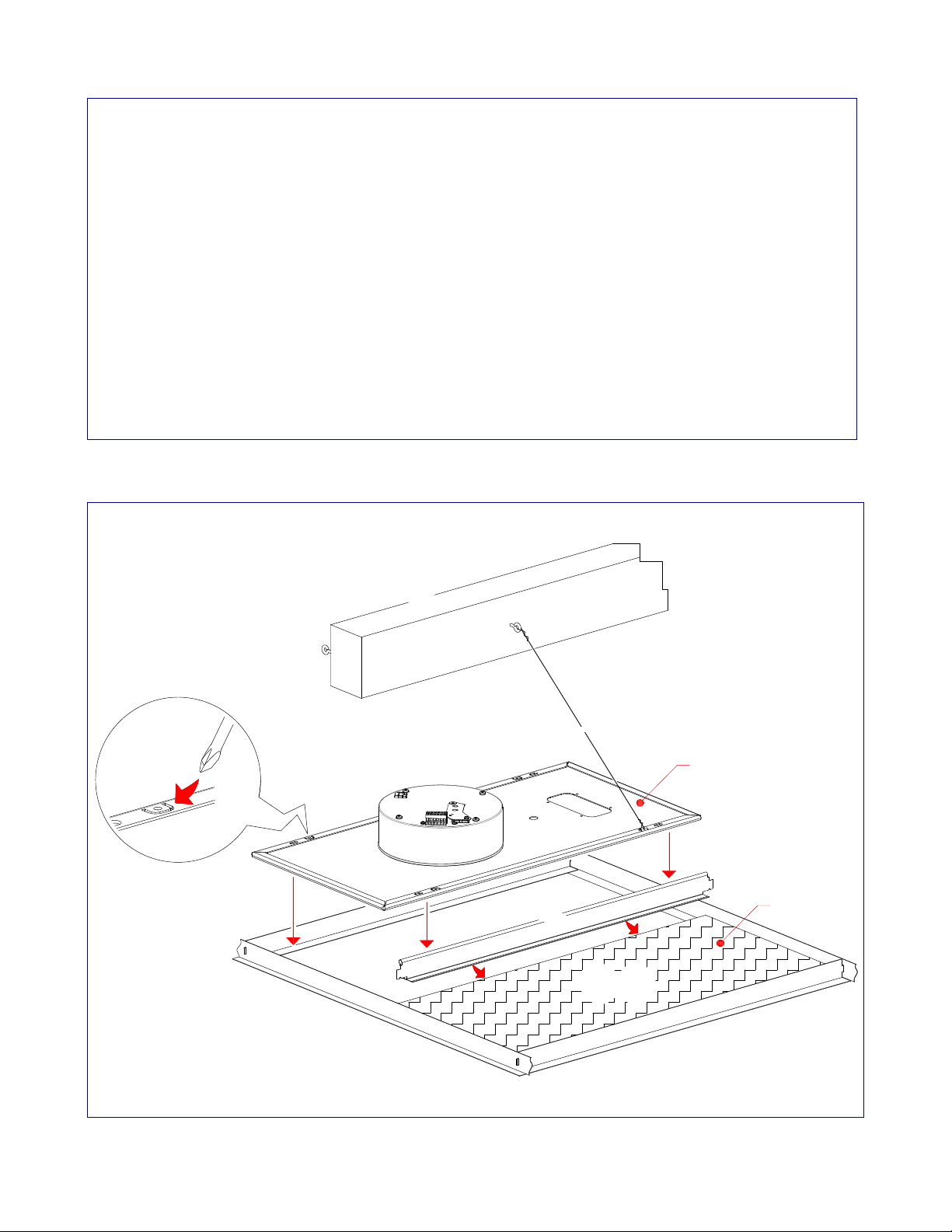

Installing the InformaCast Enabled /SIP Ceiling Tile Drop-In Speaker

Use a Flat Blade Screwdriver

to Pry Up the Seismic Tether Bracket

Joist

Eyebolt / Nail

Cross T

Speaker Assembly

2 x 2 Ceiling Tile

Steel Wire

1 x 2 Ceiling Tile

1, 3
