CyberData 011520 Manuel

Quick Reference 931740A © 2020, CyberData Corporation, ALL RIGHTS RESERVED.

Parts

FIts 24-inches x 24-inches and 24-inches x 48-inches ceiling tile

(1) SIP 2 x 2 Ceiling Tile Drop-In Speaker Assembly

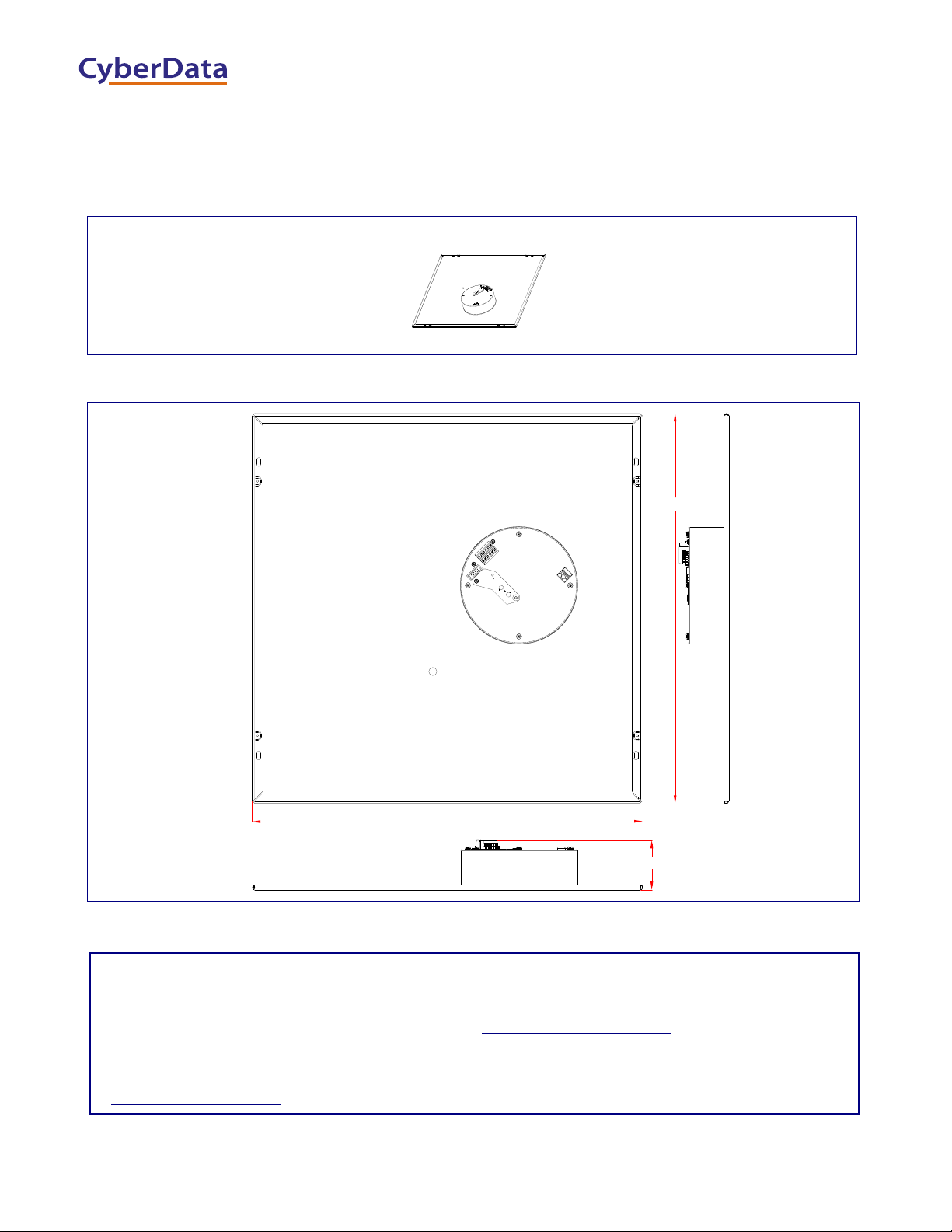

Dimensions

23.8 [605]

3.0 [77]

23.8 [605]

Dimensions are in Inches [Millimeter]

Contacting CyberData

Sales: (831) 373-2601 ext. 334

Support: 831-373-2601 ext. 333

Support Website: http://support.cyberdata.net/

RMA Department: (831) 373-2601 ext. 136

RMA Email: [email protected]

RMA Status: http://support.cyberdata.net/

Warranty Information: http://support.cyberdata.net/

Corporate Headquarters

CyberData Corporation

3 Justin Court

Monterey, CA 93940, USA



Phone: 831-373-2601

Fax: 831-373-4193

http://www.cyberdata.net/

The IP Endpoint Company

Installation Quick Reference

SIP 2 x 2 Ceiling Tile Drop-In Speaker



011520

© 2020, CyberData Corporation, ALL RIGHTS RESERVED. 931740A Quick Reference

Installation Procedure

To install the SIP 2 x 2 Ceiling Tile Drop-In Speaker, complete the following steps while referencing the figure below:

1. Remove the Ceiling Tile (Below Figure Showing a 2 x 2 Grid) from the Ceiling Grid. Cut the 2 x 4 Ceiling Tile in

Half if using a 2 x 4 Grid.

2. Place the Cross T* in the Middle for Support (Only on a 2 x 4 Grid).

3. Use a Flat Blade Screwdriver to Pry the Seismic Tether Bracket(s) on the 2 x 2 Ceiling Tile Speaker Assembly.

4. Install Eyebolt(s) or Nail(s) to the Joist.

5. Connect the Network Cable to the Network Port and Wire(s) to the Terminal Block, etc. to the 2 x 2 Ceiling Tile

Speaker Assembly.

6. Use Steel Wire(s) to Connect Seismic Tether Bracket(s) to the Eyebolt(s) or Nail(s). Place the 2 x 2 Ceiling Tile

Speaker Assembly on to the Ceiling Grid and the Cross T* (see Step 2).

Installing the SIP 2 x 2 Ceiling Tile Drop-In Speaker

Use a Flat Blade Screwdriver

to Pry Up the Seismic Tether Bracket

Joist

Eyebolt / Nail

*

*

*

*

Speaker Assembly

2 x 2 Ceiling Tile

Steel Wire

*

Remove

Ceiling Tile

Install Cross T (Not Included)

Only on a 2 x 4 Grid

1

2

Drop-in the 2 x 2 Ceiling Tile Speaker Assembly

6

3

4

5

Cross T
