5- 1
REMOVAL

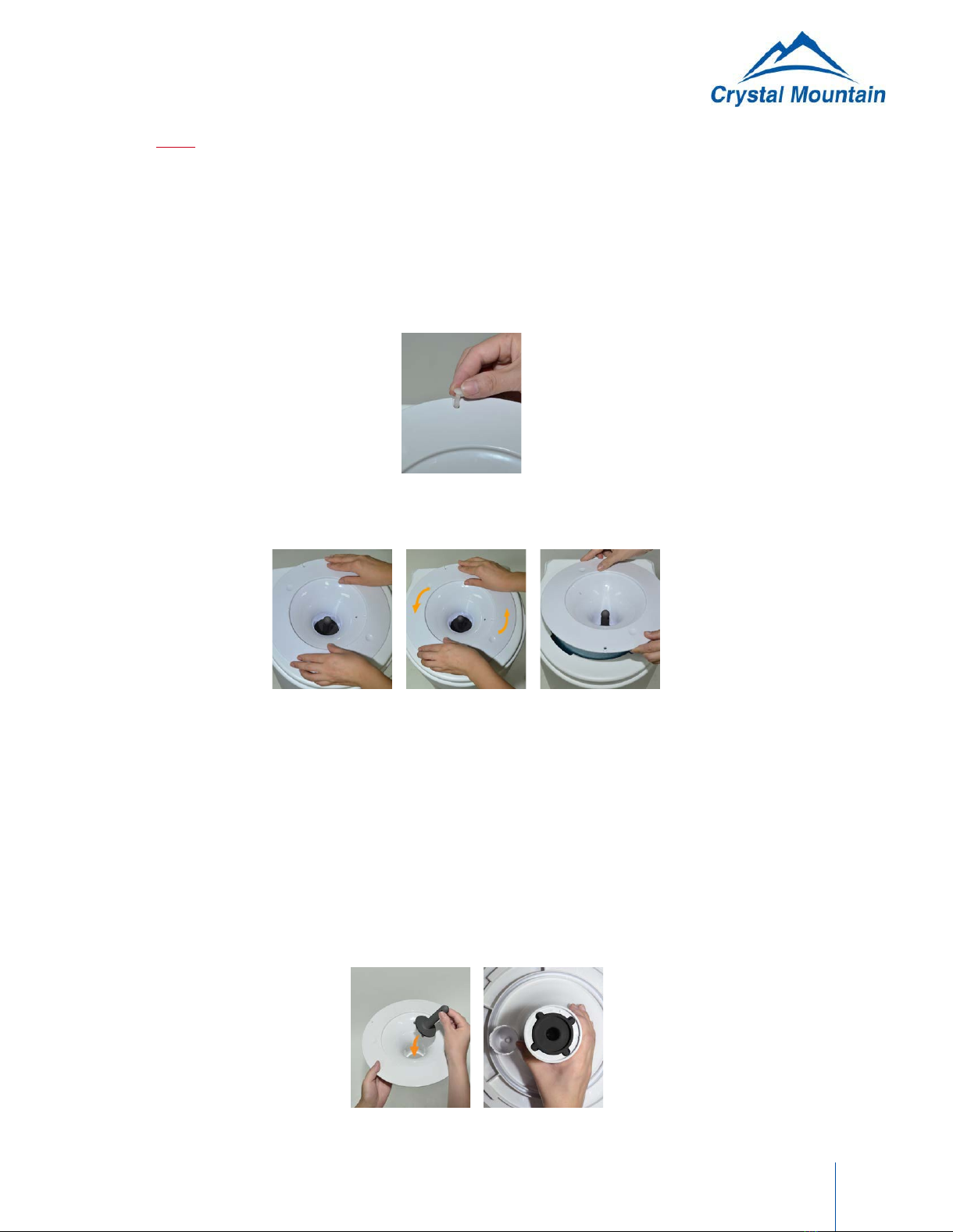

1. Remove the locking pin located at rear of Crystal Guard (fig.1-1).
2. Place finger tips of both hands on the Crystal Guard (fig.2-1) and turn it counter clockwise until
it is free from the cooler (fig.2-2) opening and remove from the cooler (fig.2-3).
3. To reinstall reverse these steps.
Note: Remember to replace locking pin to secure Crystal Guard to cabinet.
INSTALLATION
If you take apart the Crystal Guard for sanitation or because a part of it needs replacing, reassem-
ble as below.
4. Ensure that the Crystal Pin has the O-Ring in place at its base firmly insert the Crystal Pin inside
the Crystal Guard (fig.4-1). Make sure that the Crystal Pin’s four locking tabs have completely pro-
truded through the locking tabs entries (fig.4-2).
Note: Ensure that the Crystal Pin has the O-Ring in place.
Removal and Installation
Notice:
The information and/or procedures presented in the following demonstration(s) should be performed by a trained Water Cool-
er Service Technician only.
Never attempt to service or repair a water cooler while it is plugged into any power supply.
Prior to any service or repair of the water cooler, ensure that the water has been completely drained from the system.
. Crystal Guard Removal & Installation Procedure
figure 1-1
figure 2-1 figure 2-2 figure 2-3
figure 4-1 figure 4-2
5- 2

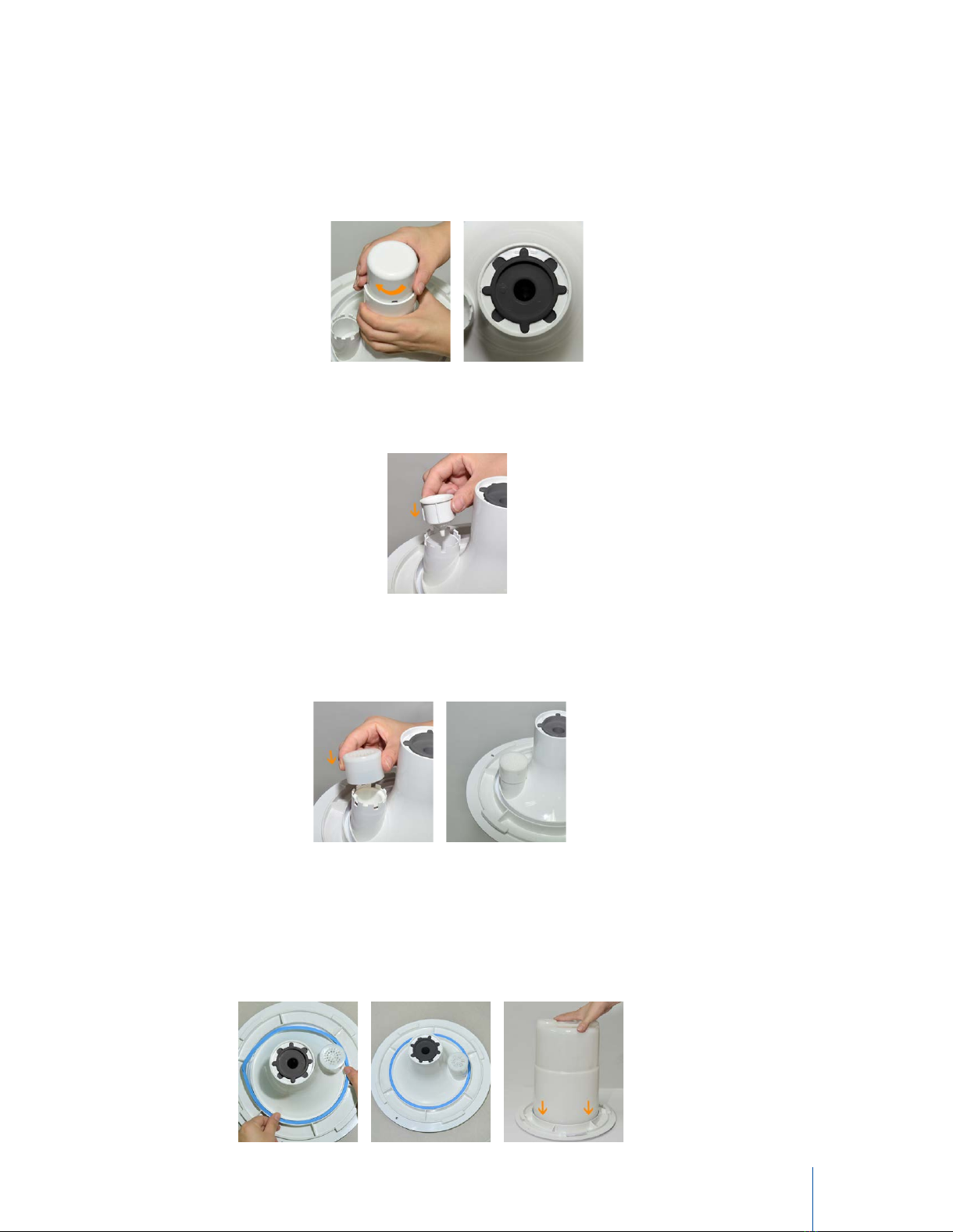

5. Using the Crystal Guard removal tool (SMT-C000110) to insert clean pin in guard (fig.5-1).
Twist the Crystal Pin clockwise until the four locking tabs are approximately half way between the
four holes (fig.5-2).
6. Insert the floater into the cylindrical toothed part on the backside of the Crystal Guard (fig.6-1).
7. Insert the air filter cap over the floater and on the cylindrical toothed area of the Crystal Guard
until it bottoms out (fig.7-1)(fig.7-2).
8. Insert the blue gasket into the gasket groove area of the Crystal Guard until it bottoms out (usu-
ally this gasket is applied to the guard by the factory as a sub assembly) (fig.8-1). Make sure that
the gasket is depressed so that it is below the level of the gasket groove to allow ease of assembly
(fig.8-2).
Note: The reservoir also can be used as a tool to press the gasket into the groove (fig.8-3).
figure 6-1
figure 5-1 figure 5-2
figure 8-1 figure 8-2 figure 8-3
figure 7-1 figure 7-2
5- 3

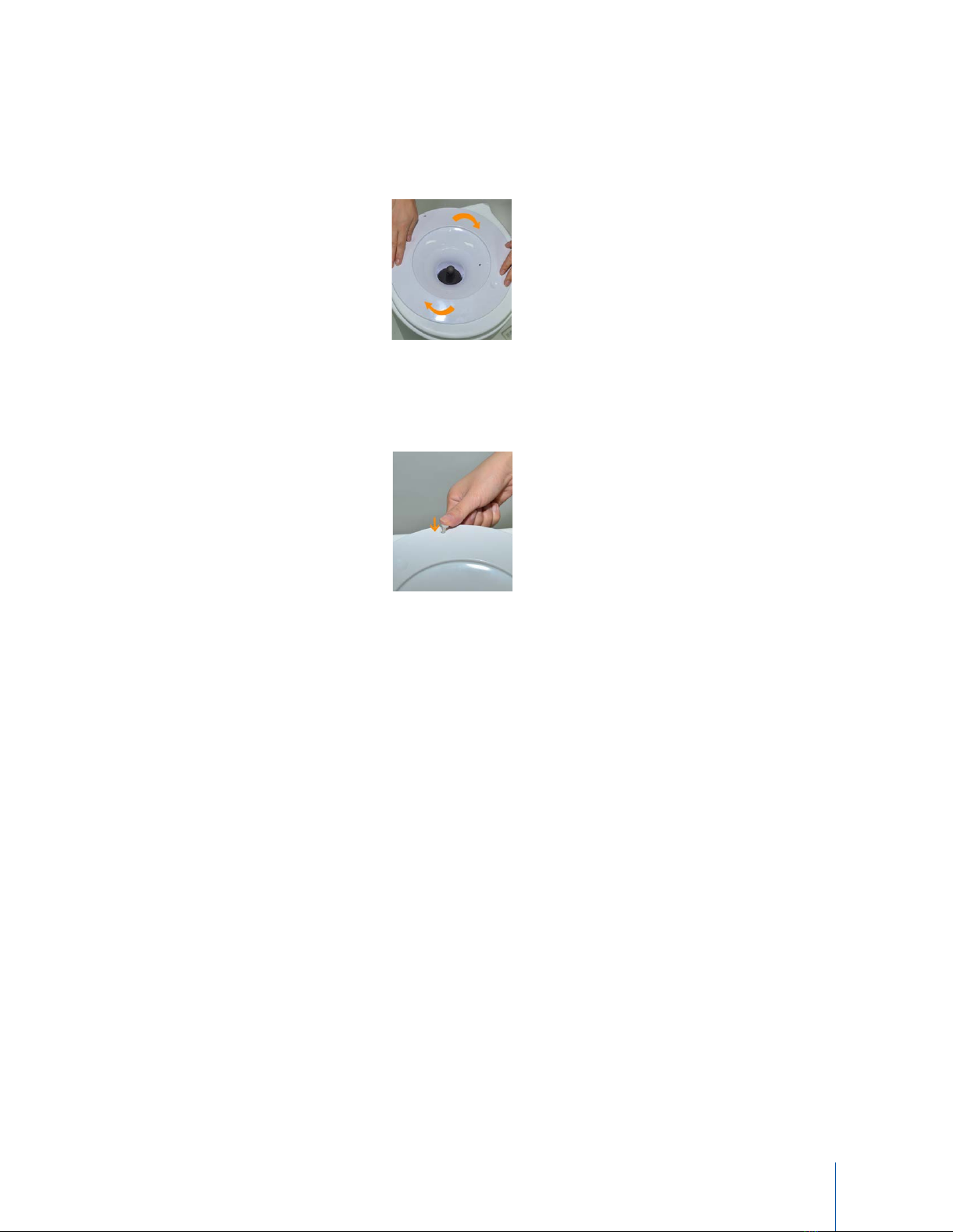

9. Re-install the Crystal Guard onto cooler. The Crystal Guard system was designed to seal air and
therefore the guard will fit very tightly when installed with the blue gasket (fig.9-1).
10. Poke the arrow pin used to lock the Crystal Guard down through its drilled hole to secure the
lid on the cooler (fig.10-1).
figure 10-1
figure 9-1
5- 4

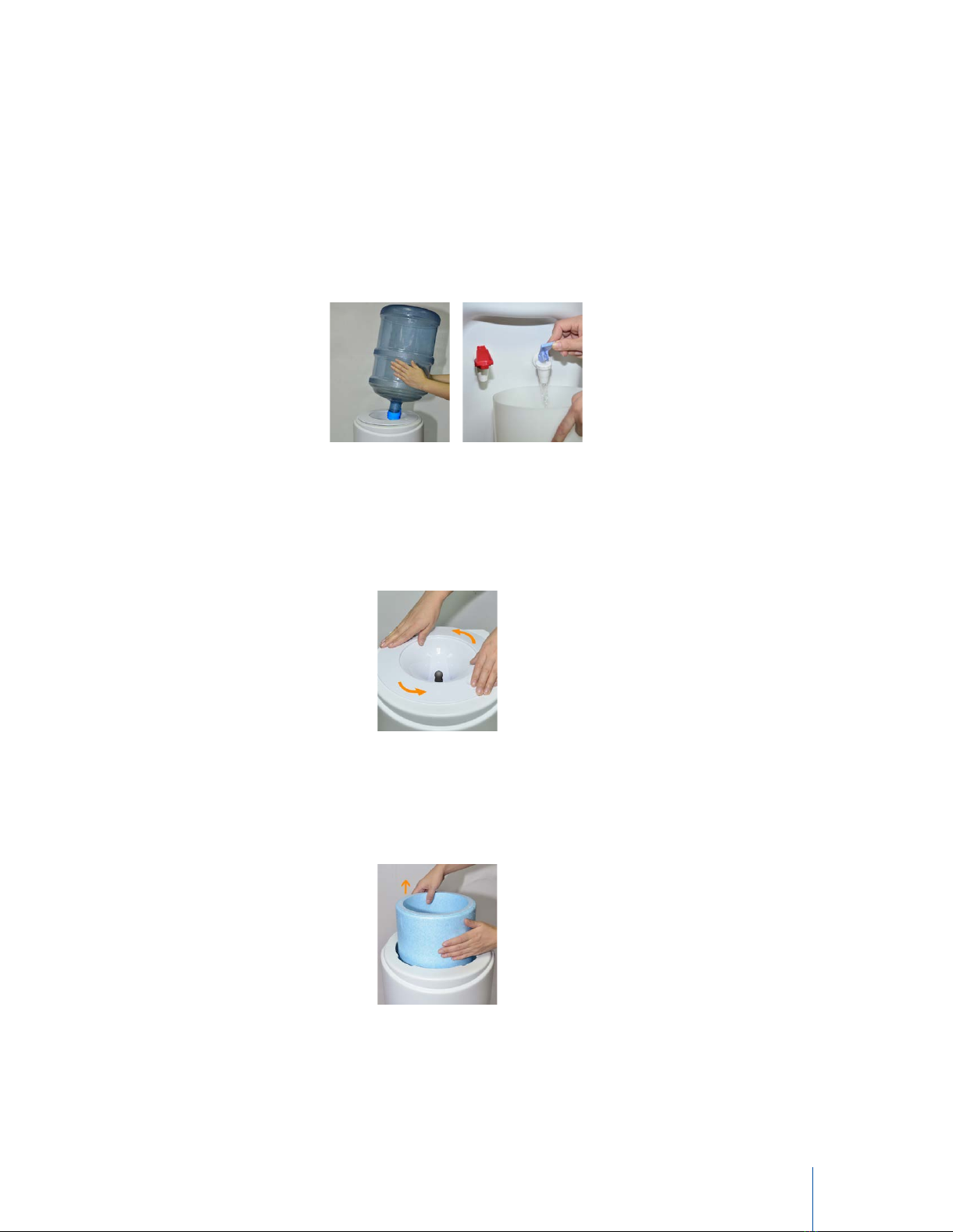

1. Remove the water bottle (fig.1-1) and drain water from the reservoir (fig.1-2) and hot tank,
remembering to cool and drain hot tank. Allow 2 hours for hot water to cool down inside the hot
tank before removing the drain plug at the rear of the cooler to drain into a bucket.
2. Use the fingertips of both hands to press on the Crystal Guard and turn counter clockwise till it
is free from the cooler opening (fig.2-1).
Note: The DryGuardTM lid is standard on the Sierra cooler. See the DryGuardTM section for installa-
tion and removal instructions.
3. Use fingers of both hands to lift up and remove the insulation jacket covering the reservoir, from
the cooler opening (fig.3-1).
. D Series Reservoir Removal Procedure
figure 1-1 figure 1-2
figure 2-1
figure 3-1
5- 5
figure 4-1 figure 4-2
figure 6-1

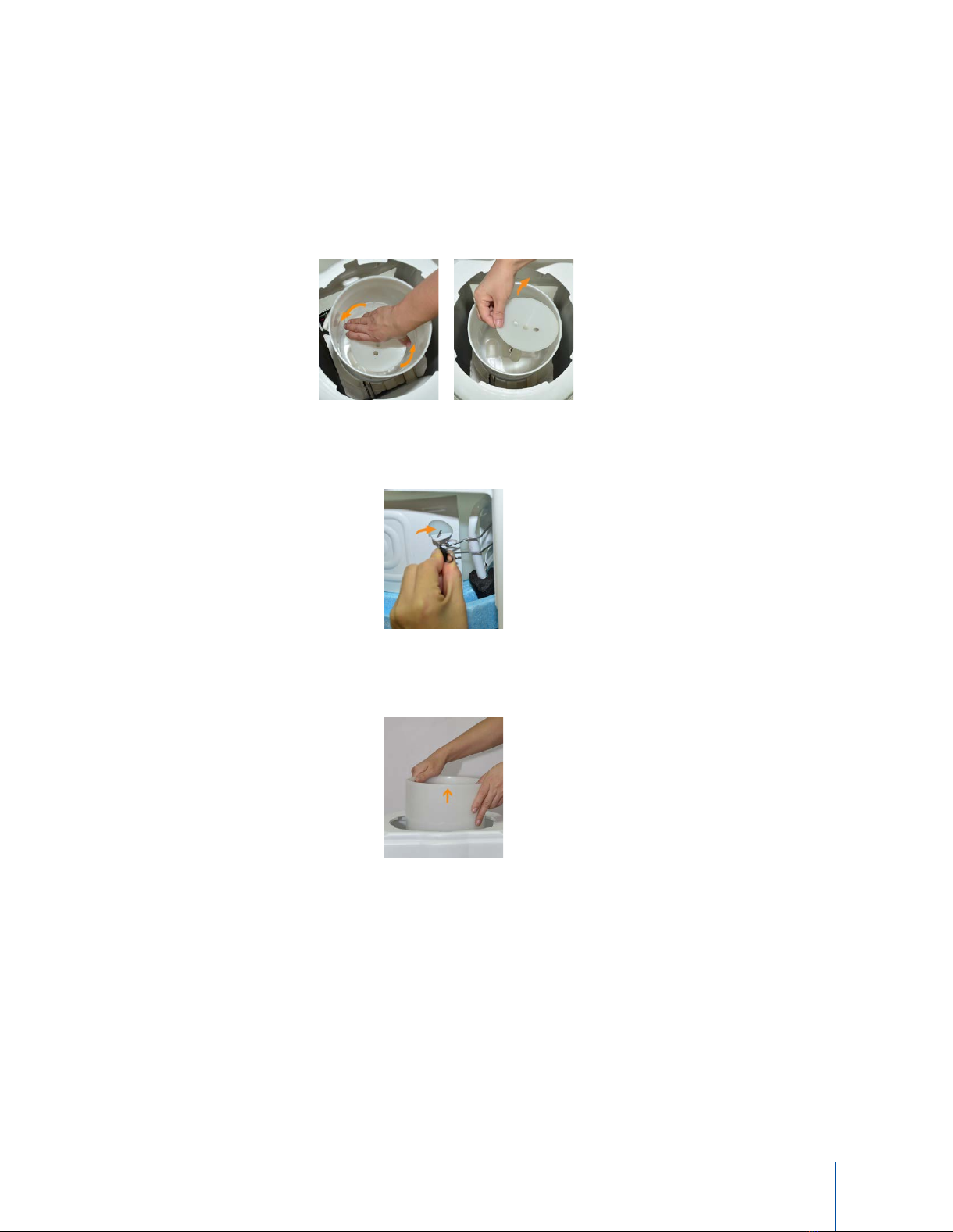

4. Remove baffle disk by unscrewing it and set aside (fig.4-1)(fig.4-2) .
5. Approach the cooler from the rear. Open the latch provided on the evaporator band (fig.5-1).
6. Use both hands to loosen the reservoir from the evaporator band and lift it straight through the
cooler opening (fig.6-1).
figure 5-1
5- 6
. DryGuardTM lnstallation & Removal Procedure
REMOVAL

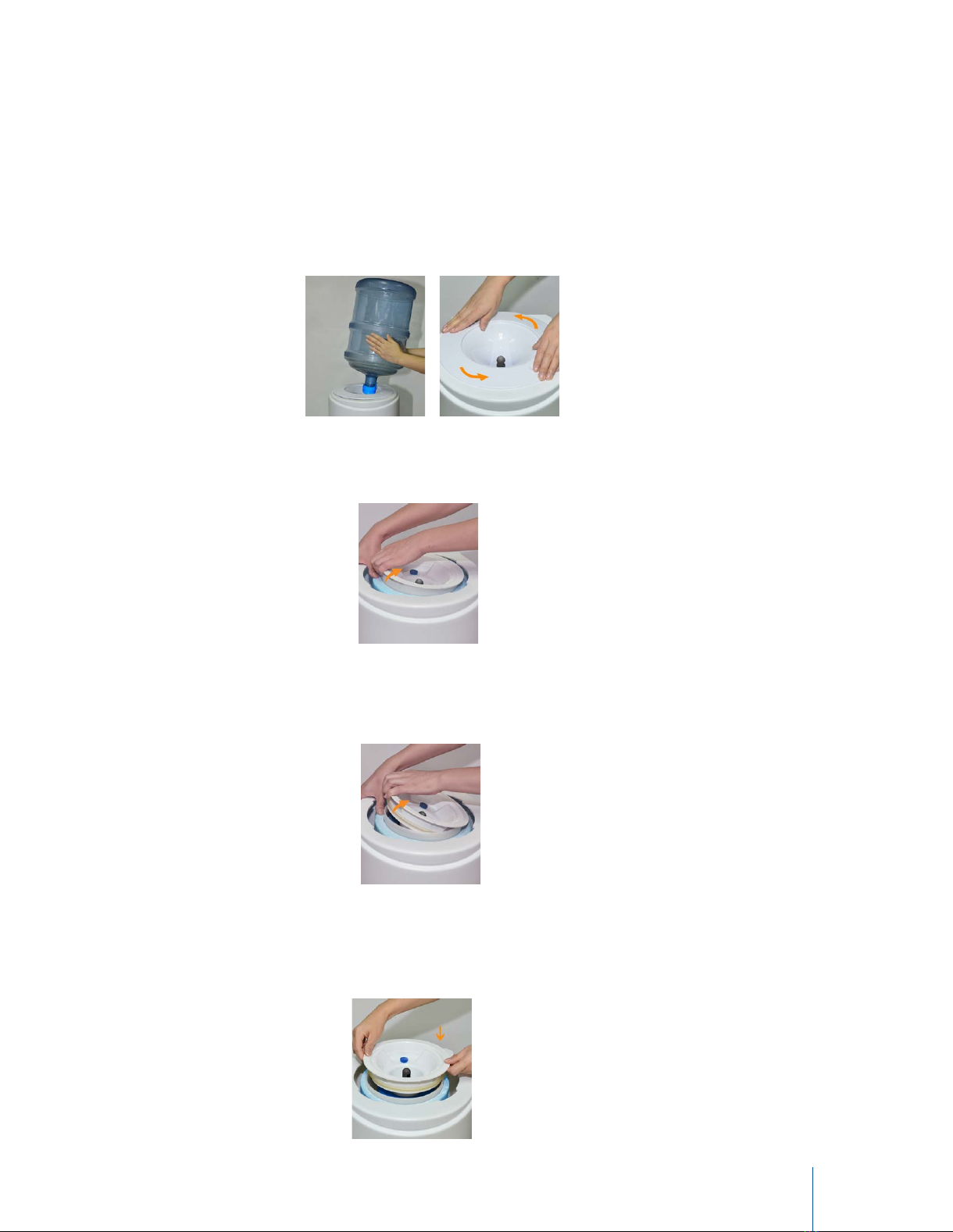

1. Remove the bottle (fig.1-1) and Crystal Guard (fig.1-2) from the cooler.
2. Approaching the cooler from the side, place one palm onto the top of the cooler on the side fur-
thest from you, and using your thumb, press downwards on the reservoir Insulation (fig.2-1).
3. Using your other hand, grip the edge of the Inner DryGuardTM Cone and pull it up slowly to re-
move (fig.3-1).
Note: DryGuardTM is designed to fit very tightly into reservoir.
INSTALLATION
4. Place the Inner DryGuardTM assembly onto the center of the cold water reservoir; make sure the
filter cap is pointed towards the rear of the cooler (fig.4-1).
figure 1-1 figure 1-2
figure 2-1
figure 3-1
figure 4-1
5- 7

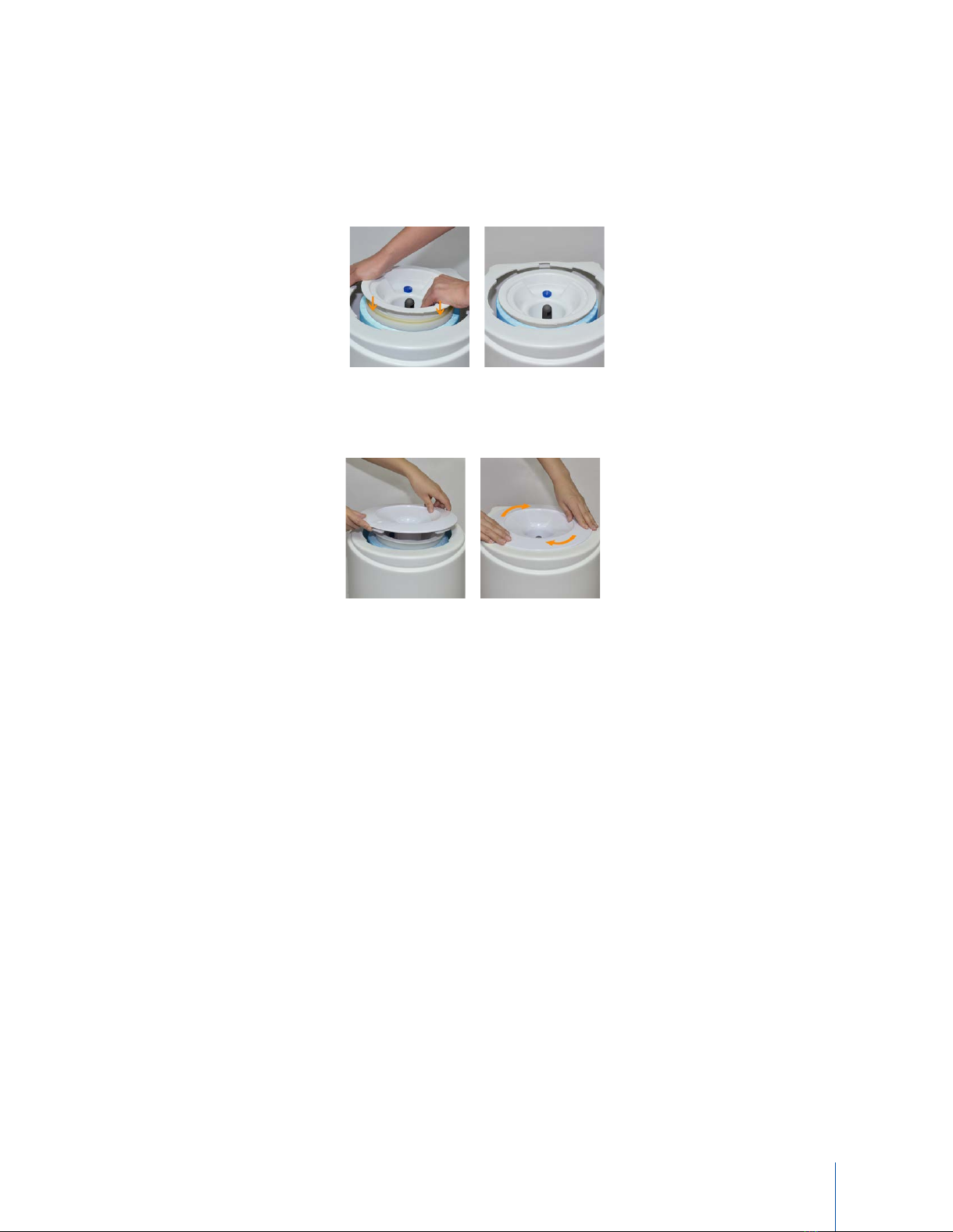

5. Using the palms of both hands, push the DryGuardTM straight down into the reservoir (fig.5-1)
(fig.5-2).
6. Install the Outer DryGuardTM onto the cooler (fig.6-1) and lock into place by turning clock-
wise (fig.6-2).
figure 5-1 figure 5-2
figure 6-1 figure 6-2
5- 8

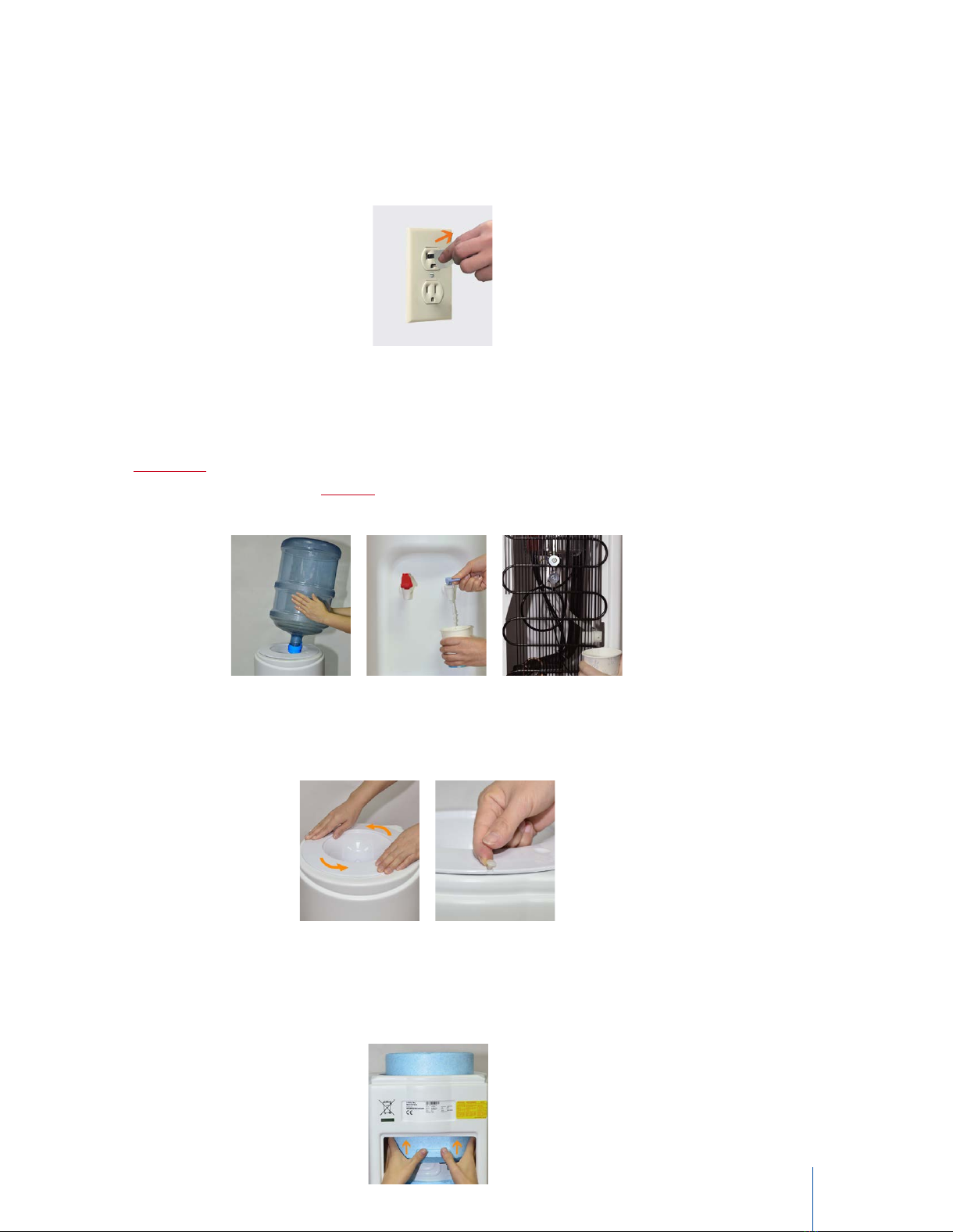

1. Unplug cooler from power source (fig.1-1).
2. Empty and remove water bottle (fig.2-1) and drain cooler reservoir through the faucets until
empty (fig.2-2).If cooler is a hot and cold, the hot tank must be drained from the drain plug located
on the back of unit on the lower right side (fig.2-3). Also, shut hot tank switch off.
CAUTION
The water in the hot tank is very hot; after unplugging cooler, allow 2 hours for water to cool down
before removing the drain cap to drain the system!
3. Remove top lid of cooler by turning counter clockwise or to the left (fig.3-1). For Crystal Guard
and Aquaflo models, remove the Crystal Guard pin stopper at rear of outer edge of guard or ring
(fig.3-2).
4. Turn cooler around so you are facing the back of the unit, and remove the top of the two piece
blue, or white, insulation by lifting it straight up through the cooler top opening (fig.4-1). Bottom in-
sulation piece remains on cooler.
. Refrigeration Repair System (RRS) Removal Procedure
figure 2-1 figure 2-2 figure 2-3
figure 3-1 figure 3-2
figure 4-1
figure 1-1
5- 9

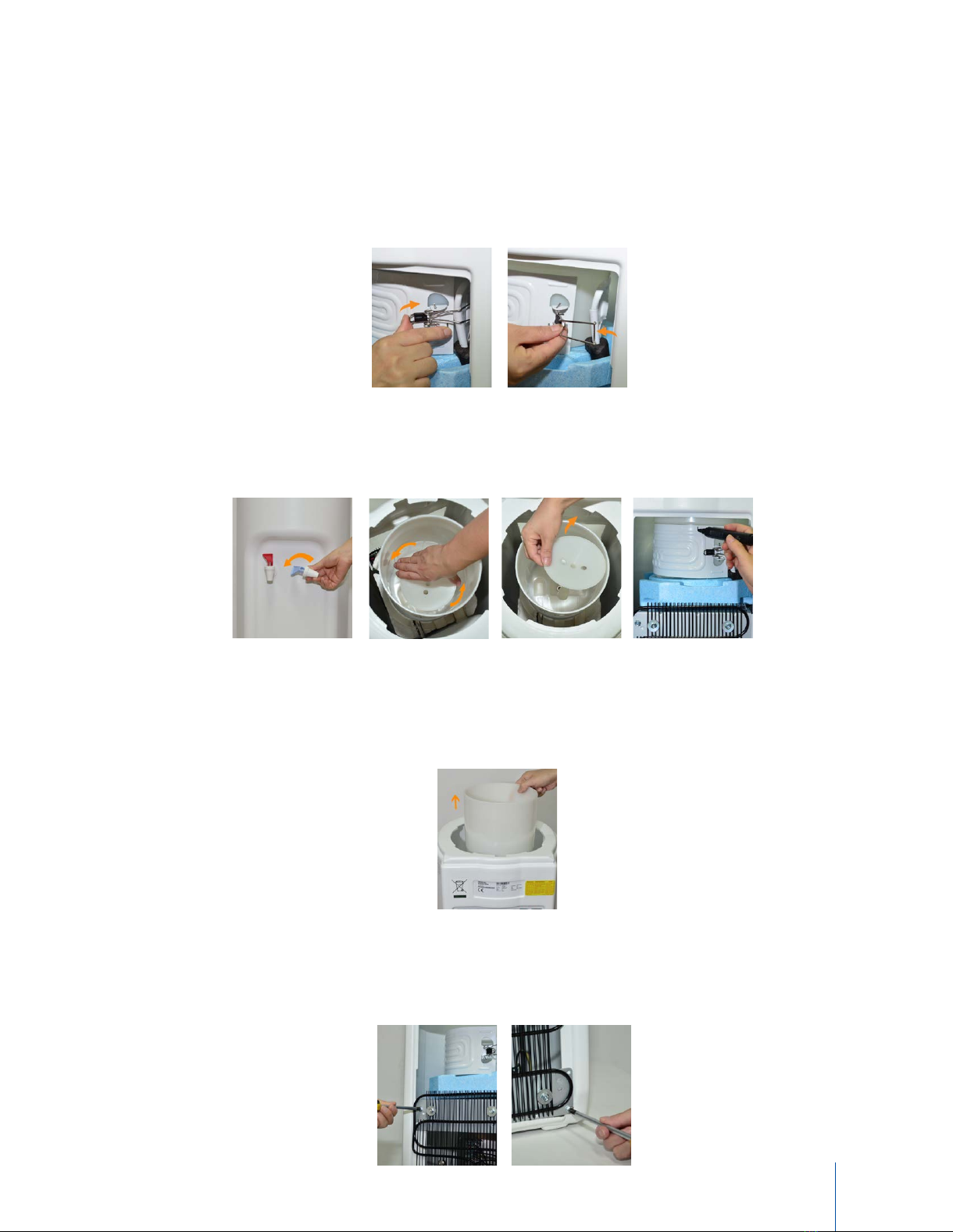

5. If cooler is equipped with a white aluminum evaporator (cooling band), loosen (fig.5-1) and
unhook (fig.5-2) the latch and catch from the band and pull the band back away from reservoir to-
wards the back of cooler cabinet. If cooler is equipped with a copper tubing evaporator, there is no
latch system to unhook.
6. Remove faucets by turning counter clockwise (fig.6-1), remove baffle disk (fig.6-2)(fig.6-3).
Mark a vertical line on the outside of the reservoir across evaporator (fig.6-4), so when re-installing
the reservoir will be lined up as it is presently.
7. Hold the evaporator down and press the reservoir up and out of the evaporator cooling coil
(fig.7-1).
At this point it is advisable to put the cooler on a bench or table to make it easier to access compo-
nents.
8. Remove the 4 screws that secure the metal top and bottom plate, 2 on top (fig.8-1) and 2 on
the bottom (the outside screws)(fig.8-2). Leave the 4 screws that hold the black grill to the top &
bottom plate secure.
figure 5-1 figure 5-2
figure 6-1 figure 6-2 figure 6-3 figure 6-4
figure 7-1
figure 8-1 figure 8-2
5- 10

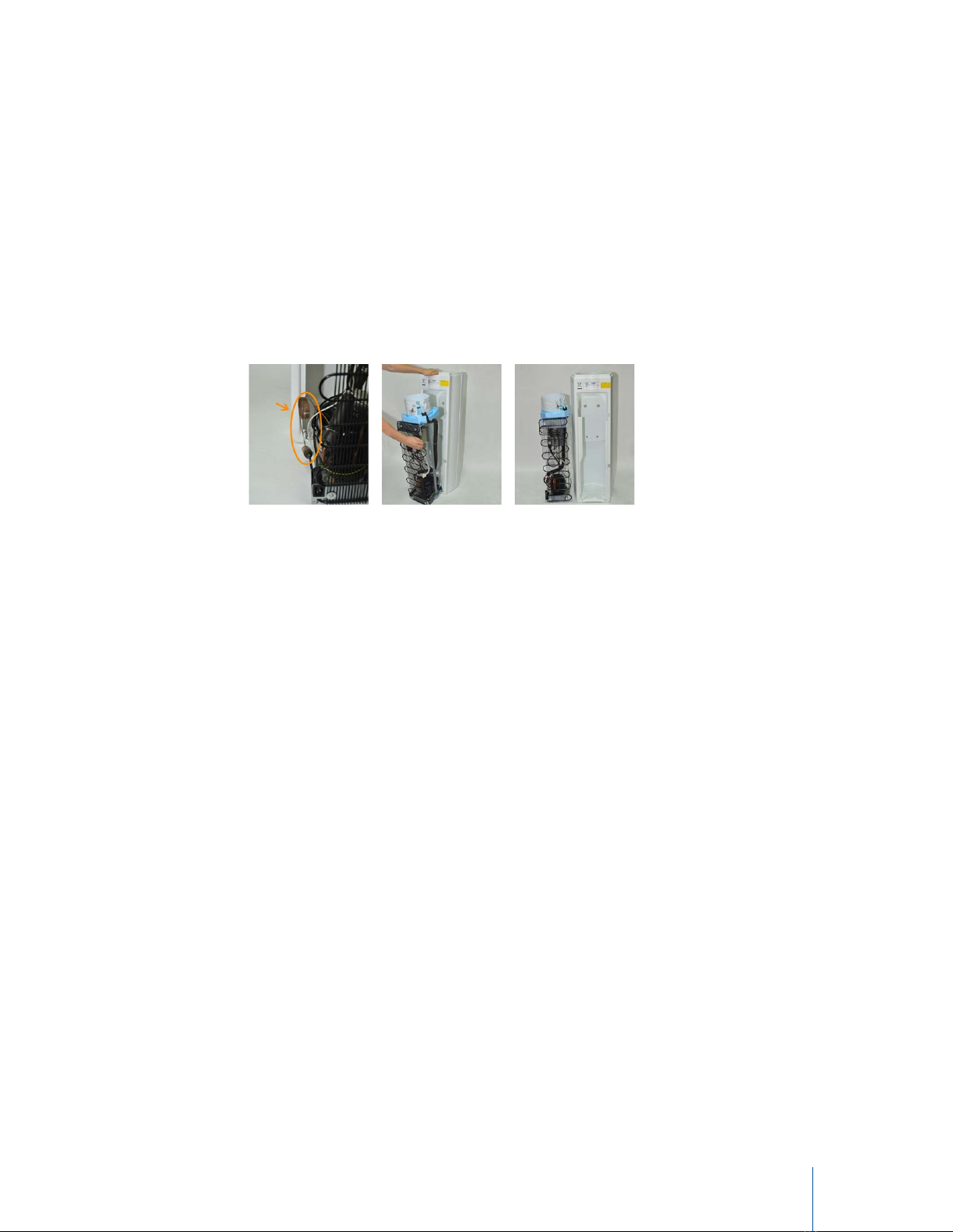

9. The RRS system is now ready to be slid out of the plastic cabinet.
10. Hold the condenser on the right hand side and slowly lift and pull to free the RRS system from
the cooler body. Slowly work the unit from top to bottom until it starts to slide out. Once it starts
to come out, be careful of the small capillary tube (copper coil) located on the left side of the
compressor as it is very fragile (fig.10-1), guide it by the cooler body with your hand. Then slide
the unit as far as possible to the left and the support stick on the right side will come by the body
(fig.10-2). Continue until the RRS is outside the cooler body and free standing on its own (fig.10-3).
figure 10-1 figure 10-2 figure 10-3
