Crestron Isys™ TPS-5000

12 Inch Tilt Touchpanel

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron Isys™ TPS-5000 12 Inch Tilt Touchpanel

Contents

12 Inch Tilt Touchpanel: Crestron Isys™ TPS-5000 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

Specifications ..............................................................................................................3

Physical Description....................................................................................................5

Position Lock Buttons ................................................................................................. 7

Industry Compliance ...................................................................................................8

Setup ..........................................................................................................................................9

Network Wiring........................................................................................................... 9

Identity Code .............................................................................................................10

Configuring the Touchpanel......................................................................................10

Hardware Hookup ..................................................................................................... 18

Recommended Cleaning............................................................................................22

Programming Software............................................................................................................22

Programming with the Crestron AppBuilder............................................................. 23

Programming with SIMPL Windows ........................................................................23

Programming with VisionTools®Pro-e.....................................................................28

Reserved Join Numbers............................................................................................. 31

MultiByte International Characters ...........................................................................33

Uploading and Upgrading........................................................................................................ 33

Communication Settings ...........................................................................................34

Uploading a SIMPL Windows Program.................................................................... 37

Uploading a VT Pro-e Project ................................................................................... 38

Firmware Upgrade..................................................................................................... 40

Problem Solving ......................................................................................................................42

Troubleshooting......................................................................................................... 42

Further Inquiries ........................................................................................................43

Future Updates .......................................................................................................... 43

Appendix A: RS-232 Protocol.................................................................................................44

Appendix B: Configuring the RS-232 Port for Use................................................................46

Obtaining Communications.......................................................................................46

Configuration Options...............................................................................................46

RS-232 Port Configuration........................................................................................ 47

Software License Agreement................................................................................................... 48

Return and Warranty Policies .................................................................................................. 50

Merchandise Returns / Repair Service ...................................................................... 50

CRESTRON Limited Warranty.................................................................................50

Operations Guide - DOC. 5863A Contents •i

Crestron Isys™ TPS-5000 12 Inch Tilt Touchpanel

12 Inch Tilt Touchpanel:

Crestron Isys™ TPS-5000

Introduction

Features and Functions

The TPS-5000 packs all the power and performance of a Crestron Isys™ panel in a

stylish tilt model. These units are suitable for tabletop mounting in any Crestron®

control system (herein referred to as the Cresnet®system) and are perfect for the

conference room or home theater.

Featuring a 12-inch (30.5 cm) active matrix display, the TPS-5000 uses the 65,536-

color Isys engine that allows all graphics to be displayed with incredible brightness

and depth.

TPS-5000 Functional Summary

• 12" (30.5 cm) diagonal active matrix color display

• 800 x 600 (SVGA) Native Screen Resolution

• 16 Bit non-palette graphics, over 64,000 colors

• 4 MB of Flash, expandable to 16 or 32 MB with Crestron plug-in

memory modules to accommodate larger touchpanel projects & 8 MB

of DRAM memory

• Unique modular system allows configuration of capabilities simply by

adding expansion cards for video, computer graphics, and Internet

• Displays RGB video at native resolution with optional

TPS-XVGA interface card

• Displays one NTSC/PAL/S-video/composite video source with 256,000

colors with optional TPS-VID-1 expansion card

• Displays two NTSC/PAL/composite video (or one S-video) sources

with 256,000 colors with optional TPS-VID-2 expansion card

• 10/100 BaseT (full/half duplex) Ethernet capabilities with optional

TPS-ENET expansion card. Supports dynamic and static IP addressing

• Up to 4,000 digital and analog signal joins; up to 999 serial signal joins

• Built-in microphone, mixer, amplifier, stereo speakers, and line-level

input/output

• Stores and plays WAV files

(continued on next page)

Operations Guide - DOC. 5863A 12 Inch Tilt Touchpanel: Crestron Isys™ TPS-5000 •1

12 Inch Tilt Touchpanel Crestron Isys™ TPS-5000

TPS-5000 Functional Summary (continued)

• Local RS-232 port for console control; adds ability to upload firmware

or touchpanel projects

• Wireless operation with optional TPS-XTXRF

• Pop-up sub pages to reduce memory requirements, providing optimal

speed and performance

• Multiple button, slider control, and icon configurations, including

multi-mode objects

• Fast graphics performance: imported photographs, drawings, and icons

• Support for downloadable fonts – proportional and non-proportional

• Foreign language text

• Position lock feature provides durable support of panel at any angle of

inclination between 30 and 80 degrees

Multiple graphics can be displayed on the TPS-5000 without any shift in color depth

or quality. The touchpanel can support real-time video with the optional

TPS-VID-1 or TPS-VID-2 cards, RGB computer graphics with the optional

TPS-XVGA RGB Interface card, and 10/100 BaseT TCP/IP network

communications with the optional TPS-ENET Ethernet module.

The TPS-5000’s audio capabilities include stereo audio speakers that offer volume

control, a built-in microphone with line-level output, built-in WAV sound file

capability and line-level input for other audio sources.

The purpose of the TPS-5000 touchpanel is to replace large, complicated hard-wired

panels in either a Cresnet system or an RS-232 system with a series of simpler

screens each specific to the control problem at hand. Thus, a very large number of

functions can be made available to the user without the confusion associated with

hardware panels of that complexity. Icons, graphics, and text can dramatically

increase any user's comprehension of the control environment. Devices, functions,

and control zones are quickly organized and more easily accessed.

The TPS-5000 has the ability to transmit touch coordinates when "RS-232 Port for

Touch Output" is selected. Currently Telestrator devices are supported on the

TPS-5000. Refer to the "RS-232 Menu" section of "Configuring the Touchpanel" on

page 13 and “Appendix B: Configuring the RS-232 Port for Use” on page 46 for

instructions on selecting this feature.

2 •12 Inch Tilt Touchpanel: Crestron Isys™ TPS-5000 Operations Guide - DOC. 5863A

Crestron Isys™ TPS-5000 12 Inch Tilt Touchpanel

Specifications

The following provides a summary of specifications for the TPS-5000 touchpanel.

Specifications for the TPS-5000 Touchpanel

SPECIFICATION DETAILS

Power Requirements

(without cards)1

20 Watts (0.83 Amp @ 24 VDC)

Default Network ID 03

Timeout Adjustable from 0 to 120 minutes (Default = 15

min.)

Signal Join Maximums 4000 Digital, 4000 Analog, 999 Serial

Control System Update

Files2,3,4

2-Series Control System Version C2-2004.CUZ or later3

CEN/CN-TVAV Version 51130V.UPZ or later4,5

CNMSX-AV/PRO Version 51125X.UPZ or later4,5

CNRACKX/-DP Version 51125W.UPZ or later4,5

CNMS, CNRACK,

CNLCOMP

Version 3.18.09m, l, c or later4,6

ST-CP Version 4.02.4S.UPZ or later6

Audio • Balanced (20 kΩ) & unbalanced (10 kΩ)

line level stereo input through 6-pin mini-

connector.

• Maximum input level 2 Vrms single ended

(unbalanced), 4 Vrms differential

(balanced) with internal volume control

and two speakers.

• Balanced (2.0 Vrms) and unbalanced

(1.0 Vrms) line level microphone output

with AGC output (3x sensitivity) via 3-pin

mini connector.

• Maximum output level 1 Vrms single

ended, 2 Vrms differential

• Built-in WAV file (8 & 16 bit PCM mono &

stereo, 8 kHz, 11 kHz, 16 kHz, 22 kHz, &

44 kHz) playback capability7

• Speaker amplification: 2 Watts per

channel

Touchpanel Firmware TPS.V.2.000.0.csf or later

Memory 4 MB internal flash memory (upgradeable to 16

MB or 32 MB), 8 MB of DRAM8

Screen Dimensions 12"/30.5 cm diagonal

Screen Viewing Angles: Y Dir. (X=0o): +45o(from top), -55o(from bottom)

X Dir. (Y=0o): +60o(from right), -60o(from left)

Screen Resolution 800 x 600 pixels

Color 16 Bit non-palette graphics with color key video

window capability, 65,536 colors

(continued on next page)

Operations Guide - DOC. 5863A 12 Inch Tilt Touchpanel: Crestron Isys™ TPS-5000 •3

12 Inch Tilt Touchpanel Crestron Isys™ TPS-5000

Specifications for the TPS-5000 Touchpanel (continued)

SPECIFICATION DETAILS

Display Type Touch-sensitive active matrix color LCD

Enclosure High impact, black molded plastic enclosure

CPU 63MIPs Coldfire processor running Isys generation

firmware

Cresnet Via TPS-IMPC (included) or optional TPS-IMW

RS-232 RJ-11 connector for console, telestrator, etc.

Default settings: 115200, 8 bit, parity none, stop

bit 1.

Operating Temperature

and Humidity

50º to 113º F (10º to 45º C),

10 to 90% Relative Humidity (non-condensing)

Dimensions and Weight Height: 11.86 in (30.12 cm)

Width: 13.26 in (33.69 cm)

Depth: 10.56 in (26.81 cm)

Weight: 7.64 lbs (3.46 kg)

1 The individual power requirements for the expansion cards are:

TPS-ENET: 4 Watts (0.167 Amps @ 24 VDC)

TPS-VID-1: 7 Watts (0.29 Amps @ 24 VDC)

TPS-VID-2: 12 Watts (0.50 Amps @ 24 VDC)

TPS-XVGA: 10 Watts (0.417 Amps @ 24 VDC)

2 The latest versions can be obtained from the Downloads | Software Updates section of the Crestron

website (www.crestron.com). Refer to NOTE after last footnote.

3 Crestron 2-Series control systems include the AV2, C2N-DVP4DI, CP2, CP2E, MC2E, MC2W,

MP2, MP2E, PAC2, PRO2, QM-RMC, QM-RMCRX, and RACK2.

4 CNX update files are required for either CNMSX-AV/PRO or CNRACKX/-DP. Filenames for CNX

update files have a UPZ extension and ST-CP files are in one EXE or zipped UPZ file. To avoid

program problems, make certain you are using the update file with the correct suffix letter (e.g., S,

V, W, X).

5 When loading VT Pro-e files or firmware through the RS-232 port of the control system, be sure that

the baud rate is at 38400 (Cresnet speed) or lower. Otherwise, the Viewport may post the "Transfer

Failed" message.

6 These control systems do not support loading of firmware or VT Pro-e files to the TPS-series panels

through the RS-232 port of the control system. In order to load these files to the TPS-5000 when

using these control systems, use the RS-232 port on the TPS-5000 or use a direct Ethernet

connection to the panel (assuming the TPS-ENET is installed).

7 WAV files reside in the touchpanel’s Flash memory and will affect the amount of available space for

touchpanel screens.

8 Additional Flash memory can be purchased, refer to "Memory" on page 7. The complexity of the

control screens and the sampling of the WAV files influence memory usage.

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers and Crestron Authorized Independent Programmers (CAIP) only. New users

may be required to register to obtain access to certain areas of the site (including the

FTP site).

4 •12 Inch Tilt Touchpanel: Crestron Isys™ TPS-5000 Operations Guide - DOC. 5863A

Crestron Isys™ TPS-5000 12 Inch Tilt Touchpanel

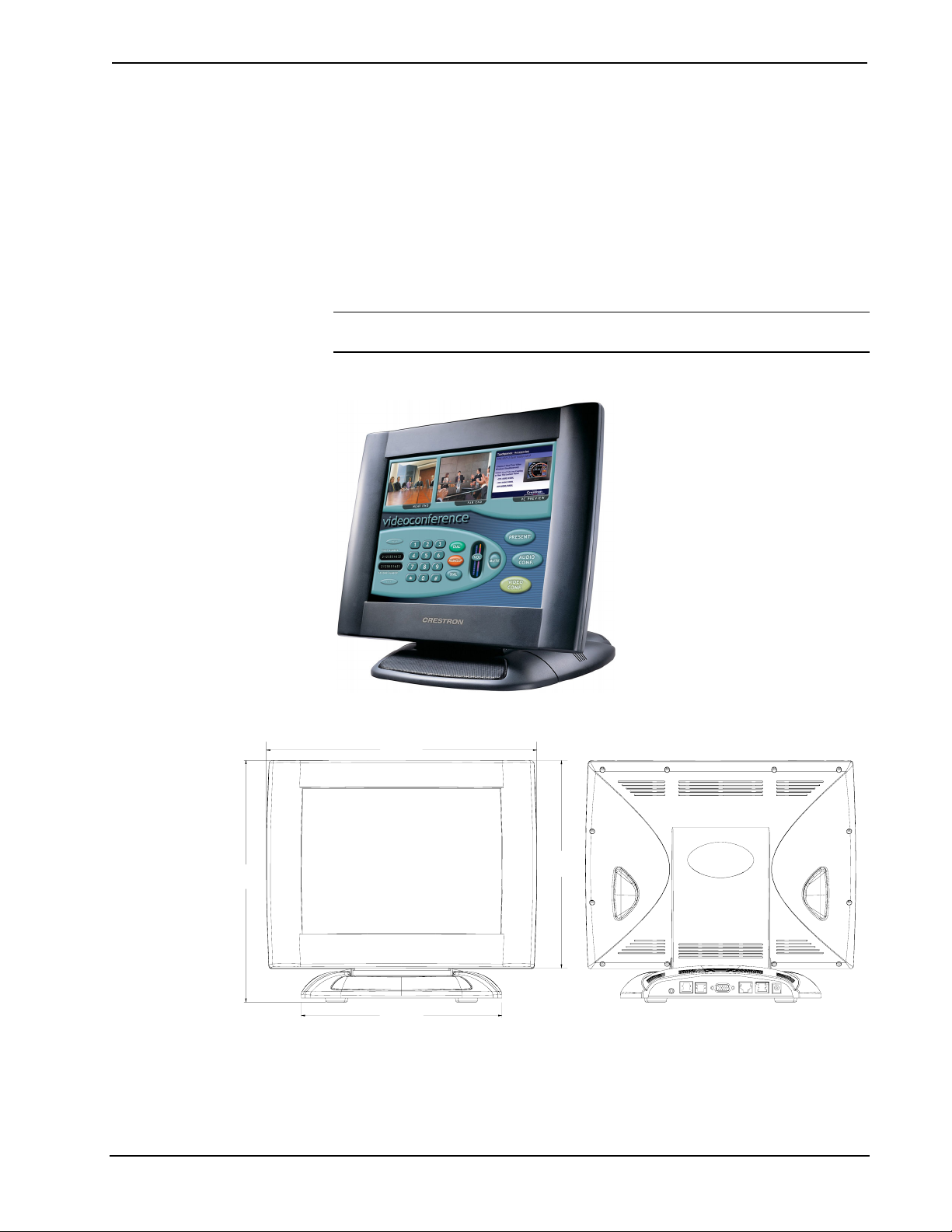

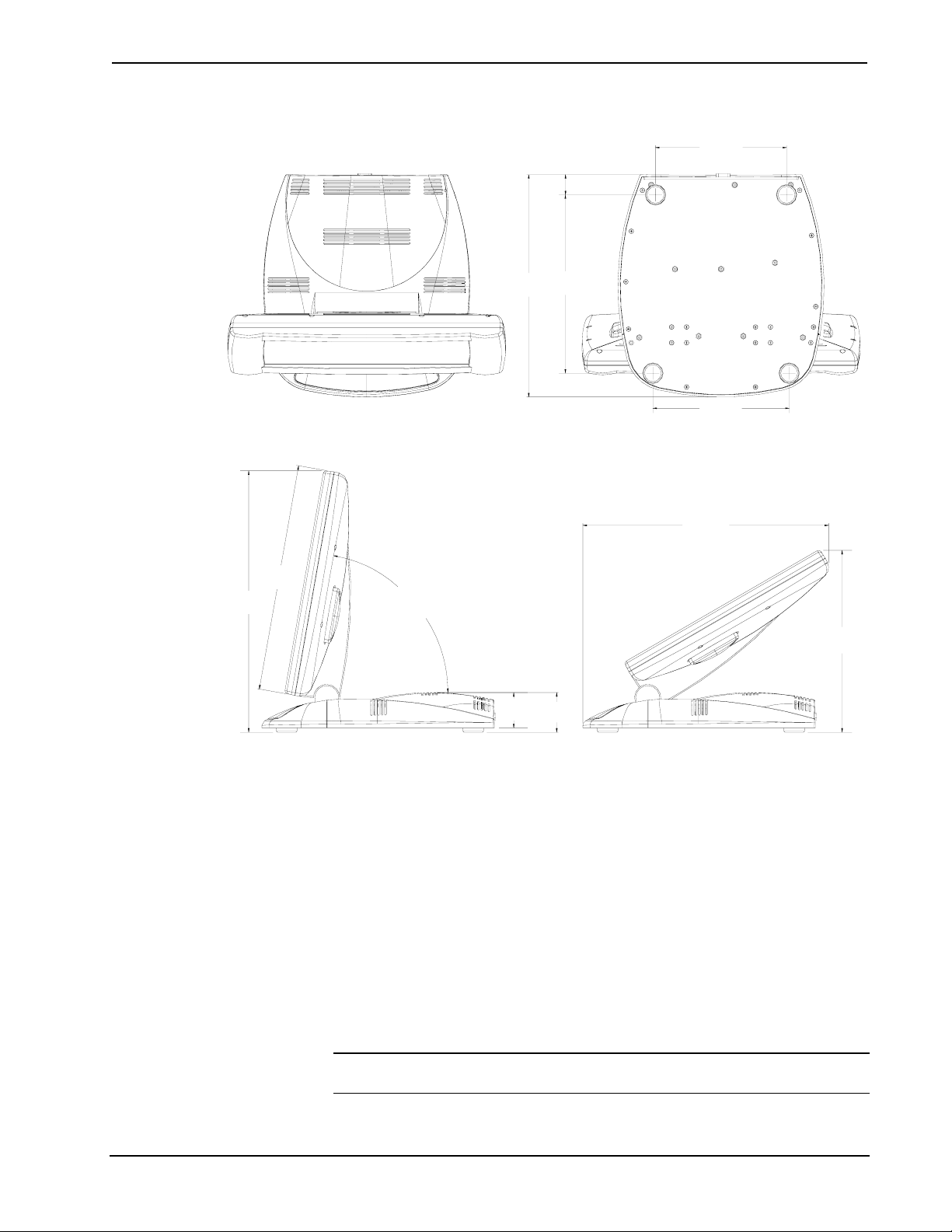

Physical Description

The TPS-5000’s 12-inch (30.48 cm) touch sensitive viewing screen is located on the

front of the TPS-5000 touchpanel. The electronic hardware is housed in a high

impact, black molded plastic enclosure, shown in the following diagram. This

touchpanel is designed for placement on a counter. It has a hinged base, which can

tilt from 30 to 80 degrees. Refer to “Position Lock Buttons” on page 7 for tilting

details. All RS-232, video, network, and power connections are made at the rear

panel on the base of the unit.

NOTE: Video and network signals are connected to either the TPS-IMPC or

TPS-IMW touchpanel interface modules.

TPS-5000, Front View

Physical Views of the TPS-5000 Touchpanel (Front and Back)

13.26 in

(33.68 cm)

10.19 in

(25.88 cm)

9.84 in

(25.00 cm)

11.86 in

(30.12 cm)

Operations Guide - DOC. 5863A 12 Inch Tilt Touchpanel: Crestron Isys™ TPS-5000 •5

12 Inch Tilt Touchpanel Crestron Isys™ TPS-5000

Physical Views of the TPS-5000 Touchpanel (Top and Bottom)

6.25 in

(15.88 cm)

0.96 in

(2.43 cm)

8.48 in

(21.53 cm)

10.56 in

(26.81 cm)

6.50 in

(16.51 cm)

Physical Views of the TPS-5000 Touchpanel (Side with Min. and Max. Angle)

11.17 in

(28.36 cm)

8.26 in

(20.97 cm)

1.80 in

(4.58 cm)

1.60 in

(4.07 cm)

TILT ANGLE

30 TO 80

DEGREES

10.28 in

(26.12 cm)

11.86 in

(30.12 cm)

Expansion Slots

The TPS-5000’s functionality can be expanded by installing optional cards into the

expansion slots. Each card has a specific function and is sold separately. Installation

instructions are provided with each card. The available cards for the TPS-5000 are:

• TPS-ENET – a 10/100 BaseT Ethernet card provides Ethernet

capability to the touchpanel.

• TPS-VID-1/TPS-VID-2 – a TV video digitizer card that allows

NTSC/PAL video to be played in a window on the touchpanel or full

screen. The TPS-VID-2 adds the capability of displaying two

composite video sources.

• TPS-XVGA – a RGB digitizer that scan converts a computer source up

to 1600 x 1200 at 85 Hz (110 Hz @ 640 x 480) vertical rate to a

window on the touchpanel or full screen.

NOTE: The three cards are NOT interchangeable and can only be installed in their

dedicated expansion slots.

6 •12 Inch Tilt Touchpanel: Crestron Isys™ TPS-5000 Operations Guide - DOC. 5863A

Autres manuels pour Isys TPS-5000

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron ST-1550 Manuel utilisateur

Crestron

Crestron DualTouch DTT-18 Manuel utilisateur

Crestron

Crestron TPMC-V12-WALL Manuel utilisateur

Crestron

Crestron Isys TPS-12 Manuel utilisateur

Crestron

Crestron TPMC-4XG Manuel utilisateur

Crestron

Crestron TS-770 Manuel utilisateur

Crestron

Crestron SmarTouch STX-1700CW Manuel utilisateur

Crestron

Crestron Isys TPMC-4SM Instructions d'utilisation d'origine

Crestron

Crestron TPMC-V12 & TPMC-V15 Manuel utilisateur

Crestron

Crestron Isys TPS-4500 Manuel utilisateur

Crestron

Crestron TSW-550-TTK Dessin dimensionnel

Crestron

Crestron Isys TPS-3000 Mode d’emploi

Crestron

Crestron Isys TPS-6 Manuel utilisateur

Crestron

Crestron CT-1000 Manuel utilisateur

Crestron

Crestron CT-1550 Manuel utilisateur

Crestron

Crestron Smart Touch C2N-IRGW Manuel utilisateur

Crestron

Crestron TS-1542 Manuel du propriétaire

Crestron

Crestron Isys TPS-5000 Manuel utilisateur

Crestron

Crestron TPS-FPAR6000L Manuel utilisateur

Crestron

Crestron STX-1600C Manuel utilisateur

Crestron

Crestron TSS-770 Manuel utilisateur

Crestron

Crestron Isys TPS-4000 Manuel utilisateur

Crestron

Crestron TPMC-8L Manuel utilisateur

Crestron

Crestron TSW-570P Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
