Series 3200 Touchpanels

Description

Functional Description

The Series 3200 touchpanels are 10.4 inch (26.4 cm) passive matrix touchscreen

control panels for the Cresnet remote control system (herein referred to as the

Cresnet system). There are two Series 3200 configurations available: either lectern-

mount or adjustable tiltcase models. Configuration selection is based on application

requirements. Refer to “Configuration Differences” on page 5 for a more detailed

description of each.

The purpose of a Series 3200 unit is to replace hard-wired panels in either a Cresnet

or an RS-232 based control system. The touchpanel is capable of replacing large,

complicated panels with a series of simpler screens, each specific to the control

problem at hand. Thus, very large numbers of functions can be made available to the

user without the confusion associated with hardware panels of that complexity.

Series 3200's icons, graphics, and text can dramatically increase any user's

comprehension of the control environment. Devices, functions, and control zones are

quickly organized and more easily accessed. The Series 3200 touchpanels offer:

• 256-color display

• pop-up sub panels to reduce memory requirements, providing optimal

speed and performance

• multiple button, slider control, and icon configurations

• up to 999 functions and 96 screens

• imported photographs, drawings, and icons

• support for downloadable fonts - proportional and non-proportional

• foreign language text

• RS-232 interface for stand-alone applications (lectern-mount

configuration only)

• printout of screen designs on standard printer

• Position Lock feature provides durable support of panel at any angle of

inclination between 0 and 70 degrees (tiltcase configuration only).

Operations Guide - DOC. 5725 Series 3200 Touchpanels •1

CRESTRON

Have a comment about Crestron’s

software?

Direct software related

suggestions and/or complaints to

Crestron via email

([email protected]). Do not

orward any queries to this

address. Instead refer to “Further

Inquiries” on page 20 for

assistance.

Software

VisionTools™ Pro (VT Pro), a design and programming Windows-

ased software,

permits the creation of unlimited control screen variations incorporating two and

three-dimensional graphics and text. A set of pages which make up a project can be

designed for each Series 3200 touchpanel application. Each page contains objects

such as custom control graphics, two and three-dimensional buttons, sliders, and

digital readouts which allow the user to interface with the control system. The

project is uploaded to the touchpanel and programmed into the flash PROM. The

touchpanel uses the programmed project until another set is uploaded from the PC.

The PC may be disconnected from the rack or panel except during reprogramming.

For additional software information, consult the VT Pro help file.

Position Lock Button

The position lock button is centrally located at the front of the base on Series 3200

adjustable tiltcase touchpanels. These touchpanels permit incremental angle positions

indicated by audible clicks. Range of motion is adjustable for user comfort and can

vary from zero inclination to 70 degrees from horizontal. Thus the user can position

the touchscreen to a comfortable angle, just as a microphone can be repositioned for

each speaker. The comfortable angle is herein referred to as user position. The

position lock guarantees that once a user position is established or locked, the angle

will not degrade from repeated presses on the touchscreen.

The touchscreen is free to move up from the horizontal to an incremental angle.

Grasp the touchscreen with a hand at each side and gently tilt up to a comfortable

position. To activate position lock, slightly reverse the motion until the touchpanel

stops moving. Correct hand placement is shown below. The touchscreen is now set

into user position.

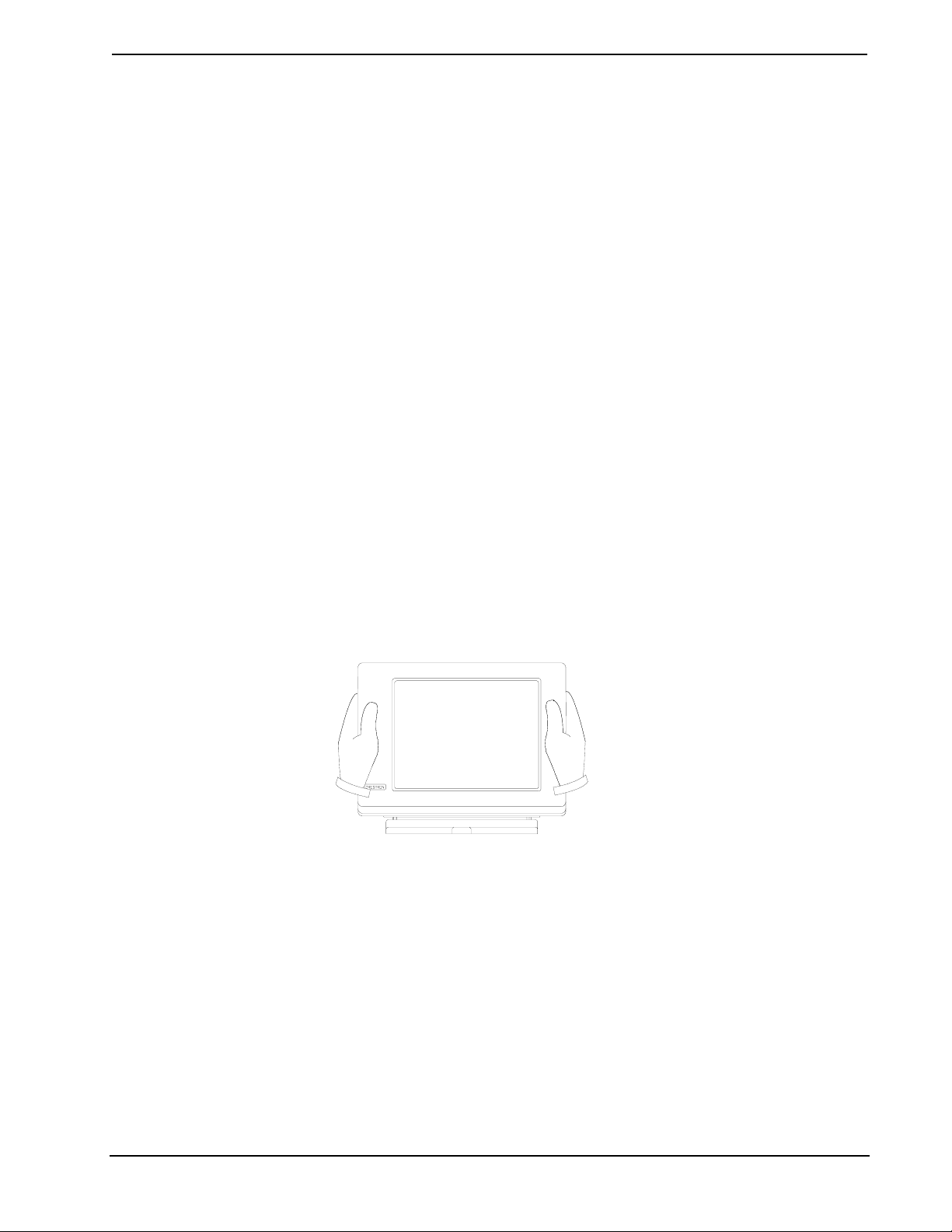

Hand Position for Tilting Touchpanel to Vertical

Once in user position, position lock is activated which means the touchscreen can not

be forced to the horizontal position without depressing the position lock button. The

touchscreen is still free to tilt up; a new user position is established at each increment

or audible click.

The position lock button needs to be depressed before the touchscreen can be

returned to the horizontal position. To depress the button, slightly position the

touchscreen in the vertical direction with two hands, avoiding any tilting. The

position lock button can be depressed with one hand; the touchscreen can be tilted

down to the horizontal position with the other, shown on the next page.

2 •Series 3200 Touchpanels Operations Guide - DOC. 5725

CRESTRON

Hand Position for Tilting Touchpanel to Horizontal

Physical Description

Touchpanels

The 10.4-inch (26.4 cm) touch sensitive viewing screen is located on the front of the

Series 3200 touchpanel. The electronic hardware is housed in a high impact, black

molded plastic enclosure for the adjustable tiltcase configurations, shown after this

paragraph. This touchpanel is designed to be placed on a counter. It possesses a

hinged base, which can tilt from 0 to 70 degrees. Depress the button located at the

front of the base when pivoting the touchpanel to the horizontal position. A 6-pin, 6-

position RJ11 modular jack is located at the rear of the adjustable tiltcase base. Use

the cable assembly (supplied) to connect the touchpanel to the CN-RJ11 (supplied),

which attaches directly to the Cresnet network.

Physical Views of Tiltcase Series 3200 Touchpanel (CN-RJ11 not shown)

FRONT VIEW SIDE VIEW

The lectern mount configuration, shown after this paragraph, is denoted with the

letter “L” at the end of the nomenclature. The panel is housed in a black metal box

topped with a plastic cover. The 15-pin female high density D sub video output,

Operations Guide - DOC. 5725 Series 3200 Touchpanels •3

CRESTRON

four-pin network, and nine-pin RS-232 connector ports are located on the rear of the

panel.

Physical Views of Lectern Series 3200 Touchpanel

BACK VIEW SIDE VIEW FRONT VIEW

Interface Module: CN-RJ11

NOTE: The tiltcase Series 3200 touchpanel is supplied with a cable assembly that

connects to the CN-RJ11 (supplied). Pinout information is provided on the next

page. If the assembly must be modified in any way, Crestron cannot guarantee the

behavior of the touchpanel. The product may not function accordingly, as stated in

this Operations Guide.

Crestron’s CN-RJ11 is a network one-to-one converter that interfaces four-wire

Cresnet and modular devices. The converter is housed in a black enclosure with silk-

screened top panel, shown after this paragraph. A four-pin network connector is

located on one side of the unit. A six-position, RJ11 modular telephone jack is

located on the opposite side. At the shorter sides of the CN-RJ11, the enclosure

extends to form feet at a right angle to the side. There are three holes per foot for

inserting screws to further stabilize the unit.

Physical Views of the CN-RJ11

SIDE VIEW (RJ11 CONNECTOR)

TOP VIEW

SIDE VIEW (4-PIN CONNECTOR)

4 •Series 3200 Touchpanels Operations Guide - DOC. 5725

CRESTRON

Six-Pin Jack Pinout (for CN-RJ11)

PIN # SIGNAL COLOR

1 +24 V (Network) WHT

2 +24 V (Network) BLK

3 Y (Data) RED

4 Z (Data) GRN

5 GND (Network) YEL

6 GND (Network) BLU

TAB (VISIBLE, ON TOP)

Configuration Differences

There are two Series 3200 configurations available and selection depends on type of

installation (tiltcase or lectern mount). Tiltcase panels are referred to as the CT-3200

and lectern-mount panels are called CT-3200L. Each configuration has a 256-color

display and 1M byte of flash memory.

NOTE: Wall-mount and rack-mount kits are available options that can be purchased

with the lectern-mount configuration. Parts and instructions are provided with each

kit.

Leading Specifications

The table below and on the next page provides a summary of leading specifications

for the Series 3200 touchpanels. Dimensions and weight are rounded to the nearest

hundredth unit.

Leading Specifications for Series 3200 Touchpanels

SPECIFICATION DETAILS

Power Requirements 16 Watts, 24 VDC 0.66 Amp

SIMPL Windows Version 1.21.04 or later*

CNX Operating System Version 5.01.09x or later

CNX Monitor Version 2.00 or later

CNMS, CNRACK, CNLCOMP Version 3.16.08 or later

Operating System

ST-CP Operating System Version 4.00.29 or later

ST-CP Monitor Version 1.29 or later

VisionTools Pro (VT Pro) Version 1.1.3 or later*

Memory 1 Mbyte flash memory

CT-3200, Tiltcase Model Height: 9.29 in (23.59 cm)

Dimensions & Weight Width: 11.29 in (28.67 cm)

(without CN-RJ11) Depth: 7.00 in (17.78 cm)

Weight: 5.65 lb (2.56 kg)

CN-RJ11 Height: 2.00 in (5.08 cm)

Dimensions & Weight Width: 3.25 in (8.26 cm)

Depth: 1.24 in (3.14 cm)

Weight: 0.40 lb (0.18 kg)

* The latest software versions can be obtained from the Software Downloads page

of Crestron’s website (www.crestron.com). New users are required to register in

order to obtain access to the FTP site.

Operations Guide - DOC. 5725 Series 3200 Touchpanels •5

CRESTRON

Leading Specifications for Series 3200 Touchpanels (Continued)

SPECIFICATION DETAILS

CT-3200L Lectern-Mount Model Height: 8.75 in (22.23 cm)

Dimensions & Weight Width: 12.25 in (31.12 cm)

Depth: 1.74 in (4.42 cm)

Weight: 3.90 lb (1.77 kg)

Visible View Screen Dimensions Height: 6.25 in (15.88 cm)

Width: 8.25 in (20.96 cm)

View Screen Resolution 640 x 480 pixels

View Screen Display Passive Matrix Color LCD

View Screen Illumination Backlit Fluorescent

View Screen Touch Screen Resistive Membrane

As of the date of manufacture, the Series 3200 touchpanels have been tested and

found to comply with specifications for CE marking.

NOTE: These devices comply with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) these devices may not cause harmful interference,

and (2) these devices must accept any interference received, including interference

that may cause undesired operation.

Setup

Recommended Cleaning

Keep the surface of the touchscreen free of dirt, dust, or other materials that could

degrade optical properties. Long term contact with abrasive materials can scratch the

surface which may detrimentally affect image quality.

For best cleaning results, use a clean, damp, non-abrasive cloth with any

commercially available non-ammonia glass cleaner. Bezels may not provide a

complete water-tight seal. Therefore, apply cleaning solution to the cloth rather than

the surface of the touchscreen. Wipe touchscreen clean and avoid ingress of moisture

beneath panels.

Identity Code

Every equipment and user interface within the network requires a unique identity

code (ID CODE). These codes are recognized by a two-digit hexadecimal number

from 03 to FE. Refer to “Interface Menu” on page 13 for instructions on setting the

unit's ID CODE. The ID CODE of the unit must match the ID CODE specified in the

SIMPL Windows program. Refer to “Programming with SIMPL™ Windows” on

page 15 for an example of a SIMPL Windows program.

6 •Series 3200 Touchpanels Operations Guide - DOC. 5725

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron Isys TPMC-12L Manuel utilisateur

Crestron

Crestron TSW-570 Manuel utilisateur

Crestron

Crestron TPMC-10 Manuel utilisateur

Crestron

Crestron DTT-15V2 Manuel utilisateur

Crestron

Crestron TST-600 Manuel utilisateur

Crestron

Crestron TSW-70 Series Manuel utilisateur

Crestron

Crestron CT-1600 Guide de démarrage rapide

Crestron

Crestron Isys TPS-6 Manuel utilisateur

Crestron

Crestron TSW-570 Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-8X Manuel utilisateur

Crestron

Crestron TS-770-GV Manuel utilisateur

Crestron

Crestron Isys TPS-4000L Manuel utilisateur

Crestron

Crestron TSW-770R Series Manuel utilisateur

Crestron

Crestron TST-600 Manuel utilisateur

Crestron

Crestron Isys TPS-4L Comment utiliser

Crestron

Crestron Isys TPS-5000 Manuel utilisateur

Crestron

Crestron STX-1700CXPW Manuel utilisateur

Crestron

Crestron TSS-752 Manuel utilisateur

Crestron

Crestron QM-FTCC Comment utiliser

Crestron

Crestron Smart Touch C2N-IRGW Manuel utilisateur

Crestron

Crestron Isys TPS-15G-QM Manuel utilisateur

Crestron

Crestron Isys TPS-12 Manuel utilisateur

Crestron

Crestron Isys TPS Series Manuel utilisateur

Crestron

Crestron FlipTop FT-TS600 Comment utiliser

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
