Crestron Isys TPS-15G-QM Manuel utilisateur

Crestron TPS-12G/15G/17G-QM

Isys®G-Series Touchpanels with

QuickMedia®Transport Technology

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron TPS-12G/15G/17G-QM Isys®G-Series Touchpanels

Contents

Isys®G-Series Touchpanels: TPS-12G/15G/17G-QM 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................2

Applications.................................................................................................................5

Internal Block Diagram ...............................................................................................6

Specifications ..............................................................................................................7

Physical Description..................................................................................................10

Industry Compliance ................................................................................................. 19

Setup ........................................................................................................................................20

Network Wiring.........................................................................................................20

QuickMedia Wiring................................................................................................... 20

Identity Code ............................................................................................................. 23

Configuring the Touchpanel......................................................................................23

Hardware Hookup ..................................................................................................... 45

Cable Management.................................................................................................... 47

Tilt Angle Tension Adjustment ................................................................................. 48

Recommended Cleaning............................................................................................48

Programming Software............................................................................................................49

Earliest Version Software Requirements for the PC .................................................49

Programming with Crestron SystemBuilder.............................................................. 49

Programming with SIMPL Windows ........................................................................49

Programming with VisionTools Pro-e....................................................................... 52

Example Program ...................................................................................................... 55

Uploading and Upgrading........................................................................................................ 56

Establishing Communication.....................................................................................56

Programs, Projects and Firmware.............................................................................. 57

Program Checks ........................................................................................................ 58

Problem Solving ......................................................................................................................59

Troubleshooting......................................................................................................... 59

Check Network Wiring..............................................................................................60

Reference Documents................................................................................................ 61

Further Inquiries ........................................................................................................62

Future Updates .......................................................................................................... 62

Software License Agreement...................................................................................................63

Return and Warranty Policies .................................................................................................. 65

Merchandise Returns / Repair Service ...................................................................... 65

CRESTRON Limited Warranty.................................................................................65

Operations Guide – DOC. 6415B Contents •i

Crestron TPS-12G/15G/17G-QM Isys®G-Series Touchpanels

Isys®G-Series Touchpanels:

TPS-12G/15G/17G-QM

Introduction

For simplicity within this guide, the Crestron®Isys®G-Series touchpanels are

referred to as TPS-12G/15G/17G-QM, except where noted.

Crestron Isys G-Series touchpanels deliver a higher level of performance with dual

window video, RGB and HDTV display to meet the demands of today’s

sophisticated control and automation applications. Incorporating modern styling in a

versatile tiltcase design, the Isys TPS-12G/15G/17G-QM features a spectacular

display offering exceptional brightness and contrast for stunning control graphics,

high-resolution images and full motion HD video.

Crestron touchpanels offer an ideal user interface for multimedia presentation, video

conferencing, home automation and much more, providing a wide open canvas for

the creation of custom control screens tailored to the needs of the end user.

Touchpanels do away with piles of remote controls, cryptic control panels and

cluttered wall switches, simultaneously expanding and simplifying control over a

broad range of complex devices and systems.

Operations Guide – DOC. 6415B Isys®G-Series Touchpanels: TPS-12G/15G/17G-QM •1

Isys®G-Series Touchpanels Crestron TPS-12G/15G/17G-QM

Features and Functions

• 12, 15 and 17 inch active matrix touchscreen displays

• 24-bit Isys graphics

• Screen resolutions: TPS-12G-QM 800 x 600,

TPS-15G-QM 1024 x 768, TPS-17G-QM: 1280 x 768

• Synapse™ image rendering algorithm

• Windows®SideShow™ enabled

• DNav dynamic menu objects

• Dual-window full-motion video, HDTV and RGB display*

• Interactive annotation capability

• Built-in biamplified speaker system and microphone*

• QuickMedia®AV connectivity with audience presentation output*

• High speed Ethernet and Cresnet®communications

• Backlit “hard key” pushbuttons

• Tiltcase housing with integral rear cover and cable strain relief

• Power supply included (with TPS-17G-QM only)

* One or more QuickMedia devices are required to facilitate the input and output of audio, video and

RGB signals.

Isys®

Isys power and beauty are infused throughout the entire Crestron touchpanel lineup.

Under the hood, the TPS-12G/15G/17G-QM offers vibrant 24-bit color depth with

8-bit alpha channel transparency to produce incredible 3D graphics using DNav

dynamic menu objects, dynamic graphics and text, animations, multimode objects

and PGN translucency, all with astonishing speed.

Synapse™

The Crestron exclusive Synapse Image Rendering Algorithm enables system

programmers to produce amazing graphics – faster and easier. Advanced antialiasing

delivers crisper, sharper objects and text. Enhanced 3D effects add new depth and

style. Since Synapse is native to the touchpanel, memory requirements and upload

time are substantially reduced.

Windows®SideShow™ Enabled

New support for Windows Sideshow gives the TPS-12G/15G/17G-QM access to all

kinds of PC and Web-based content such as news feeds, sports scores, stock tickers,

weather alerts, media guides, email messages and appointment notifications, all

through a simple network connection to a Windows Vista™ computer.

Dual-Window HD Video and RGB

The TPS-12G/15G/17G-QM can simultaneously display two fully scalable, full-

motion video windows, each supporting standard video, HDTV and high-resolution

RGB signals from external AV and computer sources. Discrete video scalers with

motion adaptive deinterlacing bring out the highest detail, minimizing visible scan

lines and motion artifacts for a truly remarkable picture. Advanced gamma

correction and built-in time base correction ensure accurate color reproduction and a

jitter-free image.

NOTE: One or more QuickMedia devices are required to facilitate the input and

output of audio, video and RGB signals.

2 •Isys®G-Series Touchpanels: TPS-12G/15G/17G-QM Operations Guide – DOC. 6415B

Crestron TPS-12G/15G/17G-QM Isys®G-Series Touchpanels

Touch-the-PC

Crestron exclusive “Touch-the-PC” technology allows real-time touchpanel

navigation of any Windows PC through a direct high-speed serial connection.

Interactive Annotation

Built-in annotation capability allows presenters to write or draw over computer and

video images right on the touchscreen using a finger, stylus or mouse. Moving

images can also be frozen onscreen to allow annotation over a still picture. Brush

sizes and colors are selectable on the fly. Remote annotation capability allows

multiple touchpanel users to draw over the same image, supporting interactive

annotation between several participants in a courtroom, classroom or similar

environment. The image can also be output to a video display for live audience

presentation.

High Quality Audio

The high-powered biamplified speaker system provides amplification for external

AV sources and supports intercom functionality in combination with the integrated

microphone. Customized WAV files can be loaded on the touchpanel to add

dimension to the touchscreen graphics with personalized sounds, button feedback

and voice prompts.

NOTE: One or more QuickMedia devices are required to facilitate the input and

output of audio, video and RGB signals.

QuickMedia®

All audio and video connections are facilitated using our revolutionary QuickMedia

transport, providing a flexible yet remarkably simple wiring solution. Through

QuickMedia (QM), the TPS-12G/15G/17G-QM interfaces directly with other

QM-based products using inexpensive CAT5e type cable.

The two QM input ports each support non-interlaced RGB up to 1600 x 1200 pixels,

as well as composite, S-video and component video signals. QM input #1 includes

software-adjustable compensation for cables runs up to 450 feet (137 meters); input

#2 allows up to 450 feet (137 meters) for video and HDTV and shorter distances for

RGB computer signals. Both QM inputs receive audio signals from the external

microphone and stereo line level sources.

The QM output port allows RGB output of the touchpanel screen image to feed a

display device for audience presentation. A 24-bit digital audio signal is also present

for distribution of the internal microphone signal.

NOTE: One or more QuickMedia devices are required to facilitate the input and

output of audio, video and RGB signals.

High-Speed Connectivity

Both Cresnet and high-speed Ethernet are standard on the TPS-12G/15G/17G-QM,

providing for easy network integration and seamless communications with Crestron

control systems. USB connectivity is also included for connection of an external

mouse, touchscreen or similar pointing device.

Operations Guide – DOC. 6415B Isys®G-Series Touchpanels: TPS-12G/15G/17G-QM •3

Isys®G-Series Touchpanels Crestron TPS-12G/15G/17G-QM

Functional Tiltcase Design

The stylish tiltcase housing allows smooth tilt adjustment from 45 to 90 degrees and

features an integral cable strain relief system and rear cover to secure and hide the

connections at the back of the touchpanel. Five backlit pushbuttons are also

provided, allowing for quick access to commonly used functions.

4 •Isys®G-Series Touchpanels: TPS-12G/15G/17G-QM Operations Guide – DOC. 6415B

Crestron TPS-12G/15G/17G-QM Isys®G-Series Touchpanels

Applications

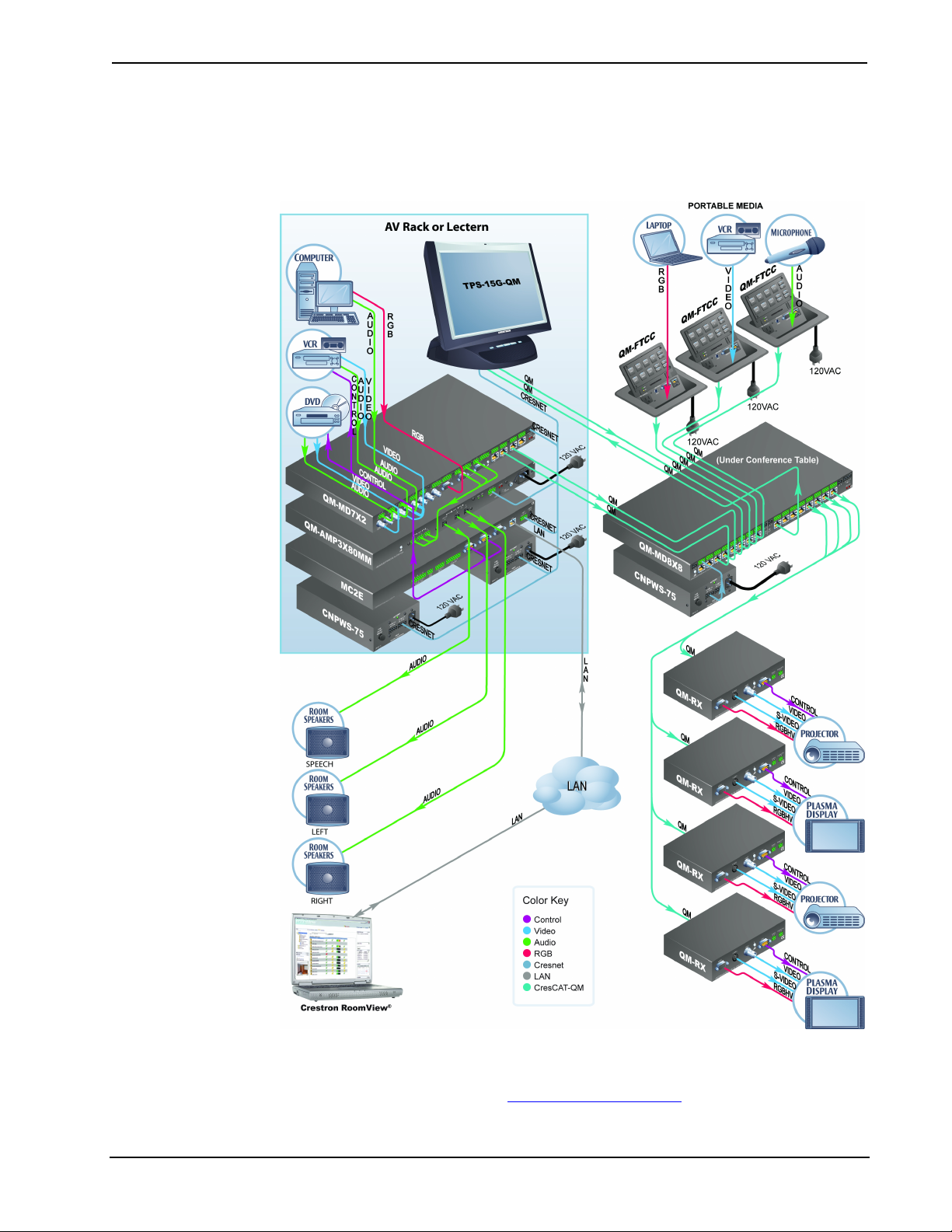

The following diagram shows a TPS-12G/15G/17G-QM in a lecture hall application.

TPS-12G/15G/17G-QM in a Lecture Hall Application (TPS-15G-QM Shown)

For more information on this and other QM applications, refer to the latest revision

of the Crestron MediaManager Applications Guide (Doc. 6244), which is available

from the Crestron website (www.crestron.com/manuals).

Operations Guide – DOC. 6415B Isys®G-Series Touchpanels: TPS-12G/15G/17G-QM •5

Isys®G-Series Touchpanels Crestron TPS-12G/15G/17G-QM

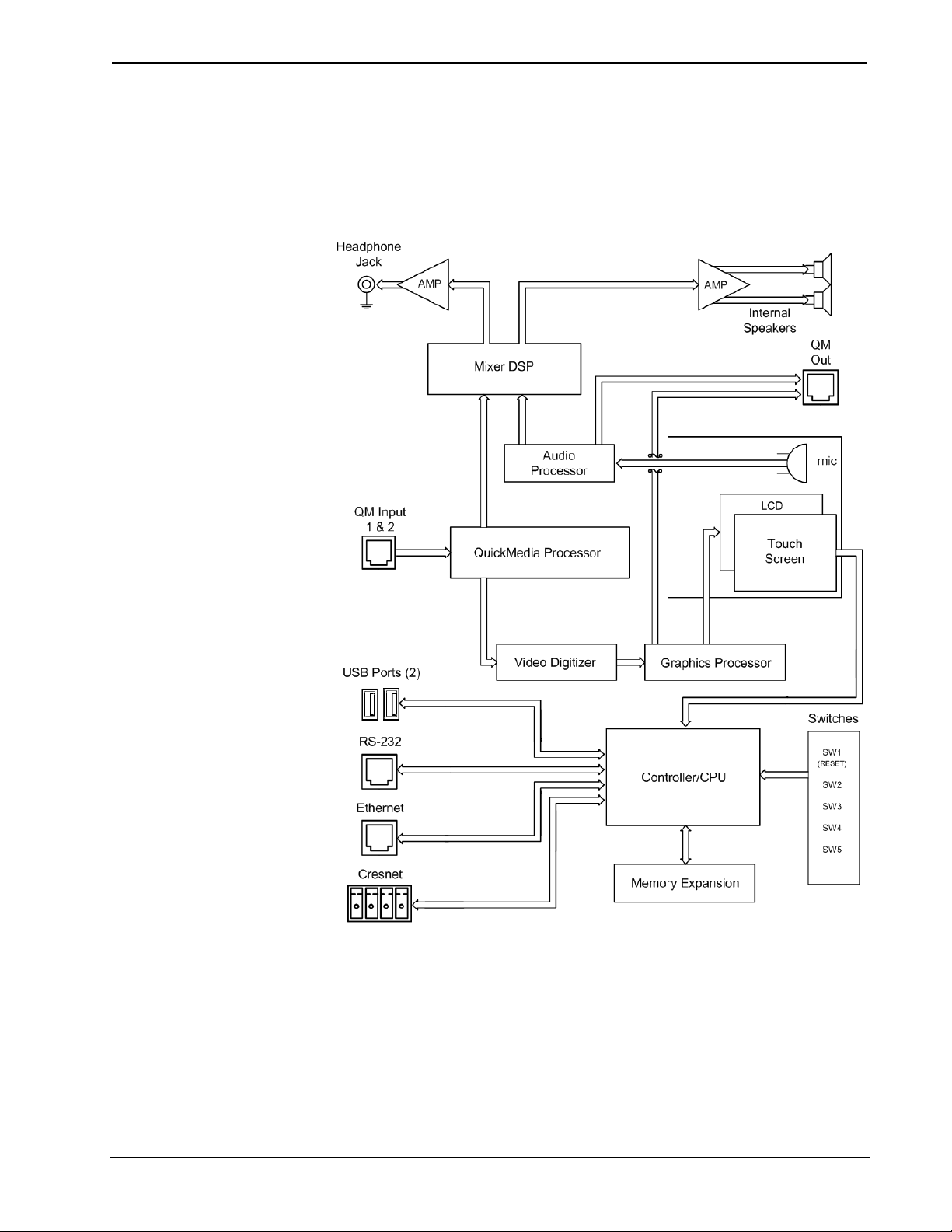

Internal Block Diagram

The following diagram represents the switching abilities of the

TPS-12G/15G/17G-QM. The diagram depicts the video, audio and connectivity

paths available.

Internal Block Diagram of the TPS-12G/15G/17G-QM

6 •Isys®G-Series Touchpanels: TPS-12G/15G/17G-QM Operations Guide – DOC. 6415B

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron TS-1542 Manuel du propriétaire

Crestron

Crestron STX-1550CW Manuel utilisateur

Crestron

Crestron CT-1550 Manuel utilisateur

Crestron

Crestron Isys TPS-6000 Manuel utilisateur

Crestron

Crestron Isys TPS Series Manuel utilisateur

Crestron

Crestron TPS-FPAR6000L Manuel utilisateur

Crestron

Crestron DualTouch DTT-17 Manuel utilisateur

Crestron

Crestron Isys TPS-4500 Manuel utilisateur

Crestron

Crestron TST-600 Manuel utilisateur

Crestron

Crestron TPMC-10 Manuel utilisateur

Crestron

Crestron FlipTop FT-TS600 Comment utiliser

Crestron

Crestron TSD-2220 Dessin dimensionnel

Crestron

Crestron ST-1550 Manuel utilisateur

Crestron

Crestron TPS-4500IMC Manuel utilisateur

Crestron

Crestron Isys TPS-12 Manuel utilisateur

Crestron

Crestron TPS-FPAR3100L Manuel utilisateur

Crestron

Crestron Lsys TPS 2000L Manuel utilisateur

Crestron

Crestron TSW-560 Manuel du propriétaire

Crestron

Crestron STX-1700C Manuel utilisateur

Crestron

Crestron TPS-1700 Manuel utilisateur

Crestron

Crestron STX-1600C Manuel utilisateur

Crestron

Crestron TSW-570PR Series Manuel utilisateur

Crestron

Crestron Crestron Isys TPS 6000L Manuel utilisateur

Crestron

Crestron TPS-4500IMPC Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
