Crestron MMK-4000L & WMKM-4000L

Mud Mount Kits

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron MMK-4000L & WMKM-4000L Mud Mount Kits

Mud Mount Kits: MMK-4000L &

WMKM-4000L

Description

Mud Mount Kits are the preferred mounting option for the Crestron Isys®

TPS-4000L series of lectern/wall-mounted video touchpanel when cutouts made in

the drywall for touchpanel installation are too large. These kits provide support for

additional plastering that can be applied to hide large irregularities in the touchpanel

cutout.

There are two Mud Mount Kits. The MMK-4000L is a pre-construction accessory.

Pre-construction refers to framed walls prior to hanging drywall. This accessory

must be used with either the Pre-Construction Mount Kit (PMK-4000L) or Back Box

Kit (BB-4000L).

The WMKM-4000L is a post-construction kit. Post-construction refers to framed

walls with drywall hung. This accessory is designed with a mounting plate so that it

can be placed anywhere on a wall without the support from a stud.

NOTE: If necessary, consult the latest revision of the TPS-4000L Operations Guide

(Doc. 6301) for a complete list of mounting options.

Supplied Hardware

The MMK-4000L consists of three parts. These parts produce an assembly that

attaches to the PMK-4000L or BB-4000L. The WMKM-4000L consists of the same

three parts that make up the MMK-4000L as well as one mounting plate. The

mounting plate is the part that provides the necessary support for post-construction

applications.

Supplied Hardware of the MMK-4000L and WMKM-4000L

DESCRIPTION PART NUMBER QUANTITY

Metal Plate, Mounting

(WMKM-4000L only)

2011515 1

Metal Plate, Mud Ring 2011517 1

Metal Plate, Fastener 2004825 2

Hardware, Push-On Fastener 2004121 4

Installation Guide – DOC. 6303 Mud Mount Kits: MMK-4000L & WMKM-4000L •1

Mud Mount Kits Crestron MMK-4000L & WMKM-4000L

The dimensions of the MMK-4000L/WMKM-4000L are shown below.

Dimensional Drawing

0.38 in

(0.95 cm)

0.38 in

(0.95 cm)

5.91 in

(15.01 cm)

MUD RING PLATE FOR

WMKM-4000L AND MMK-4000L

FASTENER PLATE FOR

WMKM-4000L AND MMK-4000L

MOUNTING PLATE FOR

WMKM-4000L

12.63 in

(32.08 cm)

8.99 in

(22.84 cm)

0.06 in

(0.15 cm)

9.34 in

(23.73 cm)

12.79 in

(32.49 cm) 2.26 in

(5.73 cm)

0.05 in

(0.13 cm)

Drywall Cutout Dimensions

7 3132 in

(202 mm)

819 64 in MAX

(211 mm MAX)

DO NOT EXCEED

THIS DIMENSION

118in

(28 mm) 1113 32 in MAX

(290 mm MAX)

DO NOT EXCEED

THI

DIMEN

2 •Mud Mount Kits: MMK-4000L & WMKM-4000L Installation Guide – DOC. 6303

Crestron MMK-4000L & WMKM-4000L Mud Mount Kits

Installation

This section provides an installation procedure for each Mud Mount Kit. The

procedure for the MMK-4000L starts below and the “WMKM-4000L Procedure”

starts on page 5.

MMK-4000L Procedure

The procedure in this section provides the necessary steps for the assembly of the

MMK-4000L to either the PMK-4000L or BB-4000L. It is assumed that the

PMK-4000L or BB-4000L has been secured to the stud according to the procedures

in the latest revisions of their respective Installation Guides (Doc. 6304 and Doc.

6305, respectively). Also, it is assumed that drywall is in place and a rectangular

cutout for the touchpanel is made in the drywall (refer to the Drywall Cutout

dimensions on the previous page for cutout dimensions).

Complete the steps in the order provided. The only tools or materials required and

not supplied are a drywall saw or equivalent, four standard drywall screws, #2

Phillips screwdriver, a level, and tools/material to apply drywall joint compound.

NOTE: The illustrations in this procedure show the installation of the MMK-4000L

with the PMK-4000L. Even though the illustrations only show the PMK-4000L, they

are identical for the BB-4000L as well.

1. Pass a fastener plate through the opening and align its two center holes

with the top two pins on the PMK-4000L. Verify that the pins on the

fastener plate are not between the fastener plate and the PMK-4000L.

Refer to the illustration after this step for visual guidance.

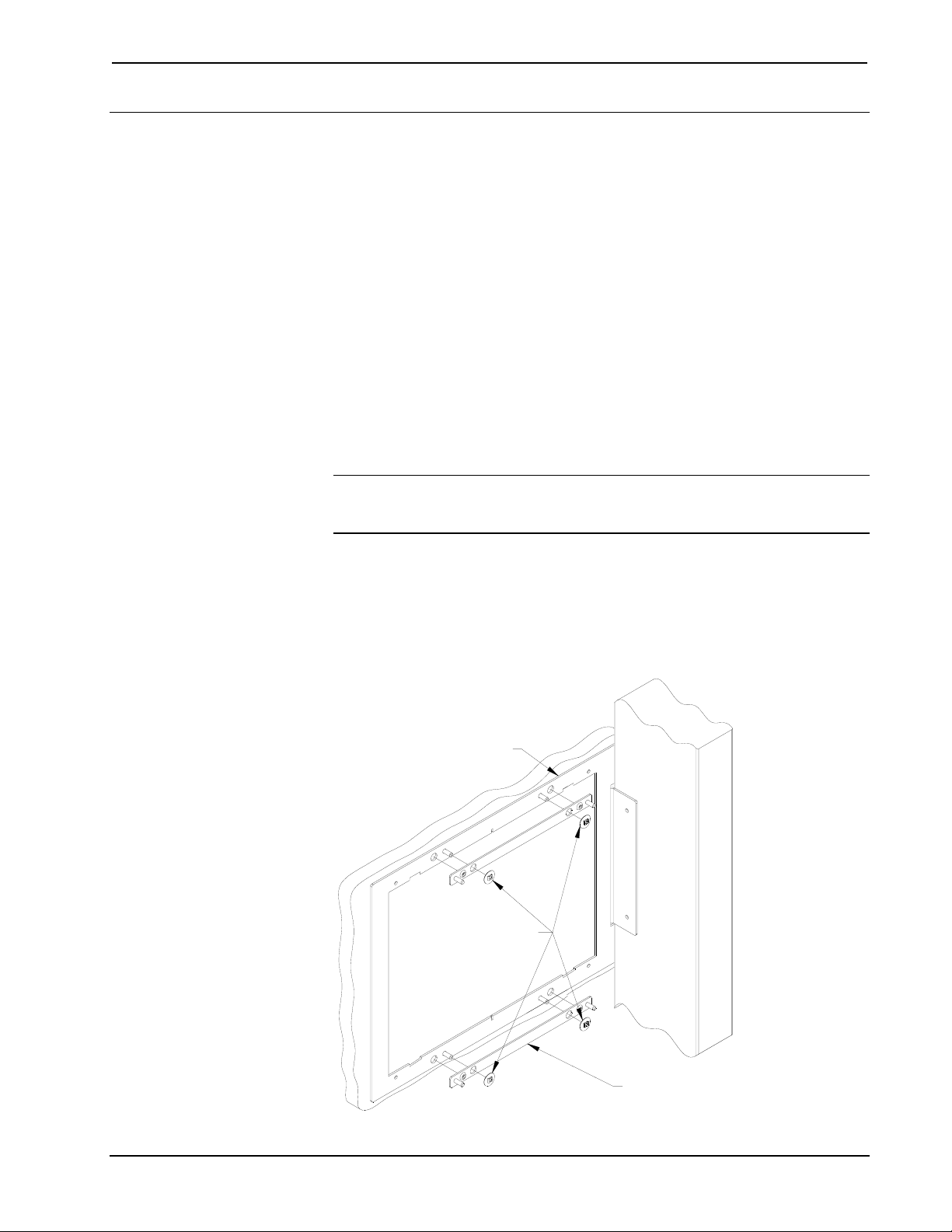

Secure Fastener Plates to PMK-4000L (or BB-4000L)

PMK-4000L

(2004825)

(2) FASTENER PLATE

(2004121)

(4) PUSH-ON FASTENER

Installation Guide – DOC. 6303 Mud Mount Kits: MMK-4000L & WMKM-4000L •3

Mud Mount Kits Crestron MMK-4000L & WMKM-4000L

2. Slide a push-on fastener over each pin of the PMK-4000L (or

BB-4000L) to loosely secure the fastener plate and the mounting plate.

Do not push the push-on fasteners all the way down onto the pins. Slide

them on enough to keep the fastener plate and mounting plate as one

fastener/mounting plate assembly.

3. Use the second fastener plate and repeat steps 1 and 2 using the lower

two PMK-4000L (or BB-4000L) pins.

NOTE: When installing into the PMK-4000L, verify that the 18 AWG bus wire

securing the cables for the touchpanel remain attached.

4. Verify that the drywall cutout meets the measurements specified on

page 2.

5. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

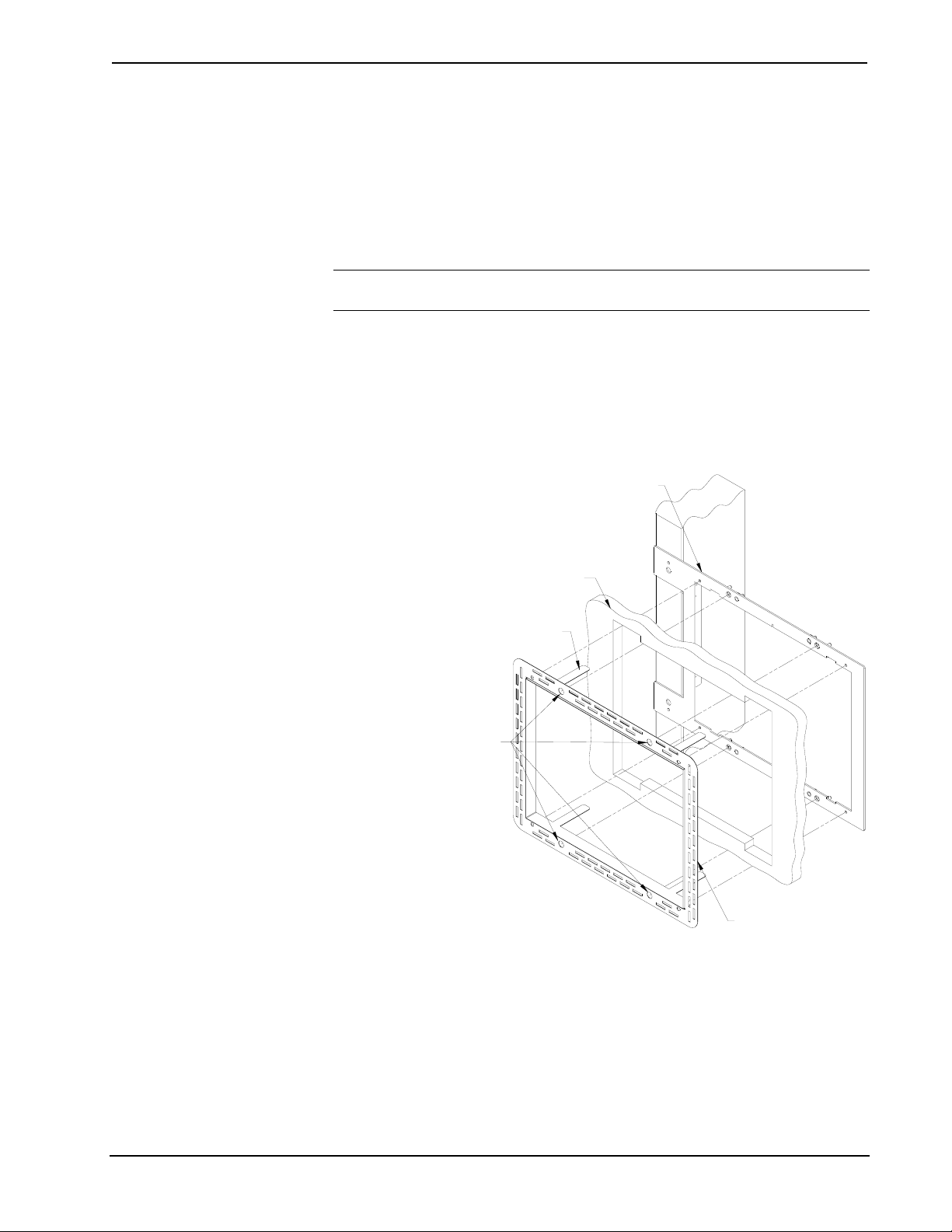

Insert and Secure Mud Ring Plate into PMK-4000L (or BB-4000L)

(2011517)

HOLES FOR DRYWALL SCREWS (PROVIDED BY

OTHER), SCREW LENGTH SHOULD NOT EXCEED

DRYWALL THICKNESS BY MORE THAN 1/2".

MUD RING PLATE

PMK-4000L

DRYWALL

FLANGE

6. When the mud ring plate is in position, bend the top two flanges of the

plate upward and the bottom two flanges downward.

• If mounting into the PMK-4000L, bend the flanges

approximately 90 degrees.

• If mounting into the BB-4000L, bend the flanges back as far

as they can go.

4 •Mud Mount Kits: MMK-4000L & WMKM-4000L Installation Guide – DOC. 6303

Crestron MMK-4000L & WMKM-4000L Mud Mount Kits

7. Use four standard drywall screws (length should not exceed drywall

thickness by more than ½ inch) to secure the mud ring plate to the rest

of the assembly. The screws pass through the clearance holes in the

PMK-4000L (or BB-4000L) and are secured in the extruded holes of

the fastener plates.

8. Verify that the mud ring plate is level.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the mud ring

plate.

9. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

10. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the four tapped mounting holes.

11. Run the necessary cables for the touchpanel and secure them behind the

drywall.

12. When dry, the TPS-4000L can be installed using the four tapped holes

in the PMK-4000L. Refer to the latest revision of the TPS-4000L

Operations Guide (Doc. 6301) for details.

WMKM-4000L Procedure

The procedure in this section provides the necessary steps for the assembly and

installation of the WMKM-4000L into a wall. Complete the steps in the order

provided. The only tools or materials required and not supplied are a drywall saw or

equivalent, a level, four standard drywall screws, #2 Phillips screwdriver, and

tools/material to apply drywall joint compound.

1. Insert the two pins on one fastener plate into the top two outer holes on

the mounting plate, as shown in the following illustration.

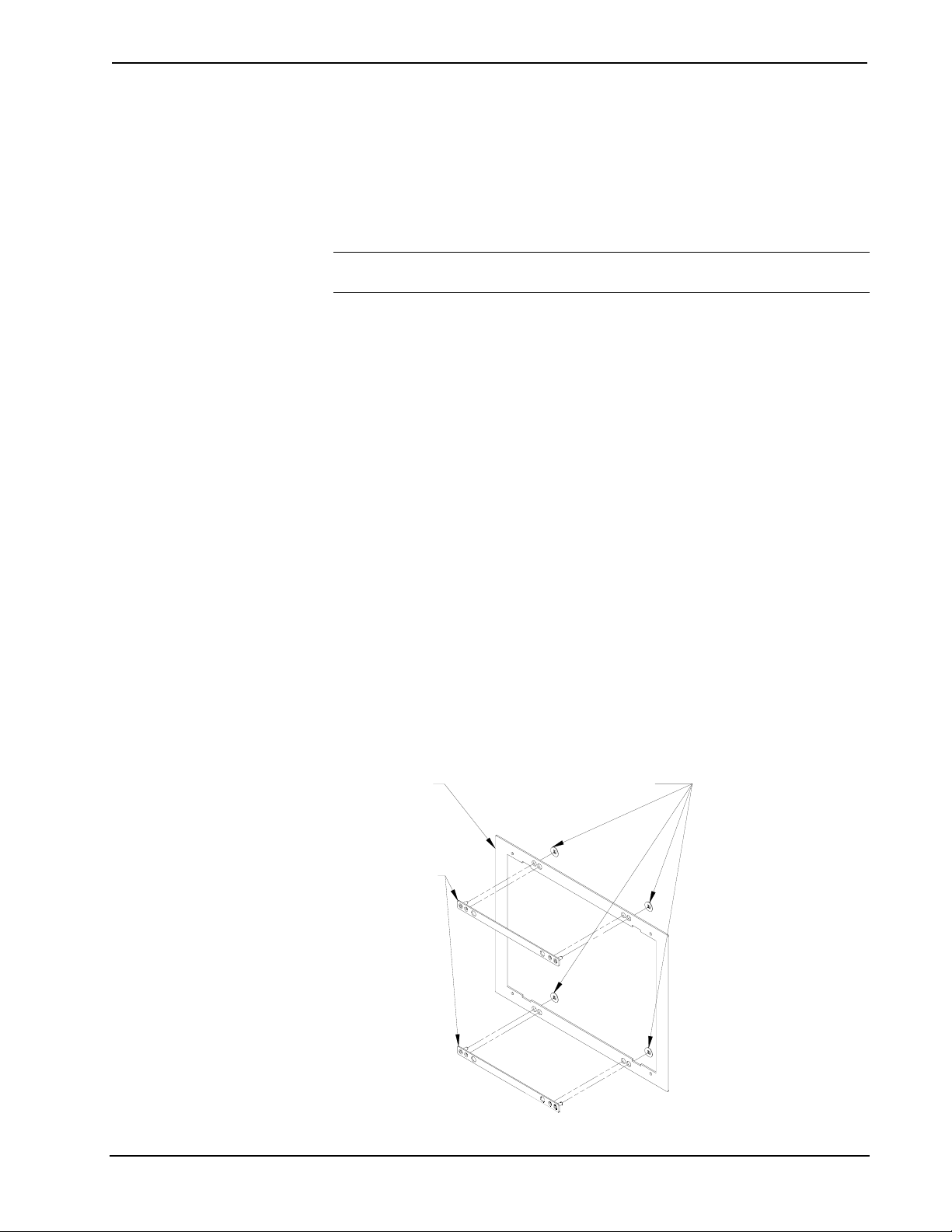

Create the Fastener/Mounting Plate Assembly

(2004121)

(4) PUSH-ON FASTENER

(2004825)

(2) FASTENER PLATE

(2011515)

(1) MOUNTING PLATE

Installation Guide – DOC. 6303 Mud Mount Kits: MMK-4000L & WMKM-4000L •5

Mud Mount Kits Crestron MMK-4000L & WMKM-4000L

2. Slide a push-on fastener over each pin on the fastener plate to loosely

secure the fastener plate and the mounting plate. Do not push the push-

on fasteners all the way down onto the pins. Slide them on enough to

keep the fastener plate and mounting plate as one fastener/mounting

plate assembly.

3. Use the second fastener plate and repeat steps 1 and 2 using the lower

two PMK-4000L pins.

4. Locate an area on the wall that is free of miscellaneous wiring and

studs.

5. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level as possible. The mounting plate allows for only

minor leveling adjustments.

6. Use the drywall saw or equivalent to produce a level, rectangular cutout

in the drywall as shown on page 2.

7. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

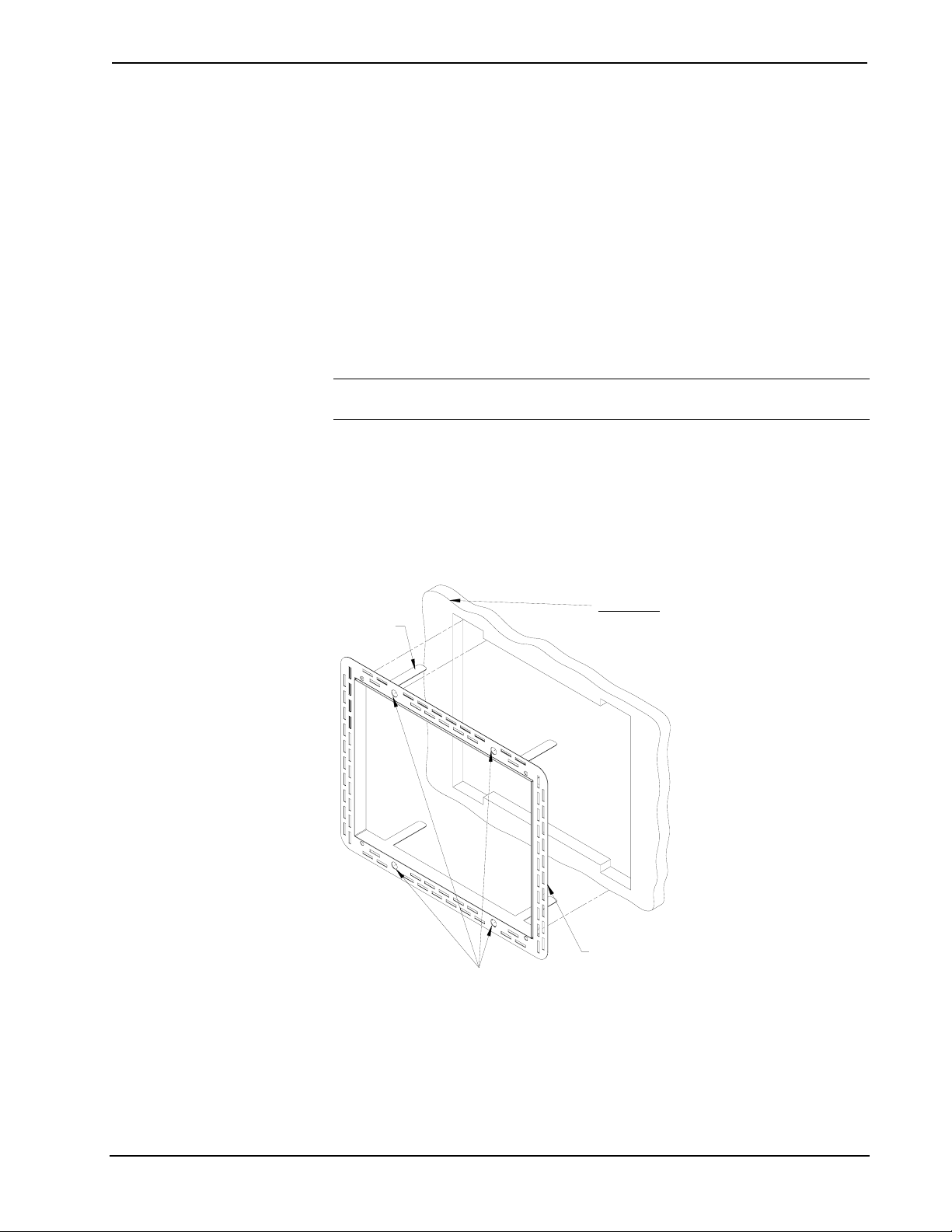

Insert the Mud Ring Plate into the Opening

MUD RING PLATE

DRYWALL THICKNESS BY MORE THAN 1/2"

)

OTHER), SCREW LENGTH SHOULD NOT EXCEED

HOLES FOR DRYWALL SCREWS (PROVIDED BY

IMPORTANT:

PLEASE MAKE DRYWALL CUTOUT AS

LEVEL AND CLEAN AS POSSIBLE.

THE MOUNTING PLATE ALLOWS FOR ONLY MINO

ADJUSTMENT OF THE TPS-4000L.

(2011517)

FLANGE

8. Carefully pass the fastener/mounting plate assembly through the

opening and rest the assembly against the interior surface of the

drywall. Verify that the fastener plates are between the mounting plate

and the drywall.

6 •Mud Mount Kits: MMK-4000L & WMKM-4000L Installation Guide – DOC. 6303

Crestron MMK-4000L & WMKM-4000L Mud Mount Kits

9. When the fastener/mounting plate assembly is in position, bend the top

two flanges of the mud ring upward (approximately 90 degrees) and the

bottom two flanges downward (approximately 90 degrees). Refer to the

illustration after this step.

NOTE: Fastener/mounting plate assembly will have slight play; this is normal. It

allows for minor adjustments to the TPS-4000L during installation.

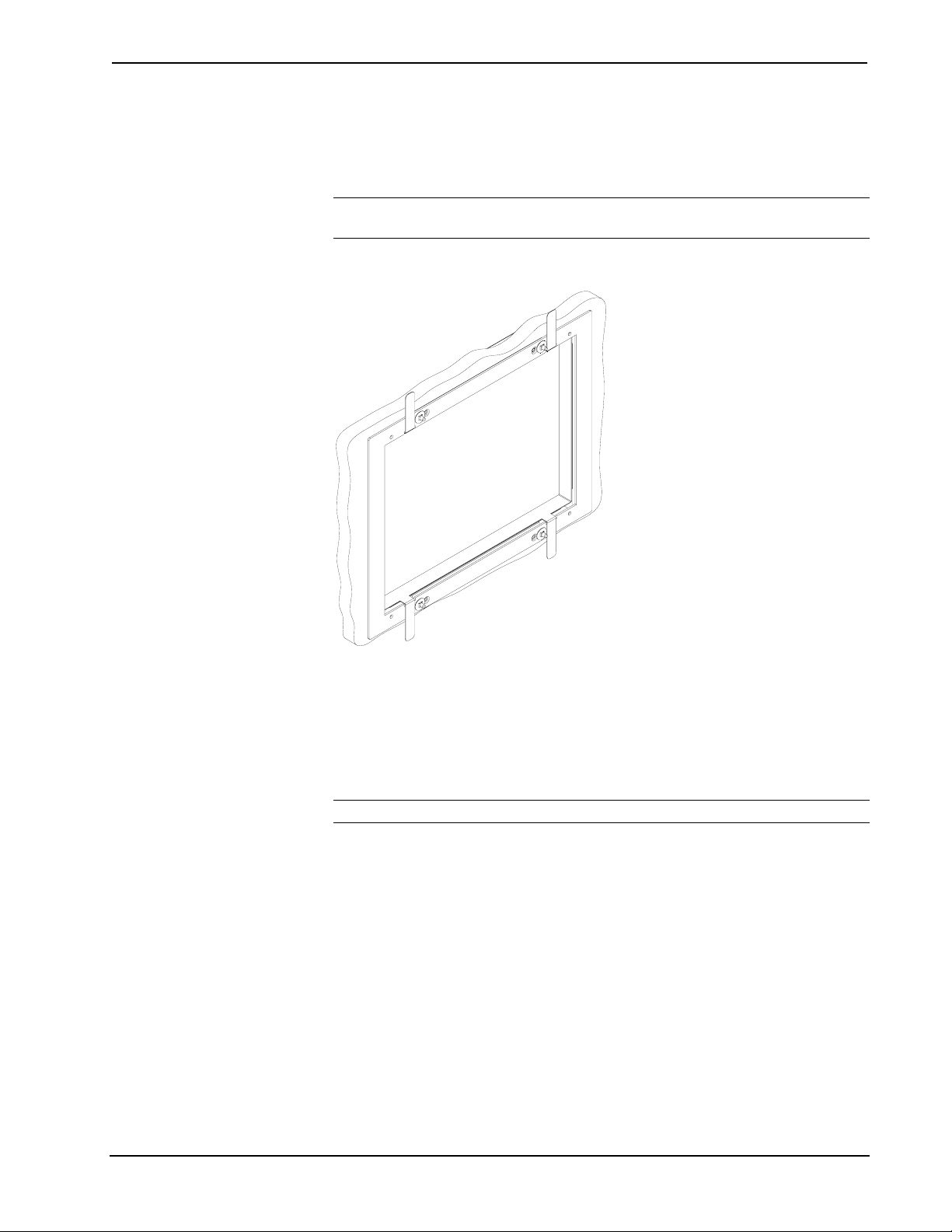

Bend Flanges

10. Use four standard drywall screws (of adequate length) to secure the

plate to the fastener/mounting plate assembly. The screws pass through

the clearance holes in the plate and are secured in the extruded holes of

the fastener plates.

11. Verify that the plate is level before tightening.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the plate.

12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

13. Run the necessary cables for the touchpanel and secure them behind the

drywall.

14. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the four tapped mounting holes.

15. When dry, the TPS-4000L can be installed using the four tapped holes

in the mounting plate. Refer to the latest revision of the TPS-4000L

Operations Guide (Doc. 6301) for details.

Installation Guide – DOC. 6303 Mud Mount Kits: MMK-4000L & WMKM-4000L •7

Mud Mount Kits Crestron MMK-4000L & WMKM-4000L

Further Inquiries

If after reviewing this Installation Guide, you cannot locate specific information or

have questions, please take advantage of Crestron's award winning customer service

team by calling:

• In the US and Canada, call Crestron’s corporate headquarters at

1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at +32-15-50-99-50.

• In Asia, call Crestron Asia at +852-2341-2016.

• In Latin America, call Crestron Latin America at +5255-5093-2160.

• In Australia and New Zealand, call Crestron Control Solutions at

+61-2-9737-8203.

You can also log onto the online help section of the Crestron website

(www.crestron.com) to ask questions about Crestron products. First-time users will

need to establish a user account to fully benefit from all available features.

As of the date of manufacture, the MMK-4000L and WMKM-4000L have been

tested and found to comply with specifications for CE marking.

Future Updates

As Crestron adds improvements to the MMK-4000L or WMKM-4000L, additional

information may be made available as manual updates. These updates are solely

electronic and serve as intermediary supplements prior to the release of a complete

technical documentation revision.

Check the Crestron website (www.crestron.com) periodically for manual update

availability and its relevance. Updates are available from the Download | Product

Manuals section and are identified as an “Addendum” in the Download column.

8 •Mud Mount Kits: MMK-4000L & WMKM-4000L Installation Guide – DOC. 6303

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crestron Support et étagère

Crestron

Crestron TMK-3000L Manuel utilisateur

Crestron

Crestron FlipTop Basic FT-600 Comment utiliser

Crestron

Crestron CNWM-29A Manuel utilisateur

Crestron

Crestron MMK-15L Manuel utilisateur

Crestron

Crestron C2N-IIF-SPMK Manuel utilisateur

Crestron

Crestron CAEN-MK Manuel utilisateur

Crestron

Crestron CCS-UC-200-WSTND Manuel utilisateur

Crestron

Crestron PMK-4000L Manuel utilisateur

Crestron

Crestron RMK-1500 Manuel utilisateur

Crestron

Crestron SPKA-FMKT-IC6 Manuel utilisateur

Crestron

Crestron BB-1550CW Manuel utilisateur

Crestron

Crestron TMK-15L Manuel utilisateur

Crestron

Crestron TSW-770-MUMK Manuel utilisateur

Crestron

Crestron CSA-DECOR3-BRKT-163-EC-MTL Manuel utilisateur

Crestron

Crestron CNWM-LT9 Manuel utilisateur

Crestron

Crestron CNXRMAK Manuel utilisateur

Crestron

Crestron UCA-RMK-1U Manuel utilisateur

Crestron

Crestron CSA-DECOR3-BRKT-163-EC-MTL Manuel utilisateur

Crestron

Crestron WMKB-1000L Manuel utilisateur

Crestron

Crestron RMK-3U Manuel utilisateur

Crestron

Crestron SMK-12 Manuel utilisateur

Crestron

Crestron RMK-1600 Manuel utilisateur

Crestron

Crestron PMK-17L Manuel utilisateur

Crestron

Crestron MK-IM-RX Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
