Crestron MMK-2000L Manuel utilisateur

Crestron MMK-2000L & WMKM-2000L

Mud Mount Kits

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron MMK-2000L & WMKM-2000L Mud Mount Kits

Mud Mount Kits: MMK-2000L &

WMKM-2000L

Description

Mud Mount Kits are the preferred mounting option for the Crestron Isys

TPS-2000L, compact video touchpanel when cutouts made for the touchpanel are too

large. These kits fill in the gaps with additional plastering and provide the support to

hide large irregularities in the touchpanel cutout.

There are two Mud Mount Kits. The MMK-2000L is a pre-construction accessory.

Pre-construction refers to framed walls prior to hanging drywall. This accessory is

designed be used with the Pre-Construction Mount Kit (PMK-2000L) or Back Box

Kit (BB-2000L).

The WMKM-2000L is a post-construction kit. Post-construction refers to framed

walls with drywall hung. This accessory is designed with a mounting plate so that it

can be placed anywhere on a wall without the support from a stud.

NOTE: If necessary, consult the latest revision of the TPS-2000L Operations Guide

(Doc. 5972) for a complete list of mounting options.

Supplied Hardware

The MMK-2000L consists of three items with differing quantities. These items

produce an assembly that attaches to the PMK-2000L or BB-2000L. The

WMKM-2000L consists of the same three items that make up the MMK-2000L as

well as one mounting plate. The mounting plate is the item that provides the

necessary support for post-construction applications.

Supplied Hardware of the MMK-2000L and WMKM-2000L

• ONE (1) Metal Plate, Mounting (only on WMKM-2000L)

• ONE (1) Metal Plate, Mud Ring

• TWO (2) Metal Plate, Fastener

• FOUR (4) Metal, Push-on Fastener

Installation Guide – DOC. 6025 Mud Mount Kits: MMK-2000L & WMKM-2000L •1

Mud Mount Kits Crestron MMK-2000L & WMKM-2000L

Installation

This section provides an installation procedure for each Mud Mount Kit. The

procedure for the MMK-2000L starts below and the “WMKM-2000L Procedure”

starts on page 4.

MMK-2000L Procedure

The procedure in this section provides the necessary steps for the assembly of the

MMK-2000L to either the PMK-2000L or BB-2000L. It is assumed that the

PMK-2000L or BB-2000L has been secured to the stud according to the procedures

in the latest revisions of their respective Installation Guides (Doc. 6018 and Doc.

5973, respectively). Also, it is assumed that drywall is in place and a rectangular

cutout for the touchpanel is made in the drywall (measuring 6 3/8inches wide

(16.159 cm) x 4 ½ inches high (11.389 cm)).

Complete the steps in the order provided. The only tools or materials required and

not supplied are a drywall saw or equivalent, four standard drywall screws, #2

Phillips screwdriver, a level, and tools/material to apply drywall joint compound.

NOTE: The illustrations in this procedure show the installation of the MMK-2000L

with the PMK-2000L. Even though the illustrations only show the PMK-2000L, they

are identical for the BB-2000L as well.

1. Pass a fastener plate through the opening and align its two center holes

with the top two pins on the PMK-2000L. Verify that the pins on the

fastener plate are not between the fastener plate and the PMK-2000L.

Refer to the illustration after this step for visual guidance.

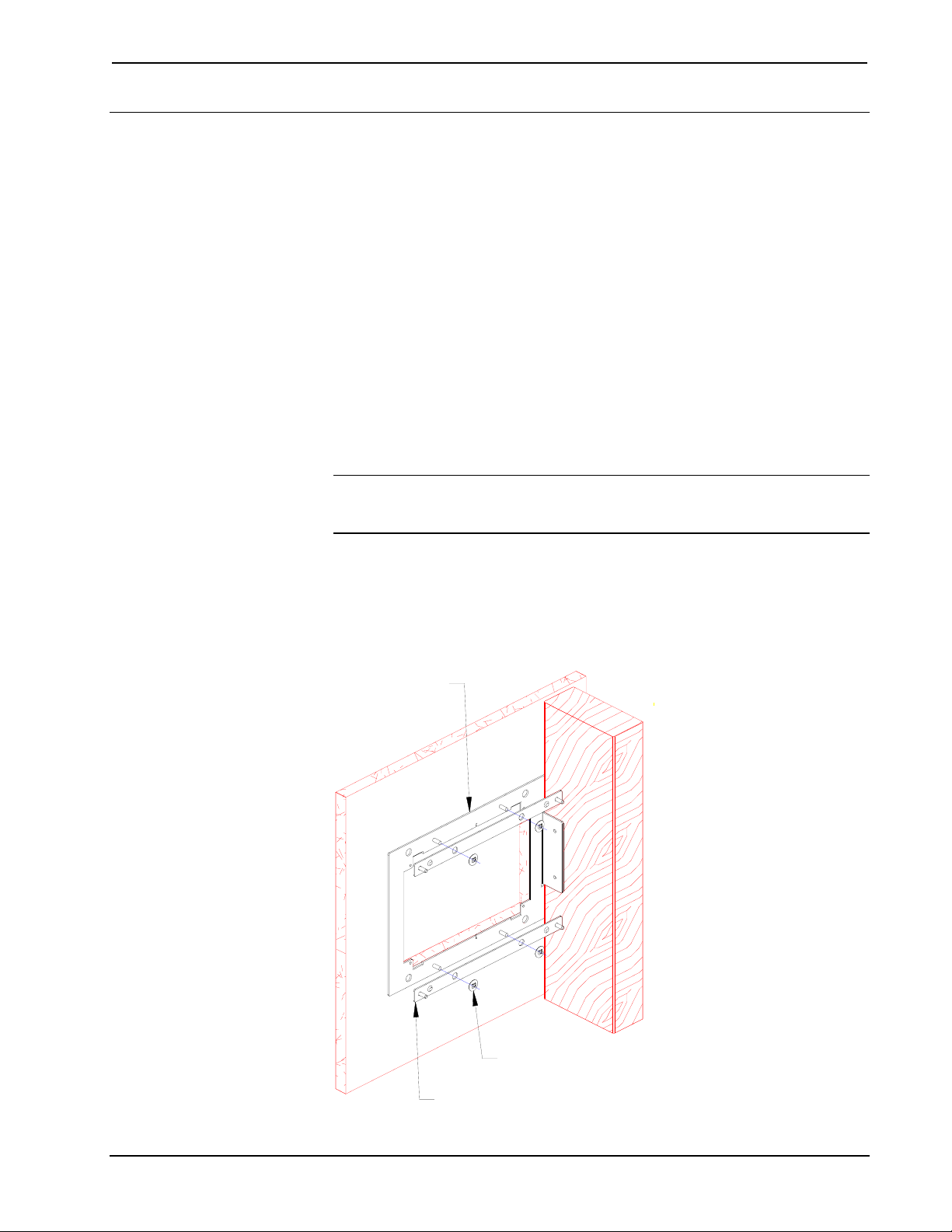

Secure Fastener Plates to PMK-2000L (or BB-2000L)

FASTENER PLATE

QUANTITY 2

PUSH-ON FASTENER

QUANTITY 4

PMK-2000L

2 •Mud Mount Kits: MMK-2000L & WMKM-2000L Installation Guide – DOC. 6025

Crestron MMK-2000L & WMKM-2000L Mud Mount Kits

2. Slid two push-on fasteners over the pins on the PMK-2000L to secure

the fastener plate to the PMK-2000L.

3. Use the second fastener plate and repeat steps 1 and 2 using the lower

two PMK-2000L pins.

NOTE: When installing into the PMK-2000L, verify that the 18 AWG bus wire

securing the cables for the touchpanel remain attached.

4. Verify that the rectangular cutout in the drywall measures 6 3/8inches

wide (16.159 cm) x 4 ½ inches high (11.389 cm).

5. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

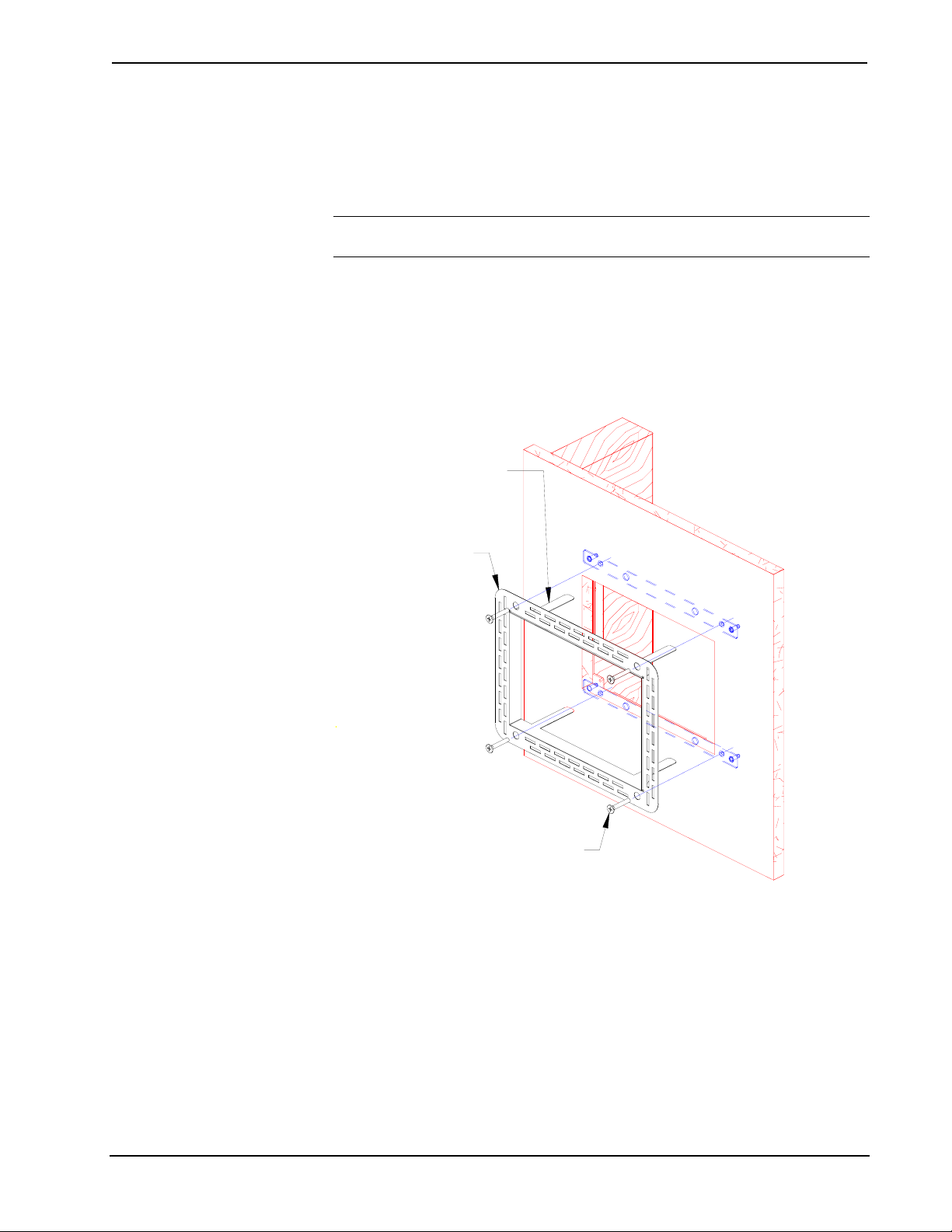

Insert and Secure Mud Ring Plate into PMK-2000L (or BB-2000L)

STANDARD DRYWALL

SCREW (NOT SUPPLIED)

QUANTITY 4

FLANGES

QUANTITY 4

MUD RING PLATE

QUANTITY 1

6. When the mud ring plate is in position, bend the top two flanges of the

ring upward (approximately 90 degrees) and the bottom two flanges

downward (approximately 90 degrees).

7. Use four standard drywall screws (of adequate length) to secure the

mud ring plate to the rest of the assembly. The screws pass through the

clearance holes in the PMK-2000L (or BB-2000L) and are secured in

the extruded holes of the fastener plates.

8. Verify that the mud ring plate is level.

Installation Guide – DOC. 6025 Mud Mount Kits: MMK-2000L & WMKM-2000L •3

Mud Mount Kits Crestron MMK-2000L & WMKM-2000L

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the mud ring

plate.

9. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

10. Apply drywall joint compound as needed to finish the cutout.

11. When dry, the TPS-2000L can be installed using the four tapped holes

in the PMK-2000L. Refer to the latest revision of the TPS-2000L

Operations Guide (Doc. 5972) for details.

WMKM-2000L Procedure

The procedure in this section provides the necessary steps for the assembly and

installation of the WMKM-2000L into a wall. Complete the steps in the order

provided. The only tools or materials required and not supplied are a drywall saw or

equivalent, a level, four standard drywall screws, #2 Phillips screwdriver, and

tools/material to apply drywall joint compound.

1. Insert the two pins on one fastener plate into the top two outer holes on

the mounting plate, as shown in the illustration after this step.

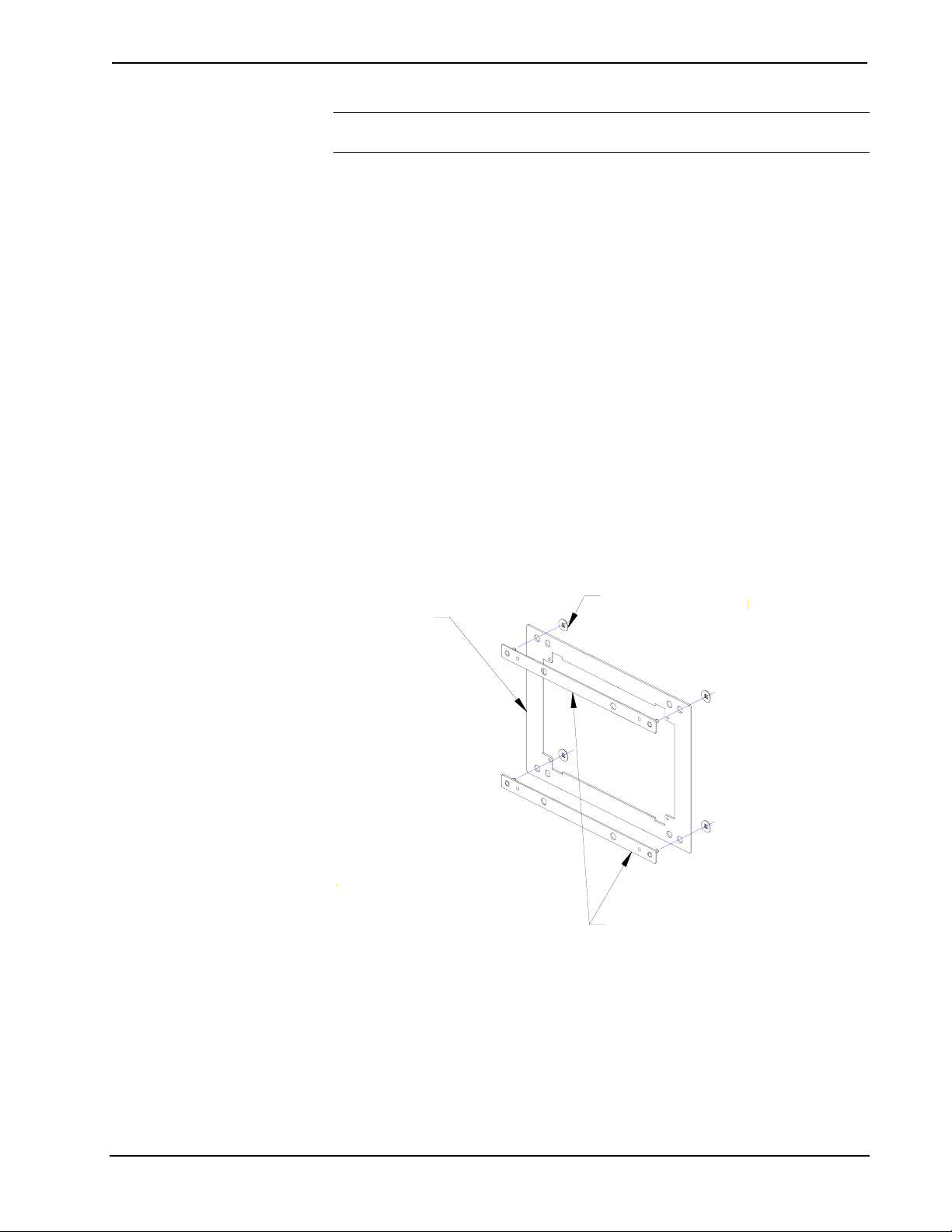

Create the Fastener/Mounting Plate Assembly

FASTENER PLATE

QUANTITY 2

PUSH-ON

FASTENER

QUANTITY 4

MOUNTING

PLATE

QUANTITY 1

2. Slid two push-on fasteners over the pins on the fastener plate to loosely

secure the fastener plate and the mounting plate. Do not push the push-

on fasteners all the way down onto the pins. Slid them on enough to

keep the fastener plate and mounting plate as one fastener/mounting

plate assembly.

3. Use the second fastener plate and repeat steps 1 and 2 on the opposite

side of the mounting plate.

4 •Mud Mount Kits: MMK-2000L & WMKM-2000L Installation Guide – DOC. 6025

Crestron MMK-2000L & WMKM-2000L Mud Mount Kits

4. Locate an area on the wall that is free of miscellaneous wiring and

studs.

5. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level as possible. The mounting plate allows for only

minor leveling adjustments.

6. Use the drywall saw or equivalent to produce a level, rectangular cutout

in the drywall that measures 6 3/8inches wide (16.159 cm) x 4 ½ inches

high (11.389 cm).

7. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

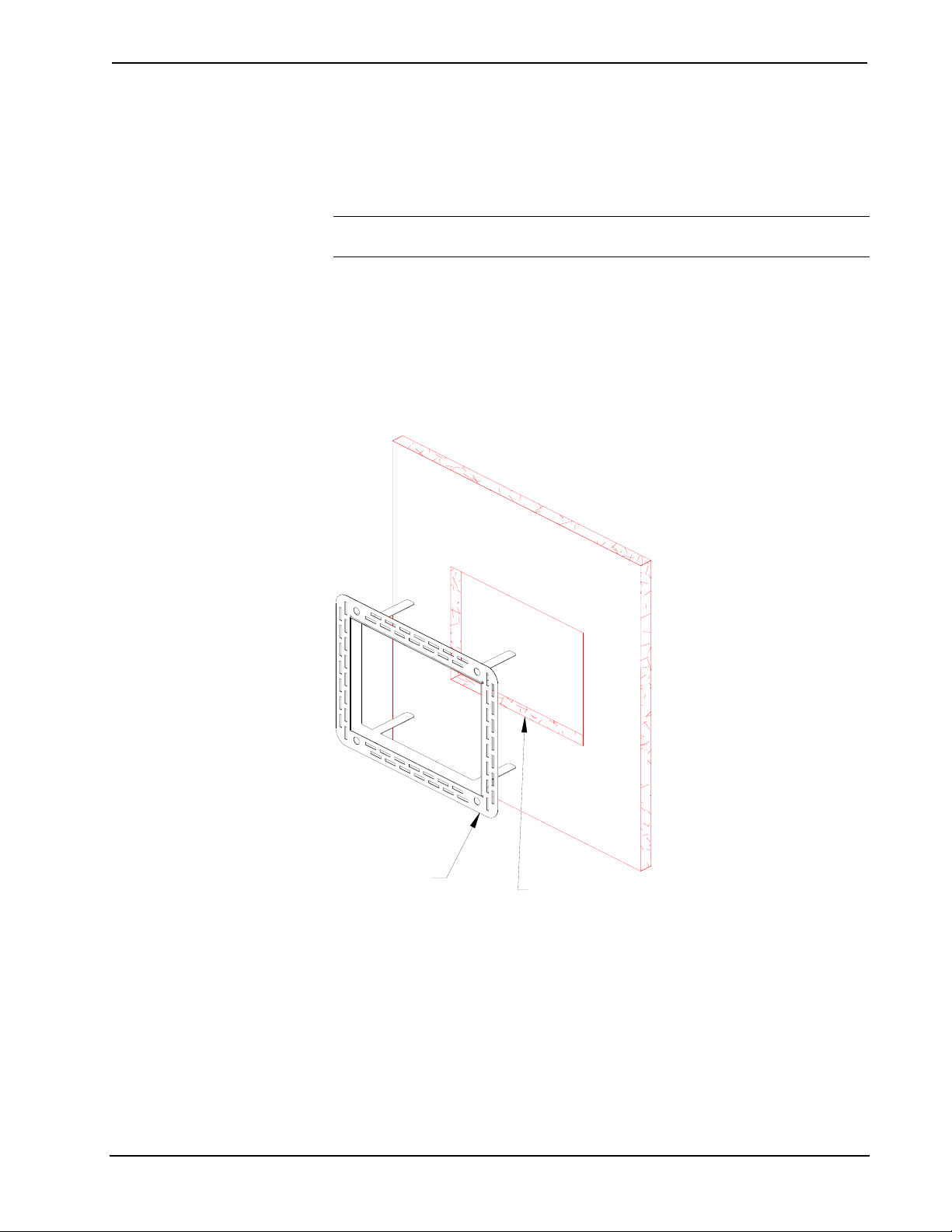

Insert the Mud Ring Plate into the Opening

MUD

RING PLATE

QUANTITY 1 OPENING IN

DRYWALL

8. Carefully pass the fastener/mounting plate assembly through the

opening and rest the assembly against the interior surface of the

drywall. Verify that the fastener plates are between the mounting plate

and the drywall. Refer to the illustration after this step for visual

guidance.

Installation Guide – DOC. 6025 Mud Mount Kits: MMK-2000L & WMKM-2000L •5

Mud Mount Kits Crestron MMK-2000L & WMKM-2000L

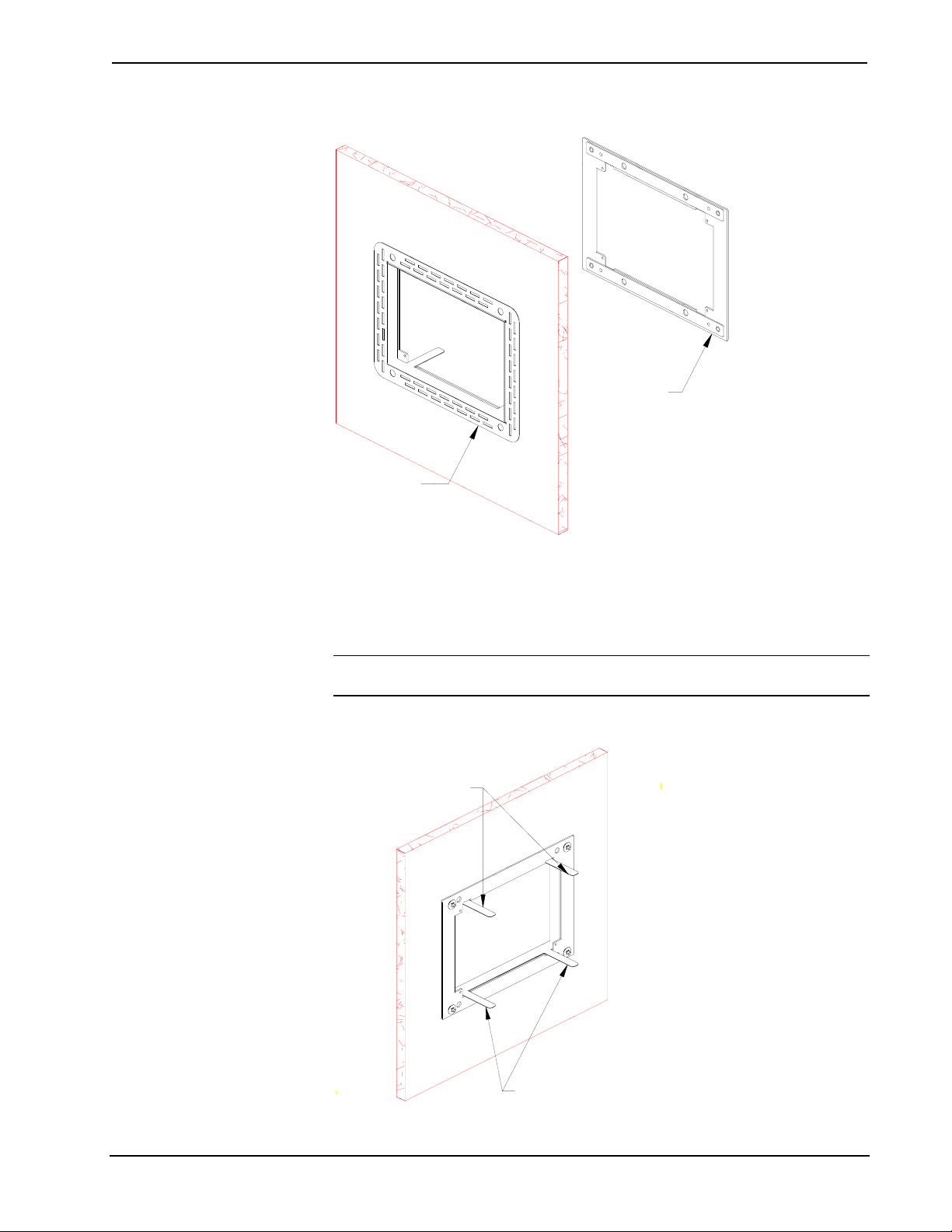

Fastener Plates Located Between Mounting Plate and Drywall

INSERTED

MUD RING

PLATE

FASTENER/

MOUNTING

PLATE

ASSEMBLY

9. When the fastener/mounting plate assembly is in position, bend the top

two flanges of the mud ring upward (approximately 90 degrees) and the

bottom two flanges downward (approximately 90 degrees). Refer to the

illustration after this step.

NOTE: Fastener/mounting plate assembly will have slight play; this is normal. It

allows for minor adjustments to the TPS-2000L during installation.

Bend Flanges

BEND FLANGES UP

APPROXIMATELY 90°

BEND FLANGES DOWN

APPROXIMATELY 90°

6 •Mud Mount Kits: MMK-2000L & WMKM-2000L Installation Guide – DOC. 6025

Crestron MMK-2000L & WMKM-2000L Mud Mount Kits

10. Use four standard drywall screws (of adequate length) to secure the

plate to the fastener/mounting plate assembly. The screws pass through

the clearance holes in the plate and are secured in the extruded holes of

the fastener plates.

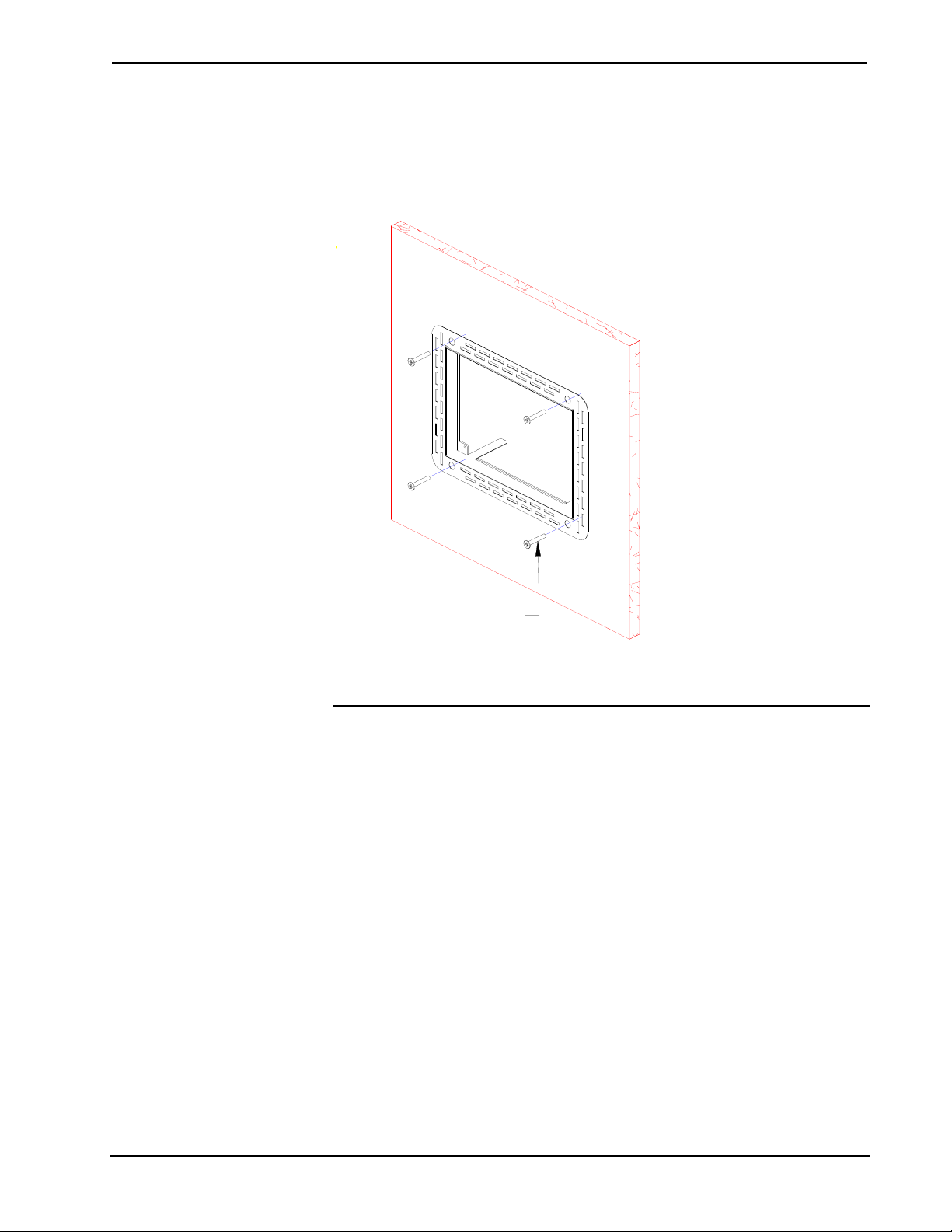

Secure Mud Ring Plate

STANDARD DRYWALL

SCREW (NOT SUPPLIED)

QUANTITY 4

11. Verify that the plate is level before tightening.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the plate.

12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

13. Run the necessary cables for the touchpanel and secure them behind the

drywall.

14. Apply drywall joint compound as needed to finish the cutout.

15. When dry, the TPS-2000L can be installed using the four tapped holes

in the mounting plate. Refer to the latest revision of the TPS-2000L

Operations Guide (Doc. 5972) for details.

Installation Guide – DOC. 6025 Mud Mount Kits: MMK-2000L & WMKM-2000L •7

Mud Mount Kits Crestron MMK-2000L & WMKM-2000L

Further Inquiries

If you cannot locate specific information or have questions after reviewing this

guide, please take advantage of Crestron's award winning customer service team by

calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876].

For assistance in your local time zone, refer to the Crestron website

(www.crestron.com) for a listing of Crestron worldwide offices.

You can also log onto the online help section of the Crestron website to ask

questions about Crestron products. First-time users will need to establish a user

account to fully benefit from all available features.

As of the date of manufacture, the MMK-2000L and WMKM-2000L have been

tested and found to comply with specifications for CE marking.

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of

the MMK-2000L or WMKM-2000L, additional information may be made available

as manual updates. These updates are solely electronic and serve as intermediary

supplements prior to the release of a complete technical documentation revision.

Check the Crestron website periodically for manual update availability and its

relevance. Updates are identified as an “Addendum” in the Download column.

8 •Mud Mount Kits: MMK-2000L & WMKM-2000L Installation Guide – DOC. 6025

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crestron Support et étagère

Crestron

Crestron PMK-15L Manuel utilisateur

Crestron

Crestron MMK-1000L Manuel utilisateur

Crestron

Crestron MMK-12L Manuel utilisateur

Crestron

Crestron TMK-6X-DSW Manuel utilisateur

Crestron

Crestron MMK-4000L Manuel utilisateur

Crestron

Crestron PMK-17L Manuel utilisateur

Crestron

Crestron UCA-RMK-1U Manuel utilisateur

Crestron

Crestron SMK-6X Manuel utilisateur

Crestron

Crestron CPC-TMT Comment utiliser

Crestron

Crestron CPC-CMT Comment utiliser

Crestron

Crestron WMKB-1000L Manuel utilisateur

Crestron

Crestron TMK-4L Manuel utilisateur

Crestron

Crestron TSW-1070-RMB-4 Manuel utilisateur

Crestron

Crestron RMK-17L Manuel utilisateur

Crestron

Crestron TSW-550-TTK Manuel utilisateur

Crestron

Crestron TMK-4L Manuel utilisateur

Crestron

Crestron TS-70 Series Manuel utilisateur

Crestron

Crestron C2N-CAMIDSPT Manuel utilisateur

Crestron

Crestron MMK-CB Manuel utilisateur

Crestron

Crestron MP-WP-2XLRO-1G Manuel utilisateur

Crestron

Crestron Mud Ring Mount Kit for Cameo 2 MMK-CBF-T Manuel utilisateur

Crestron

Crestron MMK-V15 Manuel utilisateur

Crestron

Crestron TSW-730-MSMK Manuel utilisateur

Crestron

Crestron CAEN-UMP1X2-DIN-PWS Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
