Crestron IRP2 Manuel utilisateur

Crestron IRP2

Infrared Emitter

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron IRP2 Infrared Emitter

Contents

Infrared Emitter: IRP2 1

Introduction..............................................................1

Description.......................................................1

Package Contents .............................................2

Installation................................................................2

Attach the IRP2 to the IR Sensor Window ......2

IR Mask Installation.........................................3

Attach the IRP2 to Other Locations.................3

Connect the IRP2 .............................................4

Further Inquiries.......................................................5

Future Updates .........................................................6

Return and Warranty Policies ..................................7

Merchandise Returns / Repair Service.............7

CRESTRON Limited Warranty.......................7

Installation Guide - DOC. 8168A Contents •i

Crestron IRP2 Infrared Emitter

Infrared Emitter: IRP2

Introduction

The IRP2 is an infrared emitter housed in a plastic shell. The IRP2 shell

emits IR control signals sent to it by a Crestron®control system. The IRP2

shell can be installed directly on the IR sensor window of the controlled

device or at a nearby suitable location. The IRP2 is compatible with

2-Series controllers. It is also compatible with X-Generation controllers

by exchanging the 3.5 mm connector for a 5 mm connector (not supplied).

It is not compatible with the CNMS generation.

Description

The IRP2, shown below, contains an infrared (IR) LED housed in a

miniature, mouse shaped, black, injection molded plastic shell. The IRP2

has a ten-foot (304.8 cm) lead terminated in a two-pin 3.5 mm connector.

Installation Guide - DOC. 8168A Infrared Emitter •1

Infrared Emitter Crestron IRP2

Package Contents

In addition to the IRP2, this package also contains an IR mask and two-

sided transparent tape.

Installation

Attach the IRP2 to the IR Sensor Window

Refer to the following instructions and illustration.

1. Identify the clear, flat bottom surface of the IRP2 shell.

2. Apply transparent silicon adhesive (not supplied) to the flat side of the

IRP2 or use the supplied transparent tape.

CAUTION: Test the silicon adhesive on a non-visible area to confirm

that it will not damage material or equipment.

3. Affix the IRP2 in the center of the IR sensor window on the front panel

of the controlled component.

4. Use a piece of non-damaging tape to hold the IRP2 in position while

the silicon adhesive cures.

5. Remove the tape after the silicon cures.

6. In some cases, identifying the exact location of the sensor window may

be difficult. Consult the owner manual of the unit, or the manufacturer

for the exact IR window location.

7. If the IRP2 shell must be removed and repositioned for any reason, be

sure to completely remove the silicon adhesive and repeat steps 1

through 5.

2•Infrared Emitter Installation Guide – DOC. 8168A

Crestron IRP2 Infrared Emitter

IR Mask Installation

The IR mask (supplied) is designed to fit over the IRP2 shell, as shown in

the following illustration, so that the sensor window of the controlled

component is completely covered. The IR mask prevents unwanted

external IR signals from passing through or leaking past it. The IR mask

also prevents emitting IR from the IRP2 shell from radiating backward

into the IR sensors of other nearby components.

1. Without removing the adhesive backing from the IR mask, fit the two

pieces together and accurately position them over the IR sensor

window of the component to be controlled.

2. Attach the IRP2 to the sensor window using transparent silicon

adhesive (not supplied). Temporarily tape the IRP2 in place using non-

damaging tape until the silicon cures.

3. If necessary, neatly trim the IR mask. Be sure that it overlaps the

margins of the component IR sensor window.

4. Remove the adhesive backing from the IR mask and position it over

the IR sensor window while pressing down firmly.

Attach the IRP2 to Other Locations

Rather than affixing the low output side of the IRP2 shell directly over the

IR sensor window, the shell can be positioned as much as three feet away

on the axis of the IR sensor window. The high output side of the IRP2

Installation Guide - DOC. 8168A Infrared Emitter •3

Infrared Emitter Crestron IRP2

shell permits control at this greater distance. Placement of the IRP2 on

surfaces just above or below the IR sensor window, as shown in the

following illustrations, may provide a more pleasing aesthetic appearance.

However, be sure to position the IRP2 shell so that the edge of the

component does not block the IR signal.

NOTE: Placing the IRP2 shell on a cabinet door may result in

interruption of the IR signal if the door is opened.

Possible mounting locations of the IRP2 shell include being attached to a

shelf directly below or above the IR sensor window.

Front View

Side View

Connect the IRP2

Insert the two-pin connector of the IRP2 into an infrared - serial output

port of the control system as shown in the following illustration.

4•Infrared Emitter Installation Guide – DOC. 8168A

Crestron IRP2 Infrared Emitter

NOTE: The white-traced wire connects to the pin labeled S.

Further Inquiries

If you cannot locate specific information or have questions after reviewing

this guide, please take advantage of Crestron’s award winning customer

service team by calling the Crestron corporate headquarters at

1-888-CRESTRON [1-888-273-7876]. For assistance in your local time

zone, refer to the Crestron website (http://www.crestron.com) for a

listing of Crestron worldwide offices.

You can also log onto the online help section of the Crestron website to

ask questions about Crestron products. First-time users will need to

establish a user account to fully benefit from all available features.

Installation Guide - DOC. 8168A Infrared Emitter •5

Infrared Emitter Crestron IRP2

As of the date of manufacture, the IRP2 has been tested and found to

comply with specifications for CE marking and standards per EMC and

Radiocommunications Compliance Labelling.

NOTE: This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Future Updates

As Crestron improves functions, adds new features, and extends the

capabilities of this product, additional information may be made available

as manual updates. These updates are solely electronic and serve as

intermediary supplements prior to the release of a complete technical

documentation revision.

Check the Crestron website periodically for manual update availability

and its relevance. Updates are identified as an “Addendum” in the

Download column.

6•Infrared Emitter Installation Guide – DOC. 8168A

Autres manuels pour IRP2

Table des matières

Autres manuels Crestron Matériel informatique

Crestron

Crestron Four-Way Coupler SRD-CPL-4 Manuel utilisateur

Crestron

Crestron DigitalMedia DMC-VID4 Manuel utilisateur

Crestron

Crestron CNXMIDI Manuel utilisateur

Crestron

Crestron C2VEQ-4 Comment utiliser

Crestron

Crestron DGE-100 Manuel utilisateur

Crestron

Crestron DigitalMedia DMC-CPU3 Manuel utilisateur

Crestron

Crestron UPX-2 Manuel utilisateur

Crestron

Crestron CNXRY-16 Manuel utilisateur

Crestron

Crestron CP4-R Manuel utilisateur

Crestron

Crestron CNXVTC-3 Manuel utilisateur

Crestron

Crestron DIN-AP3 Instructions d'utilisation d'origine

Crestron

Crestron DSP-860 Dessin dimensionnel

Crestron

Crestron C2COM-2 Comment utiliser

Crestron

Crestron CNXAO-8 Manuel utilisateur

Crestron

Crestron C2IR-8 Comment utiliser

Crestron

Crestron C2N-IO Manuel utilisateur

Crestron

Crestron CNXENET+ Comment utiliser

Crestron

Crestron CP2 Manuel utilisateur

Crestron

Crestron CNX-PAD8 Manuel utilisateur

Crestron

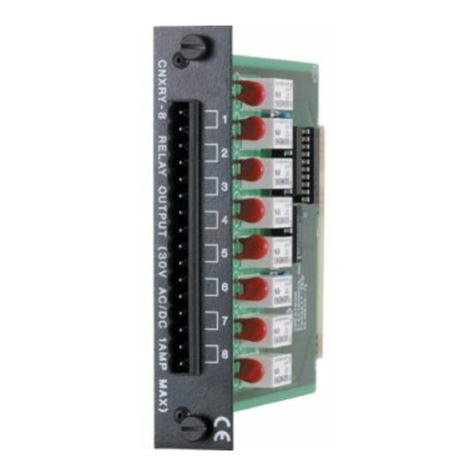

Crestron CNXRY-8 Manuel utilisateur
