In t r od uc tion

Caution Safety protections

Operate the product according to the correct installation steps and with great care to make sure

safety and comfort using experience. Please refer to the following safety instruction guide to avoid

danger of electric shock or fire. Abide by the previous safety instruction guide to use and maintain

the product and the hard disk to make sure of safe operating environment.

·Please follow the instruction manual for operation guide.

·The appropriate operating temperature ranges from -10...60°C.

·The operation humidity for this product is 5% to 80% RH.

·To avoid high temperature, please DO NOToverload the maximum power of the external power

supply while the system is consuming high voltage. Be aware of the maximum temperature

allowance of the power supply.

·See to it that the product is not working near the water.

·Always unplug power cable and other hardware cables from the system before cleaning.

·Apply only dry cloth for cleansing the product.

·Make sure that there is no heat source nearby when the product is working.

·Make sure that the thermal louver of the product is not blocked.

·Make sure to remove the power plug from the product when there is a thunder storm.

·Please remove the power plug from the product when you are not going to use the product for a long

time.

·Make sure to set up or use the product on a stable surface.

·Make sure not to drop the product or strike it by any means.

·Make sure not to move the product when the power is on.

·Make sure not to step on the power cables and other cables or rest anything in them.Be sure to

ground yourself to prevent static charge when installing any internal components. Use a grounding

wrist strap and place all electronic components in any static-shielded devices. Most electronic

components are sensitive to static electrical charge.

·Disconnect the power cord from the Panel PC unit prior to any installation. Be sure both the system

and all external devices are turned off. Sudden surge of power could ruin sensitive components.

Make sure the Panel PC unit is properly grounded. unit

·Do not open the system's back cover. If opening the cover for maintenance is a must, only a trained

technician is allowed to do so. Integrated circuits on computer boards are sensitive to static

electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:

·Before handling a board or integrated circuit, touch an unpainted portion of the system unit chassis

for a few seconds. This will help to discharge any static electricity on human body.

·When handling boards and components, wear a grounding wrist strap available from most electronic

component stores.

·Please contact qualified technician for maintenance or repair.

·Use only accessories and parts that are made by the qualified manufacturer.

TECHNICAL DOCUMENTATION

A56V1_90020_D_EN

User's Notice

software described in it may be reproduced, transmitted or translated into any language in any form or by

any means without written permission of the manufacturer.

This manual contains all information required for the utilization of this product to meet the user's

requirements. But it will change, correct at any time without notice.

Manufacturer provides this manual “as is” without warranty of any kind, and will not be liable for any indirect,

special, incidental or consequential damages (including damages for loss of profit, loss of business, loss of

use of data, interruption of business and the like).

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and they are used only for identification or explanation and to the

owner's benefit, without intent to infringe.

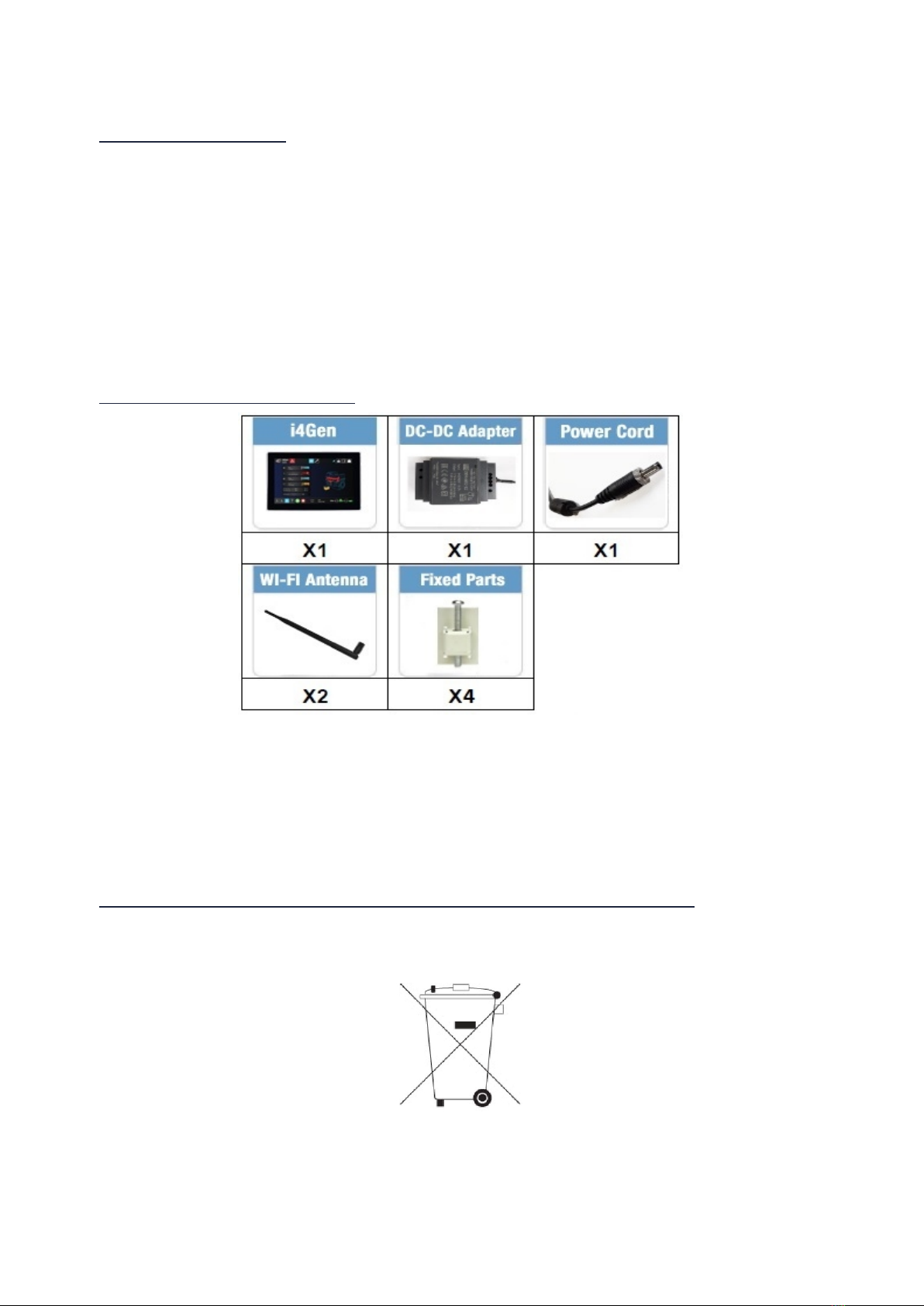

Package Contents

-1x i4Gen

-1x DC-DCAdapter 9 to 36VDC input for 12VDC output

-1x Power cord

-2x WIFI antenna

-4x Cabinet fixed parts

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure

environment protection of mother earth, please recycle.

TECHNICAL DOCUMENTATION

A56V1_90020_D_EN

General Description

·10-point capacitive multi-touch

·Edge-to-edge narrow bezel design and fan-less cooling system

·Designed for easy wall mount, panel mount, and VESA mount installation

·A true flat, easy-to-clean front surface with an edge-to-edge design

·USB 3.0 ports support lock device

·IO ports designed for easy connection

·9...36V DC-input support, with EOS, OVP design

·On-board Intel® Braswell series SoC processor, with low power consumption never denies the high

performance

·On-board 4GB DDR3L 1333Mhz SO-DIMM

·On-board 1 x full-size Mini-PCIE slot

·On-board 1 x M.2 slot (M-key), type-2242 SATA interface for SSD device

·Support 2 x RJ-45 Gigabit LAN port and 1*external RJ-45 COM port

·1x2.4G WIFI module with support for 802.11 b/g/n WIFI communication

Additional Functions

·WiFi: The Mini PCI-E on-board socket in the board is integrated with a WIFI card (802.11 b/g/n) that can

act as a mini wireless modem when external antennas are connected. Different computers in the house

can build wireless connections through the Mini TOPS (Total Operations Processing System) and take

necessary data from it, thus reducing the complexity in network establishment.

·Giga LAN: The system is integrated with Gigabit LAN network controller with ACPI (Advanced

Configuration and Power Interface) management realizing efficient power management for the operating

system.

·USB 3.0: Experience fastest data transfers at 5Gb/s with USB 3.0 the new latest connectivity standard.

Built connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times

faster and backward compatible with previous USB2.0 components.

·CPU usage: The CPU Usage diagram shows a beautiful data curve that indicates a pretty low CPU

usage percentage for video playback of different formats. GPU performances are excellent as well.

·dB value: The design of the system takes into consideration the needed quiet operating environment in

the living room and the average dB value is below 26 under normal operation to ensure the tranquility

when you are absorbed in film watching.

TECHNICAL DOCUMENTATION

A56V1_90020_D_EN

Specifications

Display

Front Bazel IP65, NEMA 4 rugged protection, Full planar metal border

Display Type 10.1'' with LED backlight

Brightness (cd/m²) 400 nits

Display Color 16.2M

Resolution 1280 x 800 @ 60Hz

Viewing Angle (H/V) 170o / 170o

Pixel Pitch 0.1695 x 0.1695 mm

Aspect Ratio 16:10

Contrast Ratio 800:1

Response Time 30 ms

Touch Screen

Type Projected capacitive type

Active Range 257.10 x 159.66mm + 0.2mm

Transparency > 87%

Surface Hardness > 6H (JIS-5400)

Glass Haze Value > 3%

Main CPU Board

CPU Intel® Braswell series SoC CPU

System Memory Onboard 4GB DDR3L 1333MHz SO-DIMM

BIOS AMI 64Mb Flash ROM

TECHNICAL DOCUMENTATION

A56V1_90020_D_EN

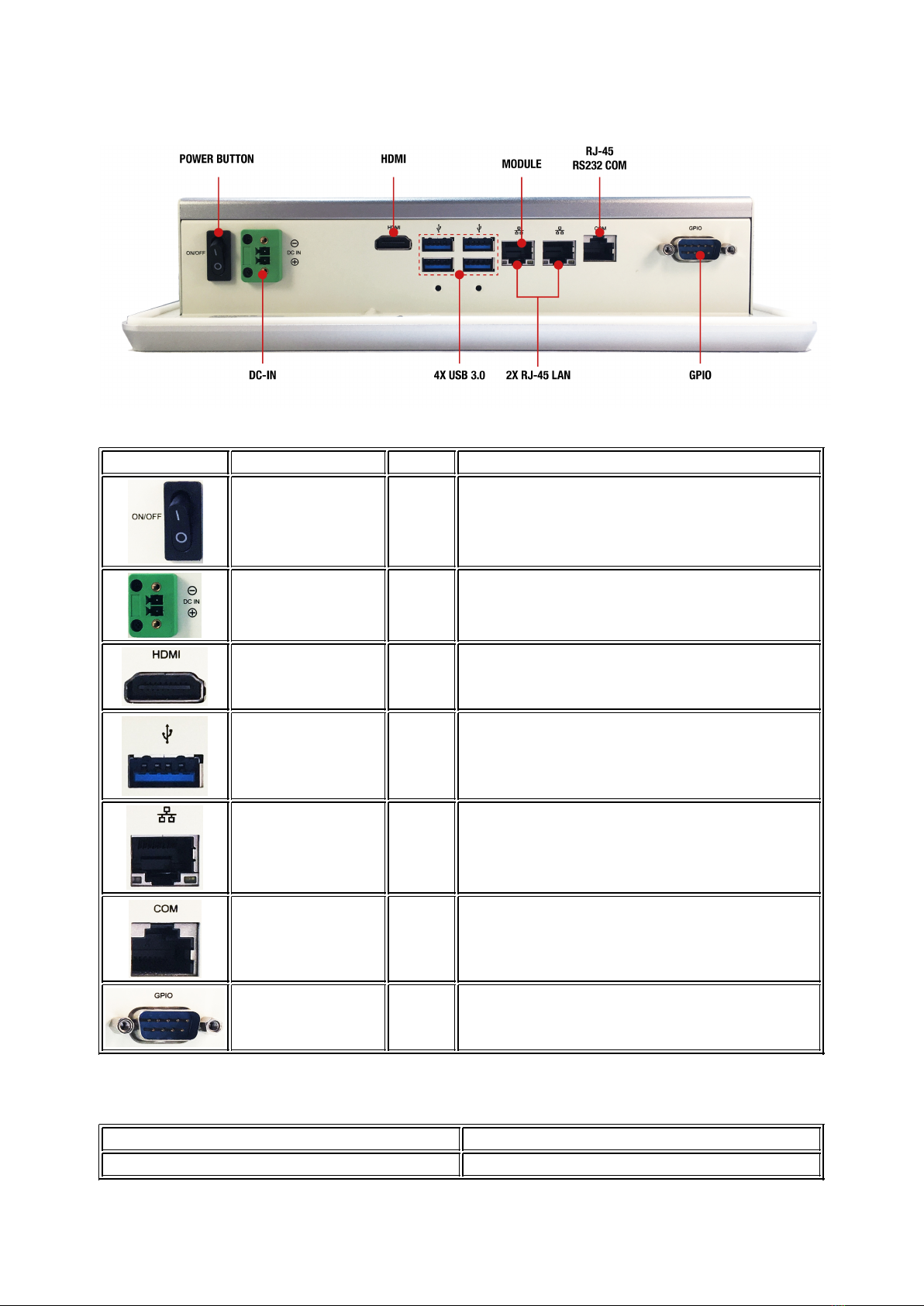

I/O System

Icon Name Quantity Description

Power Button 1 Press to turn on/ off the system.

DC-in Power

Connector 1For user to connect compatible terminal power block

provide power supply for the system.

HDMI Port 1 To connect display device that support HDMI

specification. (Not used).

USB 3.0 Port 4 To connect USB keyboard, mouse or other devices

compatible with USB specification. USB 3.0 ports

supports upto 5Gbps datatransfer rate.

RJ-45 LAN Port 2 This connector is standardRJ- 45 LANjack for

Network

connection.

RJ-45 COM Port 1 This connector is standardRJ- 45 COM jack for serial

console port connection. (Not used).

GPIO

Connector-Male 1This connector is aRJ-45 COM port for console

function. (Not used).

Environment

Operating temperature ranges -10...60°C

Humidity 5% to 80% (Relative Humidity)

TECHNICAL DOCUMENTATION

A56V1_90020_D_EN

Presentation

i4Gen is a customer interface made by CRE to offer users a complete management of new CRE controllers.

The unit hardware is a multi-touch screen color display develop for harsh environment and industrial areas,

providing access to all controller's data for control, measurement and configuration.

Thanks to an embedded TeamViewer© License, it will be possible to access remotely to the i4Gen for

support, remote control or fleet management.

i4Gen License free software provide also the capability for each user to use the interface from any platform

(PC, tablets) in order to configure, customize and program CRE controllers online or offline.

Control and Management

Direct display

i4Gen is able to display information from 1 controller in direct Ethernet connection and shows a basic

overview of the power plant by using controller CANbus data when applicable.

SCADA display

i4Gen can be used as a power plant display if connected on an Ethernet HUB accessing to each controller

with the Modbus TCP network. In SCADA mode the direct display of any of the controller is available and a

SCADA page allows the user to change the displayed controller.

Multi-user display

Several i4Gen can also be securely connected by Ethernet hub a single controller (or a group of

controllers), for redundancy application, multi-level access or long-distance monitoring panel.

Eventsdisplayed/recorded

An innovative feature turns major alarms and faults into 3D graphical object display, to warn operator about

an important event and facilitate immediate diagnosis (ex: coolant tank lights up in red in case of coolant

temp fault or in orange in case of coolant temp alarm).

An event alarm/fault recorder is also available on a dedicated display page, indicating timestamps, status,

acknowledgment, and corresponding variable; the event page can be filtered for diagnosis and investigation

of selected variables.

Compatibility

i4Gen is compatible with these controller versions :

- GENSYS2.0 (starting v5.01). Beware, v5.04 is not supported.

TECHNICAL DOCUMENTATION

A56V1_90020_D_EN

In stallation

Mechanical mounting

Install i4Gen position at eye level and at brightness-less location.

Frame cut-out (hxl): 160x242mm (6.3x9.5in).

Chassis Fixed Parts

1. Insert corresponding edges of the fixed part into the slots until

them matched.Make sure the fix part is installed in the way the

photo shows, with protruding tips upwards.

2. The models that support this fixing mode have pairs of slots

reserved on both sides of the system. User can choose the height or

position of installing spot.

3. Insert corresponding edges of the fixed part into the slots until

them matched. Tightening up the screw so that the fixed part can be

fitted into the slots tightly. Install other fixed parts to the system in

the same way.

TECHNICAL DOCUMENTATION

A56V1_90020_D_EN

USB Device Fixed Parts (Optional)

1. The USB device fixed accessories include Part-A, Part-B and 2 sets of screws of different size.

2. Align the screw hole of Part-A to corresponding screws hole from IO panel of the chassis, and then lock

Part-A to the panel with the bigger screw, as the photo shows.

3. Insert the cable end of USB device you wish to connect to USB port of the chassis, as the photo shows.

4. Insert Part-B into corresponding slot of the Part-A and choose the installing length by adjusting the screw

holes from both parts. Make sure the screw holes from both parts matched and the USB cable fitted into the

reserved slot of Part-B, as the photo shows.

5. Turn over the system on a flat operation platform and lock Part-B to Part-A by tightening the 2 screws in

the marked spots.

6. Fastening the USB device cable by tightening up the other screw in the marked spots.

Autres manuels pour I4GEN

Table des matières

Autres manuels CRE écran tactile

CRE

CRE GENSYS COMPACT PRIME Manuel utilisateur

Manuels écran tactile populaires d'autres marques

Elecro Engineering

Elecro Engineering Poolsmart Plus Instructions d'installation

Johnson Controls

Johnson Controls IQ4 HUB Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET2270L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET1002L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 3201L Manuel utilisateur

Duratec

Duratec S15 Manuel utilisateur

Crestron

Crestron TPMC-3SM Manuel utilisateur

Racelogic

Racelogic MFD Touch Manuel utilisateur

J2 580 Guide de l'utilisateur

HAI

HAI OmniTouch 10p Manuel utilisateur

panel

panel PC PSR108-FM Series Manuel utilisateur

Tipro

Tipro FREE+ Manuel utilisateur

Systemline

Systemline Commander Manuel utilisateur

Interactive Technologies

Interactive Technologies Insite Manuel utilisateur

GVision

GVision Legacy Manuel utilisateur

BeiJer

BeiJer T21C-C24 Manuel utilisateur

Advantech

Advantech ITM-5117 Series Manuel utilisateur

Edge

Edge CS Manuel utilisateur
