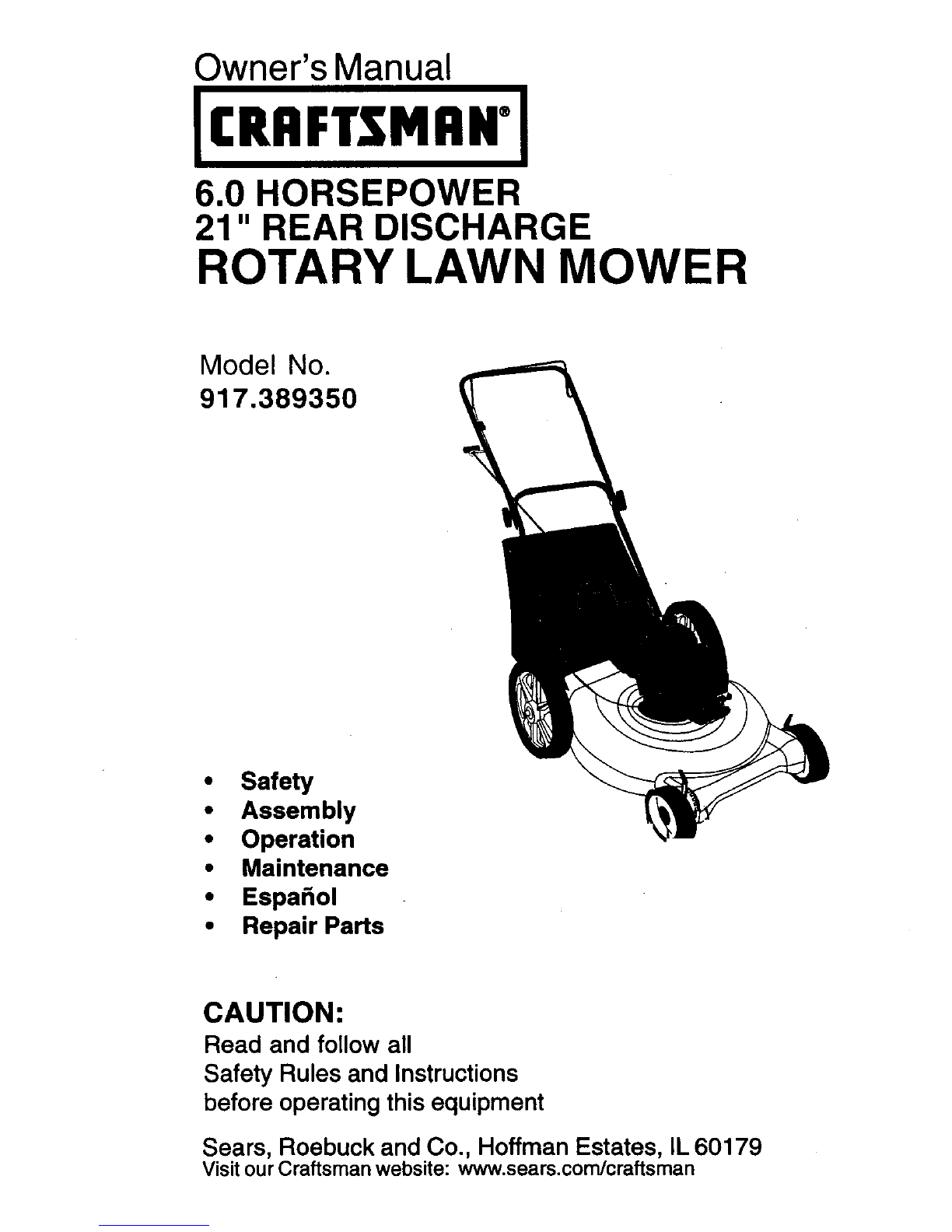

Owner's Manual

[CRIIFTSMRN*I

6.0 HORSEPOWER

21" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.389350

• Safety

• Assembly

• Operation

•Maintenance

• Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Seam, Roebuck and Co., Hoffman Estates, IL 60179

VisitourCraftsmanwebsite:www.sears.com/craftsman

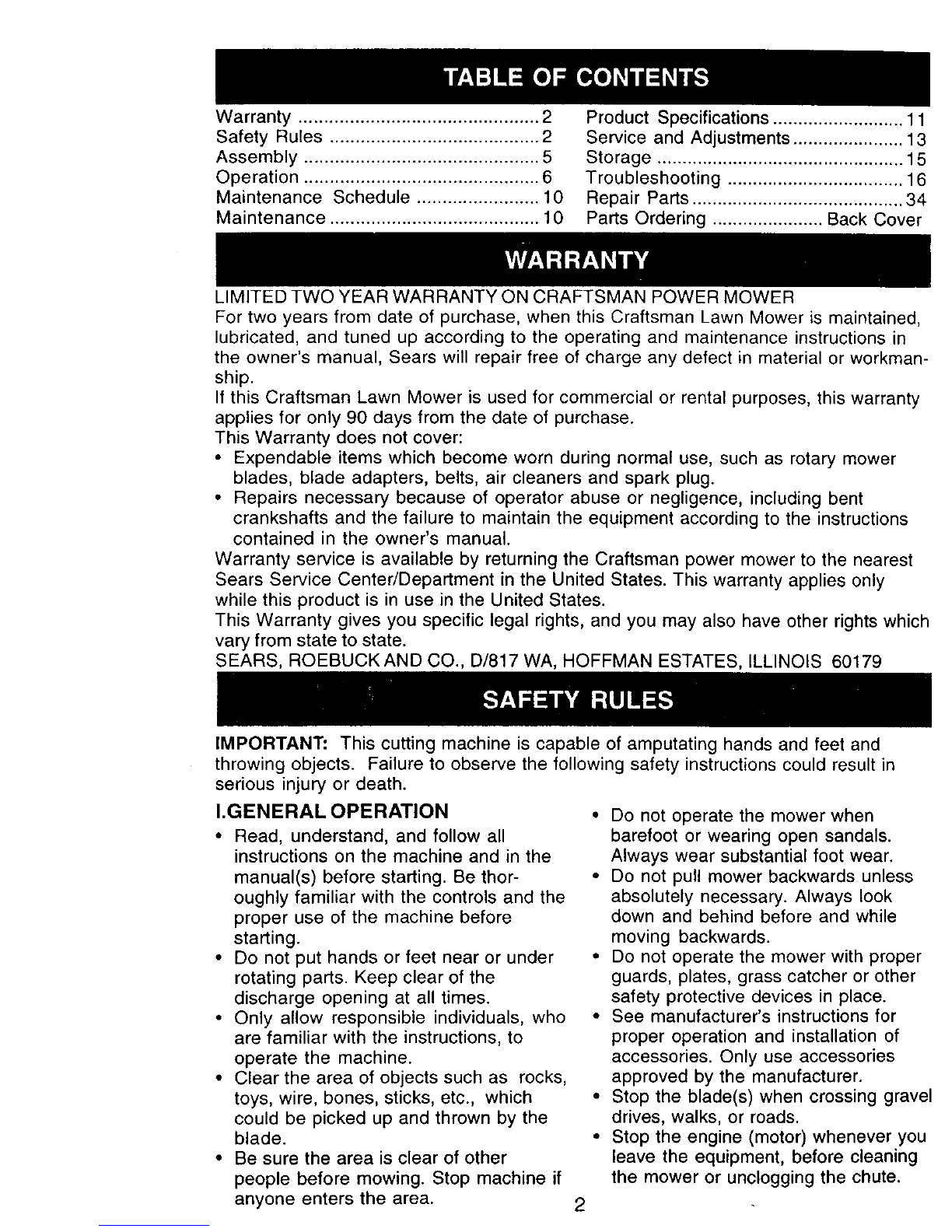

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 5

Operation .............................................. 6

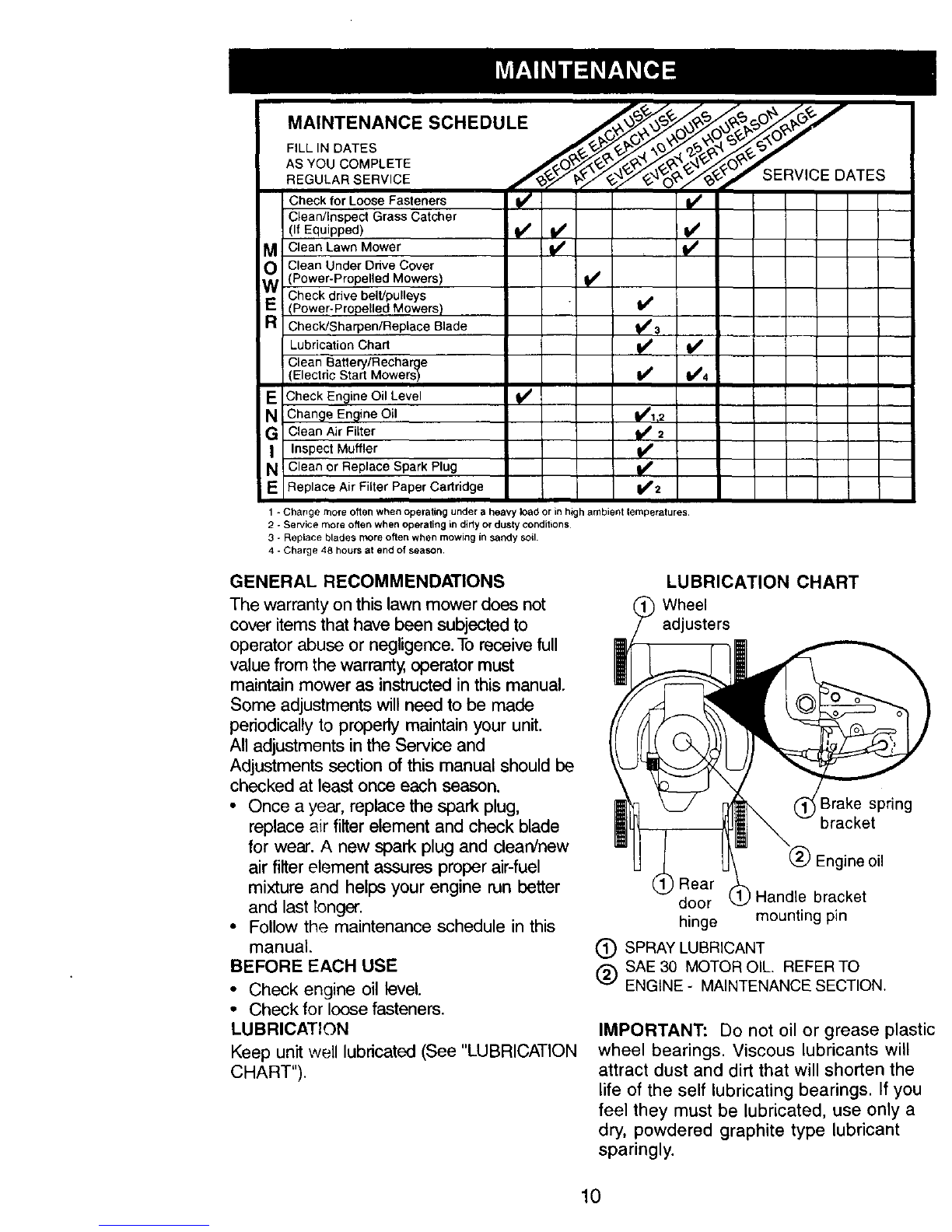

Maintenance Schedule ........................ 10

Maintenance ......................................... 10

Product Specifications .......................... 11

Service and Adjustments ...................... 13

Storage ................................................. 15

Troubleshooting ................................... 16

Repair Parts .......................................... 34

Parts Ordering ...................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, iLLINOIS 60179

IMPORTANT." This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I.GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and the

proper use of the machine before

starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

• Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which

could be picked up and thrown by the

blade.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area. 2

•Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

• Do not operate the mower with proper

guards, plates, grass catcher or other

safety protective devices in place.

• See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

• Stop the blade(s) when crossing gravel

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

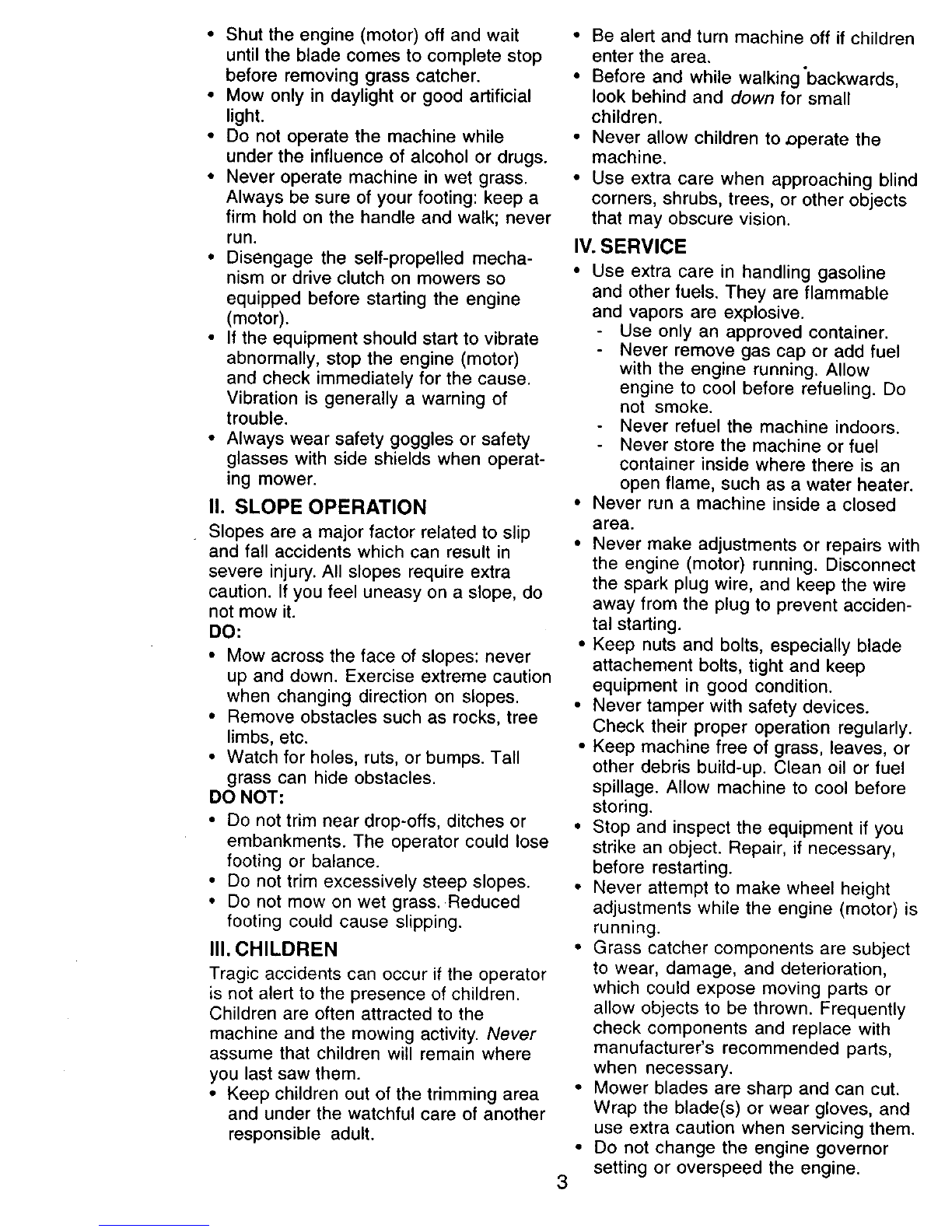

•Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

•Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

• Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

• Always wear safety goggles or safety

glasses with side shields when operat-

ing mower.

II. SLOPE OPERATION

• Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

II1.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking'backwards,

look behind and down for small

children.

• Never allow children to _operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent acciden-

tal starting.

• Keep nuts and bolts, especially blade

attachement bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Do not change the engine governor

setting or overspeed the engine.

&Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERTH! YOUR

SAFETYISINVOLVED.

& CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

&WARNING: Engine exhaust,some of its

constituents, and certain vehicle

components contain or emit chemicals

knownto the State of Californiato cause

cancer and birth defectsor other

reproductive harm.

&WARNING: Battery posts,terminalsand

related accessories contain lead and

lead compounds, chemicals knownto the

State of Californiato causecancer and

birth defectsor other reproductiveharm.

Wash hands after handling.

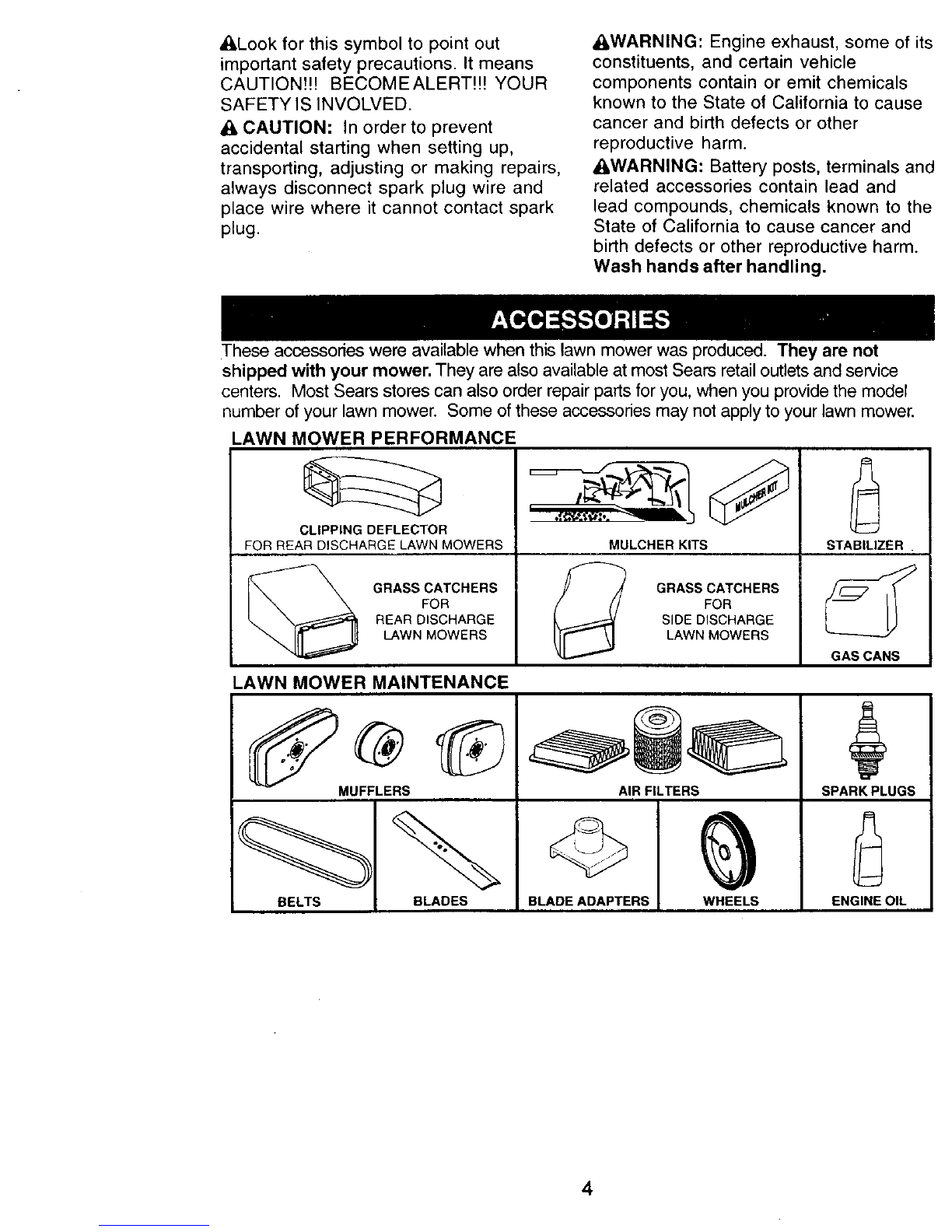

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

r..i"_'-*-f"t °. _ -_

MULCHER KITS

@GRASS CATCHERS _GRASS CATCHERS

FOR FOR

REAR DISCHARGE SIDE DISCHARGE

LAWN MOWERS LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS SPARK PLUGS

STABILIZER

GAS CANS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

ENGINE OIL

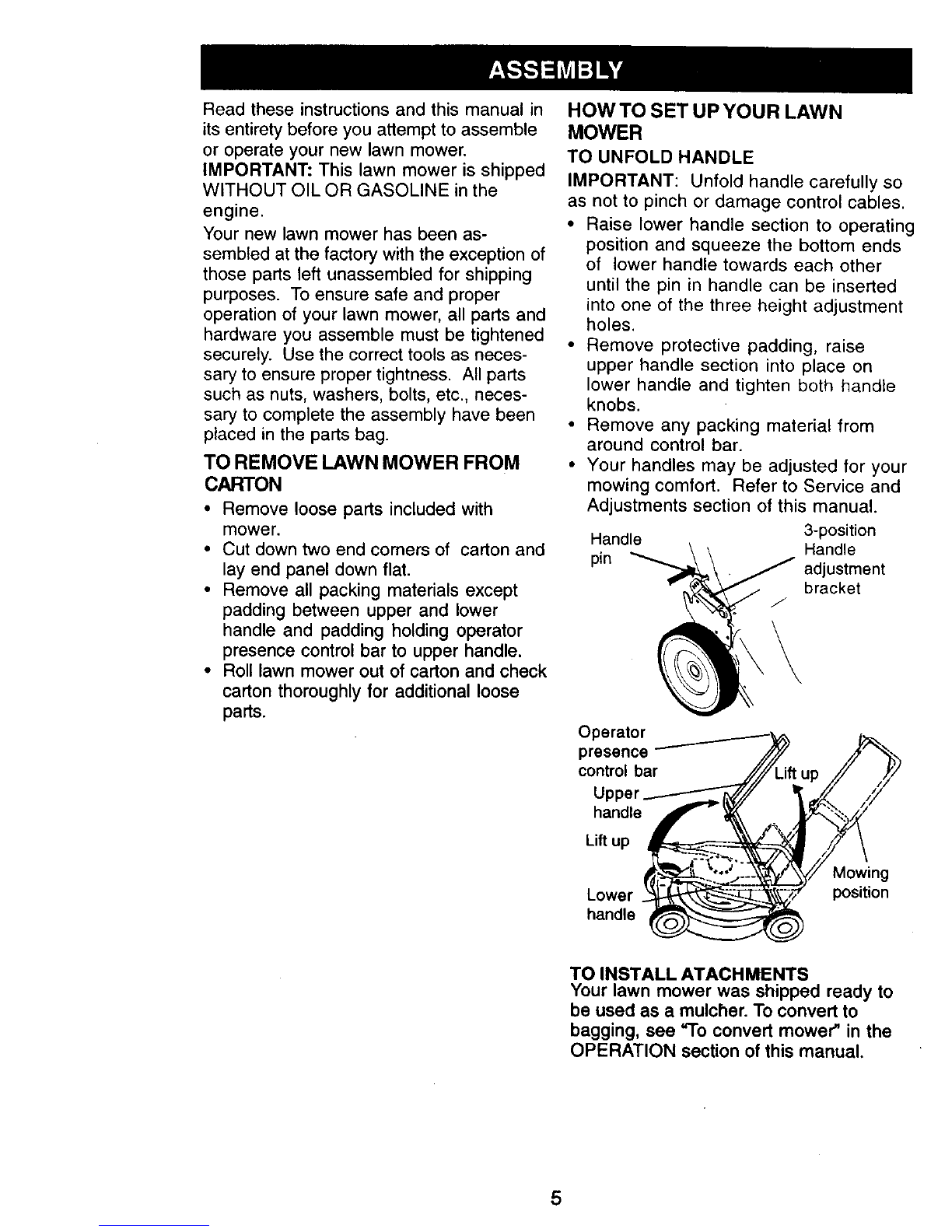

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those parts left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

•Remove loose parts included with

mower.

• Cut down two end comers of carton and

lay end panel down flat.

• Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

• Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

• Raise lower handle section to operating

position and squeeze the bottom ends

of lower handle towards each other

until the pin in handle can be inserted

into one of the three height adjustment

holes.

• Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

• Remove any packing material from

around control bar.

• Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Handle 3-position

Handle

pin adjustment

bracket

Operator

presence

control bar

handle

Li_ up

Lower

handle

Mowing

position

TO INSTALL ATACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging, see "To convert mower" in the

OPERATION section of this manual.

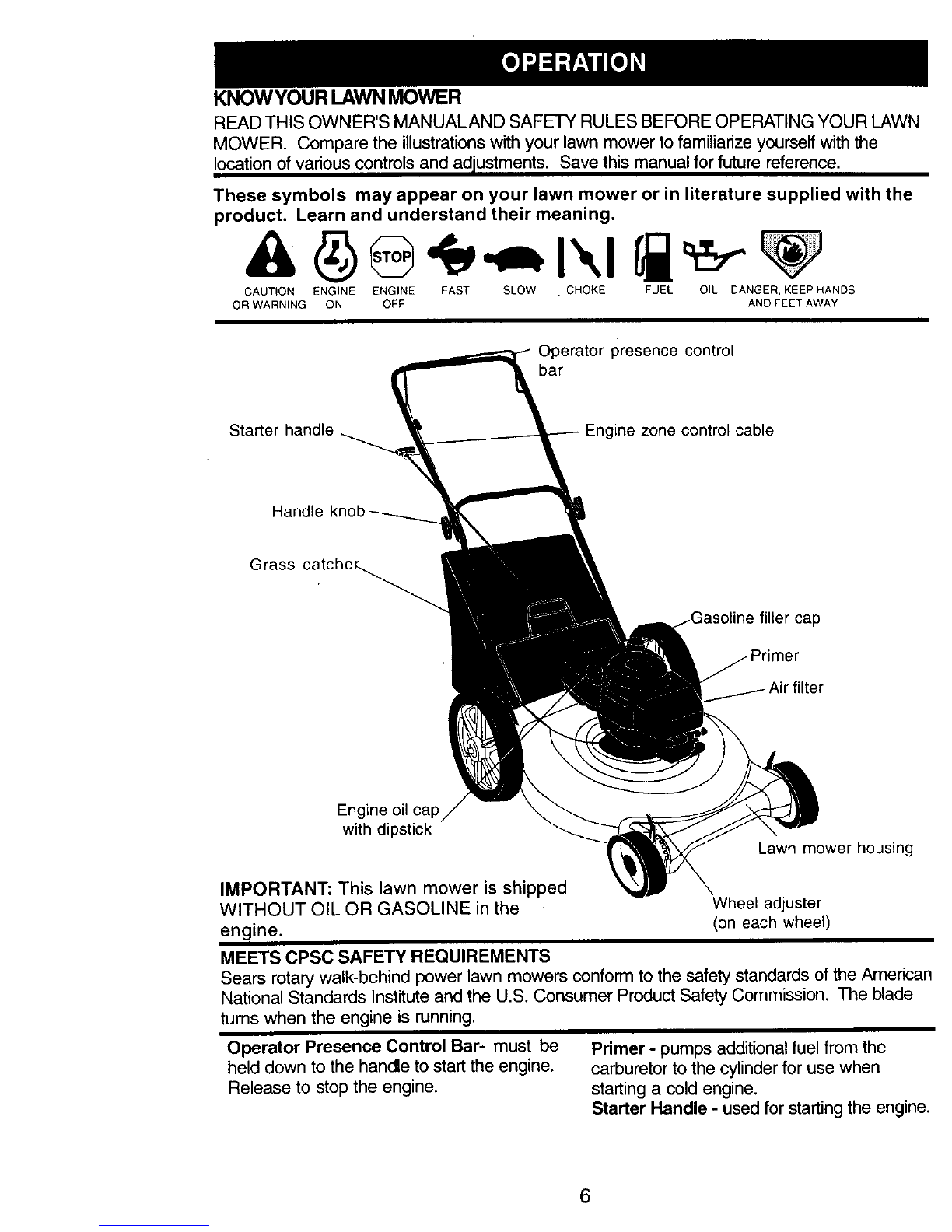

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control

bar

Starter handle ine zone control cable

Handle

filler cap

Engine oil cap

with dipstick Lawn mower housing

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Wheel adjuster

(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American

National Standards Institute and the U.S. Consumer Product Safety Commission. The blade

tums when the engine is running.

Operator Presence Control Bar- must be

held down to the handle to start the engine.

Release to stop the engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter Handle - used for starting the engine.

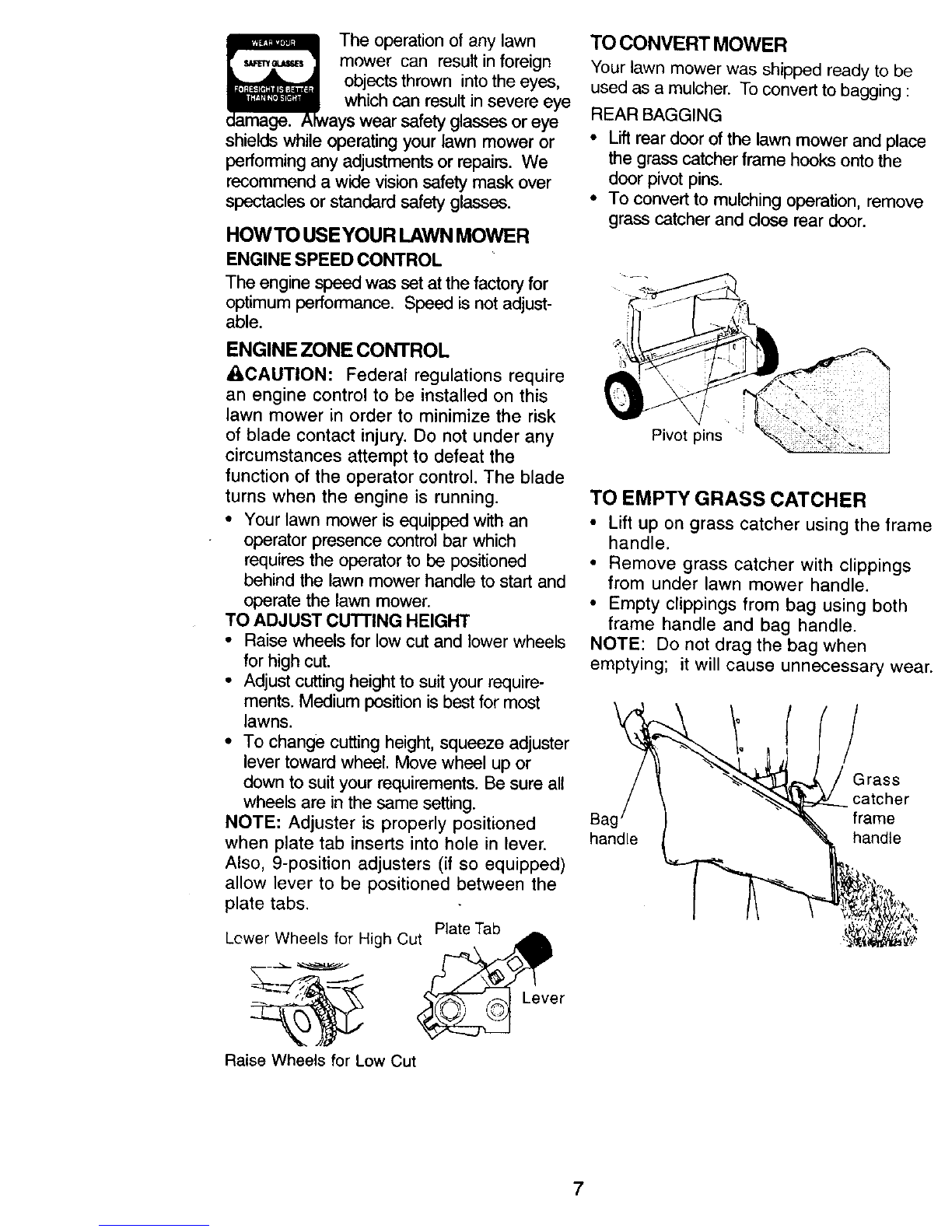

The operation of any lawn

mower can result in foreign

objects thrown into the eyes,

which can result in severe eye

ays wear safety glasses or eye

shields while operating your lawn mower or

performing any adjustments or repairs We

recommend a wide vision safety mask over

spectacles or standard safety glasses

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED CONTROL

The engine speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

=0ACAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower isequipped with an

operator presence controlbar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CUTTING HEIGHT

• Raise wheels for low cut and lower wheels

for highcut.

• Adjust cuttingheight to suit your require-

ments. Medium positionis bestfor most

lawns.

•To change cuttingheight, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs

Cut Plate Tab A

Lcwer Wheels for High t\ _

_=_:-__ _e r

Raise Wheels for Low Cut

TO CONVERT MOWER

Your lawn mower was shipped ready to be

used as a mulcher. To convertto bagging :

REAR BAGGING

• Lift rear door of the lawn mower and place

the grass catcher frame hooks onto the

door pivot pins

• To convert to mulching operation, remove

grass catcher and close rear door

Pivot pins

TO EMPTY GRASS CATCHER

•Lift up on grass catcher using the frame

handle.

•Remove grass catcher with clippings

from under lawn mower handle.

• Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Bac

handle

/Grass

catcher

frame

handle

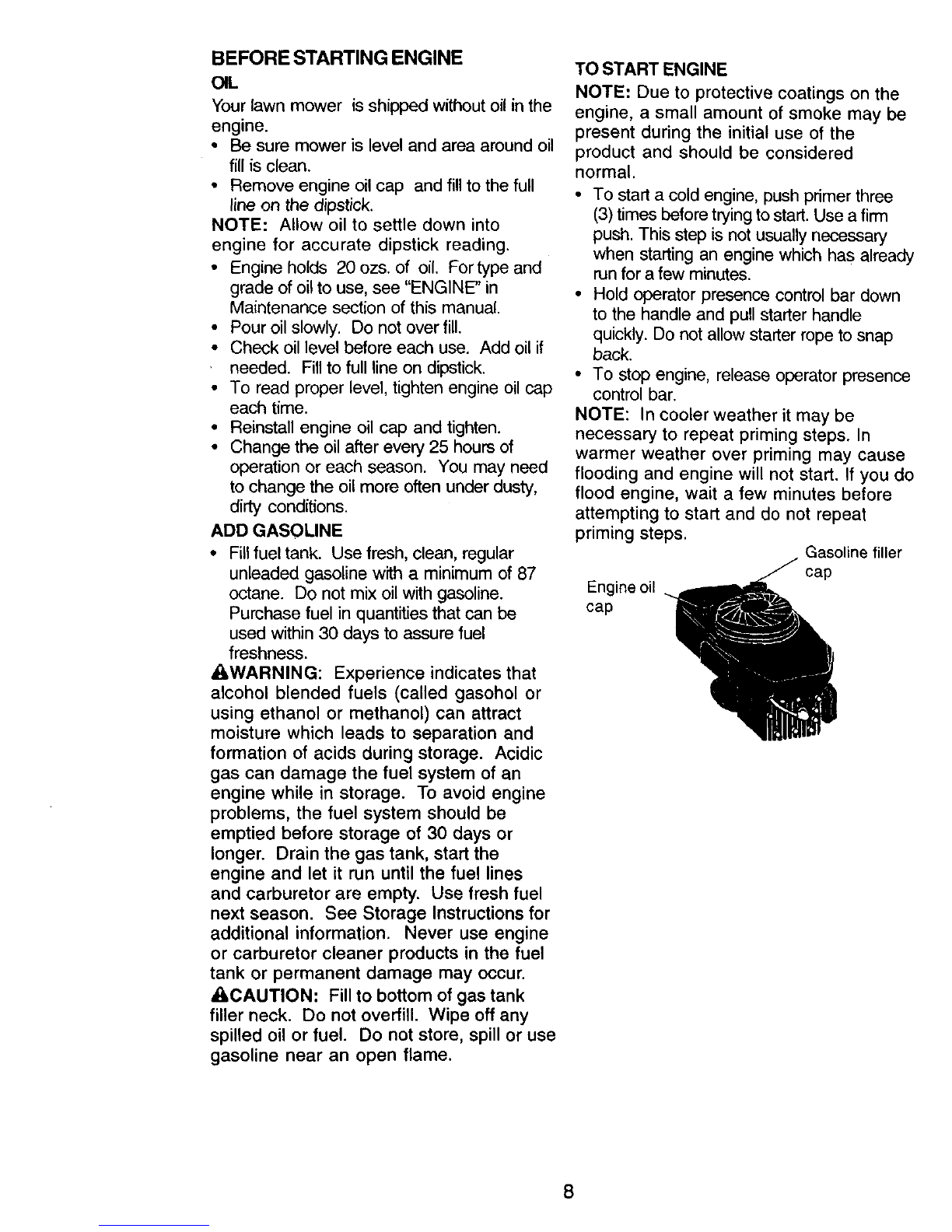

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

•Be sure mower is level and area around oil

fill is clean.

• Remove engine oil cap and fill to the full

line on the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

• Engine holds 20 ozs. of oil. For type and

grade of oil to use, see "ENGINE" in

Maintenance section of this manual.

• Pour oil slowly. Do not over fill.

• Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

• To read proper level, tighten engine oil cap

each time.

• Reinstall engine oil cap and tighten.

• Change the oil after every 25 hours of

operation or each season. You may need

to change the oil more often under dusty,

dirty conditions.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel

freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

ACAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

• To start a cold engine, push primer three

(3) times before trying to start. Use a firm

push. This step is not usually necessary

when starting an engine which has already

run for a few minutes.

• Hold operator presence control bar down

to the handle and pull starter handle

quickly. Do not allow starter rope to snap

back.

• To stop engine, release operator presence

control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you do

flood engine, wait a few minutes before

attempting to start and do not repeat

priming steps. Gasoline filler

cap

Engine oil

cap

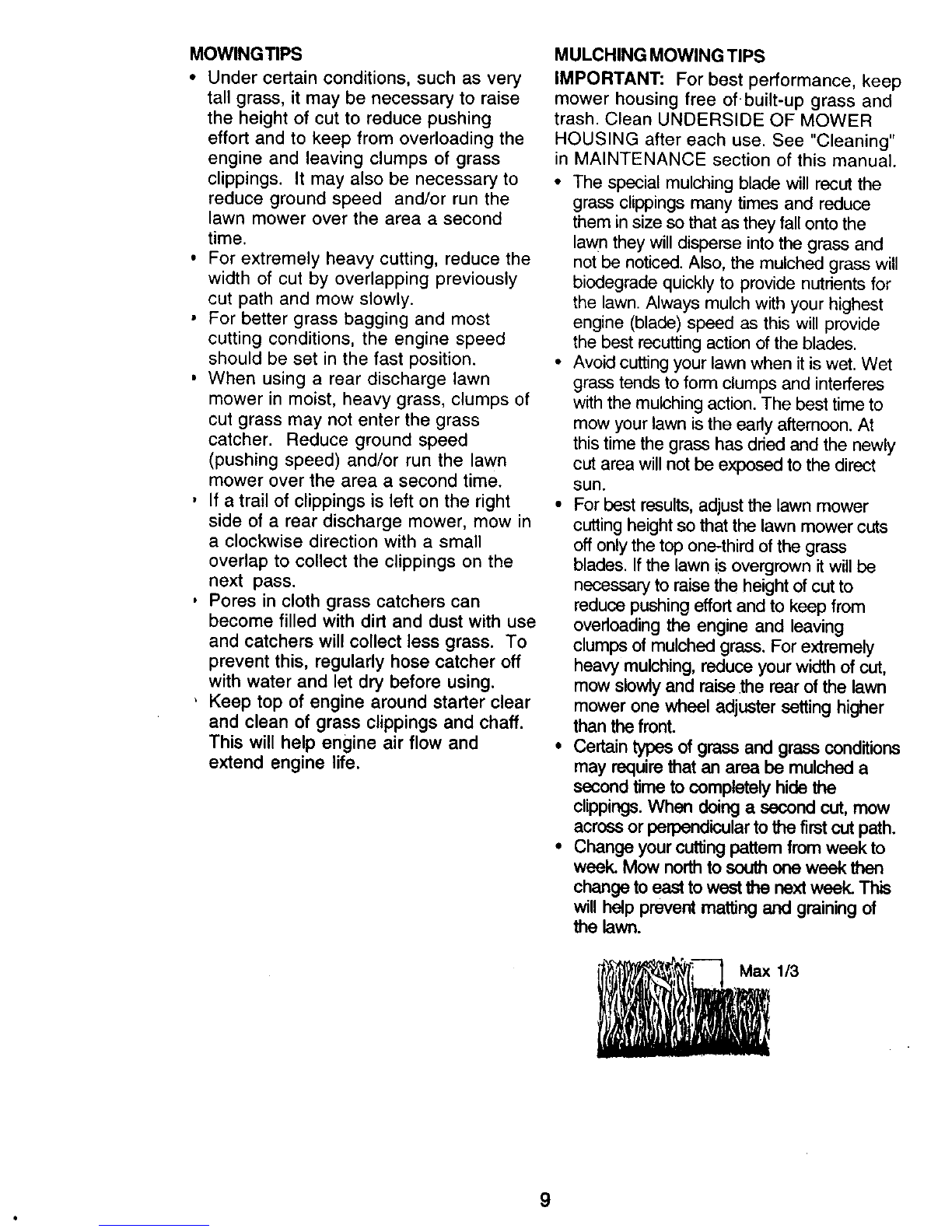

MOWINGTIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

, When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

, If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

overlap to collect the clippings on the

next pass.

, Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

,Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of.built-up grass and

trash. Clean UNDERSIDE OF MOWER

HOUSING after each use. See "Cleaning"

in MAINTENANCE section of this manual.

•The special mulching blade will recut the

grass clippingsmany times and reduce

them in size so that as they fall onto the

lawn they willdisperse intothe grass and

not be noticed.Also, the mulched grass will

biodegrade quicklyto provide nutrientsfor

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recuttingactionof the blades.

•Avoid cuttingyour lawn when itiswet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn isthe early afternoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

• For best results, adjust the lawn mower

cutting height so that the lawn mower cuts

off only the top one-third of the grass

blades. If the lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width of cut,

mow slowly and raise the rear of the lawn

mower one wheel adjuster setting higher

than the front.

• Certain types of grass and grass conditions

may require that an area be mulched a

second time to completely hide the

clippings.When doing a second cut, mow

across or perpendicularto the firstcut path.

• Change your cuttingpattem fromweek to

week. Mow northto south one week then

change to east to west the nextweek. This

will help prevent matting and graining of

thelawn.

MAINTENANCE SCHEDULE _,_, _ ./_ ./_ _-0_/'/_'/

AS YOU COMPLETE

REGULAR SERVICE _._/_/S ERVIC E TES

Check for Loose Fasteners _'

Clean/Inspect Grass Catcher

(If Equipped) i_ _4 _ I_

MClean Lawn Mower

Clean Under Dhve Cover

(Power-Propelled Mowers)

W Check drive belt/pulleys

(Power- Propelled Mowers) IP#

a Check/SharpenlReplace Blade _3

Lubrication Chart If

Clean Battery/Recharge

(Electric Start Mowers) I_ 1_4

NE Check Engine Oil Level _#'

Change Engine Oil i_'r,2

IG Clean Air Filter _# 2

Inspect Muffler

N Clean or Replace Spark Plug

Replace Air Filter Paper Cartridge 1_2

1 - Change more often when operating under a heavy load or in high ambient lemperatures

2 - Service more often when operating in ditty or dusty conditions¸

3 - Replace blades more o_en when mowing in sandy soil.

4 - Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive full

value from the warranty, operator must

maintain mower as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should be

checked at least once each season.

• Once a year, replace the spark plug,

replace air filter element and check blade

for wear. A new spark plug and clean/new

air filter element assures proper air-fuel

mixture and helps your engine run better

and last longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION

CHART").

LUBRICATION CHART

Wheel

adjusters

3rake spring

bracket

(_ Engine oil

Rear

door ) Handle bracket

hinge mounting pin

1_) SPRAY LUBRICANT

(_) SAE 30 MOTOR OIL. REFER TO

ENGINE - MAINTENANCE SECTION.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will

attract dust and dirt that will shorten the

life of the self lubricating bearings. If you

feel they must be lubricated, use only a

dry, powdered graphite type lubricant

sparingly.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.374355 Manuel utilisateur

Craftsman

Craftsman 917.273374 Manuel utilisateur

Craftsman

Craftsman 917.272281 Manuel utilisateur

Craftsman

Craftsman 917.275680 Manuel utilisateur

Craftsman

Craftsman 917.276221 Manuel utilisateur

Craftsman

Craftsman 917.273101 Manuel utilisateur

Craftsman

Craftsman 27732 Manuel utilisateur

Craftsman

Craftsman 917.389270 Manuel utilisateur

Craftsman

Craftsman EZ3 917.376272 Manuel utilisateur

Craftsman

Craftsman 917.376802 Manuel utilisateur

Craftsman

Craftsman 247.388240 Manuel utilisateur

Craftsman

Craftsman 917.28856 Manuel utilisateur

Craftsman

Craftsman 917.276013 Manuel utilisateur

Craftsman

Craftsman 944.365220 Manuel utilisateur

Craftsman

Craftsman Professional 917.374120 Manuel utilisateur

Craftsman

Craftsman 917.376053 Manuel utilisateur

Craftsman

Craftsman 16 HP ELECTRIC START 42" MOWER 6 SPEED TRANSAXLE LAWN TRACTOR... Manuel utilisateur

Craftsman

Craftsman 917.371780 Manuel utilisateur

Craftsman

Craftsman 917.271631 Manuel utilisateur

Craftsman

Craftsman 917.378990 Manuel utilisateur

Craftsman

Craftsman 917.273648 Manuel utilisateur

Craftsman

Craftsman 917.377423 Manuel utilisateur

Craftsman

Craftsman 917.374101 Manuel utilisateur

Craftsman

Craftsman 944.364230 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
