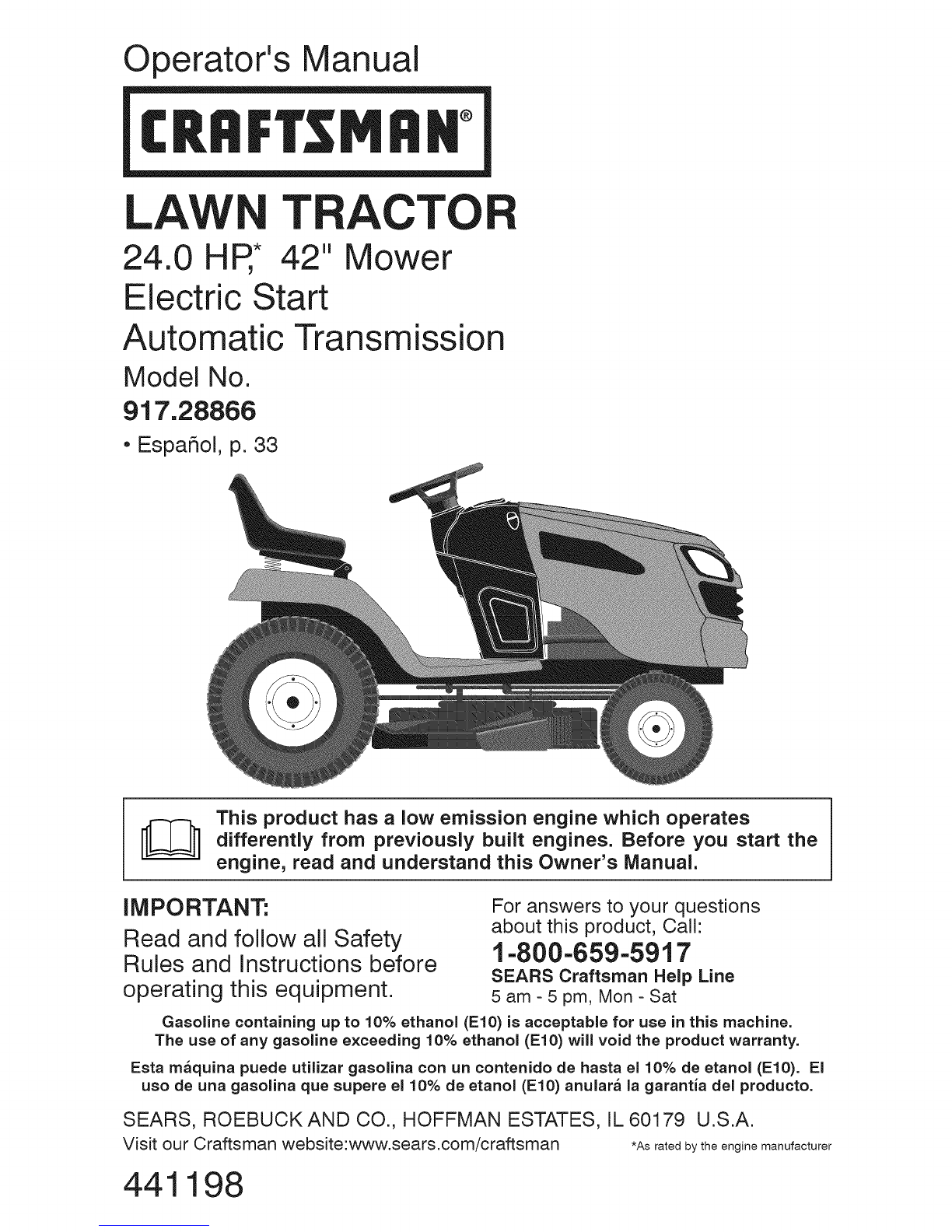

Operator's Manual 1

LAW

24.0 HR* TRACTO

42" Mower

Electric Start

Automatic Transmission

Model No.

917.28866

• Espafiol, p. 33

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

SEARS Craftsman Help Line

5 am - 5 pro, Mon - Sat

Gasoline containing up to 10% ethanol (EIO) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (EIO) will void the product warranty.

Esta maquina puede utilizar gasolina con un contenido de hasta el 10% de etanol (EIO). El

uso de una gasolina que supere el 10% de etanol (EIO) anular_ la garantia del producto.

SEARS, ROEBUCKAND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman *As rated by the engine manufacturer

441198

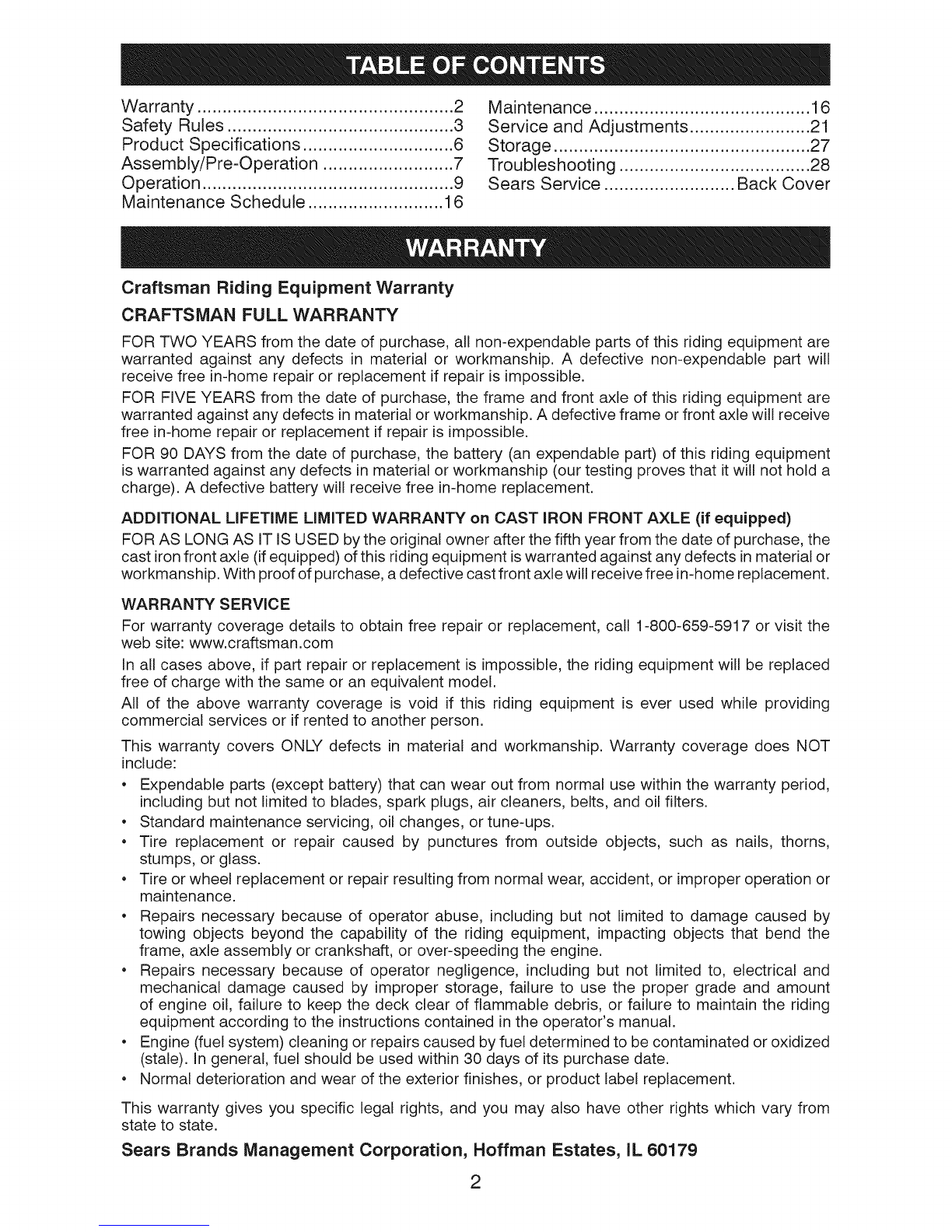

Warranty ................................................... 2

Safety Rules ............................................. 3

Product Specifications .............................. 6

Assembly/Pre-Operation .......................... 7

Operation .................................................. 9

Maintenance Schedule ........................... 16

Maintenance ........................................... 16

Service and Adjustments ........................ 21

Storage ................................................... 27

Troubleshooting ...................................... 28

Sears Service .......................... Back Cover

Craftsman Riding Equipment Warranty

CRAFTSMAN FULL WARRANTY

FOR TWO YEARS from the date of purchase, all non-expendable parts of this riding equipment are

warranted against any defects in material or workmanship. A defective non-expendable part will

receive free in-home repair or replacement if repair is impossible.

FOR FIVE YEARS from the date of purchase, the frame and front axle of this riding equipment are

warranted against any defects in material or workmanship. A defective frame or front axle will receive

free in-home repair or replacement if repair is impossible.

FOR 90 DAYS from the date of purchase, the battery (an expendable part) of this riding equipment

is warranted against any defects in material or workmanship (our testing proves that it will not hold a

charge). A defective battery will receive free in-home replacement.

ADDITIONAL LIFETIME LIMITED WARRANTY on CAST IRON FRONT AXLE (if equipped)

FOR AS LONG AS IT IS USED bythe original owner after the fifth year from the date of purchase, the

cast iron front axle (if equipped) of this riding equipment is warranted against any defects in material or

workmanship. With proof of purchase, a defective cast front axle will receive free in-home replacement.

WARRANTY SERVICE

For warranty coverage details to obtain free repair or replacement, call 1-800-659-5917 or visit the

web site: www.craftsman.com

In all cases above, if part repair or replacement is impossible, the riding equipment will be replaced

free of charge with the same or an equivalent model.

All of the above warranty coverage is void if this riding equipment is ever used while providing

commercial services or if rented to another person.

This warranty covers ONLY defects in material and workmanship. Warranty coverage does NOT

include:

• Expendable parts (except battery) that can wear out from normal use within the warranty period,

including but not limited to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard maintenance servicing, oil changes, or tune-ups.

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns,

stumps, or glass.

• Tire or wheel replacement or repair resulting from normal wear, accident, or improper operation or

maintenance.

• Repairs necessary because of operator abuse, including but not limited to damage caused by

towing objects beyond the capability of the riding equipment, impacting objects that bend the

frame, axle assembly or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, electrical and

mechanical damage caused by improper storage, failure to use the proper grade and amount

of engine oil, failure to keep the deck clear of flammable debris, or failure to maintain the riding

equipment according to the instructions contained in the operator's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized

(stale). In general, fuel should be used within 30 days of its purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

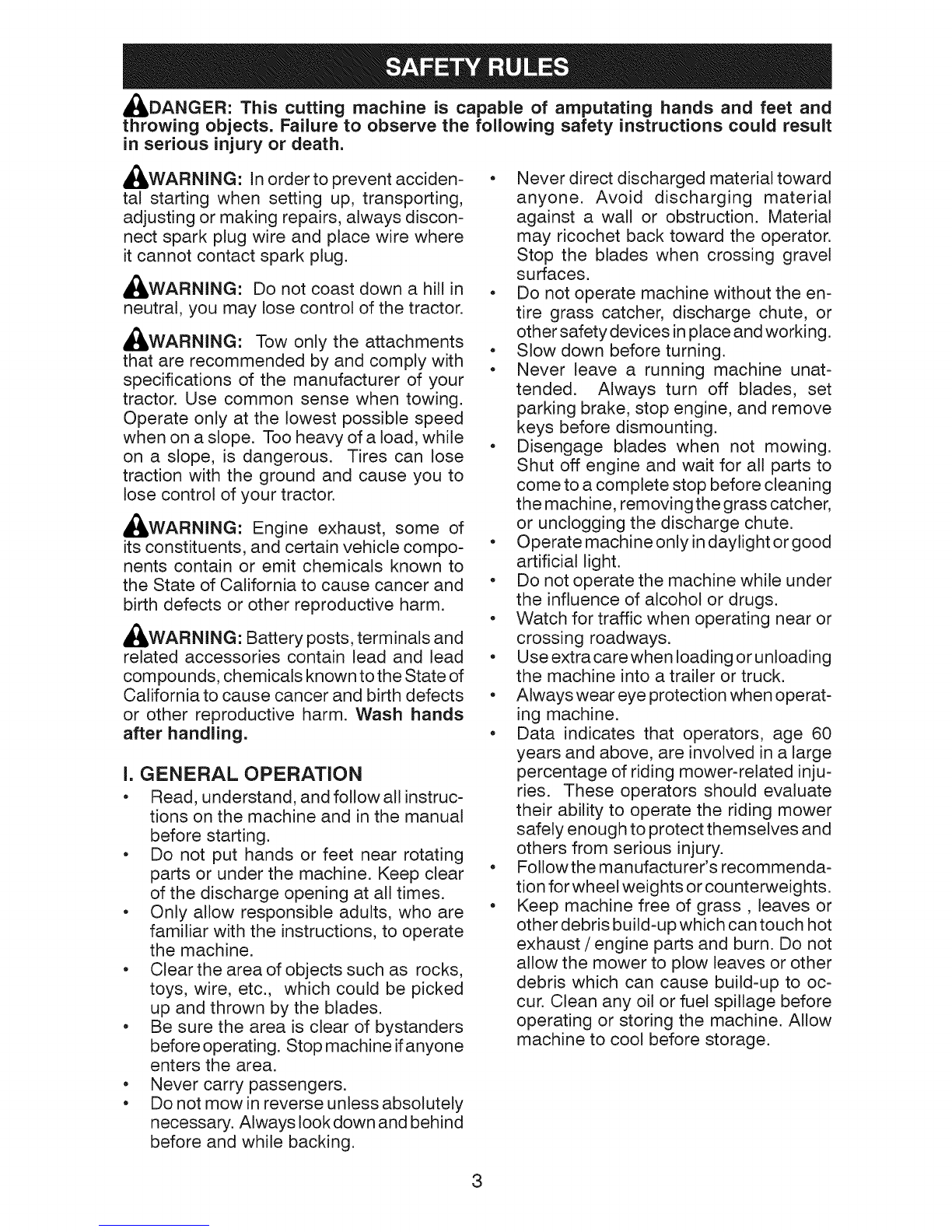

_DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

_I, WARNING: In orderto prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs, always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

_,WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_I, WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on a slope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_I, WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

• Read, understand, and followall instruc-

tions on the machine and in the manual

before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blades.

• Be sure the area is clear of bystanders

before operating. Stop machine ifanyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never direct discharged materialtoward

anyone. Avoid discharging material

against a wall or obstruction. Material

may ricochet back toward the operator.

Stop the blades when crossing gravel

surfaces.

• Do not operate machine without the en-

tire grass catcher, discharge chute, or

other safety devices in place and working.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before cleaning

the machine, removing the grass catcher,

or unclogging the discharge chute.

• Operate machine only in daylight or good

artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unloading

the machine into a trailer or truck.

• AIways wear eye protection when operat-

ing machine.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Followthemanufacturer'srecommenda-

tion for wheel weights or counterweights.

• Keep machine free of grass, leaves or

other debris build-up which can touch hot

exhaust /engine parts and burn. Do not

allow the mower to plow leaves or other

debris which can cause build-up to oc-

cur. Clean any oil or fuel spillage before

operating or storing the machine. Allow

machine to cool before storage.

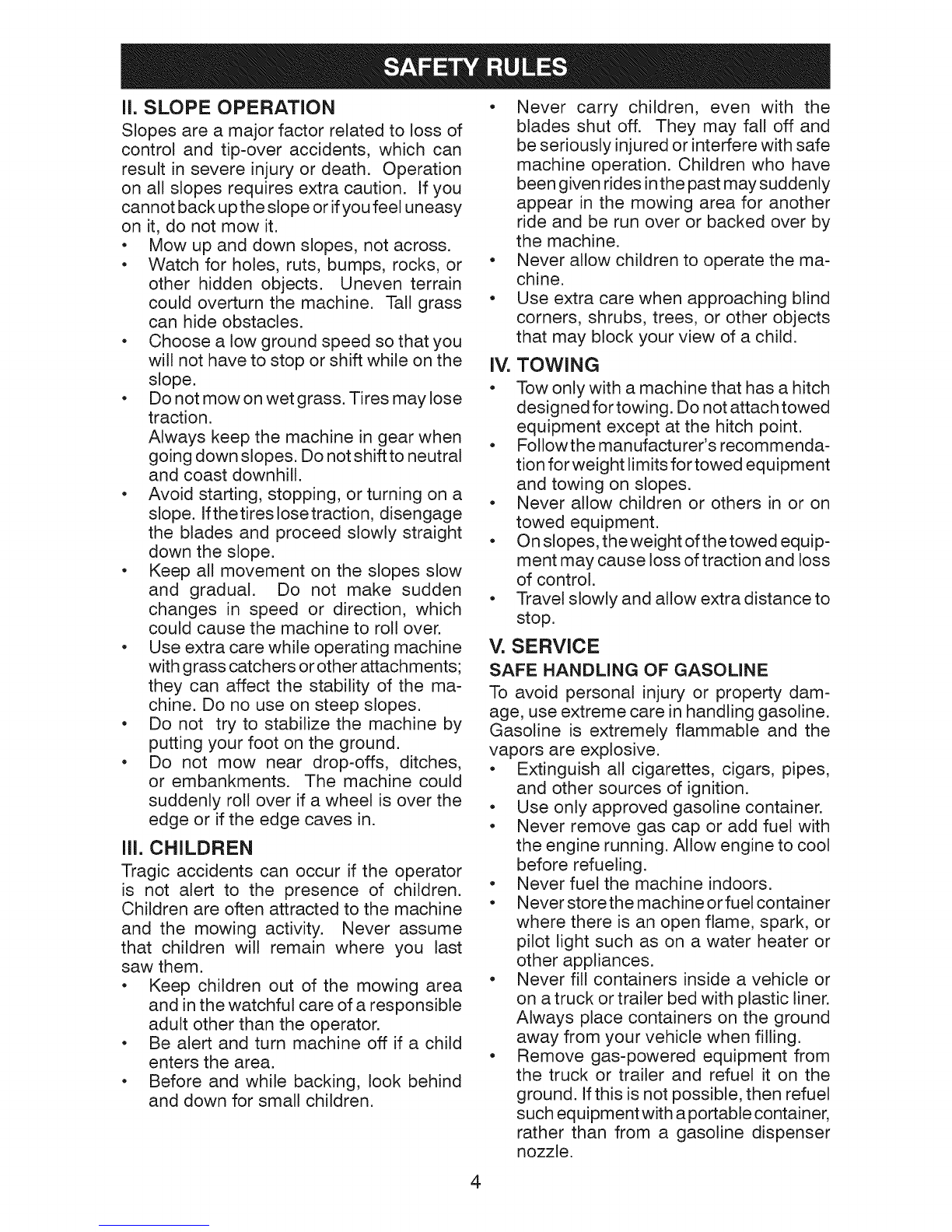

li. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

cannot back up the slope or if you feel uneasy

on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

• Do not mow on wet grass. Tires may lose

traction.

Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill.

• Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability of the ma-

chine. Do no use on steep slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

Iii. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with safe

machine operation. Children who have

been given rides inthe past may suddenly

appear in the mowing area for another

ride and be run over or backed over by

the machine.

• Never allow children to operate the ma-

chine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

• Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

• Followthemanufacturer'srecommenda-

tion for weight limits for towed equipment

and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, theweight ofthetowed equip-

ment may cause loss of traction and loss

of control.

• Travel slowly and allow extra distance to

stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

• Never fuel the machine indoors.

• Neverstorethe machine orfuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

• Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then refuel

such equipment with a portable container,

rather than from a gasoline dispenser

nozzle.

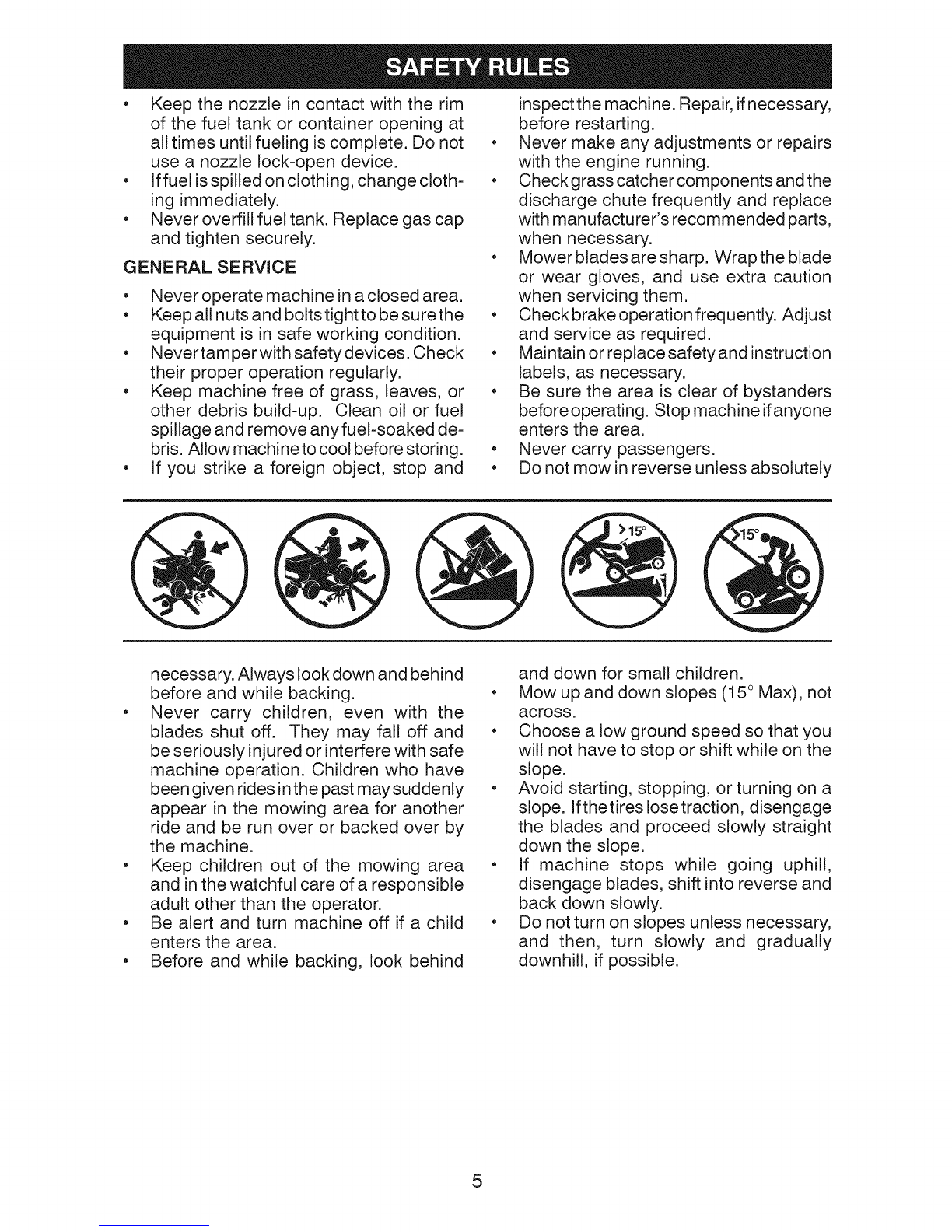

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do not

use a nozzle lock-open device.

• Iffuel is spilled on clothing, change cloth-

ing immediately.

• Never overfill fuel tank. Replace gas cap

and tighten securely.

GENERAL SERVICE

• Never operate machine in aclosed area.

• Keep all nuts and bolts tight to be surethe

equipment is in safe working condition.

• Nevertamperwithsafetydevices.Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked de-

bris. Allow machine to cool before storing.

• If you strike a foreign object, stop and

inspectthe machine. Repair, if necessary,

before restarting.

• Never make any adjustments or repairs

with the engine running.

• Checkgrasscatchercomponentsandthe

discharge chute frequently and replace

with manufacturer's recommended parts,

when necessary.

• Mower blades are sharp. Wrap the blade

or wear gloves, and use extra caution

when servicing them.

• Check brake operation frequently. Adjust

and service as required.

• Maintain orreplacesafetyand instruction

labels, as necessary.

• Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with safe

machine operation. Children who have

been given rides in the past may suddenly

appear in the mowing area for another

ride and be run over or backed over by

the machine.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

• Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

• Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 3.0 Gallons

and Type: Unleaded Regular

Oil Type: SAE 30 (above 32°F)

API-SG-SL) SAE 5W30 (below 32°F

Oil Capacity: W/Filter: 64 oz.

W/O Filter: 60 oz.

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed Forward: 0 - 5.2

Reverse: 0 - 2.9

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained repre-

sentatives and the proper tools to service

or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining,

caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: Thistractor is equipped with

an internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass-covered

land unless the engine's exhaust system is

equipped with a spark arrester meeting ap-

plicable local or state laws (if any). If a spark

arrester is used, it should be maintained in

effective working order by the operator.

In the state of California the above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 professional

repair specialists.

• Unlimited service and nochargefor parts

and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10% off

regular price of preventive maintenance

check.

• Fast help by phone - phone support

from a Sears representative on products

requiring in-home repair, plus convenient

repair scheduling.

Once you purchase the Agreement, a simple

phone call is all that it takes for you to sched-

ule service. You can call anytime day or night,

or schedule a service appointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories. That's

the kind of professionalism you can count on

to help prolong the life of your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME®

Slope Sheet

Keys

(2) Keys

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes.

TOOLS REQUIRED FOR ASSEMBLY .f

A socket wrench set will make assembly

easier. Standard wrench sizes are listed.

(1) 1/2" wrench Tire pressure gauge

(2) 7/16" wrenches Utility knife

Pliers

When right or left hand is mentioned in this

manual, itmeans when you are inthe operating

position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and

parts cartons from carton.

• Cut along dotted lines on all four panels

of carton. Remove end panels and lay

side panels flat.

• Check for any additional loose parts or

cartons and remove.

ADJUST SEAT

1. Sit in seat.

2. Lift up adjustment lever (A) and slide seat

until a comfortable position is reached

which allows you to press clutch/brake

pedal all the way down.

3. Release lever to lock seat in position.

BEFORE REMOVING TRACTOR

FROM SKID

TO CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service after

month and year indicated on label (label is

located between terminals) charge battery

for minimum of one hour at 6-10 amps. (See

"BATTERY" in Maintenance section of this

manual for charging instructions).

• For battery and battery cable installation

see "REPLACING BATTERY" in the

"Service and Adjustments" section in this

manual.

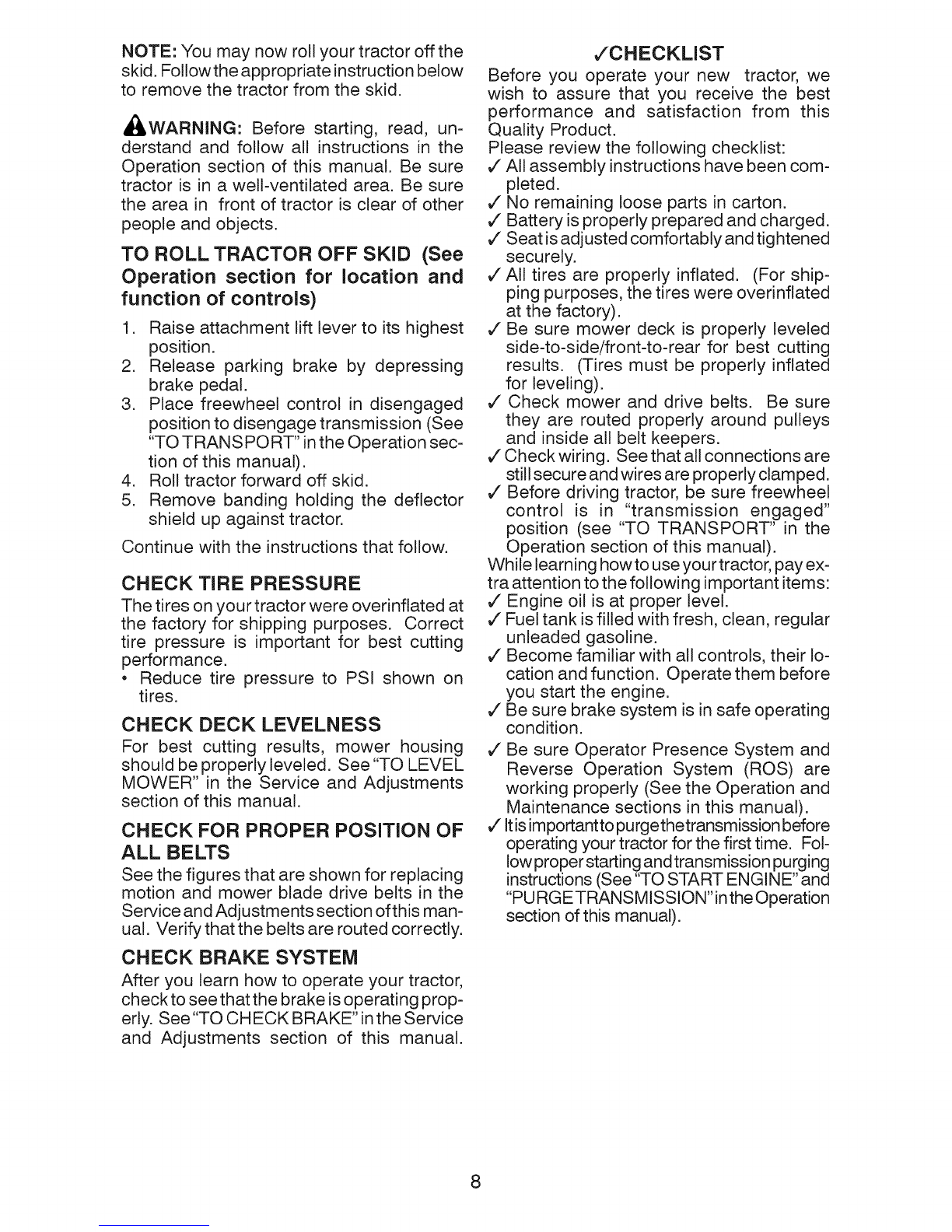

NOTE: You may now roll your tractor off the

skid. Followthe appropriate instruction below

to remove the tractor from the skid.

,_,WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Raise attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in disengaged

position to disengage transmission (See

"TO TRANSPORT" inthe Operation sec-

tion of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at

the factory for shipping purposes. Correct

tire pressure is important for best cutting

performance.

• Reduce tire pressure to PSI shown on

tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO LEVEL

MOWER" in the Service and Adjustments

section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replacing

motion and mower blade drive belts in the

Service and Adjustments section of this man-

ual. Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is operating prop-

erly. See "TO CHECK BRAKE" inthe Service

and Adjustments section of this manual.

,/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

J All assembly instructions have been com-

pleted.

J No remaining !oose parts in carton.

J Battery is properly prepared and charged.

J Seat is adjusted comfortably and tightened

securely.

J All tires are properly inflated. (For ship-

ping purposes, the tires were overinflated

at the factory).

J Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

J Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

V"Check wiring. See that all connections are

still secure and wires are properly clamped.

V" Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay ex-

tra attention to the following important items:

V" Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regular

unleaded gasoline.

V" Become familiar with all controls, their lo-

cation and function. Operate them before

you start the engine.

V" Be sure brake system is in safe operating

condition.

V" Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

V"Itis important to purgethetransmission before

operating your tractor for the first time. Fol-

low proper starting and transmission purging

instructions (See "TO START ENGINE" and

"PU RG ETRANSMISSION" in the Operation

section of this manual).

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L J\J

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT

OPERATION

SYSTEM (ROS)

LIGHTS ON FUEL BATTERY

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

IGNITION SWITCH

MOWER LIFT

REVERSE FORWARD

DANGER, KEEP HANDS

AND FEET AWAY

CRUISE CONTROL CLUTCH/BRAKE

PEDAL

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

,_I)(I_I_INII,,

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

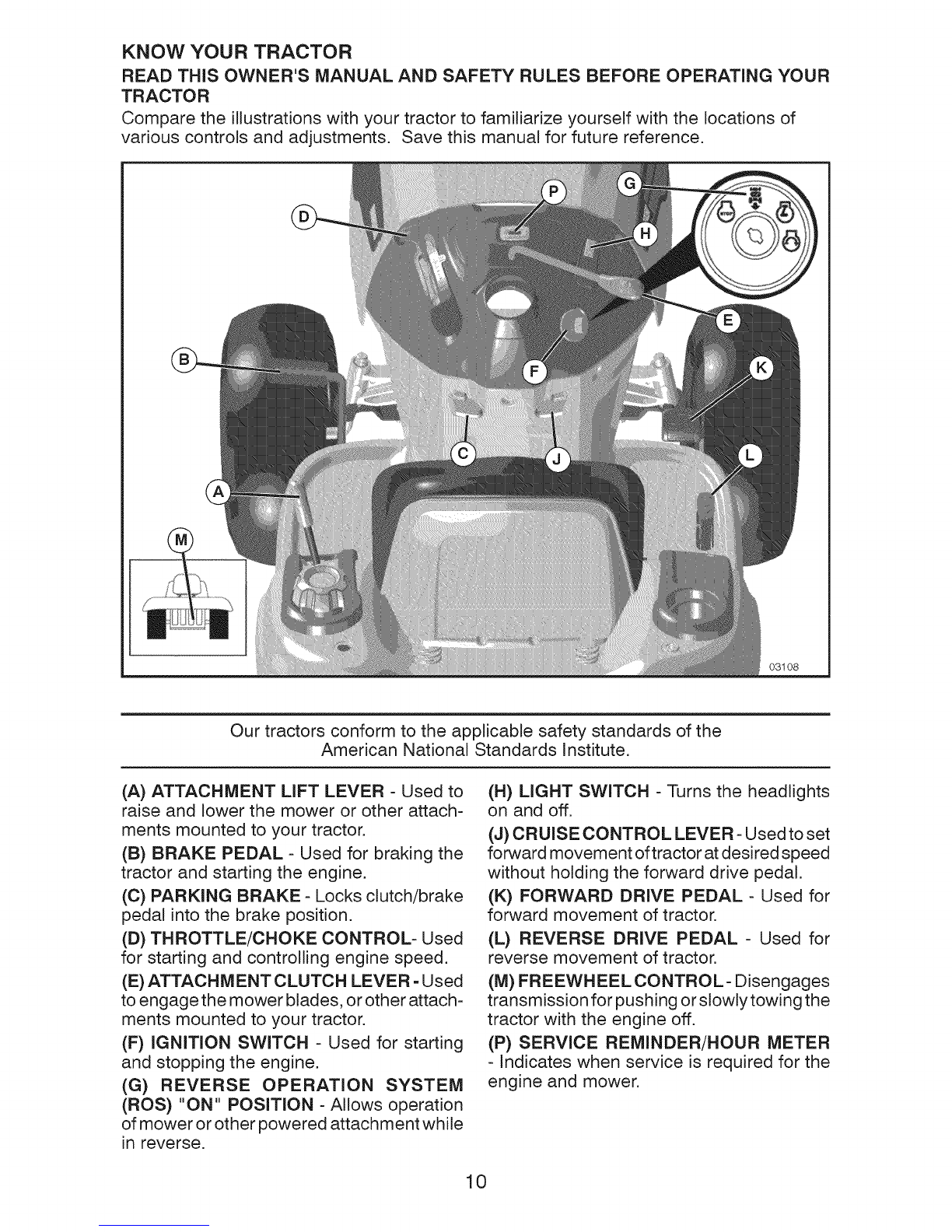

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

03108

Our tractors conform to the applicable safety standards of the

American National Standards Institute.

(A) ATTACHMENT LIFT LEVER - Used to

raise and lower the mower or other attach-

ments mounted to your tractor.

(B) BRAKE PEDAL - Used for braking the

tractor and starting the engine.

pedal into the brake position.

(D) THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

(E) ATTACH M ENT CLUTCH LEVER =Used

to engage the mower blades, or other attach-

ments mounted to your tractor.

(F) IGNITION SWITCH - Used for starting

and stopping the engine.

(G) REVERSE OPERATION SYSTEM

(ROS) "ON" POSITION - Allows operation

of mower or other powered attachment while

in reverse.

(H) LIGHT SWITCH - Turns the headlights

on and off.

(J) CRUISE CONTROL LEVER - Used to set

forward movement of tractor at desired speed

without holding the forward drive pedal.

(K) FORWARD DRIVE PEDAL - Used for

forward movement of tractor.

(L) REVERSE DRIVE PEDAL - Used for

reverse movement of tractor,

(M) FREEWHEEL CONTROL- Disengages

transmission for pushing or slowly towing the

tractor with the engine off.

(P) SERVICE REMiNDER/HOUR METER

- Indicates when service is required for the

engine and mower.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.273380 Manuel utilisateur

Craftsman

Craftsman 917.2736401 Manuel utilisateur

Craftsman

Craftsman 247.374302 Manuel utilisateur

Craftsman

Craftsman 917.256582 Manuel utilisateur

Craftsman

Craftsman 917.371031 Manuel utilisateur

Craftsman

Craftsman 37654 Manuel utilisateur

Craftsman

Craftsman 917.273260 Manuel utilisateur

Craftsman

Craftsman 917.273646 Manuel utilisateur

Craftsman

Craftsman 917.378490 Manuel utilisateur

Craftsman

Craftsman 25414 Manuel utilisateur

Craftsman

Craftsman 3-ONE CONVERTIBLE 917.37459 Manuel utilisateur

Craftsman

Craftsman 917.271553 Manuel utilisateur

Craftsman

Craftsman 917.377431 Manuel utilisateur

Craftsman

Craftsman 917.252590 Manuel utilisateur

Craftsman

Craftsman 917.25432 Manuel utilisateur

Craftsman

Craftsman 25371 Manuel utilisateur

Craftsman

Craftsman 917.378780 Manuel utilisateur

Craftsman

Craftsman 917.370724 Manuel utilisateur

Craftsman

Craftsman 917.274970 Manuel utilisateur

Craftsman

Craftsman 917.272200 Manuel utilisateur

Craftsman

Craftsman 917.371624 Manuel utilisateur

Craftsman

Craftsman 917.271062 Manuel utilisateur

Craftsman

Craftsman 917.377880 Manuel utilisateur

Craftsman

Craftsman 917.388895 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
