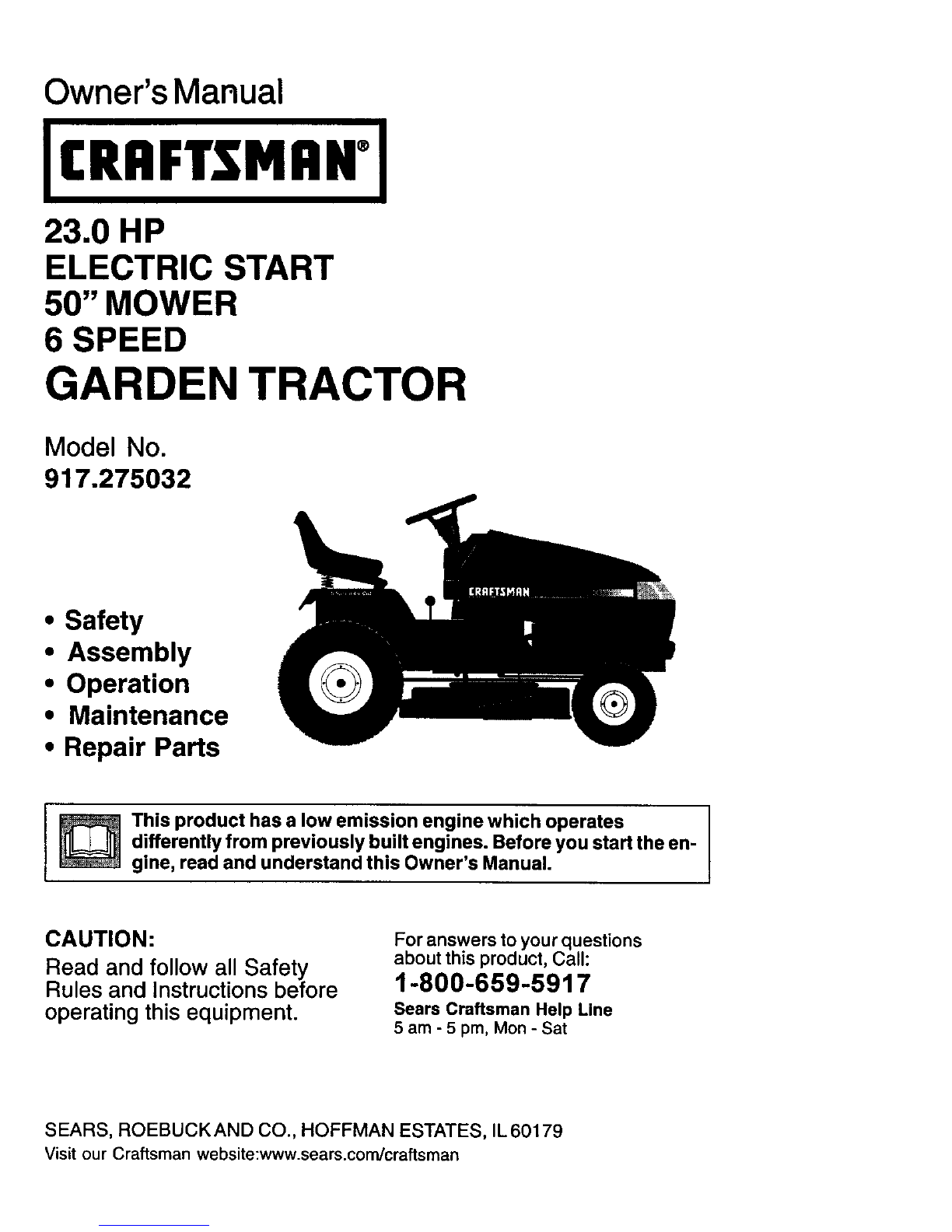

Craftsman 917.275032 Manuel utilisateur

Owner's Manual

ICRRFTSMRWI

23.0 HP

ELECTRIC START

50" MOWER

6 SPEED

GARDEN TRACTOR

Model No.

917.275032

•Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

This product has a low emission engine which operates I

differently from previously built engines. Before you start the en- I

gine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5am -5 pm, Mon- Sat

SEARS, ROEBUCKAND CO., HOFFMAN ESTATES, IL60179

Visit our Craftsman website:www.sears.com/craftsman

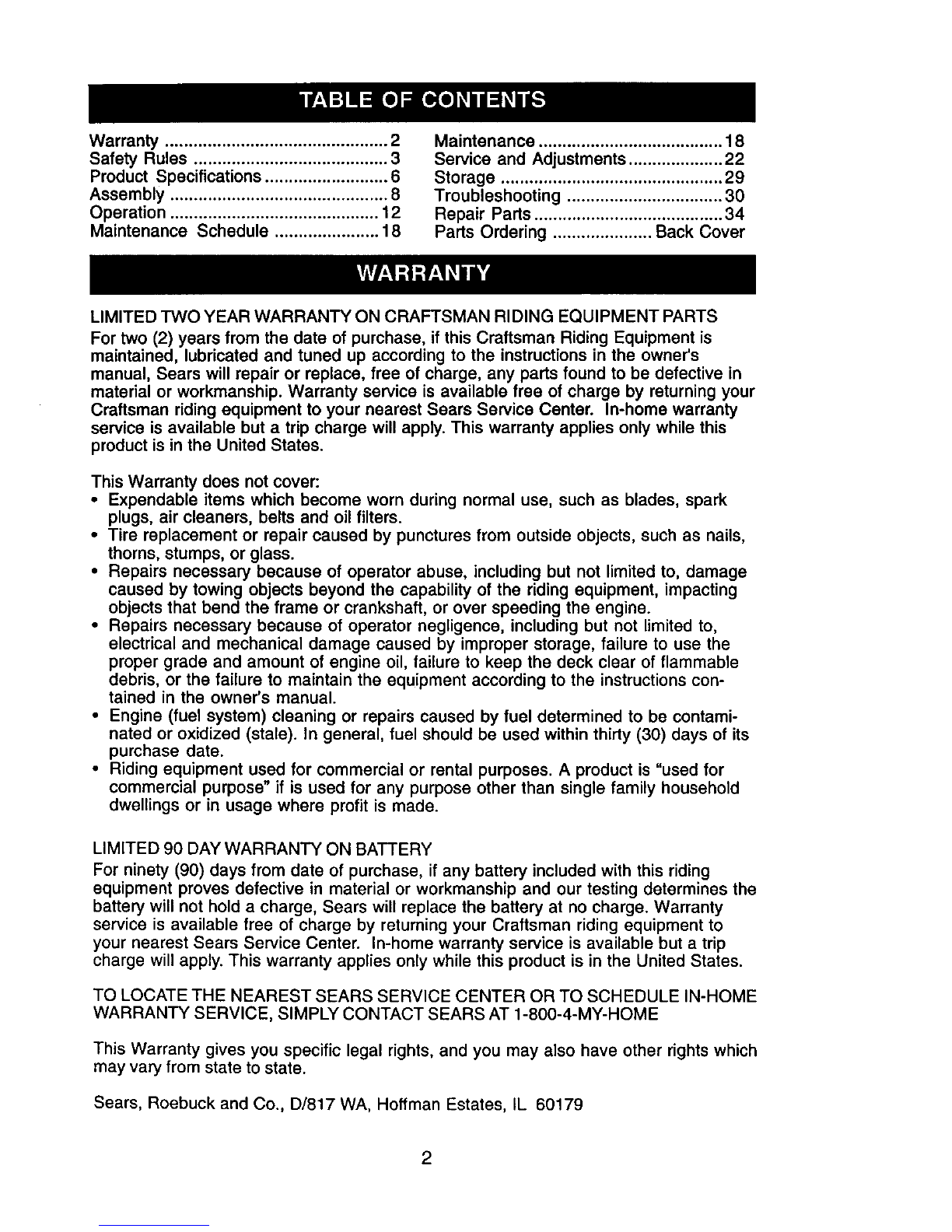

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 18

Maintenance ....................................... 18

Service and Adjustments .................... 22

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

•Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

•Riding equipment used for commercial or rental purposes. Aproduct is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutt ng mach nes capable of amputating hands and feet and.

throwing objects. Failure to observe the following safety instruct ons could resutt in

serious injury or death.

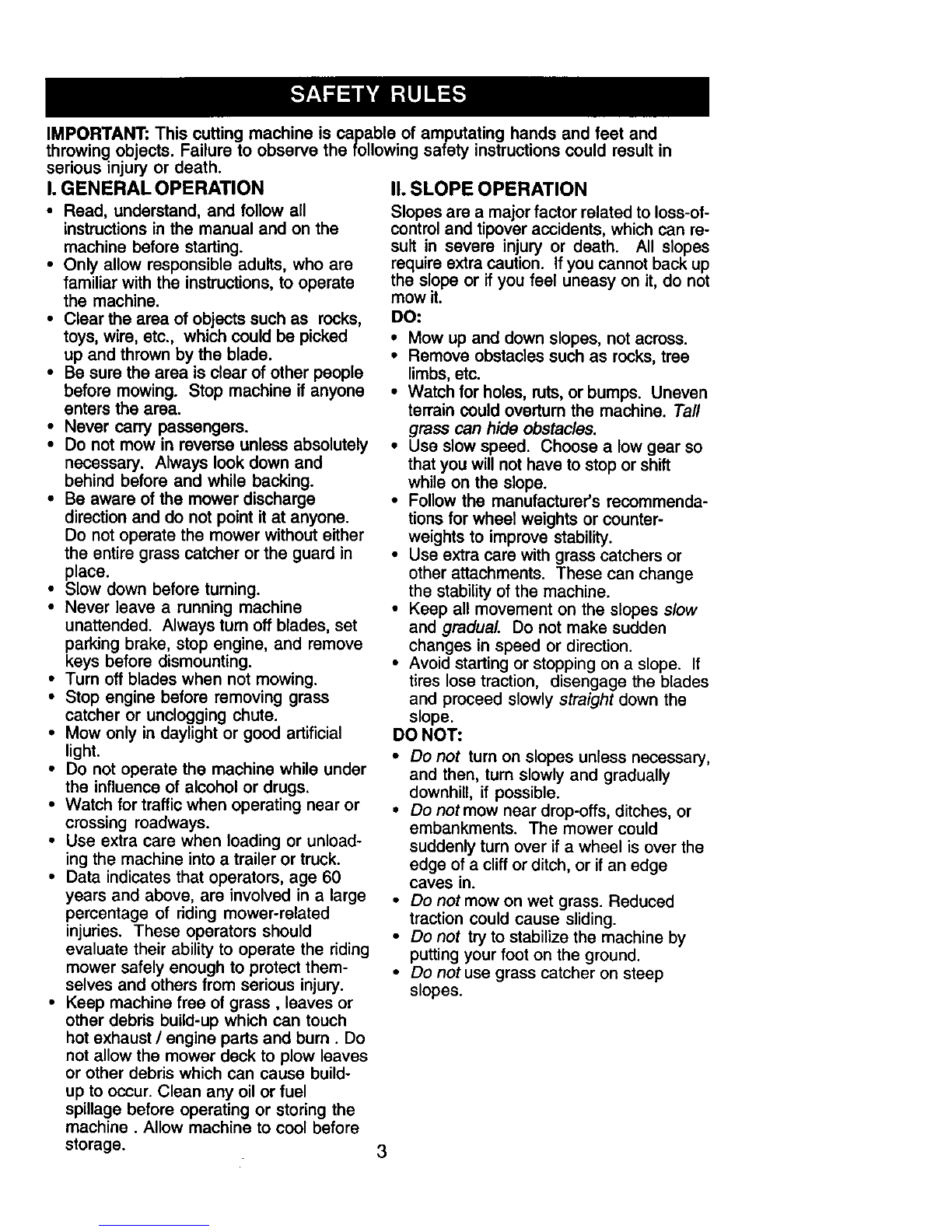

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

suit in severe injury or death. All stopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Taft

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do notmow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of acliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

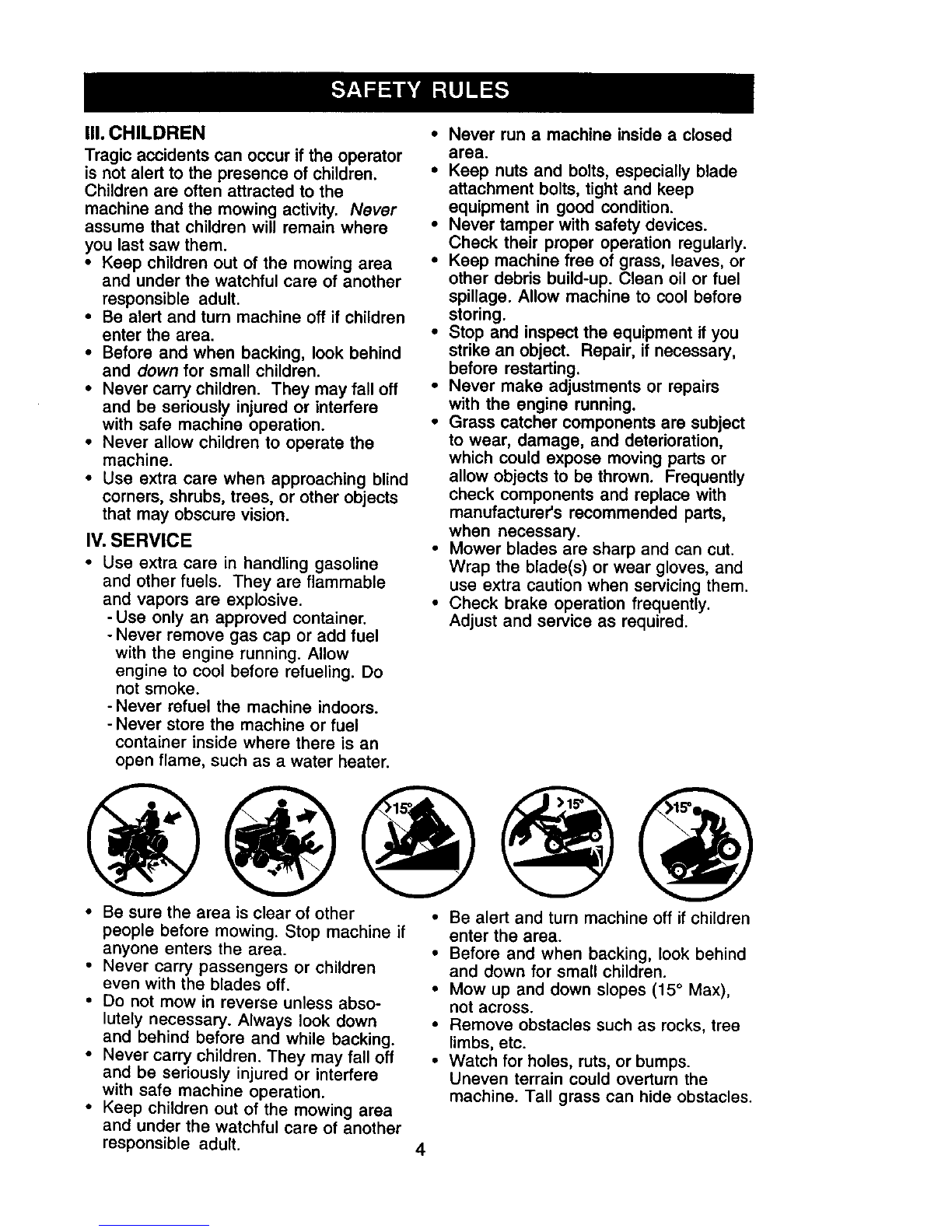

IlL CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside aclosed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other • Be alert and turn machine off if children

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15 ° Max),

not across.

•Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

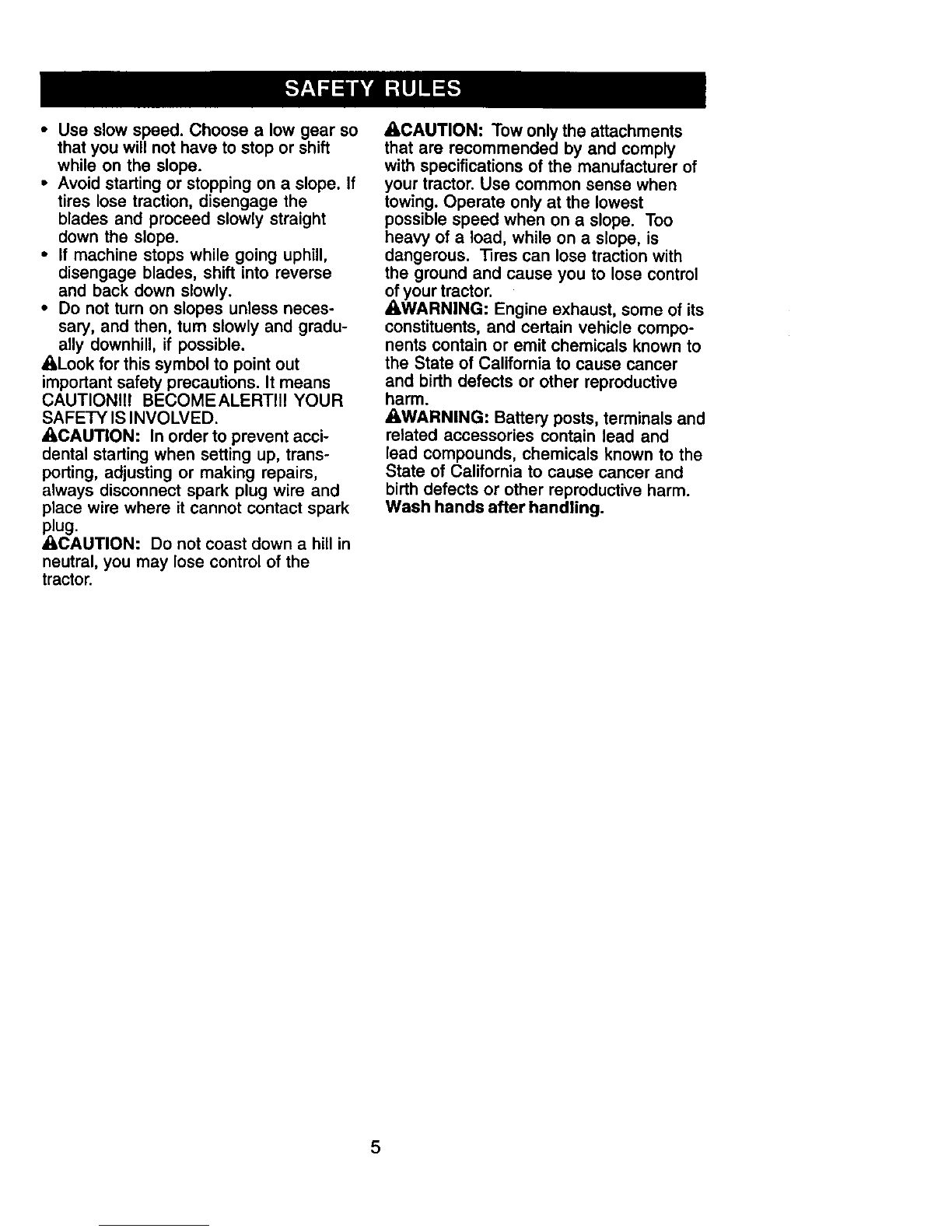

A, Look for this symbol to point out

important safety precautions. It means

CAUTIONI!! BECOMEALERT!I! YOUR

SAFETY IS INVOLVED.

A, CAUTION: In order to prevent acci-

dental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

_lug.

CAUTION: Do not coast down a hill in

neutral, you may lose control of the

tractor.

ACAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on aslope. Too

heavy of a load, while on a slope, is

dangerous. 13res can lose traction with

the ground and cause you to lose control

of your tractor.

AWARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of CaUfomia to cause cancer

and birth defects or other reproductive

harm.

AWARNING: Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 10W30

_,PI-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OILCAPAClTY: W/FILTER: 4.5PINTS

W/O FILTER: 4.0PINTS

SPARK PLUG: CHAMPION

(GAP: .030") RC12YC

GROUND SPEED LO: HI:

(MPH): 0.7 1.7

1.4 3.3

2.3 5.4

REVERSE: 0.9 2.1

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 15AMPS @ 3600RPM

SYSTEM:

BA'I-I-ERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE:U1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructionsunder =Mainte-

nance" and =Storage" sections of this

owner's manual.

_IkWARNING: This tractor is equipped

with an intemal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

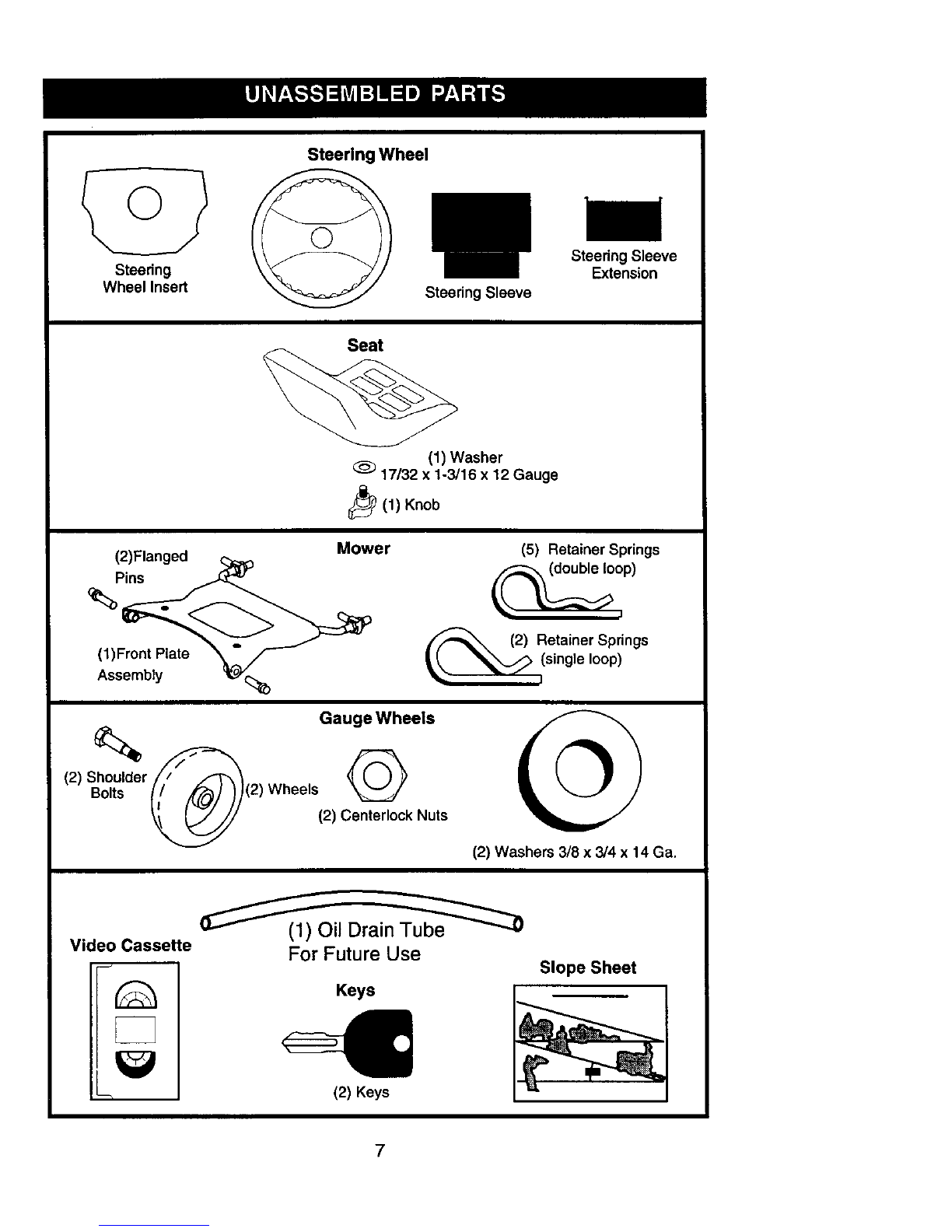

Steering

Wheel Insert

Steering Wheel

Steering Sleeve

Extension

Seat

(1) Washer

17/32 x 1-3/16 x12 Gauge

_(1) Knob

(2)Flanged

Pins

(1)Front Plate

Assembly

Mower (5) Retainer Springs

(2) etainer Springs

Isingle loop)

Gauge Wheels

(2) Bolts (,/ /_] ))(2) Wheels \_

(2) Centerlock Nuts (2) Washers 3/8 x 3/4 x 14 Ga.

Video CasseHe For Future Use

Keys

(2) Keys

Slope Sheet

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

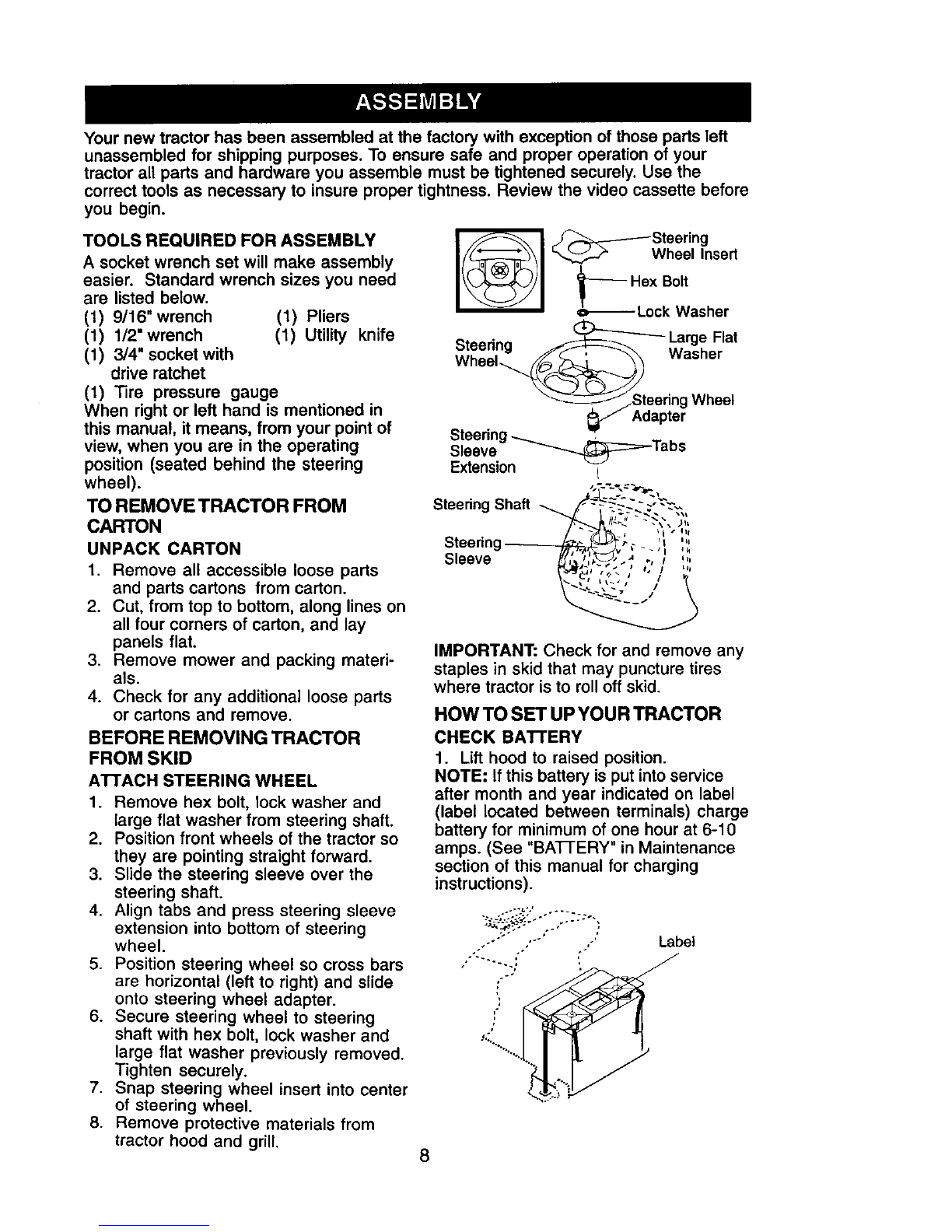

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel)•

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Remove mower and packing materi-

als.

4. Check for any additional loose parts

or cartons and remove.

_J_---_Steering

_.._F_ Wheel Insert

-'--- Hex Bolt

o_-- Lock Washer

Steering _Large Flat

Wheel_teeri_:_/_ie .

_._ Adapter

Steering _

Sleeve __:=_Tebs

Extension I

Steering Shaft

Sleeve

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UPYOUR TRACTOR

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

1. Remove hex bolt, lock washer and

large flat washer from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension into bottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

6. Secure steering wheel to steering

shaft with hex bolt, lock washer and

large flat washer previously removed.

Tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

CHECK BATrERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BAI-IERY" in Maintenance

section of this manual for charging

instructions).

":.._:;_.:_;•'• o.-::-.,

/: ...... .•

"*'*-•..%,,

.Label

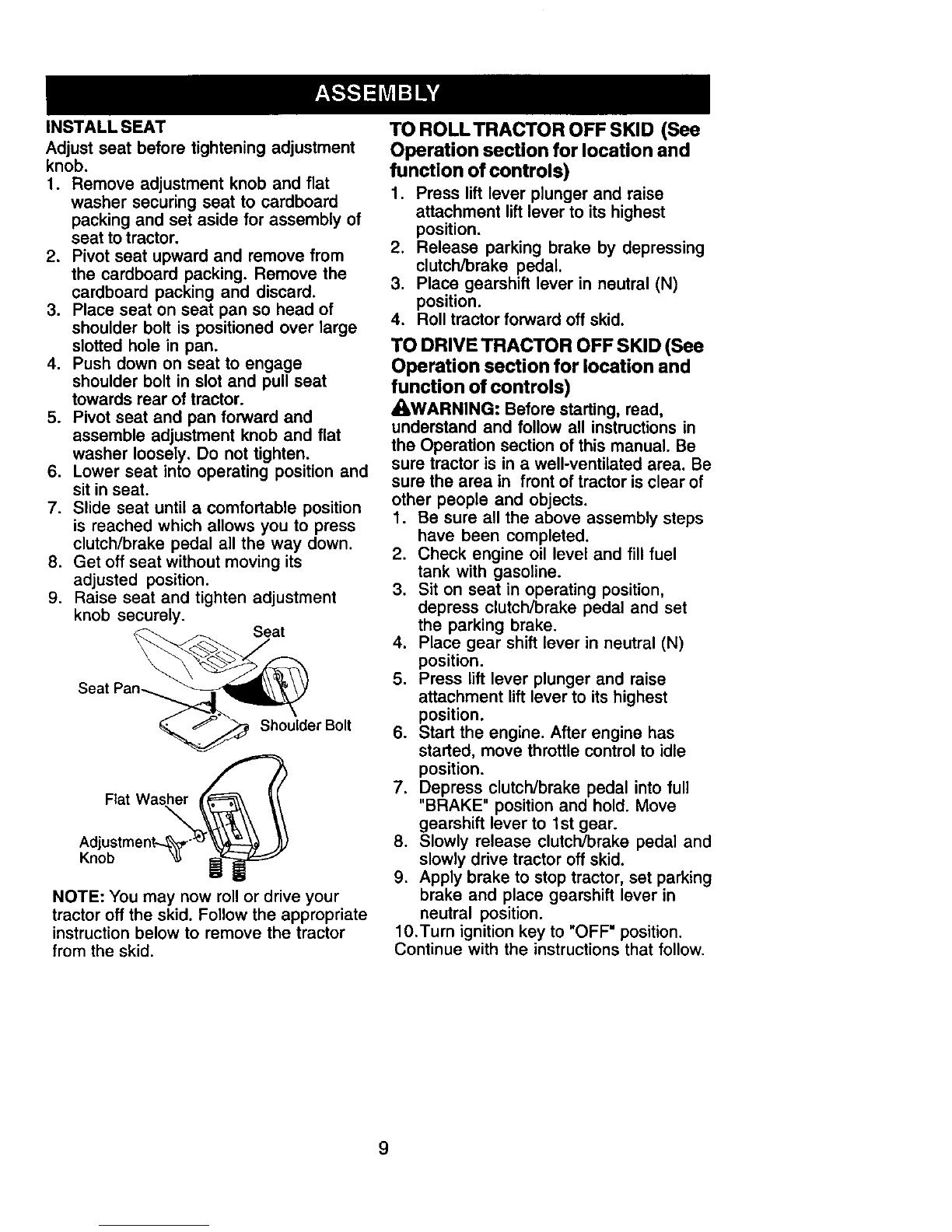

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely. Seat

Seat

Shoulder Bolt

Flat Washe_. _

Adjustment-_-_- _ _ )_)

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1, Press lift lever plunger and raise

attachment liftlever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

,AWARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in awell-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

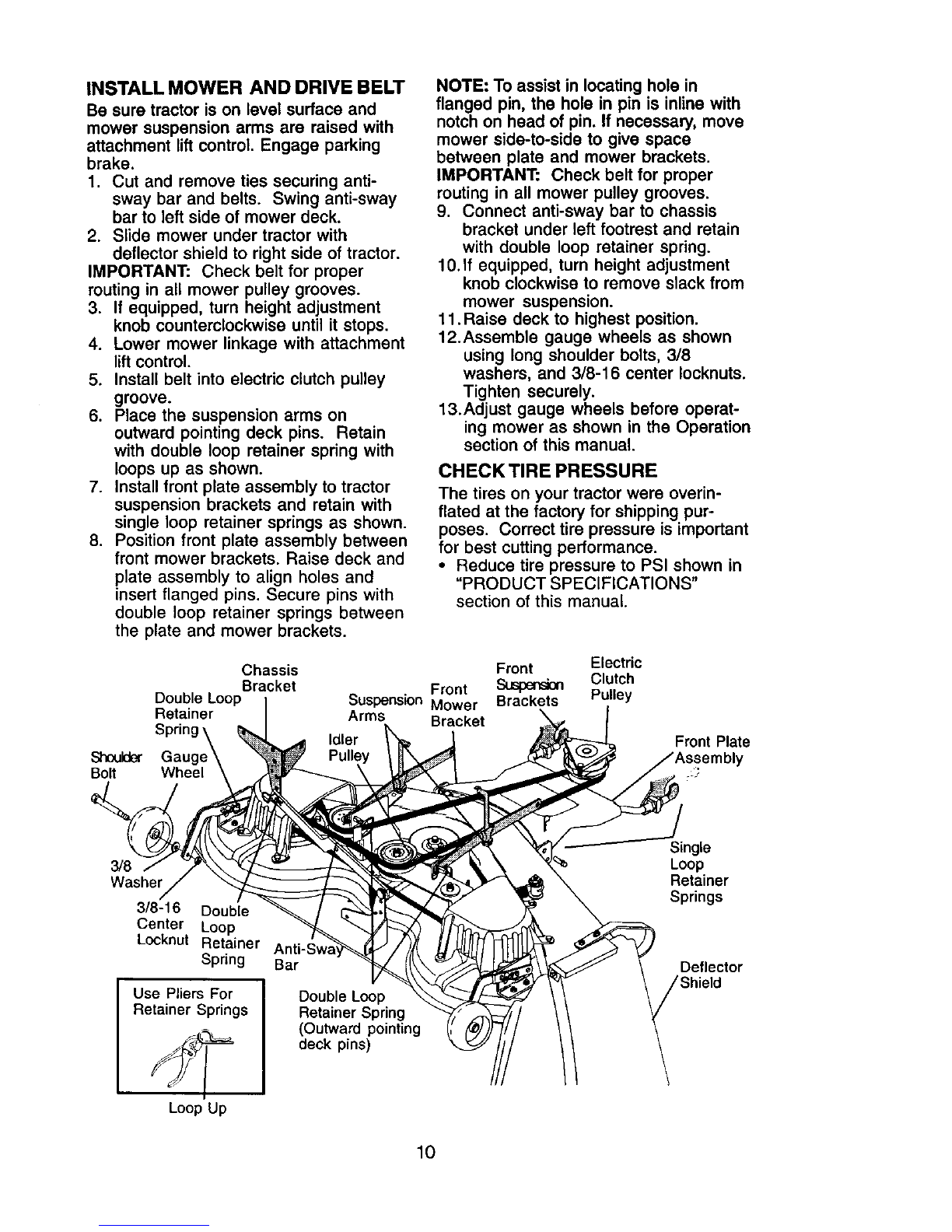

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control Engage parking

brake.

1. Cut and remove ties securing anti-

sway bar and belts. Swing anti-sway

bar to left side of mower deck.

2. Slide mower under tractor with

deflector shield to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electric clutch pulley

groove.

6, Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spring with

loops up as shown.

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notch on head of pin. If necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10.If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11. Raise deck to highest position.

12.Assemble gauge wheels as shown

using long shoulder bolts, 3/8

washers, and 3/8-16 center Iocknuts.

Tighten securely.

13.Adjust gauge wheels before operat-

ing mower as shown in the Operation

section of this manual.

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flared at the factory for shipping pur-

poses. Correct tire pressure is important

for best cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

St_oulder

Bolt

Chassis

Bracket Front

Double Loop Suspension Mower

Retainer Arms Bracket

g' Idler

Gau

Wheel

Front Electric

Suspension Clutch

Brackets Pulley

Front Plate

.o;

3/8

Washer

3/8-16 Double

Center Loop

Locknut Retainer

Spring

Use Pliers For

Retainer Springs

Loop Up

Bar

Double Loop

Retainer Spring

(Outward pointing

deck pins)

Single

Loop

Retainer

Springs

Deflector

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.387690 Manuel utilisateur

Craftsman

Craftsman 917.9997B Manuel utilisateur

Craftsman

Craftsman 917.374020 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258860 Manuel utilisateur

Craftsman

Craftsman 917.288623 Manuel utilisateur

Craftsman

Craftsman 37639 Manuel utilisateur

Craftsman

Craftsman 917.376805 Manuel utilisateur

Craftsman

Craftsman 247.37000 Manuel utilisateur

Craftsman

Craftsman EZ 917.37742 Manuel utilisateur

Craftsman

Craftsman 917.271100 Manuel utilisateur

Craftsman

Craftsman 247.37185 Manuel utilisateur

Craftsman

Craftsman 138.37097 Manuel utilisateur

Craftsman

Craftsman 917.379601 Manuel utilisateur

Craftsman

Craftsman 917.374105 Manuel utilisateur

Craftsman

Craftsman CMXGMAM201202 Manuel utilisateur

Craftsman

Craftsman 917.28805 Manuel utilisateur

Craftsman

Craftsman 917.276221 Manuel utilisateur

Craftsman

Craftsman PRO Turn Tight 247.204420 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271064 Manuel utilisateur

Craftsman

Craftsman 917.252530 Manuel utilisateur

Craftsman

Craftsman 917.377132 Manuel utilisateur

Craftsman

Craftsman 486.243294 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259573 Manuel utilisateur

Craftsman

Craftsman 247.889980 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
