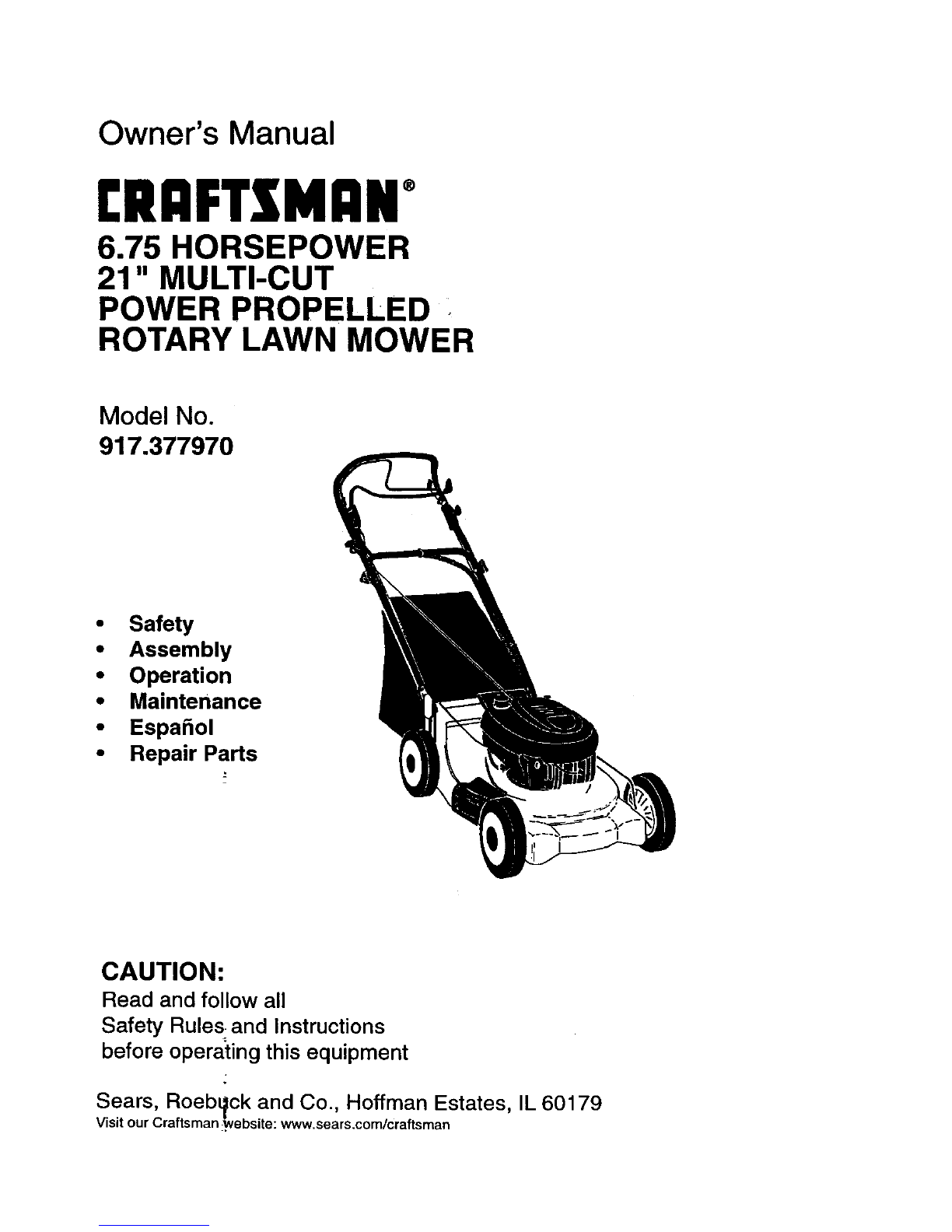

Craftsman 917.377970 Manuel utilisateur

Owner's Manual

rRAFTXMI:IN°

6.75 HORSEPOWER

21" MULTI-CUT

POWER PROPELLED

ROTARY LAWN MOWER

Model No.

917.377970

•Safety

• Assembly

• Operation

•Maintenance

•EspaSol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before opera_ting this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman Website: www.sears.com/craftsman

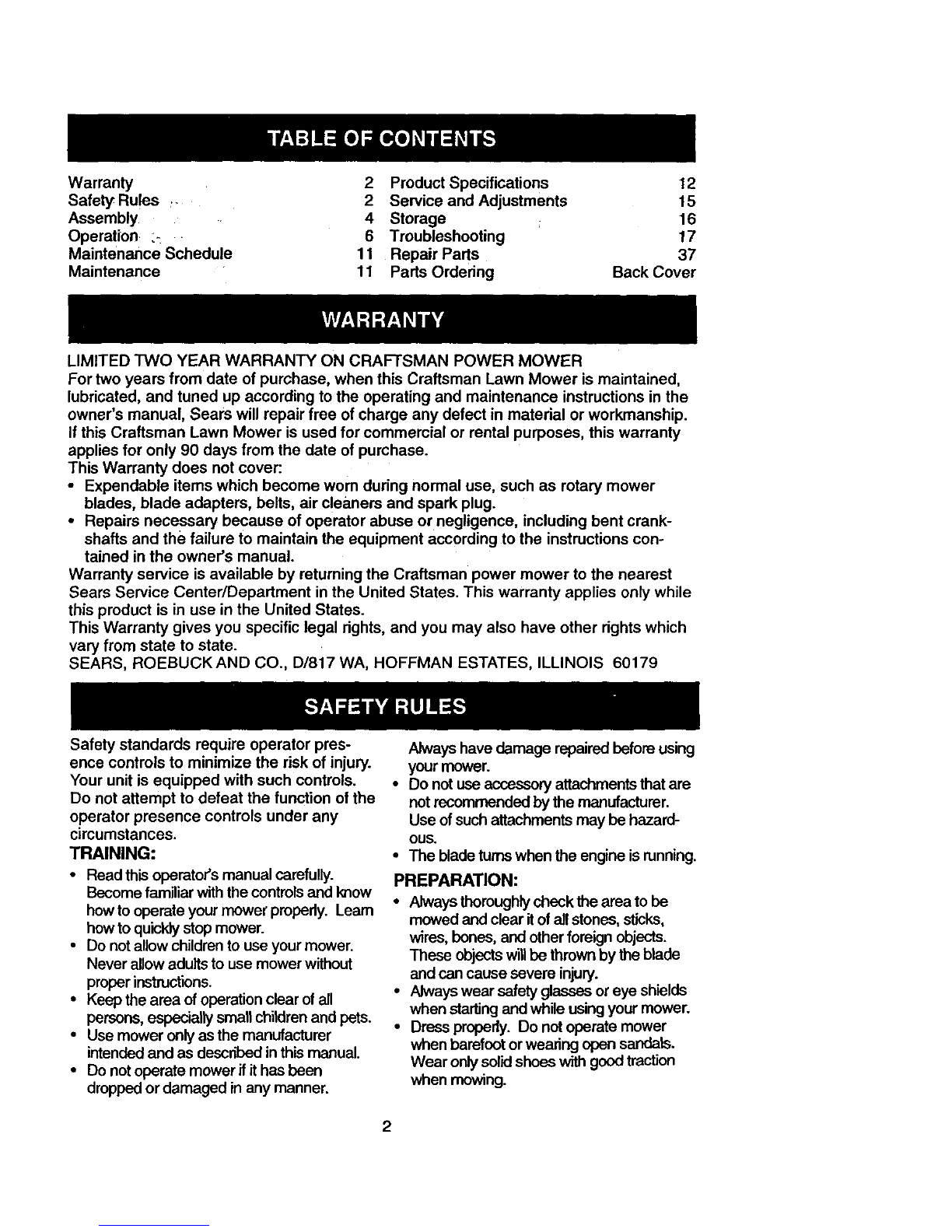

Warranty 2 Product Specifications 12

Safety Rules _. 2 Service and Adjustments 15

Assembly 4 Storage ; 16

Operation X6 Troubleshooting 17

Maintenance Schedule 11 Repair Parts 37

Maintenance 11 Parts Ordering Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by retuming the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator pres-

ence controls to minimize the risk of injury.

Your unit is equipped with such controls.

Do not attempt to defeat the function of the

operator presence controls under any

cimumstances.

TRAINING:

• Read this operator's manual carefully.

Become familiar with the controls and know

how to operate your mower properly. Leam

how to quickly stop mower.

•Do not allow children to use your mower.

Never allow adults to use mower without

proper instructions.

• Keep the area of operation clear of all

persons, especially small children and pets.

• Use mower only as the manufacturer

intended and as described in this manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before using

your mower.

•Do not use accessory attachments that are

not recommended by the manufacturer.

Use ofsuch attachments may be hazard-

ous.

•The blade tuma when the engine is running.

PREPARATION:

• Always thoroughly check the area to be

mowed and clear itof all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the blade

and can cause severe injury.

•Always wear safety glasses or eye shields

when starting and while using your mower.

•Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

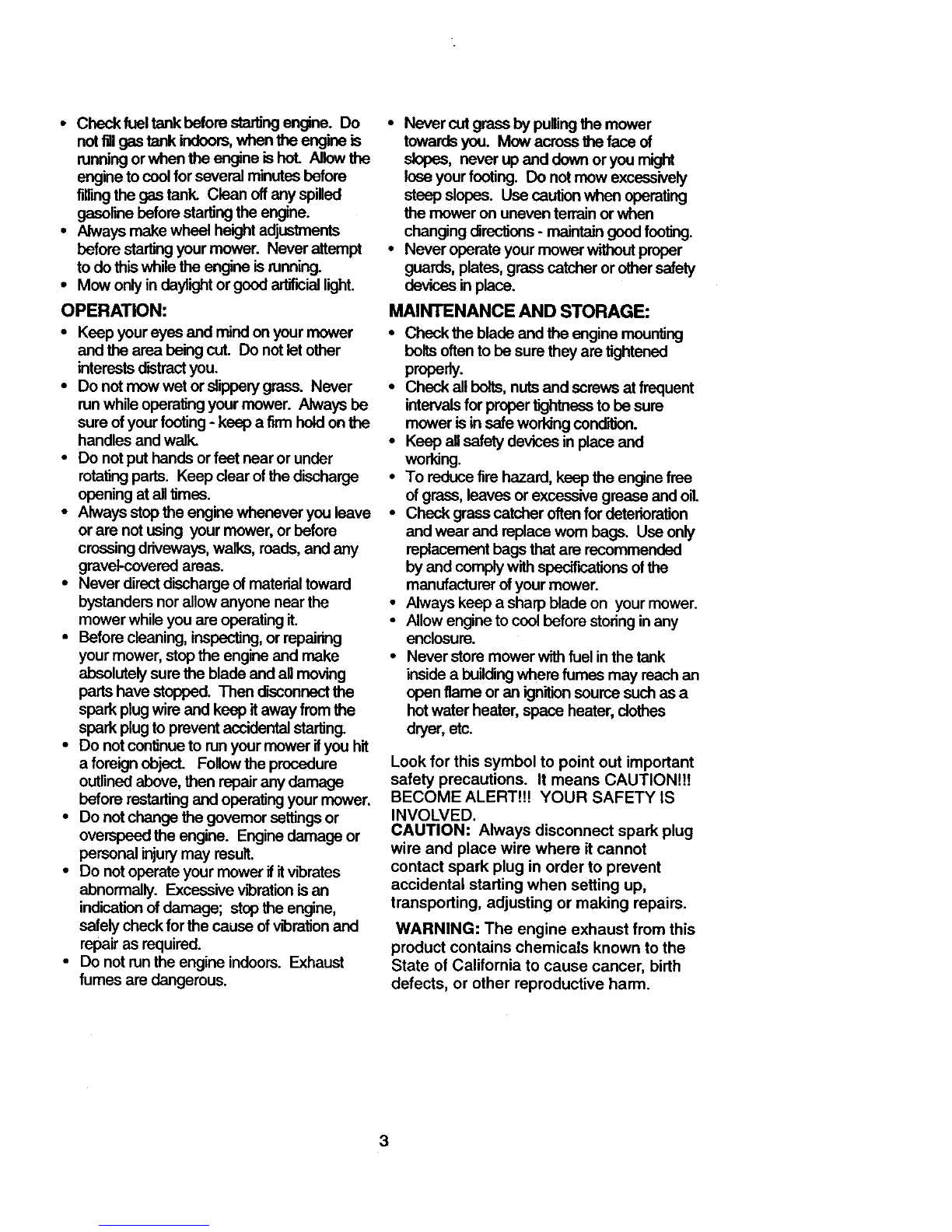

• Checkfuel tank before starting engine. Do

notflU ges tank indoors, when the engine is

running or when the engine is hot. Allow the

engine to cool for several minutes before

fillingthe gas tank. Clean offany spilled

gasoline before starting the engine.

• Always make wheel height adjustments

before starting your mower. Never attempt

to do this while the engine is running.

•Mow only in daylight or good ar_cial light.

OPERATION:

•Keep your eyes and mind on your mower

and the area being cut. Do not let other

interests distract you.

•Do not mow wet or slippery grass. Never

run while operating your mower. Always be

sure of your footing - keep a firm hold on the

handles and walk.

•Do not put hands or feet near or under

rotating parts. Keep clear of the discharge

opening at all times.

•Always stop the engine whenever you leave

or are not using your mower, or before

crossing driveways, walks, roods, and any

gravel-covered areas.

•Never direct discharge of material toward

bystanders nor allow anyone near the

mower while you are operating it.

•Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnect the

spark plug wire and keep it away from the

spark plug to prevent accidental starting.

•Do not continue to run your mower ifyou hit

aforeign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating your mower.

•Do not change the govemor settings or

overspeed the engine. Engine damage or

personal injury may result.

• Do not operate your mower if itvibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration and

repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

•Never cut grass by pullingthe mower

towards you. Mow across the face of

slopes, never up and down or you might

lose your footing. Do not mow excessively

steep slopes. Use caution when operating

the mower on uneven terrain or when

changing directions - maintain good footing.

•Never operate your mower without proper

guards, plates, grass catcher or other safety

devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine mounting

belts often to be sure they are tightened

properly.

• Check all bolts, nuts and screws at frequent

intervals for proper tightness to be sure

mower is in safe worldng condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine free

of grass, leaves or excessive grease and oil.

•Check grass catcher often for deterioration

and wear and replace wom bags. Use only

replacement bags that are recommended

by and comply with specifications of the

manufacturer of your mower.

• Always keep a sharp blade on your mower.

• Allow engine to cool before storing in any

enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may reach an

open flame or an ignition source such as a

hot water heater, space heater, clothes

dryer, etc.

Look for this symbol to point out important

safety precautions. It means CAUTION!!!

BECOME ALERT!!! YOUR SAFETY IS

INVOLVED.

CAUTION: Always disconnect spark plug

wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

WARNING: The engine exhaust from this

product contains chemicals known to the

State of California to cause cancer, birth

defects, or other reproductive harm.

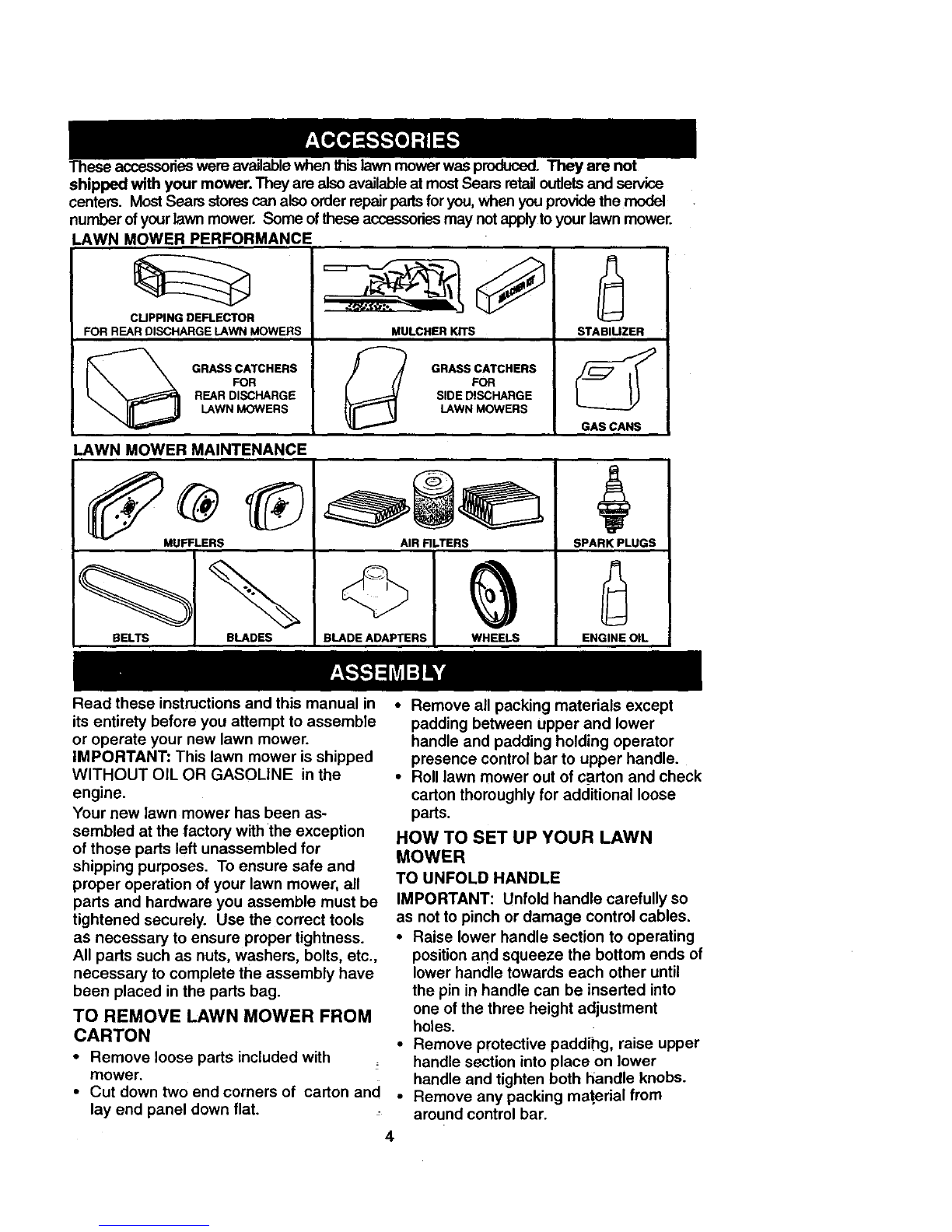

Theseaccessorieswereavailablewhenthislawnmowerwasproduced.Theyarenot

shippedwithyourmower.TheyarealsoavailableatmostSearsretailoutletsandservice

centers. Most Sears stores can also order repair pads for you, when you provide the model

number ofyour lawn mower. Some of these acsessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHERKITS

_'_ GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR RLTERS

BLADE ADAPTERS WHEELS

STABIUZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. To ensure safe and

proper operation of your lawn mower, all

parts and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

All parts such as nuts, washers, bolts, etc.,

necessary to complete the assembly have

been placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with

mower.

• Cut down two end corners of carton and

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

•Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

•Raise lower handle section to operating

position and squeeze the bottom ends of

lower handle towards each other until

the pin in handle can be inserted into

one of the three height adjustment

holes.

•Remove protective paddihg, raise upper

handle section into place on lower

handle and tighten both handle knobs.

•Remove any packing material from

around control bar.

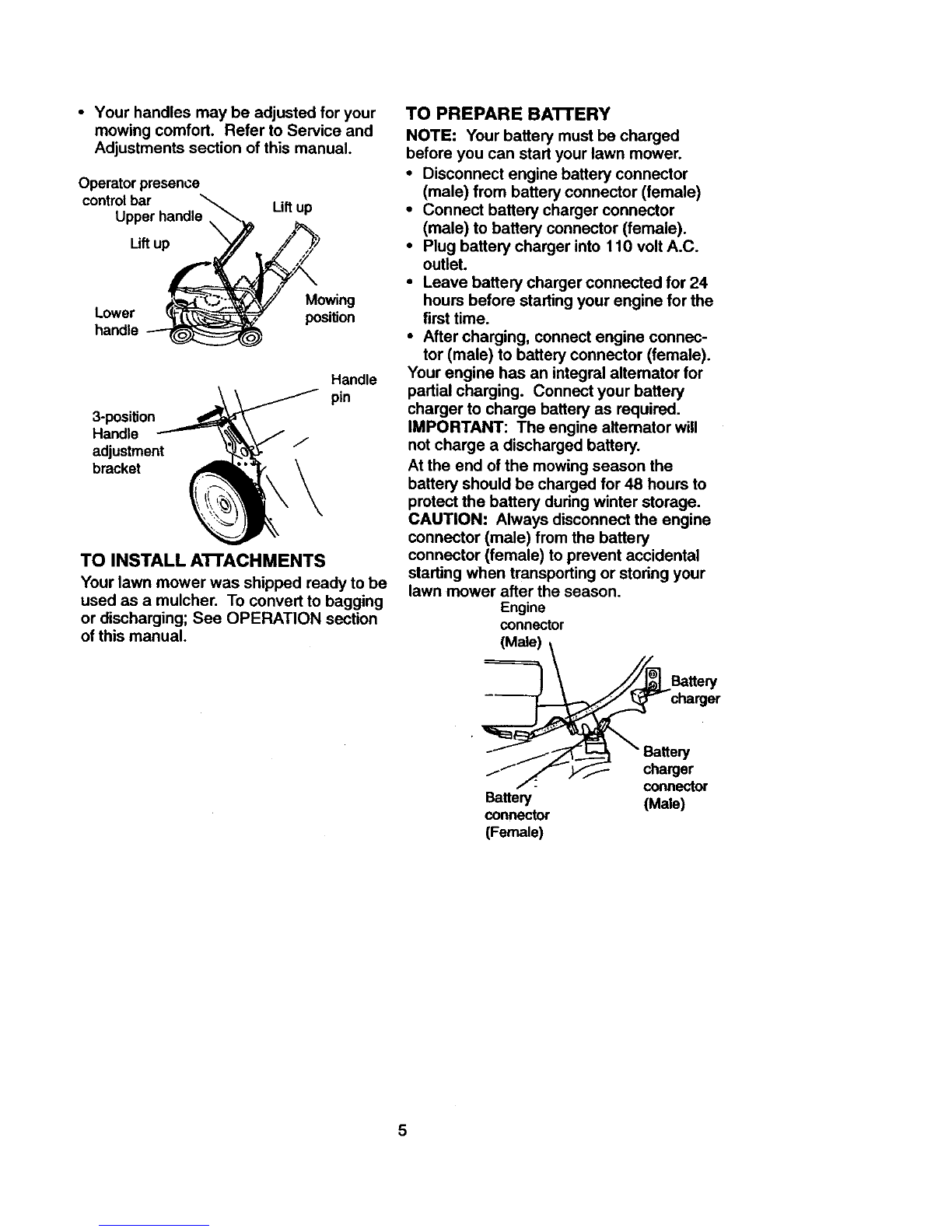

•Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Operator presence

controlbar

Upper handle Lift up

Lift up

Lower

handle

Mowing

position

3-position

Handle

adjustment

bracket

Handle

TO INSTALL ATrACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging

or discharging; See OPERATION section

of this manual.

TO PREPARE BATrERY

NOTE: Your battery must be charged

before you can start your lawn mower.

•Disconnect engine battery connector

(male) from battery connector (female)

•Connect battery charger connector

(male) to battery connector (female).

• Plug battery charger into 110 volt A.C.

outlet.

•Leave battery charger connected for 24

hours before starting your engine for the

first time.

•After charging, connect engine connec-

tor (male) to battery connector (female).

Your engine has an integral alternator for

partial charging. Connect your battery

charger to charge battery as required.

IMPORTANT: The engine alternator will

not charge a discharged battery.

At the end of the mowing season the

battery should be charged for 48 hours to

protect the battery during winter storage.

CAUTION: Always disconnect the engine

connector (male) from the battery

connector (female) to prevent accidental

starting when transporting or storing your

lawn mower after the season.

Engine

connector

(Male)

Battery-

connector

(Female)

charger

connector

(Male)

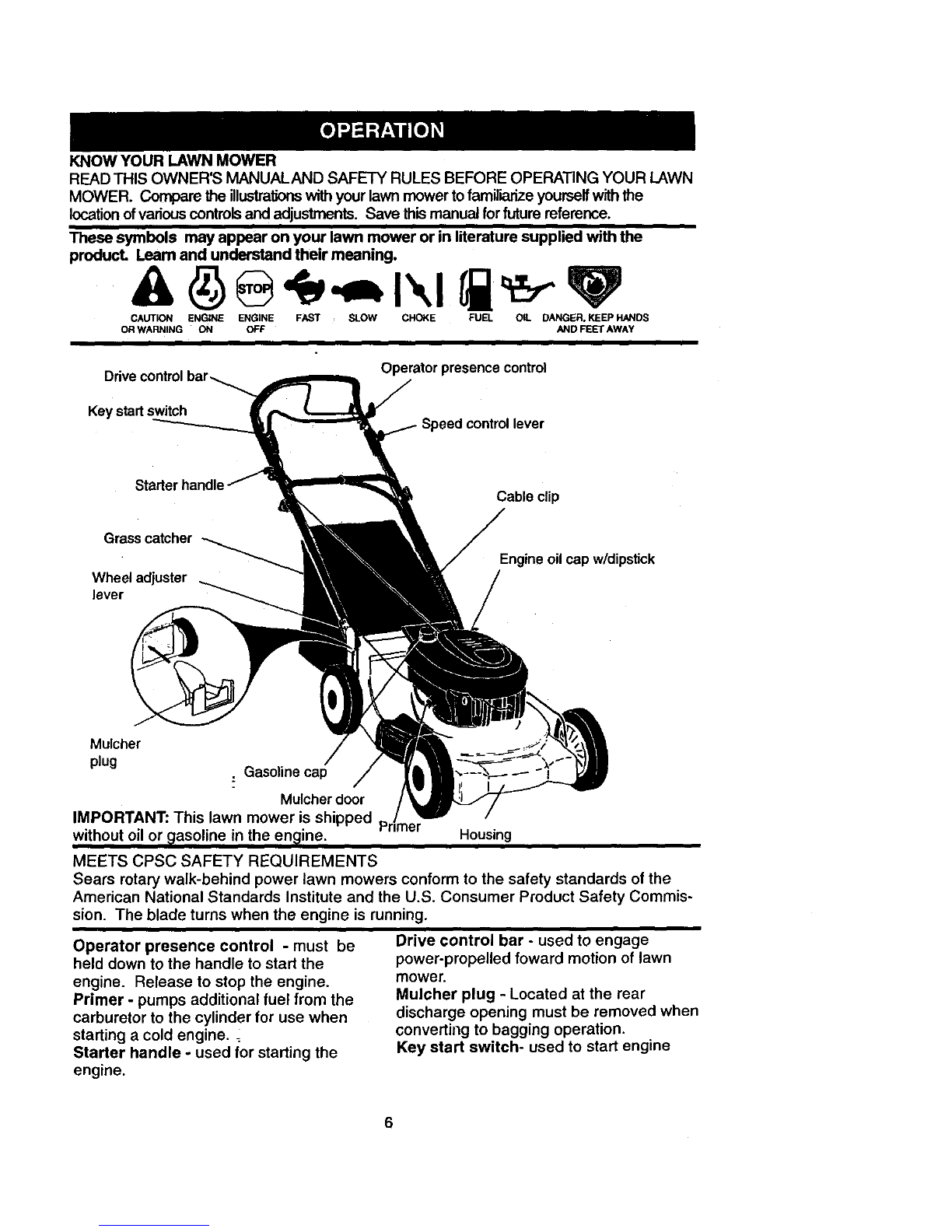

KNOWYOURLAWNMOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST :SLOW CHOKE FUEL OIL DANGER. KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control

Key startswitch

Cable clip

Grass catcher

Wheel adjuster

lever

Engine oilcap w/dipstick

Mulcher

plug •Gasoline cap

Mulcher door

IMPORTANT: This lawn mower is shipped

without oil or gasoline in the engine, Housing

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control -must be

held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine•

Starter handle -used for starting the

engine•

Drive control bar -used to engage

power-propelled foward motion of lawn

mower.

Mulcher plug - Located at the rear

discharge opening must be removed when

converting to bagging operation.

Key start switch- used to start engine

Theoperationofanylawnmowercan resultin

foreign objects thrown intothe eyes, which can

resultin severe eye damage. Always wear

safety glasses or eye shields while operating

your lawn mower or performing any adjust-

ments or repairs. We recommend a wide

vision safety mask over spectacles or standard

safety glasses.

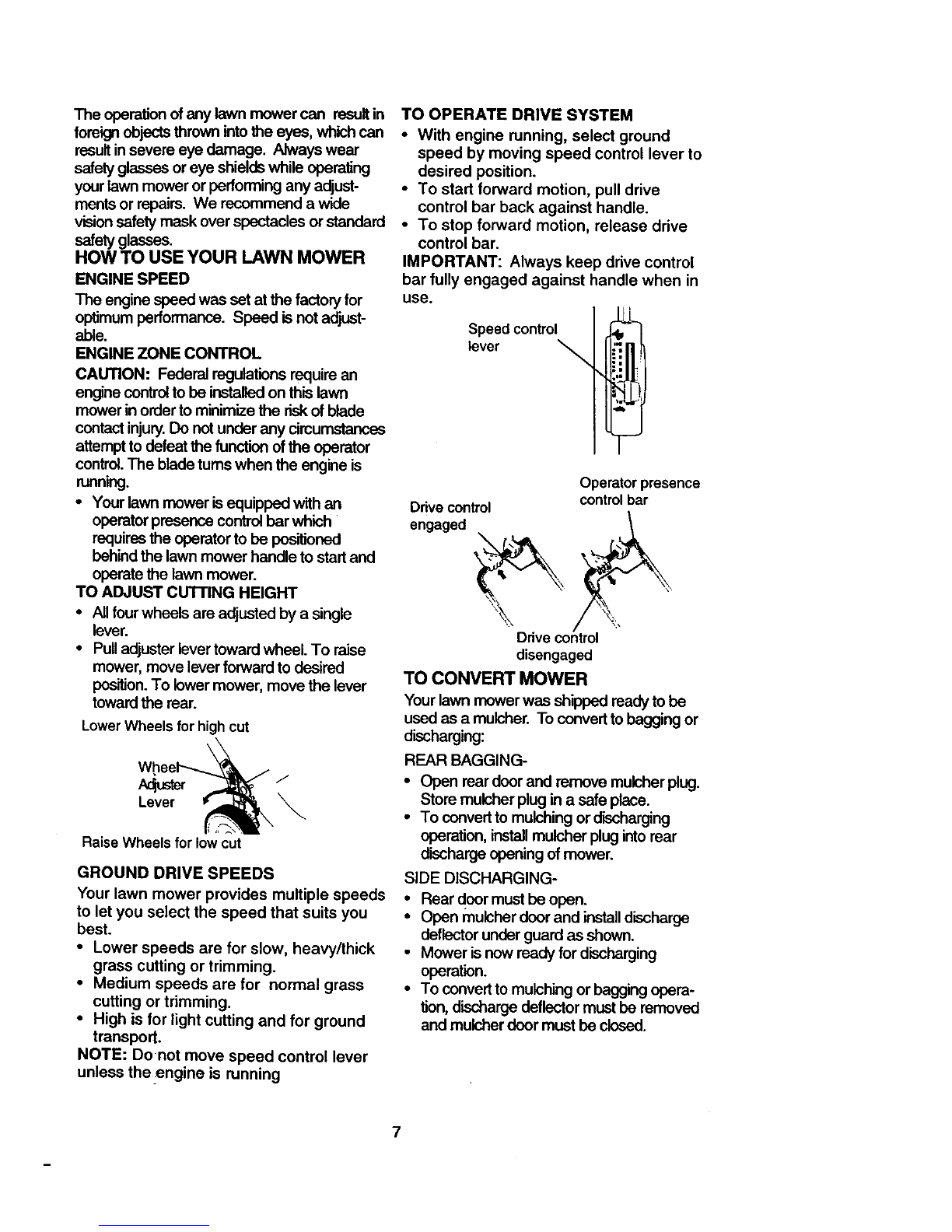

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

CAUTION: Federal regulations require an

engine control to be installed on this lawn

mower in order to minimize the risk of blade

contact injury.Do not under any circumstances

attempt to defeat the function of the operator

control. The blade turns when the engine is

P,3WI3ing.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST cUTrlNG HEIGHT

• All four wheels are adjusted by a single

lever.

•Pull adjuster lever toward wheel. To raise

mower, move lever forward to desired

position.To lower mower, move the lever

toward the rear.

LowerWheels for high cut

Raise Wheels for low cut

GROUND DRIVE SPEEDS

Your lawn mower provides multiple speeds

to let you select the speed that suits you

best.

•Lower speeds are for slow, heavy/thick

grass cutting or trimming.

•Medium speeds are for normal grass

cutting or trimming.

•High is for light cutting and for ground

transport.

NOTE: Donot move speed control lever

unless the .engine is running

TO OPERATE DRIVE SYSTEM

•With engine running, select ground

speed by moving speed control lever to

desired position.

•To start forward motion, pull drive

control bar back against handle.

•To stop forward motion, release drive

control bar.

IMPORTANT: Always keep drive control

bar fully engaged against handle when in

use.

Speed control

lever

Drive control

engaged

Operator presence

control bar

Drive control

disengaged

TO CONVERT MOWER

Yourlawn mower was shippedreadytobe

usedas a mulcher.To convert tobaggingor

discharging:

REAR BAGGING-

,Open reardoorand remove mulcherplug.

Storemulcher plugin a safe place.

•To convertto mulchingordischarging

operation,installmulcherplugintorear

dischargeopeningof mower.

SIDE DISCHARGING-

, Rear door must be open.

•Open mulcher door and install discharge

deflector under guard as shown.

•Mower is now ready for discharging

operation.

• To convert to mulching or bagging opera-

tion, discharge deflector must be removed

and mulcher door must be closed.

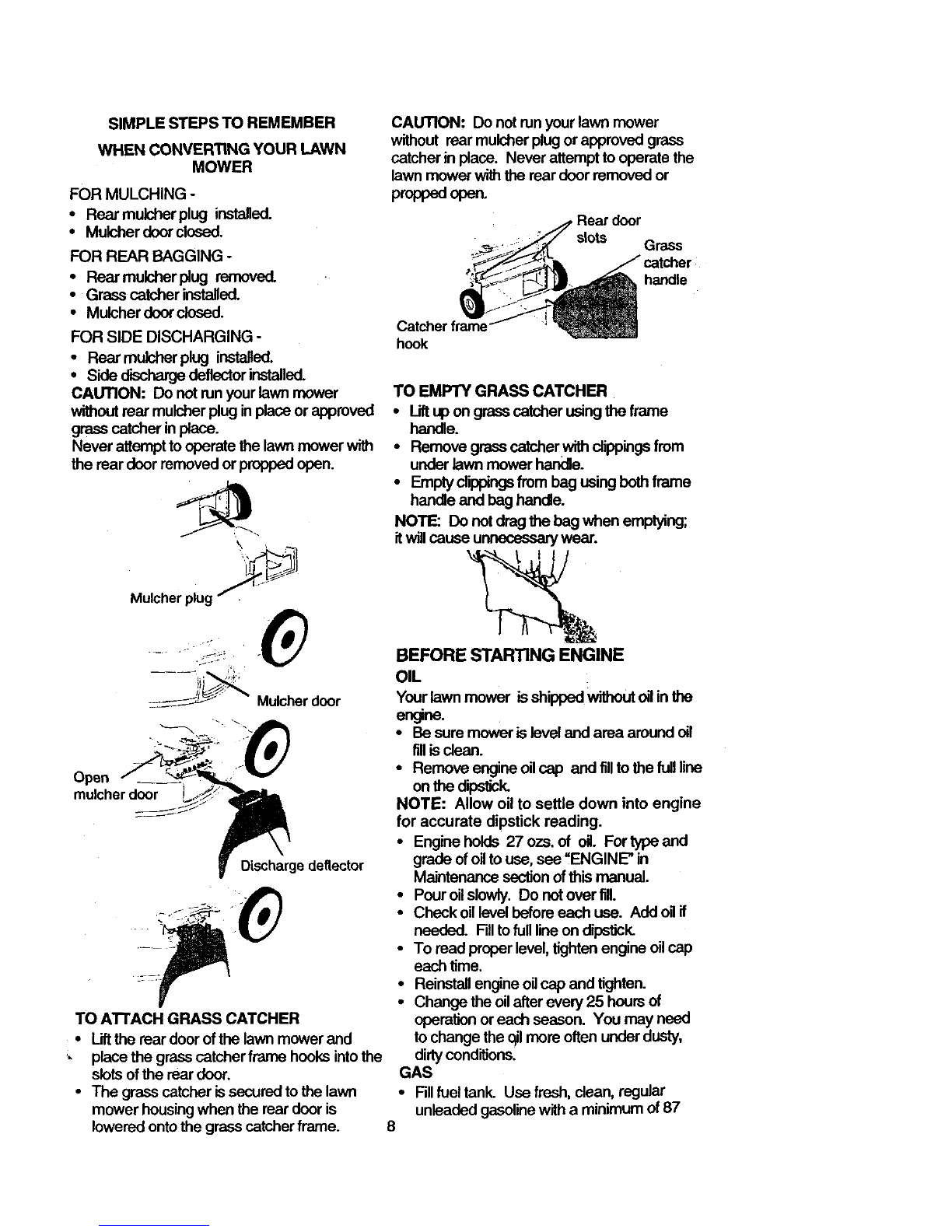

SIMPLESTEPSTOREMEMBER

WHEN CONVERTING YOUR LAWN

MOWER

FOR MULCHING -

•Rear mulcher plug installed.

•Mulcher door closed.

FOR REAR BAGGING -

•Rear mulcher plug removed.

•Grass catcher installed.

•Mulcher dcer closed.

FOR SIDE DISCHARGING -

• Rear mulcher plug installed.

•Side crtschargedeflector installed.

CAUTION: Do not run your lawn mower

without rear mulcher plug in place or approved

grass catcher in place.

Never attempt to operate the lawn mower with

the rear door removed or propped open.

'_, ,

Mulcher plug _''_

Mulcher door

Open ____.

mulcher door

Discharge deflector

TO ATTACH GRASS CATCHER

•Liftthe rear door of the lawn mower and

'- place the grass catcher frame hooks intothe

slots of the rear door.

•The grass catcher issecured to the lawn

mower housing when the rear door is

lowered onto the grass catcher frame.

CAUTION: Do not run your lawn mower

without rear mulcher plug or approved grass

catcher in place. Never attempt to operate the

lawn mower with the rear door removed or

proppedopen.

slots Grass

handle

Catcher frame

hook

TO EMPTY GRASS CATCHER

•Lift up on grass catcher using the frame

handle.

•Remove grass catcher with clippings from

under lawn mower handle.

•Empty clippings from bag using both frame

handle and bag handle.

NOTE: Do not drag the bag when emptying;

itwill cause unnecessary wear.

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

en_ne.

•Be sure mower islevel and area around oil

fill is dean.

•Remove engine oil cap and fillto the full line

on thedipsiick.

NOTE: Allow oil to settle down into engine

for accurate dipstick reading.

• Fngine holds 27 ozs. of oil. For type and

grade of oilto use, see "ENGINE" in

Maintenance section of this manual.

•Pour oil slowly. Do not over fill.

•Check oil level before each use. Add oil if

needed. Fill tofull line on dipstick.

•To read proper level, tighten engine oil cap

each time.

•Reinstall engine oilcap and tighten.

•Change the oilafter even] 25 hours of

operation or each season. You may need

to change the qilmore often under dusty,

dirtyconditions.

GAS

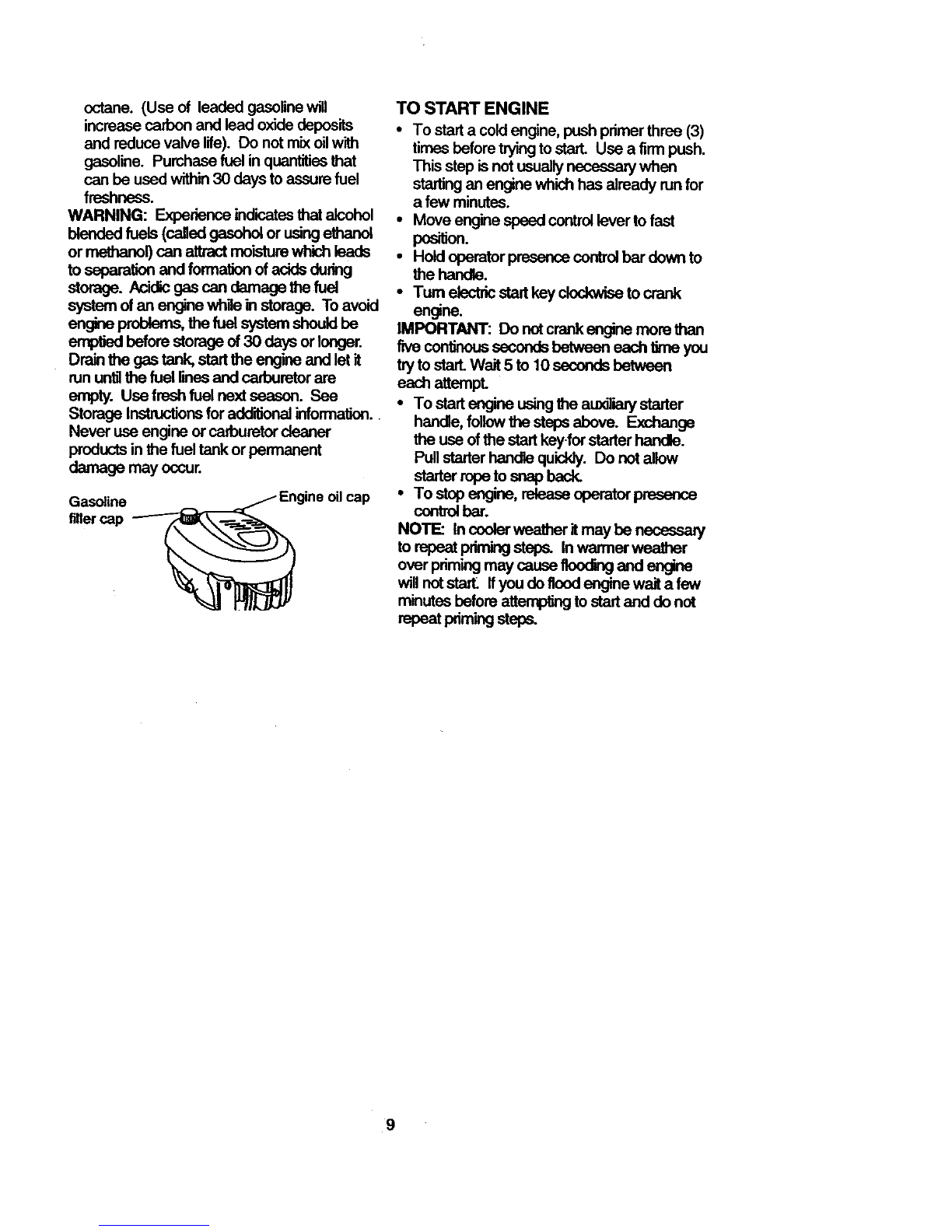

•Fill fuel tank. Use fresh, dean, regular

unleaded gasoline with a minimum of 87

octane.(Useof leadedgasolinewill

increasecarbonandleadoxidedeposits

andreducevalvelife).Donotmixoilwifh

gasoline.Purchasefuel in quantities that

can be used within 30 days to assure fuel

freshness.

WARNING: Experience indicates that alcohol

blendedfuels(calledgasoholorusingethanol

or methanol) can attract moL_turewhich leads

to separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an angine while in storage. To avoid

engineproblems,thefuelsystemshouldbe

emptied before storage of 30 days or longer.

Drain the gas tank, start the engine and let it

run untilthe fuel lines and carburetor are

empty. Use fresh fuel next season. See

Storage instructions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Gaso_ne

filler cap

oilcap

TO START ENGINE

•To starta coldengine,pushprimerthree (3)

timesbeforetryingtostart. Use a firmpush.

Thisstep isnotusuallynecessarywhen

startingan enginewhich has already runfor

afew minutes.

•Move enginespeed controllevertofast

position.

•Holdoperator presencecontrolbardown to

the handle.

•Tum electricstadkeyclockwiseto crank

engine.

IMPORTANT: Do notcrankenginemorethan

fiveco_nous secondsbetween each timeyou

trytostart.Wait5 to 10secondsbetween

each attempt.

•To startengineusingthe auxiliarystarter

handle,followthe steps above. Exchange

the use ofthe startkeyfor starterhandle.

Pullstarterhandlequickly.Do notallow

starterropeto snapback.

•To stop engine, releaseoperatorpresence

controlbar.

NOTE: In coolerweather itmay be necessary

to repeatprimingsteps. Inwarmerweather

over primingmay cause flood'mgand engine

will notsta_ ffyoude flood enginewaita few

minutesbefore attempSngtostartand de not

repeatprimingsteps.

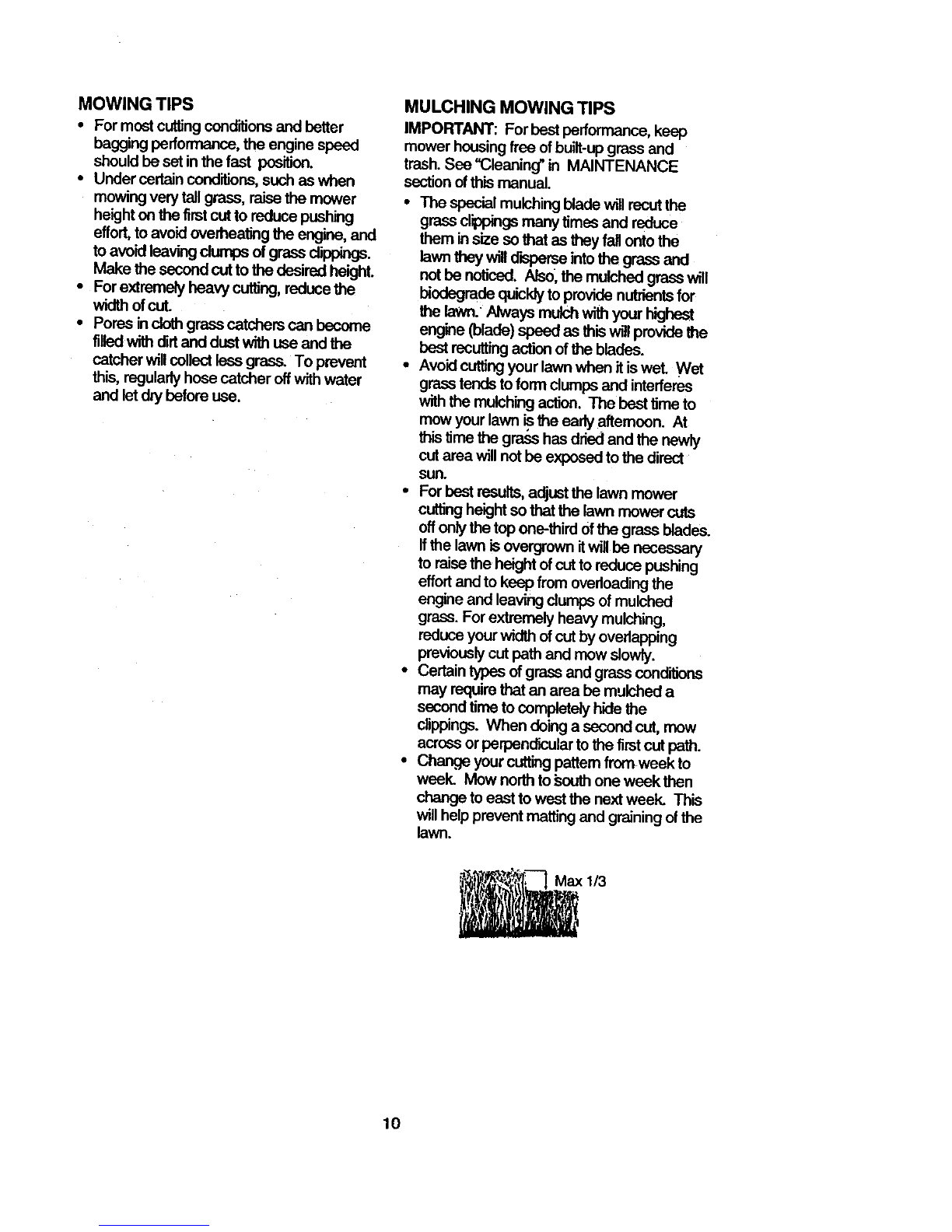

MOWINGTIPS

•For most cutting conditions and better

bagging performance, the enginespeed

should be set in the fast position.

•Under certain conditions, such as when

mowing very tall grass, raise the mower

height on the firstcut to reduce pushing

effort,to avoid overheating the engine, and

to avoid leaving dumps of grass clippings.

Make the second cut to the desired height.

•For extremely heaW cutSng, reduce the

width ofcut.

• Pores incloth graas catchers can become

filled with dirtand dust with use and the

catcher willcollect less grass. To prevent

this, regularly hose catcher off with water

and let dry before use,

MULCHING MOWING TIPS

IMPORTANT: Forbest performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in MAINTENANCE

section ofthis manual

•The special mulching blade will recut the

grassclippings many times and reduce

them in size so that as they fall onto the

lawn ti'_eywill_sperse into the grass and

not be noticed. Also_the mulched grass will

biedegmde quicldyto provide nutrients for

the lawn. Always mulch with your highest

e_line (blade) speed as this will provide the

best recuttingaction of the blades.

• Avoid cutting your lawn when itis wet. Wet

grass tends to form clumps and interferes

with the mulching action. The hest time to

mow your lawn "._the early afternoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

•For best results, adjust the lawn mower

cutting height so that the lawn mower cuts

offonly the top one-third of the grass blades.

If the lawn is overgrown itwillbe nscassa./

to raise the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of mulched

grass. For extremely heavy mulching,

reduce your width of cut by overlapping

previously cut path and mow slowly.

•Certain types of grass and grass conditions

may require that an area be mulched a

second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the firstcut path.

•Change your cutting pattern fromweek to

week. Mow north to ._outh one week then

change to east to wast the next week. This

willhelp prevent matting and graining of the

lawn.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.376092 Manuel utilisateur

Craftsman

Craftsman 944.364490 Manuel utilisateur

Craftsman

Craftsman 917.376550 Manuel utilisateur

Craftsman

Craftsman 917.378910 Manuel utilisateur

Craftsman

Craftsman 917.276860 Manuel utilisateur

Craftsman

Craftsman 247.37126 Manuel utilisateur

Craftsman

Craftsman 27716 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270650 Manuel utilisateur

Craftsman

Craftsman 917.377682 Manuel utilisateur

Craftsman

Craftsman 917.388910 Manuel utilisateur

Craftsman

Craftsman 917.388611 Manuel utilisateur

Craftsman

Craftsman 917.273373 Manuel utilisateur

Craftsman

Craftsman 917.273394 Manuel utilisateur

Craftsman

Craftsman 917.376793 Manuel utilisateur

Craftsman

Craftsman 917.270534 Manuel utilisateur

Craftsman

Craftsman T1200 247.203722 Manuel utilisateur

Craftsman

Craftsman 917.385390 Manuel utilisateur

Craftsman

Craftsman 917.259330 Manuel utilisateur

Craftsman

Craftsman 917.385110 Manuel utilisateur

Craftsman

Craftsman 917.28008 Manuel utilisateur

Craftsman

Craftsman 917.370860 Manuel utilisateur

Craftsman

Craftsman 917.276013 Manuel utilisateur

Craftsman

Craftsman 917.388123 Manuel utilisateur

Craftsman

Craftsman 917.378590 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
