Craftsman 917.388272 Manuel utilisateur

Owner's Manual

f'RQFTXMRNo

6.0 HORSEPOWER

21" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.388272

• Safety

•Assembly

• Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visitour Craftsman website: www.sears.com/craftsman

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 4

Operation .............................................. 6

Maintenance Schedule ........................ 10

Maintenance ......................................... 10

Product Specifications .......................... 11

Service and Adjustments ...................... 13

Storage ................................................. 15

Troubleshooting ................................... 16

Repair Parts .......................................... 34

Parts Ordering ...................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator

presence control to minimize the risk of

injury. Your unit is equipped with cuch

controls, do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING:

•Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Learn how to quickly stop

mower.

•Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

•Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

• The blade turns when the engine is

running.

PREPARATION:

• Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

• Always wear safety glasses or eye

shields when starting and while using

your mower.

• Dress properly. Do not operate mower

when barefoot or wearing open

sandals. Wear only solid shoes with

good traction when mowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

• Do not mow wet or slippery grass.

Never run while operating your mower.

Always be sure of your footing - keep a

firm hold on the handles and walk.

•Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks,

roads, and any gravel-covered areas.

•Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repair-

ing your mower, stop the engine and

make absolutely sure the blade and all

moving parts have stopped. Then

disconnect the spark plug wire and

keep it away from the spark plug to

prevent accidental starting.

•Do not continue to run your mower if

you hit a foreign object. Follow the

procedure outlined above, then repair

any damage before restarting and

operating your mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

•Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions -

maintain good footing.

• Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

• Keep all safety devices in place and

working.

• To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

A, Look for this symbol to point out

important safety precautions. It means

CAUTIONt!t BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

_I_CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_,WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retailoutlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some ofthese accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWNMOWERS

MULCHER KITS

/GRASSCATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR FILTERS

BLADE ADAPTERS WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those parts left unaseembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

san/to complete the assembly have been

placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with

mower.

• Cut down two end comers of carton and

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

• Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

• Raise handles until lower handle

section locks into place in mowing

position.

•Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

•Remove handle padding holding

operator presence control bar to upper

handle.

•Your lawn mower handle can be

adjusted for your mowing comfort.

Refer to "Adjust Handle" in the Service

and Adjustments section of this manual.

Operator

presence

control bar

handle

Liftup

Lower

handle

Mowing

position

TO INSTALL ATACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to begging,

see "To convert mower_in the OPERATION

section of this manual.

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adjustments, Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn end understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARINtNG ON OFF AND FEET AWAY

presence control

bar

Starte zone control cable

Handle

Grass

filler cap

with dipstick Lawn mower housing

iMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the Wheel adjuster

engine. (on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American

National Standards Institute and the U.S. Consumer Product Safety Commission. The blade

turns when the engine is running.

Operator Presence Control Bar- must be

held down to the handle to stad the engine.

Release to stop the engine.

Pdmer -pumps additional fuel from the

carburetor to the cylinder for use when

starling a cold engine.

Starter Handle -used for stading the engine.

The operation of any lawn mower

can result in foreign objects thrown

intothe eyes, which can result in

severe eye damage. Always wear safe_

glasses or eye shields while operating your

lawn mower or performing any adjustments

or repairs. We recommend a wide vision

safety mask over spectacles or standard

safety glasses.

HOWTOUSEYOUR LAWNMOWER

ENGINE SPEED CONTROL

The engine speed was set at the factory for

optimumperformance.Speedisnotadjust-

able.

ENGINEZONE CONTROL

_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CuI"rlNG HEIGHT

•Raise wheels for low cut and lower wheels

for high cut.

•Adjust cutting height to suit your require-

ments. Medium position is best for most

lawns.

•To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs. Plate Tab

Lower Wheels for High Cut

Raise Wheels for Low Cut

Lever

TO CONVERT MOWER

Your lawn mower was sh_pped ready to be

used as a muicher. To convert to bagging :

REAR BAGGING

• Lift rear door of the lawn mower and place

the grass catcher frame hooks onto the

door pivot pins.

• To convert to mulching operation, remove

grass catcher and dose rear door.

Pivot pins

TO EMPTY GRASS CATCHER

• Lift up on grass catcher using the frame

handle.

• Remove grass catcher with clippings

from under lawn mower handle.

•Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

handle

Grass

cachet

frame

handle

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

• Be sure mower is level and area around oil

fillis clean.

•Remove engine oilcap and fillto the full

line on the dipstk_k.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

• Engine holds 20 ozs. of oil. For type and

grade of oilto use, see "ENGINE" in

Maintenance section of this manual.

•Pour oilslowly. Do not over fill.

• Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

•To read proper level, tighten engine oil cap

each time.

•Reinstall engine oil cap and tighten.

• Change the oilafter every 25 hours of

operation or each season. You may need

to change the oil more often under dusty,

dirty conditions.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline w;_ a minimum of 87

octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel

freshness.

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

ACAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

• To start a cold engine, push primer five (5)

times before trying to start. Use a firm push.

This step is not usually necessary when

starting an engine which has already run

for a few minutes.

• Hold operator presence control bar down

to the handle and pull starter handle

quickly. Do not allow starter rope to snap

back.

•To stop engine, release operator presence

control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start, if you do

flood engine, wait afew minutes before

attempting to start and do not repeat

priming steps.

Gasoline filler

cap

Engineoil

cap

MOWINGTIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area asecond time.

• If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

ovedap to collect the clippings on the

next pass.

•Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

•Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean UNDERSIDE OF MOWER

HOUSING after each use. Sea "Cleaning"

in MAINTENANCE section of this manual.

•The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best reoutting action of the blades.

•Avoid cutting your lawn when it is wet. Wet

grass tends to form dumps and interferes

with the mulching action. The best time to

mow your lawn is the early aftemoon. At

this time the grass has d_ed and the newly

cut area will not be exposed to the direct

sun.

•For best results, adjust the lawn mower

cutting hdKjht so that the lawn mower cuts

off only the top one-third of the grass

blades. If the lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width of cut,

mow slowly and ralss the rear of the lawn

mower one wheal adjuster setting higher

than the fronL

•Cedain types of grsss and grsss conditions

may require that an area be mulched a

second tkne to completdy hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

•Change your cutting pattern frorn week to

week. Mow north to south one week then

change to east to west the next week. This

will help prevent matting and graining of

the lawn.

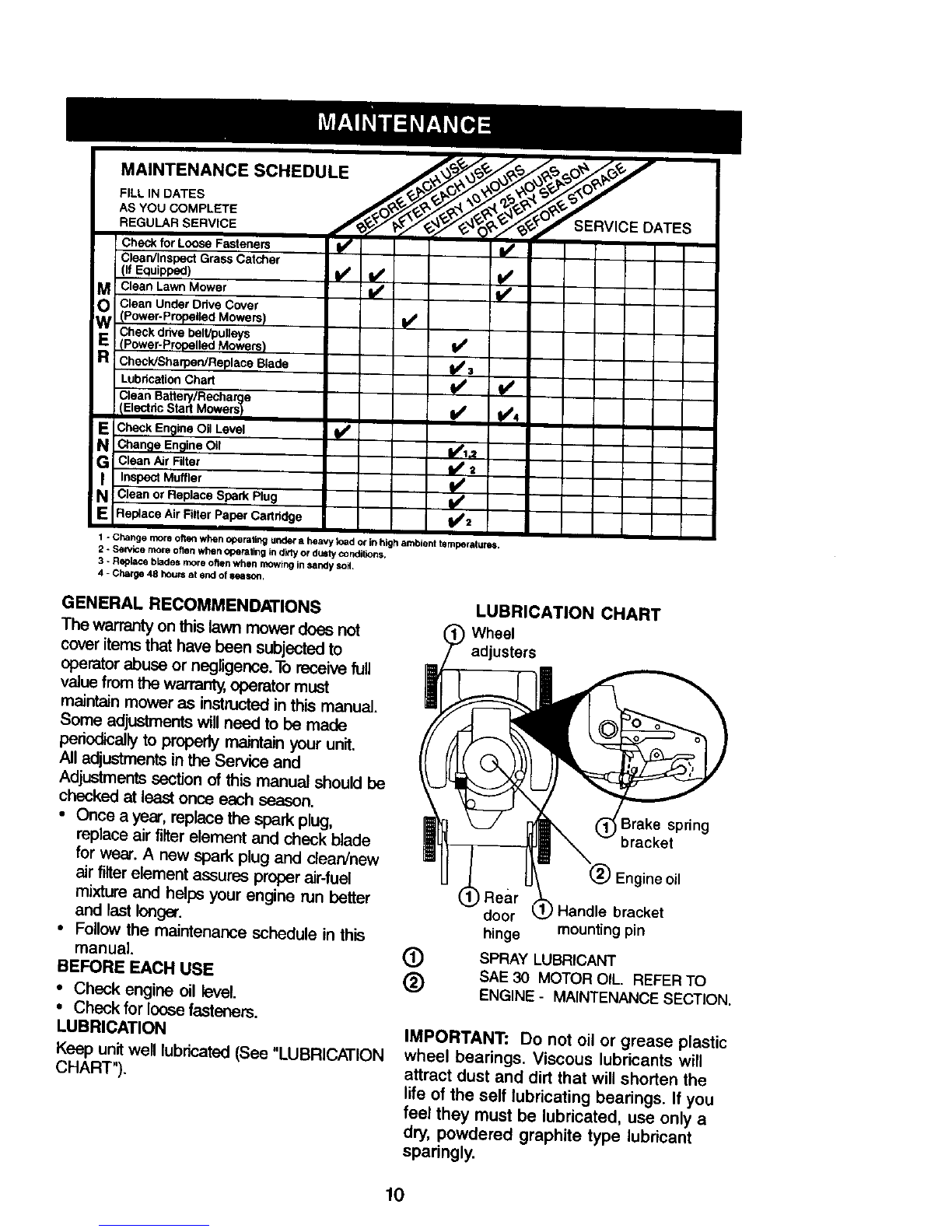

MA,.TE.ANCESC.EDULE.....

SERVICE DATES

Check for Loose Fasteners I/ I/

Clean/Inspect Grass Catcher v W

MClean Lawn Mower

Clean Under Drive Cover

WIPower-propelk_d Mowsm)

JCheck drive belt/pulleys .j

r(Power-Propelled Mowers)

aCheck/Sharpen/Replace Blade 3

Lubrication Chart

Clean Ba_eP//Recharge

IElectric Start Mowers II_

E Check Engine Oil Level I_

NC_nge Engine 011 I_l.t

G Clean Air Filter ll/2

IInspect Muffler

N Clean or Replace Spark Plug v'

EReplace Air Filler Paper Cartridge I/2

_4 I

1 - Changemore offe_lwhen operatingunder a heavy load or in high ambienttemperatui'es.

2-Servicemore often when opsrstingindirty or dustyconditions,

3 * Replaceblades more oftenwhen mowingin sandy soil

4 - Charge 48 hoursat end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive full

value from the warranty, operator must

maintain mower as instructed in this manual.

Some adjustments will need to be made

periodical),/to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should be

checked at least once each season.

•Once a year, _place the spark plug,

replace air filter element and check blade

for wear. A new spark plug and clean/new

air filter element assures proper air-fuel

mixture and helps your engine run better

and last longer.

•Follow the maintenance schedule in this

manual

BEFORE EACH USE

•Check engine oil level,

•Check for loose fasteners,

LUBRICATION

Keep unit well lubricated (See "LUBRICATION

CHART").

LUBRICATION CHART

)Wheel

adjusters

Brake spring

bracket

(_ Rear Engine oil

door ) Handle bracket

hinge mounting pin

SPRAY LUBRICANT

SAE 30 MOTOR OIL. REFER TO

ENGINE - MAINTENANCE SECTION.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will

attract dust and dirt that will shorten the

life of the self lubricating bearings. If you

feel they must be lubricated, use only a

dry, powdered graphite type lubricant

sparingly.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.258911 Manuel utilisateur

Craftsman

Craftsman 917.273610 Manuel utilisateur

Craftsman

Craftsman 917.38721 Manuel utilisateur

Craftsman

Craftsman 917.388108 Manuel utilisateur

Craftsman

Craftsman 917.374400 Manuel utilisateur

Craftsman

Craftsman 917.370562 Manuel utilisateur

Craftsman

Craftsman 917.376222 Manuel utilisateur

Craftsman

Craftsman 917.378404 Manuel utilisateur

Craftsman

Craftsman EZ3 917.272950 Manuel utilisateur

Craftsman

Craftsman 247.288843 Manuel utilisateur

Craftsman

Craftsman 917.376071 Manuel utilisateur

Craftsman

Craftsman EZ3 917.376290 Manuel utilisateur

Craftsman

Craftsman 917.377970 Manuel utilisateur

Craftsman

Craftsman 917.376480 Manuel utilisateur

Craftsman

Craftsman 917.376390 Manuel utilisateur

Craftsman

Craftsman 917.273780 Manuel utilisateur

Craftsman

Craftsman 917.378531 Manuel utilisateur

Craftsman

Craftsman 917.276013 Manuel utilisateur

Craftsman

Craftsman 917.276681 Manuel utilisateur

Craftsman

Craftsman 917.273763 Manuel utilisateur

Craftsman

Craftsman 917.377151 Manuel utilisateur

Craftsman

Craftsman M230 Manuel utilisateur

Craftsman

Craftsman PGT9000 247.28984 Manuel utilisateur

Craftsman

Craftsman 917.388106 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
