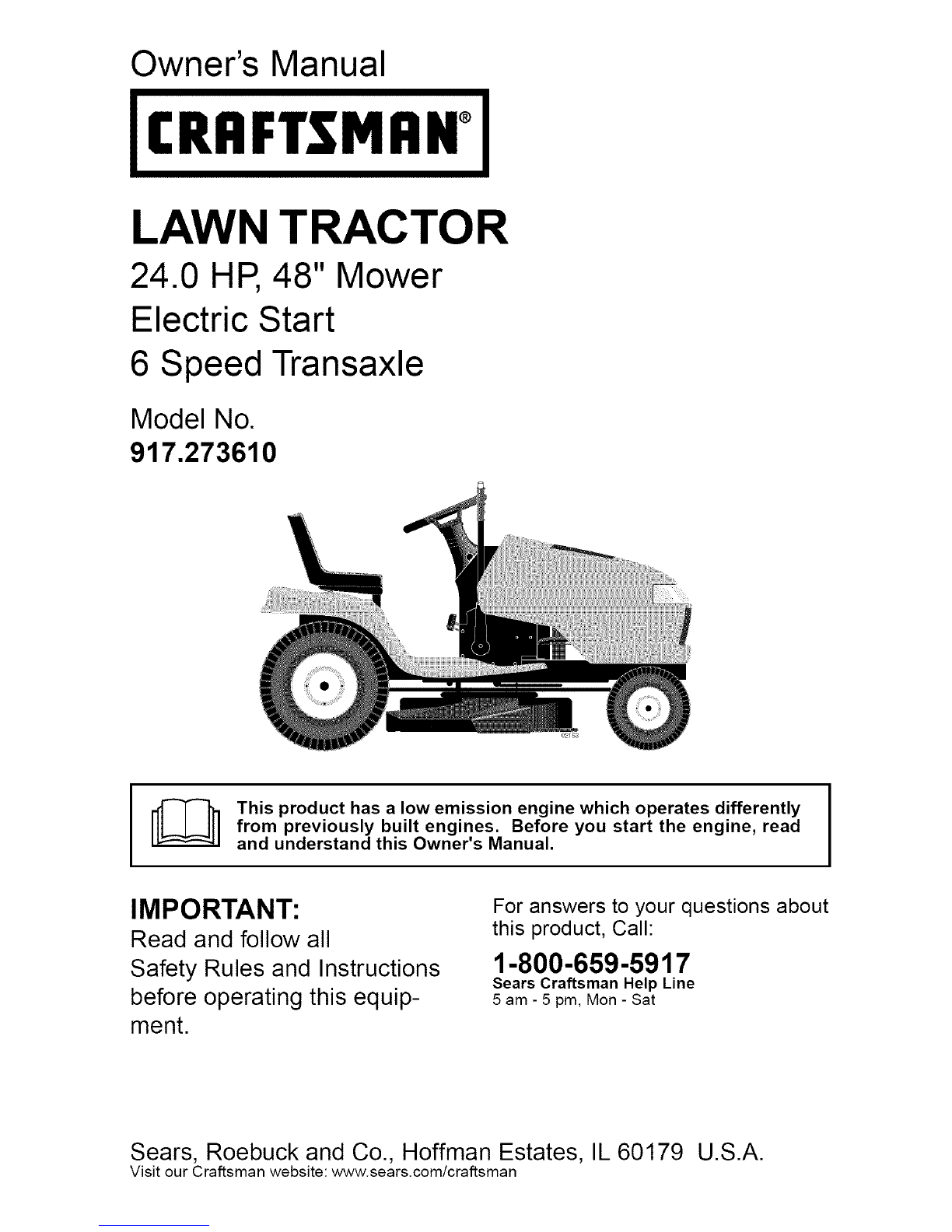

Owner's Manual

CRRFTSMRN°

LAWN TRACTOR

24.0 HP, 48" Mower

Electric Start

6 Speed Transaxle

Model No.

917.273610

r_ This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read

and understand this Owner's Manual.

IMPORTANT:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment,

For answers to your questions about

this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

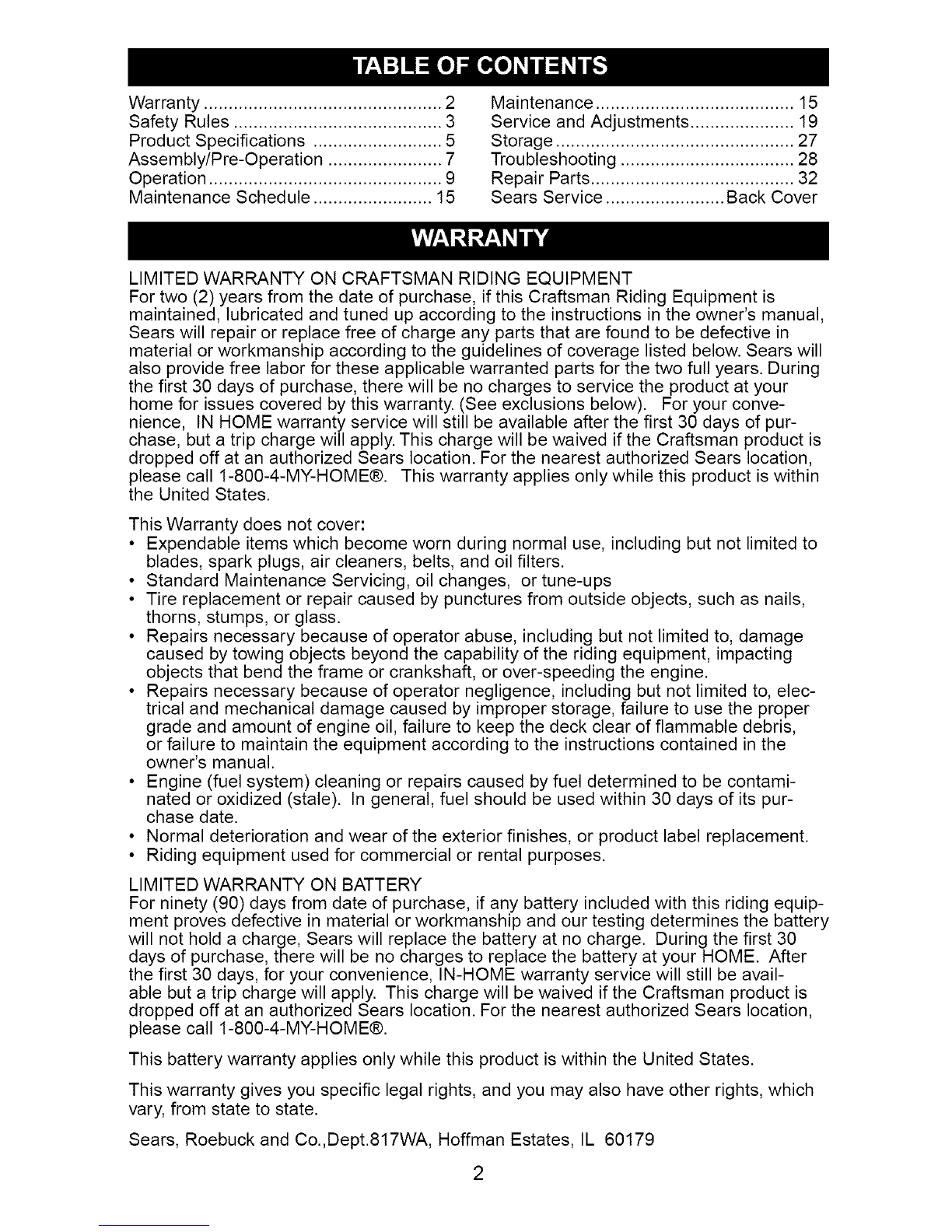

Warranty................................................2

SafetyRules..........................................3

ProductSpecifications..........................5

Assembly/Pre-Operation.......................7

Operation...............................................9

MaintenanceSchedule........................15

Maintenance ........................................ 15

Service and Adjustments ..................... 19

Storage ................................................ 27

Troubleshooting ................................... 28

Repair Parts ......................................... 32

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

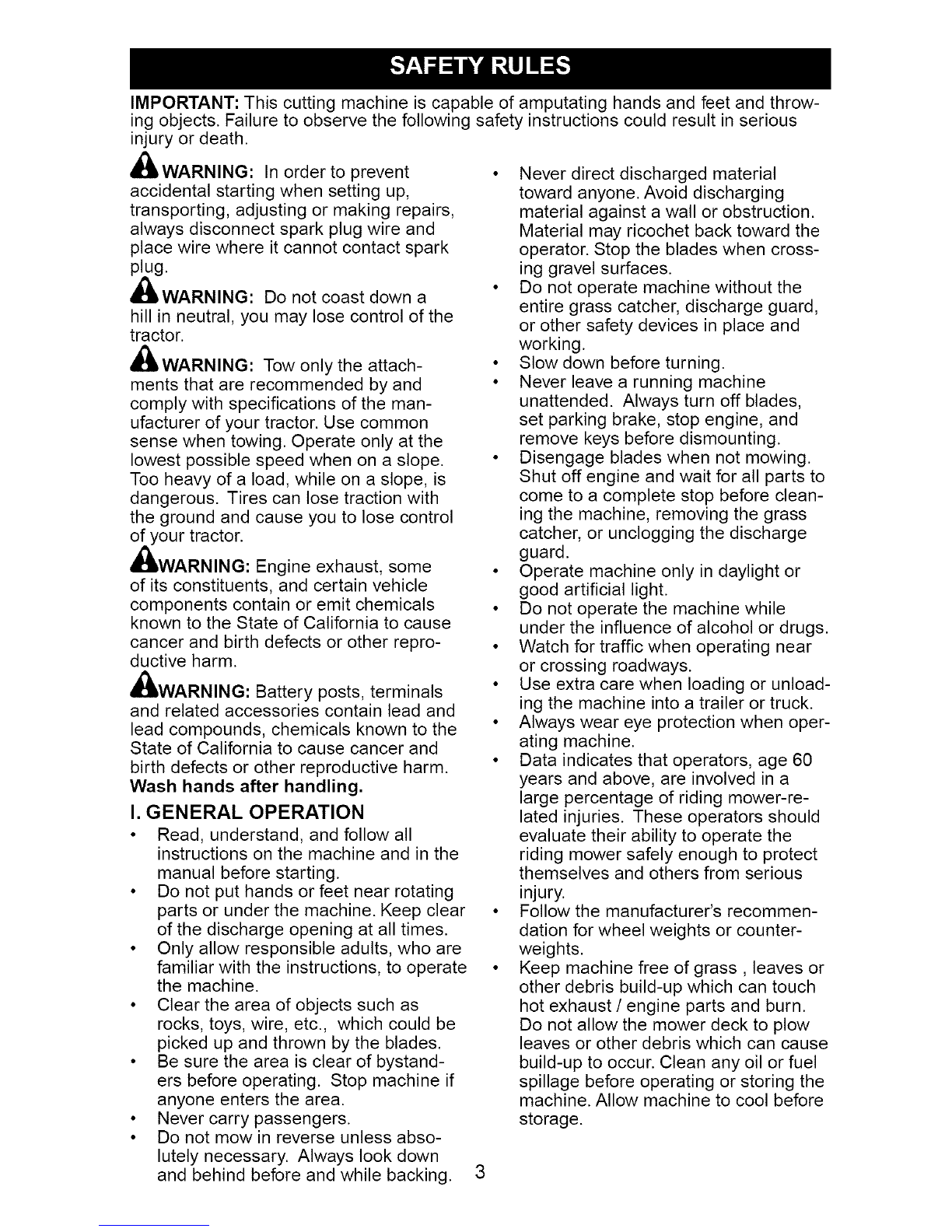

IMPORTANT:Thiscuttingmachineiscapableof amputatinghandsandfeetandthrow-

ingobjects.Failureto observethefollowingsafetyinstructionscouldresult inserious

injuryordeath.

WARNING: Inorderto prevent

accidentalstartingwhensettingup,

transporting,adjustingor makingrepairs,

alwaysdisconnectsparkplugwire and

placewirewhereitcannotcontactspark

plug.

WARNING: Donotcoastdowna

hillin neutral,youmay losecontrolofthe

tractor.

WARNING: Towonlythe attach-

mentsthatare recommendedbyand

complywith specificationsofthe man-

ufacturerof yourtractor.Usecommon

sensewhentowing.Operateonlyat the

lowestpossiblespeedwhenon aslope.

Tooheavyof a load,whileon aslope,is

dangerous.Tirescan losetractionwith

thegroundandcauseyouto losecontrol

of yourtractor.

WARNING:Engineexhaust,some

of its constituents,andcertainvehicle

componentscontainoremitchemicals

knownto theStateof Californiato cause

cancerandbirth defectsor otherrepro-

ductiveharm.

WARNING:Batteryposts,terminals

and relatedaccessoriescontainleadand

leadcompounds,chemicalsknownto the

Stateof Californiato causecancerand

birthdefectsorother reproductiveharm.

Wash hands after handling.

I. GENERAL OPERATION

• Read,understand,andfollowall

instructionsonthe machineandin the

manualbeforestarting.

• Donotputhandsor feetnearrotating

partsor underthemachine.Keepclear

ofthedischargeopeningat all times.

• Onlyallow responsibleadults,who are

familiarwiththe instructions,tooperate

themachine.

• Cleartheareaof objectssuch as

rocks,toys,wire, etc., whichcouldbe

pickedupandthrownbythe blades.

• Besuretheareais clearof bystand-

ersbeforeoperating. Stop machineif

anyoneentersthe area.

• Nevercarrypassengers.

• Donot mowin reverseunlessabso-

lutelynecessary.Alwayslookdown

andbehindbeforeandwhile backing.

• Neverdirectdischargedmaterial

towardanyone.Avoiddischarging

materialagainstawallorobstruction.

Materialmayricochetbacktowardthe

operator.Stopthebladeswhencross-

inggravelsurfaces.

• Donotoperatemachinewithoutthe

entiregrasscatcher,dischargeguard,

orother safetydevicesin placeand

working.

• Slowdown beforeturning.

• Neverleavea runningmachine

unattended. Alwaysturnoff blades,

set parkingbrake,stopengine,and

removekeysbeforedismounting.

• Disengagebladeswhennotmowing.

Shutoff engineandwaitfor all partsto

cometo a completestopbeforeclean-

ingthe machine,removingthegrass

catcher,or uncloggingthedischarge

guard.

• Operatemachineonly in daylightor

goodartificiallight.

• Donotoperatethe machinewhile

underthe influenceof alcoholor drugs.

• Watchfortrafficwhenoperatingnear

or crossingroadways.

• Useextracarewhen loadingor unload-

ingthe machineintoa traileror truck.

• Alwaysweareyeprotectionwhenoper-

atingmachine.

• Dataindicatesthat operators,age60

yearsandabove,are involvedin a

largepercentageof ridingmower-re-

latedinjuries. Theseoperatorsshould

evaluatetheirabilityto operatethe

ridingmowersafelyenoughto protect

themselvesandothersfrom serious

injury.

• Followthemanufacturer'srecommen-

dationforwheelweightsorcounter-

weights.

• Keepmachinefreeof grass, leavesor

otherdebrisbuild-upwhich cantouch

hotexhaust/engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

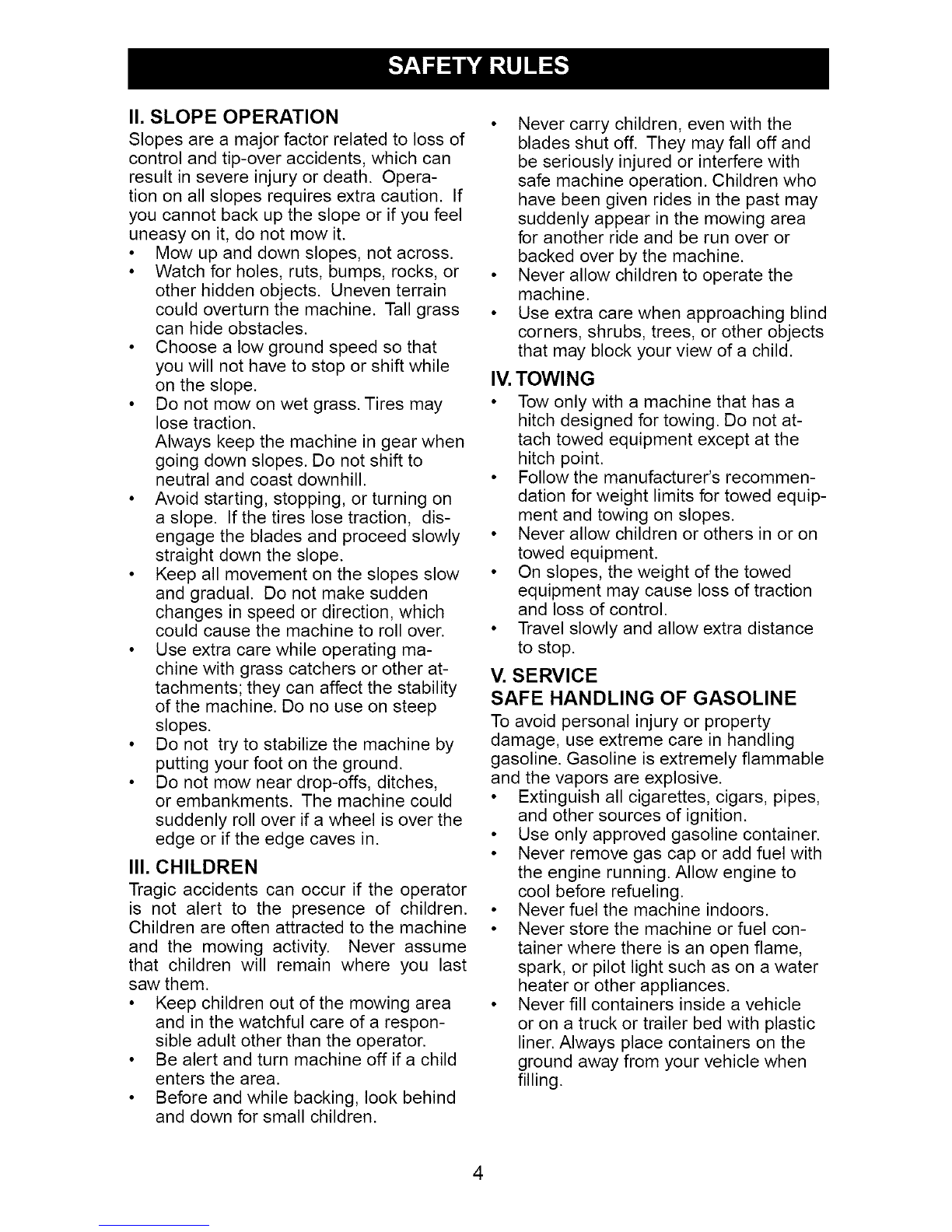

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Opera-

tion on all slopes requires extra caution. If

you cannot back up the slope or if you feel

uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Do not mow on wet grass. Tires may

lose traction.

Always keep the machine in gear when

going down slopes. Do not shift to

neutral and coast downhill.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating ma-

chine with grass catchers or other at-

tachments; they can affect the stability

of the machine. Do no use on steep

slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV, TOWING

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Followthe manufacturer's recommen-

dation for weight limits for towed equip-

ment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

liner. Always place containers on the

ground away from your vehicle when

filling.

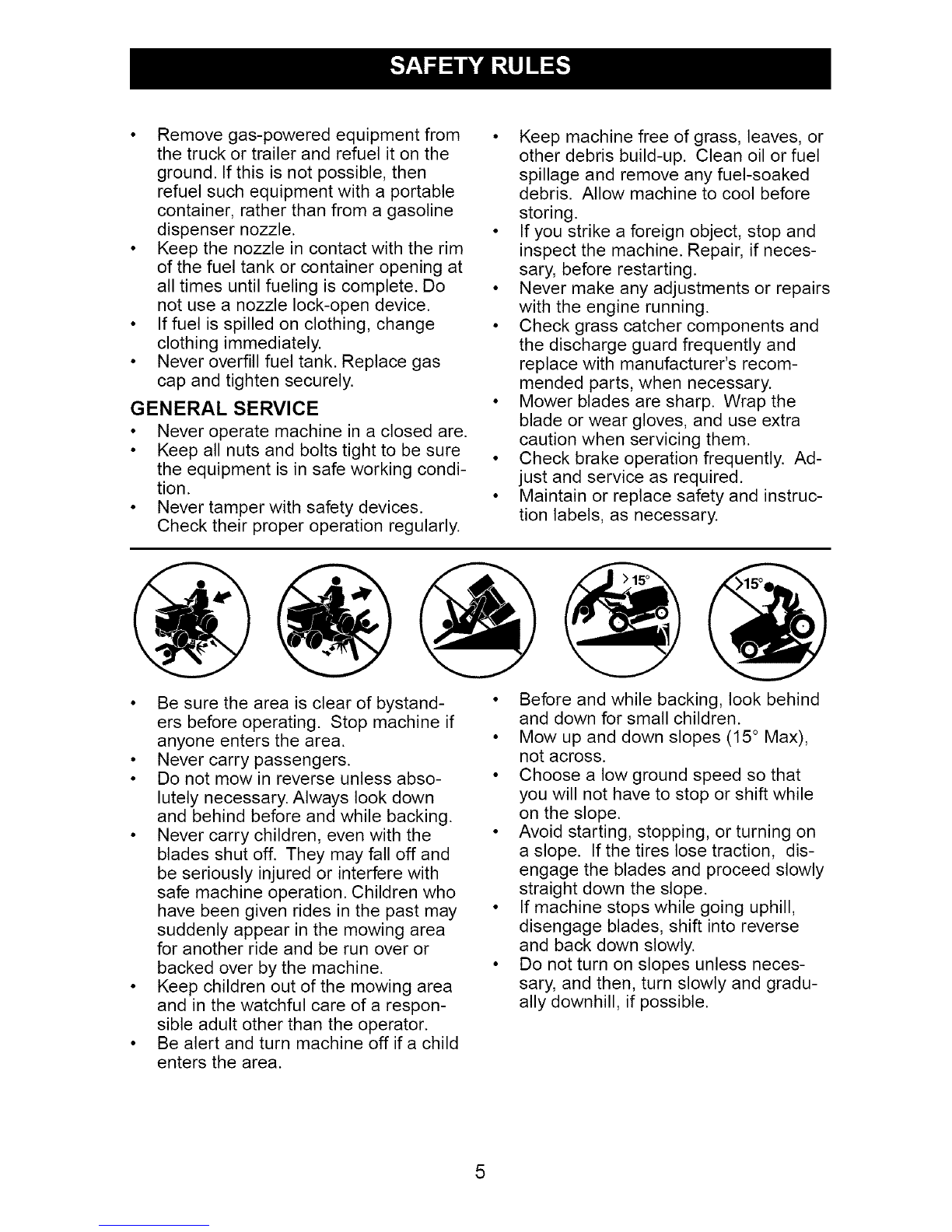

• Removegas-poweredequipmentfrom

thetruckor trailerand refuelit onthe

ground.Ifthisis not possible,then

refuelsuch equipmentwith aportable

container,ratherthanfrom agasoline

dispensernozzle.

• Keepthenozzleincontactwiththe rim

ofthefuel tankorcontaineropeningat

alltimesuntilfuelingiscomplete.Do

notusea nozzlelock-opendevice.

• Iffuel isspilledon clothing,change

clothingimmediately.

• Neveroverfillfuel tank.Replacegas

capandtightensecurely.

GENERAL SERVICE

• Never operate machine in a closed are.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 4 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (above 32°F)

API-SG-SL): SAE 5W-30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed

(MPH): Forward:

1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System:16 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque:45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

Ai_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark ar-

rester for the muffler is available through

your nearest Sears service center (See

REPAIR PARTS section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Keys

(2) Keys

Mower

Leveling Wrench

(1) Oil Drain Tube

For Future Use

Video Cassette

Bubble Level

Slope Sheet

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove packing materials.

3. Remove protective materials from trac-

tor hood and grille.

IMPORTANT: Check for and remove any

staplesin skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

_ /_ _

/_ ,/

_ Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely._ t

AdnJUl_t_ 02624

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

_wACtion of controls)

RNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

JCHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

v" Become familiar with all controls, their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe operat-

ing condition.

Thesesymbolsmayappearon yourtractoror inliteraturesuppliedwiththe product.

Learnand understandtheir meaning.

R N H L I',,,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST IGNITION

6 G G, I

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE

UNLOCKED

OVER TEMP FUEL OIL PRESSURE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

BATTERY REVERSE FORWARD

SLOW

PARKING BRAKE

LOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, ifnot avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Hourmeter

Ammeter

Throttle Control

Ignition Switch Light Switch Position

Attachment Clutch Switch

Lift Lever Plunger

Lift Lever

Choke

o Height

Adjustment

Indicator

Parking Brake Gear Shift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH - Used for starting and

stopping the engine.

AMMETER - Indicates battery charging

(+) or discharging (-).

PARKING BRAKE - Locks clutch/brake

into the brake position.

HOURMETER - Indicates hours of opera-

tion.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.377060 Manuel utilisateur

Craftsman

Craftsman 917.276350 Manuel utilisateur

Craftsman

Craftsman 247.37126 Manuel utilisateur

Craftsman

Craftsman 917.256582 Manuel utilisateur

Craftsman

Craftsman 917.254220 Manuel utilisateur

Craftsman

Craftsman 917.255441 Manuel utilisateur

Craftsman

Craftsman 917.275682 Manuel utilisateur

Craftsman

Craftsman 917.376096 Manuel utilisateur

Craftsman

Craftsman 917.370932 Manuel utilisateur

Craftsman

Craftsman 917.377240 Manuel utilisateur

Craftsman

Craftsman 917.274822 Manuel utilisateur

Craftsman

Craftsman 917.388512 Manuel utilisateur

Craftsman

Craftsman 917.28008 Manuel utilisateur

Craftsman

Craftsman EZ3 917.256701 Manuel utilisateur

Craftsman

Craftsman 917.370714 Manuel utilisateur

Craftsman

Craftsman 28974 - Professional PGT 9000 28 HP/54" Garden... Manuel utilisateur

Craftsman

Craftsman EZ 917.270941 Manuel utilisateur

Craftsman

Craftsman 917.255692 Manuel utilisateur

Craftsman

Craftsman 917.273860 Manuel utilisateur

Craftsman

Craftsman 917.271121 Manuel utilisateur

Craftsman

Craftsman 917.376541 Manuel utilisateur

Craftsman

Craftsman 917.272452 Manuel utilisateur

Craftsman

Craftsman 917.388610 Manuel utilisateur

Craftsman

Craftsman 917.376430 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
