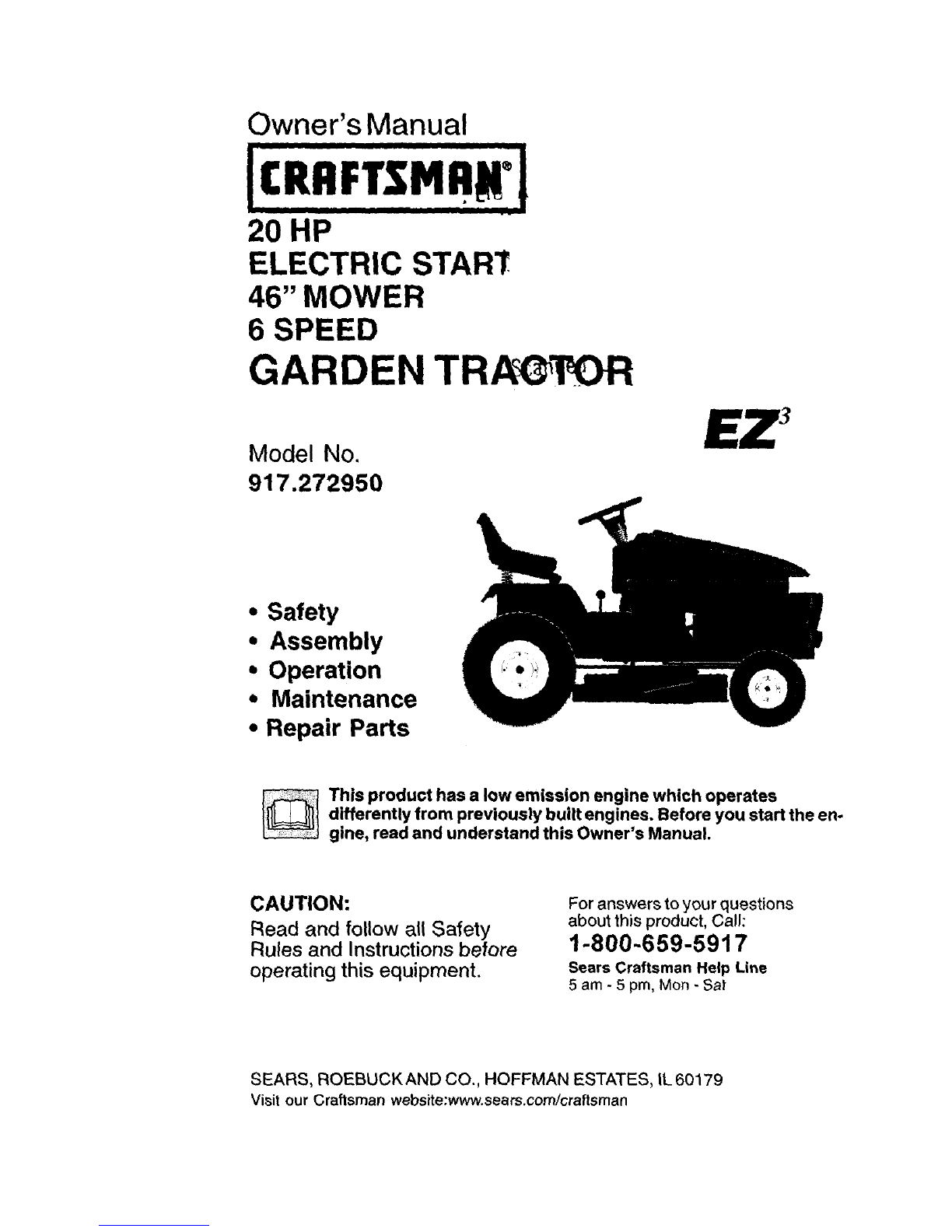

Craftsman EZ3 917.272950 Manuel utilisateur

Owner's Manual

,.:1

ICReFTSM

20 HP I t

ELECTRIC START

46" MOWER

6 SPEED

GARDEN

Model No.

917.272950

IEZ3

sSafety

•Assembly

• Operation

s Maintenance

sRepair Parts

This product has a low emission engine which operates

differently from previously built engines. Before you start the en-

gine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Visit our Craftsman website:www.sears.com/craftsman

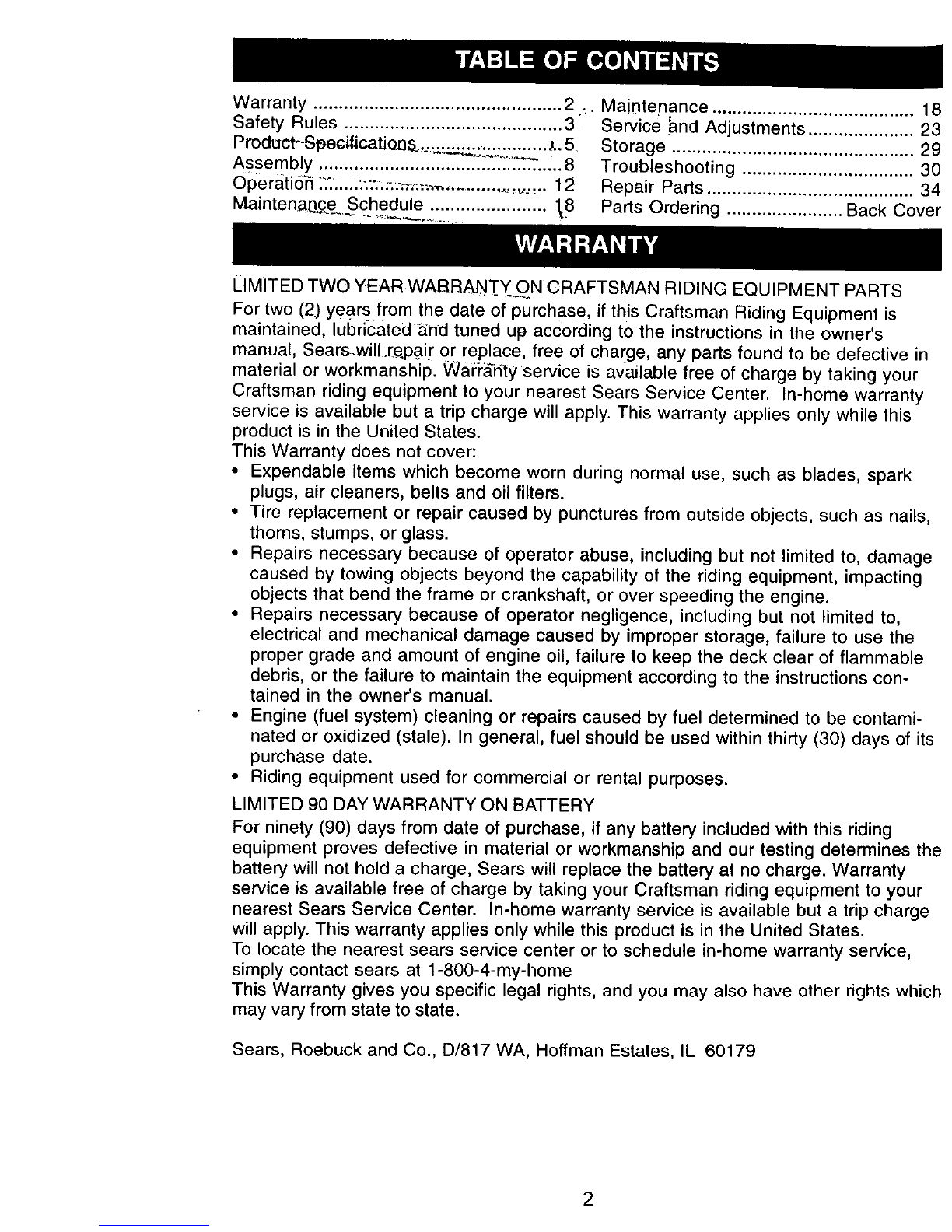

Warranty ................................................. 2 . Mantenance ........... 18

Safety Rules ........................................... 31

Product--S_f4catioJ3,&.....4._4:,:. ........... 4.5

Asse mbly ............... '... i_i..... _;:."._':'.:..'EC.......8

Operatic#i :;;.:.:.:::'.::=:;:;.:_................. _.;_..12

Maintenan.£e Schedu e ....................... 1_8

Service _nd Adjustments ..................... 23

Storage ................................................ 29

Troubleshooting .................................. 30

Repair Parts ......................................... 34

Parts Ordering ....................... Back Cover

LIMITED TWO YEAR WARELANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricatedAndtuned up according to the instructions in the owner's

manual, Sears.will.t:e.pair" or replace, free of charge, any parts found to be defective in

material or workmanship. V_ari'_.htyservice is available free of charge by taking your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by taking your Craftsman riding equipment to your

nearest Sears Service Center. In-home warranty service is available but a trip charge

will apply. This warranty applies only while this product is in the United States.

To locate the nearest sears service center or to schedule in-home warranty service,

simply contact sears at 1-800-4-my-home

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

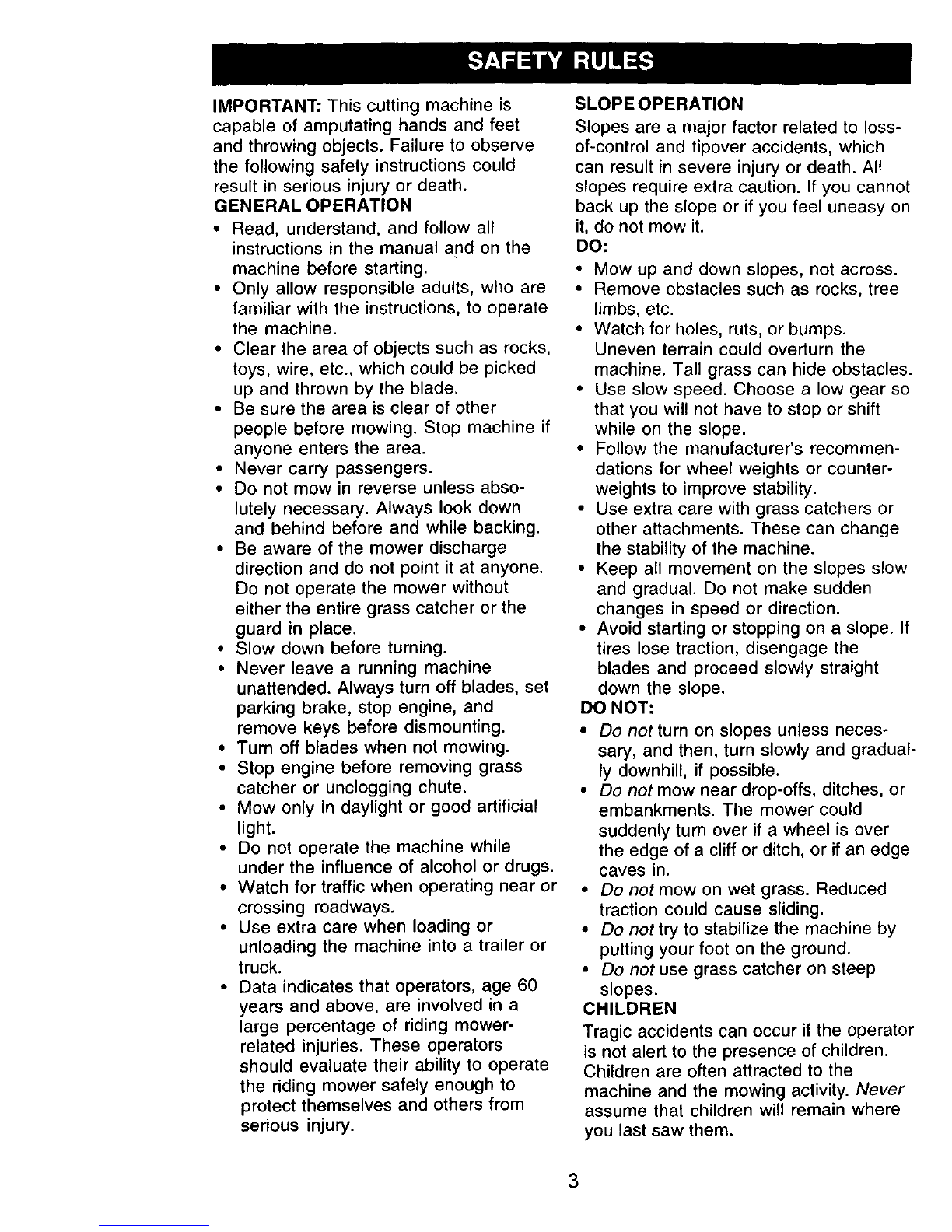

IMPORTANT: This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could

result in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and ethers from

serious injury.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradual-

ly downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

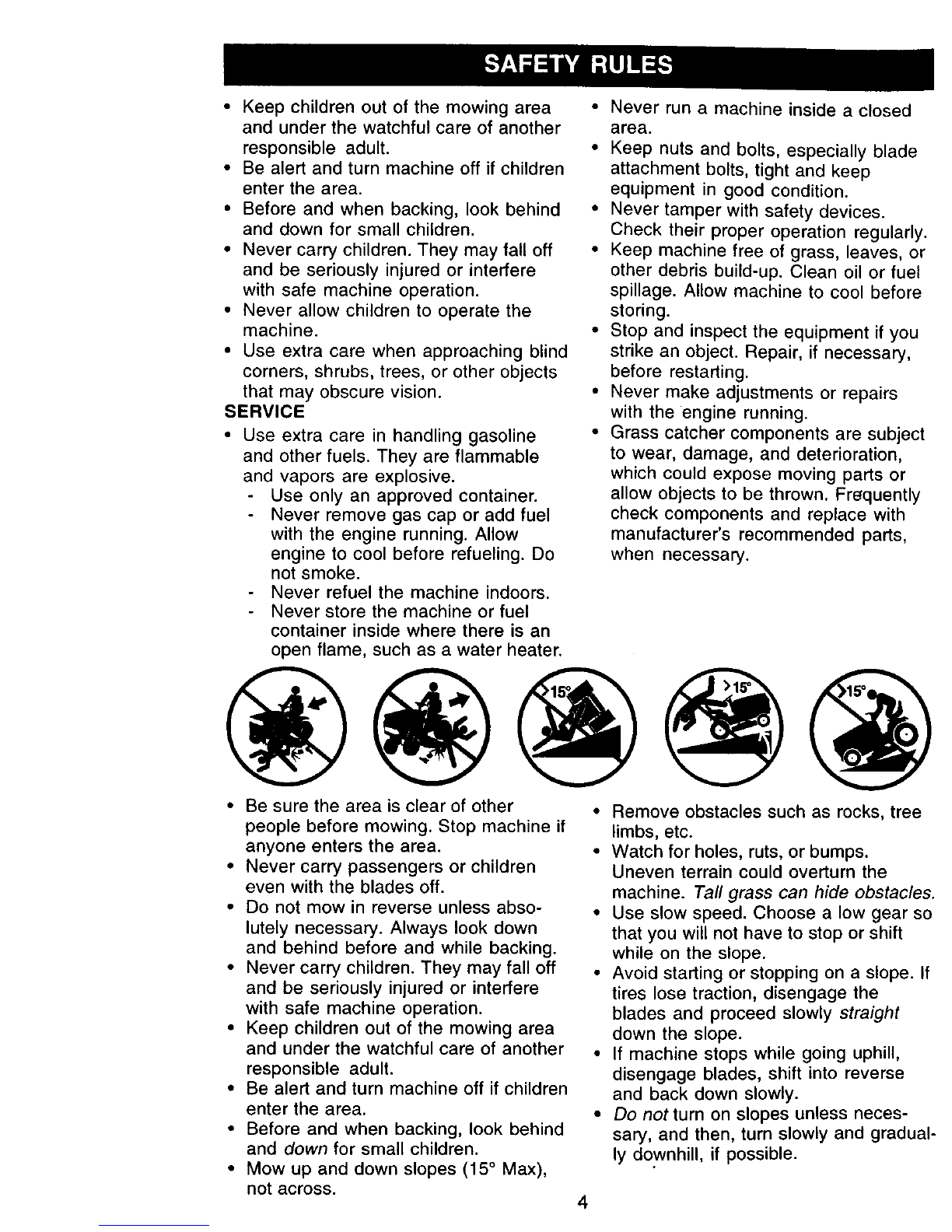

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessa_.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 °Max),

not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacle,.

Use slow speed. Choose a low gear s(

that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. I'

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradua

ly downhill it possible.

,_Look for this symbol to point out

important safety precautions. It means

CAUTIONH! BECOMEAWARE!ff YOUR

SAFETY IS INVOLVED.

_,CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always

disconnect spark plug wire and place

wire where it cannot contact spark plug.

_,CAUTION." Do not coast down a hill in

neutral, you may lose control of the

tractor.

_,CAUTION" Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_,WARNING: The eng!ne exhaust from

this product contains chemicals Known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

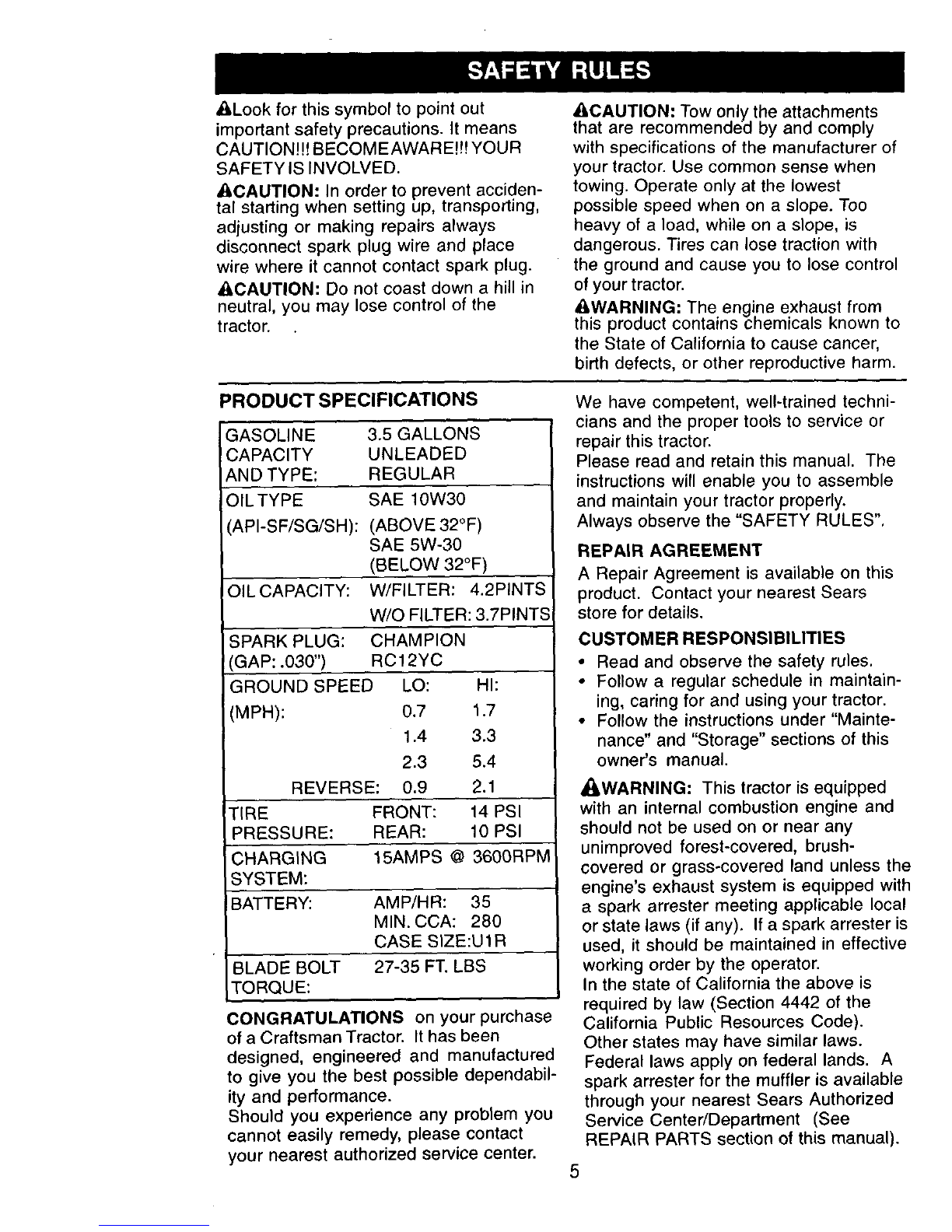

PRODUCT SPECIFICATIONS

GASOLINE

CAPACITY

\ND TYPE:

OIL TYPE

API-SF/SG/SH):

OIL CAPACITY:

_PARK PLUG:

GAP: .030")

GROUND SPEED

MPH):

2.3

3.5 GALLONS

UNLEADED

REGULAR

SAE 10W30

(ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

W/FILTER: 4.2PINTS

W/O FILTER: 3.7PINTS

CHAMPION

RC12YC

LO: HI:

0.7 1.7

1.4 3.3

5.4

REVERSE: 0.9 2.1

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 15AMPS @ 3600RPM

SYSTEM:

BATTERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE:U 1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

:ONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependabil-

ity and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest authorized service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES",

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears Authorized

Service Center/Department (See

REPAIR PARTS section of this manual).

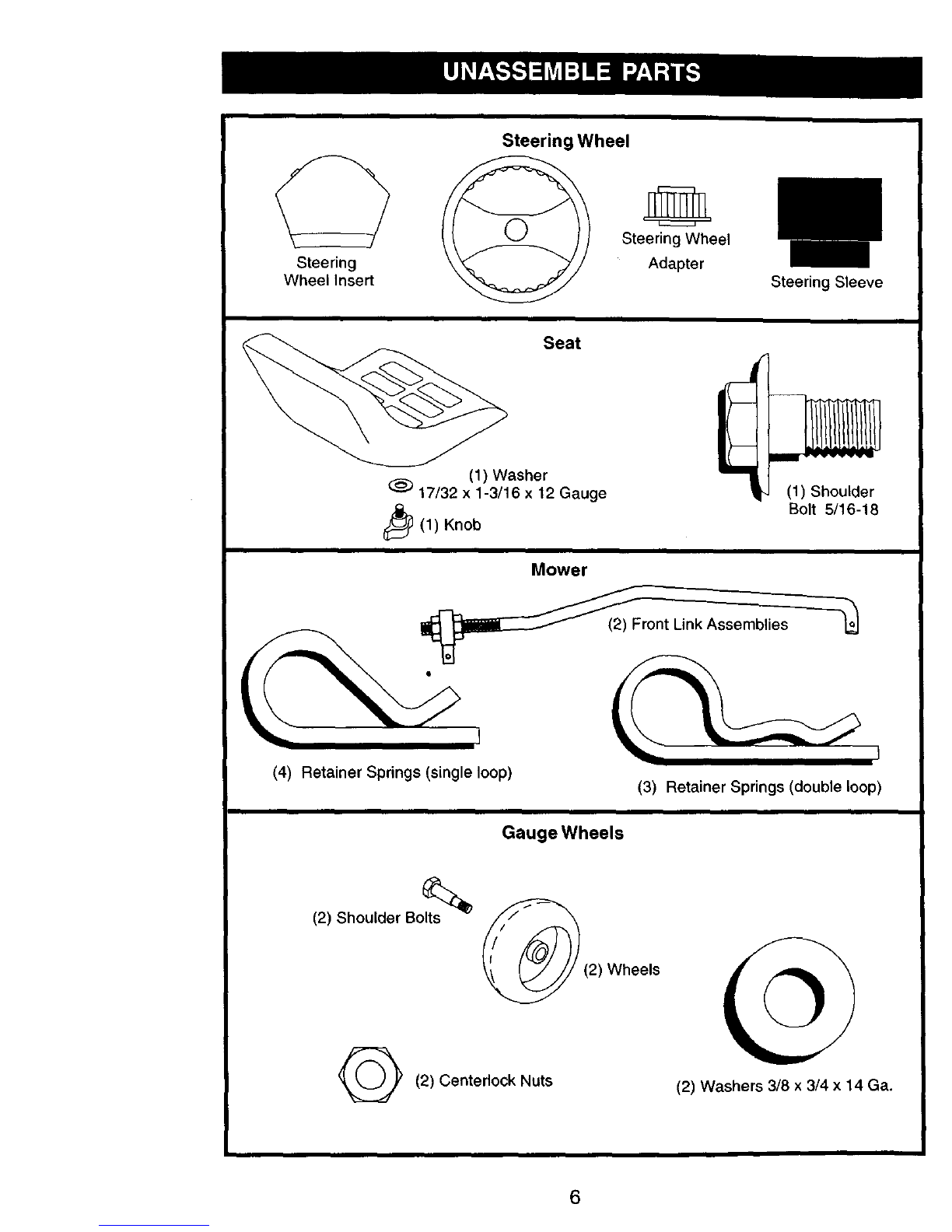

Steering

Wheel Insert

Steering Wheel

Adapter Steering Sleeve

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Mower

(1) Shoulder

Bolt 5/16-18

(4) Retainer Springs (single loop)

(2) Front Link Assemblies

(3) Retainer Springs (double loop)

Gauge Wheels

(2) Shoulder Bolts

(2) Centerlock Nuts

Wheels

(2) Washers 3/8 x 3/4 x 14 Ga.

Video Cassette

Keys

Slope Sheet

(2) Keys

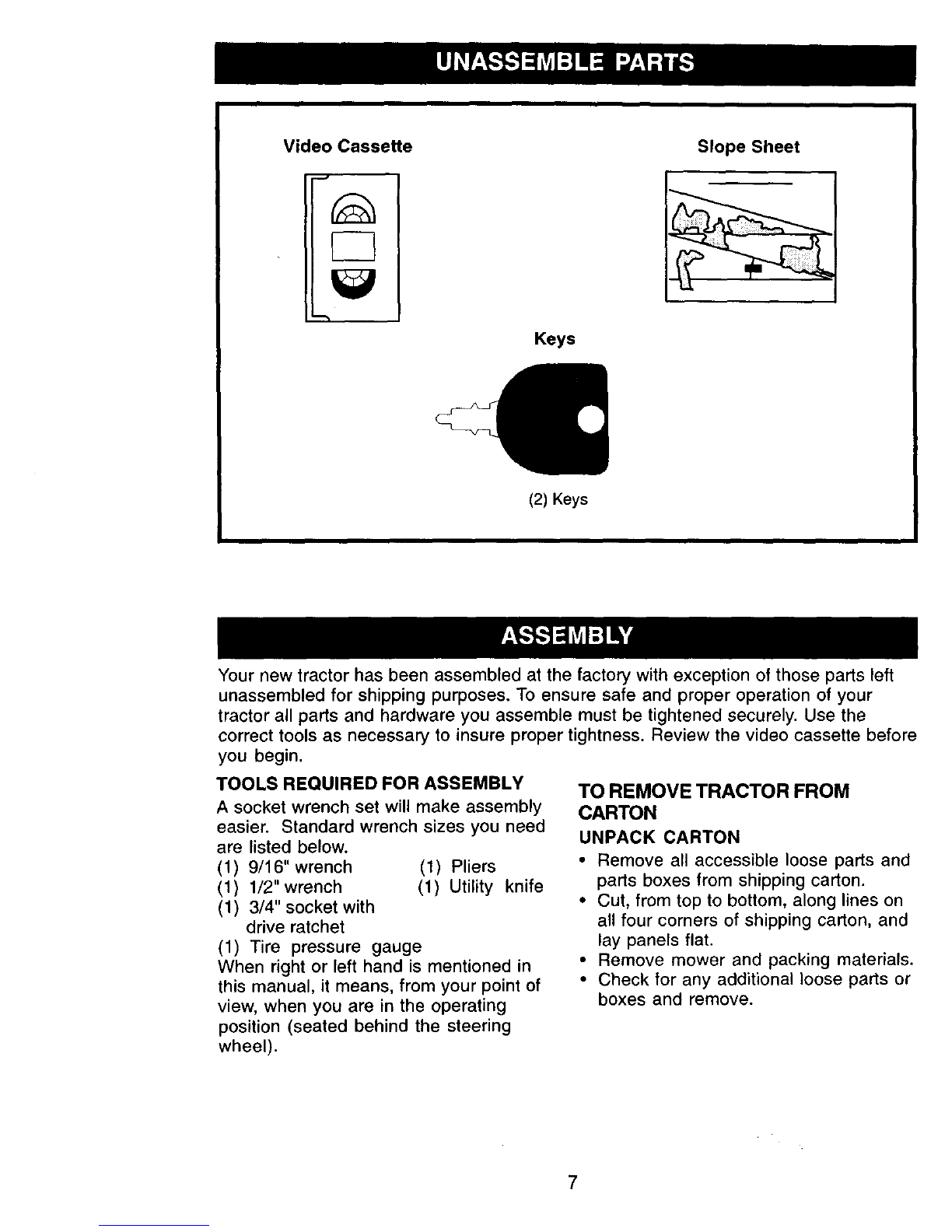

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and

parts boxes from shipping carton.

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

• Remove mower and packing materials.

• Check for any additional loose parts or

boxes and remove.

BEFORE REMOVING TRACTOR

FROM SKID

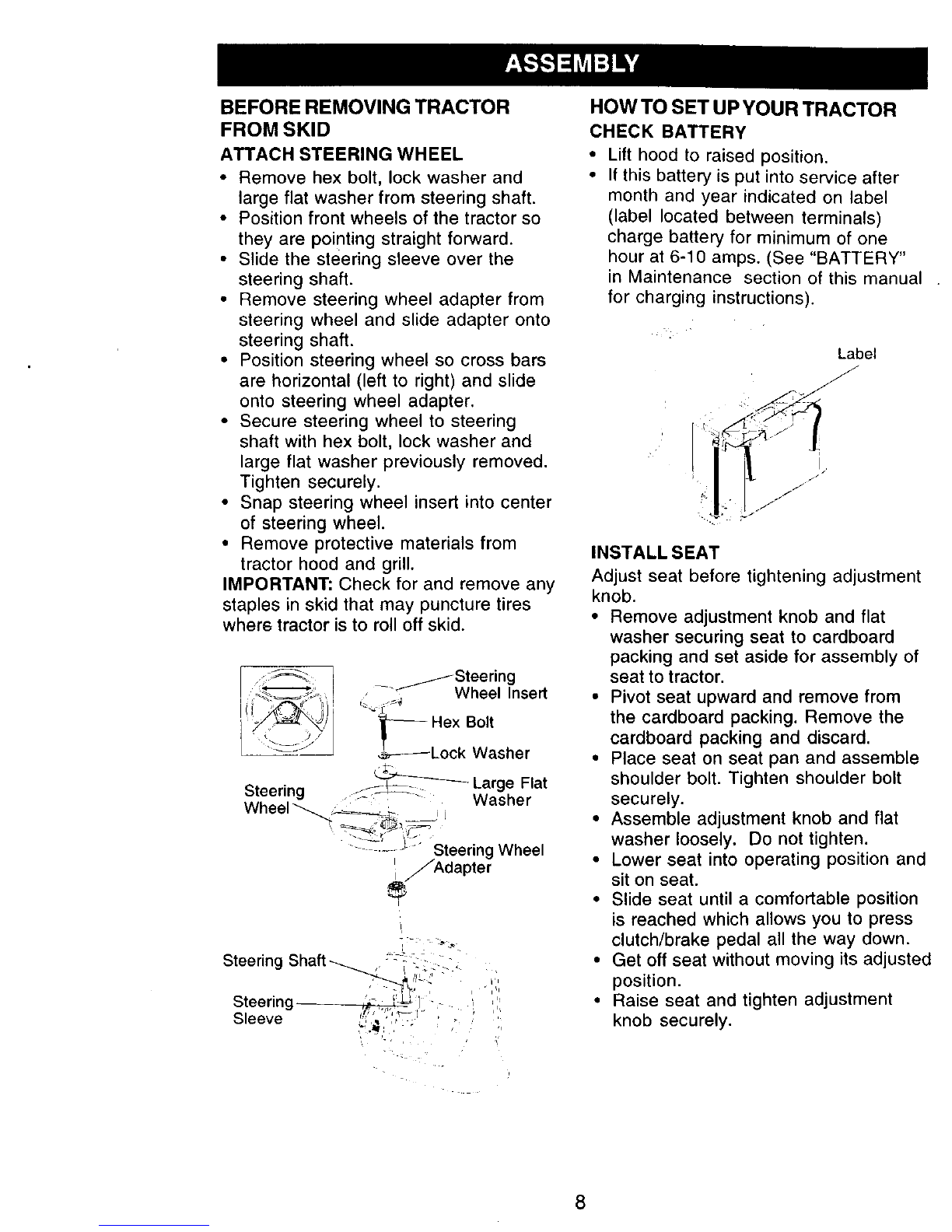

ATTACH STEERING WHEEL

•Remove hex bolt, lock washer and

large flat washer from steering shaft.

• Position front wheels of the tractor so

they are pointing straight forward.

• Slide the steering s_eeve over the

steering shaft.

• Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

• Secure steering wheel to steering

shaft with hex bolt. lock washer and

large flat washer previously removed.

Tighten securely.

• Snap steering wheel insert into center

of steering wheel.

• Remove protective materials from

tractor hood and grill.

IMPORTANT; Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

_Steering

,---f Wheel Insert

i-- Hex Bolt

,,,_-----Lock Washer

__ Large Flat

Steering • - -Washer

Wheel '_____ j

..... L_- Steering Wheel

//Adapter

Steering

Sleeve _ ,_ -

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

Lift hood to raised position.

If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See "BATTERY"

in Maintenance section of this manual

for charging instructions).

Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

•Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

•Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

•Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its adjusted

position.

•Raise seat and tighten adjustment

knob securely.

Seat

Flat Washer

Seat Pan

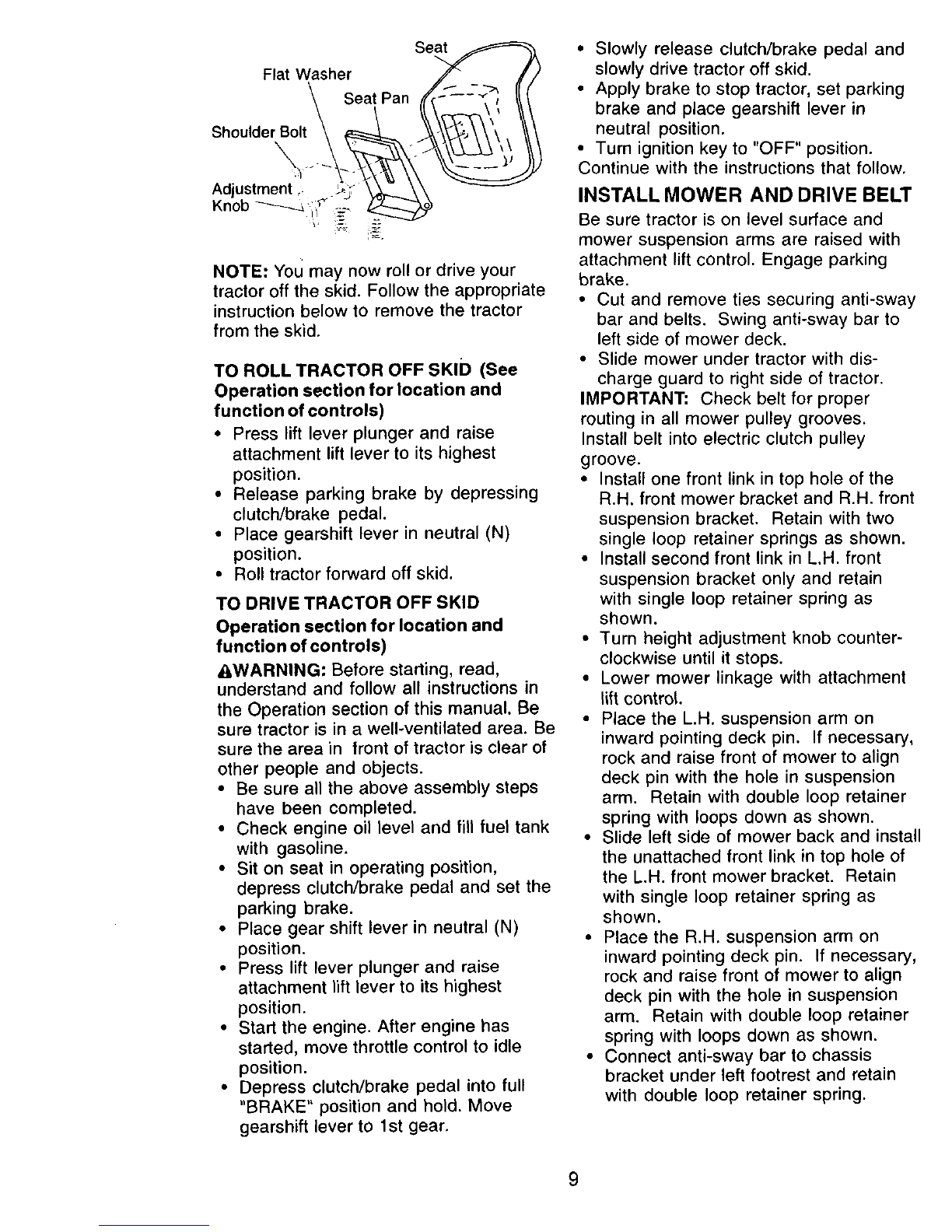

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

•Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Release parking brake by depressing

clutch/brake pedal.

• Place gearshift lever in neutral (N)

position.

• Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

• Be sure all the above assembly steps

have been completed.

• Check engine oil level and fill fuel tank

with gasoline.

• Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

• Place gear shift lever in neutral (N)

position.

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Start the engine. After engine has

started, move throttle control to idle

position.

• Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

•Slowly release clutch/brake pedal and

slowly drive tractor off skid.

• Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

• Cut and remove ties securing anti-sway

bar and belts. Swing anti-sway bar to

left side of mower deck.

• Slide mower under tractor with dis-

charge guard to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

Install belt into electric clutch pulley

groove.

•Install one front link in top hole of the

R.H. front mower bracket and R.H. front

suspension bracket. Retain with two

single loop retainer springs as shown.

• Install second front link in L.H. front

suspension bracket only and retain

with single loop retainer spring as

shown.

•Turn height adjustment knob counter-

clockwise until it stops.

• Lower mower linkage with attachment

lift control.

• Place the L.H. suspension arm on

inward pointing deck pin. If necessary,

rock and raise front of mower to align

deck pin with the hole in suspension

arm. Retain with double loop retainer

spring with loops down as shown.

• Slide left side of mower back and install

the unattached front link in top hole of

the L.H. front mower bracket. Retain

with single loop retainer spring as

shown.

• Place the R.H. suspension arm on

inward pointing deck pin. If necessary,

rock and raise front of mower to align

deck pin with the hole in suspension

arm. Retain with double loop retainer

spring with loops down as shown.

• Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

•Turn height adjustment knob clockwise

to remove slack from mower suspen-

sion.

• Raise mower to highest position.

• Assemble gauge wheels (See "TO

ADJUST GAUGE WHEELS" in the

Operation section of this manual),

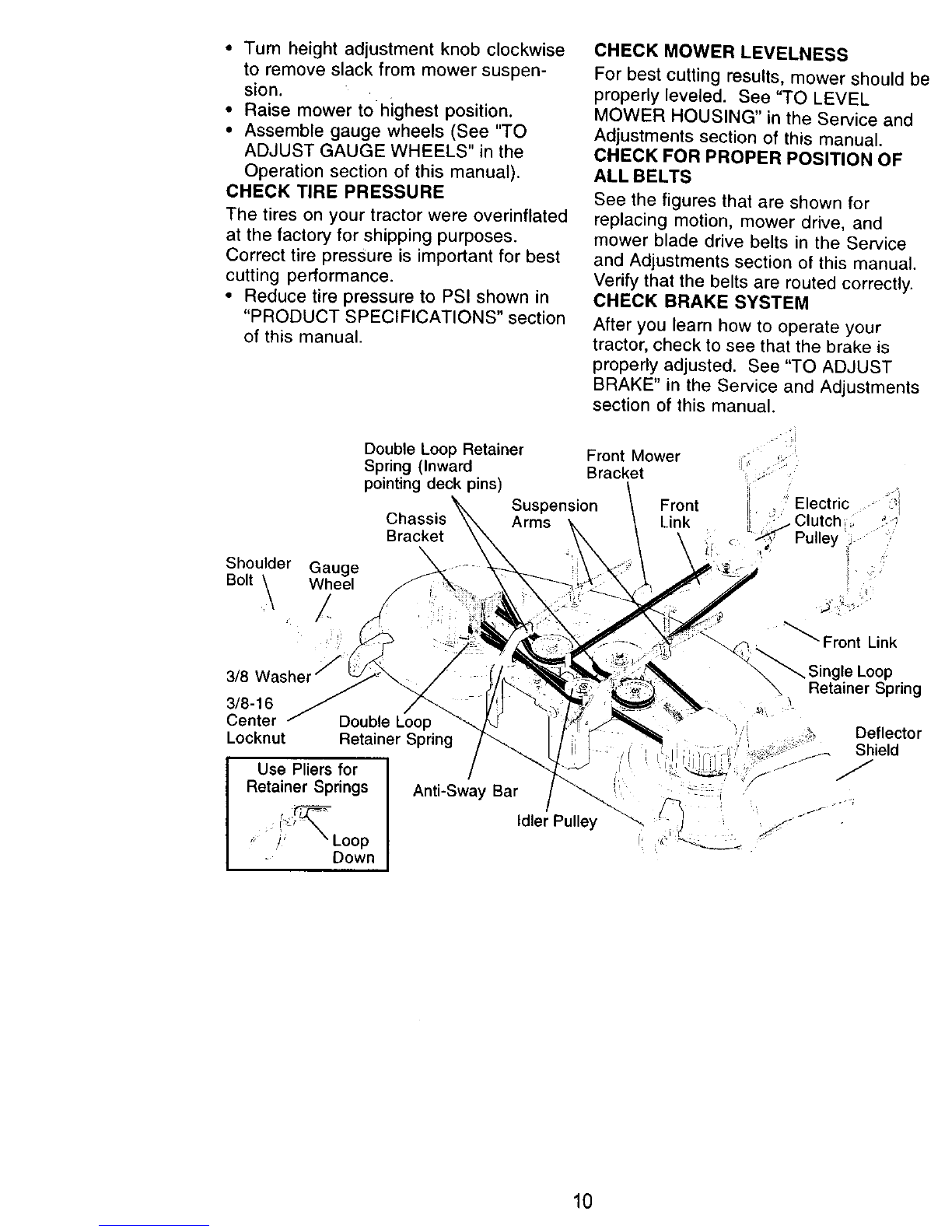

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual,

CHECK MOWER LEVELNESS

For best cutting results, mower should b

properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion, mower drive, and

mower blade drive belts in the Service

and Adjustments section of this manual.

Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

Shoulder Gauge

Bolt Wheel

Double Loop Retainer Front Mower

Spring (Inward Bracket

pointing deck pins) Suspension Front

Arms Link

Bracket

3/8

3/8-16

Center

Locknut Double Loop

Retainer Spring

Use Pliers for

Retainer Springs Anti-Sway Bar

Idler Pulley

_Front Link

_"_Single Loop

, Retainer Sprin_

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.381050 Manuel utilisateur

Craftsman

Craftsman 917.3875 Manuel utilisateur

Craftsman

Craftsman 917.374801 Manuel utilisateur

Craftsman

Craftsman 917.273590 Manuel utilisateur

Craftsman

Craftsman 917.376732 Manuel utilisateur

Craftsman

Craftsman 917.276090 Manuel utilisateur

Craftsman

Craftsman 917.275685 Manuel utilisateur

Craftsman

Craftsman 917.274760 Manuel utilisateur

Craftsman

Craftsman 247.889330 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271140 Manuel utilisateur

Craftsman

Craftsman 917.370650 Manuel utilisateur

Craftsman

Craftsman C459-36201-1 Manuel utilisateur

Craftsman

Craftsman 917.370911 Manuel utilisateur

Craftsman

Craftsman 917.275970 Manuel utilisateur

Craftsman

Craftsman EZ 917.270743 Manuel utilisateur

Craftsman

Craftsman 917.273350 Manuel utilisateur

Craftsman

Craftsman 917.25254 Manuel utilisateur

Craftsman

Craftsman 247.288811 Manuel utilisateur

Craftsman

Craftsman 917.203780 Manuel utilisateur

Craftsman

Craftsman 3-ONE CONVERTIBLE 917.37459 Manuel utilisateur

Craftsman

Craftsman 917.273241 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258591 Manuel utilisateur

Craftsman

Craftsman 917.374550 Manuel utilisateur

Craftsman

Craftsman 917.371310 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
