CRAFTSMAN

IMPORTANT:

Read the Safety Guidelines

and All Instructions Carefully

Before Operating

Sold by Sears Canada, Inc., Toronto, Ont. M5B 2B8

Model No.

919.727110

OWNERS MANUAL FOR

CRAFTSMAN COMPACT

AIR COMPRESSOR

Record in the spaces provided.

(1) The Model Number can be found on the

label on the backside of the motor shroud

or on the bar code label on the bottom of

the shroud.

(2) The Date Code Number can be found on

the bar code label on the bottom of the

shroud.

(3) The Serial Number can be found on the

bar code label on the bottom of the

shroud.

Retain these numbers for future reference.

Model No________________________

Serial No________________________

Date Code_______________________

2 — ENG

D24087

WARRANTY ............................................................. 2

SAFETY GUIDELINES .......................................... 3-4

WARNING CHART................................................... 3

GENERAL INFORMATION....................................... 5

GLOSSARY .............................................................. 5

SPECIFICATION CHART......................................... 5

DESCRIPTION OF OPERATION .............................. 6

UNPACKING INSTRUCTIONS ................................ 6

BREAK-IN PROCEDURES ....................................... 7

Location of Air Compressor ................................ 7

Lubrication and Oil ............................................. 7

Page

If this air compressor fails due to a defect in material or workmanship within one year from the date

of purchase, RETURN IT TO THE NEAREST SEARS SERVICE CENTER THROUGHOUT CANADA AND

SEARS WILL REPAIR IT, FREE OF CHARGE.

If this air compressor is used for commercial or rental purposes, the warranty will apply for ninety

days (90) from the date of purchase.

This Craftsman Air Compressor warranty gives you specific legal rights and you may have other

rights which vary from Province to Province.

Sears Canada, Inc., Toronto, Ont. M5B 2B8

FULL ONE YEAR WARRANTY ON AIR COMPRESSORS

Grounding Instructions ........................................ 7

Voltage and Circuit Protection ............................. 8

Extension Cords ................................................. 8

Air Hose.............................................................. 8

OPERATING PROCEDURES ................................... 9

STORAGE................................................................. 9

TROUBLESHOOTING GUIDE ................................ 10

AIR COMPRESSOR DIAGRAM ..............................11

PARTS LIST ............................................................12

HOW TO ORDER REPAIR PARTS ..........................14

Page

TABLE OF CONTENTS

CAUTION indicates a potentially hazardous situa-

tion which, if not avoided, may result in minor or

moderate injury.

This manual contains information that is important for you to know and understand. This information relates to

protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this informa-

tion, we use the symbols to the right. Please read the manual and pay attention to these sections.

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death of serious injury.

SAFETY GUIDELINES - DEFINITIONS

3 — ENG

D24087

HAZARD

IMPORTANT SAFETY INSTRUCTIONS

RISK OF BURSTING

IT IS NORMAL FOR ELECTRICAL CONTACTS WITHIN THE

MOTOR AND PRESSURE SWITCH TO SPARK.

IF ELECTRICAL SPARKS FROM COMPRESSOR COME INTO

CONTACT WITH FLAMMABLE VAPORS, THEY MAY IGNITE,

CAUSING FIRE OR EXPLOSION.

RESTRICTING ANY OF THE COMPRESSOR VENTILATION

OPENINGS WILL CAUSE SERIOUS OVERHEATING AND

COULD CAUSE FIRE.

UNATTENDED OPERATION OF THIS PRODUCT COULD

RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.

ALWAYS OPERATE THE COMPRESSOR IN A WELL VENTI-

LATED AREA FREE OF COMBUSTIBLE MATERIALS,

GASOLINE OR SOLVENT VAPORS.

IF SPRAYING FLAMMABLE MATERIALS, LOCATE COMPRES-

SOR AT LEAST 20 FEET AWAY FROM SPRAY AREA. AN

ADDITIONAL LENGTH OF HOSE MAY BE REQUIRED.

STORE FLAMMABLE MATERIALS IN A SECURE LOCATION

AWAY FROM COMPRESSOR.

NEVER PLACE OBJECTS AGAINST OR ON TOP OF COM-

PRESSOR. OPERATE COMPRESSOR IN AN OPEN AREA AT

LEAST 12 INCHES AWAY FROM ANY WALL OR OBSTRUC-

TION THAT WOULD RESTRICT THE FLOW OF FRESH AIR TO

THE VENTILATION OPENINGS.

OPERATE COMPRESSOR IN A CLEAN, DRY, WELL VENTI-

LATED AREA. DO NOT OPERATE UNIT INDOORS OR IN ANY

CONFINED AREA.

ALWAYS REMAIN IN ATTENDANCE WITH THE PRODUCT

WHEN IT IS OPERATING.

SAVE THESE INSTRUCTIONS

IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY

DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.

RISK OF EXPLOSION OR FIRE

AIR TANK: THE FOLLOWING CONDITIONS COULD LEAD TO A WEAKENING OF THE TANK, AND RESULT IN A

VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY.

DRAIN TANK DAILY OR AFTER EACH USE. IF TANK DEVEL-

OPS A LEAK, REPLACE IT IMMEDIATELY WITH A NEW TANK OR

REPLACE THE ENTIRE COMPRESSOR.

NEVER DRILL INTO, WELD, OR MAKE ANY MODIFICATIONS

TO THE TANK OR ITS ATTACHMENTS.

THE TANK IS DESIGNED TO WITHSTAND SPECIFIC OPERATING

PRESSURES. NEVER MAKE ADJUSTMENTS OR PARTS

SUBSTITUTIONS TO ALTER THE FACTORY SET OPERATING

PRESSURES.

FOR ESSENTIAL CONTROL OF AIR PRESSURE, YOU MUST

INSTALL A PRESSURE REGULATOR AND PRESSURE GAUGE

TO THE AIR OUTLET OF YOUR COMPRESSOR. FOLLOW THE

EQUIPMENT MANUFACTURERS RECOMMENDATION AND

NEVER EXCEED THE MAXIMUM ALLOWABLE PRESSURE

RATING OF ATTACHMENTS. NEVER USE COMPRESSOR TO

INFLATE SMALL LOW-PRESSURE OBJECTS SUCH AS

CHILDREN’S TOYS, FOOTBALLS, BASKETBALLS. ETC.

1. FAILURE TO PROPERLY DRAIN CONDENSED WATER

FROM THE TANK, CAUSING RUST AND THINNING OF THE

STEEL TANK.

2. MODIFICATIONS OR ATTEMPTED REPAIRS TO THE TANK.

3. UNAUTHORIZED MODIFICATIONS TO THE UNLOADER

VALVE, SAFETY VALVE, OR ANY OTHER COMPONENTS

WHICH CONTROL TANK PRESSURE.

4. EXCESSIVE VIBRATION CAN WEAKEN THE AIR TANK

AND CAUSE RUPTURE OR EXPLOSION.

ATTACHMENTS & ACCESSORIES:

EXCEEDING THE PRESSURE RATING OF AIR TOOLS, SPRAY

GUNS, AIR OPERATED ACCESSORIES, TIRES AND OTHER

INFLATABLES CAN CAUSE THEM TO EXPLODE OR FLY

APART, AND COULD RESULT IN SERIOUS INJURY.

WHAT CAN HAPPEN HOW TO PREVENT IT

4 — ENG

D24087

WHAT CAN HAPPEN HOW TO PREVENT IT

RISK FROM FLYING OBJECTS

THE COMPRESSED AIR STREAM CAN CAUSE SOFT TISSUE

DAMAGE TO EXPOSED SKIN AND CAN PROPEL DIRT, CHIPS,

LOOSE PARTICLES AND SMALL OBJECTS AT HIGH SPEED,

RESULTING IN PROPERTY DAMAGE OR PERSONAL INJURY.

ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY GLASSES

WITH SIDE SHIELDS WHEN USING THE COMPRESSOR.

NEVER POINT ANY NOZZLE OR SPRAYER TOWARD ANY

PART OF THE BODY OR AT OTHER PEOPLE OR ANIMALS.

ALWAYS TURN THE COMPRESSOR OFF AND BLEED PRES-

SURE FROM THE AIR HOSE AND TANK BEFORE ATTEMPTING

MAINTENANCE, ATTACHING TOOLS OR ACCESSORIES.

THE COMPRESSED AIR FROM YOUR COMPRESSOR IS NOT

SAFE FOR BREATHING! THE AIR STREAM MAY CONTAIN

CARBON MONOXIDE, TOXIC VAPORS OR SOLID PARTICLES

FROM THE TANK.

SPRAYED MATERIALS SUCH AS PAINT, PAINT SOLVENTS,

PAINT REMOVER, INSECTICIDES, WEED KILLERS, CONTAIN

HARMFUL VAPORS AND POISONS.

ALWAYS OPERATE AIR COMPRESSOR OUTSIDE IN A CLEAN,

WELL VENTILATED AREA. AVOID ENCLOSED AREAS SUCH AS

GARAGES, BASEMENTS, STORAGE SHEDS, WHICH LACK A

STEADY EXCHANGE OF AIR. KEEP CHILDREN, PETS AND

OTHERS AWAY FROM AREA OF OPERATION.

NEVER INHALE AIR FROM THE COMPRESSOR EITHER

DIRECTLY OR FROM A BREATHING DEVICE CONNECTED TO

THE COMPRESSOR.

WORK IN AN AREA WITH GOOD CROSS-VENTILATION. READ

AND FOLLOW THE SAFETY INSTRUCTIONS PROVIDED ON

THE LABEL OR SAFETY DATA SHEETS FOR THE MATERIAL

YOU ARE SPRAYING. USE A NIOSH/MSHA APPROVED

RESPIRATOR DESIGNED FOR USE WITH YOUR SPECIFIC

APPLICATION.

HAZARD

WHAT CAN HAPPEN HOW TO PREVENT IT

RISK TO BREATHING

YOUR AIR COMPRESSOR IS POWERED BY ELECTRICITY.

LIKE ANY OTHER ELECTRICALLY POWERED DEVICE, IF IT IS

NOT USED PROPERLY IT MAY CAUSE ELECTRIC SHOCK.

REPAIRS ATTEMPTED BY UNQUALIFIED PERSONNEL CAN

RESULT IN SERIOUS INJURY OR DEATH BY ELECTROCU-

TION.

ELECTRICAL GROUNDING: FAILURE TO PROVIDE ADEQUATE

GROUNDING TO THIS PRODUCT COULD RESULT IN SERIOUS

INJURY OR DEATH FROM ELECTROCUTION. SEE GROUND-

ING INSTRUCTIONS.

NEVER OPERATE THE COMPRESSOR OUTDOORS WHEN IT IS

RAINING OR IN WET CONDITIONS.

NEVER OPERATE COMPRESSOR WITH COVER COMPONENTS

REMOVED OR DAMAGED.

ANY ELECTRICAL WIRING OR REPAIRS REQUIRED ON THIS

PRODUCT SHOULD BE PERFORMED BY AUTHORIZED

SERVICE CENTER PERSONNEL IN ACCORDANCE WITH

NATIONAL AND LOCAL ELECTRICAL CODES.

MAKE CERTAIN THAT THE ELECTRICAL CIRCUIT TO WHICH

THE COMPRESSOR IS CONNECTED PROVIDES PROPER

ELECTRICAL GROUNDING, CORRECT VOLTAGE AND

ADEQUATE FUSE PROTECTION.

WHAT CAN HAPPEN HOW TO PREVENT IT

RISK OF ELECTRICAL SHOCK

5 — ENG

D24087

MOVING PARTS SUCH AS THE PULLEY, FLYWHEEL AND BELT

CAN CAUSE SERIOUS INJURY IF THEY COME INTO CONTACT

WITH YOU OR YOUR CLOTHING.

ATTEMPTING TO OPERATE COMPRESSOR WITH DAMAGED

OR MISSING PARTS OR ATTEMPTING TO REPAIR COM-

PRESSOR WITH PROTECTIVE SHROUDS REMOVED CAN

EXPOSE YOU TO MOVING PARTS AND CAN RESULT IN

SERIOUS INJURY.

NEVER OPERATE THE COMPRESSOR WITH GUARDS OR

COVERS WHICH ARE DAMAGED OR REMOVED.

ANY REPAIRS REQUIRED ON THIS PRODUCT SHOULD BE

PERFORMED BY AUTHORIZED SERVICE CENTER PERSON-

NEL.

HAZARD

RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

TOUCHING EXPOSED METAL SUCH AS THE COMPRESSOR

HEAD OR OUTLET TUBES, CAN RESULT IN SERIOUS BURNS.

NEVER TOUCH ANY EXPOSED METAL PARTS ON COMPRES-

SOR DURING OR IMMEDIATELY AFTER OPERATION. COM-

PRESSOR WILL REMAIN HOT FOR SEVERAL MINUTES AFTER

OPERATION.

DO NOT REACH AROUND PROTECTIVE SHROUDS OR ATTEMPT

MAINTENANCE UNTIL UNIT HAS BEEN ALLOWED TO COOL.

WHAT CAN HAPPEN HOW TO PREVENT IT

A PORTABLE COMPRESSOR CAN FALL FROM A TABLE,

WORKBENCH OR ROOF CAUSING DAMAGE TO THE COM-

PRESSOR AND COULD RESULT IN SERIOUS INJURY OR

DEATH TO THE OPERATOR.

ALWAYS OPERATE COMPRESSOR IN A STABLE SECURE

POSITION TO PREVENT ACCIDENTAL MOVEMENT OF THE

UNIT. NEVER OPERATE COMPRESSOR ON A ROOF OR

OTHER ELEVATED POSITION. USE ADDITIONAL AIR HOSE

TO REACH HIGH LOCATIONS.

WHAT CAN HAPPEN HOW TO PREVENT IT

OIL CAN LEAK OR SPILL AND COULD RESULT IN FIRE OR

BREATHING HAZARD, SERIOUS INJURY OR DEATH CAN

RESULT. OIL LEAKS WILL DAMAGE CARPET, PAINT OR OTHER

SURFACES IN VEHICLES OR TRAILERS.

WHAT CAN HAPPEN HOW TO PREVENT IT

ALWAYS PLACE COMPRESSOR ON A PROTECTIVE MAT WHEN

TRANSPORTING TO PROTECT AGAINST DAMAGE TO VEHICLE

FROM LEAKS. REMOVE COMPRESSOR FROM VEHICLE

IMMEDIATELY UPON ARRIVAL AT YOUR DESTINATION.

RISK OF PROPERTY DAMAGE WHEN TRANSPORTING

COMPRESSOR

(Fire, Inhalation, Damage to Vehicle Surfaces)

RISK OF BURNS

ESW-99  9/26/99

RISK OF FALLING

6 — ENG

D24087

Air Compressor Pump: To compress air, the piston

moves up and down in the cylinder. On the down-

stroke, air is drawn in through the air intake muffler

(valves). The exhaust valves remains closed. On the

upstroke of the piston, air is compressed. The intake

valves close and compressed air is forced out

through the exhaust valves and then through the air

hose.

ALWAYS SET THE PRESSURE VALVE AT OR BELOW THE REQUIRED PRESSURE FOR THE ACCESSORY

BEING USED BEFORE STARTING YOUR COMPRESSOR. FOR INFLATION OR OTHER USES REQUIRING

ACCURATE PRESSURE, USE A PRESSURE GAUGE.

CFM: Cubic Feet per Minute.

SCFM: Standard Cubic Feet per Minute; a unit of

measure of air delivery.

PSI: Pounds per Square Inch; a unit of measure of

pressure.

You have purchased a one cylinder, compact, perma-

nently lubricated compressor. The absence of a tank

and the ultra light weight gives you added mobility as

well as ease in storage, while it allows you to utilize

many air tools, including inflators, blow guns, spray

guns, air brushes, caulking guns and etchers.

Permanently lubricated (oilless) design means you

never have to add oil which also guarantees that you

will spray entirely oil free air.

Model No.

Bore

Stroke

Voltage - Single Phase

Minimum Branch Circuit Requirement

Fuse Type

Amperage at Maximum Pressure

SCFM @ 40 psi

SCFM @ 90 psi

919.727110

1 3/4”

1 1/4”

120

15 amps

Time Delay

10.0

3.7

2.6

CSA: Electrical products sold in Canada are required

to be certified to the applicable CSA standard (s).

Canadian Standards Association (CSA) is a standards

writing and safety testing organization. Products that

are CSA certified have been evaluated and tested and

found to meet or exceed the applicable CSA standard

(s) for safety and electrical performance.

SPECIFICATION CHART

GLOSSARY

GENERAL INFORMATION

A 1/4" x 25' air hose with integral pressure adjusting

valve is supplied with your compressor, as well as an

air chuck.

Check the pressure and flow rating recommended by

the accessory manufacturer . . . be sure it is compat-

ible with the air delivery of your compressor.

DESCRIPTION OF OPERATION

Adjustable Bleeder-Type Pressure Valve: The

pressure valve controls the amount of pressure going

from the air compressor to the accessory. The pres-

sure adjusting valve can be used to set approximate

pressure between 10 and 125 P.S.I. (125 P.S.I. is the

highest pressure this compressor will deliver). Air

pressure is constantly being relieved through the

adjustable pressure valve.

7 — ENG

D24087

Grasp the handle and lift the air compressor out of the

carton.

UNPACKING INSTRUCTIONS

Remove the styrofoam and/or cardboard and discard.

BREAK-IN PROCEDURES

Location of the Air Compressor

Your compressor comes to you completely assembled

and ready for use. Operate the air compressor in a dry,

clean, coll and well ventilated area. The air compresor

pump and case are designed to allow for proper cool-

ing, Clean or blow off dust or dirt that collects on the air

compressor. A clean air compressor runs cooler and pro-

vides longer service. The ventilation openings on your

air compressor are necessary to maintain proper oper-

ating temperature. Do not place rags or other containers

on or near these openings.

Lubrication and Oil

This unit needs no lubrication or oiling.

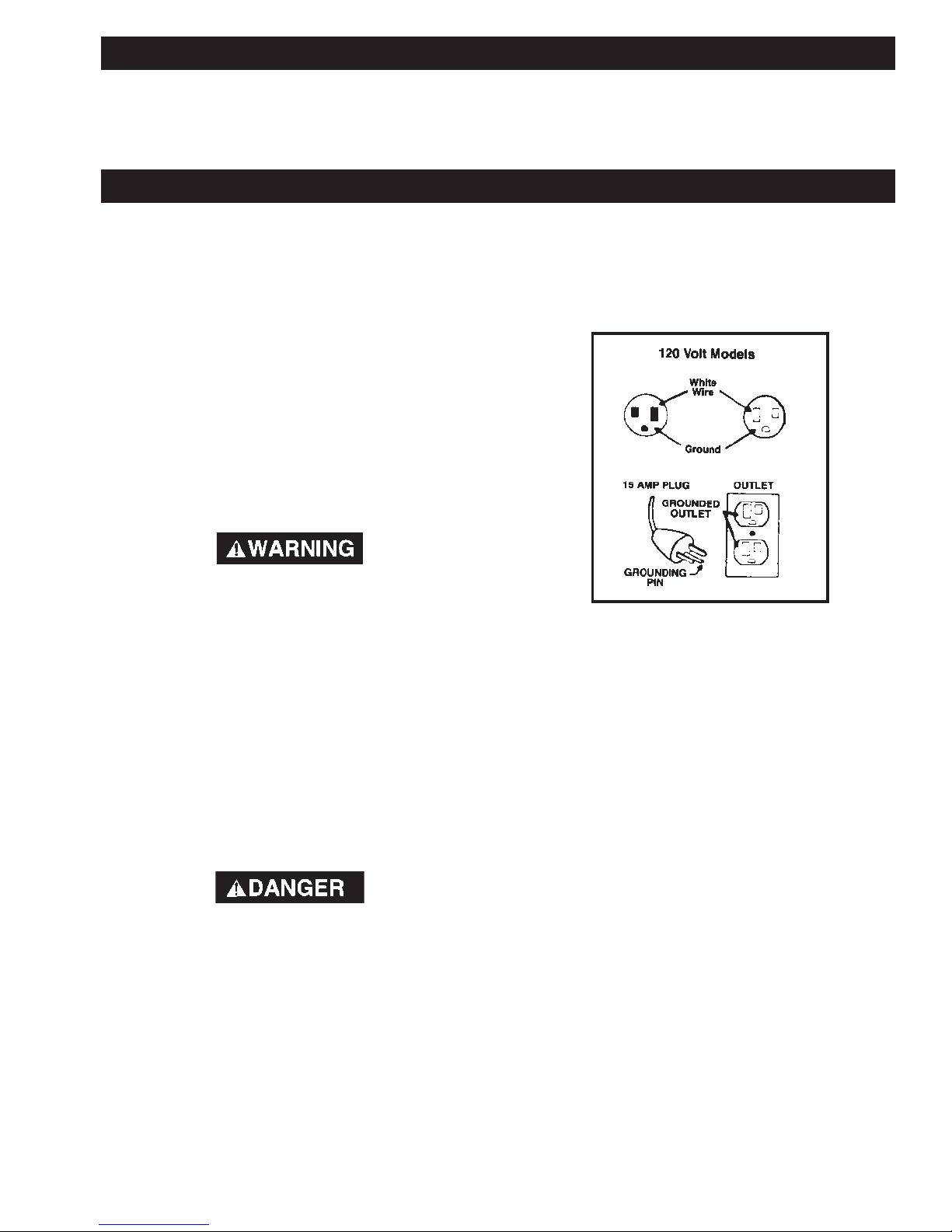

Grounding Instructions

RISKOFELECTRICALSHOCK. Inthe event of

a short circuit, grounding reduces the risk of

shock by providing an escape wire for the

electriccurrent. Thisair compressor mustbe

properlygrounded.

This portable air compressor is equipped with a cord

having a grounding wire with an appropriate grounding

plug. The plug must be used with an outlet that has

been installed and grounded in accordance with all lo-

cal codes and ordinances. The outlet must have the

same configuration as the plug. DO NOT USE AN

ADAPTER.

Inspect the plug and cord before each use. Do not use if

there are signs of damage.

IMPROPER GROUNDING CAN RESULT IN

ELECTRICALSHOCK.

Do not modify the plug that has been pro-

vided. If it does not fit the available outlet, the

correctoutletshouldbeinstalledbyaqualified

technician.

If repairing or replacing cord or plug, the grounding wire

must be kept separate from the current-carrying wires.

Never connect the grounding wire to a flat blade plug

terminal. The grounding wire has insulation with an outer

surface that is green with or without yellow stripes.

If these grounding instructions are not completely un-

derstood, or if in doubt as to whether the compressor is

properly grounded, have the installation checked by a

qualified electrician.

Voltage and Circuit Protection

Refer to page 5 (Specification Chart) for the voltage and

circuit protection requirements of your compressor. Use

only a fuse or circuit breaker that is the same rating as

the branch circuit the air compressor is operated on. If

the compressor is connected to a circuit protected by

fuses, use only dual element time delay fuses.

Extension Cords

It is preferable to use extra air hose instead of an exten-

sion cord to avoid voltage drop and power loss to the

motor, and to prevent overheating.

If an extension cord must be used, be sure it is:

• 12 gauge (AWG) or heavier. (Wire size increases

as gauge number decreases. 10 AWG and 8

AWG may also be used. DO NOT USE 14 OR 16

AWG.)

• a three-wire extension cord that has a three-

connector grounding plug, and a three-slot recep-

tacle that will accept the plug.

• no longer than 50 feet

• in good condition

8 — ENG

D24087

1. Before plugging in the air compressor, set the

adjustable pressure valve to "10" PSI. Make sure

the "ON/OFF" switch is in the "OFF" position.

2. Connect the air tool or accessory to the air hose.

Tighten securely.

3. Plug the power cord into the grounded outlet.

4. Start the compressor by setting the "ON/OFF"

switch to the "ON" position.

TOO MUCH AIR PRESSURE COULD CAUSE

ANAIRTOOLORVEHICLETIRETORUPTURE

OREXPLODE. CAREFULLY FOLLOW STEPS

5 AND 6 EACH TIME YOU USE YOUR COM-

PRESSOR.

5. Check the manufacturer's maximum pressure

rating for the air tool, accessory or vehicle tire

being used. The air compressor outlet pressure

must never exceed the maximum pressure rating.

6. Slowly increase the pressure setting of the adjust-

able pressure valve. You should be able to hear

and feel air pressure being relieved by the adjust-

able pressure valve. If pressure is not being

relieved, turn the air compressor off immediately.

The pressure valve must be replaced.

Compressed air from the outfit may contain

water condensation. Do not spray unfiltered

airatanitemthatcouldbedamaged. Someair

operatedtoolsor devices mayrequirefiltered

air. Read the instructions for the air tool or

device.

1. Set the "ON/OFF" switch to "OFF" and unplug the

cord.

2. Relieve all pressure from the air compressor head

and air hose by turning the adjustable pressure

valve to 10 P.S.I.

Air Hose

The air hose attached to your comporessor has an

integral pressure adjusting valve at the working end of

the hose. Should service or replacement be required,

make sure that the pressure adjusting valve is present

in the air hose line.

Do NOT replace the hose with standard

hose that is not equipped with the pres-

sure adjusting valve. The appropriate hose

assembly for your compressor is available

atSears.

Do not allow hose to become kinked or

pinched at any time. This is important to

avoid damage to your compressor and to

maintain pressure adjusting valve control.

OPERATING PROCEDURES

STORAGE

When you have finished using the air compressor:

3. Protect the electrical cord and air hose from

damage by winding them loosely around the air

compressor.

4. Store the air compressor in a clean and dry

location.

9 — ENG

D24087

PROBLEM CAUSE CORRECTION

Air Leaks Hose fitting loose.

Prolonged excessive use of air. Decrease the amount of air usage. Your

compressor is not large enough for the air

requirement.

Tighten fitting.

Compressor is not deliver-

ing enough air.

Replace the hose.

Hole in hose.

Air leaks. Tighten fittings.

1. Check fuse box for blown fuse and replace

as necesssary. Reset circuit breaker. Do

not use a fuse or circuit breaker with higher

rating than that specified for your particular

branch circuit.

2. Check for proper fuse. You should be

using a Time Delay fuse.

3. Check for low voltage problem.

4. Check the extension cord.

5. Disconnect the other electrical appliances

from circuit or operate the compressor on

its own branch circuit.

Fuse blown, circuit breaker

tripped.

Motor will not run.

Extension cord is wrong length or

gauge.

Check the extension cord.

Loose electrical connections. Check wiring connection inside terminal box

Faulty motor. Have checked at a local Sears Service Center.

VOLTAGESOURCES,MOVING PARTS OR COMPRESSEDAIRSOURCESAREEXPOSED WHEN REPAIR-

ING THE COMPRESSOR. PERSONAL INJURY CAN OCCUR. UNPLUG THE COMPRESSOR BEFORE

ATTEMPTING ANY REPAIRS.

High discharge pressure.

Cannot be adjusted lower.

Adjustable pressure valve not

functioning.

RISK OF BURSTING. DO NOT OPER-

ATE THE COMPRESSOR IF THIS PROB-

LEM EXISTS. ADJUSTABLE PRESSURE

VALVE MUST BE REPLACED.

TROUBLESHOOTIN GUIDE

CRAFTSMAN

Sold By Sears Canada, Inc., Toronto, Ont. M5B 2B8

MODEL NO. The model number of your Sears Air Compressor can be

found

on the label on the backside of the shroud or on the bar code

label on the bottom of the shroud.

HOW TO ORDER

REPAIR PARTS

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

• PART NUMBER • PART DESCRIPTION

• MODEL NUMBER • NAME OF ITEM

All parts listed may be ordered from any Sears Service Center

and most Sears stores.

If the parts you need are not stocked locally, your order will be

electronically transmitted to a Sears Repair Parts Distribution

Center for handling.

SERVICE SERVICE AND REPAIR PARTS

CALL 1-800-665-4455*

Keep this number handy should you require a service call or need

to order repair parts.

If ordering parts make sure you have the name, make and model

no. of the merchandise and the name and number of

the part you wish to order.

*If calling locally, please use one of the following numbers:

Regina - 566-5124 Montreal - 333-5740

Toronto - 744-4900 Halifax - 454-2444

Kitchener - 894-7590 Ottawa - 738-4440

Vancouver - 420-8211

OWNERS MANUAL FOR

COMPACT

AIR COMPRESSOR

Table des matières

Langues :

Autres manuels Craftsman Compresseur d'air

Craftsman

Craftsman 919.153090 Manuel utilisateur

Craftsman

Craftsman 919.184193 Manuel utilisateur

Craftsman

Craftsman 921.166430 Manuel utilisateur

Craftsman

Craftsman CMEC6150K Manuel utilisateur

Craftsman

Craftsman 921.165720 Manuel utilisateur

Craftsman

Craftsman 919.165580 Manuel utilisateur

Craftsman

Craftsman 919.167310 Manuel utilisateur

Craftsman

Craftsman 919.72427 Manuel utilisateur

Craftsman

Craftsman 919.167342 Manuel utilisateur

Craftsman

Craftsman 919.167220 Manuel utilisateur

Craftsman

Craftsman 919.724322 Manuel utilisateur

Craftsman

Craftsman 919.167360 Operators Manuel utilisateur

Craftsman

Craftsman 921.16485 Manuel utilisateur

Craftsman

Craftsman 919.724123 Manuel utilisateur

Craftsman

Craftsman 919.157251 Manuel utilisateur

Craftsman

Craftsman 919.15402 Manuel utilisateur

Craftsman

Craftsman 919.724321 Manuel utilisateur

Craftsman

Craftsman 919.184192 Manuel utilisateur

Craftsman

Craftsman 919.1762304 Manuel utilisateur

Craftsman

Craftsman 919.167620 Manuel utilisateur

Craftsman

Craftsman MG-OILLUBE Air compressor Mode d’emploi

Craftsman

Craftsman 919.722020 Manuel utilisateur

Craftsman

Craftsman 919.165180 Manuel utilisateur

Craftsman

Craftsman 919.167312 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
