Craftsman 919.168700 Manuel utilisateur

Owner's Manual

I CRAFTSMAN1

Permanently Lubricated

Single Stage

Portable

AIR COMPRESSOR

Model No.

919.168700

•Safety Guidelines

•Assembly

•Operation

•Maintenance

•Service and AdJustments

•Troubleshooting

•Repair Parts

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

visit our Craftsman website: www.sears.com/craftsman

A05563 Rev. 0 7/01/04

WARRANTY ................................................ 2

SPECIFICATION CHART ..................................... 3

SAFETY GUIDELINES ...................................... 3-8

GLOSSARY ................................................ 9

ACCESSORIES ............................................. 9

DUTY CYCLE .............................................. 9

ASSEMBLY ............................................... 10

INSTALLATION .......................................... 10-11

OPERATION ............................................ 12-14

MAINTENANCE ......................................... 15-16

SERVICE AND ADJUSTMENTS ............................ 17-18

STORAGE ................................................ 19

TROUBLESHOOTING GUIDE .............................. 20-22

REPAIR PARTS ......................................... 24-27

ESPAI_IOL .............................................. 28-51

NOTES/NOTAS ......................................... 49-50

REPAIR PROTECTION AGREEMENTS ......................... 51

HOW TO ORDER REPAIR PARTS ...................... back cover

_VAVl._1:_:I._I_/i'd

FULL ONE YEAR WARRANTY AIR COMPRESSOR

If this CRAFTSMAN Air Compressor fails due to a defect in material or

workmanship within one year from the date of purchase, Sears will at its

option repair or replace it free of charge. Contact your nearest Sears Service

Center (1-800-4-MY-HOME _')to arrange for repair, or return the Air

Compressor to the place of purchase for replacement.

If this Air Compressor is used for commercial or rental purposes, this warranty

applies for only ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

A05563 2-ENG

_.']".I_[_] III [_-_1II[o] __ [o] -"El :]Ii

Model No. 919.168700

Max. Developed HP 6.0

Running HP 2.0

Bore 2.38"

Stroke 1.35"

Voltage-Single Phase 120V/60HZ/1PH

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity 33

Approx. Cut-In 120

Approx. Cut-out 150

SCFM @ 40 psig 8.6

SCFM @ 90 psig 6.4

Refer to Glossary for abbreviations.

l.'_:1=_lli'l[_11Jlm]:llh_l_1 .Im]:llih_lll[.]_[. "]

This manual contains information that is important for you to know and

understand. This information relates to protecting YOUR SAFETY and

PREVENTING EQUIPMENT PROBLEMS. To help you recognize this

information, we use the symbols below. Please read the manual and pay

attention to these symbolsi

Indicates an imminently

hazardous situation

which, if not avoided, will result in death

or serious injury.

_lndicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

_lndicates a potentially

hazardous situation

which, if not avoided, _ result in

minor or moderate injury.

_Used without the safety

alert symbol indicates a

potentially hazardous situation which, if

not avoided, may result in ro_

damage.

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemicals

known (to the State of California) to cause cancer, birth defects or other

reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment, always wear

MSHA/NIOSH approved, properly fitting face mask or respirator when using

such tools.

When using air tools, basic safety precautions should always be followed to

reduce the risk of of personal injury,

3-ENG A05563

IhV_I'.,[o]_'_IL_Ik_I I [,."/-_NIgl Ik'dIIk_[,."]1/.'(l[q / [o]k_[,."]

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

I• EI,4'._1:1ml

WARNING: Risk of explosion or fire

What Could Happen

It is normal for electrical contacts

within the motor and pressure switch to

spark.

If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk of

fire, do not allow the compressor to

operate unattended.

How To Prevent It

Always operate the compressor in awell

ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in asecure

location away from compressor.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

A05563 4-ENG

I'-r,.1,#,.1:lm]

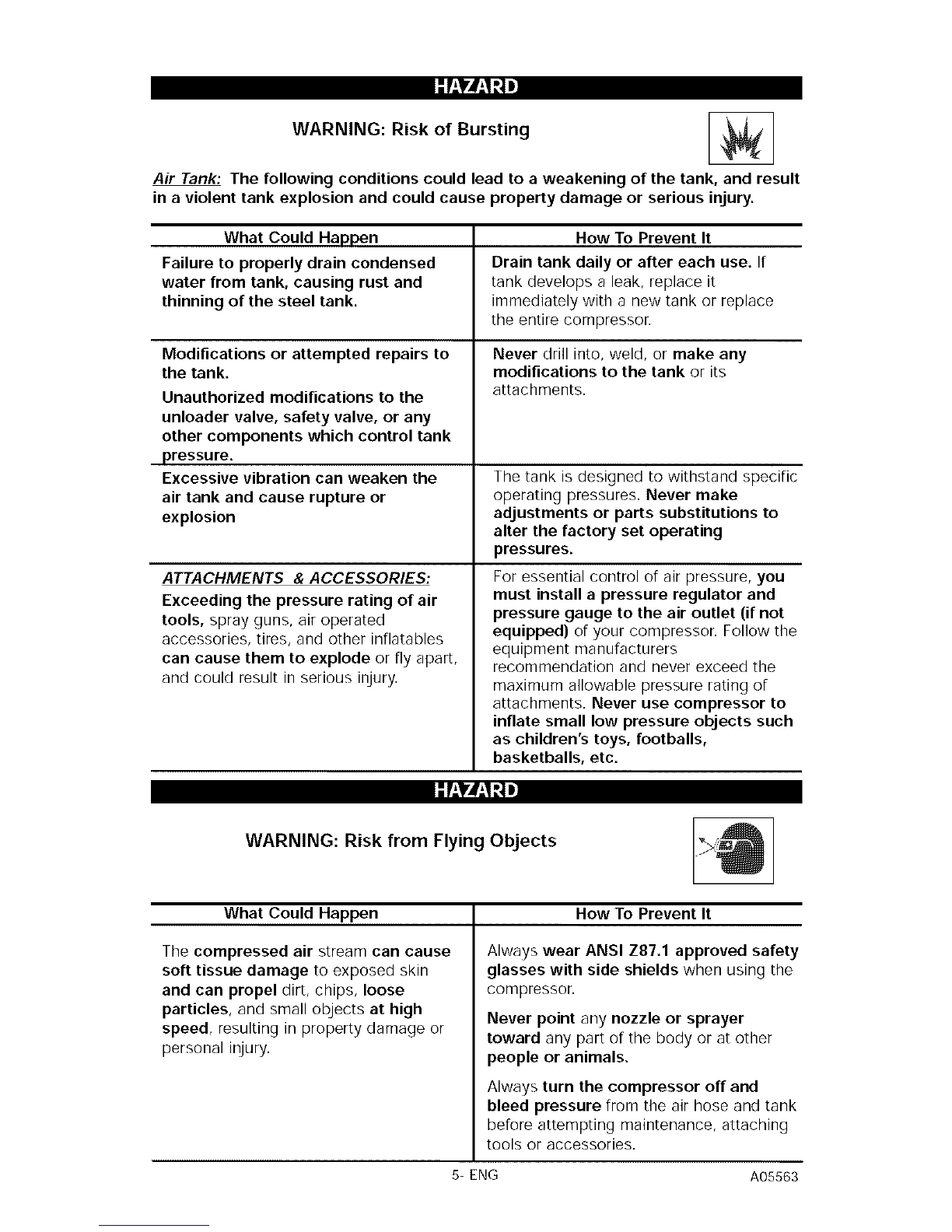

WARNING: Risk of Bursting I_1

Air Tank: The following conditions could lead to a weakening of the tank, and result

in a violent tank explosion and could cause property damage or serious injury.

What Could Happen

Failure to properly drain condensed

water from tank, causing rust and

thinning of the steel tank.

Modifications or attempted repairs to

the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control tank

pressure.

Excessive vibration can weaken the

air tank and cause rupture or

explosion

ATTACHMENTS &ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

How To Prevent It

Drain tank daily or after each use. If

tank develops a leak, replace it

immediately with a new tank or replace

the entire compressor.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

For essential control of air pressure, you

must install apressure regulator and

pressure gauge to the air outlet (if not

equipped) of your compressor. Follow the

equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments. Never use compressor to

inflate small low pressure objects such

as children's toys, footballs,

basketballs, etc.

I'-r,.1,#,.1:lm]

WARNING: Risk from Flying Objects

What Could Happen How To Prevent It

The compressed air stream can cause

soft tissue damage to exposed skin

and can propel dirt, chips, loose

particles, and small objects at high

speed, resulting in property damage or

personal injury,

Always wear ANSI Z87.1 approved safety

glasses with side shields when using the

compressor.

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

5-ENG A05563

I'-r'-_J'-_',_=]

WARNING: Risk of Electrical Shock

What Could Happen

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric shock.

Repairs attempted by unqualified

personnel can result in serious injury

or death by electrocution.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

How To Prevent It

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel in

accordance with national and local

electrical codes.

Make certain that the electrical circuit to

which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

I'-r,.1,#,.1"_lm]

WARNING: Risk to Breathing

What Could Happen How To Prevent It

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior to human consumption.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials you

are spraying. Use a NIOSH/MSHA

approved respirator designed for use with

your specific application.

A05563 6-ENG

"-r,.1,.f,.1:lm]

WARNING: Risk of Burns

What Could Happen

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

How To Prevent It

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

I"-r,.1,J,._:lm]

WARNING: Risk from Moving Parts

What Could Happen

Moving parts such as the pulley, flywheel,

and belt can cause serious injury if they

come into contact with you or your

clothing.

Attempting to operate compressor with

damaged or missing parts or attempting

to repair compressor with protective

shrouds removed can expose you to

moving parts and can result in serious

injury.

How To Prevent It

Never operate the compressor with

guards or covers which are damaged or

removed.

Any repairs required on this product

should be performed by authorized

service center personnel.

I"-r,.1,J,._',lm]

WARNING: Risk of Falling

What Could Happen

A portable compressor can fall from a

table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

How To Prevent It

Always operate compressor in astable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high locations.

7-ENG A05563

I:r-'!'4-'1,Nm]

WARNING: Risk of Serious Injury or Property Damage When IM]

Transporting Compressor !

(Fire, Inha/ation, Damage to Vehicle Surfaces)

What Could Happen

Oil can leak or spill and could result in

fire or breathing hazard; serious injury or

death can result, oil leaks will damage

carpet, paint or other surfaces in

vehicles or trailers.

How To Prevent It

Always place COMPRESSOR on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove COMPRESSOR from

vehicle immediately upon arrival at your

destination.

I:r-'!'4-'1,Nm]

WARNING: Risk of Unsafe Operation

What Could Happen

unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

How To Prevent It

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

SAVE THESE INSTRUCTIONS

A05563 8-ENG

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SOFM: Standard cubic feet per

minute; a unit of measure of air

delivery.

PSIG: Pounds per square inch

gauge; a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-In Pressure: While the motor is

off, air tank pressure drops as you

continue to use your accessory.

When the tank pressure drops to a

certain low level the motor will restart

automatically. The low pressure at

which the motor automatically

restarts is called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor

automatically shuts off, protecting

your air tank from pressure higher

than its capacity. The high pressure

at which the motor shuts off is called

"cut-out" pressure.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

This unit is capable of powering the following Accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

Accessories

• In Line Filter

• Tire Air Chuck

• Quick Connector Sets (various

sizes)

• Air Pressure Regulators

• Oil Fog Lubricators

• Air Hose: 1/4", 3/8" or 1/2" I.D. in

various lengths

Refer to the selection chart located

on the unit to select the tools this unit

is capable or powering.

I']11 i'i [5'{e] I _

This air compressor pump is capable

of running continuously. However, to

prolong the life of your air

compressor, it is recommended that a

50%-75% average duty cycle be

maintained; that is, the air

compressor pump should not run

more than 30-45 minutes in any given

hour.

9-ENG A05563

Unpacking

1. Remove unit from carton and discard all packaging.

HOW TO SET UP YOUR UNIT

Location of the Air Compressor

•Locate the air compressor in a

clean, dry and well ventilated

area.

• The air compressor should be

located at least 12" away from

the wall or other obstructions that

will interfere with the flow of air.

• The air compressor pump and

shroud are designed to allow for

proper cooling. The ventilation

openings on the compressor are

necessary to maintain proper

operating temperature. Do not

place rags or other containers on

or near these openings.

GROUNDING INSTRUCTIONS

Risk of Electrical

Shock. In the

event of a short circuit, grounding

reduces the risk of shock by

providing an escape wire for the

electric current. This air

compressor must be properly

grounded.

The portable air compressor is

equipped with a cord having a

grounding wire with an appropriate

grounding plug (see following

illustrations).

1. The cord set and plug with this

unit contains a grounding pin.

This plug MUST be used with a

grounded outlet.

IMPORTANT: The outlet being used

must be installed and grounded in

accordance with all local codes and

ordinances.

Make sure the outlet being used

has the same configuration as

the grounded plug. DO NOT

USE AN ADAPTER. See

illustration.

G_ro_ Pm _Grounded

. . _Outlets

3. Inspect the plug and cord before

each use. Do not use if there are

signs of damage.

4. If these grounding instructions

are not completely understood,

or if in doubt as to whether the

compressor is properly

grounded, have the installation

checked by a qualified

electrician.

Risk of Electrical

Shock. IMPROPER

GROUNDING CAN RESULT IN

ELECTRICAL SHOCK.

Do not modify the plug provided. If

it does not fit the available outlet, a

correct outlet should be installed

by a qualified electrician.

Repairs to the cord set or plug

MUST be made by a qualified

electrician.

A05563 10-ENG

Autres manuels pour 919.168700

Table des matières

Langues :

Autres manuels Craftsman Compresseur d'air

Craftsman

Craftsman 919.727360 Manuel utilisateur

Craftsman

Craftsman 921.166400 Manuel utilisateur

Craftsman

Craftsman 107.10265 Manuel utilisateur

Craftsman

Craftsman 919.167630 Manuel utilisateur

Craftsman

Craftsman 919.167783 Manuel utilisateur

Craftsman

Craftsman 919.165190 Manuel utilisateur

Craftsman

Craftsman 919.167361 Manuel utilisateur

Craftsman

Craftsman 919.152390 Manuel utilisateur

Craftsman

Craftsman 919.16778 Manuel utilisateur

Craftsman

Craftsman 919.167700 Manuel utilisateur

Craftsman

Craftsman 919.165282 Manuel utilisateur

Craftsman

Craftsman 921.153620 Manuel utilisateur

Craftsman

Craftsman 919.167380 Manuel utilisateur

Craftsman

Craftsman 919.167620-C Manuel utilisateur

Craftsman

Craftsman 919.16724 Manuel utilisateur

Craftsman

Craftsman 919.167310 Manuel utilisateur

Craftsman

Craftsman 919.165330 Manuel utilisateur

Craftsman

Craftsman 921.16578 Manuel utilisateur

Craftsman

Craftsman 919.152921 Manuel utilisateur

Craftsman

Craftsman 921.166430 Manuel utilisateur

Craftsman

Craftsman 919.727321 Manuel utilisateur

Craftsman

Craftsman 919.166701 Manuel utilisateur

Craftsman

Craftsman 919.167360 Operators Manuel utilisateur

Craftsman

Craftsman Air compressor Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
