Craftsman 919.167243 Manuel utilisateur

Owner’s Manual

Permanently Lubricated

Tank Mounted

AIR COMPRESSOR

• Safety Guidelines

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Troubleshooting

• Repair Parts

Model No.

919.167243

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

A09706 Rev. 1 10/21/05

2- ENG

A09706

TABLE OF CONTENTS

WARRANTY

WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SPECIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SAFETY GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DUTY CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-15

MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

SERVICE AND ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21

REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-25

ESPAÑOL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-46

REPAIR PROTECTION AGREEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . 47

HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . back cover

FULL ONE YEAR WARRANTY AIR COMPRESSOR

If this CRAFTSMAN Air Compressor fails due to a defect in material or

workmanship within one year from the date of purchase, Sears will at

its option repair or replace it free of charge. Contact your nearest Sears

Service Center (1-800-4-MY-HOME®) to arrange for repair, or return the Air

Compressor to the place of purchase for replacement.

If this Air Compressor is used for commercial or rental purposes, this warranty

applies for only ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Model No. 919-167243

Running HP 1.5

Bore 1.875"

Stroke 1.25"

Voltage-Single Phase 120V

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity 15

Approx. Cut-In 120

Approx. Cut-out 150

SCFM @ 40 psig 4.9

SCFM @ 90 psig 3.5

3- ENG A09706

SPECIFICATION CHART

Refer to Glossary for abbreviations.

SAFETY GUIDELINES - DEFINITIONS

Indicates an

imminently hazardous

situation which, if not avoided, will result

in death or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, may result in minor

or moderate injury.

Used without the

safety alert symbol

indicates a potentially hazardous situation

which, if not avoided, may result in

property damage.

This manual contains information that is important for you to know and

understand. This information relates to protecting YOUR SAFETY and

PREVENTING EQUIPMENT PROBLEMS. To help you recognize this

information, we use the symbols below. Please read the manual and pay

attention to these symbols.

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains

chemicals known (to the State of California) to cause cancer, birth defects

or other reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do

this type of work. To reduce your exposure to these chemicals: work in

a well ventilated area, and work with approved safety equipment, always

wear MSHA/NIOSH approved, properly fitting face mask or respirator when

using such tools.

When using air tools, basic safety precautions should always be followed

to reduce the risk of of personal injury.

4- ENG

A09706

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

HAZARD

WARNING: Risk of explosion or fire

How To Prevent It

What Could Happen

It is normal for electrical contacts within

the motor and pressure switch to spark.

If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk

of fire, do not allow the compressor to

operate unattended.

Always operate the compressor in a

well ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

5- ENG A09706

WARNING: Risk of Bursting

Air Tank: The following conditions could lead to a weakening of the tank, and result

in a violent tank explosion and could cause property damage or serious injury.

How To Prevent It

What Could Happen

WARNING: Risk from Flying Objects

The compressed air stream can cause

soft tissue damage to exposed skin and

can propel dirt, chips, loose particles,

and small objects at high speed,

resulting in property damage or personal

injury.

Always wear ANSI Z87.1 approved

safety glasses with side shields when

using the compressor.

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

HAZARD

Drain tank daily or after each use. If tank

develops a leak, replace it immediately

with a new tank or replace the entire

compressor.

Failure to properly drain condensed

water from tank, causing rust and

thinning of the steel tank.

Modifications or attempted repairs to

the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control tank

pressure.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

Excessive vibration can weaken the

air tank and cause rupture or

explosion

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

For essential control of air pressure, you

must install a pressure regulator and

pressure gauge to the air outlet (if not

equipped) of your compressor. Follow the

equipment manufacturers recommendation

and never exceed the maximum allowable

pressure rating of attachments. Never use

compressor to inflate small low

pressure objects such as children’s

toys, footballs, basketballs, etc.

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

How To Prevent It

What Could Happen

6- ENG

A09706

WARNING: Risk to Breathing

WARNING: Risk of Electrical Shock

HAZARD

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric shock.

Repairs attempted by unqualified

personnel can result in serious injury

or death by electrocution.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel in

accordance with national and local

electrical codes.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials

you are spraying. Use a NIOSH/MSHA

approved respirator designed for use

with your specific application.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior to human consumption.

7- ENG A09706

WARNING: Risk of Burns

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

WARNING: Risk from Moving Parts

Never operate the compressor with

guards or covers which are damaged or

removed.

Moving parts such as the pulley,

flywheel, and belt can cause serious

injury if they come into contact with you

or your clothing.

WARNING: Risk of Falling

A portable compressor can fall from

a table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

Always operate compressor in a stable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high locations.

HAZARD

Any repairs required on this product

should be performed by authorized

service center personnel.

Attempting to operate compressor with

damaged or missing parts or

attempting to repair compressor with

protective shrouds removed can expose

you to moving parts and can result in

serious injury.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

8- ENG

A09706

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

WARNING: Risk of Unsafe Operation

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

HAZARD

WARNING: Risk of Serious Injury or Property Damage

When Transporting Compressor

Oil can leak or spill and could result in

fire or breathing hazard; serious injury or

death can result. oil leaks will damage

carpet, paint or other surfaces in vehicles

or trailers.

Always place COMPRESSOR on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove COMPRESSOR from

vehicle immediately upon arrival at your

destination.

(Fire, Inhalation, Damage to Vehicle Surfaces)

HAZARD

SAVE THESE INSTRUCTIONS

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

9- ENG A09706

GLOSSARY

ACCESSORIES

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per

minute; a unit of measure of air

delivery.

PSIG: Pounds per square inch

gauge; a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-In Pressure: While the motor

is off, air tank pressure drops as

you continue to use your accessory.

Accessories

• In Line Filter

• Tire Air Chuck

• Quick Connector Sets

(various sizes)

• Air Pressure Regulators

• Oil Fog Lubricators

• Air Hose: 1/4", 3/8" OR 1/2" I.D. in

various lengths

This unit is capable of powering the following Accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

When the tank pressure drops to a

certain low level the motor will restart

automatically. The low pressure

at which the motor automatically

restarts is called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor

automatically shuts off, protecting

your air tank from pressure higher

than its capacity. The high pressure

at which the motor shuts off is called

"cut-out" pressure.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

Refer to the selection chart located

on the unit to select the tools this unit

is capable of powering.

DUTY CYCLE

This air compressor pump is

capable of running continuously.

However, to prolong the life of your

air compressor, it is recommended

that a 50%-75% average duty

cycle be maintained; that is, the air

compressor pump should not run

more than 30-45 minutes in any given

hour.

10- ENG

A09706

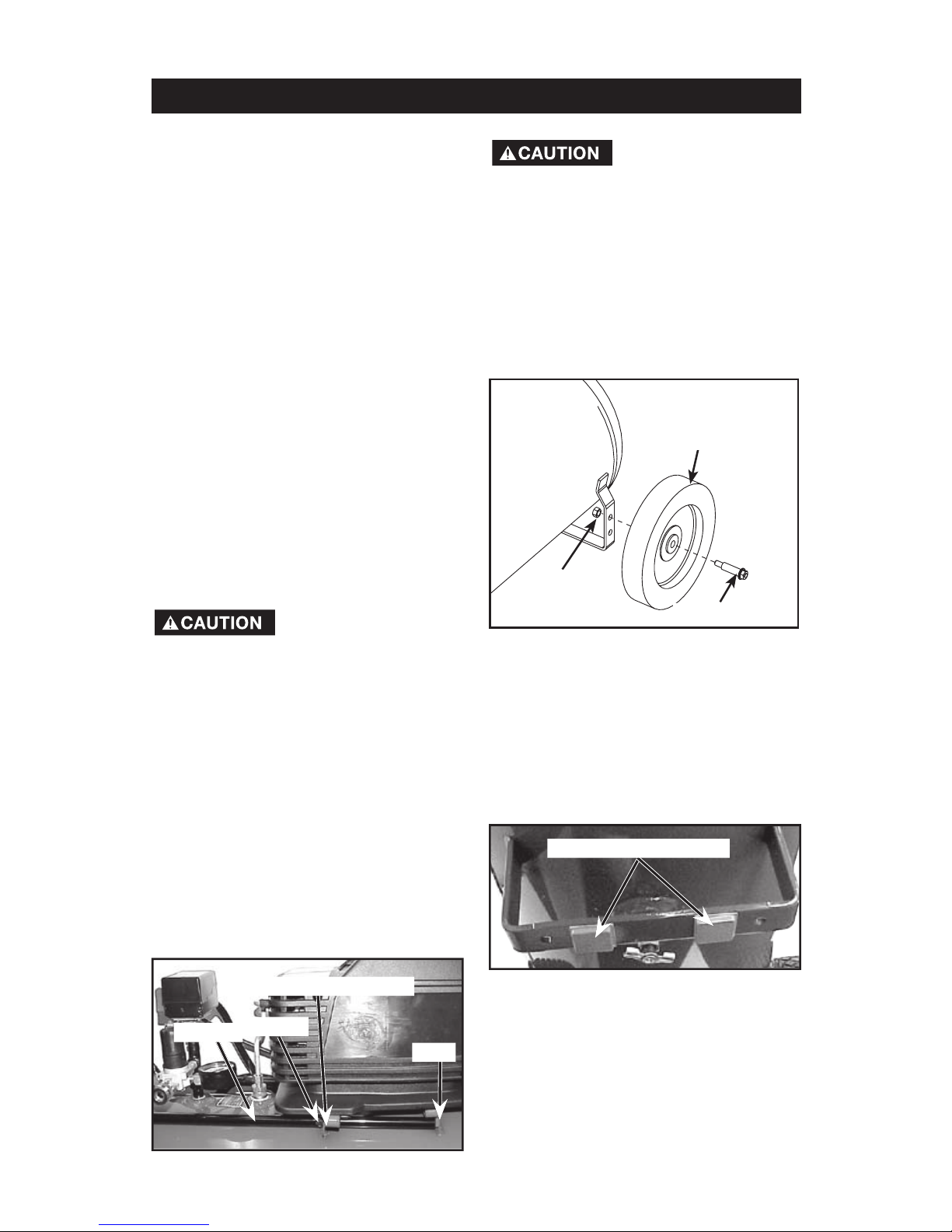

ASSEMBLY

Tools Required for

Assembly

1 - 9/16" socket or open end

wrench

1 - 3/8" socket

Contents of Carton

1 - Air Compressor

2 - Wheels

2 - Shoulder Bolts, 3/8-16

2 - Hex Nuts, 3/8-16

2 - Molded Foot Bumpers

2 - Screws, 1/4 x 1.50

1 - Handle

1 - Handle Grip

2 - Screws, #10-16 x 1.00

It will be necessary

to brace or

support one side of the unit when

installing the wheels because the

compressor will have a tendency

to tip.

3. Install one shoulder bolt

and one nut for each wheel.

Tighten securely. The outfit

will sit level if the wheels are

properly installed.

4. Clean and dry underside of

air tank leg opposite wheels.

Remove the protective strip from

the adhesive backed molded

foot bumpers. Attach the foot

bumpers to the bottom of leg

on each end. Press firmly into

place.

Installing Handles,

Wheels, and Molded Foot

Bumpers

The wheels

and handle do

not provide adequate clearance,

stability or support for pulling the

unit up and down stairs or steps.

The unit must be lifted, or pushed

up a ramp.

1. Submerge handle grip into warm

soapy water to make installation

easier. Remove handle grip from

soapy water and slide onto

handle.

2. Slide handle through holes in

compressor saddle onto tabs.

Secure with screws, one on each

side.

Wheel

Shoulder Bolt

Nut

Handle

Screw

Compressor Saddle

Tab

Molded Foot Bumpers

Autres manuels pour 919.167243

Table des matières

Langues :

Autres manuels Craftsman Compresseur d'air

Craftsman

Craftsman 919.724582 Manuel utilisateur

Craftsman

Craftsman 921.164710 Manuel utilisateur

Craftsman

Craftsman 919.184190 Manuel utilisateur

Craftsman

Craftsman 919.167620 Manuel utilisateur

Craftsman

Craftsman 919.724131 Manuel utilisateur

Craftsman

Craftsman 921.16472 Manuel utilisateur

Craftsman

Craftsman 919.167310 Manuel utilisateur

Craftsman

Craftsman 919.175261 Manuel utilisateur

Craftsman

Craftsman 919.16724 Manuel utilisateur

Craftsman

Craftsman Air compressor Fiche technique

Craftsman

Craftsman 919.16780.CA Manuel utilisateur

Craftsman

Craftsman 919.165190 Manuel utilisateur

Craftsman

Craftsman 919.725502 Manuel utilisateur

Craftsman

Craftsman 919.167360 Operators Manuel utilisateur

Craftsman

Craftsman 919.167551 Manuel utilisateur

Craftsman

Craftsman 919.167342 Manuel utilisateur

Craftsman

Craftsman AIR COMPRESSOR 919.724701 Manuel utilisateur

Craftsman

Craftsman 919.167810 Manuel utilisateur

Craftsman

Craftsman 919.155730 Manuel utilisateur

Craftsman

Craftsman 919.168700 Manuel utilisateur

Craftsman

Craftsman 919.152160 Manuel utilisateur

Craftsman

Craftsman 919.7243 Manuel utilisateur

Craftsman

Craftsman 919.165190 Manuel utilisateur

Craftsman

Craftsman 75114 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
