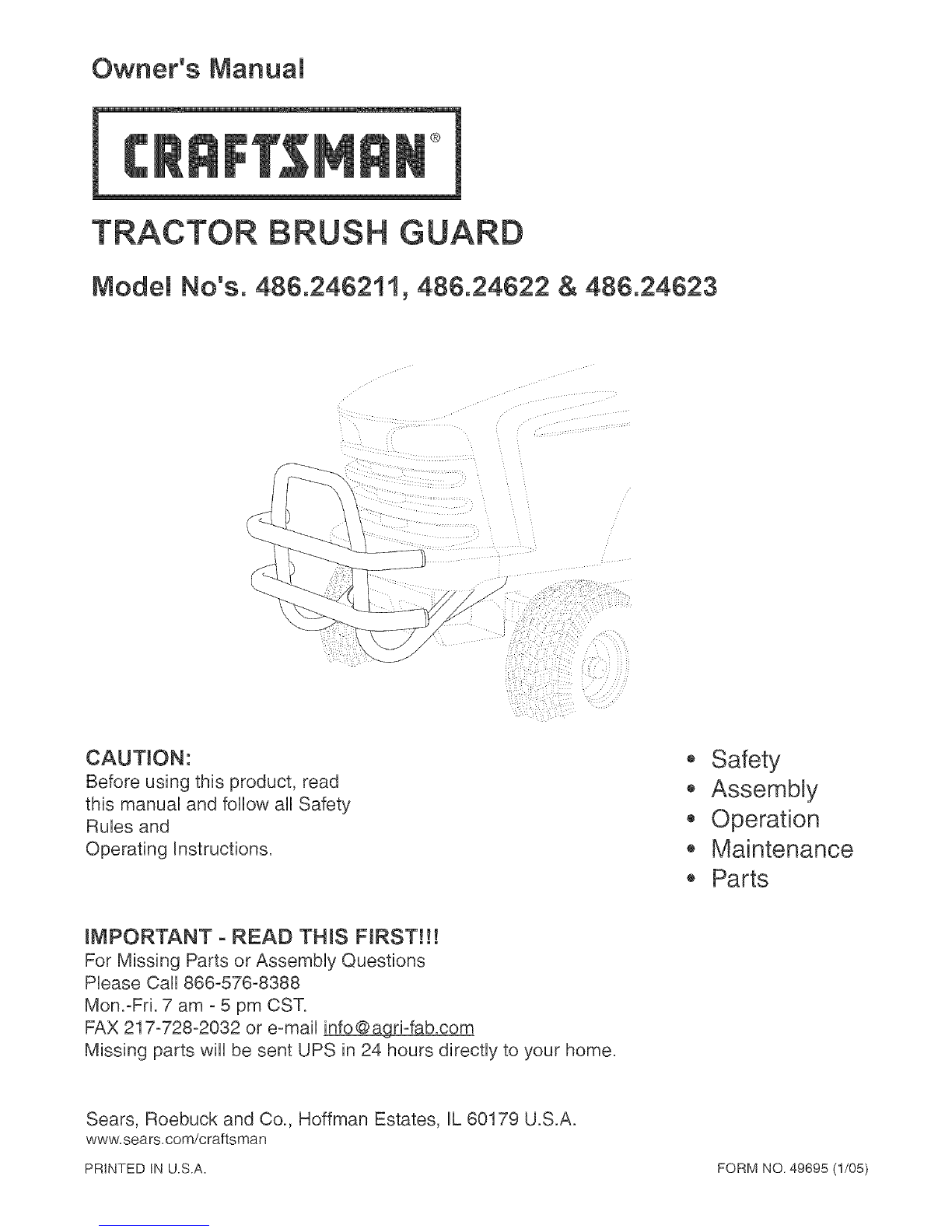

Owner's Manual

TRACTOR BRUSH GUARD

ModeN No's. 486.246211, 486.24622 & 486.24623

CAUTION:

Before using this product, read

this manuaU and follow aH Safety

RuUes and

Operating Instructions.

• Safety

• AssembLy

,, Operation

• Maintenance

• Parts

IMPORTANT - READ THtS FIRST!!!

For Missing Parts or AssembUy Questions

PUease Call 866-576-8388

Mon.-Fri. 7 am -5 pm CST.

FAX 217-728-2032 or e-maiU info@aq_d-fab.com

Missing parts will be sent UPS in 24 hours directly to your home.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www, sears,com/craftsman

PRINTED IN U.S.A. FORM NO. 49695 (1/05)

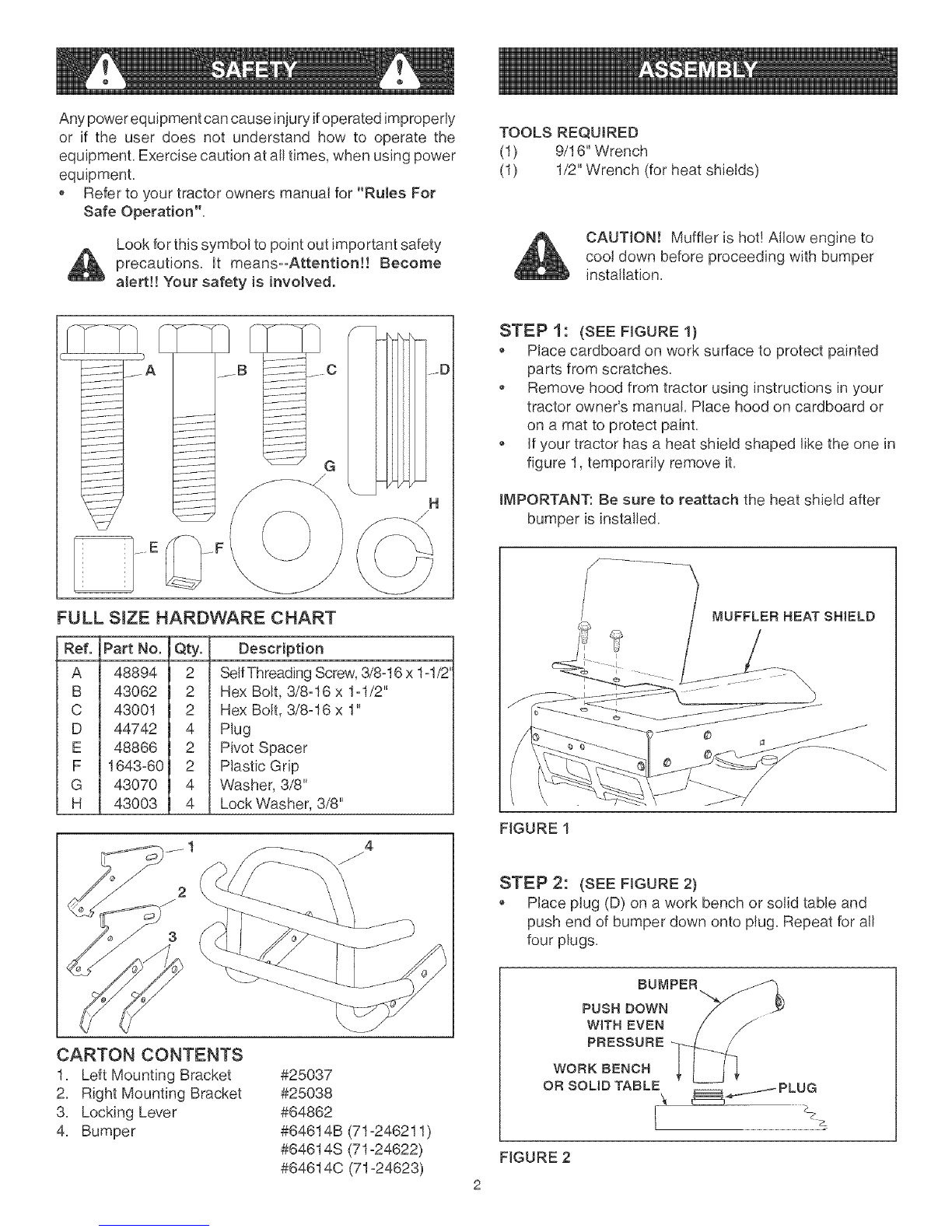

Any power equipment can cause injury ifoperated improperly

or if the user does not understand how to operate the

equipment. Exercise caution at al! times, when using power

equipment.

Refer to your tractor owners manual for "Rules For

Safe Operation",

Look for this symbol to point out important safety

precautions. It means--Attention!! Become

alert!! Your safety is involved.

TOOLS REQUIRED

(1) 9/16" Wrench

(1) 1/2" Wrench (for heat shields)

CAUTION! Muffler is hot! Allow engine to

cool down before proceeding with bumper

installation.

X-

FULL SmZE HARDWARE CHART

Ref,

Part No,

48894

43062

43001

44742

48866

1643-60

43070

43003

Qty.

Description

SelfThreading Screw, 3/8o16x 1-1/2'

Hex Bolt, 3/8-16 x 1-1/2"

Hex Bolt, 3/8-16 x 1"

Plug

Pivot Spacer

Plastic Grip

Washer, 3/8"

Lock Washer, 3/8"

CARTON CONTENTS

1. Left Mounting Bracket

2. Right Mounting Bracket

3. Locking Lever

4. Bumper

#25037

#25038

#64862

#64614B (71-246211 )

#64614S (71-24622)

#64614C (71°24623)

STEP 1: (SEE FIGURE 1)

. Place cardboard on work surface to protect painted

parts from scratches.

. Remove hood from tractor using instructions in your

tractor owner's manual. Place hood on cardboard or

on a mat to protect paint.

. if your tractor has a heat shield shaped like the one in

figure 1, temporarily remove it.

iMPORTANT: Be sure to reattach the heat shield after

bumper is installed.

MUFFLER HEAT SHIELD

J //

FIGURE 1

STEP 2: (SEE HGURE 2)

, Place plug (D) on a work bench or solid table and

push end of bumper down onto plug. Repeat for a!l

four plugs.

BUMPER

PUSH DOWN

W{TH EVEN

PRESSURE

WORK BENCH

OR SOUD TABLE__PLUG

FIGURE 2

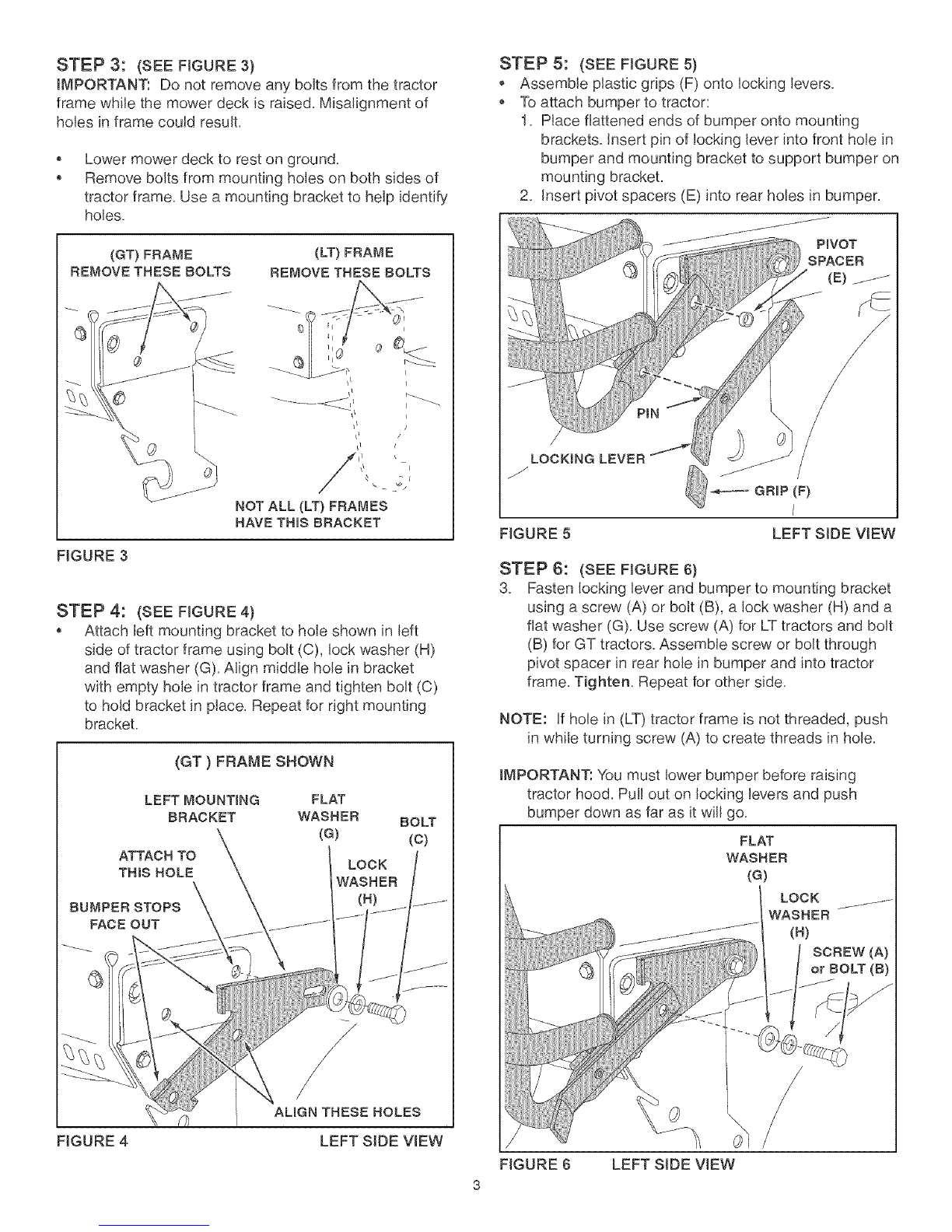

STEP 3: (SEE FIGURE 3}

IMPORTANT: Do not remove any bolts from the tractor

frame while the mower deck is raised. Misalignment of

holes in frame could result.

Lower mower deck to rest on ground.

Remove bolts from mounting holes on both sides of

tractor frame. Use a mounting bracket to help identify

holes.

(GT) FRAME

REMOVE THESE BOLTS (LT) FRAME

REMOVE THESE BOLTS

)

NOT ALL (LT) FRAMES

HAVETHINSBRACKET

FIGURE 3

STEP 4: (SEE FIGURE 4}

Attach left mounting bracket to hole shown in left

side of tractor frame using bolt (C), lock washer (H)

and fiat washer (G). Align middle hole in bracket

with empty hole in tractor frame and tighten bolt (C)

to hold bracket in place. Repeat for right mounting

bracket.

(GT) FRAME SHOWN

LEFT MOUNTING

BRACKET

ATTACH TO

THRS HOLE

BUMPER STOPS

FACE OUT

FLAT

WASHER BOLT

(G} (C)

LOCK

WASHER

(H)

FIGURE 4

AUGN THESE HOLES

LEFT S_DE VIEW

STEP 5: (SEE FIGURE 5)

o Assemble plastic grips (F) onto locking levers,

To attach bumper to tractor:

1. Place flattened ends of bumper onto mounting

brackets. Insert pin of locking lever into front hole in

bumper and mounting bracket to support bumper on

mounting bracket.

2. Insert pivot spacers (E) into rear holes in bumper.

PUVOT

SPACER

(E)_

LOCKING LEVER

FIGURE 5

STEP 6: (SEE FIGURE 6)

3. Fasten locking lever and bumper to mounting bracket

using a screw (A) or bolt (B), a lock washer (H) and a

flat washer (G). Use screw (A) for LTtractors and bolt

(B) for GT tractors. Assemble screw or bolt through

pivot spacer in rear hole in bumper and into tractor

frame. Tighten. Repeat for other side.

NOTE: ff hole in (LT) tractor frame is not threaded, push

in while turning screw (A) to create threads in hole.

IMPORTANT: You must lower bumper before raising

tractor hood. Pull out on locking levers and push

bumper down as far as it will go.

FLAT

WASHER

(G)

LOCK ...........

WASHER

SCREW (A)

or BOLT (B)

FIGURE 6 LEFT SIDE VIEW

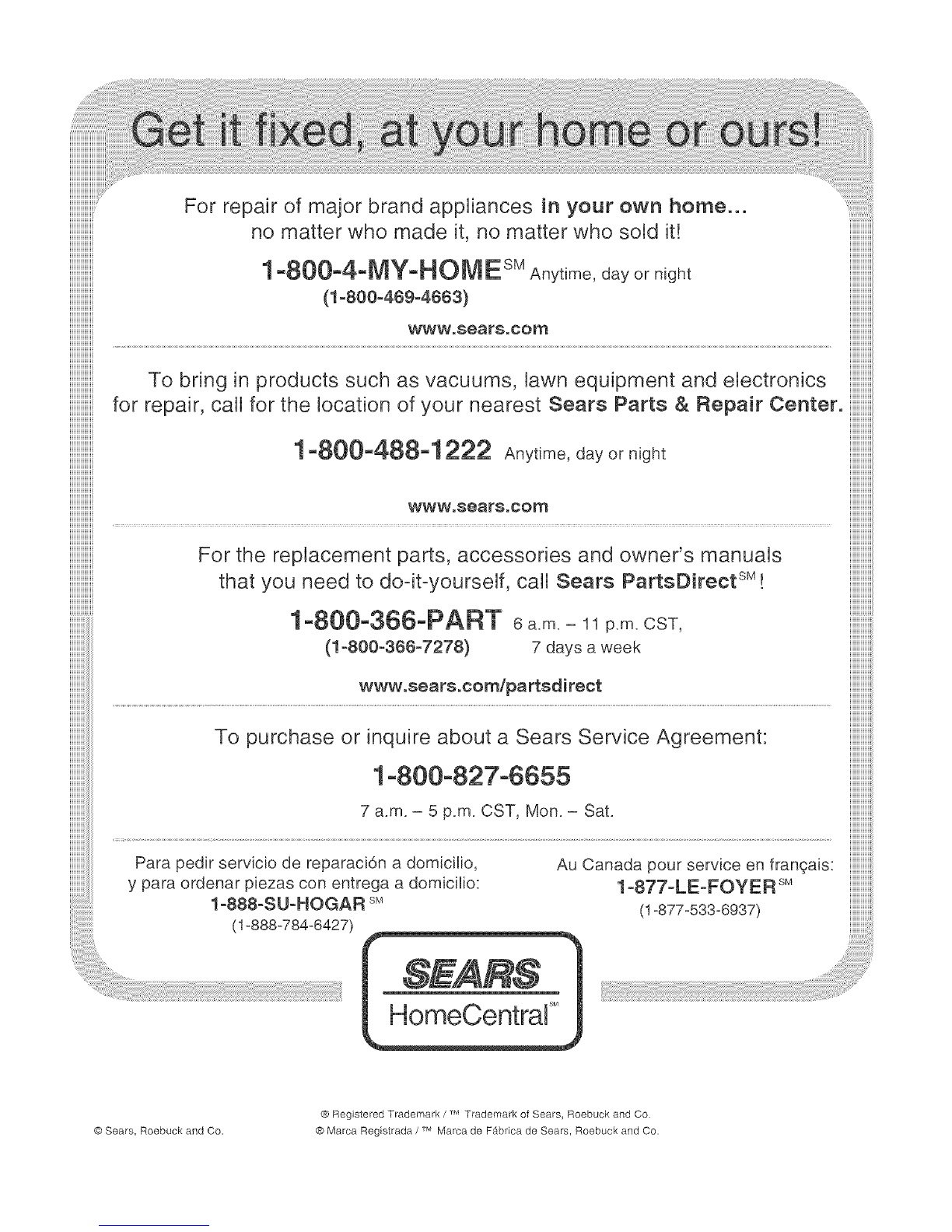

" For repair of major brand appliances in your own home...

no matter who made it, no matter who soMdit!

1-800-4-MY-HOME sMAnytime day or night

1-8oo-4 9-4 63

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics

for repair, call for the location of your nearest Sears Parts & Repair Center. ................

1-800-488-1222 Anytime, dayornight

For the replacement parts, accessories and owner's manuals

that you _eed t_ doq_yourself, call Sears PartsDUreetSM!

1 800 366 PART 6a.m.- 11p.m.CST,

(1-800-366-7278} 7 days a week

www.sears.com/partsdirect

To purchase or 'nquire about t Sears Servbe Agreement:

1 800 827 6655

7 a.m.-5 p.m. CST, Mort.- Sat.

Pare pedir servicio de reparaci6n a domicilio, Au Canada pour service en fran£ais:

y pare ordenar piezas con entrega a domicilio: 1_877_LE_FOYERSM

(1-888=784-6427) roo oo?

® Registered Trademark /TM Trademark of Sears, Roebuck and Co
