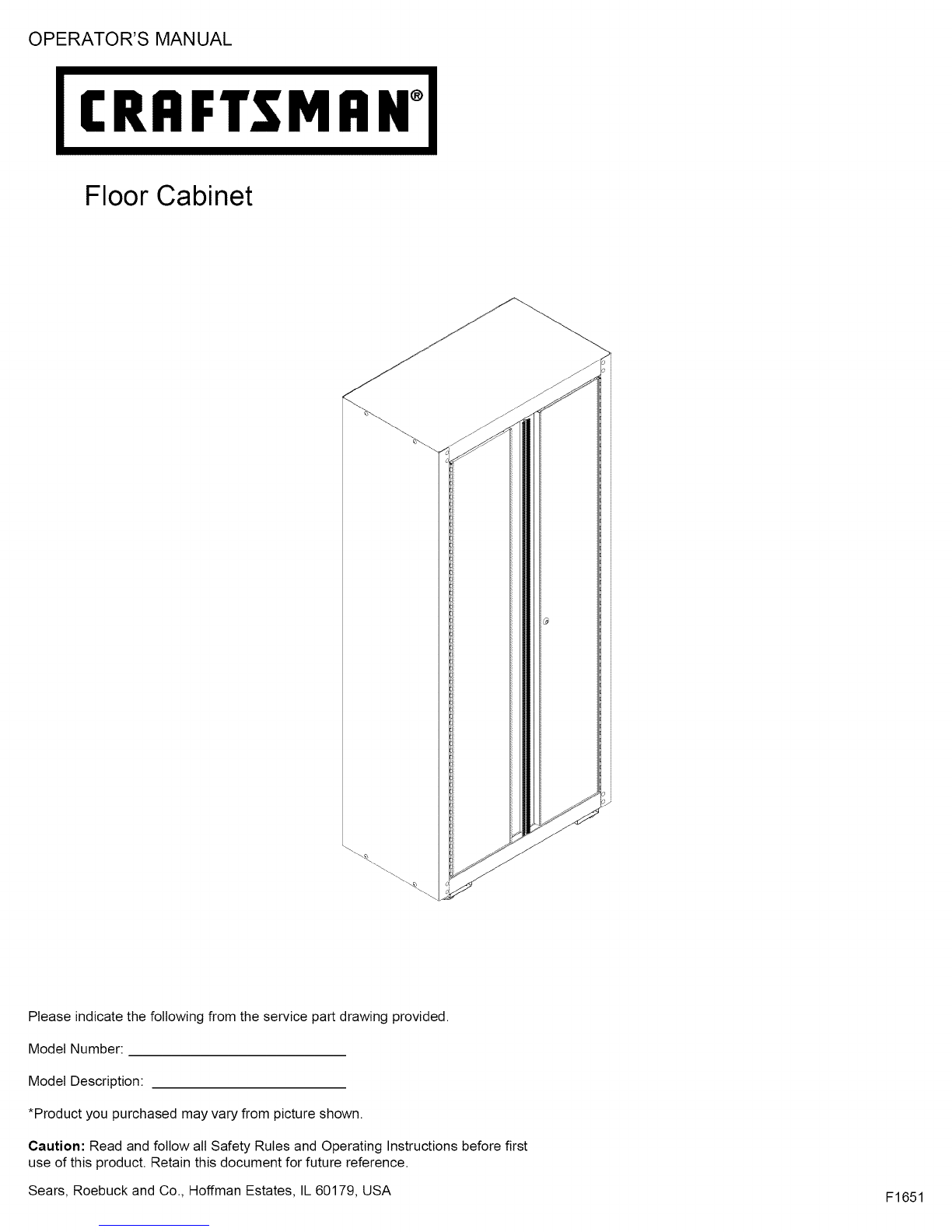

Craftsman Floor Cabinet Manuel utilisateur

OPERATOR'S MAN UAL

Floor Cabinet

Please indicate the following from the service part drawing provided.

Model Number:

Model Description:

*Product you purchased may vary from picture shown.

Caution: Read and follow all Safety Rules and Operating Instructions before first

use of this product. Retain this document for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, USA F1651

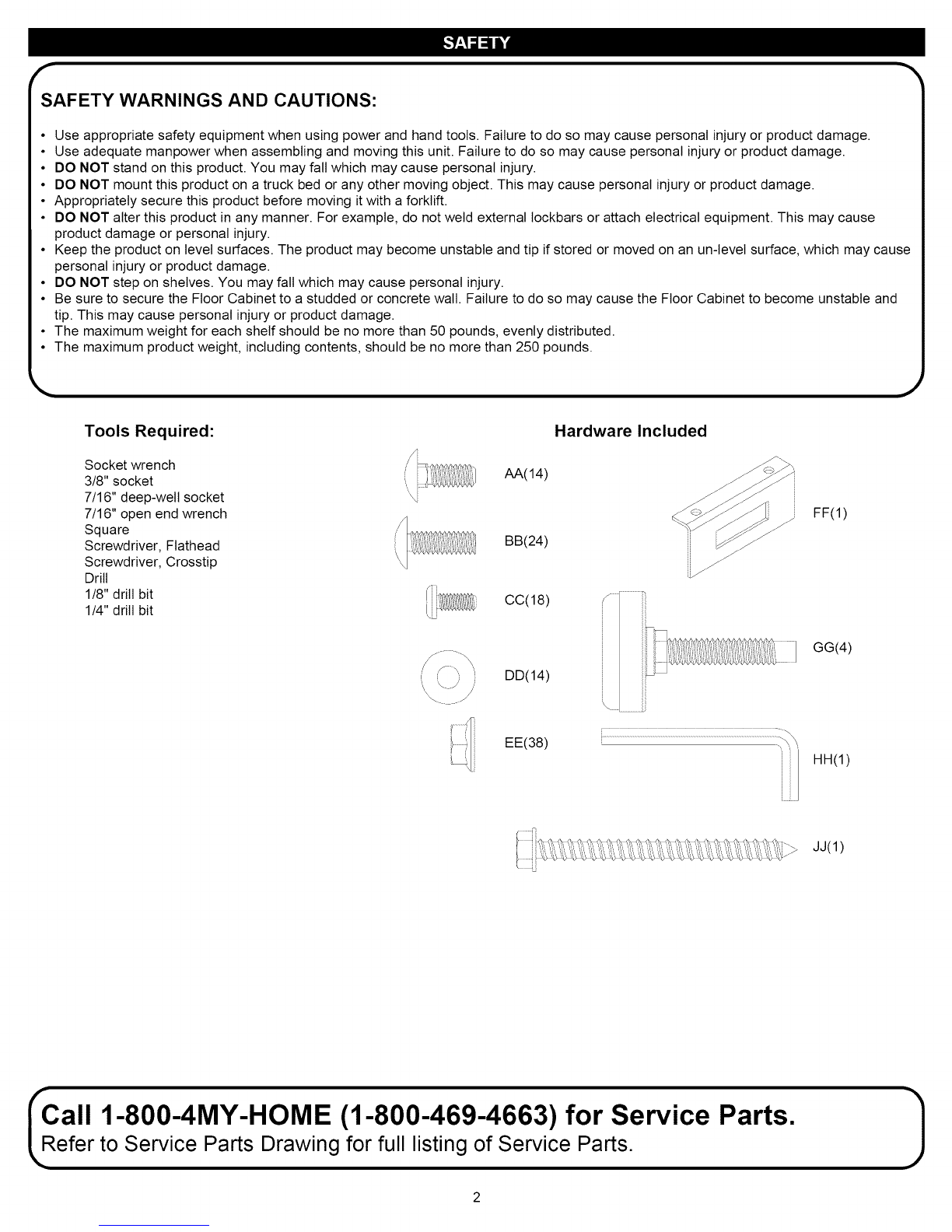

SAFETY WARNINGS AND CAUTIONS:

•Use appropriate safety equipment when using power and hand tools. Failure to do so may cause personal injury or product damage. |

•Use adequate manpower when assembling and moving this unit. Failure to do so may cause personal injury or product damage. |

•DO NOT stand on this product. You may fall which may cause personal injury. |

• DO NOT mount this product on atruck bed or any other moving object. This may cause personal injury or product damage. |

• Appropriately secure this product before moving it with a forklift. |

• DO NOT alter this product in any manner. For example, do not weld external tockbars or attach electrical equipment. This may cause |

product damage or personal injury. |

• Keep the product on level surfaces. The product may become unstable and tip if stored or moved on an un-level surface, which may cause

personal injury or product damage. |

•DO NOT step on shelves. You may fall which may cause personal injury. |

• Be sure to secure the Floor Cabinet to a studded or concrete wall. Failure to do so may cause the Floor Cabinet to become unstable and |

tip. This may cause personal injury or product damage. |

• The maximum weight for each shelf should be no more than 50 pounds, evenly distributed. |

•The maximum product weight, including contents, should be no more than 250 pounds. /

Tools Required:

Socket wrench

3/8" socket

7/16" deep-welt socket

7/16" open end wrench

Square

Screwdriver, Flathead

Screwdriver, Crosstip

Drill

1/8" drill bit

1/4" drill bit

AA(14)

BB(24)

Hardware Included

CC(18) /.......

DD(14)

EE(38)

..................i

FF(1)

GG(4)

HH(1)

JJ(1)

Call 1-800-4MY-HOME (1-800-469-4663) for Service Parts.

efer to Service Parts Drawing for full listing of Service Parts. )

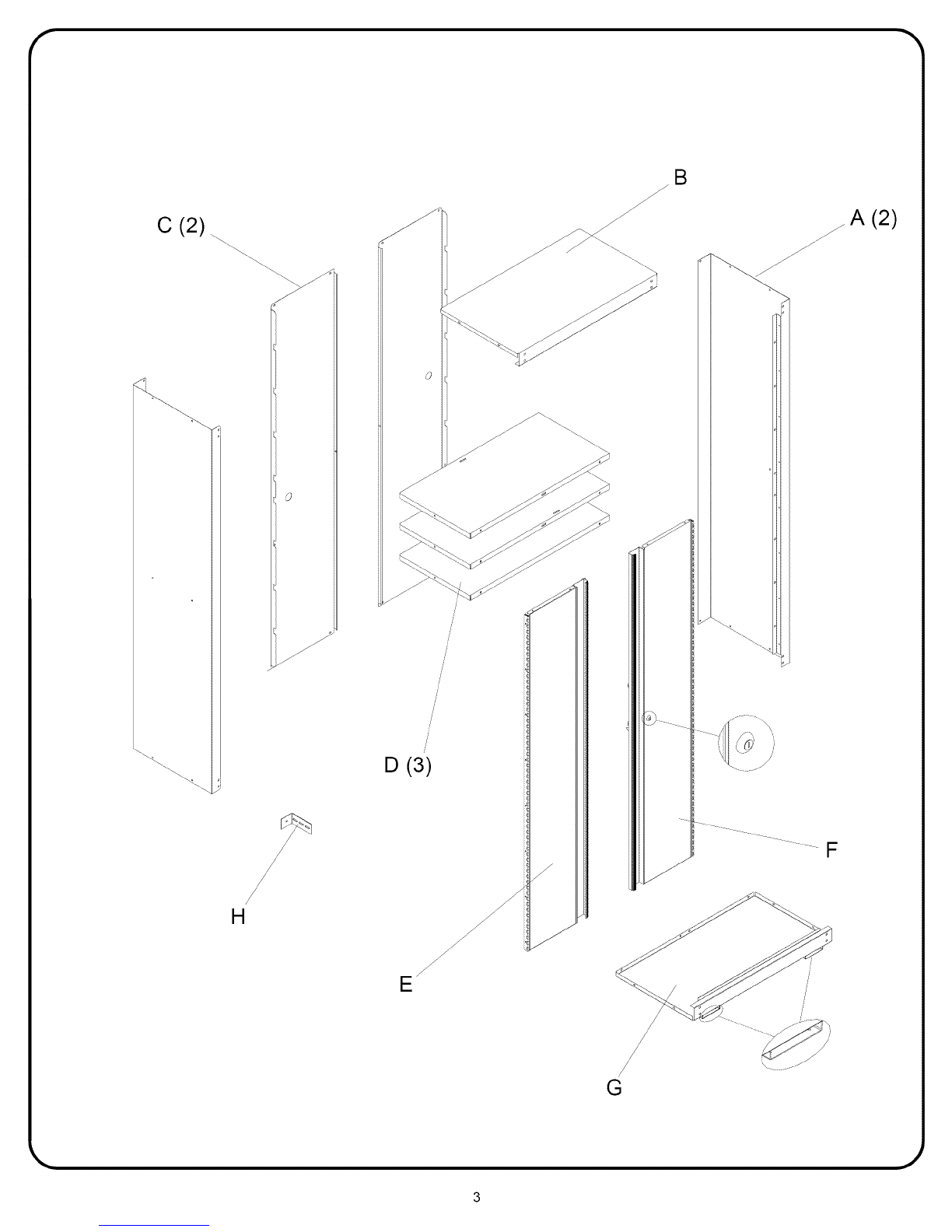

C(2).

D(3)

A(2)

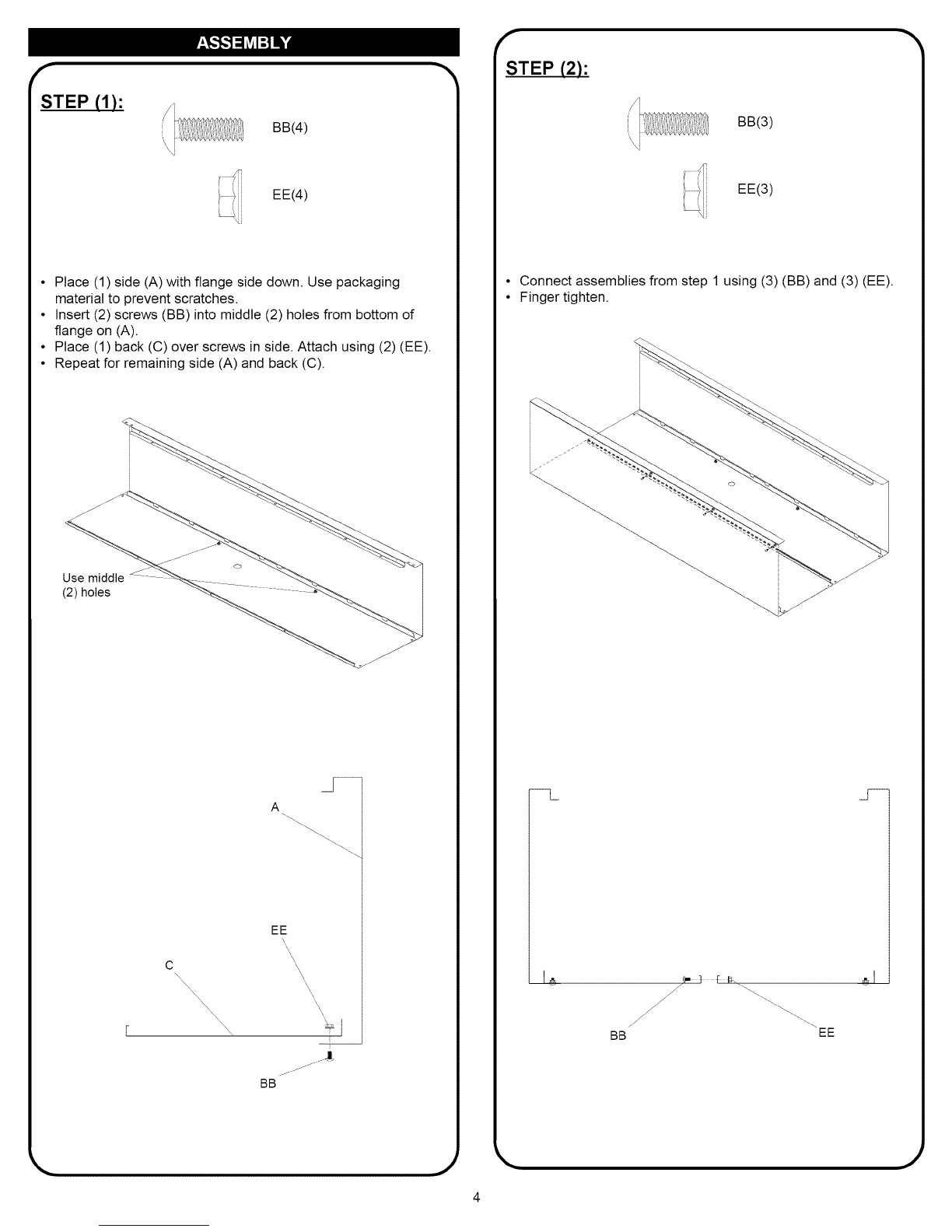

STEP (1):

BB(4)

EE(4)

• Place (1) side (A) with flange side down. Use packaging

material to prevent scratches.

• Insert (2) screws (BB) into middle (2) holes from bottom of

flange on (A).

• Place (1) back (C) over screws in side. Attach using (2) (EE).

• Repeat for remaining side (A) and back (C).

\\\\\\\\\\\\\\\\\\\

\\ \\

\\\ \

...... jo-o-JJ "J_

STEP (2):

BB(3)

EE(3)

• Connect assemblies from step 1 using (3) (BB) and (3) (EE).

• Finger tighten.

--L r---

BB EE

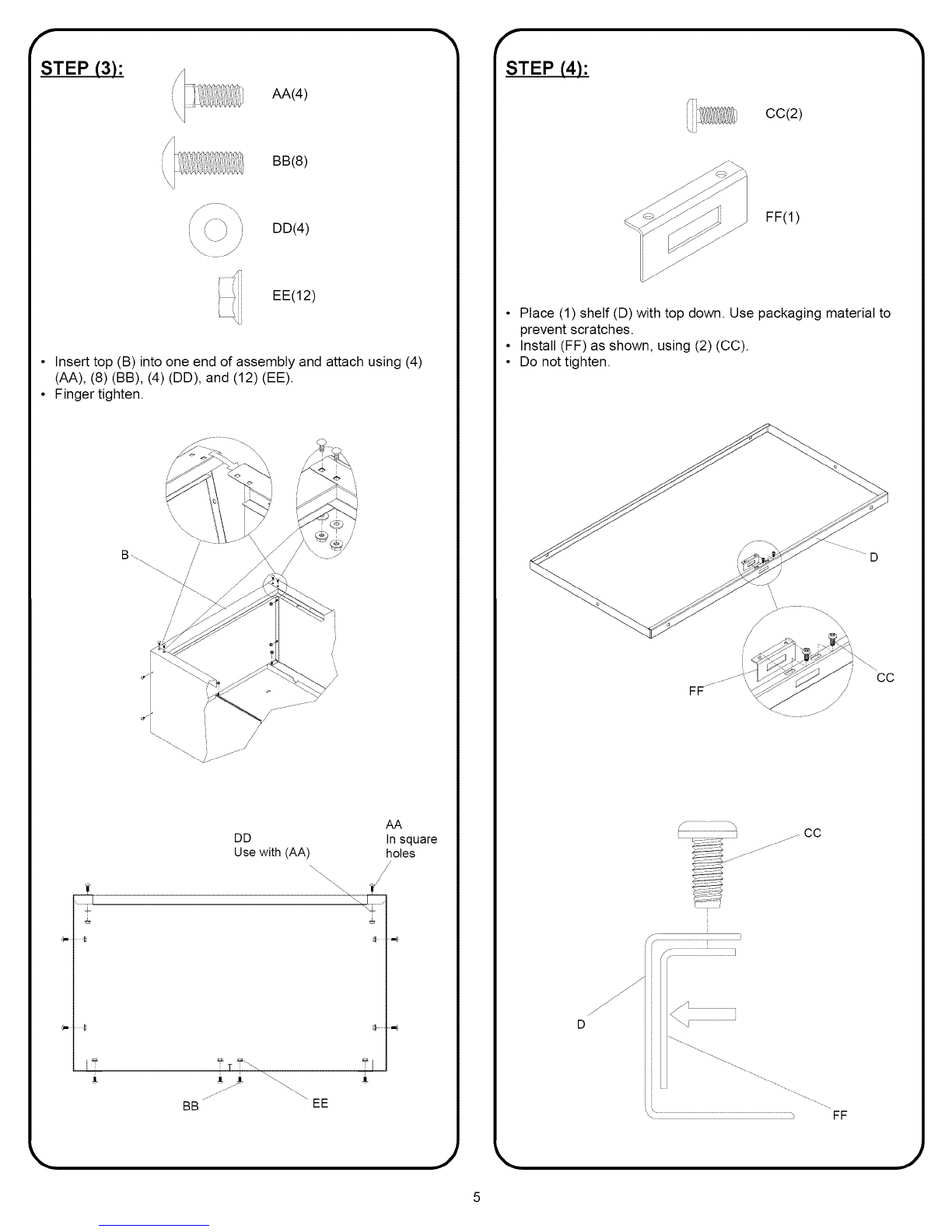

STEP (3):

AA(4)

BB(8)

DD(4)

EE(12)

•Insert top (B) intoone end of assembly and attach using (4)

(AA), (8) (BB), (4) (DD), and (12) (EE).

• Finger tighten.

Use with (AA)

In square

holes

!(f

../--/"

BB \ EE

STEP (4):

;_ " CC(2)

i ,_J'

FF(1)

• Place (1) shelf (D) with top down. Use packaging material to

prevent scratches.

• Install (FF) as shown, using (2) (CC).

• Do not tighten.

i' CC

/f ................................

_ CC

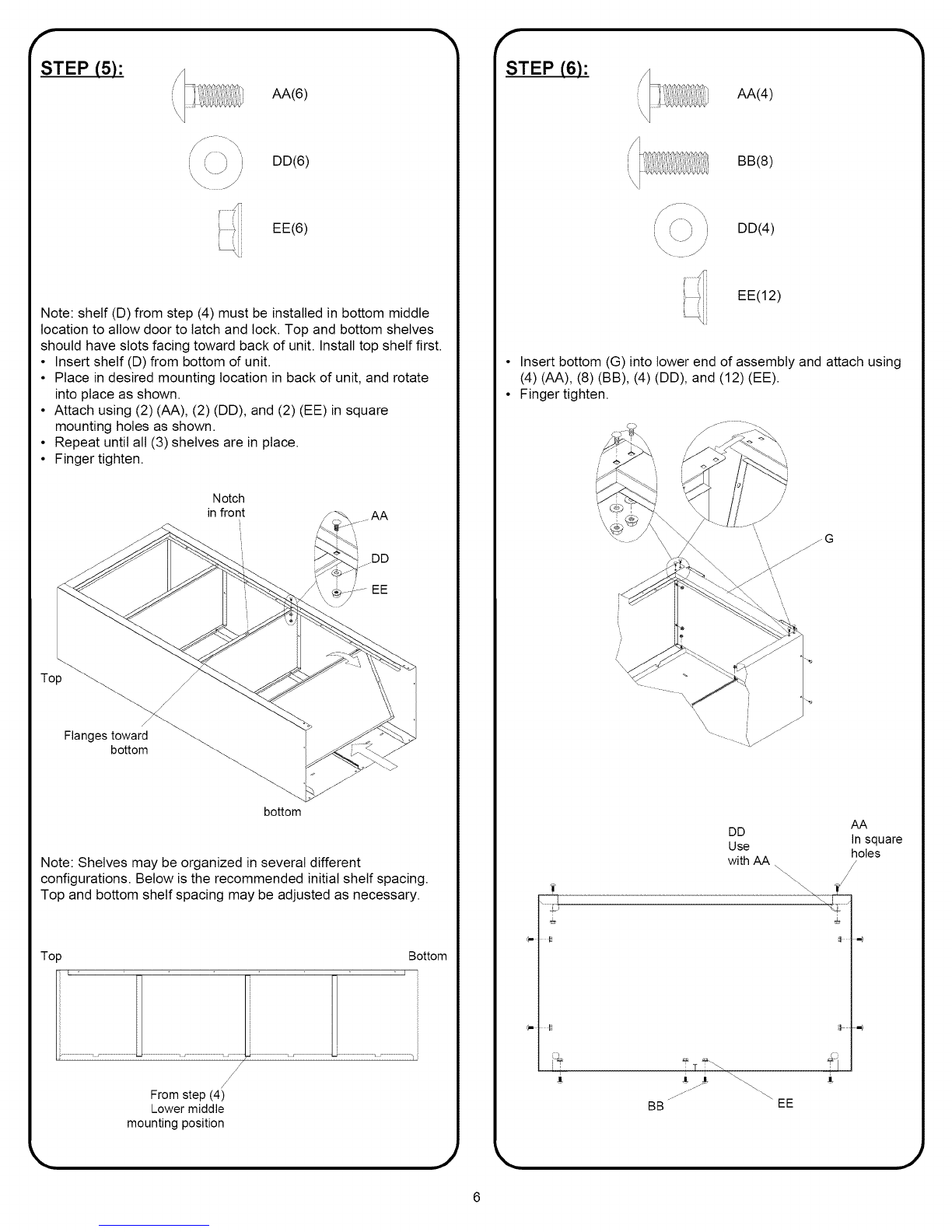

STEP (5):

AA(6)

DD(6)

EE(6)

Note: shelf (D) from step (4) must be installed in bottom middle

location to allow door to latch and lock. Top and bottom shelves

should have slots facing toward back of unit. Install top shelf first.

• Insert shelf (D) from bottom of unit.

• Place in desired mounting location in back of unit, and rotate

into place as shown.

• Attach using (2) (AA), (2) (DD), and (2) (EE) in square

mounting holes as shown.

• Repeat until all (3) shelves are in place.

• Finger tighten.

Notch

in front AA

bottom

Note: Shelves may be organized in several different

configurations. Below is the recommended initial shelf spacing.

Top and bottom shelf spacing may be adjusted as necessary.

Top

i '

Bottom

...... i ;

From step (4)

Lowermiddle

mounting position

STEP (6):

AA(4)

BB(8)

DD(4)

EE(12)

• Insert bottom (G) into lower end of assembly and attach using

(4) (AA), (8) (BB), (4) (DD), and (12) (EE).

• Finger tighten.

DD Insquare

Use holes

with AA .. /

BB.......... _ EE

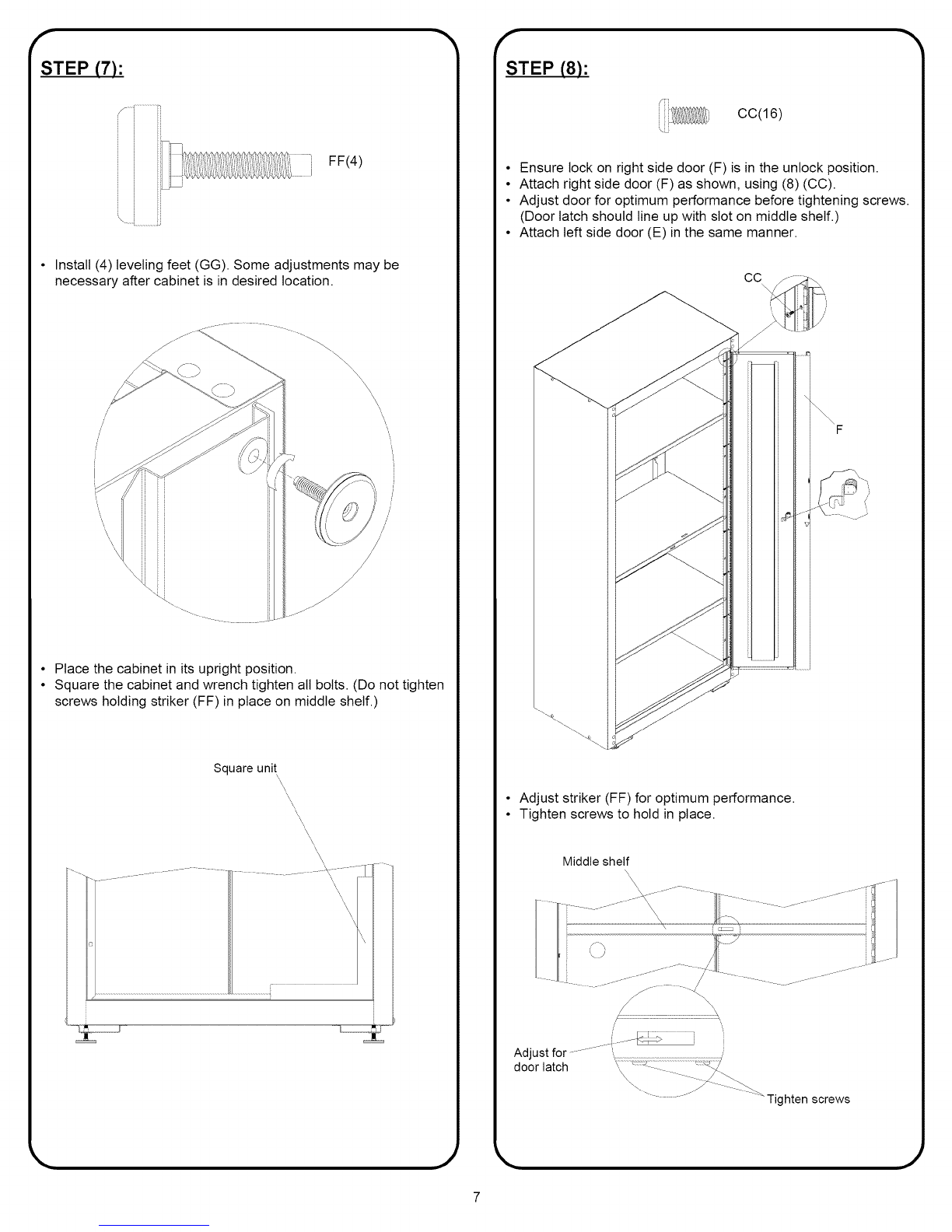

STEP (7):

FF(4)

• Install (4) leveling feet (GG). Some adjustments may be

necessary after cabinet is in desired location.

\\\\\\\\\\\\\

\\\

• Place the cabinet in its upright position.

• Square the cabinet and wrench tighten all bolts. (Do not tighten

screws holding striker (FF) in place on middle shelf.)

Square unit\\

\\ \

\\\\

STEP (8):

CC(16)

• Ensure lock on right side door (F) is in the unlock position.

• Attach right side door (F) as shown, using (8) (CC).

• Adjust door for optimum performance before tightening screws.

(Door latch should line up with slot on middle shelf.)

• Attach left side door (E) in the same manner.

• Adjust striker (FF) for optimum performance.

• Tighten screws to hold in place.

Middle shelf

XXxxx

Adjust for ..............

door latch

ghten screws

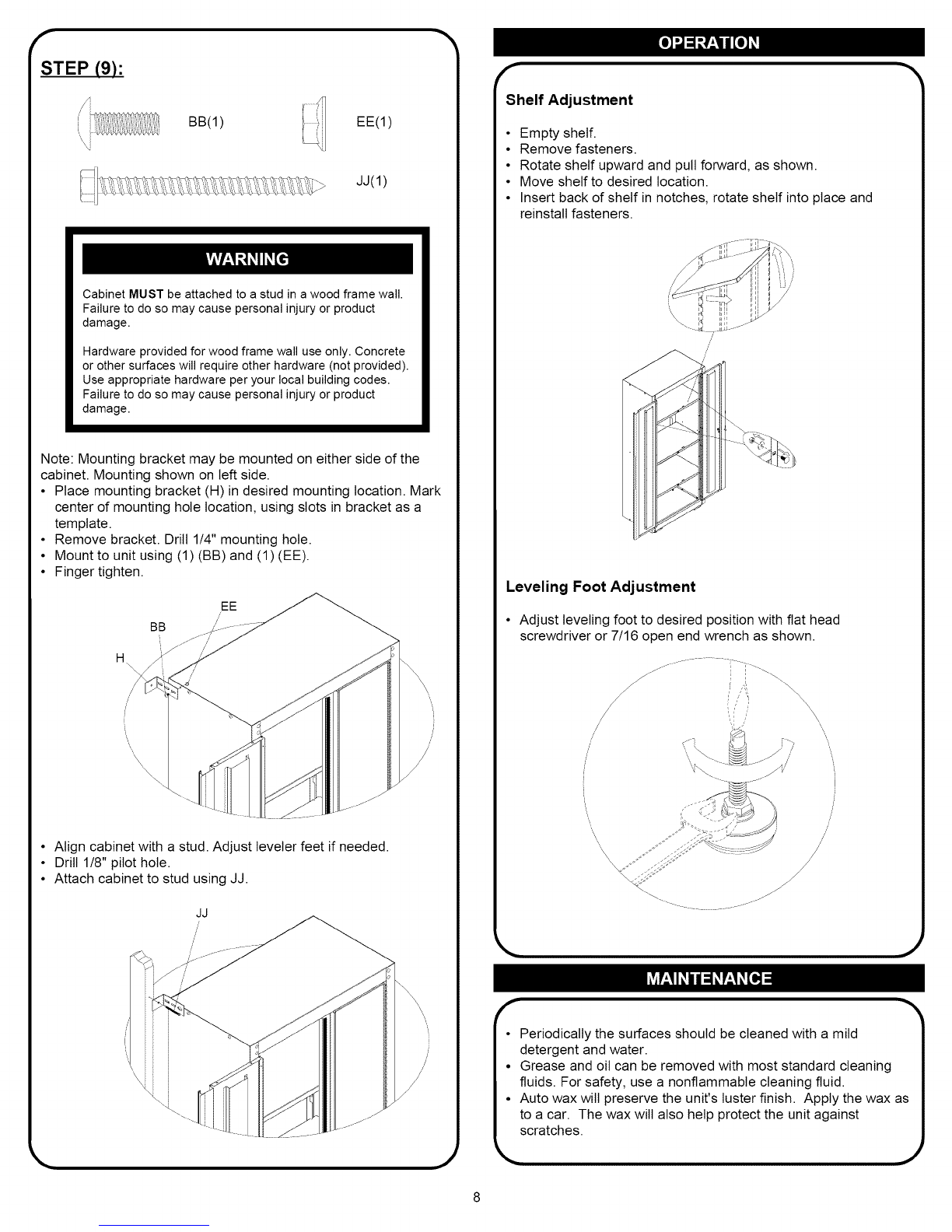

STEP (9):

BB(1) EE(1)

JJ(1)

Cabinet MUST be attached to a stud in a wood frame wall.

Failure to do so may cause personal injury or product

damage.

Hardware provided for wood frame wall use only. Concrete

or other surfaces will require other hardware (not provided).

Use appropriate hardware per your local building codes.

Failure to do so may cause personal injury or product

damage.

Note: Mounting bracket may be mounted on either side of the

cabinet. Mounting shown on left side.

•Place mounting bracket (H) in desired mounting location. Mark

center of mounting hole location, using slots in bracket as a

template.

• Remove bracket. Drill 1/4" mounting hole.

• Mount to unit using (1) (BB) and (1) (EE).

• Finger tighten.

•Align cabinet with a stud. Adjust leveler feet if needed.

• Drill 1/8" pilot hole.

• Attach cabinet to stud using JJ.

_lllll

Shelf Adjustment

Empty shelf.

Remove fasteners.

Rotate shelf upward and pull forward, as shown.

Move shelf to desired location.

Insert back of shelf in notches rotate shelf into place and

reinstall fasteners.

Leveling Foot Adjustment

•Adjust leveling foot to desired position with fiat head

screwdriver or 7/16 open end wrench as shown,

/-- i '" _-\

,,/

r•Periodically the surfaces should be cleaned with a mild

detergent and water.

•Grease and oil can be removed with most standard cleaning

fluids. For safety, use a nonflammable cleaning fluid.

• Auto wax wilt preserve the unit's luster finish. Apply the wax as

to a car. The wax will also help protect the unit against

scratches.

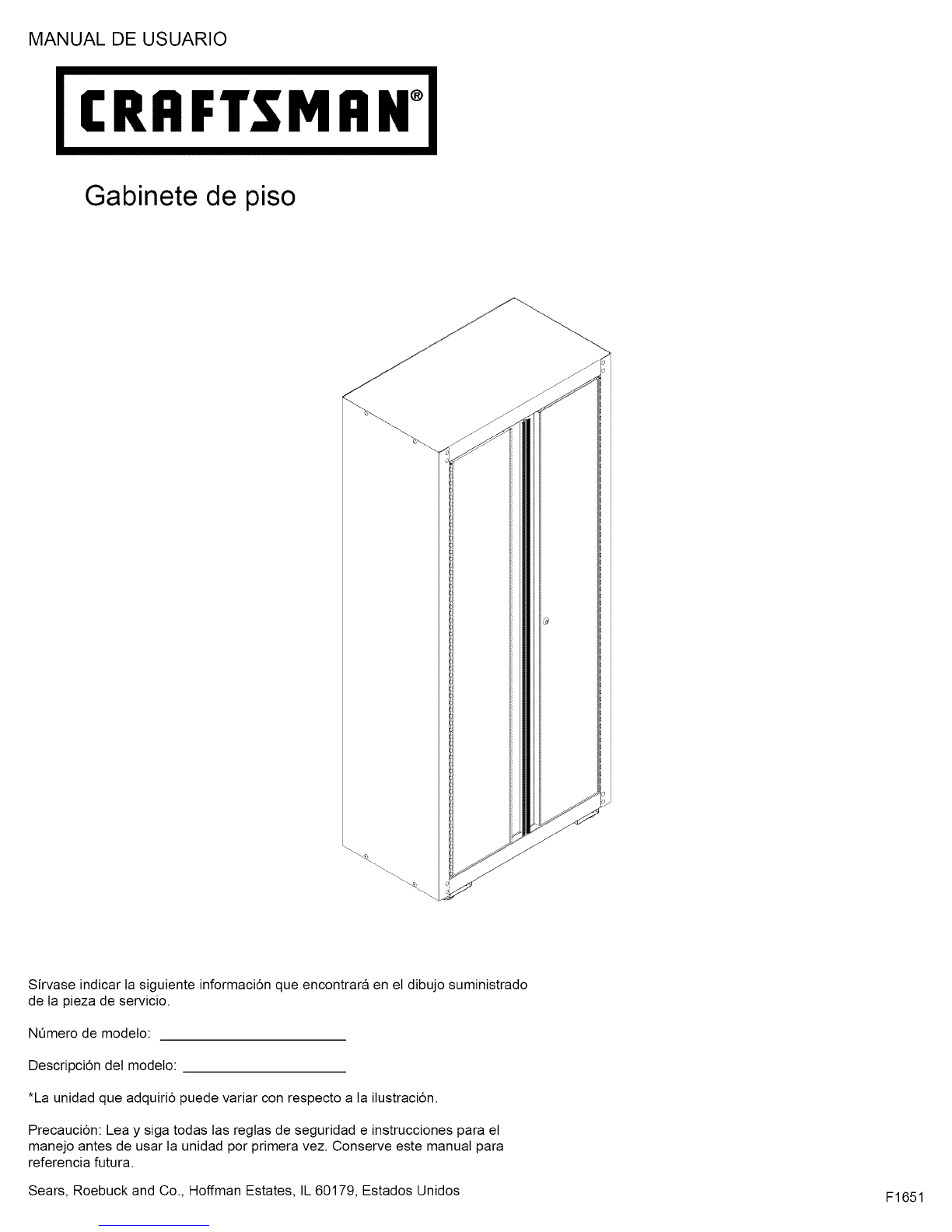

MANUAL DE USUARIO

I(RFT M""°I

Gabinete de piso

Sirvase indicar ta siguiente informaci6n que encontrara en el dibujo suministrado

de la pieza de servicio.

Nemero de modelo:

Descripci6n del modelo:

*La unidad que adquiri6 puede variar con respecto a la ilustraci6n.

Precauci6n: Lea y siga todas tas regtas de seguridad e instrucciones para el

manejo antes de usar la unidad pot primera vez. Conserve este manual para

referencia futura.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, Estados Unidos F1651

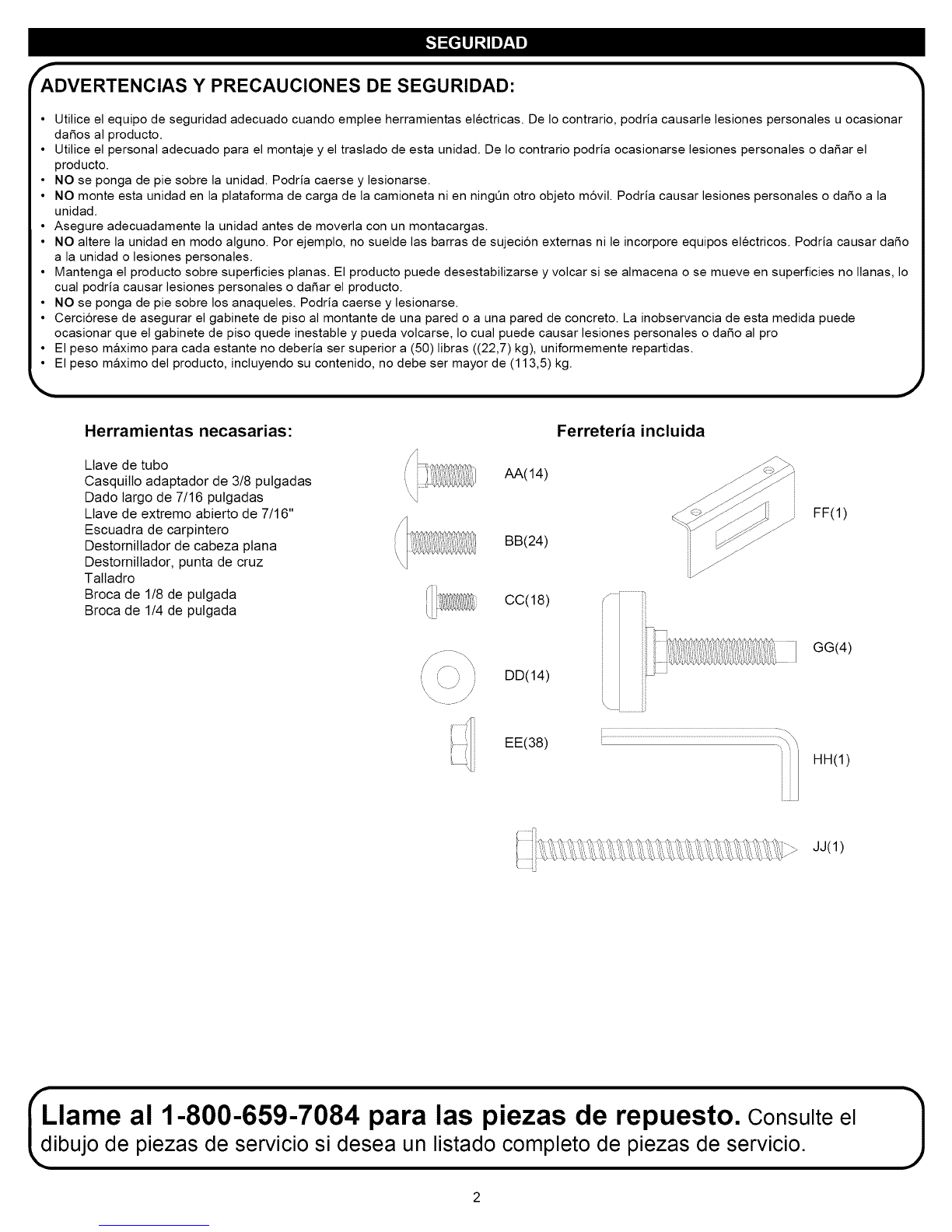

fADVERTENCIAS Y PRECAUCIONES DE SEGURIDAD: _'_

• Utilice el equipo de seguridad adecuado cuando emplee herramientas electricas. De Io contrario, podria causarle lesiones personales u ocasionar I

da_os al producto. |

• Utilice el personal adecuado para el montaje y el traslado de esta unidad. De Io contrario podria ocasionarse lesiones personales o da_ar el |

producto. |

•NO se ponga de pie sobre la unidad. Podria caerse y lesionarse. |

•NO monte esta unidad en la plataforma de carga de la camioneta ni en ningQn otro objeto m6vil. Podria causar lesiones personales o da_o a la |

unidad. |

• Asegure adecuadamente la unidad antes de moverla con un montacargas. |

•NO altere la unidad en modo alguno. Por ejemplo, no suelde las barras de sujecion externas nile incorpore equipos electricos. Podria causar da_o I

a la unidad o lesiones personales. |

• Mantenga el producto sobre superficies planas. El producto puede desestabilizarse y volcar si se almacena o se mueve en superficies no lianas, Io I

cual podria causar lesiones personales o da_ar el producto. |

•NO se ponga de pie sobre los anaqueles. Podria caerse y lesionarse. |

• Cerciorese de asegurar el gabinete de piso al montante de una pared o a una pared de concreto. La inobservancia de esta medida puede |

ocasionar que el gabinete de piso quede inestable y pueda volcarse, Io cual puede causar lesiones personales o da_o al pro |

• El peso maximo para cada estante no deberia ser superior a (50) libras ((22,7) kg), uniformemente repartidas. |

LEl pes° m_xim° del pr°duct°' incluyend° su c°ntenid°' n° debe ser may°r de (113'5) kg J

Herramientas necasarias:

Ltave de tubo

Casquitto adaptador de 3/8 pulgadas

Dado largo de 7/16 pulgadas

Llave de extremo abierto de 7/16"

Escuadra de carpintero

Destomittador de cabeza plana

Destornitlador, punta de cruz

Taltadro

Broca de 1/8 de pulgada

Broca de 1/4 de pulgada

AA(14)

BB(24)

Ferreteria incluida

CC(18) /.......

DD(14)

EE(38)

..................i

FF(1)

GG(4)

HH(1)

JJ(1)

Llame al 1-800-659-7084 para las piezas de repuesto. Consulte el

bujo de piezas de servicio si desea un listado completo de piezas de servicio.
