1KW Pure Sine Wave Power Inverter

User ’s Manual

SR Series Inverter

Contents

1. Important Safety Instructions……………………………………………………………………. 3

1-1 General Safety Precaution…………………………………………………………………… 3

1-2 Other Safety Note………………………...…………………………………………………… 3

2. Introduction to Functional Characteristics……………………………………………………. 4

2-1 System...……………………………………………………………………………………….. 4

2-2 Block Diagram.…………………..……………………………………………………………. 5

2-3 Electrical Performance…..……………………………………………………………………. 6

2-4 Mechanical Drawings..………………………………………………………………………... 7

3. Installation and Maintenance….…………………………………………………………………. 8

3-1 Rear Panel……..……………………………………………………………………………. 8

3-2 Deutsch Wichtige Sicherheitshinweise........................................................................ 13

3-3 Front Panel……..……………………………………………………………………………. 15

3-4 Maintenance…….………..……….…………………………………………………………. 16

4. Operation……………………………………………………………………………………………. 16

4-1 Connecting the Input Power………………………………………………………………….. 16

4-2 Connecting the Loads..……………………………………………………………………….. 16

4-3 Inverter Operation...………..…………………………………………………………………. 16

4-4 Protection Features……………………………………………………………………………. 17

5 Front LCD Panel Display and Setup……………………………………………………………. 17

5-1

LCD Panel Indications………….……………………………….……………………………. 17

5-2 Startup Sequence and Standby Status…..……….……………..………………………….. 19

5-3 Setup Menu Operation and Instructions……………………………..……………………... 20

6. RS232 Communication and Operation…..…………………………………………………….. 25

6-1 Operation of RS-232 Serial Port..……. ………………………….…………………………. 25

6-2 Interface Command………………………………………………..………………………….. 26

6-3 Example of RS232 Operation……………………………………………………….……….. 26

7. Information………………………………………………………………………………………….. 31

SR Series Inverter

7-1 Troubleshooting……………………………………………………………………………… 31

7-2 Warranty……………………………………………………………………………………... 31

8. Appendices………………………………………………………………………………………….. 31

8-1 FCC (Class B) Declaration of Conformity………………………………………………… 32

8-2 EMC Declaration of Conformity……………….…………………………………………... 33

8-3 TUV(EN60950) Declaration of Conformity..…………….………………………………... 34

without the express permission of the owner.

SR Series Inverter

1. Important Safety Instructions

1-1. General Safety Precautions

1-1-1. Do not expose the inverter to rain, snow, spray or dust.

To reduce the risk of fire hazard, do not cover or obstruct the

ventilation openings and. do not install the inverter in a zero-

clearance compartment.

1-1-2. To avoid the risk of fire and electric shock, make sure that the

existing wiring is in good electrical condition; and that the wire size

is not undersized.

Do not operate the inverter with damaged or substandard wiring.

1-1-3. Depending on the use, the AC output of the inverter may require

user installed breaker or fusing. For telecom use, a GFCI has not

been provided. The inverter incorporates standard AC short circuit

protection.

1-1-4.The following precautions should be taken when working on the

inverter:

▌Remove watches, rings, or other metal objects.

▌Use tools with insulated handles.

▌Wear rubber gloves and boots.

1-2. Other SafetyNotes

1-2-1. Upon receipt, examine the shipment box for damage. Notify the

carrier immediately, before opening, if damage is evident.

1-2-2. Do not operate near water or in excessive humidity.

1-2-3. Do not open or disassemble the inverter, warranty may be voided.

1-2-4. The DC side connections should be firm and tight.

1-2-5. Grounding: Reliable grounding of rack-mounted equipment should

be maintained.

1-2-6. Do not drop a metal tool on the battery. The resulting spark or short-

circuit on the battery or on the other electrical part may cause an

explosion.

WARNING!

SAVE THESE INSTRUCTIONS – This manual contains

important instructions that should be followed during

installation and maintenance of the inverter.

SR Series Inverter

1-2-7. Install the inverter in a well-ventilated area. Do not block the front

air vents, or the rear air exhausts of the unit.

1-2-8. Wiring: Adequate input power must be supplied to the inverter for

proper use; correct wiring sizes must be ensured.

1-2-9.Mount the inverter such that the fan axis is horizontal.

1-2-10.Do not operate the inverter close to combustible gas or open fire.

1-2-11. Do not operate appliances that may feed power back into the

inverter.

1-2-12.Temperature: The inverter should be operated in an ambient

temperature range of 0℃to 50 ℃or else the output efficiency

may be affected. Air flow to the inverter must not be restricted.

2. Functional Characteristics Introduction

2-1.System

The unit is a highly reliable DC-AC inverter system, designed with advanced

power electronic and microprocessor technology offering the following features:

▌The inverter is equipped with a self diagnosis microprocessor that is

able to identify and show all failure messages on the LED/LCD display,

with associated visual/audio alarms.

▌ 1U height x 19” width x 13.6” depth, 19” rack mountable.

▌Pure sine wave output (THD < 2%) to operate higher-end electronic

equipment.

▌Built in 15A(120VAC) and 10A(250VAC) rated Bypass relay.

▌Speeds up transfer time as a result of synchronized operation with the

AC source at all times that allows the transfer to be interruption-free for

sensitive equipment.

▌Intelligent software for power management.

▌AC Inlet and Dual AC outlets connection model option.

▌Loading and temperature controlled cooling fan.

▌Fan aging, failure, disconnection and blockage alarm.

▌Selectable Bypass/Inverter modes.

▌Local and remote management and control.

SR Series Inverter

▌RS-232 communication.

▌Dry contact terminal.

▌Efficiency >90%. (Full linear load at 220VAC Output)

▌ Advanced Protection Features:

Input over/under voltage protection.

Internal over temperature protection.

Input reverse polarity protection (Fuse).

Output overload protection.

Output short circuit protection

AC input short circuit protection: Breaker (6 Amp or 12 Amp)

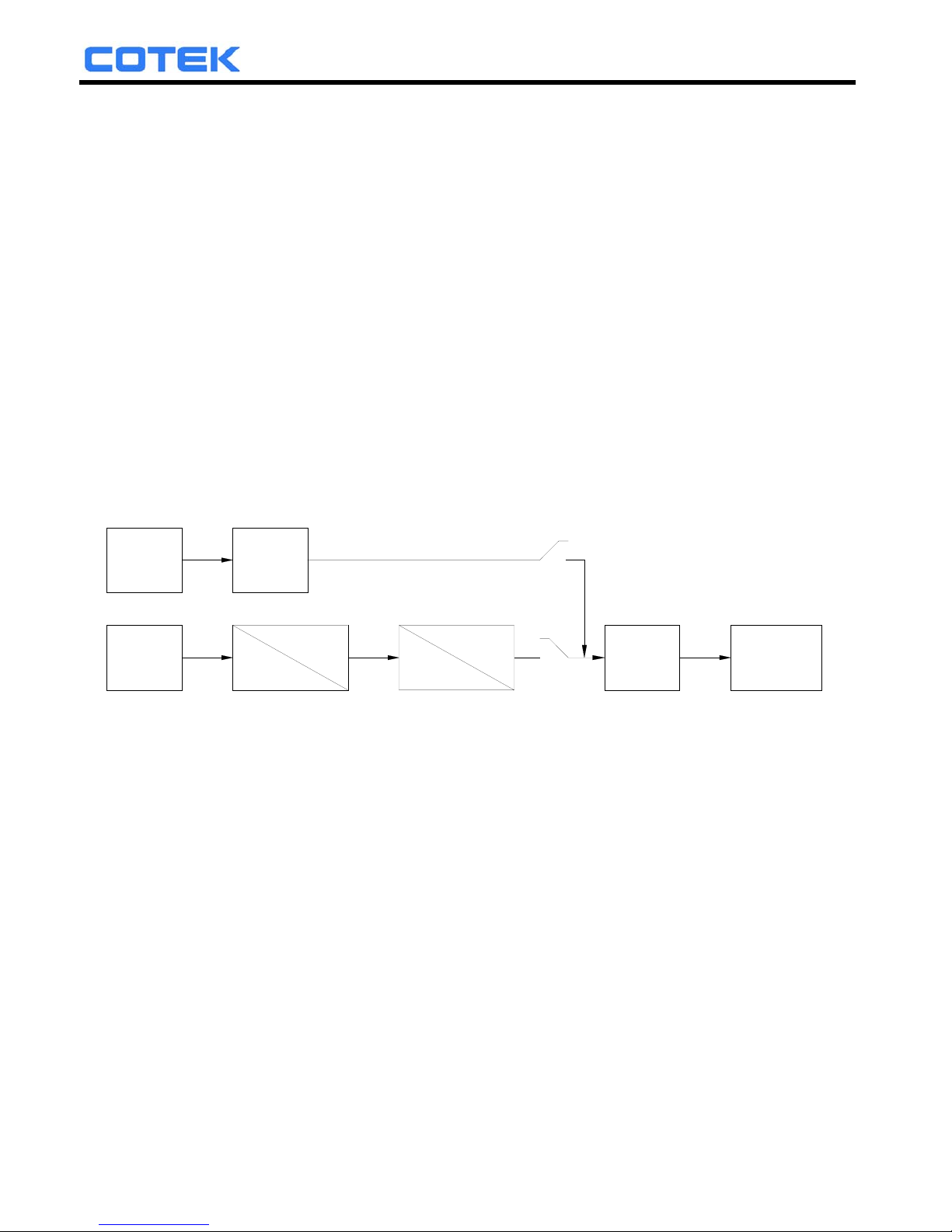

2-2. Block Diagram

AC GRID

INPUT

FILTER

DC DC

DC FILTER AC

OUTPUT

BYPASS RELAY

The inverter features IGBT technology which, minimizes weight and dimension,

while enhancing output short circuit reliability and overload capacity.

AC output voltage is provided in one of the two following modes:

1). From DC to AC Inverter Mode: (On-line Mode)

2). From AC Input Bypass Mode: (Off-line Mode)

Either mode is front panel programmable.

In the first option, Off-line mode,AC output power will be supplied through the AC

bypass mode in its normal operation. Upon AC input failure, output power will be

diverted through the DC to AC Inverter Mode. Once AC mains are restored, the unit

will revert from the Inverter Mode to the Bypass Mode.

In the second option, On-line mode, AC output power will be provided directly by

the inverter from the DC source. Should the DC source or inverter fail, the system

will transfer its output power through the bypass mode. Once the DC power source

is restored, the system will revert to the inverter mode.

SR Series Inverter

2-3. Electrical Performance

Electrical Specification Model No.

Input

Characteristics

Item SR1000-124 SR1000-148 SR1000-224 SR1000-248

Voltage 24 VDC 48 VDC 24 VDC 48 VDC

Input Over-Voltage Protection 30~34 VDC 60 VDC MAX. 30~34 VDC 60 VDC MAX.

Input Under-Voltage Protection 18~22 VDC 36~44 VDC 18~22 VDC 36~44 VDC

Voltage Range 18~34 VDC 36~60 VDC 18~34 VDC 36~60 VDC

No Load Current 1.4 A 0.75 A 1.3 A 0.7 A

Output

Characteristics

W0001rewoPtuptuOsuounitnoC

Maximum output Power (3Min) 1100 W

Surge Power 2000 W

Frequency 47 ~ 63 Hz +/- 0.05 % (User-selectable)

Output Voltage 97~123 VAC (User-selectable) 194~246 VAC (User-selectable)

Efficiency (Full Load) 87% 88% 90% 91%

Short-Circuit Protection Yes , Ipk

Output Waveform Pure Sine Wave (THD < 2%)

Signal and Control

noitagivanrofdapyekhtiwlenaPDCLseniL2lenaPDCL

LED Indicator Red / Orange / Green LED

Dry Contact Terminal By a relay

Remote Control Terminal Controls the inverter ON / OFF operation

Protection

Input Protection Over / Under Voltage, Reverse Polarity (Internal Fuse)

AC Output Protection Short-Circuit, Overload

AC Input Protection 12 Amp Circuit Breaker 6 Amp Circuit Breaker

Temperature protection Shutdown (Internal temperature≧65℃)

Bypass Relay

Relay Specification 15Amp / 120VAC , 10 Amp / 250 VAC

Bypass relay selectable On Line/Off Line (Haphazard, Normal, Exacting) selectable

Switching Time From AC bypass mode(Off-line Mode) : ≦20mS

From DC to AC inverter mode(On-line Mode) : ≦8mS

Operating

Temperature

Full Load 0℃~ 50 ℃

Storage -30 ℃~70 ℃

Fan Operation and

Indicator

tcatnocyrddnamralarezzuBnoitacidnIeruliaF

Switches On when Internal Temperature ≧55℃or Load≧30%

Switches Off when Internal Temperature ≦45℃and Load≦20%

Mechanical

Specification

Size (W X H X D) 19”x1.71”x13.6”(482.6mmX43.5mmX345mm)

Weight 5.8 Kgs (12.7 Lbs)

Safety and EMS

1-05906NEsteeM05906LUsteeMsdradnatSytefaS

EMC Standards FCC Class B

EN55022: 1998+A1: 2000+A2: 2003 Class B

EN55024: 1997+A1: 2001+a2: 2003

EN61000-3-2: 2006 Class A

EN61000-3-3: 1995+A1: 2001

Note: The specifications are subject to change without notice.

SR Series Inverter

2-4. Mechanical Drawings

SR Series Inverter Ordering Information

Model

Number

Input

Voltage

Output Voltage

Nominal

Output Voltage

Range

Frequency

Range

SR1000-124 24 VDC 110 VAC 100~120 VAC 47~63 Hz

SR1000-224 24 VDC 230 VAC 200~240 VAC 47~63 Hz

SR1000-148 48 VDC 110VAC 100~120 VAC 47~63 Hz

SR1000-248 48 VDC 230VAC 200~240 VAC 47~63 Hz

OFF

REMOTE

Max. 60V

INV. FAILURE RS-232

AC INPUT

BREAKER

CHASSIS

GROUND

WARNING:

POS(+)NEG(-)

REVERSE POLARITY

WILL DAMAGE UNIT

AC INPUT

120Vac

10A 47-63Hz

OUTPUT

120Vac

10.3Amax.

GND

ENB

COM.

SR Series Inverter

3. Installation and Maintenance

3-1. Rear Panel

REAR PANEL VIEW

DC INPUT

NEGATIVE(-)

DC INPUT

POSITIVE(+)

ROMOTE

CONTROL

TERMINAL

DRY

CONTACT

TERMINAL

STANDARD

RS-232

FG AC

OUTPUT

SOCKET

INPUT

SOCKET

INPUT

BREAKER

3-1-1. AC Input Breaker:

The AC input circuit breaker protects the unit from overload. When an overload

condition occurs, the circuit breaker trips and disconnects the AC grid power

input. To reset it, push the circuit breaker button. The cause of tripping should

be ascertained and corrected before the unit is reset .

3-1-2. AC wiring connections:

▌AC socket:

▌Connect AC input wiring to the Inverter socket.

Please use the following information as your reference:

L N

AC INPUT

BREAKER

RL2

RL3

BYPASS RELAY

INVERTER

"L"

INVERTER

"N"

AC output receptacles

for 120VAC version

(NEMA5-15R)

AC Input Receptacle

(IEC 60320 C 14)

AC output sockets for

230VAC output version

(IEC 60320 C 13 receptacles)

Max. 60V

INV. FAILURE RS-232

AC INPUT

BREAKER

CHASSIS

GROUND

WARNING:

POS(+)NEG(-)

REVERSE POLARITY

WILL DAMAGE UNIT

AC INPUT

120Vac

10A 47-63Hz

OUTPUT

120Vac

10.3Amax.

GND

ENB

COM.

SR Series Inverter

3-1-3. AC output socket:

110VAC

NEMA 230VAC

I.E.C 60320 C13

Socket Wire color Wire length /

gauge

120 VAC 230 VAC

AC Output Line (L) NEMA I.E.C C13

Within 16 feet /

AWG# 14~16

26~32 feet /

AWG# 12~14

Neutral (N)

AC Input Line (L)

I.E.C C14

Neutral (N)

Chassis Ground Green / Yellow or Bare copper

Note. Please double check and review all the connections to ensure that the

wires are connected to the correct inlet.

3-1-4. Chassis Ground: Must be connected to earth ground prior to

making any other connections to the equipment.

3-1-5. RS-232: Serial port monitoring and control through computer interface.

3-1-6.Remote control and Dry contact terminal:

Normally Colsed

RELAY

COM.

ENB

GND

Remote Control Terminal Dry Contact Terminal

Common

Normally Open

GOUND

ENABLE -

ENABLE +

▌Remote Control Terminal:

Autres manuels pour SR series

Table des matières

Autres manuels Cotek Onduleur

Cotek

Cotek SD Series Manuel utilisateur

Cotek

Cotek S150 Series Manuel utilisateur

Cotek

Cotek SD2500 Manuel utilisateur

Cotek

Cotek SD2500-112 Manuel utilisateur

Cotek

Cotek SE200-124 Manuel utilisateur

Cotek

Cotek S600R Series Manuel utilisateur

Cotek

Cotek SP-700-148 Manuel utilisateur

Cotek

Cotek SE350 series Manuel utilisateur

Cotek

Cotek SP Series Manuel utilisateur

Cotek

Cotek SP Series Manuel de référence

Cotek

Cotek SK120 Series Manuel utilisateur

Cotek

Cotek S1500-112 Manuel utilisateur

Cotek

Cotek SK120 Series Manuel utilisateur

Cotek

Cotek ST Series Manuel utilisateur

Cotek

Cotek S1500-112 Manuel utilisateur

Cotek

Cotek SK Series Manuel utilisateur

Cotek

Cotek SR-1600 Plus -148 Manuel utilisateur

Cotek

Cotek S150 Series Manuel utilisateur

Cotek

Cotek S Series Manuel utilisateur

Cotek

Cotek SR1000 Manuel utilisateur

Cotek

Cotek SR1000 Manuel utilisateur

Cotek

Cotek SK700-112 Manuel utilisateur

Cotek

Cotek SR series Manuel utilisateur

Cotek

Cotek SK700-112 Manuel utilisateur

Manuels Onduleur populaires d'autres marques

Fourgroup

Fourgroup Easy Manuel utilisateur

Velleman

Velleman PI300M Manuel utilisateur

Sungrow

Sungrow SG350HX-US Manuel utilisateur

WilTec

WilTec 61897 Manuel utilisateur

SMA

SMA SUNNY BOY STORAGE 2.5 Manuel utilisateur

Simplicity

Simplicity LANDLORD 316 Manuel utilisateur

Santak

Santak SMAX 3000 Manuel utilisateur

ATON

ATON RA.Store-3 Manuel utilisateur

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuel utilisateur

Tektronix

Tektronix CFG250 Manuel utilisateur

Champion

Champion 200989 Manuel utilisateur

Vanner

Vanner 20-500 Series Manuel utilisateur

GE GEP Manuel utilisateur

Astrel Group

Astrel Group Power Reducer Guide rapide

MULTIQUIP

MULTIQUIP GDP-5H Mode d’emploi

GoWISE

GoWISE PS1007 Manuel utilisateur

Promate

Promate PM13500D ES Manuel utilisateur

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuel utilisateur
