Cotek S1500-112 Manuel utilisateur

S1500 Series

Pure Sine Wave Inverter

User’s Manual

Contents

1. Important safety striations…………………………………………………...

1-1 General safety precautions……………………………………………. 1

1-2 Precautions when working with batteries…………………………….. 1

2. Features…………………………………………………………………………

2-1 Application………………………………………………………………. 2

2-2 Electrical performance…………………………………………………. 3

2-3 Rear panel operations…………………………………………………. 4

3. Introduction…………………………………………………………………….

3-1 Front panel operations…………………………………………………. 5~7

3-2 Rear panel operations………………………………………………….. 8~9

3-3 Installation……………………………………………………………….. 9

3-4

Quick hook －up and testing………………………………………….. 10

3-5 AC safety grounding……………………………………………………. 11~12

3-6 Making DC wiring connections………………………………………... 13

3-7 Inverter operation……………………………………………………….. 14~15

3-8 Power output……………………………………………………………. 16

4. Troubleshooting guide………………………………………………………. 17

5. Maintenance …………………………………………………………………… 18

6. Warranty ………………………………………………………………………... 18

7. Appendices A…………………………………………………………………..

7-1 Dip switch (110V)……………………………………………………….. 19

7-2 Dip switch (220V)………………………………………………………. 19

8. Appendices B…………………………………………………………………..

8-1 Operations of RS232 serial port………………………………………. 20

8-2 Interface command…………………………………………………….. 21~25

9. Appendices C…………………………………………………………………..

9-1 Remote control operations…………………………………………….. 26~27

9-2 Power saving mode…………………………………………………….. 28~31

Contents

10. Appendices…………………...………………………………………………...

10-1 FCC (Class B) declaration of conformity…………………………….. 32

10-2 CE (EMC EN55022B) declaration of conformity……………………. 33

10-3 CE (LVD EN60950) declaration of conformity………………………. 34

10-4 e-mark (e13 020932) declaration of conformity…………………….. 35

10-5 UL (UL458) declaration of conformity……………………………….. 36

1. Important Safety Instructions

1-1. General Safety Precautions

1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust.

To reduce risk of hazard, do not cover or obstruct the ventilation

openings. Do not install the Inverter in a zero-clearance compartment.

Overheating may result.

1-1-2. To avoid a risk of fire and electronic shock. Make sure that existing

wiring is in good electrical condition; and that wire size is not

undersized.

Do not operate the Inverter with damaged or substandard Wiring.

1-1-3. This equipment contains components which can produce arcs or

sparks. To prevent fire or explosion do not install in compartments

containing batteries or Flammable materials or in locations which

require ignition protected equipment. This includes any space

containing gasoline-powered machinery, fuel tanks, or joints, fittings,

or other connection between components of the fuel system.

1-2. Precautions When Working with Batteries

1-2-1. If battery acid contacts skin or clothing, wash immediately with soap

and water. If acid enters eye, immediately flood eye with running

cold water for at least 20 minutes and get medical attention

immediately.

1-2-2. Never smoke or allow a spark or flame in vicinity of battery or Engine.

1-2-3. Do not drop a metal tool on the battery. The resulting spark or

short-circuit on the battery of other electrical part may cause an

explosion.

1-2-4. Remove personal metal items such as rings, bracelets, necklaces,

and watches when working with a lead-acid battery,

A lead-acid battery produces a short-circuit current high enough to

weld a ring or the like to metal, causing a severe burn.

WARNING!

Before using the Inverter, read and save the safety

instructions.

2. Features

Pure sine wave output (THD < 3%)

Output frequency：50 / 60Hz switch selectable

Low power “Power Saving Mode” to conserve energy

RS - 232C interface / remote controls port

Built-in voltage and watt meter

Thermostatically controlled cooling fan

Advanced microprocessor

Protection：Input low voltage Overload Short circuit

Low battery alarm Input over voltage Over temperature

2-1. Application

2-1-1. Power tools－circular saws, drills, grinders, sanders, buffers, weed and

hedge trimmers, air compressors.

2-1-2. Office equipment－computers, printers, monitors, facsimile machines,

scanner.

2-1-3. Household items－vacuum cleaners, fans, fluorescent and

incandescent lights, shavers, sewing machines.

2-1-4. Kitchen appliances－microwave ovens, refrigerators and freezers,

coffee makers, blenders, ice markers, toasters.

2-1-5. Industrial equipment－metal halide lamp, high-pressure sodium lamp.

2-1-6. Home entertainment electronics－television, VCRs, video games,

stereos, musical instruments, satellite equipment.

2-2. Electrical Performance

Specification Model No.

Item S1500-112 S1500-124 S1500-148 S1500-212 S1500-224 S1500-248

Continuous Output Power 1500W

Surge Rating 2000W

Input Voltage 12V 24V 48V 12V 24V 48V

Output Voltage 100 / 110 / 115 / 120V +/- 5% 200 / 220 / 230 / 240V +/- 3%

Frequency

(Switch Selectable) 50 / 60Hz +/- 0.05%

Peak Output Current 25A 11A

Efficiency (full load) 85% 87% 88% 86% 89% 90%

No Load Current Draw ≦1.5W Saving Mode

Output Waveform Sine Wave <3% THD

Output Voltage Regulation 100 / 110 / 115 / 120V RMS

-10% / +4%

200 / 220 / 230 / 240V RMS

-10% / +4%

Input Voltage Regulation 10-16

VDC 20-32

VDC 42-62

VDC 10-16

VDC 20-32

VDC 42-62

VDC

Protection Overload, Short Circuit, Reverse Polarity (Fuse), Over/Under

Input Voltage, Over Temperature.

Power Saving Recovery

Time 5 Second

Interface Control Port RS-232C With Baud Rate 1200,2400,4800 (Switch Selectable)

Remote Control Unit CR-5 Optional

Safety UL458 EN60950

EMC FCC Class B

EN50081-1：1992

EN50082-1：1992

EN55022B：1994

EN61000-4-2：1995

EN61000-4-3：1996

ENV50204：1995

e-MARK

e13-020932

Operating Temperature Range 0 - 40℃

Storage Temperature Range -30℃to 70℃

Dimensions 390 (L) x 275 (W) x 105 (H) mm / 15.4 (L) x 10.8 (W) x 4.1 (H) Inch

Cooling Thermostatically controlled cooling fan ( 55℃ON , 45℃OFF)

Weight 7.0kgs / 15.5 lbs.

2-3. Mechanical Drawings

3. Introduction

This power inverter series is a the member of the most advanced line of mobile

AC power systems available.

To get the most out of the power inverter, it must be installed and used properly.

Please read the instructions in this manual before installing and using this model.

3-1. Front Panel Operations：

3-1-1. Front view：

3-1-2. ON / OFF switch：

Power ON/OFF switch, leave in the OFF position during installation.

3-1-3. Battery Voltage indicator：

The battery voltage bar graph indicates the voltage at the input

terminals of the power inverter. At low input current, this voltage is

very close to the battery voltage. At high input current, this voltage

will be lower than the battery voltage because of the voltage drop

across the cable and connections. Ideally, the voltage should remain

in the green Ares of the bar graph. If the voltage goes into the red

area at top and bottom of the graph, inverter may shutdown.

3-1-4. Battery Voltage indicator：

The AC load watt bar graph indicates the power drawn from the power

inverter by the load. For long term operation, the watt indicator

should remind in the green & orange area of the bar graph.

Short term operation is possible with watt indicator in the red area.

If the watt indicator rises to high values the bar will flash and the

inverter will shutdown to protect itself.

3-1-5. OVP：Over Voltage indicator：

The over voltage indicator indicates that the power inverter has shut

itself down because its input voltage exceeded 12 / 24 / 48VDC

version.

3-1-6. UVP：Under Voltage Protection indicator：

The under voltage indicator indicates that the power inverter has shut

itself down because its input voltage fell below 12 / 24 / 48VDC.

3-1-7. OTP：Over Temperature Protection indicator：

The over temp indicator indicates that the power inverter has shut itself

down because its temp has become overheated. The power inverter

may overheat because it has been operated at power levels above its

rating, or because it has been installed in a location which does not

allow it to dissipate heat properly. The power inverter will restart

automatically, once it has cooled off.

3-1-8. OLP：Over Load Protection indicator：

The overload indicator indicates that the power inverter has shut itself

down because its output has been short circuited or drastically

overloaded.

Switch the ON/OFF switch to OFF, correct the fault condition, and then

switch the ON/OFF switch back to ON to reset the unit.

3-1-9. Power Saving：Power energy saving enable.

See appendix 9-2 for detailed information.

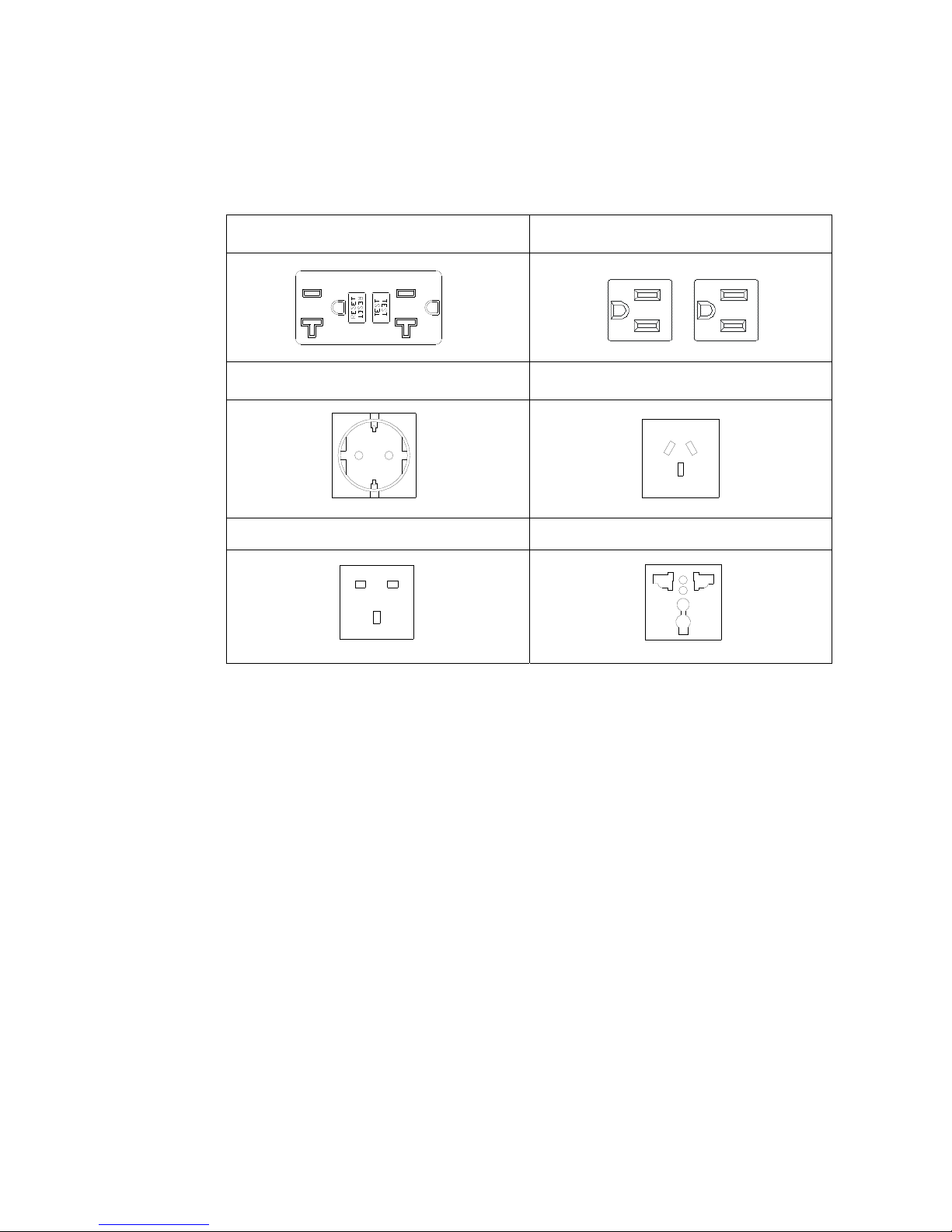

3-1-10. AC Outlet (Outlet sockets available)：

North America (GFCI) North America (NEMA 5-15R)

Continental European (SCHUKO) Australia / New Zealand

United Kingdom Universal
