CORNING PC-611 Manuel utilisateur

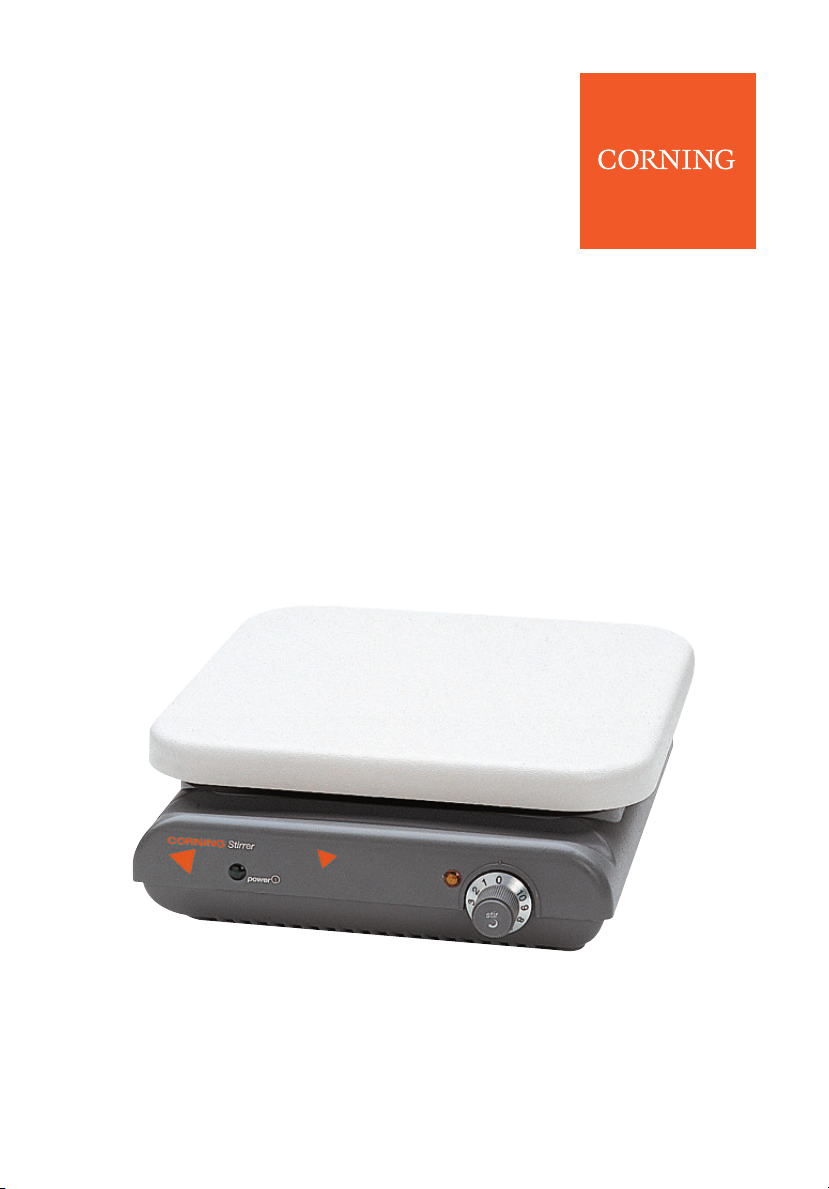

Corning®PC-611

Stirrer

Instruction Manual

Catalog Number:

6795-611

This manual is available in additional languages at www.corning.com/lifesciences.

2CORNING PC-611 STIRRER

Table of Contents

1.0 Safety Information .................................................................................................3

2.0 Operating Conditions ............................................................................................4

3.0 Preventative Maintenance...................................................................................5

4.0 Stirring.......................................................................................................................5

5.0 ProductSpecications...........................................................................................5

6.0 Accessories ...............................................................................................................5

7.0 Limited Warranty....................................................................................................6

8.0 Equipment Disposal...............................................................................................7

Instruction Manual 3

1.0 Safety Information

This instruction manual contains important operating and maintenance

instructions that must be read, understood, and followed by the product

user. Failure to use this product according to this instruction manual may

degrade or defeat the protection normally provided by this product. Read

this instruction manual prior to product use and keep this instruction

manual for future reference.

Safety Precautions

Caution - Risk of Danger: Cautions there is material in the

instruction manual which must be read, understood, and

followed in order to preserve product safety features.

Protective earth; protective ground.

Indicates disposal instruction. DO NOT throw this unit into

a municipal trash bin when this unit has reached the end of

its lifetime. To protect the global environment and minimize

pollution, please recycle this unit.

Warnings

Personal InjuryPersonal Injury

 Iftheequipmentisusedinamannernotspeciedbythismanual,the

equipment may become unsafe to operate, could harm the user or the

device, and may void the warranty.

This product is designed for use in laboratory environments by persons

knowledgeable in safe laboratory practices.

Always wear safety glasses and other appropriate protective equipment

when operating this product.

Electric ShockElectric Shock

This product must be connected to a grounded power outlet for safe

functioning.

Use only the power cord supplied with the product.

Position the product for use so the power cord can be easily disconnected

without having to move the product.

Disconnect the power cord before moving or cleaning the unit.

4CORNING PC-611 STIRRER

Product DamageProduct Damage

Keep top surface clean.

Do not immerse unit for cleaning. Wipe down with a damp cloth.

Do not modify ground power plug. Use only properly grounded outlets to

avoid shock hazard.

Use appropriate hand and eye protection when handling hazardous

chemicals. Gross weight of items placed on top of the stirrer should not

exceed 100 lbs. Use proper lifting techniques when transferring vessels to

and from the stirrer.

 Personalinjuryorproductdamagemayresultifthestirrerismodiedin

any way.

These units are not explosion or spark-proof.

 Donotstirvolatileorammablematerials.

 Donotoperatethisproductnearvolatileorammablematerials.

Do not modify the stirrer electrically or mechanically without Corning’s

written approval.

Use only with heavy wall (min. 2.5 mm thickness) vessels. If used with

non-heavy vessels (less than 2.5 mm thickness) breakage may occur as

a result of the stir bar decoupling.

2.0 Operating Conditions

The PC-611 is designed to be safe when used under the following conditions:

Indoor use

Altitude up to 2,000 meters

Temperature of 0°C to 40°C

 Productshouldbeplacedonaatsurfaceatleast12in.(30.5cm)from

walls, 48 in. (122 cm) from ceilings, and 12 in. (30.5 cm) from other stirrers

if using multiple units.

Maximum relative humidity of 80% for temperatures up to 31°C

decreasing linearly to 50% relative humidity at 40°C.

 Mainsupplyvoltageuctuationsnottoexceed±10%ofthenominal

voltage.

Installation Category II: Product is designed for connection to an electrical

branchcircuitinsideabuildingwithmainsupplyvoltageuctuationsnot

exceeding±10%ofthenominalvoltage.

Pollution Degree 2: Any foreign matter that may accumulate on or within

the product during normal use is not electrically conductive.

Instruction Manual 5

3.0 Preventative Maintenance

Disconnect the power by unplugging the unit before performing any

maintenance or service.

Always use a grounded power outlet.

Clean spills promptly.

Do not immerse the unit for cleaning.

Look for damage to the power cord. If cord is damaged, replace it

immediately.

4.0 Stirring

To operate the unit, turn the dial until the dial indicator lines up with the

desired dial setting. The PC-611 will not stir when the dial setting is turned

to the “0” position.

5.0ProductSpecications

Electrical Requirements 120V/50-60Hz/144W/1.2A

Fuse Rating 120V/4A

Speed Range 100 to 1,500 rpm

Stirring Capacity Designed for 5 gallon (19L) vessels,

and can stir up to 10 gallons (38L)

Surface Material ABS plastic

Surface Dimensions (L x H) 11 x 11 in. (27.9 x 27.9 cm)

Overall Dimensions (W x L x H) 12.0 x 14.4 x 4.8 in. (30.48 x 36.58 x 12.19 cm)

Weight 11 lbs. (5 kg)

6.0 Accessories

Cat. No. Description

409000 PC-611 stir bar

6CORNING PC-611 STIRRER

7.0 Limited Warranty

Corning Incorporated (Corning) warrants that this product will be free

from defects in material and workmanship for a period of two (2) years

from date of purchase. CORNING DISCLAIMS ALL OTHER WARRANTIES

WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES

OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. Corning’s

sole obligation shall be to repair or replace, at its option, any product or

part thereof that proves defective in material or workmanship within

thewarrantyperiod,providedthepurchasernotiesCorningofanysuch

defect. Corning is not liable for any incidental or consequential damages,

commercial loss, or any other damages from the use of this product.

This warranty is valid only if the product is used for its intended purpose

andwithintheguidelinesspeciedinthesuppliedinstructionmanual.

This warranty does not cover damage caused by accident, neglect, misuse,

improper service, natural forces, or other causes not arising from defects

in original material or workmanship. This warranty does not cover motor

brushes,fuses,lightbulbs,batteries,ordamagetopaintornish.Claimsfor

transitdamageshouldbeledwiththetransportationcarrier.

Intheeventthisproductfailswithinthespeciedperiodoftimebecauseof

a defect in material or workmanship, contact Corning Customer Service at:

USA/Canada 1.800.492.1110, outside the U.S. +1.978.442.2200, visit

www.corning.com/lifesciences,orcontactyourlocalsupportofce.

Corning Customer Service will help arrange local service where available

or coordinate a return authorization number and shipping instructions.

Products received without proper authorization will be returned. All items

returned for service should be sent postage prepaid in the original packaging

or other suitable carton, padded to avoid damage. Corning will not be

responsible for damage incurred by improper packaging. Corning may elect

for onsite service for larger equipment.

Some states do not allow limitation on the length of implied warranties

or the exclusion or limitation of incidental or consequential damages.

Thiswarrantygivesyouspeciclegalrights.Youmayhaveotherrights

which vary from state to state.

No individual may accept for, or on behalf of Corning, any other obligation

of liability, or extend the period of this warranty.

For your reference, make a note of the model number, serial number, date

of purchase, and supplier here.

Model No. ________________________ Date Purchased _________________________

Serial No. _________________________ Supplier_______________________________

Instruction Manual 7

8.0 Equipment Disposal

According to Directive 2012/19/EU of the European Parliament and Council

of 4th July 2012 on waste and electronic equipment (WEEE) as amended,

the Corning® PC-611 Stirrer is marked with the crossed-out wheeled bin and

must not be disposed of with domestic waste.

Consequently, the buyer shall follow the instructions for reuse and recycling

of waste electronic and electrical equipment (WEEE) provided with the

products and available at the following link: www.corning.com/weee.

For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners.

For additional product or technical information, visit www.corning.com/lifesciences or

call 800.492.1110. Outside the United States, call +1.978.442.2200 or contact your local

Corningsalesofce.

Corning Incorporated

Life Sciences

836 North St.

Building 300, Suite 3401

Tewksbury, MA 01876

t 800.492.1110

t 978.442.2200

f 978.442.2476

www.corning.com/lifesciences
