INSTALLATION INSTRUCTIONS

FCB Pinnacle 2 and 4 Flavor Units

Release Date: March 26, 2007

Publication Number: 629091023INS

Revision Date: May 13, 2013

Revision: B

Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.

The products, technical information, and instructions contained in this manual are subject to change without notice.

These instructions are not intended to cover all details or variations of the equipment, nor to provide for every possi-

ble contingency in the installation, operation or maintenance of this equipment. This manual assumes that the per-

son(s) working on the equipment have been trained and are skilled in working with electrical, plumbing, pneumatic,

and mechanical equipment. It is assumed that appropriate safety precautions are taken and that all local safety and

construction requirements are being met, in addition to the information contained in this manual.

This Product is warranted only as provided in Cornelius’ Commercial Warrant applicable to this Product and is sub-

ject to all of the restrictions and limitations contained in the Commercial Warranty.

Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting

from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal

service conditions with respect to the Product, (2) improper voltage, (3) inadequate wiring, (4) abuse, (5) accident,

(6) alteration, (7) misuse, (8) neglect, (9) unauthorized repair or the failure to utilize suitably qualified and trained per-

sons to perform service and/or repair of the Product, (10) improper cleaning, (11) failure to follow installation, oper-

ating, cleaning or maintenance instructions, (12) use of “non-authorized” parts (i.e., parts that are not 100%

compatible with the Product) which use voids the entire warranty, (13) Product parts in contact with water or the

product dispensed which are adversely impacted by changes in liquid scale or chemical composition.

Contact Information:

To inquire about current revisions of this and other documentation or for assistance with any Cornelius product con-

tact:

www.cornelius.com

800-238-3600

Trademarks and Copyrights:

This document contains proprietary information and it may not be reproduced in any way without permission from

Cornelius.

This document contains the original instructions for the unit described.

IMI CORNELIUS INC

101 Regency Drive

Glendale Heights, IL

Tel: + 1 800-238-3600

Printed in U.S.A.

Pinnacle Hot Gas Valve Replacement Installation Instructions

SAFETY INSTRUCTIONS

SAFETY

WARNING:

Before starting installation, read and understand all safety label and warnings on the machine. Also review and

understand all safety instructions in the owners, installation and service manuals.

Failure to comply could result in serious injury, death or damage to the equipment.

QUALIFIED SERVICE PERSONNEL

WARNING:

Only trained and certified electrical, plumbing and refrigeration technicians should service this unit.

All wiring and plumbing must conform to national and local codes. Failure to comply could

result in serious injury, death or equipment damage.

SAFETY PRECAUTIONS

This unit has been specifically designed to provide protection against personal injury. To ensure continued

protection observe the following:

WARNING:

Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all

power is off to the unit before performing any work.

Failure to comply could result in serious injury, death or damage to the equipment.

CAUTION:

Always be sure to keep area around the unit clean and free of clutter.

Failure to keep this area clean may result in injury or equipment damage.

Pinnacle Hot Gas Valve Replacement Installation Instructions

INSTALLATION INSTRUCTIONS

HOT GAS VALVE REPLACEMENT PROCEDURE

These instructions are intended to cover Pinnacle units with a serial number beginning with 62 only. This hot gas

valve kit and instructions are designed for the refrigeration piping specific to the units starting with the serial

number 62.

If you have a Pinnacle with a serial number beginning with 56, please order kit number 629092235 for the kit and

installation instructions (629092235INS) designed for your unit.

Parts List

Tools Required

1. 1 - Screwdriver

2. 1 - Tape Measure

3. 1 - Sharp Edge Tool (for insulation removal)

4. 1 - Imp Tubing Cutter

5. 1 - Brazing Torch

6. 2 - Brazing Rod

Figure 1.

Part No. Description Qty.

620608516 Valve Assembly 1

620203604 Towels 6

620608601 Filter Drier 1

620407990 90° Elbows for drier installation 2

50326 Foam Tape 48”

Pinnacle Hot Gas Valve Replacement Installation Instructions

Replacement Instructions

1. Remove the top and rear panels.

Figure 2.

2. Remove the two screws from the top of the

electrical box and swing it out to the side.

Secure the electrical box in the open position

with tape.

3. Attach gauges and initiate refrigerant removal.

4. While charge is being removed perform following procedure:

A. Remove wire connectors to pulse valve, 2 plugs. Set the wires aside.

B. Remove wire connectors to hot gas valves, 2 plugs. Set the wires aside.

Step2

Figure 3.

Step1

Pinnacle Hot Gas Valve Replacement Installation Instructions

C. Remove wire connectors to compressor terminals (run, start, and common). Set red, black, and

white wires away from hot gas valves.

Figure 4.

D. Remove insulation on bottom of pulse

valves, 2 each.

E. Remove barrel inlet thermistors, 2 each,

from pulse valve outlets.

Figure 5.

F. Remove insulation on bottom of hot gas

valves, 2 each.

Figure 6.

Step1

Step2

1‐3/8”

Pinnacle Hot Gas Valve Replacement Installation Instructions

8. Carefully make the tube-cut locations on the hot gas valve outlets at 1-3/8” from the backside of the copper

T, as shown. Cut hot gas valve inlets, 2 each, with imp tubing cutter.

9. Remove insulation on hot gas valve inlet line (if present).

Figure 8.

5. After the charge is removed and pressure has equalized, remove Schrader valve cores (2 each).

6. Use the 90° copper elbow, included in the kit, to carefully mark the tube-cut locations on the drier inlet

and outlet.

7. Use tubing cutter to cut-out filter/drier. Cap both tube openings.

Step 1 Step 2

Figure 7.

Pinnacle Hot Gas Valve Replacement Installation Instructions

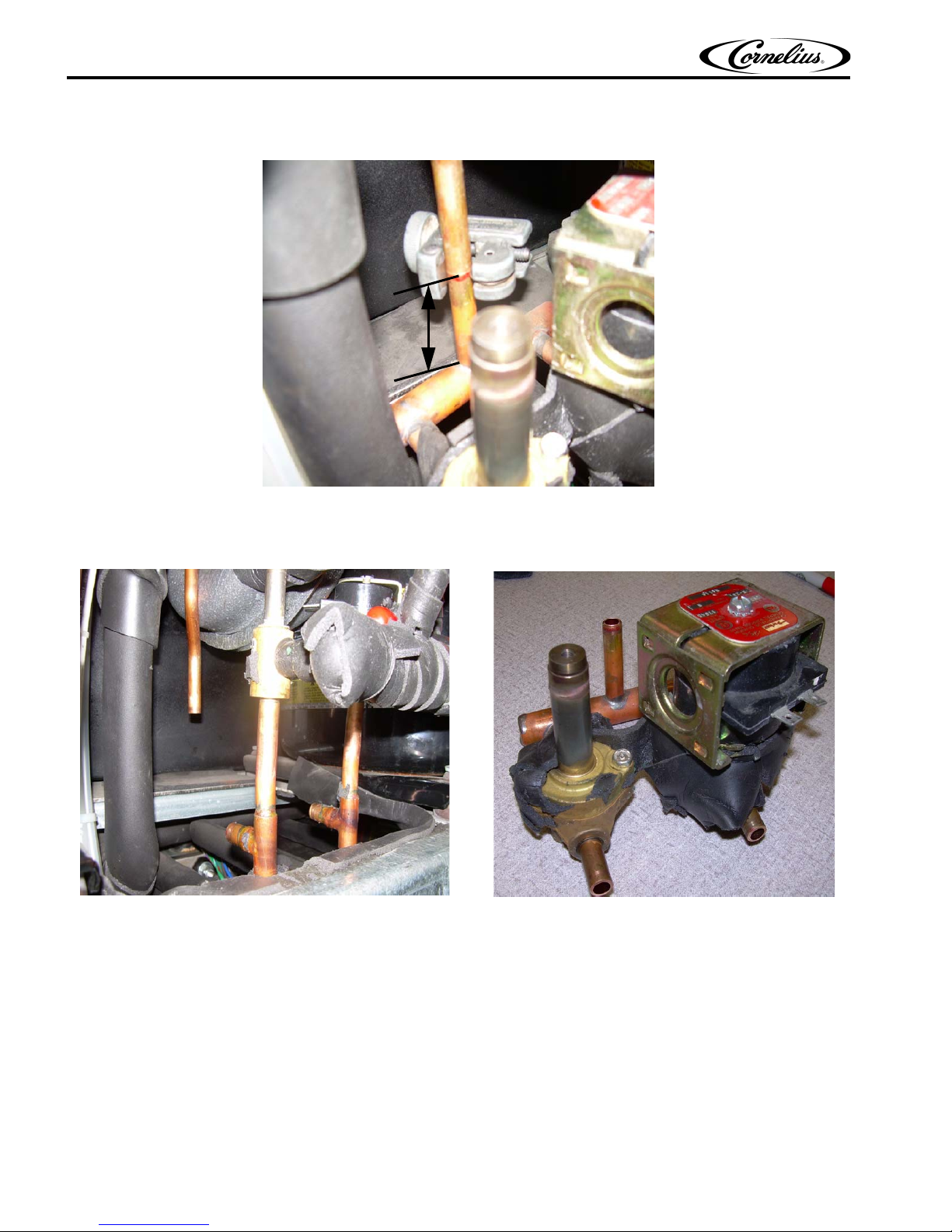

10. Carefully mark the tube-cut locations on the hot gas valve inlet at 1-5/8” up from the copper hot gas

header, as shown Cut hot gas valve inlet line with imp tubing cutter.

Figure 9.

11. Remove hot gas valve assembly.

Step1 Step 2

Figure 10.

1‐5/8 ”

Pinnacle Hot Gas Valve Replacement Installation Instructions

12. Cover area behind and under braze area with wet legs.

Figure 11.

13. Install hot gas valve assembly provided (three braze fittings).

14. Wrap hot gas and pulse valves with wet rags.

Step 1 Step 2

Figure 12.

Pinnacle Hot Gas Valve Replacement Installation Instructions

15. Push all wire harnesses aside to prevent burn damage.

Figure 13.

16. Braze the 3 solder joints.

Figure 14.

17. Install the new filter/drier using the two braze fittings with the 90° copper elbows, supplied in the kit.
