Cooper Scantronic 8844 Manuel utilisateur

Installation Guide

8844

GPRS Module

Contents

Introduction ..................................................................3

Overview ....................................................................3

Installation....................................................................3

Preparation .................................................................3

Choosing a network account........................................3

Siting the antenna .....................................................3

Checking network signal strength ................................4

Dealing with poor signal strength.................................5

Preparing the 8844 ......................................................5

Fitting to a 7510r.........................................................6

Fitting to an i–on40.................................................... 10

Programming............................................................... 12

Programming Overview............................................... 12

Checking that the Module Works .................................. 13

Registering Your SIM Card........................................... 13

O2......................................................................... 14

T-Mobile................................................................. 14

Orange................................................................... 14

Vodafone................................................................ 15

Top Up Cards ............................................................ 15

Set Up GPRS Hostname, Username, and Password ......... 15

Set Up the IP Address of the ARC................................. 16

Setting up for Downloader........................................... 17

Every effort has been made to ensure that the contents of this book are correct. However, neither the

authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused

directly or indirectly by this book. The contents of this book are subject to change without notice.

Printed and published in the U.K.

8844

Introduction

Overview

The 8844 is a plug-in module that allows the 7510r and

i-on40 control units to communicate with both fixed and

mobile destinations over the mobile phone network. In

addition the 8844 allows the control unit to communicate with

remote monitoring equipment using TCP/IP protocol.

The module must be fitted within the body of the control unit,

which has sockets for that purpose. This manual provides

brief instructions on fitting the 8844 within the 7510r and the

i–on40.

1. Antenna input socket. 2. SIM card holder.

Figure 1. 8844 PCB

Installation

Preparation

Before installing the 8844, please consider the type of

network account and the physical location of the unit and its

antenna.

Choosing a network account

Avoid using a pay as you go account. If you must, then be

aware that the 8844 cannot warn you of low credit. Set up

regular top-ups for the account or manage it through the

internet (if the provider gives you that option).

Siting the antenna

Before installing the unit you must decide on a suitable

location for the antenna. Site the antenna so that it can

8844

receive a good signal from the phone network. Note that the

supplied antenna lead is 3m long.

Place the antenna:

As high as possible.

As far away from the control unit as possible.

At least 1 metre from any metalwork (pipes, cabinets,

cabling, cement reinforcing bars, metallic coated glass).

Vertically (see Figure 2).

So that the lead runs horizontally from the antenna for at

least 250mm.

250mm

2,000 mm

No metal within

this area.

2,000 mm

Figure 2. Aerial Positioning

Checking network signal strength

There are three ways to check the network signal strength at

your installation:

1. You can use your mobile phone, provided that it is

registered with the same network as the SIM (Subscriber

Identity Module) card that you intend to fit to the 8844. If

your phone reports at least two bars of signal at the site of

the 8844 antenna then the 8844 should be able to work on

that network.

NOTE: When testing the signal strength you must hold your

phone in the exact location of the 8844 antenna.

If you decide that a location has a good signal, then you must

fit the centre rib of the 8844 antenna within 20mm of the

spot occupied by your phone. (The signal wavelength is so

short, that moving 80mm can change the signal strength

8844

markedly. This may not matter with a strong signal, but with

a weak signal it could mean that the 8844 will not register.)

2. If your phone does not work on the same network as the

SIM you intend to install in the 8844, then, provided your

phone is not locked, you can put the 8844 SIM in your phone,

and test for network signal strength as described in step 1.

Ensure that you can make a call from the chosen position, it

is not enough to rely on the signal strength indication.

Once you have completed testing you must remember to shut

down your phone in the recommended manner before

extracting the 8844 SIM. If you remove power abruptly (for

example by taking the phone battery out) the SIM card may

not have time to de-register from the network, and some

networks may lock out the SIM for several hours.

Note: Do not lock the SIM card with a PIN (the 8844 will not

let you key in a PIN for the card).

3. Use the control unit. You can temporarily fit the SIM card

and antenna to the 8844 and fit the 8844 module to the

control unit.

You can then register the SIM card (see page 13). However,

you should be aware that unless the SIM is registered, the

control unit will report the strength of the strongest network

signal. This may be an emergency network. (In the UK, all

networks must provide access to any mobile phone for

emergency calls.) Check that the 8844 SIM is registered

before checking the signal strength.

Caution: If you must remove the 8844 module from the

control unit take care not to bend the pins.

Dealing with poor signal strength

If the signal strength is poor, either:

Find a better antenna position.

Change the network SIM card to another provider.

Preparing the 8844

1. Unpack the 8844 and its antenna.

2. Fit the SIM card for the provider you intend to use.

To release the SIM card holder slide the top cover

8844

towards the midline of the module, then pivot the cover

upwards.

Place the SIM card into the holder. Make sure the missing

corner on the card lies in the correct corner of the holder.

Close the SIM card cover and slide it back into place.

Make sure the cover clicks home.

Figure 3. Fit SIM Card

Fitting to a 7510r

Caution: If you are adding the 8844 to a control unit that

has already been installed then first make sure that the

system is completely unset and in installer programming

mode. (This is to prevent the control unit raising un-

necessary tamper alarms when you open the case.)

1. Undo the two screws at the bottom of the case.

Figure 4. Screw Locations

2. Ease the case body from the wall plate.

Caution: Disconnect the ribbon cable from the wall plate

before opening the case completely, see Figure 5.

8844

Figure 5. Internal Ribbon Cable

3. Undo all four screws holding the body of control unit

together. See 1 in Figure 6.

4. Disconnect the speaker and battery connectors (see 2 in

Figure 6).

1. Screw positions 2. Battery and Speaker Connectors

Figure 6. Screw Positions

8844

5. Partially lift the back of the case up and disconnect the

siren lead before completely removing the back of the

case. Figure 7 shows the layout of the main printed

circuit board (PCB).

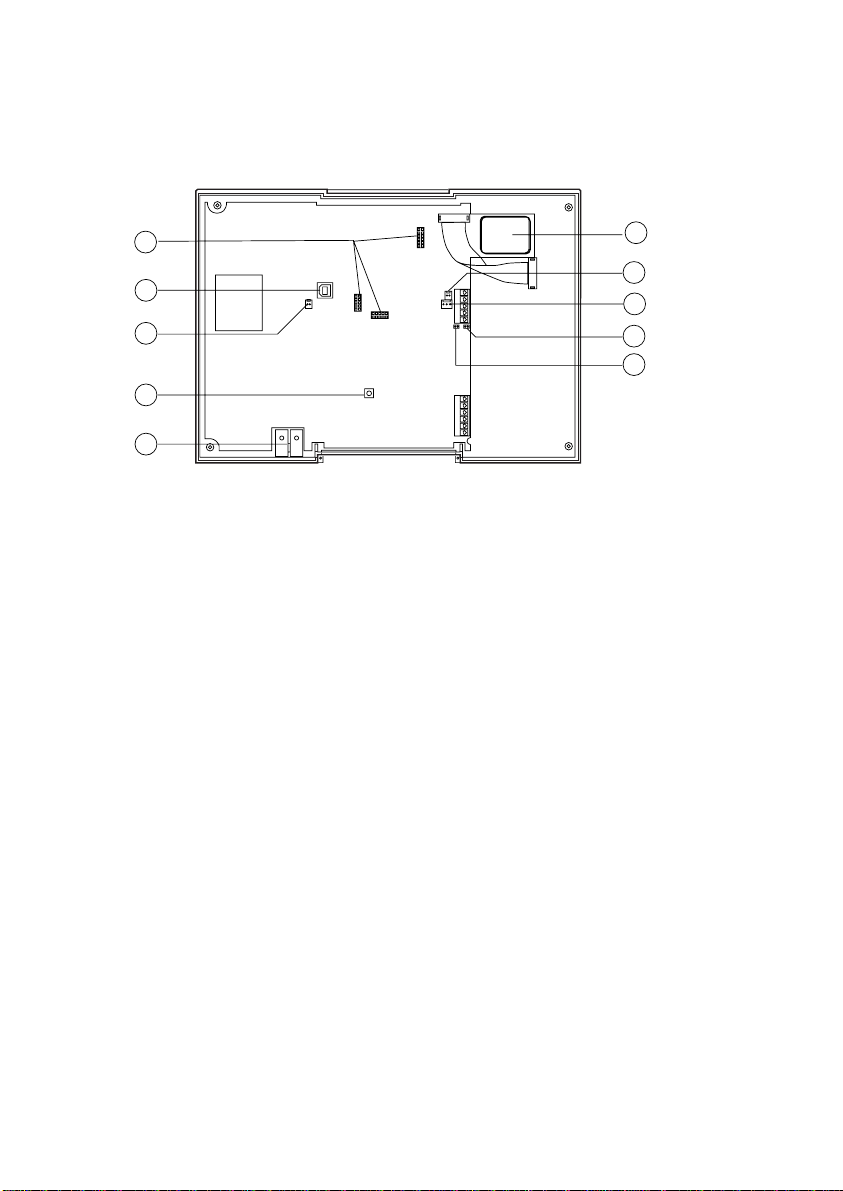

110

1 Sockets for GPRS module 6 Kick Start jumper

2 USB connector 7 Reset codes jumper

3 Siren connector 8 Battery connector

4 Tamper switch 9 Speaker connector

5 Microphone 10 Tag reader

Figure 7. Main Printed Circuit Board.

6. If you are going to fit the antenna outside the case then

feed the plug end of the lead through one of the cable

entries in the wall plate. Next, feed the plug end of the

lead through the hole in the case back where the ribbon

cable exits.

7. Connect the antenna cable to the antenna input socket on

the module (see Figure 8). Ensure that you route the

antenna cable as shown.

8844

Figure 8. Connect Antenna Cable

8. Fit the module to the sockets on the control unit PCB (see

Figure 9).

9. Remove the backing paper on the glued side of the

antenna.

EITHER A) If you are fitting the antenna outside the case

place it in position.

OR B) If you are fitting the antenna inside the case then

fix the antenna inside the case as shown in Figure 9.

Note: The adhesive on the antenna is fast acting. You will not

be able to reposition the antenna once you have put it in

place.

Figure 9. Fit 8844 Module

9. Ensure that the antenna cable runs across the top of the

control unit pcb as shown in Figure 9.

8844

10. Present the back of the case to the case front and re-

connect the siren, battery and speaker. See Figure 7.

11. Seat the back of the case into the case front, making sure

that you do not crush the 8844 module antenna. Refit all

four screws holding the case together. See Figure 6.

12. Present the case to the wall plate and re-connect the

ribbon cable, see Figure 10.

Figure 10. Connect Ribbon Cable

13. Fit the case to the wall plate and refit the securing screws

(see Figure 4). Make sure that you do not crush the 8844

module antenna lead.

Fitting to an i–on40

Caution: If you are adding the 8844 to a control unit that

has already been installed then first make sure that the

system is completely unset and in installer programming

mode. (This is to prevent the control unit raising un-

necessary tamper alarms when you open the case.)

1. Remove mains power.

2. Open the control unit (see Figure 11 ).
