INDUSTRIAL & HAZARDOUS LOCATION Emergency Lights

COOPER LIGHTING

COOPER LIGHTING - SURE-LITES®

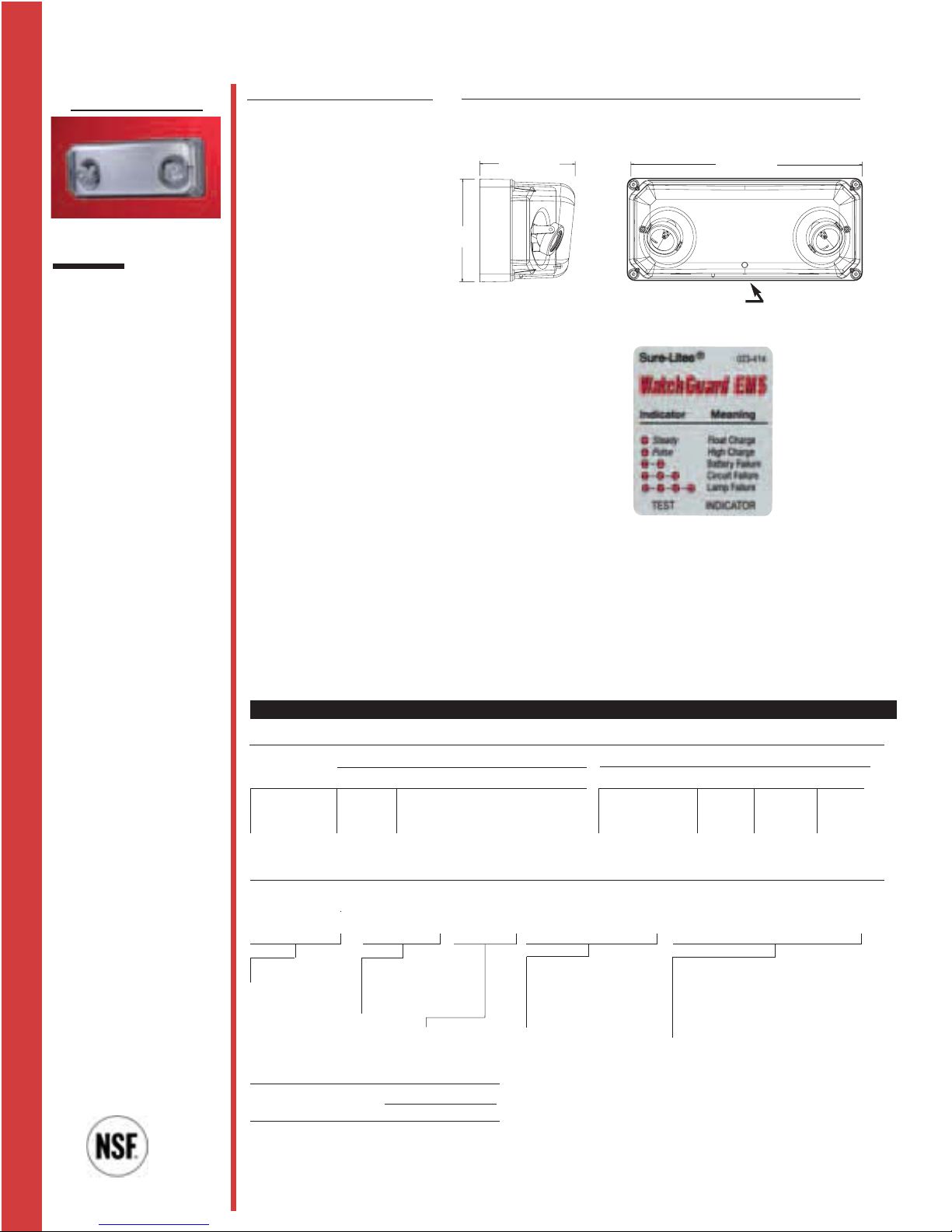

DIMENSIONS

• NEMA 4X, UL50 Listed

• Dual-voltage input

120/277VAC, 60Hz, Isolation

Transformer

• Die cast aluminum housing

• Powder coat ﬁnish

• UV stable, glass-clear

polycarbonate, vandal

resistant shield (.150” thick)

with Torx head tamperproof

screws, stainless steel

• (2) Adjustable 12W, MR16

lamps

• Nickel Cadmium Battery

• Fully recharged in 24 hours

• Vandal Proof

• Watchguard EMS

Self-Diagnostic System

• Photocell Test Switch

(requires accessory LASER

for activation)

• Push-in AC power

connectors facilitate

installation

• UL 924 Listed

Self-Diagnostics, UL 924

Outdoor Wet Location

Listed (suitable for wet and

damp locations)

• T1 Haz Lamp Rating

• NSF, National Sanitation

Foundation/Splash Zone

(for Food Processing)

• IP66, Ingress Protection

from IEC (International

Electrical Commission)

• Cleanroom Class 10,000

• Patent Pending

UEL SERIES

ULTIMATE EMERGENCY

LIGHT

EMERGENCY LIGHTING

DESCRIPTION

The Sure-Lites UEL NEMA 4X

Emergency Light is designed for

those emergency lighting

applications where ruggedness and

dependability are a must. The UEL’s

housing is constructed of durable

die cast aluminum combined with

the strength of a clear

polycarbonate shield. Designed for

the most severe environments, the

UEL Emergency Light will provide

maximum performance against

rain, moisture, cold, corrosives and

dust. The UEL’s standard features

include nickel cadmium battery,

self-diagnostics, photocell LASER

test and MR16 lamps that provide

the customer with a long life, low

maintenance, dependable, severe

environment approved emergency

lighting unit in those conditions

when reliability is crucial. The

injection molded, polycarbonate

shield provides protection against

moisture, rain, and vandalism, as

well. (4) Torx head tamperproof

screws with center-pin reject

provide additional vandal-proof

security. Two adjustable 12W MR16

lamps provide maximum path of

egress coverage providing a bright,

even illumination during power

outages. The unique design and

features make the UEL Emergency

Light compatible in food

processing facilities, outdoor

parking garages, walk-in freezers

and other indoor/ outdoor severe

environments. The UEL Emergency

Light is UL listed for –35°C (-31°F)

to +50°C (+122°F) ambient

environments.

Self-Diagnostics

The self-diagnostic unit will automatically perform all

tests required by UL924 and NFPA 101. The system

indicates the status of the unit at all times using the

LED indicator near the test switch on the side of the

unit. A 90 minute battery power (emergency mode)

simulation test will occur randomly once every six

months.

A 30 second battery power simulation test will occur

every 30 days.

ORDERING INFORMATION

SAMPLE NUMBER: UEL1SD

Family

UEL1=Nema 4X

Emergency

Light

Housing

Finishes

Blank=Silver

BK=Black

WH=White

Accessories (order separately)

LASER=Key Chain, Red Laser Pointer

(activation tested at 30 feet)

UXPKA=Pendant Kit Adapter (ﬁtting adapts

to 1/2" NPT threaded pendant)

VRSD=#8 Centerpin Torx Screwdriver

SD=Self Diagnostics

(Standard)

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

UEL1SD 12 24

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number Spacing1

MR16 12 29-141 50.0'

Options

A=Ammeter

V=Voltmeter

TDM=Time Delay Monitor

HAZ=Hazardous

Locations (Class I,

Division 2, Groups

A, B, C, D)

(1)The "Rule of Thumb" spacing guidelines are designed to achieve 1 foot-candle average and 0.1 foot-candle minimum with a 40:1

maximum/minimum ratio. The corridor used is 100 feet long, 9 feet ceiling with a 6 feet wide walkway and 3 feet path of egress.

The reﬂectances are 80% ceiling, 50% walls and 20% ﬂoors. The ﬁxture mounting height is 7.0 feet with a lamp head angle of 45 degrees.

Cooper Lighting assumes no responsibility for local requirements or speciﬁc project variables. This is a guideline to be used as a design aid,

not as guarantee of any code compliance.

-31°F to +122°F

SPLASH ZONE

Laser Test

6 3/16”

[157mm]

15 1/4”

[389mm]

6 11/16”

[169mm]

Energy Data

Input Current (Max.):

Model No. 120V 277V

UEL1SD .09A .03A
