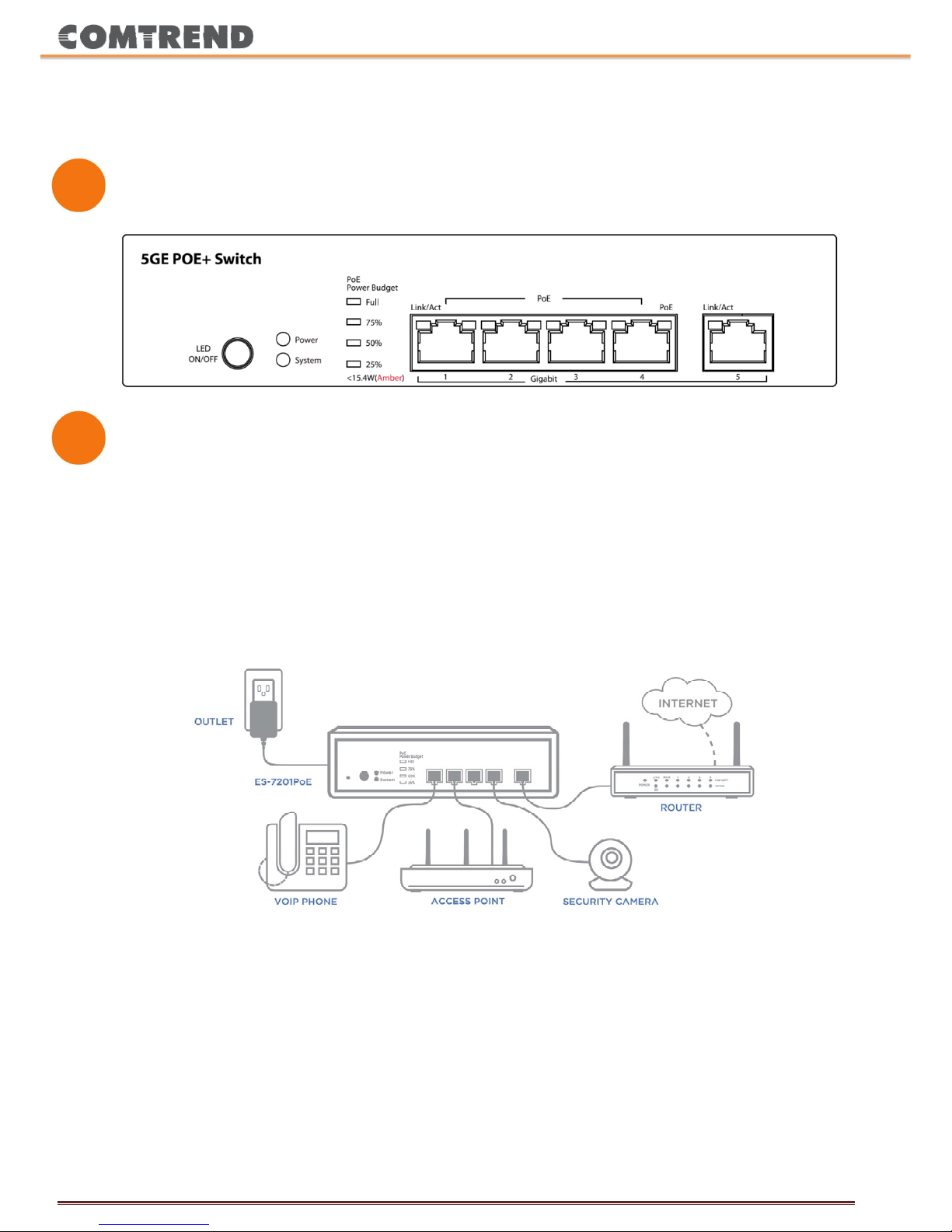

User Manual

ES-7201PoE| 5-Port PoE+ Gigabit Ethernet Switch

Understanding the PoE+ Switch

Plug and Play Setup

1. Connect your network devices to any available port (Ports 1-4 are PoE+ ports).

2. Use port 5 for up-linking to the network.

3. Power on the Switch, the “Power” LED will appear GREEN. The PoE+ Switch will go through

Power-On-Self-Test (POST). The “System” LED will appear RED during the POST. Upon successful completion

of the POST, the “System” LED will turn and stay GREEN.

4. The switch will automatically start to feed power to the connected 802.3af/at-compliant device.

5. The LED ON/OFF push button on the front panel will toggle ON and OFF all function LEDs, except the “Power”

LED.

Page2

LED Indication

Location LED

Indication

Color

Status Description

Device

PowerGreen

ONPowerOn

OFFPowerOff

PoE

PowerBudget

Green

FullPower(4LEDsON)100%PowerBudgetisAvailable

75%‐99%Power(3LEDsON)Between75%‐99%PowerBudgetisAvailable

50%‐74%Power(2LEDsON) Between50%‐74%PowerBudgetisAvailable

25%‐49%Power(1LEDON)Between25%‐49%PowerBudgetisAvailable

Amber

15.4W‐24%Power(1LED)Between15.4W‐24%PowerBudgetisAvailable

<15.4W(1LEDBlinking) <15.4WPowerBudgetisAvailable

System

GreenONSystemup

Amber

ONInPOST

BlinkingPoEFailed

Ethernet

Port1~5

Link/Act

(Left)

Green

ONLinkat1000Mbpsmode.(GigabitEthernet)

BlinkingDatatransmitting/receiving.

OFFNoLink

Amber

On Linkat10/100Mbpsmode.(FastEthernet)

BlinkingDatatransmitting/receiving.

OFFNoLink

Ethernet

Port1~4

PoE

(Right)

GreenONPoEpoweroutput<=15.4W

AmberON15.4W<PoEpoweroutput<=30W

AmberBlinking PoEpoweroutput:Over>30W

GreenOFFNotused

AmberOFFNotused

PoE Function

Item Specifications

PoE Standard IEEE 802.3af & IEEE 802.3at Standard

PoE Capable Ports Ports 1 – 4

PoE output power

capacity Maximum output: 30W per port.

1. Support PoE and PoE+. (IEEE 802.3af & IEEE 802.3at standards)

2. Automatically discover the connection of a PoE device.

3. Automatically disable port if the port’s current is over 720mA.

4. When Port is set in Auto Mode, the output port power limit will be

associated with the PD Classification Value.

Class Usage

MinimumPower

LevelsOutputat

thePSE

MaximumPower

LevelsatthePowered

Device

0 Default 15.4W 0.44to12.95W

1Optional 4.0W 0.44to3.84W

2 Optional 7.0W 3.84to6.49W

3 Optional 15.4W 6.49to12.95W

4 Optional 30W 12.95Wto25.5W

5. Follows the standard PSE pin-out standard of Alternative A (MDI-X).

System Parameters

Items Specifications

Tota l ElectricalPower110W

ACInputVoltage100V ~ 240V, 50/60Hz

DCOutput+54V: 2A (Max)

Power Consumption 5.14W

MTBF Requirement 7 years

FAN Fanless

Items Specifications

Dimension

7x9x1.7in. (WxDxH)

Weight 2.7lbs.

Wall Mount Wall Mount Ear / Magnetic

Magnet (screw

hole) 4 magnets on the case

Latch On the power socket to latch the power cord

Power Supply: Housing:

For more information please visit our website www.comtrend.com

or call 1-877-COMTREND.
