Quick Installation Guide

GS-7424 | 24-Port Gigabit Ethernet Smart-Lite Switch

I. Product Information

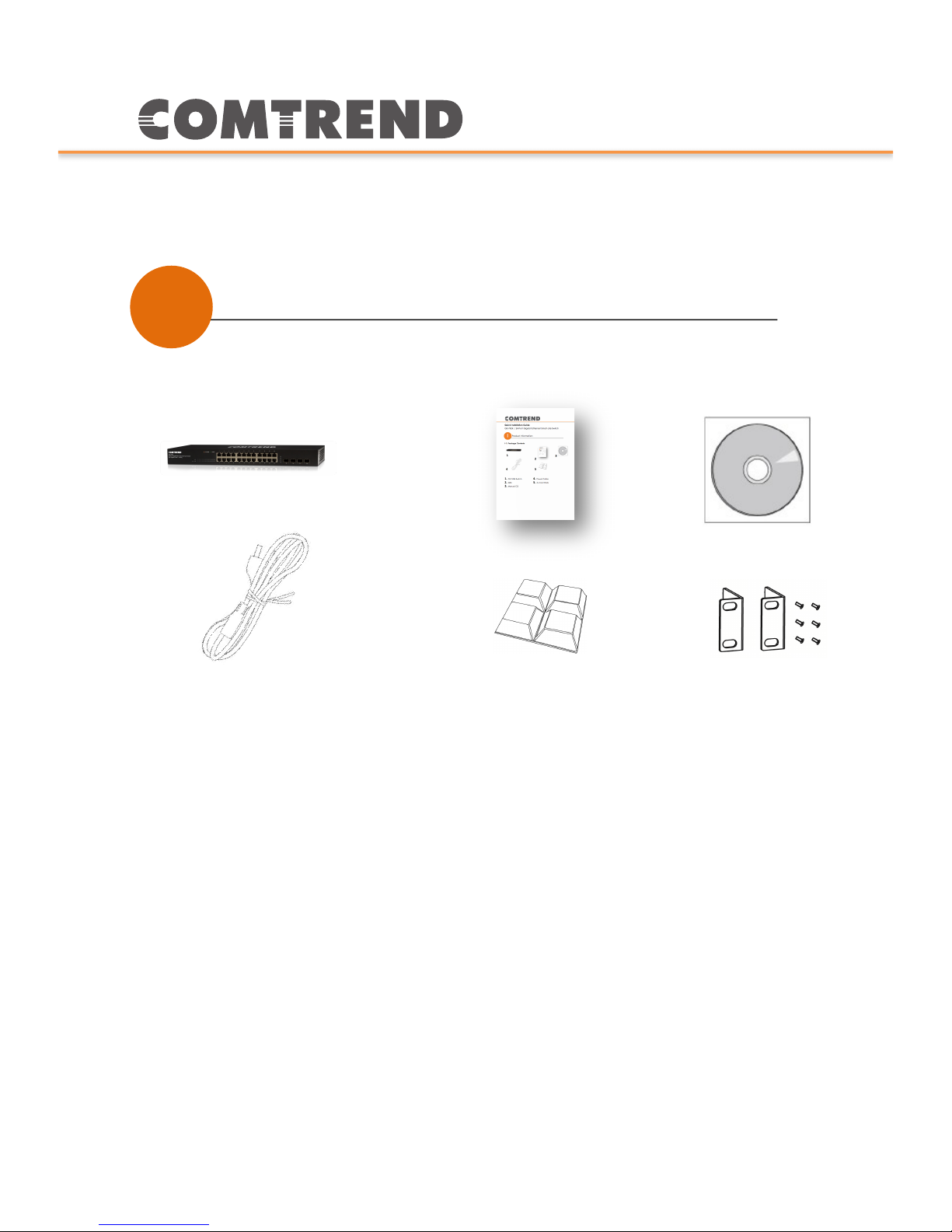

I-1. Package Contents

1. GS-7424 Switch

2. QIG

3. Manual CD

4. Power Cable

5. 4 x Foot Pads

6. Rack-Mount Kit

(

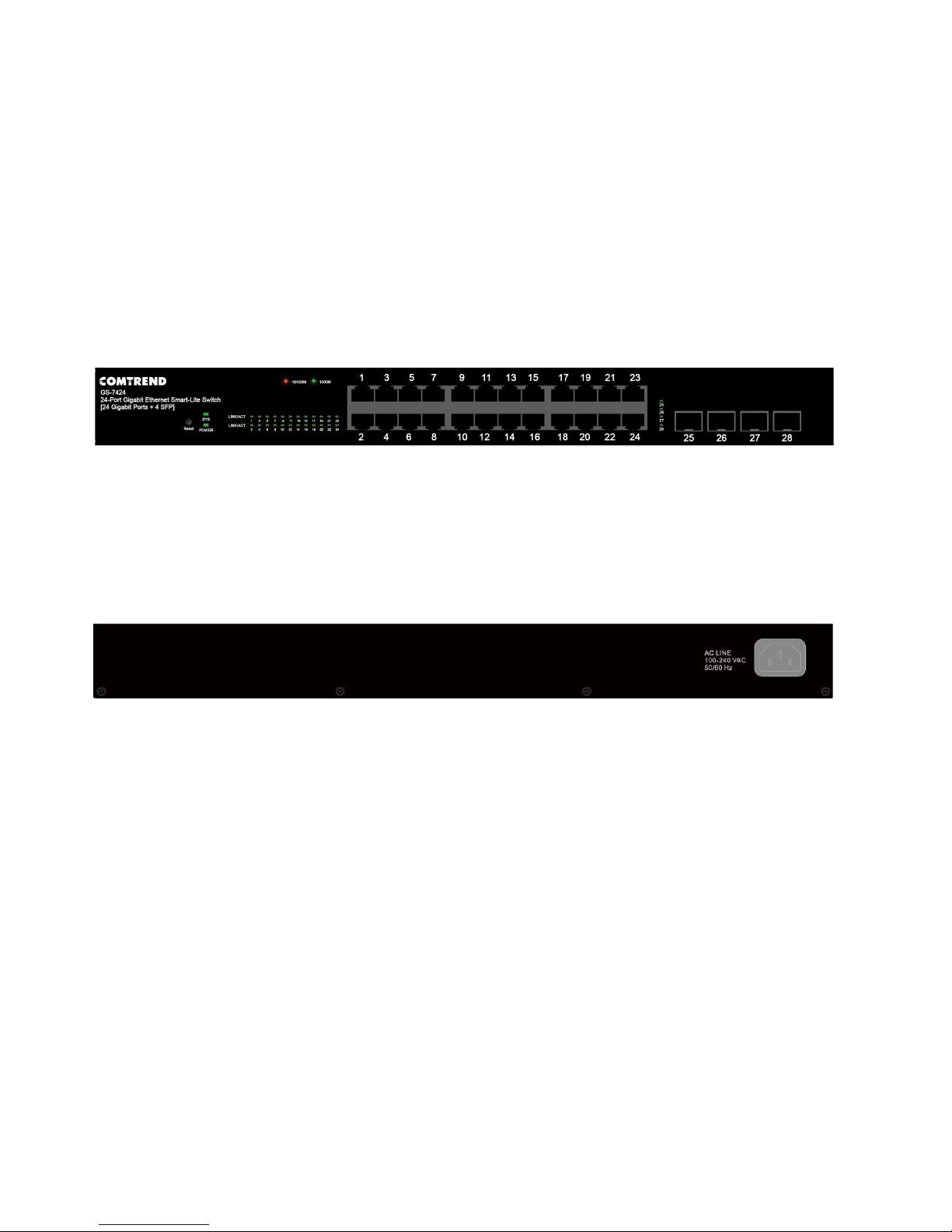

I-2. Hardware Overview

Front Panel

The front panel of the switch consists of:

•24 x 10/100/1000Mbps RJ-45 Ports

•4 x SFP Ports

•Reset Button

•A Series of LED Indicators

Rear Panel

The rear panel of the switch consists of:

•AC Power Connector

I-3. LED Indicator

POWER:

LED Status

Mode

Description

Green

Power on

Off

Power off or fail

SYS:

LED Status

Mode

Description

Green

Blinking

System ready

Off

System not ready

Link/ACT:

LED Status

Mode

Description

Green

On/Blinking

1000Mbps

connected/data

transmitting

Amber

On/Blinking

10/100Mbps

connected/data

transmitting

Off

Disconnected or fail

SFP:

LED Status

Mode

Description

Green

On/Blinking

Connected/data

transmitting

Off

Disconnected or fail

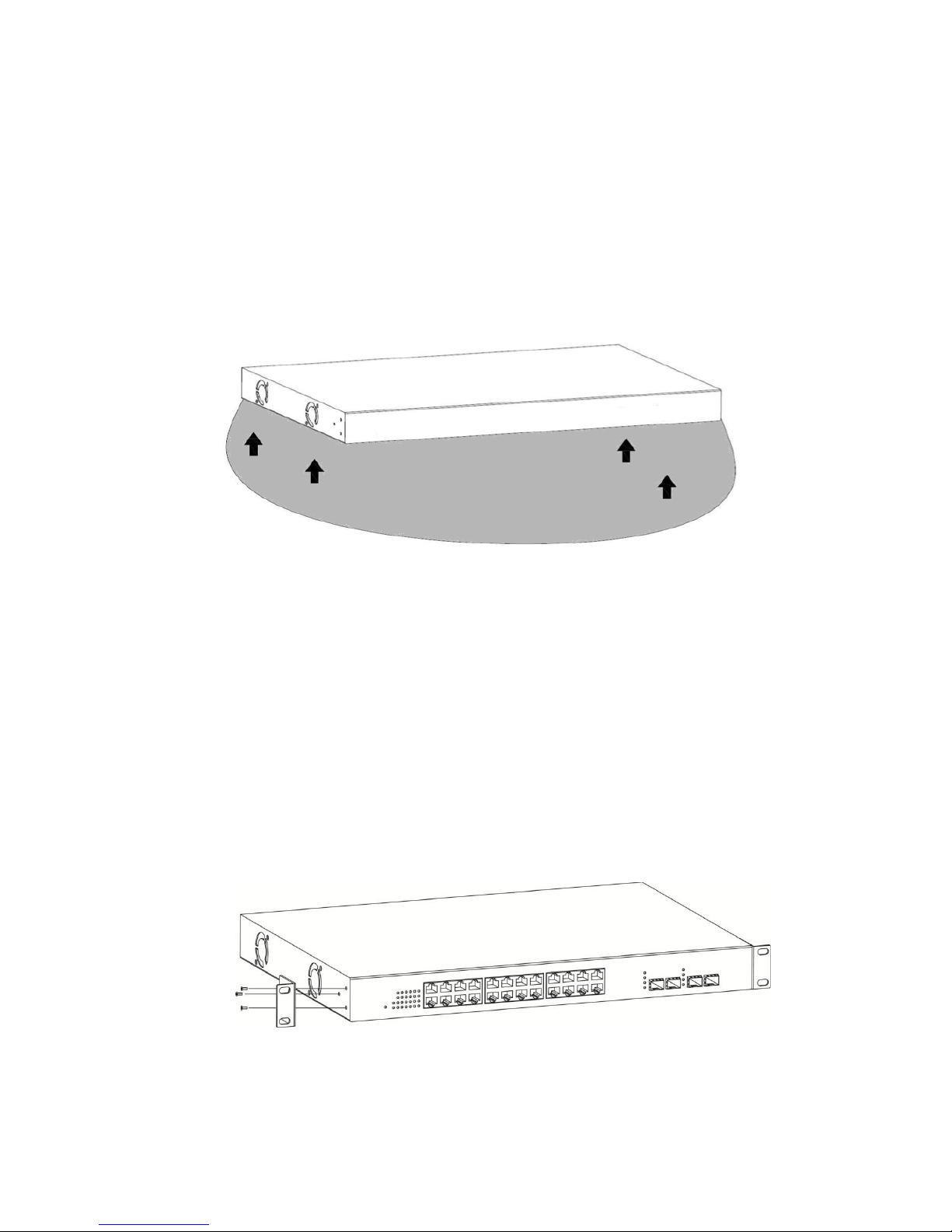

I-4. Desktop Installation

Install the switch on a desktop by attaching the cushioning

rubber feet to the bottom corners of the switch to protect

against external vibration. Allow adequate space for ventilation

between the device and any objects around.

I-5. Rack-mounting Installation

The switch can be mounted in an EIA standard-sized 19-inch rack

that can be placed in a wiring closet with other equipment. To

install the switch, please follow these steps:

1. Attach the mounting brackets on the switch’s side panels

(one on each side) and secure them with the screws

provided.

Bracket Installation

2. Use the screws provided with the equipment rack to mount

the Switch on the rack and tighten it.

Rack Installation

II. Quick Setup

II-1. Switch to End Device

1. Connect the switch to local power with the included power

cable.

2. Use a standard Cat 5/5e Ethernet cable to connect the switch

to end devices as shown below. Switch ports will automatically

adjust to the link rate of the device to which it’s connected.

Optionally, any port can be used to uplink to an existing

network.

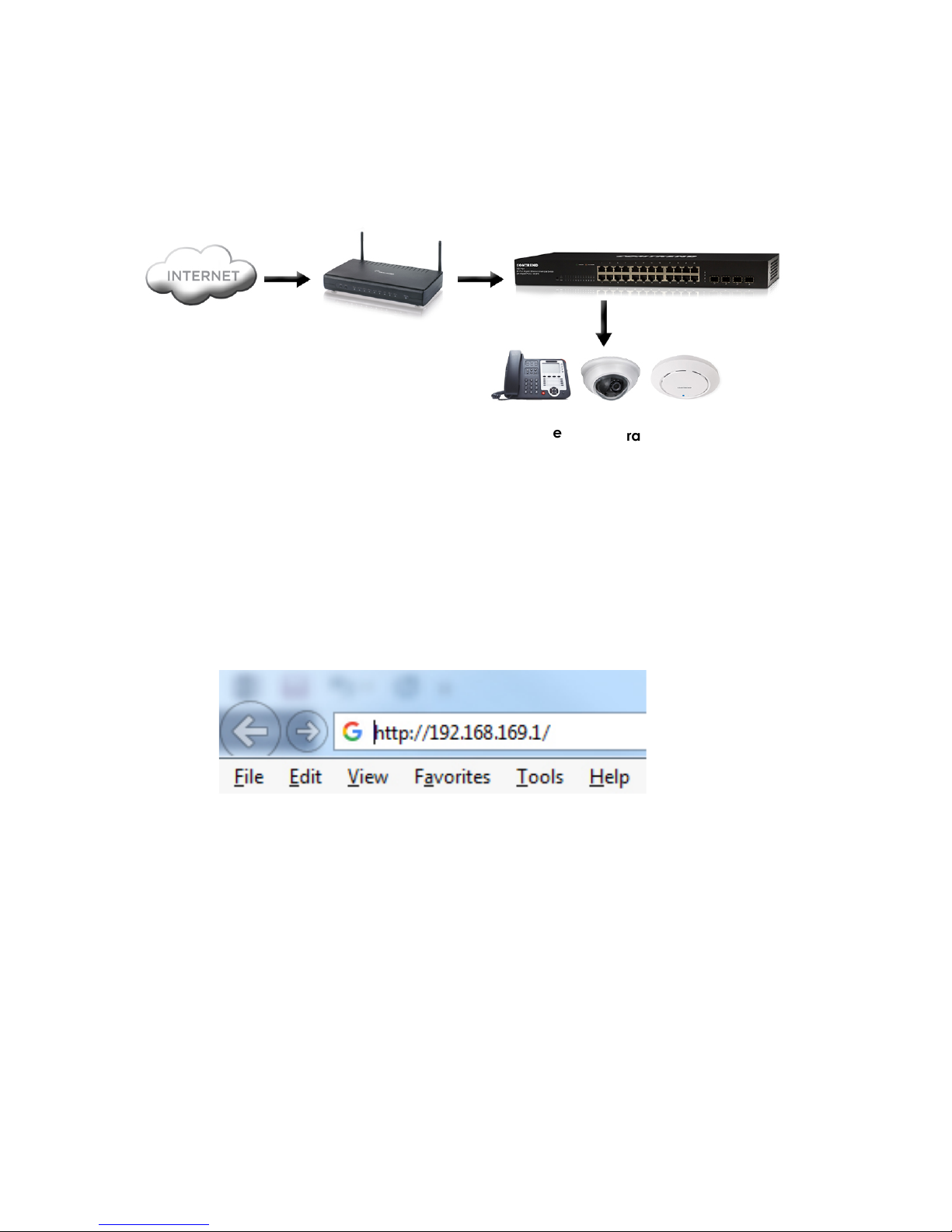

Application Diagram

II-2. Login

1. Open a web browser and go to the switch’s IP address.

2. Enter the access point’s default IP address 192.168.169.1 into

the URL bar of a web browser.

Gateway

VoIP

Phone

Camera

Access

Point

Switch

You will be prompted for a username and password. Enter the

default username “admin” and the default password “admin”.

3. You will arrive at the switch configuration window as shown

below:

FOR MORE HELP: For instructions on advanced features, FAQ, etc., please visit

our online Product Webpage.

Your Device is Now Connected!

(

For more information:

YouTube: https://www.youtube.com/user/ComtrendConnection

Facebook: https://facebook.com/Comtrend

Website: http://us.comtrend.com/

Support: Visit our website or call 1-877-COMTREND (1-877-266-8736)
