Comtrend Corporation GS-7605 Manuel utilisateur

Quick Installation Guide

GS-7605 | 5-Port PoE Gigabit Ethernet Smart-Lite Switch

I. Product Information

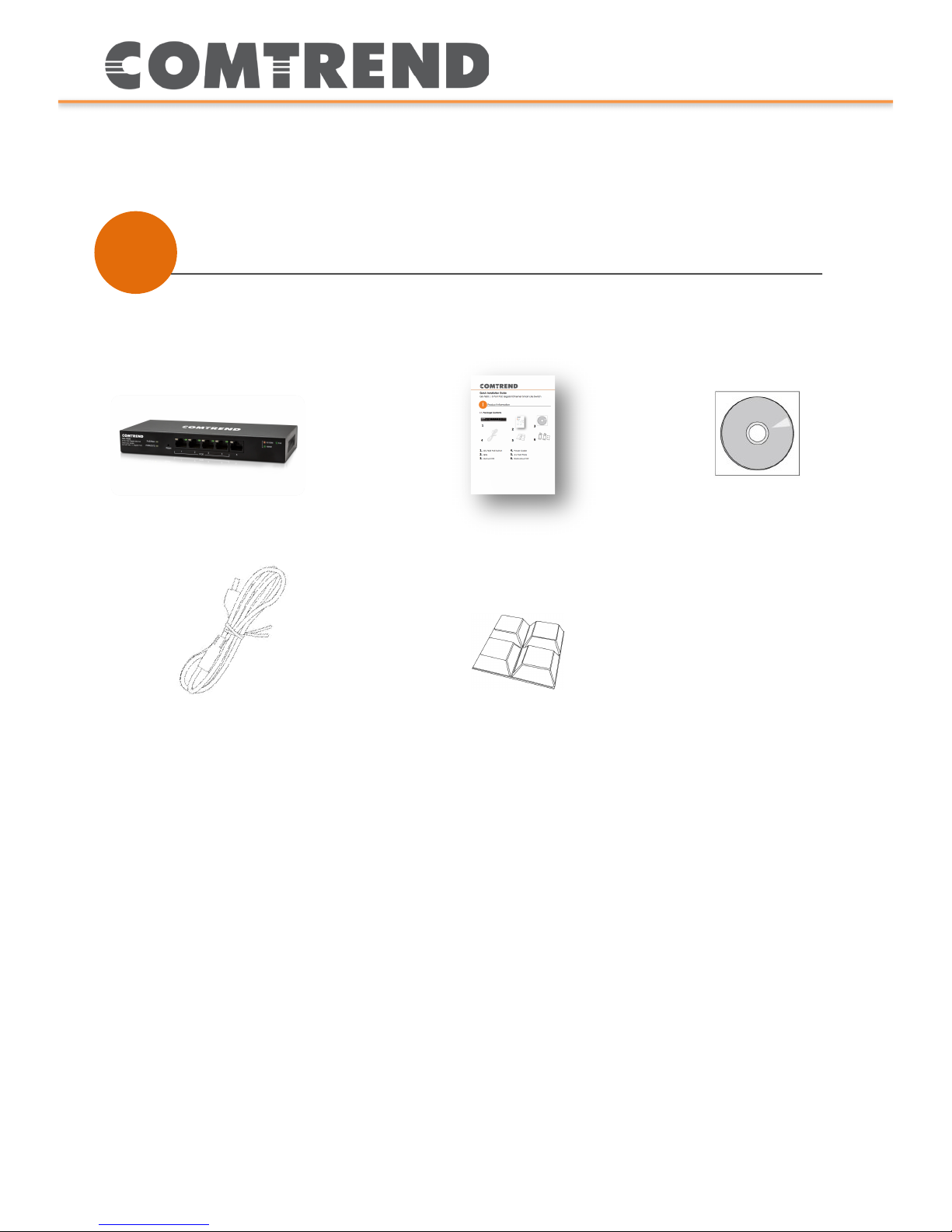

I-1. Package Contents

1. GS-7605 PoE Switch

2. QIG

3. Manual CD

4. Power Adapter

5. 4 x Foot Pads

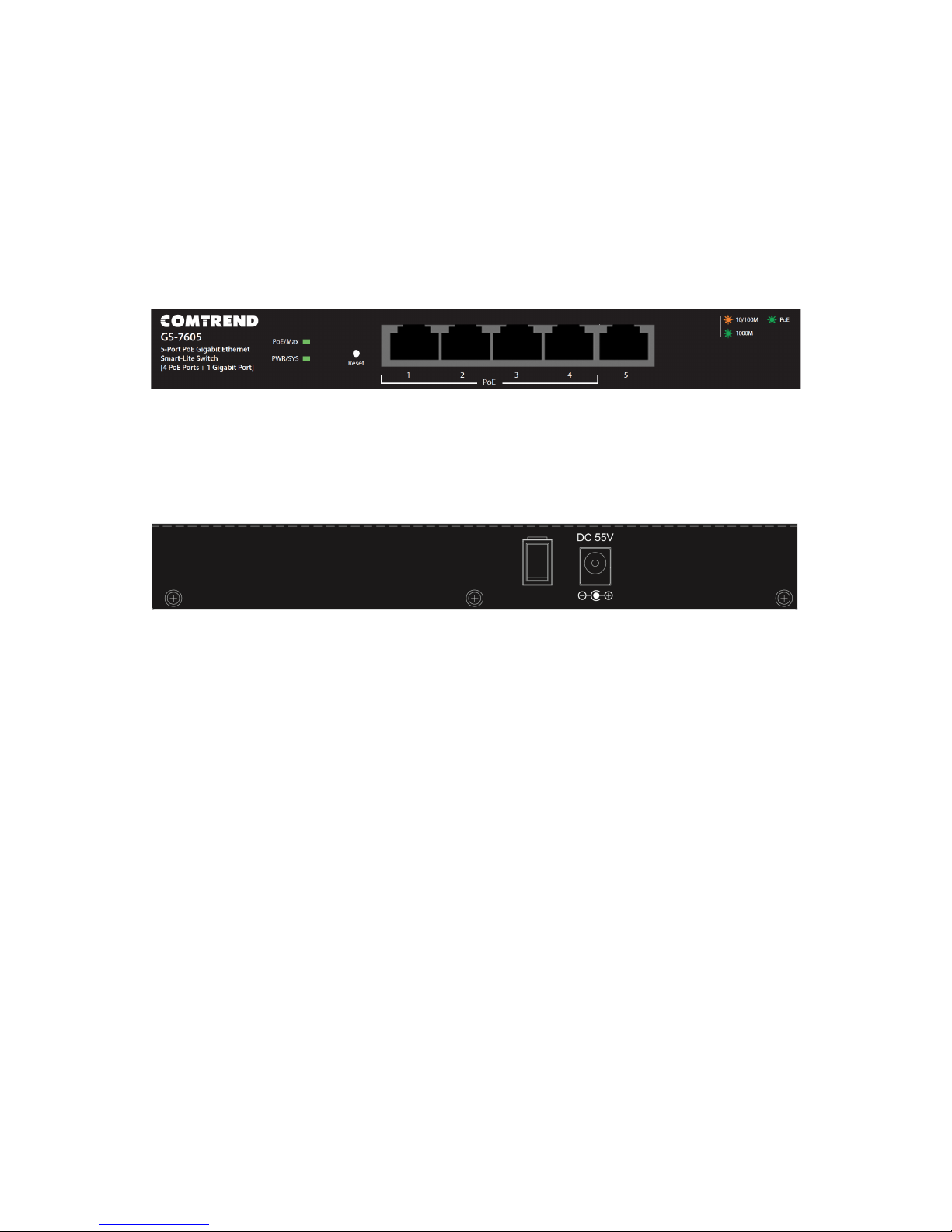

I-2. Hardware Overview

Front Panel

The front panel of the switch consists of:

•5 x 10/100/1000Mbps RJ-45 Ports

oPorts 1-4 are PoE Capable

•A Series of LED Indicators

Rear Panel

The rear panel of the switch features the AC power connector

I-3. LED Indicator

Power/SYS:

LED Status

Mode

Description

Green

Power on

Blinking

System boot-up

Off

Power off or fail

Link/ACT:

LED Status

Mode

Description

Green

On/Blinking

1000Mbps

connected/data

transmitting

Amber

On/Blinking

10/100Mbps

connected/data

transmitting

Off

Disconnected or fail

PoE Max:

LED Status

Mode

Description

Green

PoE power output is over

55W PoE power budget

Off

PoE power output is

under 55W PoE power

budget

PoE:

LED Status

Mode

Description

Green

PoE power output is on

Off

PoE power output is off

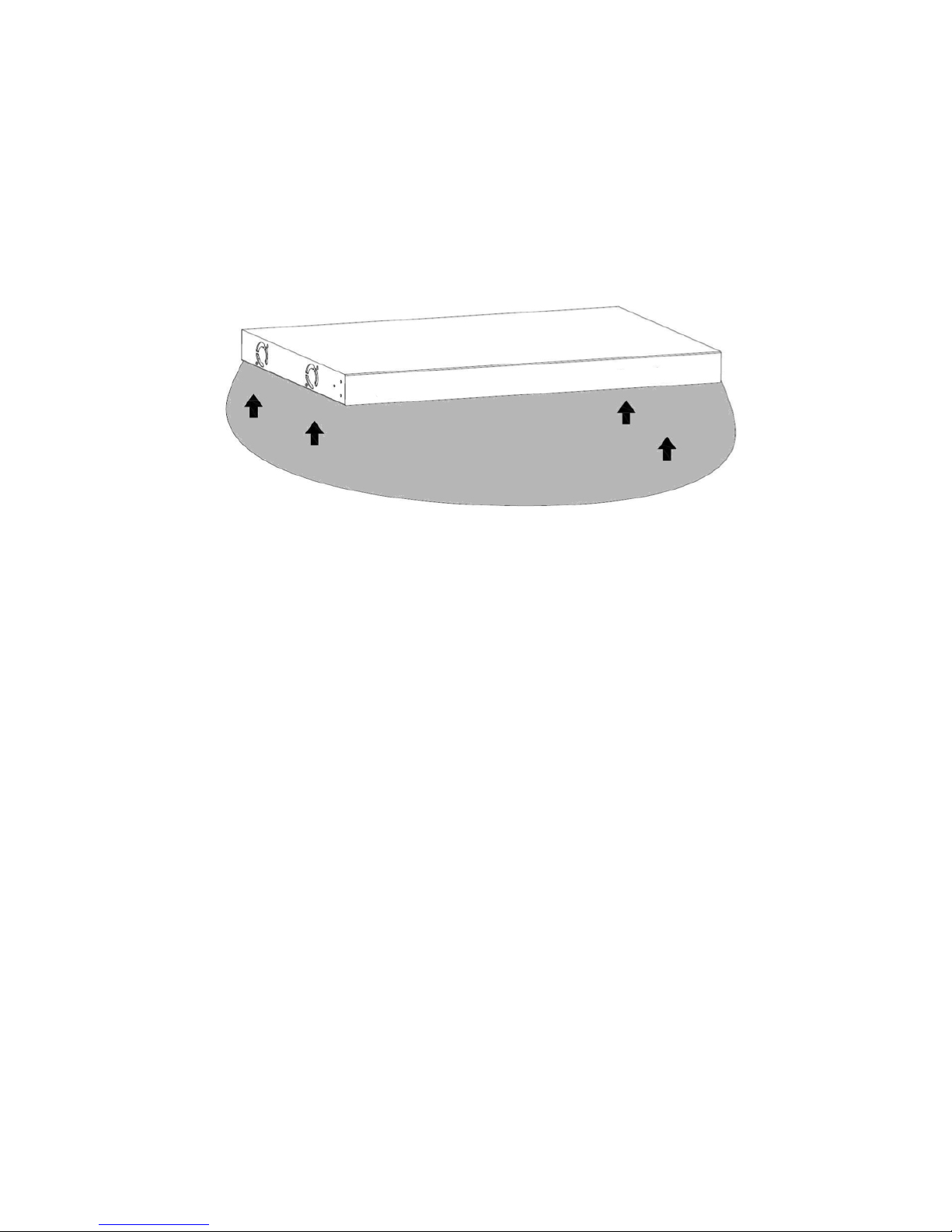

I-4. Desktop Installation

Install the switch on a desktop by attaching the cushioning rubber feet to

the bottom corners of the switch to protect against external vibration. Allow

adequate space for ventilation between the device and any objects

around.

II. Quick Setup

II-1. Switch to End Device

1. Connect the switch to local power with the included power cable.

2. Use a standard Cat 5/5e Ethernet cable to connect the switch to end

devices as shown below. Switch ports will automatically adjust to the link

rate of the device to which it’s connected.

Optionally, any port can be used to uplink to an existing network.

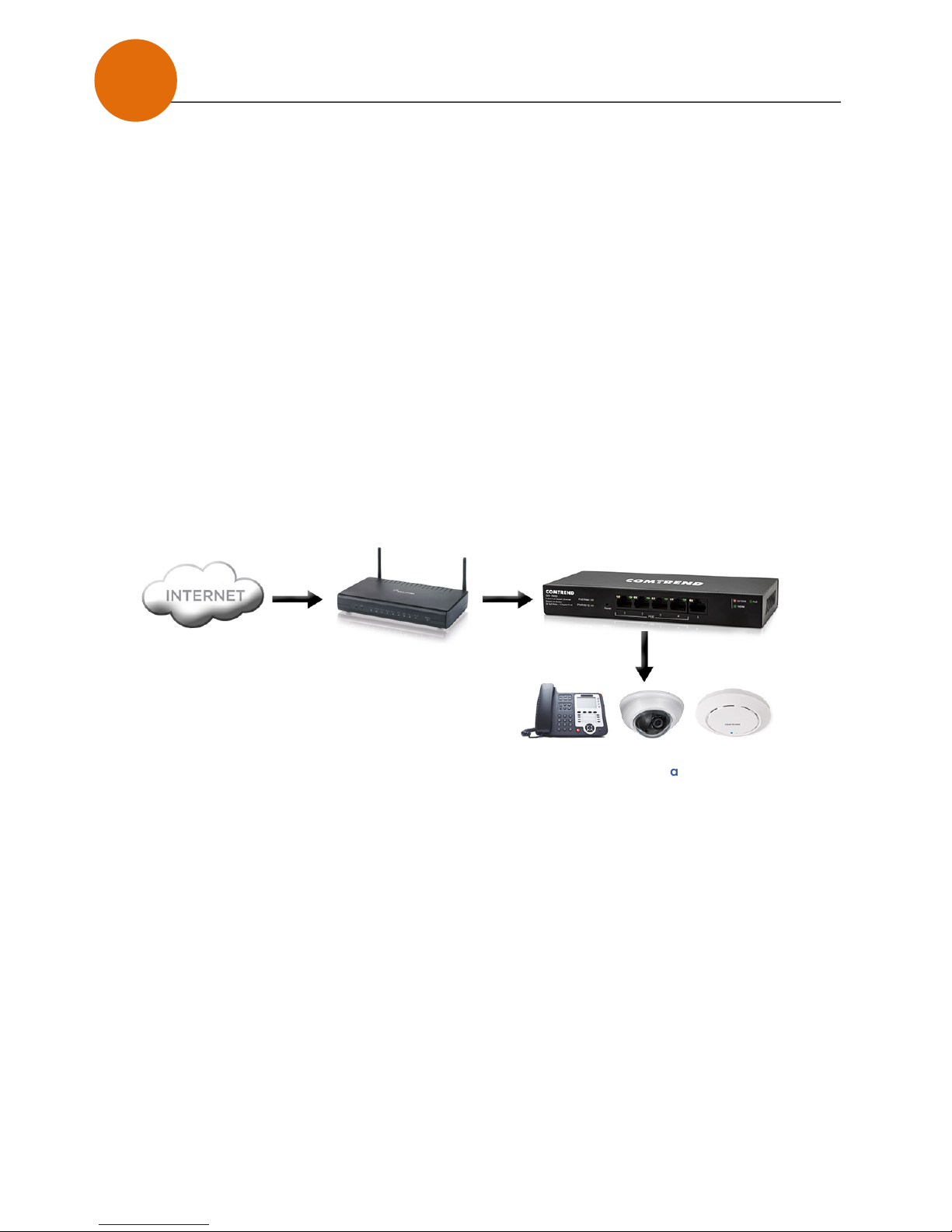

Application Diagram

Gateway

VoIP

Phone

Camera

Access

Point

Switch

II-2. Login

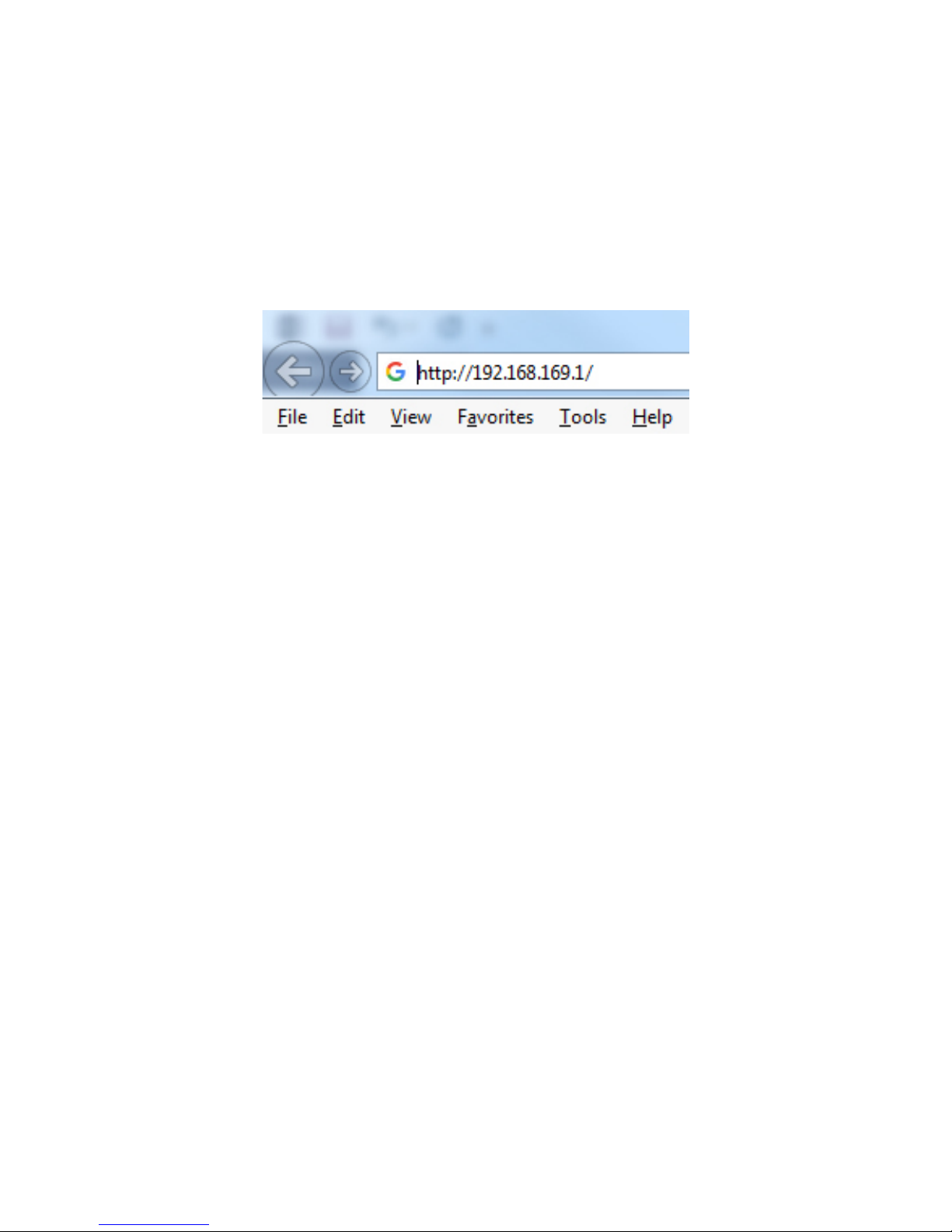

1. Open a web browser and go to the switch’s IP address.

2. Enter the access point’s default IP address 192.168.169.1 into the URL bar

of a web browser.

3. You will be prompted for a password. Enter the default password

“admin”.

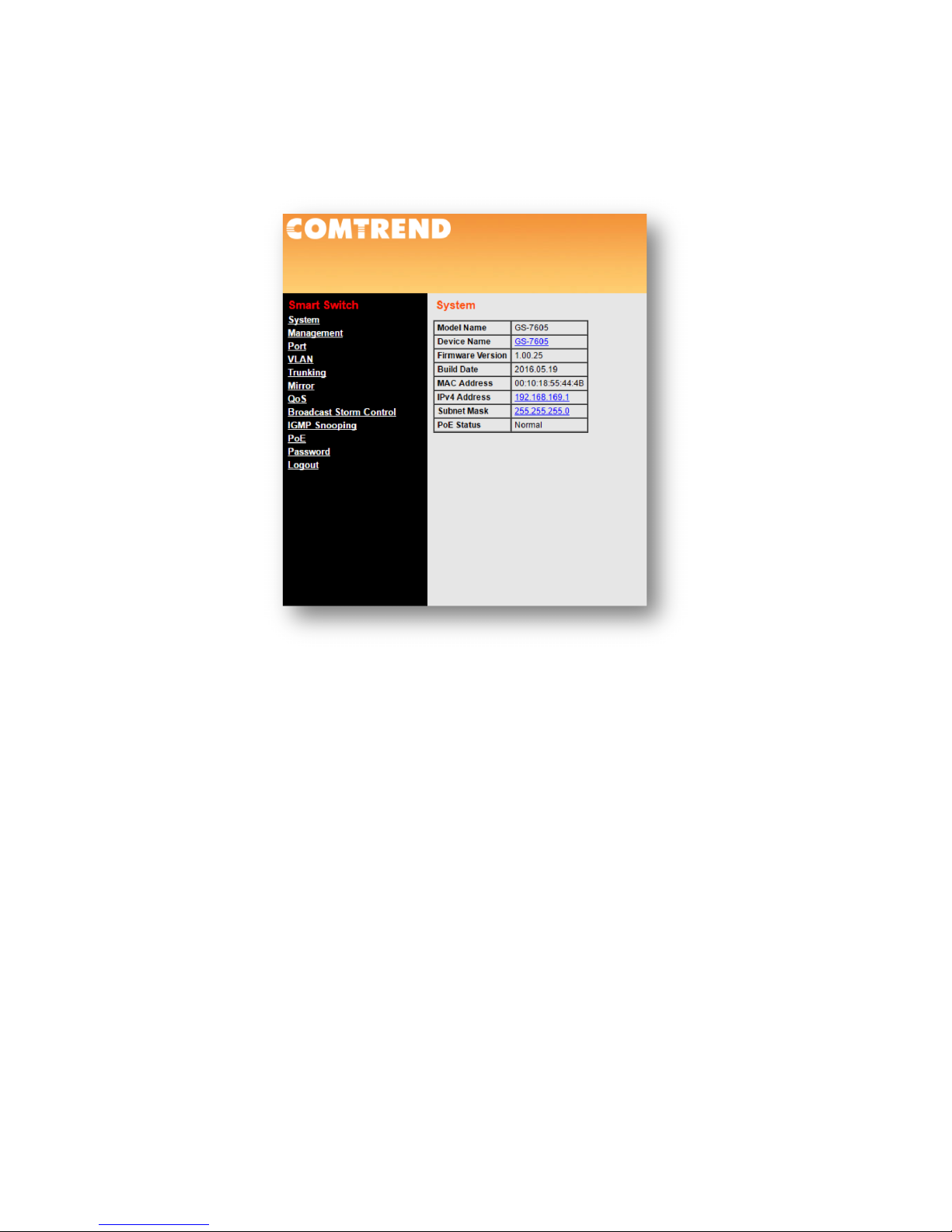

4. You will arrive at the switch configuration window as shown below:

FOR MORE HELP: For instructions on advanced features, FAQ, etc., please visit

our online Product Webpage.

Your Device is Now Connected!

For more information:

YouTube: https://www.youtube.com/user/ComtrendConnection

Facebook: https://facebook.com/Comtrend

Website: http://us.comtrend.com/

Support: Visit our website or call 1-877-COMTREND (1-877-266-8736)
