Comdial R DSU Manuel utilisateur

DSU and DSU II Series

Digital Telephone Systems

Non-LCD Station User’s Guide

ABC

1 3

DEF

MNO

JKL

GHI

PRS

TUV

WXY

#0*

SPEAKER

MESSAGE

TRNS/CONF

HOLD

MUTE

TAP

MUTESHIFT

SPEAKER

INTERCOM

TRNS/CNF

TAP

HOLD

OPER

TUVPRS WXY

DEFABCQZ

MNOJKLGHI

87 9

321

654

MUTE

SHIFT

SPEAKER

INTERCOM

TRNS/CNF

TAPHOLD

OPER

TUVPRS WXY

DEFABCQZ

MNOJKLGHI

87 9

321

●

This user’s guide applies to the following system and

telephone models:

System Models:

•DSU systems with software 20A and later.

•DSU II systems with software 4A and later.

Telephone Models:

•Impact SCS 8212S-** Rev. A and later.

•Impact SCS 8212N-** Rev. A and later.

•Impact 8124S-** Rev. A and later.

•Impact 8112S-** Rev. A and later.

•Impact 8112N-** Rev. A and later.

If you need more information, consult the Speakerphone

Reference Manual.

Contact your Comdial dealer for updates of this as well as

other Comdial publications.

Comdial strives to design the features in our communications systems to

be fully interactive with one another. However, this is not always possible,

as the combinations of accessories and features are too varied and extensive

to insure total feature compatibility. Accordingly, some features identified

in this publication will not operate if some other feature is activated.

Comdial disclaims all liability relating to feature non-compatibility or

associated in any way with problems which may be encountered by

incompatible features. Notwithstanding anything contained in this

publication to the contrary, Comdial makes no representation herein as to

the compatibility of features.



2/12/97

* Tri-Level Compression is

a registered trademark of

ACS Wireless, Inc.

Contents

1Introducing The Telephone ........................... 1–1

1.1 UsingThisGuide ............................... 1–1

1.2 Overview...................................... 1–3

1.3 Using Your Speakerphone......................... 1–4

1.4 Knowing Your Telephone’s Functions ............... 1–8

1.5 UnderstandingWhatTheLightsMean.............. 1–10

1.6 UnderstandingWhatTheRingsMean.............. 1–11

1.7 AdjustingYourTelephone’sPedestal............... 1–12

2AnsweringCalls..................................... 2–1

2.1 AnsweringCalls................................ 2–1

2.3 Answering Subdued Off-Hook

VoiceAnnouncement(SOHVA)Calls............... 2–2

3MakingCalls....................................... 3–1

3.1 MakingCalls................................... 3–1

3.2 UsingAutomaticCall-Back....................... 3–4

3.3 UsingCallWaiting.............................. 3–4

4PlacingCallsOnHold................................ 4–1

4.1 PlacingCallsOnHold............................ 4–1

5TransferringCalls................................... 5–1

5.1 TransferringOutsideCalls........................ 5–1

6ConferencingCalls.................................. 6–1

6.1 ConferencingStationsTogether.................... 6–1

GCA70–248 Contents

Contents – 1

7Using The Other Telephone Features................... 7–1

7.1 UsingTheRecall/FlashFeature.................... 7–1

7.2 MakingAPagingAnnouncement................... 7–1

7.3 SwitchingBetweenPulseAndTone................. 7–3

7.4 ForwardingCalls................................ 7–3

7.5 Activating The Call Forward Outside System (CFOS)

Feature........................................ 7–4

7.6 EngagingAutomaticSetRelocation................. 7–5

7.7 UnderstandingTheDataButtonLight............... 7–6

7.8 Using The IMIST Module......................... 7–7

7.9 Background Music .............................. 7–8

7.10 Using The Dynamic Line Button Feature............. 7–8

8Sending And Receiving Non-Verbal Messages ........... 8–1

8.1 LightingTheMessage-WaitingLight................ 8–1

8.2 SendingMessages To LCD Speakerphones ........... 8–3

8.3 Station-To-StationMessaging...................... 8–3

9ProgrammingYourTelephone........................ 9–1

9.1 ProgrammingYourTelephone...................... 9–1

10 Operating Your Telephone With A DSS/BLF Console . . . 10–1

10.1 Operating Your Telephone With A DSS/BLF Console. . 10–1

11Troubleshooting Your Telephone ..................... 11–1

ndex .............................................Index–1

uickReferenceGuide.....................QuickReference–1

Contents GCA70–248

2–Contents

IntroducingTheTelephone

1.1 Using This Guide

This user’s guide describes your Comdial Impact telephone and tells you

how to use it. The sections in this introductory chapter help you become

familiar with your telephone’s controls and indicators. The remaining

sections are titled as follows:

1.2 Overview

1.3 Using Your Speakerphone

1.4 Knowing Your Telephone’s Functions

1.5 Understanding What The Lights Mean

1.6 Understanding What The Rings Mean

1.7 Adjusting Your Telephone’s Pedestal

The operation chapters define often-used features and provide

instructions for their use. These chapters are titled as follows:

2 Answering Calls

3MakingCalls

4 Placing Calls On Hold

5 Transferring Calls

6 Conferencing Calls

The special-purpose features of the telephone are grouped into one

chapter:

7 Using The Other Telephone Features

Your telephone provides several non-verbal way to communicate using

lights and indicators. The descriptions of these methods are provided in a

separate chapter titled:

8 Sending And Receiving Non-Verbal Messages

GCA70–248 Introducing The Telephone

Non-LCD Station User's Guide 1 – 1

You can program many of the buttons on your telephone to enhance the

unit’s versatility and usability. These programming instructions are found

in the following chapter:

9 Programming Your Telephone

Two DSS/BLF consoles are available for expanding a station’s memory

button capacity—a 24-button and a 48-button model. The operation of

these consoles is covered in the following chapter:

10. Operating Your Telephone With A DSS/BLF Console

For your convenience, a troubleshooting chart is provided in the

following chapter:

11 Troubleshooting Your Telephone

There is a quick reference chart listing the feature dialing codes in the

following chapter:

AppendixA Quick Reference Guide

Introducing The Telephone GCA70–248

1 – 2 Non-LCD Station User's Guide

1.2 Overview

This user’s guide covers five different telephone models. There are

several differences as noted below.

•The 8112N and 8212N do not have speakerphone capability.

Therefore, you must lift the handset to perform any telephone

functions: making calls, answering calls, programming your

telephone, etc.

•The 8112N and 8212N cannot receive voice announce calls.

•The 8112N and 8212N cannot use the Group Listen feature.

•The 8112N and 8212N cannot use the Background Music feature.

•The 8112N does not have any LEDs beside its programmable

buttons and therefore does not provide any status indications for

these buttons.

•The 8112N does not have a mute key.

•The 8112N and 8212N does not have a handset volume control.

•The IMIST device only works with the 8212S and 8212N telephones.

•The 8124S and 8112S telephones have a rocker switch style volume

control instead of separate volume up and volume down buttons.

•Message waiting lights:

–On the 8124S and 8112S, the message waiting light is above the

HOLD button.

–On the 8112N, the message waiting light is above the dialpad.

–On the 8212S and 8212N there is a dedicated message button with

an associated light beside it.

•Only the 8212S and 8212N support the ICVOL handset with

independent volume control.

•8212S and 8212N have adjustable pedestals.

GCA70–248 Introducing The Telephone

Non-LCD Station User's Guide 1 – 3

1.3 Using Your Speakerphone

On the speakerphone-equipped models (8124S-**, 8112S-**, and

8212S-**) the microphone and loudspeaker are farther away from you

than when you use a handset. Both the signal from the loudspeaker and

the signal to the microphone must be strengthened. When microphones

and loudspeakers are close together (such as in a speakerphone),

additional amplification typically generates a ringing sound (public

address systems do this if the volume is too high or the microphone is

too close to a loudspeaker).

Your speakerphone’s sound-activated switches allow either the

microphone or the loudspeaker to be on at a given time. This means that

sounds travel in only one direction at a particular moment.

•To manually place a call using your speakerphone,

1. Press the line button or the INTERCOM button.

2. Dial the number.

3. When party answers, speak toward the telephone.

•To autodial using your speakerphone,

1. Press the programmed button and talk when your party

answers.

•To answer a call with your speakerphone,

1. Press the line button with flashing red or orange light.

2. Speak toward the telephone to answer the call.

•To answer an intercom call with your speakerphone,

1. Press the INTERCOM button and speak toward the telephone

after hearing two short rings,

—OR—

If your system is configured for voice-first calling, speak to-

ward the telephone to answer the call after hearing the caller’s

voice.

•To end a call with your speakerphone,

1. Press SPEAKER.

Introducing The Telephone GCA70–248

1 – 4 Non-LCD Station User's Guide

Speakerphone User Guidelines

•Both parties cannot talk at the same time. You must wait for

silence out of your loudspeaker before talking. You must stop

talking to hear the other party.

•Background noise may prevent the sound-activated switches from

operating properly. Avoid placing the speakerphone where it will

detect sounds from typewriters, keyboards, printers, paging

systems, and other equipment.

•Speak slightly louder than normal and with a clear, authoritative

voice. For the microphone to best detect your voice, speak within

three feet of it and face the telephone.

•Raising the volume of the loudspeaker makes it easier for the

sound-activated switches in your telephone to select the distant

party’s voice. Lowering the volume of the loudspeaker makes it

easier for the switches to select your voice.

•Since the system takes several seconds to provide the best

switching, constant sound patterns—such as elongating your

words and playing externally-supplied music—may prevent the

sound-activated switches from operating properly.

•Place the telephone on a hard surface and away from table edges.

Do not place the telephone in corners or enclosures. Do not let

obstructions come between you and the microphone. Rooms with

hard, flat surfaces that reflect sound may affect the

sound-activated switches.

•If you are using a handset and the other party is using a

speakerphone, avoid breathing heavily into your microphone.

Avoid other sounds that may affect the distant telephone’s

sound-activated switches.

•In some situations, such as when either you or the distant party

are in a noisy environment, you may have to lift your handset to

ensure a clear conversation.

•When both you and the distant party use speakerphones, the

sound-activated switches can occasionally detect both voices

simultaneously, thus blocking out both voices.

GCA70–248 Introducing The Telephone

Non-LCD Station User's Guide 1 – 5

ABC

1 3

DEF

MNO

JKL

GHI

PRS 8

TUV 9

WXY

#0*

SPEAKER

MESSAGE

TRNS/CONF

HOLD

MUTE

TAP

Message Button

TAP Button

Transfer/Conference Button

Speaker Button

Mute Button

Hold Button

Dialpad

Line Buttons,

DSS/BLF Buttons

Programmable Buttons

Telephone Speaker

Handset

Volume Down

SCS001A

Volume Up

Microphone Opening

Intercom Button*

*NOTE: The INTERCOM button

can be reprogrammed..

Connectors On Bottom Of Telephone

Optional IST Module

Handset

Optional Console-Top

Line Cord-Bottom

ABC

1 3

DEF

MNO

JKL

GHI

PRS

TUV

WXY

#0*

SPEAKER

MESSAGE

TRNS/CONF

HOLD

MUTE

TAP

Message Button

TAP Button

Transfer/Conference Button

Mute Button

Hold Button

Dialpad

Line Buttons,

DSS/BLF Buttons

Programmable Buttons

Handset

Volume Down

SCS002A

Volume Up

Intercom Button

Connectors On Bottom Of Telephone

Optional IST Module

Handset

Line Cord

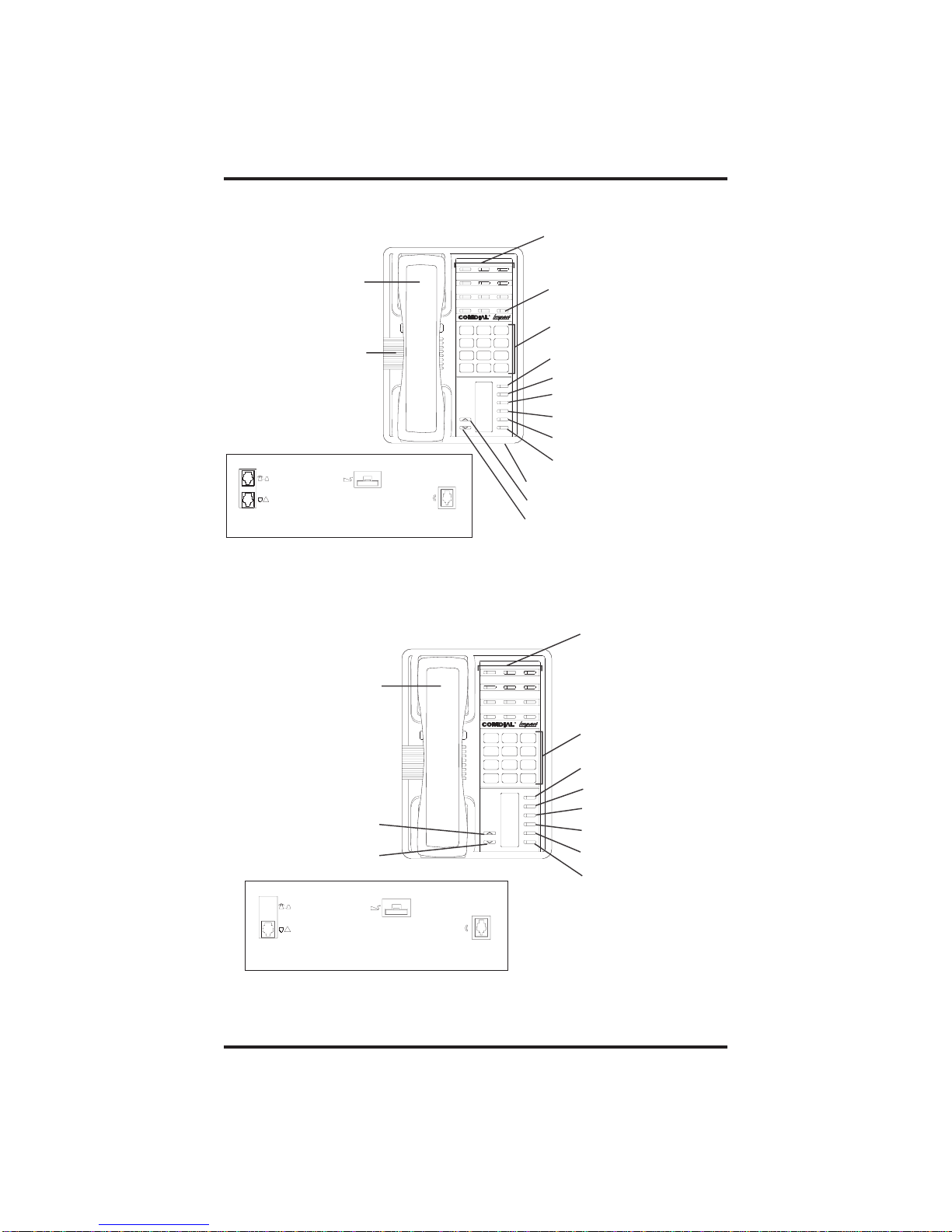

8212N Telephone

8212S Speakerphone

Introducing The Telephone GCA70–248

1 – 6 Non-LCD Station User's Guide

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Comdial Téléphone

Comdial

Comdial MP5000 Manuel utilisateur

Comdial

Comdial 8412F Manuel utilisateur

Comdial

Comdial GCA70-33 Manuel utilisateur

Comdial

Comdial Conversip EPI00G-L12 Manuel utilisateur

Comdial

Comdial DX-80 Manuel utilisateur

Comdial

Comdial Executech Single Line Telephone Manuel utilisateur

Comdial

Comdial X34PT Manuel utilisateur

Comdial

Comdial Quick Q Manuel utilisateur

Comdial

Comdial GCA70-25 Manuel utilisateur

Comdial

Comdial DXP Plus Series Manuel utilisateur

Comdial

Comdial DSU Series Manuel utilisateur

Comdial

Comdial DSU II Series Guide de l'utilisateur

Comdial

Comdial Impression 2022S series Manuel utilisateur

Comdial

Comdial Impact SCS 8324F Series Manuel utilisateur

Comdial

Comdial DXP Digital Communications System Manuel utilisateur

Comdial

Comdial DXP Digital Communications System Manuel utilisateur

Comdial

Comdial DigiTech 7700S Series Manuel utilisateur

Comdial

Comdial DigiTech 7700S Series Manuel utilisateur

Comdial

Comdial DXP Plus Series Manuel utilisateur

Comdial

Comdial HoTelephone 3910S Manuel utilisateur

Comdial

Comdial DXP Digital Communications System Manuel utilisateur

Comdial

Comdial 1432B Manuel utilisateur

Comdial

Comdial Executech Single Line Telephone Manuel utilisateur

Comdial

Comdial GCA70-239 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
