Shuttle™Infant Car Seat

INSTRUCTION MANUAL

WARNING

• Correct installation and use

can be a matter of life or death!

• Read and understand these

instructions before using this

car seat.

•Certified for use in motor vehicles

and aircraft.

•Meets or exceeds all applicable

requirements of Federal Motor

Vehicle Safety Standard 213.

Para instrucciones en Español,

llamar al: 1-800-992-6624

or log onto www.combi-intl.com

Shuttle 8087 Series

22 lbs. or less

(10 kg o menos)

Keep this instruction manual for future use.

Store in the pocket at the back of the infant car seat.

SICS 09/07

Hole Punch ONLY - DO NOT Print Lines Or These Words

Combi USA • 1962 Hwy 160 West, Suite #100 • Fort Mill, SC 29708

• For technical questions, call 1-800-992-6624

• Se Habla Español 1-803-548-6633 • Fax 1-803-548-3663

• 8:30 a.m. - 5:00 p.m. Eastern Time • Monday - Friday

• www.combi-intl.com

Instruction

Storage Pocket

Failure to follow the information in these instructions, and on the car

seat labels, can result in injury or death to a child due to the child

striking the vehicle's interior during a sudden stop or crash.

•Use only in a rear-facing position when using this infant car seat in

a vehicle. Serious crippling injury or death can result if infant faces

front of vehicle.

•Use only with children who weigh 22 pounds (10 kg) or less and

whose height is 29 inches or less (74 cm).

•Shoulder straps MUST pass through shoulder strap slots located

at or below the top of the infants shoulders.

•Discontinue use when infant’s weight exceeds 22 lb. (10 kg).

•Discontinue use of infant car seat when top of the infant's head

is above the top of the car seat backrest.

•Snugly adjust car seat harness around infant. Infant MUST be

secured by harness system at all times, both when car seat is

used in vehicle, and when car seat is used outside of vehicle.

•Fall Hazard: Handle MUST be locked in carry position before lifting or

carrying car seat. DO NOT lift or carry car seat by anti-rebound bar.

•If used with car seat base, secure base with the LATCH anchorage

system if available in the vehicle or with a vehicle seat belt as shown

in this manual.

•If using the infant car seat without the base, secure with a vehicle

seat belt as shown in this maual.

•LATCH belt or vehicle seat belt MUST stay tightly adjusted around

the car seat at all times.

•Secure the base and car seat, or infant car seat only, to the vehicle

even when not occupied. Unsecured items may injure other

occupants in a crash.

•DO NOT allow any re-use of this car seat after a crash unless crash

and car seat meet ALL conditions in "Re-use after a crash" section

in this manual.

•DO NOT use the infant car seat if it is damaged, has missing parts,

or missing instructions.

Section 1 - Warnings 2

Section 1 - Warnings

WARNING DEATH or SERIOUS INJURY can occur

Section 1. Warnings...............................................................................1 - 2

Section 2. Contents...............................................................................3 - 4

Section 3. Shuttle Infant Car Seat and Base Parts...............................5 - 8

Section 4. Proper Use Check List..............................................................9

Section 5. Assistance...............................................................................10

Section 6. Use Recommendations...........................................................11

Section 7. Securing Infant in Car Seat..............................................12 - 18

Section 8. Selecting A Vehicle Seating Location...............................19 - 21

Section 9. Installing the Infant Car Seat - General Information........ 22 - 25

Section 10. Installing the Infant Car Seat Base with LATCH ............ 26 - 28

Section 11. Installing the Infant Car Seat Base with Vehicle Belts.... 29 - 33

Section 12. Attaching Infant Car Seat to Base.......................................... 34

Section 13. Installing the Infant Car Seat without the Base .............. 35 - 38

3 4

Section 2 - Contents

Section 14. Vehicle Belt Systems........................................................39 - 44

Section 15. Stroller, Travel System and Airplane Use..........................45 - 46

Section 16. Accessories.......................................................................47 - 49

Section 17 Other Uses................................................................................50

Section 18. Care & Cleaning.......................................................................51

Section 19. Additional Information.............................................................52

Section 20. Re-Use After A Crash...............................................................53

Section 21. Registration Information...........................................................54

Section 22. Replacement Parts...................................................................54

Section 2 - Contents

Proper Use Is Required:

No car seat can guarantee protection from injury

in every situation, but proper use helps reduce the

risk of serious injury or death.

Carry Handle Adjustable Headrest

(not all models)

Harness Buckle

and Tongues

Harness Adjuster

Button

Harness

Adjuster Strap

Handle

Release Button

Chest Clip

Vehicle Lap

Belt Slots

(Under Covers)

Stroller Latch

Shoulder Strap

Slot

Crotch Pad

Optional

Anti-Rebound Bar

(not all models)

Release Handle

for Stroller and

Base

Locking Clip

Storage Position

Metal

Harness Plate

Base Latch

Instruction

Storage Pocket

Canopy

Attachment

Points

Headrest

Adjuster Knob

Section 3 - Shuttle Infant Car Seat and Base Parts 6

Section 3 - Shuttle Infant Car Seat and Base Parts

Infant Car Seat (Front) Infant Car Seat (Back)

Shoulder Strap

Infant Insert

(not all models)

LATCH lower anchor

strap (stored in pocket

in Recline Foot).

Adjustable

Recline Foot

Adjustment

LATCH

adjuster

LATCH

Connector

Vehicle Belt

Path

Vehicle Belt

Locking Clip

Level Indicator

Car Seat

Latching Points

Vehicle Belt

Routing Tabs

LATCH

Connector

Recline Foot

retaining catch

(behind flap)

Section 3 - Shuttle Infant Car Seat and Base Parts 8

Section 3 - Shuttle Infant Car Seat and Base Parts

Infant Car Base (Back) Infant Car Base (Top)

WARNING: AIR BAGS

•Do not use this infant car seat in a vehicle front seating location

with an air bag. Child's head and back may be seriously injured when

an inflating air bag hits back of car seat.

• Owners of vehicles with front passenger side air bags should refer to

their vehicle owner’s manual for child restraint installation instructions.

•Proper use is required. Read and understand the instructions and

car seat labels.

•Use this infant car seat rear-facing only.

•Snugly adjust harness straps around infant.

•Securely install the car seat with LATCH system, or vehicle seat belt

as specified in this instruction manual.

•Secure the children in back seat whenever possible.

Never leave child unattended.

•Do not allow anyone (babysitters, relatives etc) to use the car seat without

first reading and understanding all the instructions and car seat labels.

WARNING DEATH or SERIOUS INJURY can occur

Section 4 - Proper Use Check List 10

Section 5 - Assistance

NEED HELP?

Contact Combi USA Consumer Service or one of the following sources:

•Your vehicle dealer to locate a child safety seat Inspection station in

your area.

•Call 1-866-SEAT CHECK (1-866-732-8243).

•Log onto www.nhtsa.dot.gov

- For a car seat inspection station select “Locate a Child Safety

Seat Inspection Station By State or Zip Code”.

- To locate a certified “Child Passenger Safety” Technician in

your area, select tab “Vehicles & Equipment”, select topic

“Child Seats’ and then select link “Child Passenger Safety

Contact Locator” or “Child Passenger Safety Seat Inspection

Station Locator”.

•Visit www.seatcheck.org.

Section 6 - Use Recommendations 12

Section 7 - Securing Infant In Car Seat

Height and Weight Limits:

This infant car seat is designed for

rear-facing use only.

Use this car seat for infants whose:

- Weight is 22 lbs. (10 kg) or less and

- Height is 29 inches (74 cm) or less.

Shoulder straps must pass through

shoulder strap slots located at or below

the top of the infants shoulders.

Infants With Special Needs

A preterm infant or low birth weight infant may be at special risk traveling

reclined in a vehicle or aircraft. According to the American Academy of

Pediatrics, these infants may be at increased risk of suffering breathing

or other difficulties if improperly reclined or positioned in a car seat.

Have your physician or hospital staff evaluate your infant in this car seat

before you and your infant leave the hospital. If your infant is not able to

travel in a reclined position, DO NOT use this car seat. Use a car bed for

your infant.

Shoulder Straps close to top of

infant's shoulders

Chest Clip at correct height

and fastened

Harness Buckle

securely fastened

Harness pulled

up to a secure

and firm fit

Straps not

twisted

Infant's body in

full contact with

car seat

Infant dressed in

clothes that allow the

harness to pull firmly

on child's body

If infant's head is above top

of car seat, infant is too big

for this car seat.

OVERVIEW

CAUTION: After reading this page, read the following detailed instructions carefully

Shoulder Straps snug

fit on infant

Use only with children who weigh 22 lbs. (10 kg) or less

and whose height is 29 inches (74 cm) or less.

Section 7 - Securing Infant In Car Seat 14

Section 7 - Securing Infant In Car Seat

•When the infant is in the car seat, ALWAYS secure with the harness

and adjust the harness to a snug (not loose) fit.

•Shoulder straps MUST pass through shoulder strap slots located

at or below the top of the infants shoulders.

• Child must be dressed in clothing with arms and legs that will not

interfere with buckling, snugly adjusting or positioning harness.

• DO NOT use accessories other than those provided by Combi USA

Inc. Use of accessories from other manufacturers may alter the

performance of the car seat.

• Never leave infant unattended, even when sleeping.

• Suffocation Hazard: Infant Car Seat can roll over on soft surfaces

and suffocate child. NEVER place infant car seats on beds, sofas

and other soft surfaces.

• Strangulation Hazard: Child can strangle in loose harness straps.

NEVER leave child in car seat with straps that are loose or not

connected.

• Fall Hazard: Infant's movement may slide car seat. NEVER place

car seat near edge of table, countertop or other elevated surface.

WARNING DEATH or SERIOUS INJURY can occur

PRESS

PULL

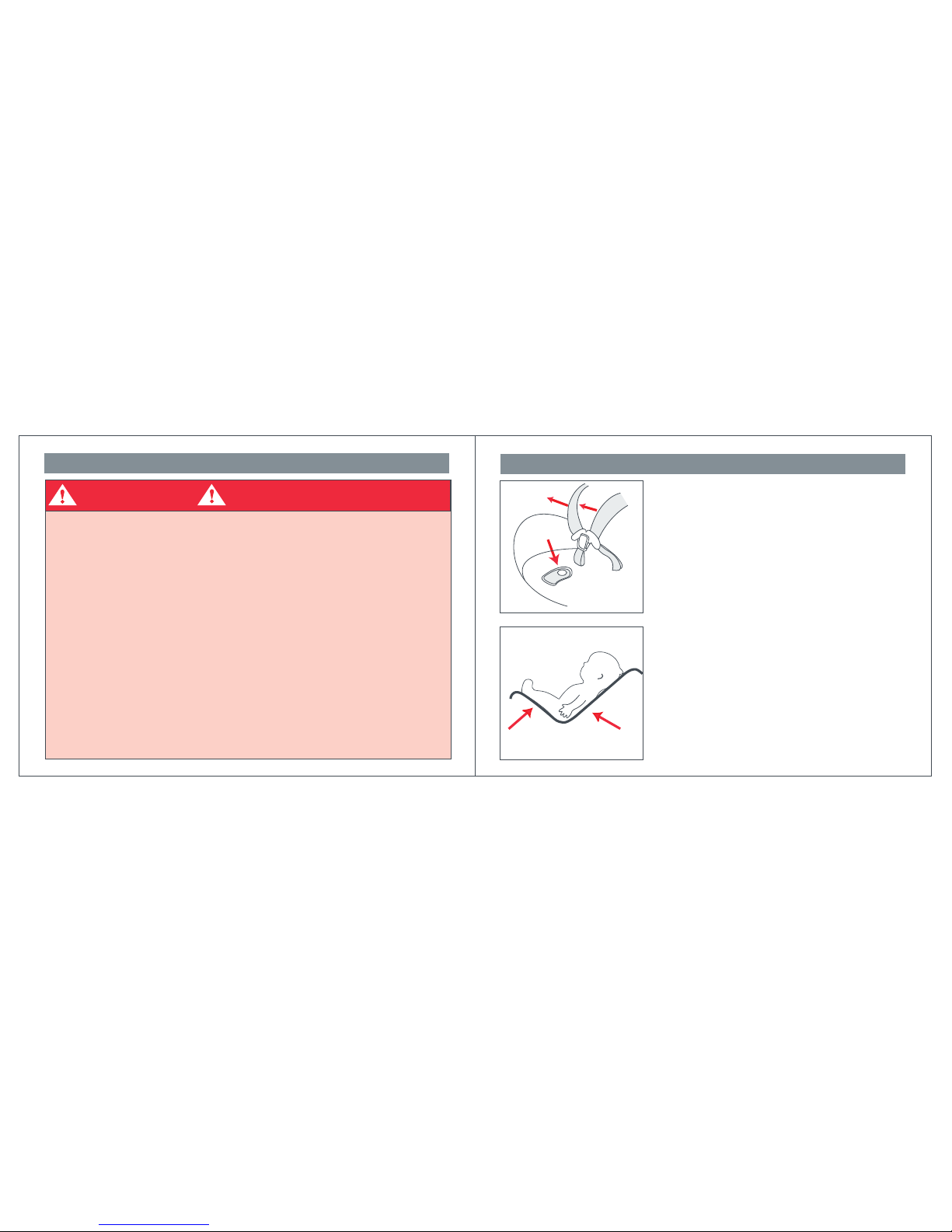

Place infant in car seat with back and rump

contacting seating surfaces.

Note where the top of the infant's shoulders

are located relative to shoulder strap slots.

Loosen harness by pressing Harness Adjuster

Button and pulling the shoulder straps

outwards.

To open harness press red button on buckle.

NOTE: On some models the Harness Adjuster

Button is under the cover or under a

flap of fabric.

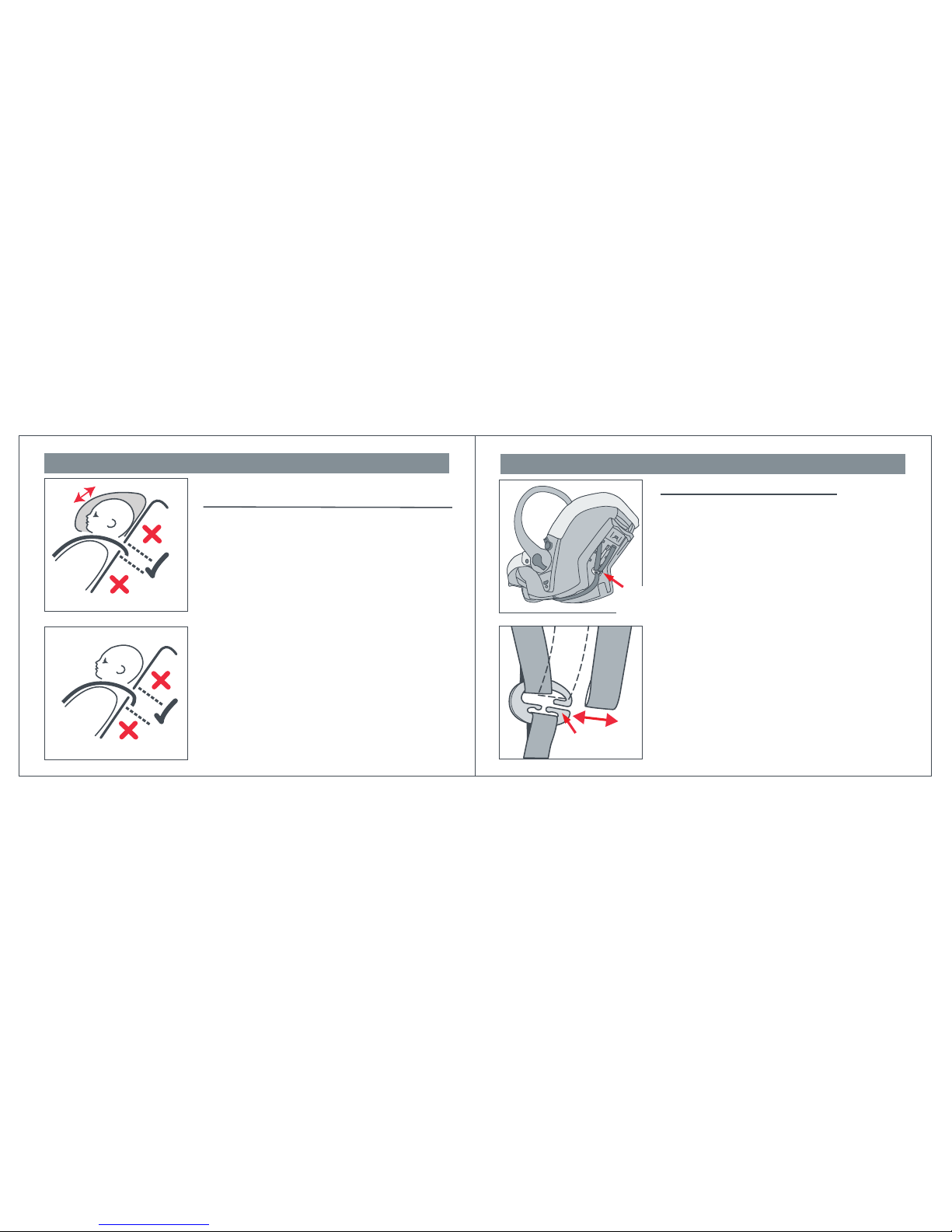

Non-Adjustable Headrest Models

The shoulder straps must pass through

shoulder strap slots in the car seat

backrest that are at or below the top

of the infant's shoulders.

CORRECT POSITIONING OF THE

SHOULDER STRAP HEIGHT IS IMPORTANT

Adjustable Headrest Models

Adjust the height of the Headrest to

a position that places shoulder belts

at or below the top of the infant's shoulders.

Changing Shoulder Strap Slots

(Non-Adjustable Headrest Models)

To change the height of the shoulder straps,

turn the car seat over and detach the straps

from the metal harness plate.

Reposition the shoulder straps as required

and reattach the shoulder straps.

Section 7 - Securing Infant In Car Seat 16

Section 7 - Securing Infant In Car Seat

IMPORTANT:

• Check that the shoulder straps are securely

attached to the metal harness plate.

• Check that shoulder straps are through

shoulder strap slots closest to and below

the top of the infant’s shoulder.

• Check that shoulder straps are through

matching slots of pad and seat back.

• Straps must not be twisted!

Metal

Harness

Plate

Metal Harness

Plate

Section 7 - Securing Infant In Car Seat 18

Section 7 - Securing Infant In Car Seat

Place harness straps over infants shoulders

and thighs, and secure the Harness Buckle.

The harness must be a snug (not loose) fit on

the infant.

A snug strap should not allow any slack. It lies

in a relatively straight line without sagging. It

does not press the infant's body into an

unnatural position.

To increase the tension of the harness, pull the

harness adjuster strap

IMPORTANT:

•You should hear a "click" as the buckle

tongues engage.

•Pull up on tongues to be sure they are

locked.

"CLICK"

The Chest Clip increases the safety of the

harness by holding the shoulder straps

together.

Position the Chest Clip at arm pit level

Always use the Chest Clip when the Infant is

secured by the harness.

For a small infant a rolled towel can be used

on each side for support. Towels must not

prevent the harness from being adjusted to a

secure fit on the infant.

DO NOT place towel or other items behind

the infant or between the infant and the

harness.

Press to release

Table des matières

Autres manuels Combi siège auto

Combi

Combi Everest 8400 Manuel utilisateur

Combi

Combi Zeus Turn 8815 Series Manuel utilisateur

Combi

Combi Cradling360 ISOFIX Manuel utilisateur

Combi

Combi Navette 22 8365 Series Manuel utilisateur

Combi

Combi SAVETREK Manuel utilisateur

Combi

Combi Centre EX 8086 Series Manuel utilisateur

Combi

Combi Coccoro 8220 Series Manuel utilisateur

Combi

Combi 8600 Series Manuel utilisateur

Combi

Combi Victoria 8850 Manuel utilisateur

Combi

Combi Kobuk Manuel utilisateur

Combi

Combi Combi Connection 8040 Series Manuel utilisateur

Combi

Combi Kobuk Air-Thru 8970 Series Manuel utilisateur

Combi

Combi Neosis First 2.5 EG Manuel utilisateur

Combi

Combi EGGSHOCK Manuel utilisateur

Combi

Combi Coccoro 8220 Series Manuel utilisateur

Combi

Combi Centre DX 8074 Series Manuel utilisateur

Combi

Combi Avatar 8100 Series Manuel utilisateur

Combi

Combi Apogee 8200 Series Manuel utilisateur

Combi

Combi Shuttle 33 8097 Series Manuel utilisateur

Combi

Combi Combi Connection 8040 Series Manuel utilisateur

Combi

Combi Cradling 360 ISOFIX Manuel utilisateur

Combi

Combi Dakota 8820 Series Manuel utilisateur

Combi

Combi Shuttle 8035 Series Manuel utilisateur

Combi

Combi Dakota 8820 Series Manuel utilisateur

Manuels siège auto populaires d'autres marques

Britax

Britax PARKWAY SGL Manuel utilisateur

JANE

JANE nurse cruiser Manuel utilisateur

Digicom

Digicom Tippy Pad Manuel utilisateur

Fisher-Price

Fisher-Price Futura 20/60 Manuel utilisateur

Giordani

Giordani orion 012 Manuel utilisateur

BRIO

BRIO ZENTO Manuel utilisateur

Graco

Graco Car Booster Seat Manuel utilisateur

Coccolle

Coccolle Atira Manuel utilisateur

hifold

hifold HF01-GL Manuel utilisateur

CYBEX

CYBEX SOLUTION X2-FIX Manuel utilisateur

kiwy

kiwy SLF 123 Manuel utilisateur

Safety 1st

Safety 1st Summit ISO 30 Manuel utilisateur

Safety 1st

Safety 1st Grand 2-IN-1 Manuel utilisateur

Graco

Graco NAUTILUS Manuel utilisateur

Britax

Britax Multi-Tech BB0-702-00 Manuel utilisateur

Grammer

Grammer MSG45/421 Mode d'emploi

Nuna

Nuna REBL PLUS Manuel utilisateur

Graco

Graco Child Restraint Manuel utilisateur
